2007 MERCEDES-BENZ R350 Owner's Manual

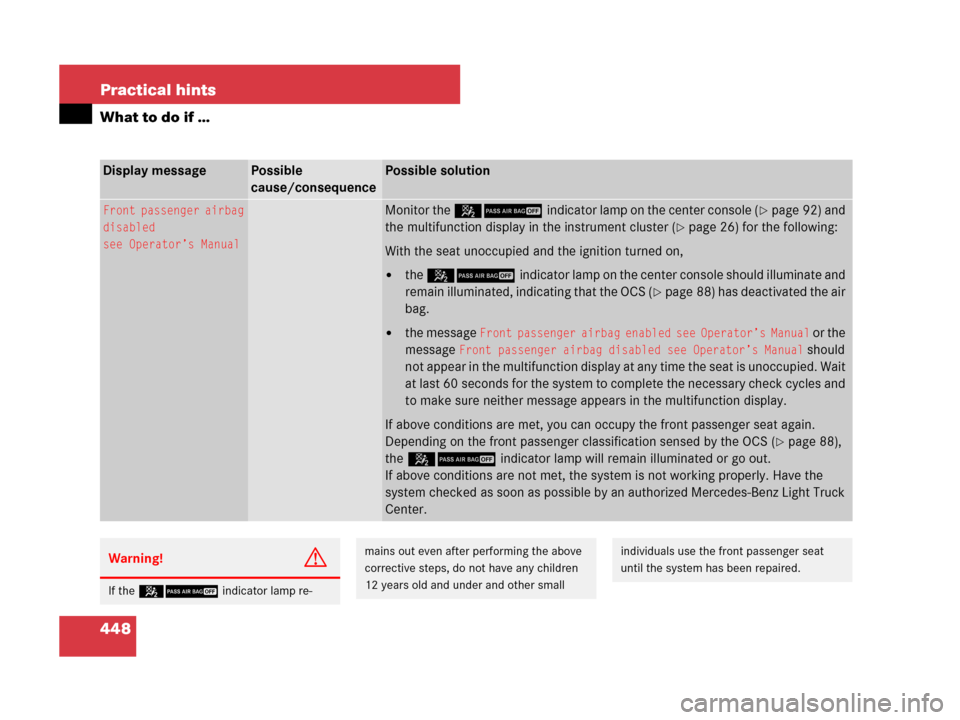

448 Practical hints
What to do if …
Display messagePossible
cause/consequencePossible solution
Front passenger airbag
disabled
see Operator’s ManualMonitor the 59indicator lamp on the center console (page 92) and
the multifunction display in the instrument cluster (
page 26) for the following:
With the seat unoccupied and the ignition turned on,

the 59indicator lamp on the center console should illuminate and
remain illuminated, indicating that the OCS (
page 88) has deactivated the air
bag.

the message Front passenger airbag enabled see Operator’s Manual or the
message
Front passenger airbag disabled see Operator’s Manual should
not appear in the multifunction display at any time the seat is unoccupied. Wait
at last 60 seconds for the system to complete the necessary check cycles and
to make sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again.
Depending on the front passenger classification sensed by the OCS (
page 88),
the 59indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the
system checked as soon as possible by an authorized Mercedes-Benz Light Truck
Center.
Warning!G
If the 59indicator lamp re-
mains out even after performing the above
corrective steps, do not have any children
12 years old and under and other small individuals use the front passenger seat
until the system has been repaired.

449 Practical hints
What to do if …
Display messagePossible cause/consequencePossible solution
Check tires
Then restart
Run Flat IndicatorThere was a warning message about
a loss in the tire inflation pressure
and the Run Flat Indicator has not
been reactivated yet.Make sure that the correct tire inflation pressure is set
for each tire.
Then reactivate the Run Flat Indicator (page 384).
Run Flat Indicator
inoperativeRun Flat Indicator is malfunctioning.Have the Run Flat Indicator checked by an authorized
Mercedes-Benz Light Truck Center.
Tire pressure
Check tiresThe Run Flat Indicator indicates that
the pressure is too low in one or more
tires.Carefully bring the vehicle to a halt, avoiding abrupt
steering and braking maneuvers. Observe the traffic
situation around you.
Check and adjust tire inflation pressure as required
(
page 382).
If necessary, replace the wheel (page 497).
Reactivate the Run Flat Indicator after adjusting the tire
inflation pressure values (
page 384).
Tire pressure
displayed after
driving for
a few minutesVehicles with Advanced TPMS*:
The tire inflation pressure is being
checked.Drive the vehicle for a few minutes.

450 Practical hints
What to do if …
Display messagePossible cause/consequencePossible solution
Tire pressure monitor
inoperativeThe TPMS or Advanced TPMS* is
malfunctioning.Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.
Tire pressure monitor
inoperative
No wheel sensorsThere are wheels without appropriate wheel
sensors mounted (e.g. winter tires).Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.
Have the wheel sensors installed by an authorized
Mercedes-Benz Light Truck Center.
Tire pressure monitor
Wheel sensor missingOne or more sensors are defect (e.g.
battery is empty).
One or more wheels without appropriate
wheel sensors mounted (e.g. spare tire).Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.
Have the wheel sensors installed by an authorized
Mercedes-Benz Light Truck Center.
Vehicles with Advanced TPMS*:
The tire pressure for the respective tire is shown in
the multifunction display.
Tire pressure monitor
currently unavailableThe TPMS or Advanced TPMS* is unable to
monitor the tire pressure due to

a nearby radio interference source.

excessive wheel sensor temperatures.
As soon as the causes of the malfunction have been
removed, the TPMS or Advanced TPMS* automati-
cally becomes active again after a few minutes
driving.

451 Practical hints
What to do if …
Symbol messages
Display symbolDisplay messagePossible cause/consequencePossible solution
#The battery is no longer charg-
ing.
Possible causes:

alternator malfunctioning

broken poly-V-belt
Do not forget that the brake
system requires electrical
energy and may be operating
with restricted capability.
Considerably greater brake
pedal force is required and the
stopping distance is increased.
Stop in a safe location or as soon as it is
safe to do so and check the poly-V-belt.
If it is broken:
Do not continue to drive. Otherwise
the engine will overheat due to an
inoperative water pump which may
result in damage to the engine.
Contact an authorized
Mercedes-Benz Light Truck Center.
If it is intact:
Contact an authorized
Mercedes-Benz Light Truck Center
immediately. Adjust driving to be
consistent with reduced braking
responsiveness.

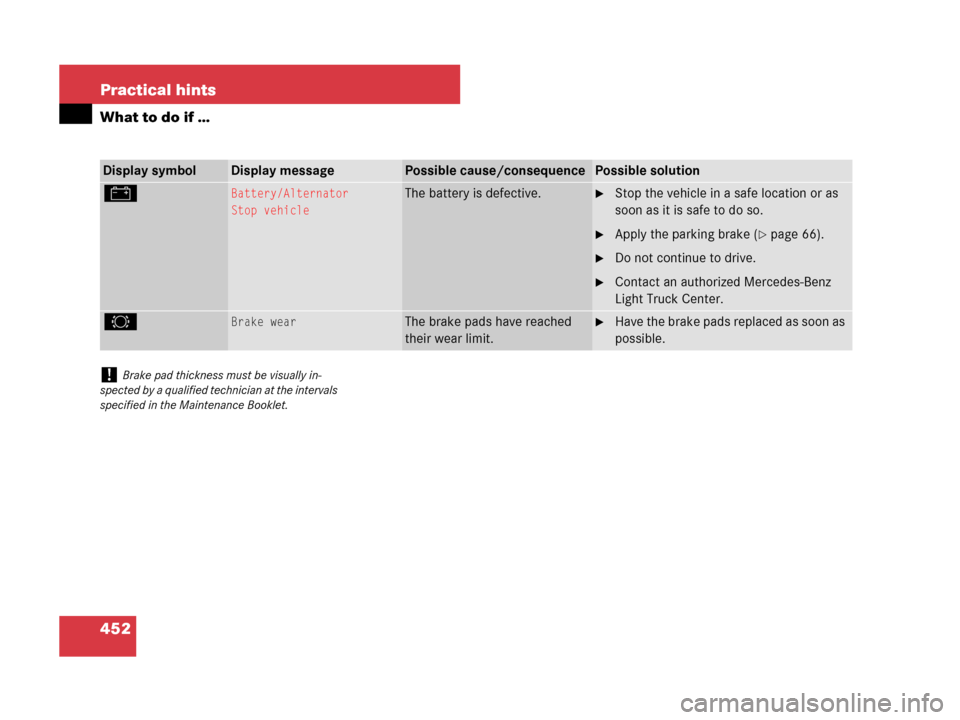

452 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
#Battery/Alternator
Stop vehicleThe battery is defective.Stop the vehicle in a safe location or as
soon as it is safe to do so.
Apply the parking brake (page 66).
Do not continue to drive.
Contact an authorized Mercedes-Benz
Light Truck Center.
2Brake wearThe brake pads have reached
their wear limit.Have the brake pads replaced as soon as
possible.
!Brake pad thickness must be visually in-
spected by a qualified technician at the intervals
specified in the Maintenance Booklet.

453 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
;(USA only)
!(Canada only)
Release
parking brakeYou are driving with the parking
brake set.Release the parking brake (page 57).
;(USA only)
3(Canada only)
EBV, ABS, ESP inoperative
See Operator’s ManualThe EBP, the ABS, and the ESP®
have switched off due to a mal-
function. The BAS is also
switched off.
The brake system is still func-
tional but without the EBP, the
ABS, and the ESP
® available.
Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.
Have the system checked at an
authorized Mercedes-Benz Light Truck
Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.

454 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
;(USA only)
3(Canada only)
Check
brake fluid levelThere is insufficient brake fluid
in the reservoir.Risk of accident! Carefully stop the vehi-
cle in a safe location or as soon as it is
safe to do so.
Apply the parking brake (page 66).
Contact an authorized Mercedes-Benz
Light Truck Center. Do not add brake flu-
id! This will not solve the problem.
Warning!G
Driving with the message Check brake
fluid level
displayed can result in an ac-
cident. Have your brake system checked im-
mediately. Do not add brake fluid before
checking the brake system. Overfilling the
brake fluid reservoir can result in spilling
brake fluid on hot engine parts and the
brake fluid catching fire. You could be
seriously burned.
!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.

455 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
•Coolant level
Stop car, switch engine
offThe coolant is too hot.
Among other possible causes
(the cooling fan could be
malfunctioning), the poly-V-belt
could be broken.Stop the vehicle in a safe location or
as soon as it is safe to do so.
Turn off the engine.
Apply the parking brake (page 66).
Check the poly-V-belt.
If it is broken:
Do not continue to drive. Otherwise
the engine will overheat due to an
inoperative water pump which may
result in damage to the engine.
Contact an authorized
Mercedes-Benz Light Truck Center.
If it is intact:
Wait for the message to disappear
before restarting the engine.
Doing otherwise could result in seri-
ous engine damage that is not
covered by the Mercedes-Benz
Limited Warranty.
(Continued on next page)
