2007 MERCEDES-BENZ R350 Owner's Manual

536 Technical data

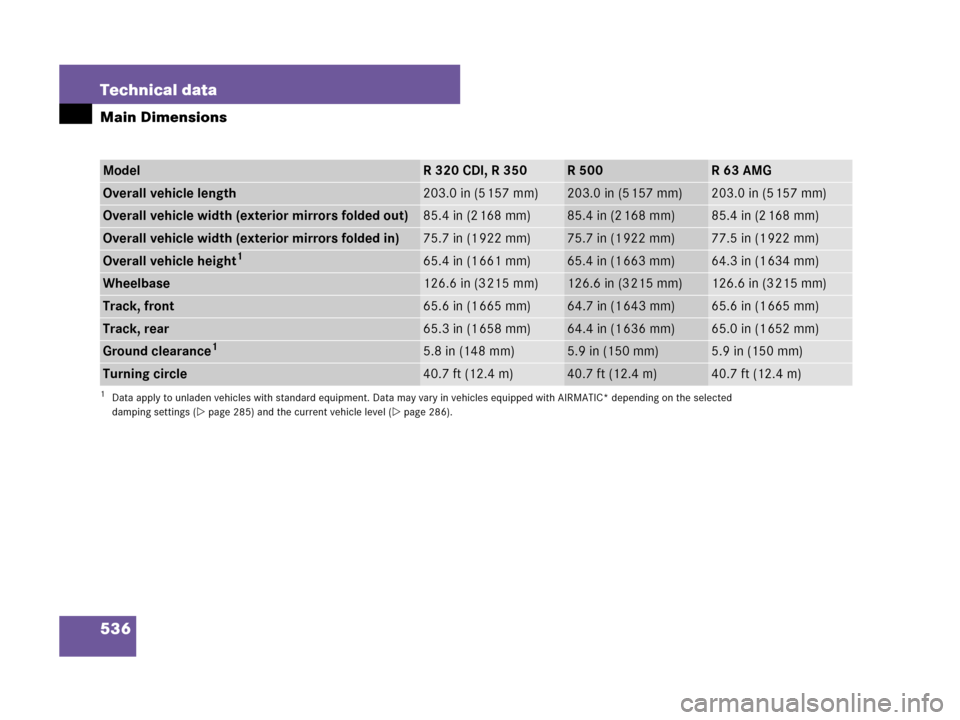

Main Dimensions
ModelR320CDI, R350R500R63AMG
Overall vehicle length203.0 in (5 157 mm)203.0 in (5 157 mm)203.0 in (5 157 mm)
Overall vehicle width (exterior mirrors folded out)85.4 in (2 168 mm)85.4 in (2 168 mm)85.4 in (2 168 mm)
Overall vehicle width (exterior mirrors folded in)75.7 in (1 922 mm)75.7 in (1 922 mm)77.5 in (1 922 mm)
Overall vehicle height1
1Data apply to unladen vehicles with standard equipment. Data may vary in vehicles equipped with AIRMATIC* depending on the selected
damping settings (page 285) and the current vehicle level (page 286).
65.4 in (1 661 mm)65.4 in (1 663 mm)64.3 in (1 634 mm)
Wheelbase126.6 in (3 215 mm)126.6 in (3 215 mm)126.6 in (3 215 mm)
Track, front65.6 in (1 665 mm)64.7 in (1 643 mm)65.6 in (1 665 mm)
Track, rear65.3 in (1 658 mm)64.4 in (1 636 mm)65.0 in (1 652 mm)
Ground clearance15.8 in (148 mm)5.9 in (150 mm)5.9 in (150 mm)
Turning circle40.7 ft (12.4 m)40.7 ft (12.4 m)40.7 ft (12.4 m)

537 Technical data

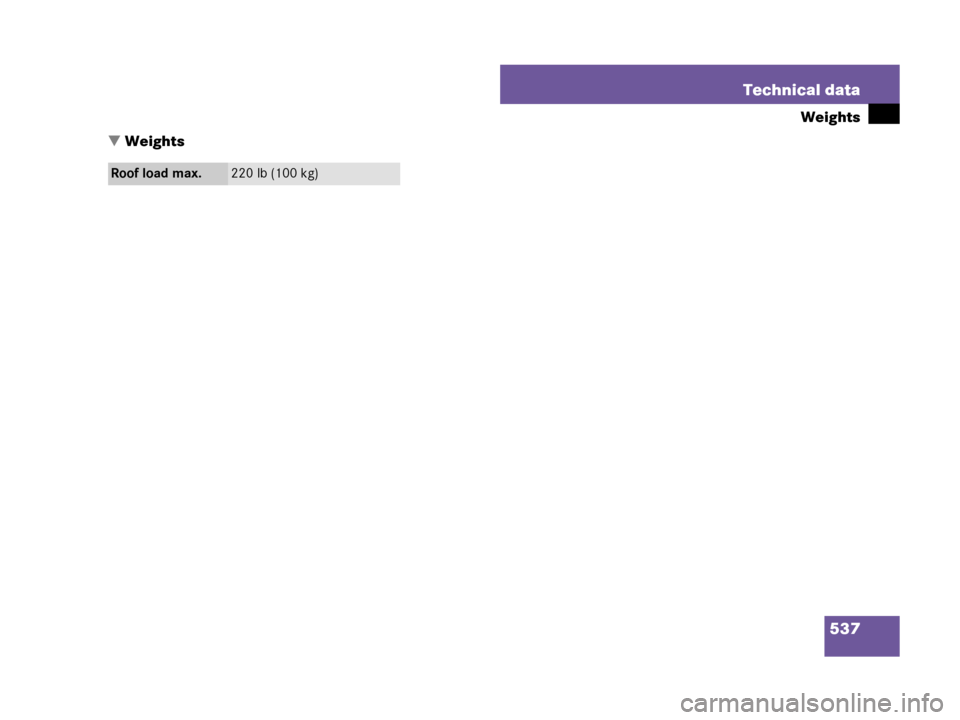

Weights
Weights
Roof load max.220 lb (100 kg)

538 Technical data

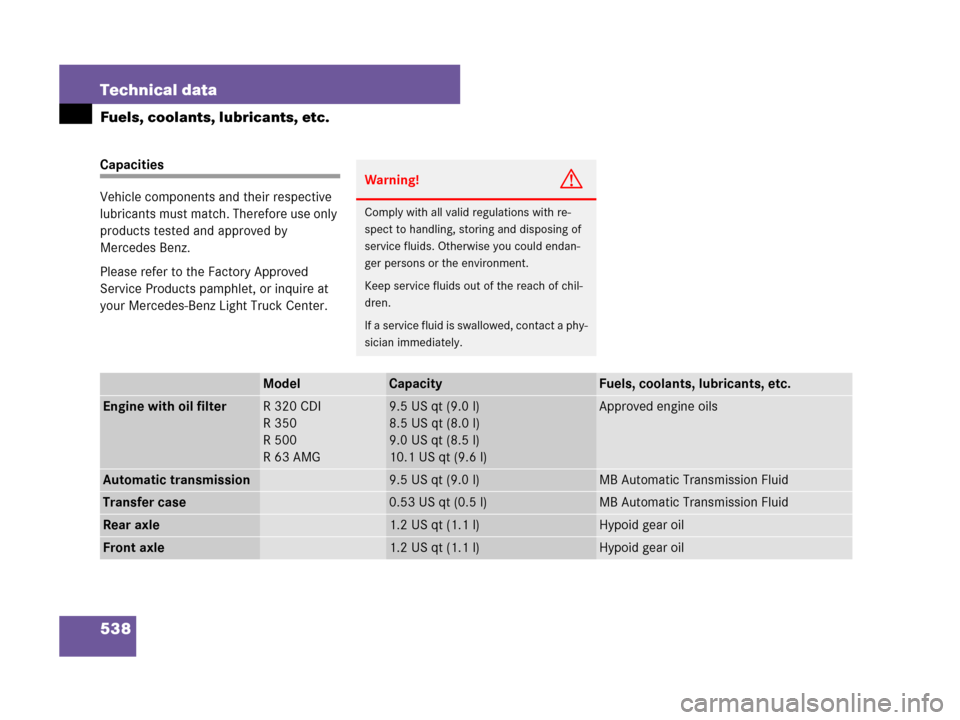

Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore use only
products tested and approved by
Mercedes Benz.
Please refer to the Factory Approved
Service Products pamphlet, or inquire at
your Mercedes-Benz Light Truck Center.
Warning!G
Comply with all valid regulations with re-
spect to handling, storing and disposing of
service fluids. Otherwise you could endan-
ger persons or the environment.
Keep service fluids out of the reach of chil-
dren.
If a service fluid is swallowed, contact a phy-
sician immediately.
ModelCapacityFuels, coolants, lubricants, etc.
Engine with oil filterR320CDI
R350
R500
R63AMG9.5 US qt (9.0 l)
8.5 US qt (8.0 l)
9.0 US qt (8.5 l)
10.1 US qt (9.6 l)Approved engine oils
Automatic transmission9.5 US qt (9.0 l)MB Automatic Transmission Fluid
Transfer case0.53 US qt (0.5 l)MB Automatic Transmission Fluid
Rear axle1.2 US qt (1.1 l)Hypoid gear oil
Front axle1.2 US qt (1.1 l)Hypoid gear oil

539 Technical data
Fuels, coolants, lubricants, etc.
ModelCapacityFuels, coolants, lubricants, etc.
Power steeringapprox. 1.3 US qt (1.2 l)MB Power Steering Fluid
Front wheel hubsapprox. 1.5 oz (43 g) eachHigh temperature roller bearing grease
Brake systemMB Brake Fluid (DOT 4+)
Cooling systemR320CDI
R350
R500
R63AMG10.0 US qt (9.5 l)
10.0 US qt (9.5 l)
11.1 US qt (10.5 l)
12.2 US qt (11.5 l)MB Anticorrosion/Antifreeze
Fuel Tank
including a reserve of
All, except R 63 AMG
R63AMG
21.1 US gal (80.0 l)
approx. 3.4 US gal (13.0 l)
approx. 4.0 US gal (15.0 l)Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg.of96RON/86MON)
Air conditioning systemR-134a refrigerant and special PAG lubricant
oil (never R-12)
Windshield washer and
headlamp cleaning*
system8.0 US qt (7.6 l)MB Windshield Washer Concentrate1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available
premixed windshield washer solvent/antifreeze for temperatures below freezing. Follow suggested mixing ratios (page 546).

540 Technical data
Fuels, coolants, lubricants, etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters re-
quired for vehicles with Maintenance
System (U.S. vehicles) or FSS PLUS
(Canada vehicles). For a listing of approved
engine oils and oil filters, refer to the Fac-
tory Approved Service Products pamphlet,
or contact an authorized Mercedes-Benz
Light Truck Center.Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.
Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air condition-
ing system.
Never use R-12 (CFC) or mineral-based lu-
bricating oil. Otherwise damage to the
system will occur.
!Using engine oils and oil filters of
specification other than those expressly re-
quired for the Maintenance System
(U.S. vehicles) or FSS PLUS (Canada vehicles),
or changing of oil and oil filter at change intervals
longer than those called for by the Maintenance
System (U.S. vehicles) or FSS PLUS (Canada
vehicles) will result in engine or emission control
system damage not covered by the
Mercedes-Benz Limited Warranty.
Please follow Maintenance System
(U.S. vehicles) or FSS PLUS (Canada vehicles)
recommendations for scheduled oil changes.
Failure to do so could result in engine or
emission control system damage not covered by
the Mercedes-Benz Limited Warranty.

541 Technical data
Fuels, coolants, lubricants, etc.

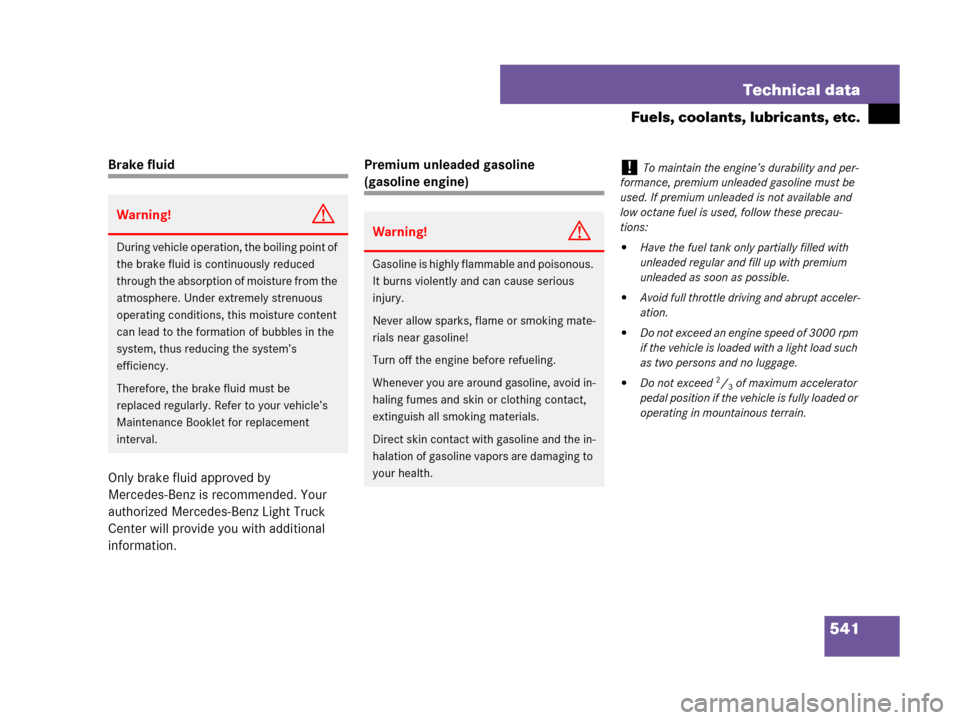

Brake fluid
Only brake fluid approved by
Mercedes-Benz is recommended. Your
authorized Mercedes-Benz Light Truck
Center will provide you with additional
information.Premium unleaded gasoline
(gasoline engine)
Warning!G
During vehicle operation, the boiling point of
the brake fluid is continuously reduced
through the absorption of moisture from the
atmosphere. Under extremely strenuous
operating conditions, this moisture content
can lead to the formation of bubbles in the
system, thus reducing the system’s
efficiency.
Therefore, the brake fluid must be
replaced regularly. Refer to your vehicle’s
Maintenance Booklet for replacement
interval.
Warning!G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
injury.
Never allow sparks, flame or smoking mate-
rials near gasoline!
Turn off the engine before refueling.
Whenever you are around gasoline, avoid in-
haling fumes and skin or clothing contact,
extinguish all smoking materials.
Direct skin contact with gasoline and the in-
halation of gasoline vapors are damaging to
your health.
!To maintain the engine’s durability and per-
formance, premium unleaded gasoline must be
used. If premium unleaded is not available and
low octane fuel is used, follow these precau-
tions:

Have the fuel tank only partially filled with
unleaded regular and fill up with premium
unleaded as soon as possible.

Avoid full throttle driving and abrupt acceler-
ation.

Do not exceed an engine speed of 3000 rpm
if the vehicle is loaded with a light load such
as two persons and no luggage.

Do not exceed2/3of maximum accelerator
pedal position if the vehicle is fully loaded or
operating in mountainous terrain.

542 Technical data
Fuels, coolants, lubricants, etc.
Gasoline additives (gasoline engine)
A major concern among engine manufac-
turers is carbon build-up caused by gaso-
line. Mercedes-Benz recommends only the
use of quality gasoline containing additives
that prevent the build-up of carbon depos-
its.
After an extended period of using fuels
without such additives carbon deposits
can build up, especially on the intake
valves and in the combustion area, leading
to engine performance problems such as:

Warm-up hesitation

Unstable idle

Knocking/pinging

Misfire

Power lossIn areas where carbon deposits may be
encountered due to lack of availability of
gasolines which contain these additives,
Mercedes-Benz recommends the use of
additives approved by us for use on
Mercedes-Benz vehicles. Refer to Factory
Approved Service Products pamphlet for a
listing of approved product(s). Follow
directions on product label.
Do not blend other specific fuel additives
with fuel. This only results in unnecessary
costs and may be harmful to the engine
operation.
Damage or malfunction resulting from
poor fuel quality or from blending addition-
al fuel additives other than those tested
and approved by us for use on
Mercedes-Benz vehicles listed in the Fac-
tory Approved Service Products pamphlet
are not covered by the Mercedes-Benz
Limited Warranty.
Fuel requirements
Gasoline engine
Only use premium unleaded fuel.

The octane number (posted at the
pump) must be 91 min. It is an average
of both the Research (R) octane num-
ber and the Motor (M) octane number:
(R+M) /2). This is also known as the
ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not
exceed 10%; MTBE must not exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains
10% ethanol and 90% unleaded gasoline,
can be used.

543 Technical data
Fuels, coolants, lubricants, etc.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
Diesel engine
Only use commercially available vehicular
diesel fuels No. 2 or No. 1 (ASTM D975 No.
2-D or No. 1-D).
To prevent malfunctions, diesel fuel with
improved cold flow characteristics is of-
fered in the winter months. Check with
your fuel retailer.Coolants
The engine coolant is a mixture of water
and anticorrosion/antifreeze, which
provides:

Corrosion protection

Freeze protection

Boiling protection (by increasing the
boiling point)
The cooling system was filled at the factory
with a coolant providing freeze protection
to approximately -35°F (-37°C) and corro-
sion protection.
If the antifreeze mixture is effective to
-22°F (-30°C), the boiling point of the cool-
ant in the pressurized cooling system is
reached at approximately 266°F (130°C).
The coolant solution must be used year
round to provide the necessary corrosion
protection and increase boil-over protec-
tion. Refer to Maintenance Booklet for
replacement interval.Coolant system design and coolant used
determine the replacement interval. The
replacement interval published in the
Maintenance booklet is only applicable if
MB 325.0 anticorrosion/antifreeze solu-
tion or other Mercedes-Benz approved
products of equal specification (see
Factory Approved Service Products pam-
phlet) are used to renew the coolant con-
centration or bring it back up to the proper
level.
To provide important corrosion protection,
the solution must be at least 45% anticor-
rosion/antifreeze (equivalent to freeze
protection to approx. -22°F [-30°C]). If you
use a solution that is more than 55% anti-
corrosion/antifreeze (freeze protection to
approx. -49°F [-45°C]), the engine temper-
ature will increase due to the lower heat
transfer capability of the solution. There-
fore, do not use more than this amount of
anticorrosion/antifreeze.
!Do not fill the tank with gasoline. Do not
blend diesel fuel with gasoline or kerosine. The
fuel system and engine will otherwise be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.
