When judging the injection volume of the refrigerant, please make the settings based on the following working conditions:
Water tank temperature of the engine: stable
Speed of the engine: normal free running speed
Switch of air conditioner: ON
Switch of the fan: “High” gear
Temperature controller: air return temperature inside the car is between 25
and 30.
Fresh air control: internal circulation
Door: all opened
Window: all opened
Repair and replacement of pipeline
a. Before installation of parts and components, the negative pole of the accumulator must be disconnected.
cut off
b. When the air entries of the refrigerating system, water tank of the engine and the air conditioner are opened, please make sure that
all openings are capped to prevent the penetration of the dust, foreign matters or water.
protective cap protective cap
protective cap must be installed.

CD Player and Air Conditioning System-17
Daily Maintenance of Air Conditioning System
In order to ensure normal operation of air conditioning system, maintenance and care services shall be frequently performed for the
air conditioning system. The daily maintenance of air conditioning system is illustrated as follows:
1. Inspect, wash and clean the condenser of air conditioning system, requiring that radiator pins are clean and there is no dirt
between the pins. After the car runs in the rain or on the muddy road, the fan of the condenser should be inspected to find
whether it bears the earth, sand, stone and etc, and remove them if any.
2. Check the quantity of the working media of the refrigerating system; when the compressor set works normally, observe the
liquid viewing glass, under the normal circumstance, there shall be not air bubbles in the glass.
3. Inspect the drive belt. The belt between the compressor and the engine should be tensioned.
4. Check if there is any abnormal noise or odor in the air conditioning system.
5. Check if the temperature difference between the air inlet and outlet of the compressor is normal.
6. Check if the hose of the refrigerating system is in an apparent good condition and connections of all joints are secure.
7. Check if the pipeline of the refrigerating system collides with other parts and components, and if there is any oil leakage trace
left at each joint.
8. Check if the circuit connection of the refrigerating system is secure and if there is an occurrence of short circuit and falling off
9. Check if fastening bolts of the compressor are firmly secured or broken. d. When connecting the pipe, apply little compressor oil to the O-ring and fasten the nut with two wrenches. Attention: never
spatter the compressor oil to the painted parts or the plastic components to avoid the corrosion. If these components are
spattered with the oil, please clean it immediately.
e. When connecting the pipe, please follow the torque listed in the following table to fasten the screws or the nuts:
Diameter of Pipe Fastening Torque (N·m)
￠8mm 12-15
￠16mm 30-35 30－35


At ends of each pipe the protective caps should be installed till the pipe is connected to the refrigerating system.
compressor oil fasten it by using two wrenches at the same time

Safety airbag-1
Chapter 12
Safety airbag

Safety airbag-2

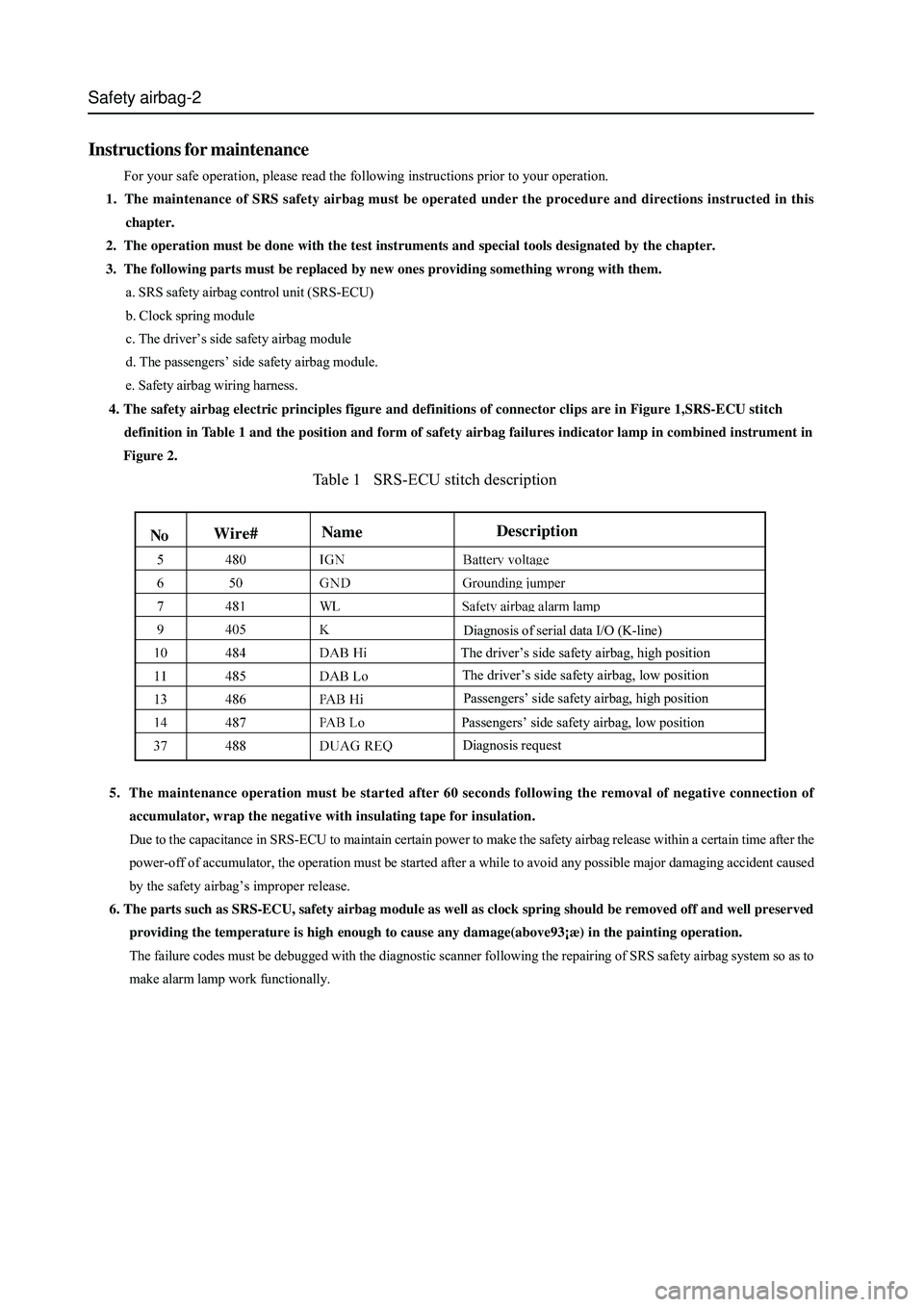

Table 1 SRS-ECU stitch description
5. The maintenance operation must be started after 60 seconds following the removal of negative connection of
accumulator, wrap the negative with insulating tape for insulation.
Due to the capacitance in SRS-ECU to maintain certain power to make the safety airbag release within a certain time after the
power-off of accumulator, the operation must be started after a while to avoid any possible major damaging accident caused
by the safety airbag’s improper release.
6. The parts such as SRS-ECU, safety airbag module as well as clock spring should be removed off and well preserved
providing the temperature is high enough to cause any damage(above93¡æ) in the painting operation.
The failure codes must be debugged with the diagnostic scanner following the repairing of SRS safety airbag system so as to
make alarm lamp work functionally.
Instructions for maintenance
For your safe operation, please read the following instructions prior to your operation.
1. The maintenance of SRS safety airbag must be operated under the procedure and directions instructed in this
chapter.
2. The operation must be done with the test instruments and special tools designated by the chapter.
3. The following parts must be replaced by new ones providing something wrong with them.
a. SRS safety airbag control unit (SRS-ECU)
b. Clock spring module
c. The driver’s side safety airbag module
d. The passengers’ side safety airbag module.
e. Safety airbag wiring harness.
4. The safety airbag electric principles figure and definitions of connector clips are in Figure 1,SRS-ECU stitch
definition in Table 1 and the position and form of safety airbag failures indicator lamp in combined instrument in
Figure 2.
The driver’s side safety airbag, low position
Wire#Description
Name
Diagnosis request
The driver’s side safety airbag, high position
Passengers’ side safety airbag, high position
Passengers’ side safety airbag, low position
Diagnosis of serial data I/O (K-line)

Safety airbag-3

Safety airbag-4
safety airbag system alarm lamp
impact sensor and diagnosis module
passengers’ side inflation elements and airbag
insulating tape
battery
wire

Safety airbag-5
Test instrument
InstrumentNameUtility
diagnostic scanner
The alarm lamp
keeps illuminating.Failure
handlingDebug the
failure codes
Test the systematic failures in
SRS safety airbag system, debug
ECU. failure codes.
The basic failure diagnosis process
The failure code DTC of both present and history-accumulated failures may co-exist.
Caution
The safety airbag alarm lamp flashes for 6 times and then extinguishes when the ignition switch is in ON
position after the installation of new safety airbag system electronic control unit, which demonstrates the
normal function of SRS safety airbag system. In this case the system does not need to be tested, otherwise it
should be diagnosed and repaired.
If the alarm lamp does not illuminate when the ignition switch is in ON position, repair the alarm lamp relevant
circuit and, then further operate to get it into work.
Scan the ECU by connecting
the scanner with k-lineFailure detection
The test for SRS safety airbag alarm lamp
SRS-ECU will execute a series of diagnosis and test to check whether the function of airbag system is prepares. The check can
prevent the restriction system from mis-explosion and ensure the necessary explosion during collision. If found the failure,
SRS-ECU will save a proper failure code and light the alarm lamp to indicate a failure status for the convenience of maintenance.
If connect the pin 2# wire 488# (diagnosis request wire) on the diagnosis port to the ground (wire 50#) for more than 2s, the
safety airbag alarm lamp will flash the code. For detailed position refer to following figure.safety airbag system alarm lamp

Safety airbag-6
brown whitered
diagnosis plug
black
Failure judgment
1. Failure record (failure code storage)
When ECU determines the error through the cyclic diagnosis and test, SRS-ECU should saves the corresponding code, first
judgment time, final judgment time and number of occurrence in EEPROM.
RS-ECU can stores 6 failures at most, under voltage failure and two collision records (front and side).
Failure code approved by SRS-ECU
Serial No. Failure description Debugging
1 Ignition loop 1 (driver ’s front airbag), resistance is too high or open-circuit. Can
2 Ignition loop 1 (driver ’s side front airbag), resistance is too low or short-circuit Can
3 Ignition loop 1 (driver ’s side front airbag), grounding Can
4 Ignition loop 1 (driver’s side front airbag), connected to power supply Can
5 Ignition loop 2 (passenger side front airbag), resistance is too high or open-circuit. Can
6 Ignition loop 2 (passenger side front airbag), resistance is too low or short-circuit Can
7 Ignition loop 2 (passenger side front airbag), connect ed t o power supply Can
8 Ignition loop 2 (passenger side front airbag), connect ed t o power supply Can
9 Power voltage is high Can
10 Power voltage is low Can
11 Alarm light failure, connect ed to power supply or lamp is short-circuit Can
12 Alarm lamp is failure- grounding or filament is open-circuit. Can
13 Shortage/failure of algorithm parameter Cannot (replace the
SRS-ECU)
14 The front collision is recorded Cannot (replace the
SRS-ECU)
15 Communication failure Can
16 Internal failure (refer to following table) Cannot (replace the
SRS-ECU)
