2003 YAMAHA TTR90 Owners Manual

GEN
INFO
MEMO

SPEC

2 - 1
EC200000
SPECIFICATIONS
EC211000
GENERAL SPECIFICATIONS
Model name: TT-R90ER (USA, CDN, AUS, NZ)
TT-R90E (Europe, ZA)
Model code number: 5HNE (USA)
5HNF (Europe, AUS, NZ, ZA)
5HNG (CDN)
Dimensions:
Overall length 1,525 mm (57.0 in)
Overall width 605 mm (23.8 in)
Overall height 865 mm (34.1 in)
Seat height 625 mm (24.6 in)
Wheelbase 1,040 mm (40.9 in)
Minimum ground clearance 160 mm (6.3 in)
Basic weight:
With oil and full fuel tank 67 kg (147.7 lb)
Engine:
Engine type Air cooled 4-stroke, SOHC
Cylinder arrangement Single cylinder, forward inclined
Displacement 89 cm
3

(5.43 cu.in)
Bore

×

stroke 47.0
×
51.8 mm (1.85
×
2.04 in)
Compression ratio 8.5 : 1
Compression pressure (STD) 1,000 kPa (10 kg/cm
2

, 145 psi) at 1,000 r/min
Starting system Kick and electric starter
Lubrication system: Wet sump
Oil type or grade:
Engine oil

(For USA and CDN)
At –10 ˚C (10 ˚F) or higher
Å
Yamalube 4 (10W-30) or SAE 10W-30 type
SE/SF motor oil
At 5 ˚C (40 ˚F) or higher
ı
Yamalube 4 (20W-40) or SAE 20W-40 type
SE/SF motor oil
(Except for USA and CDN)
API “SE/SF” or higher grade
0 10 30 50 70 90 110 130
-20 -10 01020
30 40 50
Å
ı
˚F
˚C

GENERAL SPECIFICATIONS

SPEC

2 - 2
Oil capacity:
Engine oil
Periodic oil change 0.8 L (0.70 Imp qt, 0.85 US qt)
Total amount 1.0 L (0.88 Imp qt, 1.06 US qt)
Air filter: Wet type element
Fuel:
Type Unleaded gasoline only (USA, AUS and NZ)
Regular unleaded gasoline only (CDN, Europe)
Regular gasoline (ZA)
Tank capacity 4.1 L (0.90 Imp gal, 1.08 US gal)
Reserve amount 0.5 L (0.11 Imp gal, 0.13 US gal)
Carburetor:
Type VM16SH
Manufacturer MIKUNI
Spark plug:
Type CR6HSA/U20FSR-U
Manufacturer NGK/DENSO
Gap 0.6 ~ 0.7 mm (0.02 ~ 0.03 in)
Clutch type: Wet, multiple-disc and centrifugal automatic
Transmission:
Primary reduction system Spur gear
Primary reduction ratio 67/18 (3.722)
Secondary reduction system Chain drive
Secondary reduction ratio 35/14 (2.500)
Transmission type Constant mesh, 3-speed
Operation Left foot operation
Gear ratio: 1st 37/13 (2.846)
2nd 33/19 (1.736)
3rd 28/23 (1.217)
Chassis:
Frame type Double cradle
Caster angle 24.83˚
Trail 56.0 mm (2.2 in)
Tire:
Type With tube
Size (front) 2.50-14 4PR
Size (rear) 3.00-12 4PR
Manufacturer (front and rear) CHENG SHIN
Type (front and rear) KNOBBY
Tire pressure (front and rear) 100 kPa (1.00 kgf/cm
2

, 14.5 psi)
GENERAL SPECIFICATIONS
2

SPEC

2 - 3
Brake:
Front brake type Drum brake
Operation Right hand operation
Rear brake type Drum brake
Operation Right foot operation
Suspension:
Front suspension Telescopic fork
Rear suspension Swingarm (monocross suspension)
Shock absorber:
Front shock absorber Coil spring/oil damper
Rear shock absorber Coil spring/gas, oil damper
Wheel travel:
Front wheel travel 110 mm (4.33 in)
Rear wheel travel 93 mm (3.66 in)
Electrical:
Ignition system CDI
Generator system CDI magneto
Battery type GT4B-5
Battery voltage/capacity 12 V/2.5 AH
Specific gravity 1.350
GENERAL SPECIFICATIONS

SPEC

2 - 4

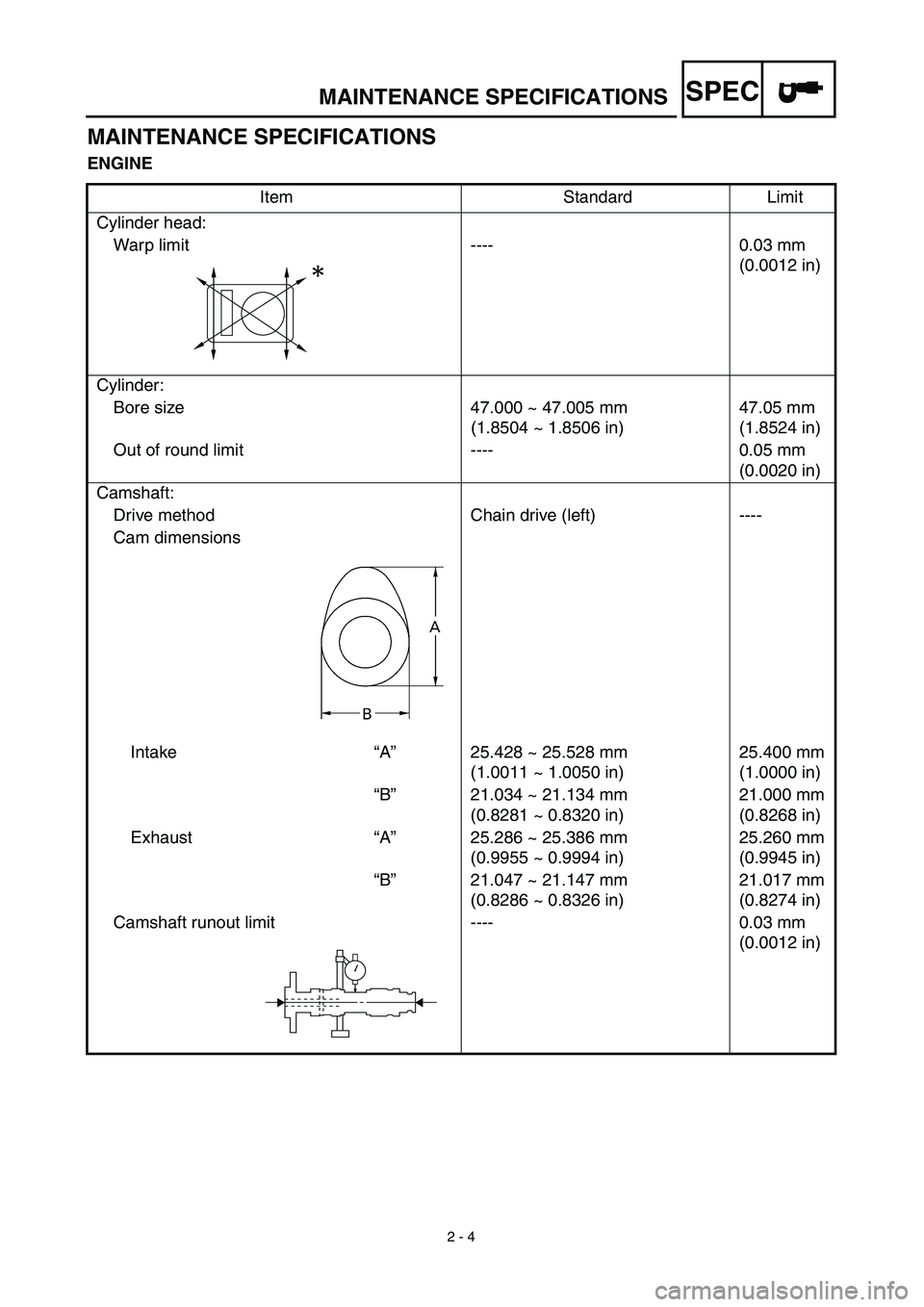

MAINTENANCE SPECIFICATIONS
ENGINE
Item Standard Limit
Cylinder head:
Warp limit ---- 0.03 mm
(0.0012 in)
Cylinder:
Bore size 47.000 ~ 47.005 mm
(1.8504 ~ 1.8506 in)47.05 mm
(1.8524 in)
Out of round limit ---- 0.05 mm
(0.0020 in)
Camshaft:
Drive method Chain drive (left) ----
Cam dimensions
Intake“A”25.428 ~ 25.528 mm
(1.0011 ~ 1.0050 in)25.400 mm
(1.0000 in)
“B”21.034 ~ 21.134 mm
(0.8281 ~ 0.8320 in)21.000 mm
(0.8268 in)
Exhaust“A”25.286 ~ 25.386 mm
(0.9955 ~ 0.9994 in)25.260 mm
(0.9945 in)
“B”21.047 ~ 21.147 mm
(0.8286 ~ 0.8326 in)21.017 mm
(0.8274 in)
Camshaft runout limit ---- 0.03 mm
(0.0012 in)
MAINTENANCE SPECIFICATIONS

SPEC

2 - 5
Cam chain:
Cam chain type/No. of links 92RH2005-84M/84 ----
Cam chain adjustment method Automatic ----
Rocker arm/rocker arm shaft:
Shaft outside diameter 9.981 ~ 9.991 mm
(0.3930 ~ 0.3933 in)9.95 mm
(0.3917 in)
Rocker arm inside diameter 10.000 ~ 10.015 mm
(0.3937 ~ 0.3943 in)10.03 mm
(0.3949 in)
Valve, valve seat, valve guide:
Valve clearance (cold) IN 0.05 ~ 0.09 mm
(0.0020 ~ 0.0035 in)----
EX 0.08 ~ 0.12 mm
(0.0031 ~ 0.0047 in)----
Valve dimensions:
“A” head diameter IN 22.9 ~ 23.1 mm
(0.9016 ~ 0.9094 in)----
EX 19.9 ~ 20.1 mm
(0.7835 ~ 0.7913 in)----
“B” face width IN 1.19 ~ 2.51 mm
(0.0469 ~ 0.0989 in)----
EX 1.49 ~ 3.07 mm
(0.0587 ~ 0.1209 in)----
“C” seat width IN 0.9 ~ 1.1 mm
(0.0354 ~ 0.0433 in)1.6 mm
(0.0630 in)
EX 0.9 ~ 1.1 mm
(0.0354 ~ 0.0433 in)1.6 mm
(0.0630 in)
“D” margin thickness IN 0.5 ~ 0.9 mm
(0.0197 ~ 0.354 in)----
EX 0.8 ~ 1.2 mm
(0.0315 ~ 0.0472 in)----
Stem outside diameter IN 4.475 ~ 4.490 mm
(0.1762 ~ 0.1768 in)4.450 mm
(0.1752 in)
EX 4.460 ~ 4.475 mm
(0.1756 ~ 0.1762 in)4.440 mm
(0.1748 in)
Guide inside diameter IN 4.500 ~ 4.512 mm
(0.1772 ~ 0.1776 in)4.542 mm
(0.1788 in)
EX 4.500 ~ 4.512 mm
(0.1772 ~ 0.1776 in)4.542 mm
(0.1788 in)
Stem-to-guide clearance IN 0.010 ~ 0.037 mm
(0.0004 ~ 0.0015 in)0.08 mm
(0.003 in)
EX 0.025 ~ 0.052 mm
(0.0010 ~ 0.0020 in)0.10 mm
(0.004 in) Item Standard Limit
Head Diameter
B
Face WidthC
Seat Width
D
Margin ThicknessA

MAINTENANCE SPECIFICATIONS

SPEC

2 - 6
Stem runout limit ---- 0.02 mm
(0.0008 in)
Valve seat width IN 0.9 ~ 1.1 mm
(0.0354 ~ 0.0433 in)1.6 mm
(0.0630 in)
EX 0.9 ~ 1.1 mm
(0.0354 ~ 0.0433 in)1.6 mm
(0.0630 in)
Valve spring:
Free length IN 32.45 mm (1.28 in) 26.9 mm
(1.06 in)
EX 32.45 mm (1.28 in) 26.9 mm
(1.06 in)
Set length (valve closed) IN 24.2 mm (0.95 in) ----
EX 24.2 mm (0.95 in) ----
Compressed pressure
(installed) IN 138 ~ 158 N
(14.07 ~ 16.11 kg,
31.02 ~ 35.52 lb)----
EX 138 ~ 158 N
(14.07 ~ 16.11 kg,
31.02 ~ 35.52 lb)----
Tilt limit IN ---- 2.5˚/1.4 mm
(2.5˚/0.06 in)
EX ---- 2.5˚/1.4 mm
(2.5˚/0.06 in)
Direction of winding
(top view) IN Clockwise ----
EX Clockwise ---- Item Standard Limit
*

MAINTENANCE SPECIFICATIONS

SPEC

2 - 7
Piston:
Piston to cylinder clearance 0.025 ~ 0.045 mm
(0.0010 ~ 0.0018 in)0.15 mm
(0.0059 in)
Piston size “D”46.960 ~ 46.975 mm
(1.8488 ~ 1.8494 in)----
Piston over size (2nd) 47.5 mm (1.8701 in) ----
(4th) 48.0 mm (1.8898 in) ----
Measuring point “H”4 mm (0.16 in) ----
Piston off-set 0.75 mm (0.0295 in) ----
Piston pin bore inside diameter 13.002 ~ 13.013 mm
(0.5119 ~ 0.5123 in)13.045 mm
(0.5136 in)
Piston pin outside diameter 12.996 ~ 13.000 mm
(0.5117 ~ 0.5118 in)12.980 mm
(0.511 in)
Piston rings:
Top ring
Type Barrel ----
Dimensions (B

×

T) 1.0
×
2.0 mm (0.04
×
0.08 in) ----
End gap (installed) 0.10 ~ 0.25 mm
(0.004 ~ 0.010 in)0.4 mm
(0.016 in)
Side clearance (installed) 0.030 ~ 0.065 mm
(0.0012 ~ 0.0026 in)0.12 mm
(0.005 in)
2nd ring
Type Taper ----
Dimensions (B

×

T) 1.0
×
2.0 mm (0.04
×
0.08 in) ----
End gap (installed) 0.10 ~ 0.25 mm
(0.004 ~ 0.010 in)0.4 mm
(0.016 in)
Side clearance 0.020 ~ 0.055 mm
(0.0008 ~ 0.0022 in)0.12 mm
(0.005 in)
Oil ring
Dimensions (B

×

T) 2.0
×
2.3 mm (0.08
×
0.09 in) ----
End gap (installed) 0.2 ~ 0.7 mm (0.01 ~ 0.03 in) ----Item Standard Limit
H
D
T
B
B
T
B
T

MAINTENANCE SPECIFICATIONS
