1999 SUBARU FORESTER Service Repair Manual

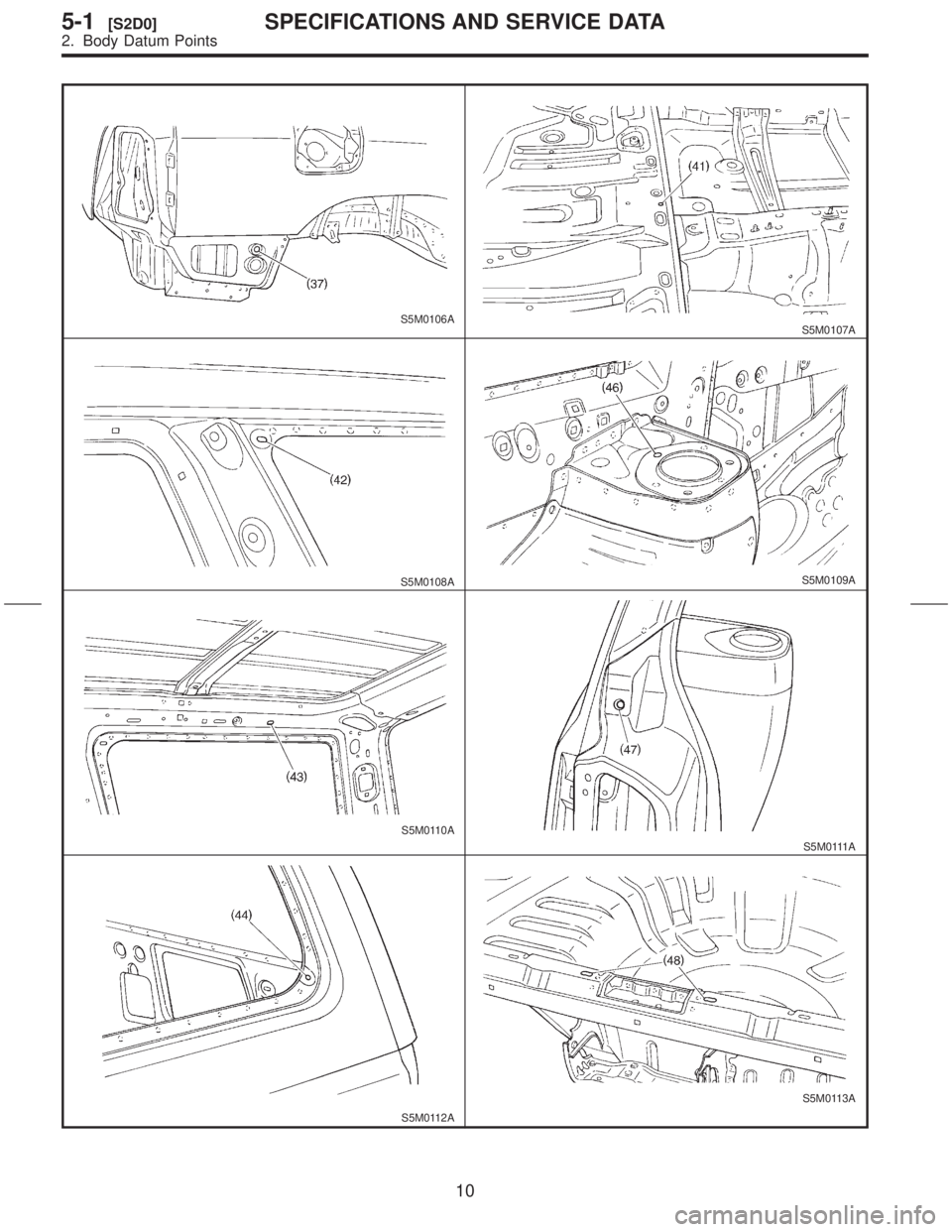

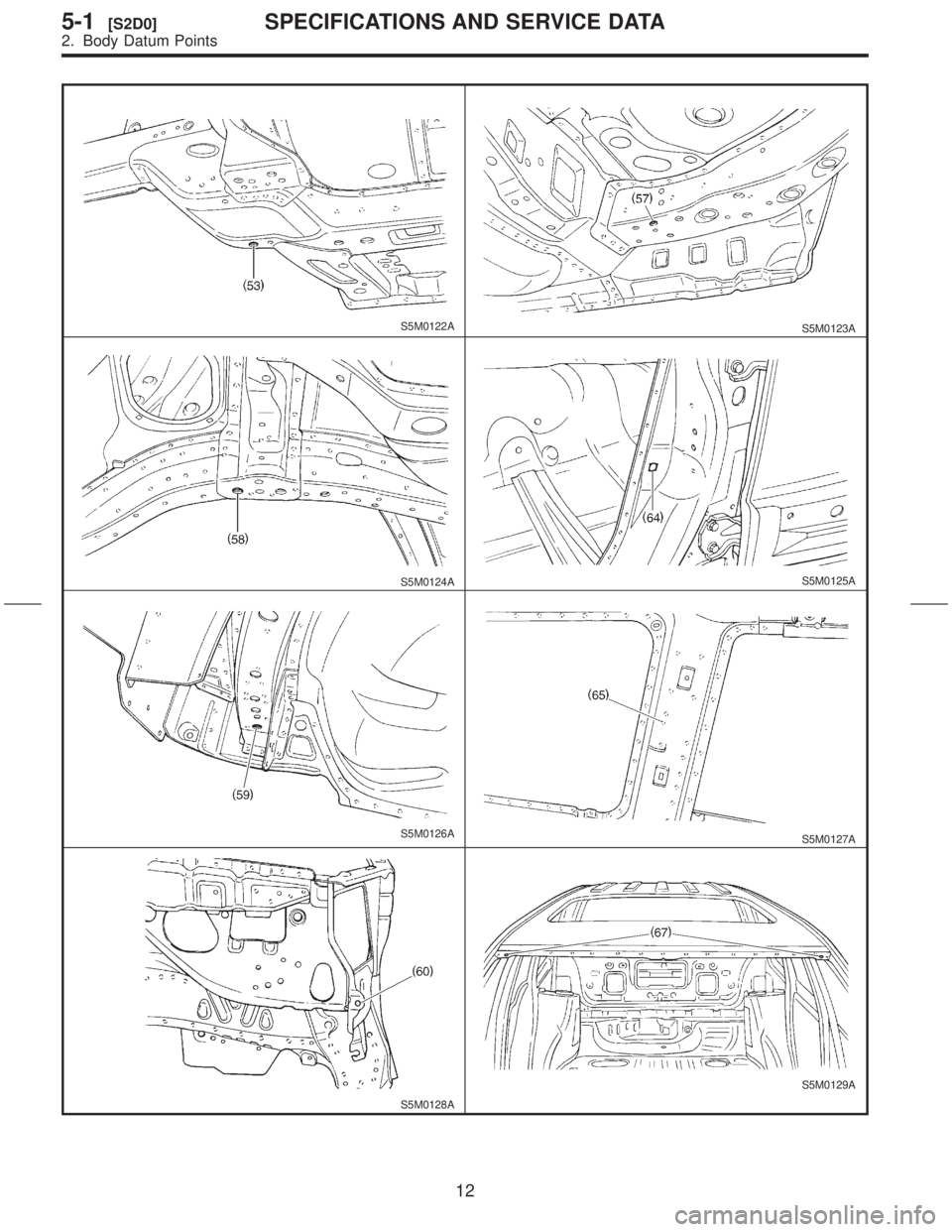

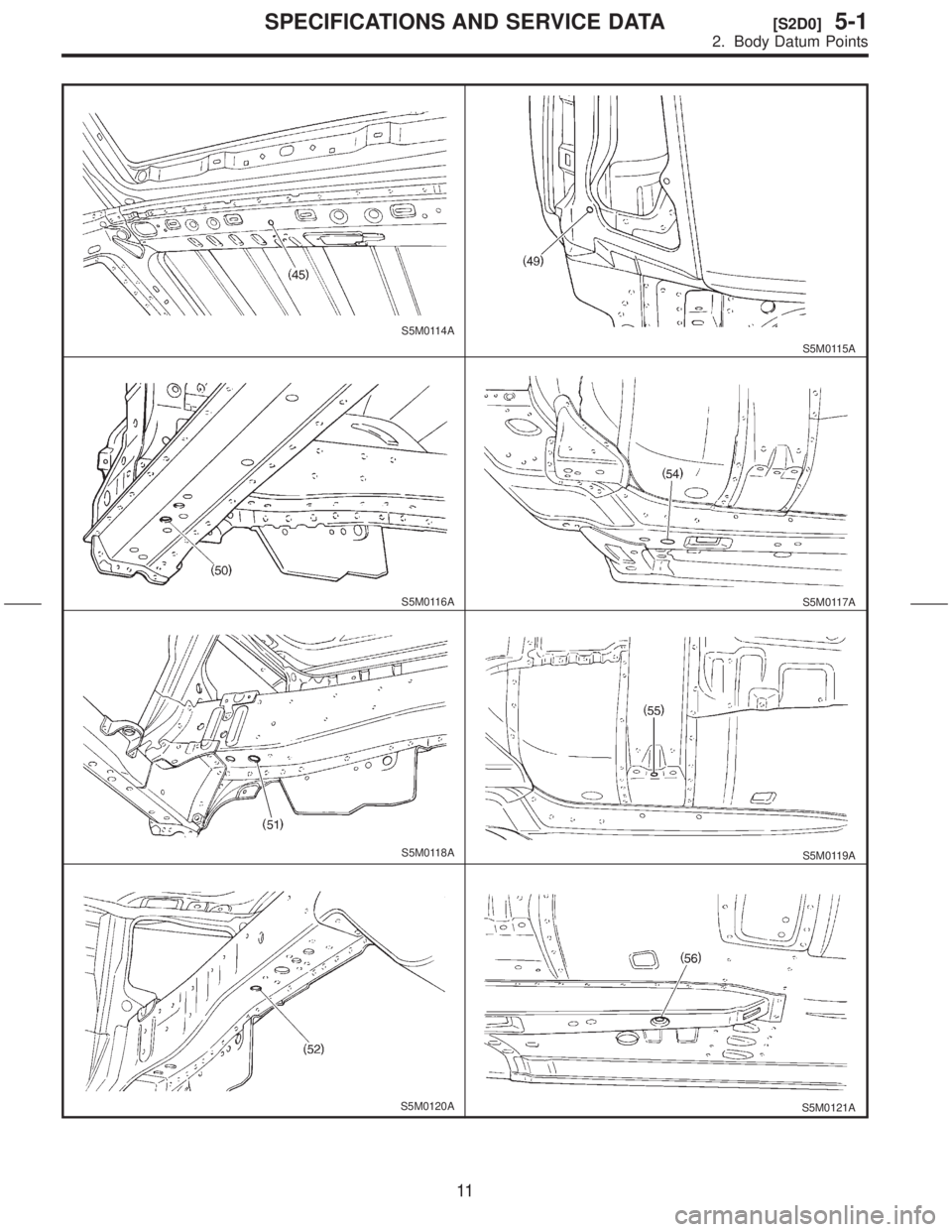

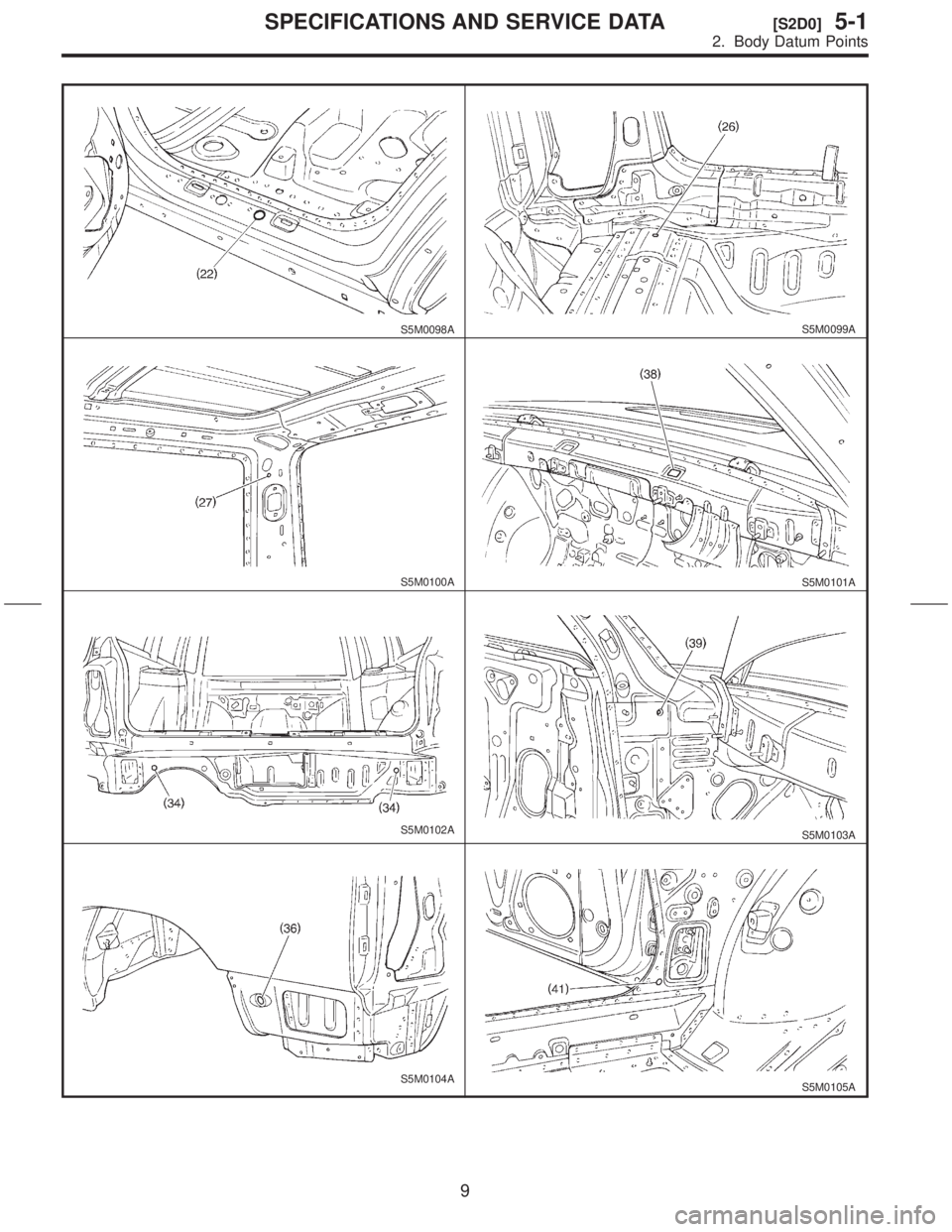

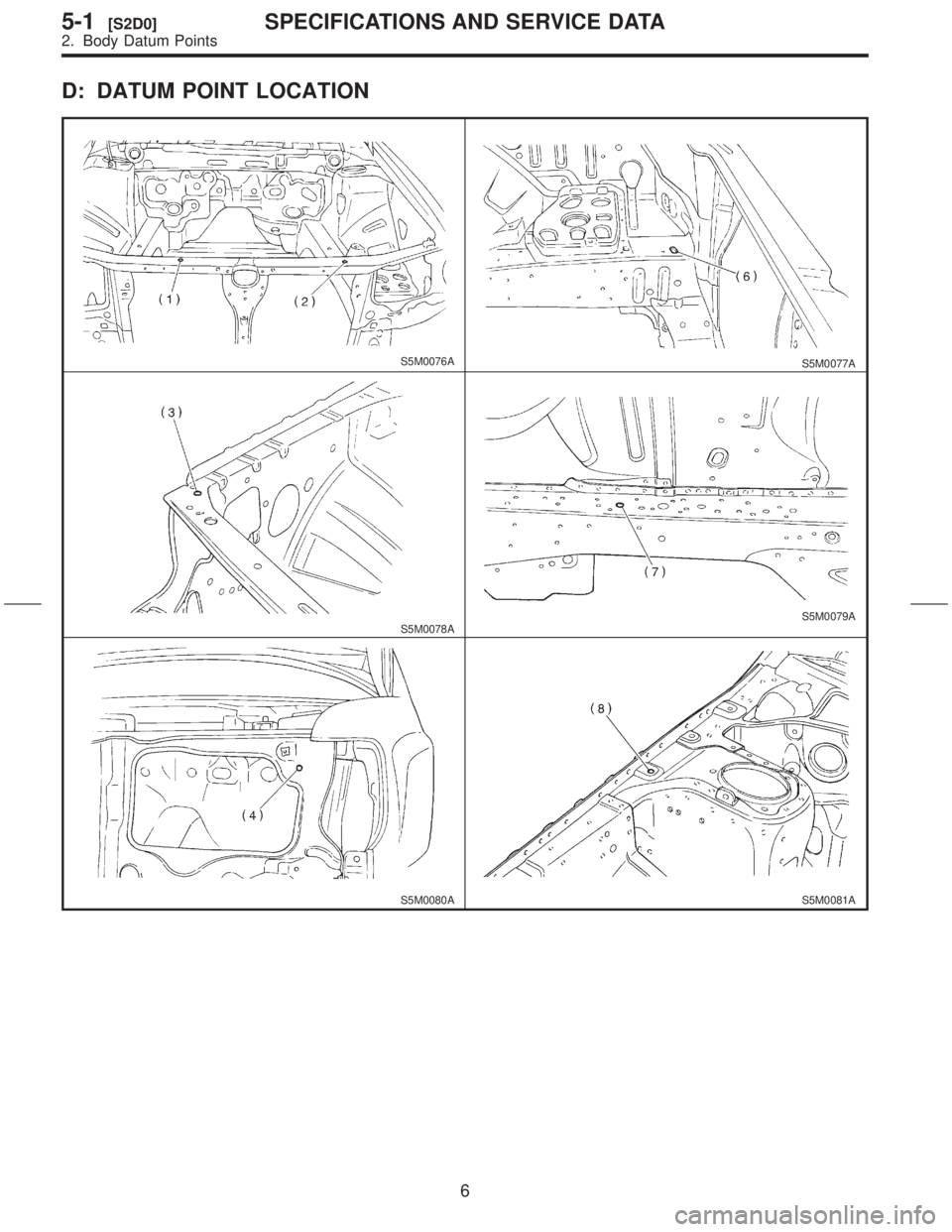

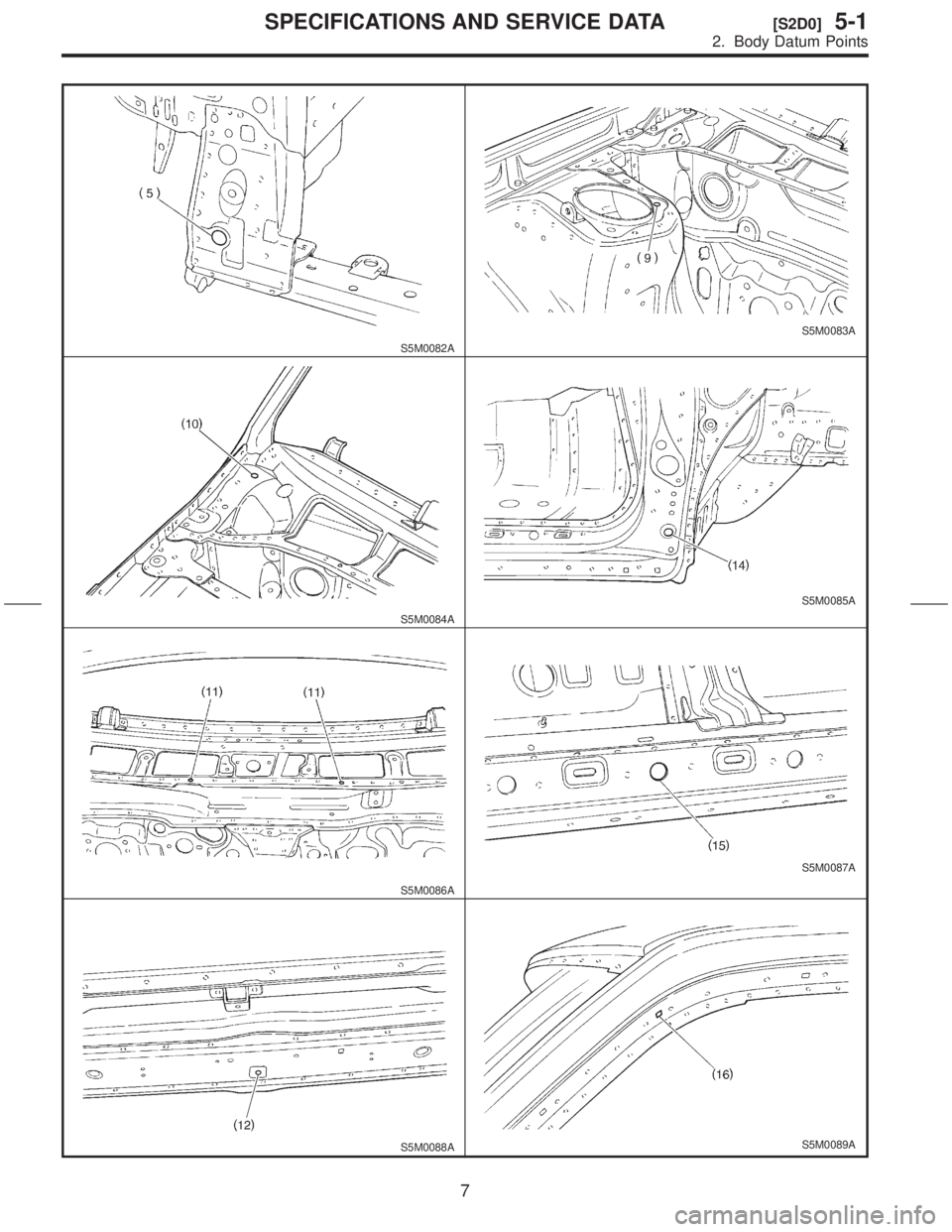

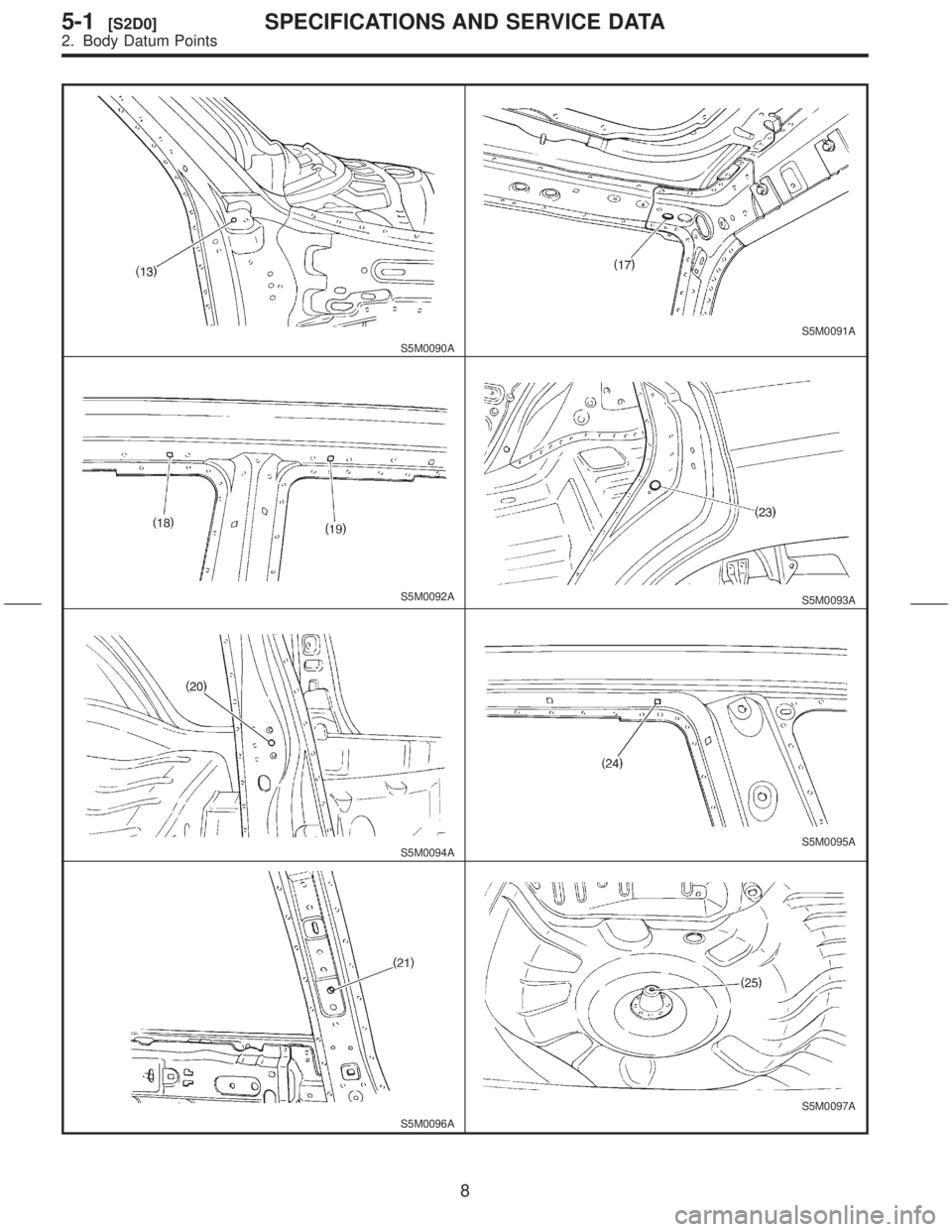

C: UNDER BODY
S5M0075A

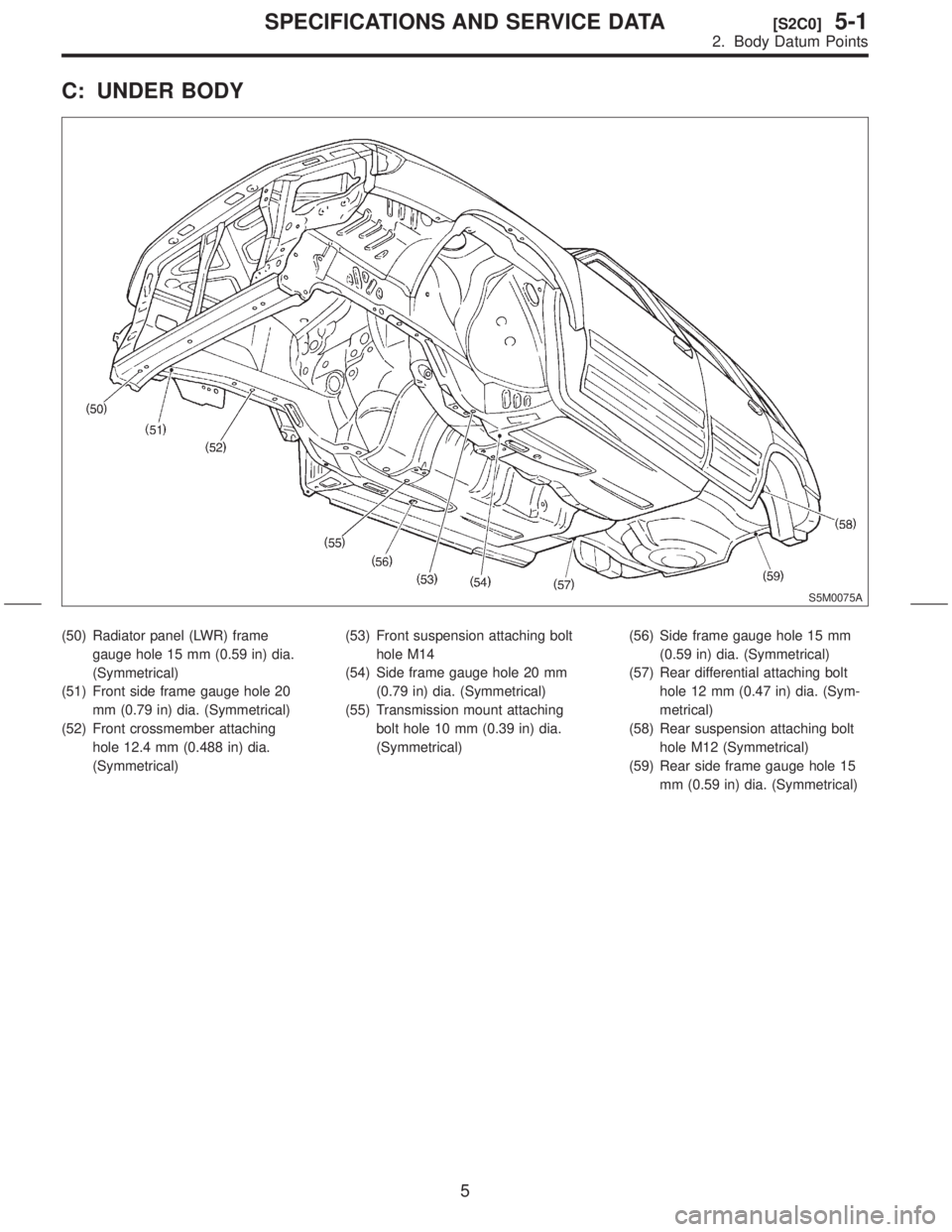

(50) Radiator panel (LWR) frame
gauge hole 15 mm (0.59 in) dia.
(Symmetrical)
(51) Front side frame gauge hole 20
mm (0.79 in) dia. (Symmetrical)
(52) Front crossmember attaching
hole 12.4 mm (0.488 in) dia.
(Symmetrical)(53) Front suspension attaching bolt
hole M14
(54) Side frame gauge hole 20 mm
(0.79 in) dia. (Symmetrical)
(55) Transmission mount attaching
bolt hole 10 mm (0.39 in) dia.
(Symmetrical)(56) Side frame gauge hole 15 mm
(0.59 in) dia. (Symmetrical)
(57) Rear differential attaching bolt
hole 12 mm (0.47 in) dia. (Sym-
metrical)
(58) Rear suspension attaching bolt
hole M12 (Symmetrical)
(59) Rear side frame gauge hole 15
mm (0.59 in) dia. (Symmetrical)
