1999 SUBARU FORESTER Service Repair Manual

MEMO:
46
5-1DIAGNOSTICS

1. Door Alignment
S5M0380A
2
5-2[S100]SPECIFICATIONS AND SERVICE DATA
1. Door Alignment

1. Front Door
S5M0173B
(1) Gusset
(2) Weatherstrip
(3) Stabilizer (Outer)
(4) Stabilizer (Inner)
(5) Door panel
(6) Plate(7) Checker
(8) Sealing cover
(9) Lower hinge
(10) Upper hingeTightening torque: N´m (kg-m, ft-lb)
T1:
7.4±2.0 (0.75±0.2, 5.4±1.4)
T2:13±3 (1.3±0.3, 9.4±2.2)
T3:25±3 (2.5±0.3, 18.1±2.2)
T4:29±5 (3.0±0.5, 21.7±3.6)
T5:32±10 (3.3±1.0, 23.9±7.2)
3
[C100]5-2COMPONENT PARTS
1. Front Door

2. Rear Door
S5M0174B
(1) Weatherstrip
(2) Stabilizer (Outer)
(3) Stabilizer (Inner)
(4) Door panel
(5) Plate
(6) Seating cover(7) Checker
(8) Lower hinge
(9) Upper hingeTightening torque: N´m (kg-m, ft-lb)
T1:
7.4±2.0 (0.75±0.2, 5.4±1.4)
T2:25±3 (2.5±0.3, 18.1±2.2)
T3:29±5 (3.0±0.5, 21.7±3.6)
T4:32±10 (3.3±1.0, 23.9±7.2)
4
5-2[C200]COMPONENT PARTS
2. Rear Door

3.
S5M0175A
\(1\)
\(2\)
\(3\)\(4\)
\(5\)
\(6\)\(7\)
\(8\)
5

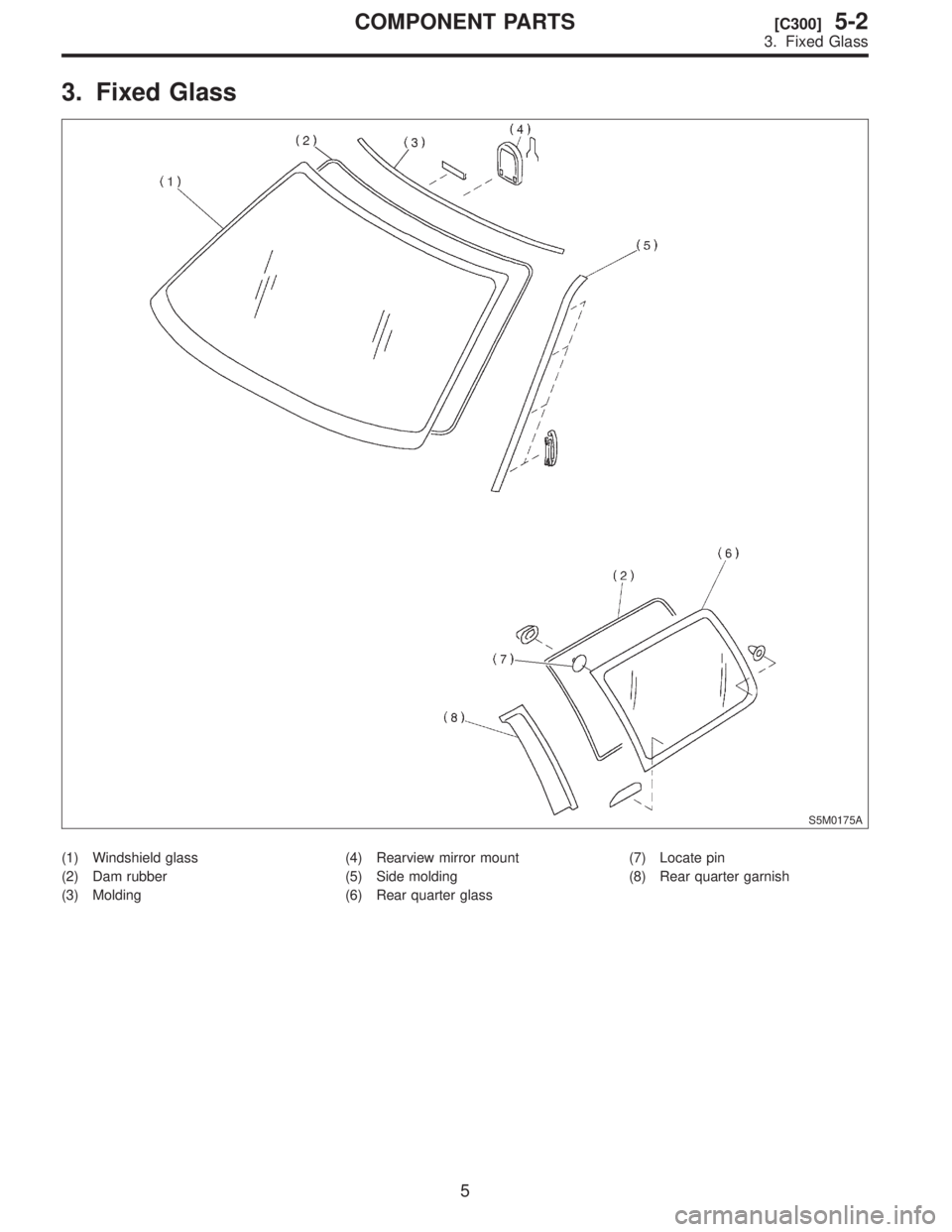

[C300]5-2COMPONENT
3.

4.
S5M0176A
\(1\)
\(2\)
\(3\)
\(4\)\(5\)T
T1:
7.4\2612.0\2610.2,\2611.4\)
T2:14\2614\2610.4,\2612.9\)
6

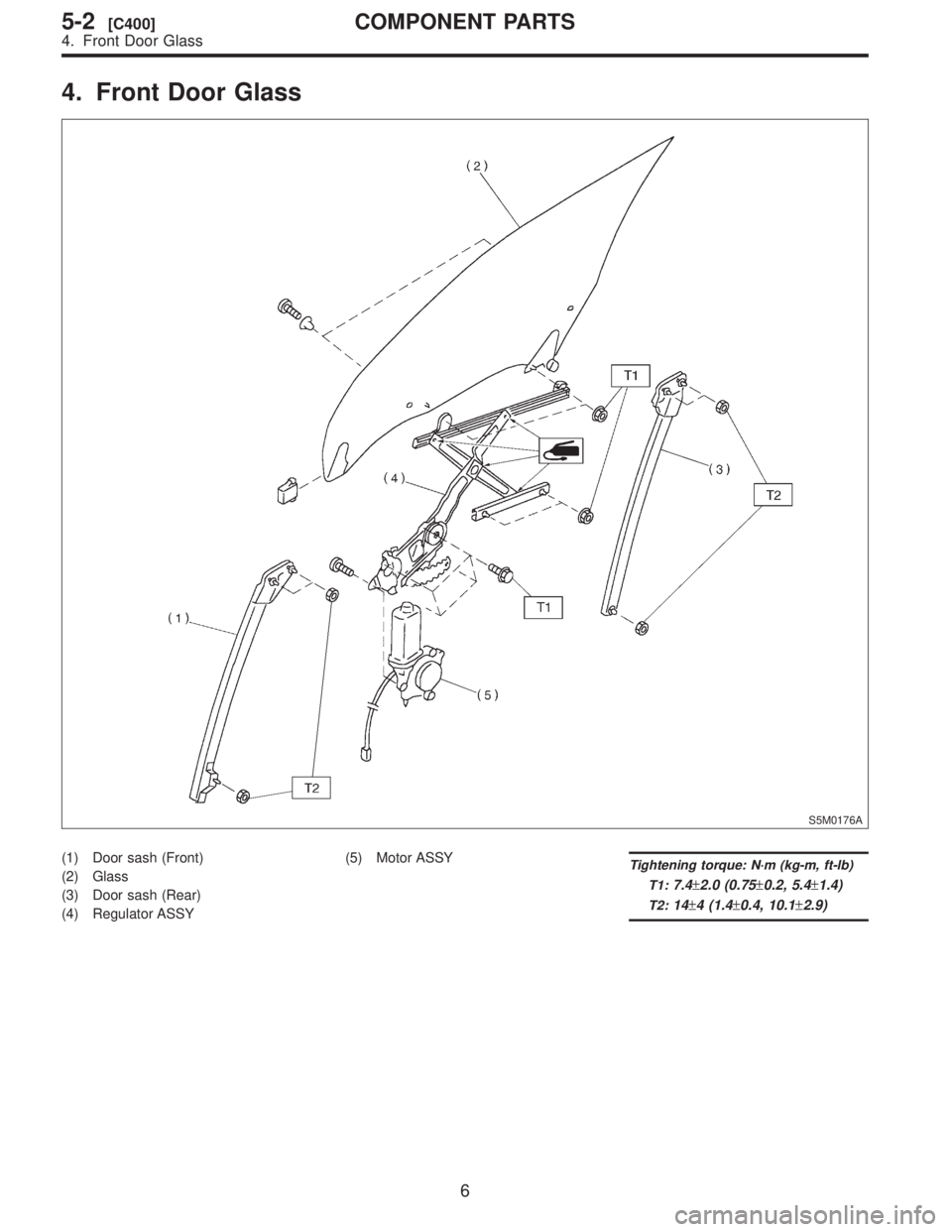

5-2[C400]COMPONENT
4.

5.
S5M0177A
\(1\)
\(2\)
\(3\)
\(4\)\(5\)T
T1:
7.4\2612.0\2610.2,\2611.4\)
T2:14\2614\2610.4,\2612.9\)
7

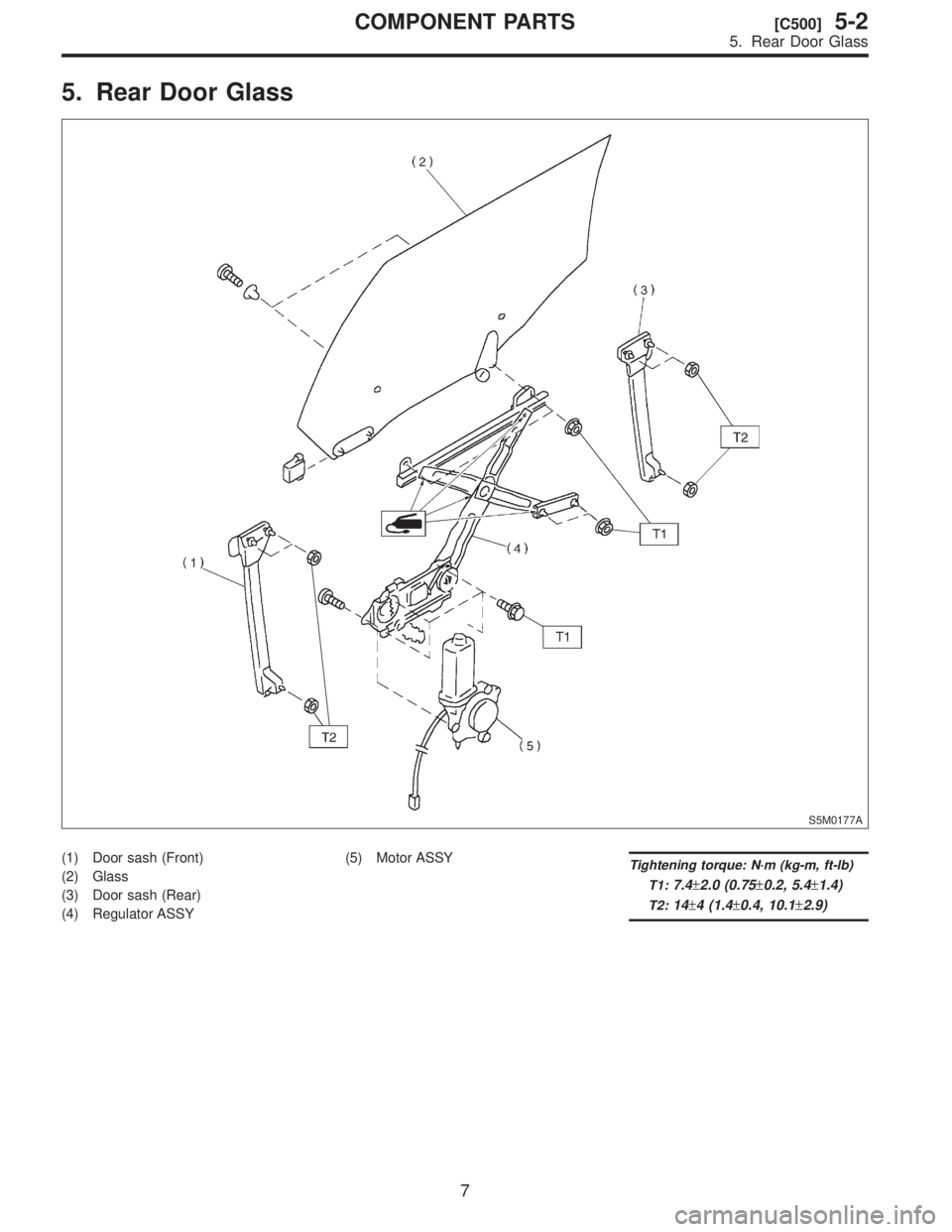

[C500]5-2COMPONENT
5.

6. Rear Gate and Glass
S5M0381A
(1) Locate pin
(2) Dam rubber
(3) Glass
(4) Hinge
(5) Rear gate
(6) Buffer cover
(7) Auto-door lock actuator
(8) Key cylinder
(9) Clip(10) Outer handle
(11) Striker
(12) Latch
(13) Stopper
(14) Buffer
(15) Stud
(16) Gas stay
(17) Rod
(18) Link(19) Rear gate inner handle
Tightening torque: N´m (kg-m, ft-lb)
T1:
2.0±0.5 (0.2±0.05, 1.4±0.4)
T2:7.4±2.0 (0.75±0.2, 5.4±1.4)
T3:14±4 (1.4±0.4, 10.1±2.9)
T4:25±5 (2.5±0.5, 18.1±3.6)
T5:13±3 (1.3±0.3, 9.4±2.2)
8
5-2[C600]COMPONENT PARTS
6. Rear Gate and Glass
