1999 SUBARU FORESTER Service Repair Manual

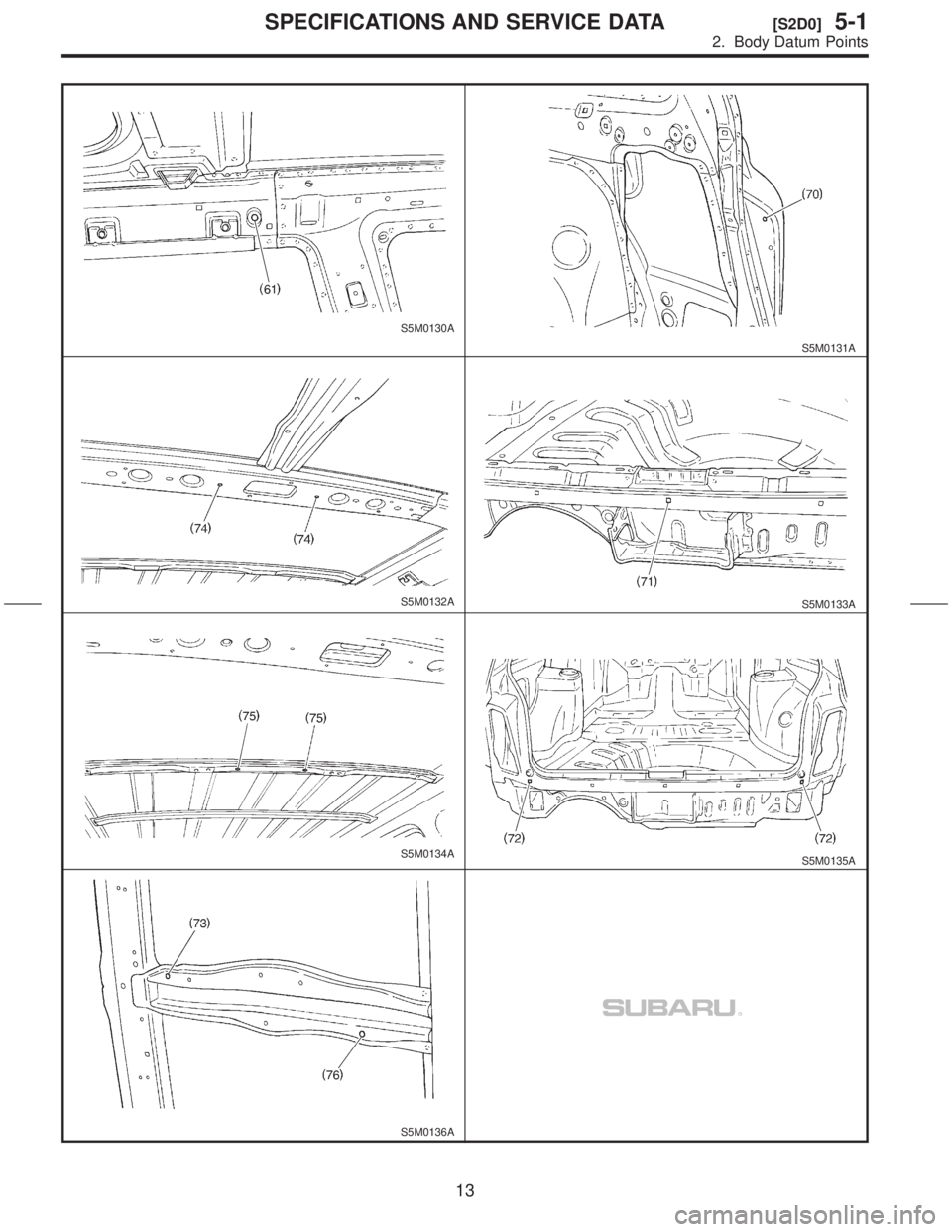

S5M0130A
S5M0131A
S5M0132AS5M0133A
S5M0134AS5M0135A
S5M0136A
13
[S2D0]5-1SPECIFICATIONS AND SERVICE DATA
2. Body Datum Points

MEMO:
14
5-1[S2D0]SPECIFICATIONS AND SERVICE DATA
2. Body Datum Points

3. Datum Dimensions
Use a tram tracking gauge to measure all dimen-
sions. If a measuring tape is used, be extremely
careful because it tends to deflect or twist, which
results in a false reading.
G5M0122
NOTE:
IA suffix character ªRº or ªLº refers to the right or
the left.
IAll dimensions refer to the distance between the
centers of holes measured in a straight line.
IEach dimension indicates a projected dimension
between hole centers.
15
[S300]5-1SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions

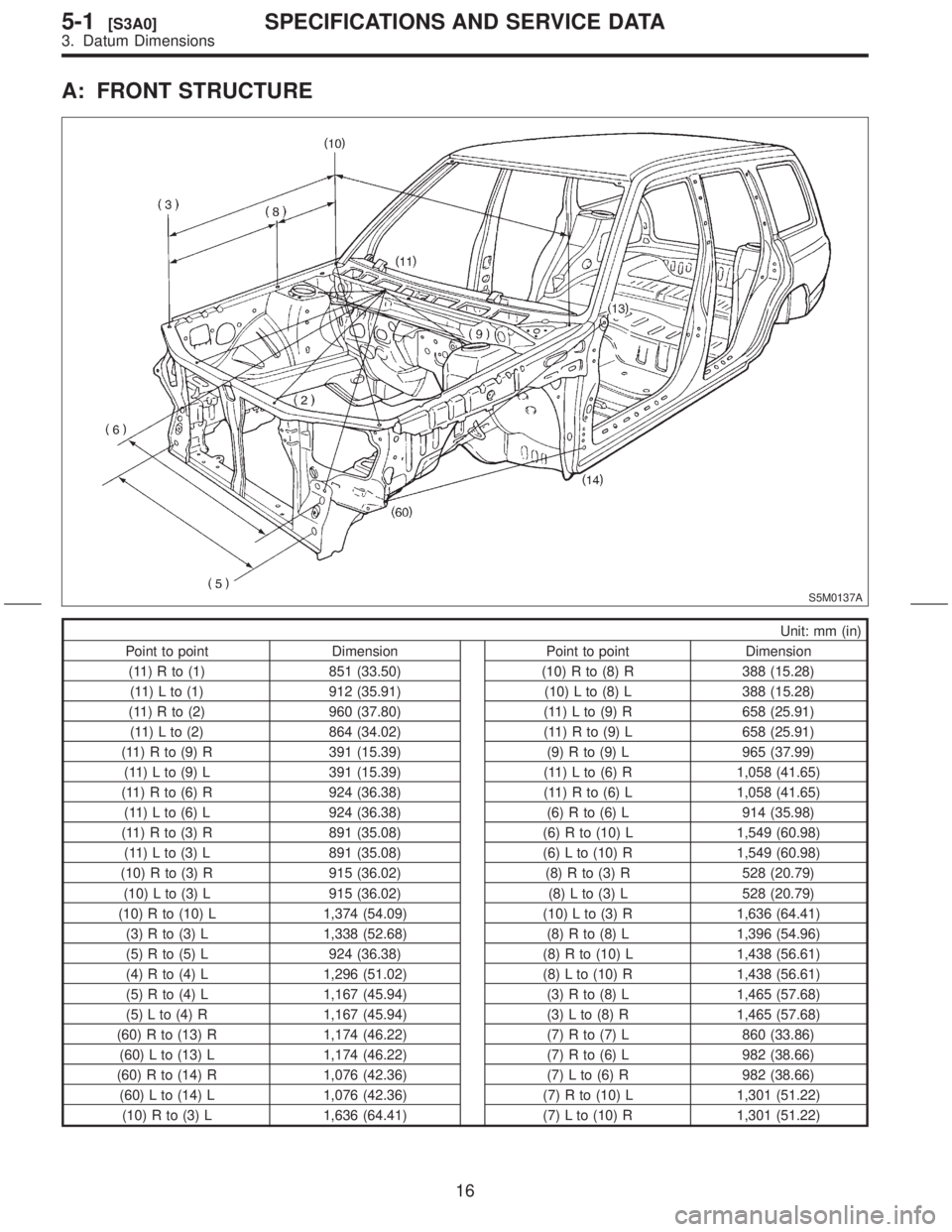

A: FRONT STRUCTURE
S5M0137A
Unit: mm (in)
Point to point Dimension Point to point Dimension
(11) R to (1) 851 (33.50) (10) R to (8) R 388 (15.28)
(11) L to (1) 912 (35.91) (10) L to (8) L 388 (15.28)
(11) R to (2) 960 (37.80) (11) L to (9) R 658 (25.91)
(11) L to (2) 864 (34.02) (11) R to (9) L 658 (25.91)
(11) R to (9) R 391 (15.39) (9) R to (9) L 965 (37.99)
(11) L to (9) L 391 (15.39) (11) L to (6) R 1,058 (41.65)
(11) R to (6) R 924 (36.38) (11) R to (6) L 1,058 (41.65)
(11) L to (6) L 924 (36.38) (6) R to (6) L 914 (35.98)
(11) R to (3) R 891 (35.08) (6) R to (10) L 1,549 (60.98)
(11) L to (3) L 891 (35.08) (6) L to (10) R 1,549 (60.98)
(10) R to (3) R 915 (36.02) (8) R to (3) R 528 (20.79)
(10) L to (3) L 915 (36.02) (8) L to (3) L 528 (20.79)
(10) R to (10) L 1,374 (54.09) (10) L to (3) R 1,636 (64.41)
(3) R to (3) L 1,338 (52.68) (8) R to (8) L 1,396 (54.96)
(5) R to (5) L 924 (36.38) (8) R to (10) L 1,438 (56.61)
(4) R to (4) L 1,296 (51.02) (8) L to (10) R 1,438 (56.61)
(5) R to (4) L 1,167 (45.94) (3) R to (8) L 1,465 (57.68)
(5) L to (4) R 1,167 (45.94) (3) L to (8) R 1,465 (57.68)
(60) R to (13) R 1,174 (46.22) (7) R to (7) L 860 (33.86)
(60) L to (13) L 1,174 (46.22) (7) R to (6) L 982 (38.66)
(60) R to (14) R 1,076 (42.36) (7) L to (6) R 982 (38.66)
(60) L to (14) L 1,076 (42.36) (7) R to (10) L 1,301 (51.22)
(10) R to (3) L 1,636 (64.41) (7) L to (10) R 1,301 (51.22)
16
5-1[S3A0]SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions

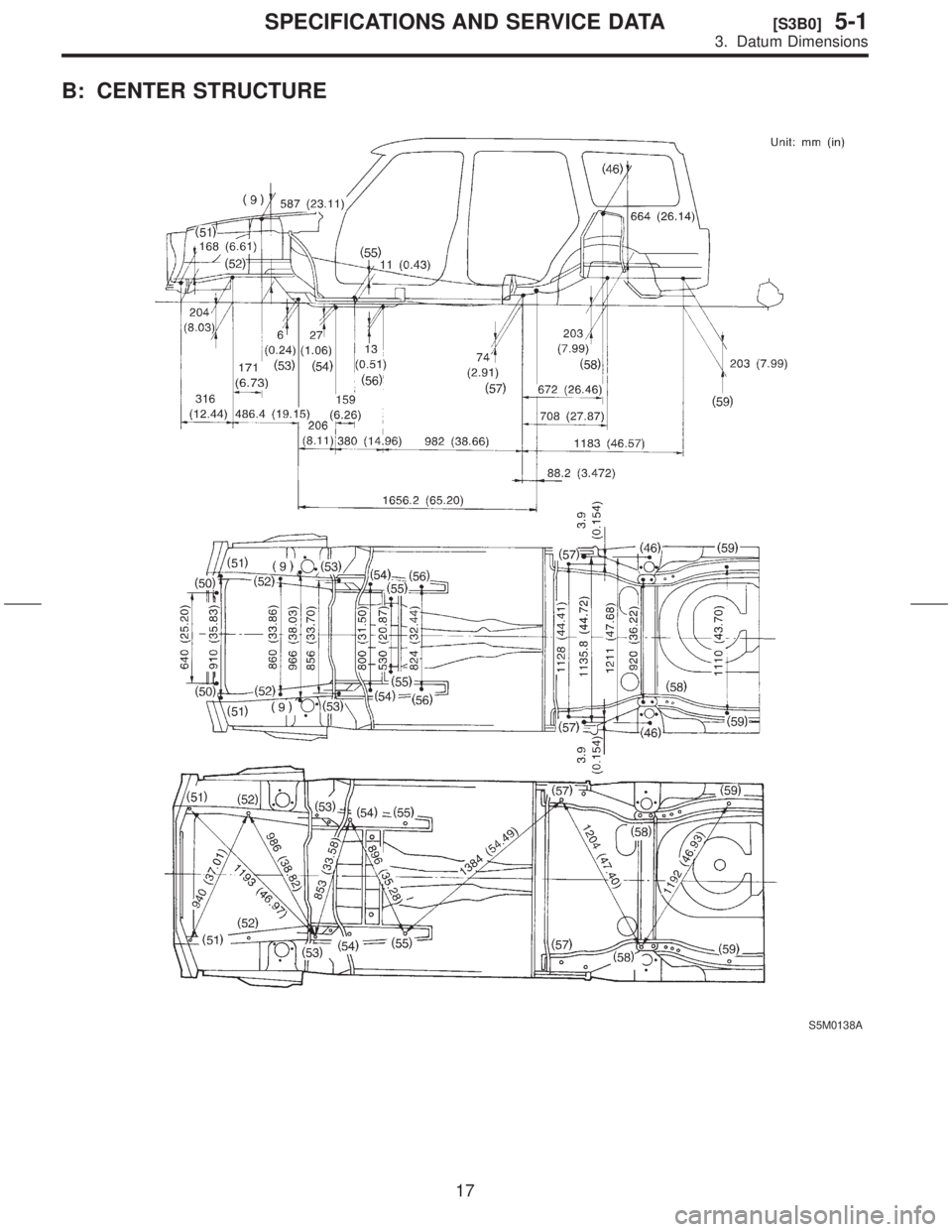

B: CENTER STRUCTURE
S5M0138A
17
[S3B0]5-1SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions

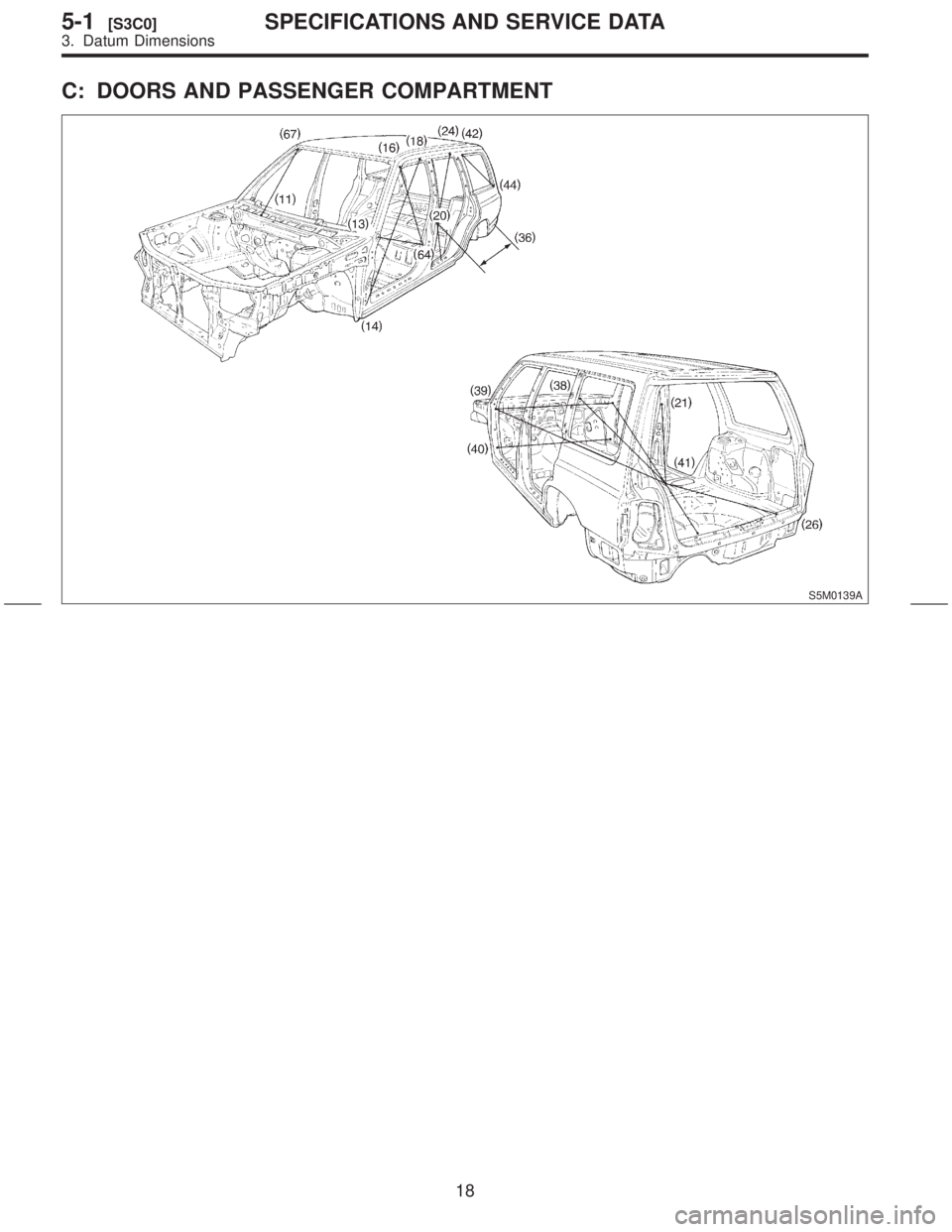

C: DOORS AND PASSENGER COMPARTMENT
S5M0139A
18
5-1[S3C0]SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions

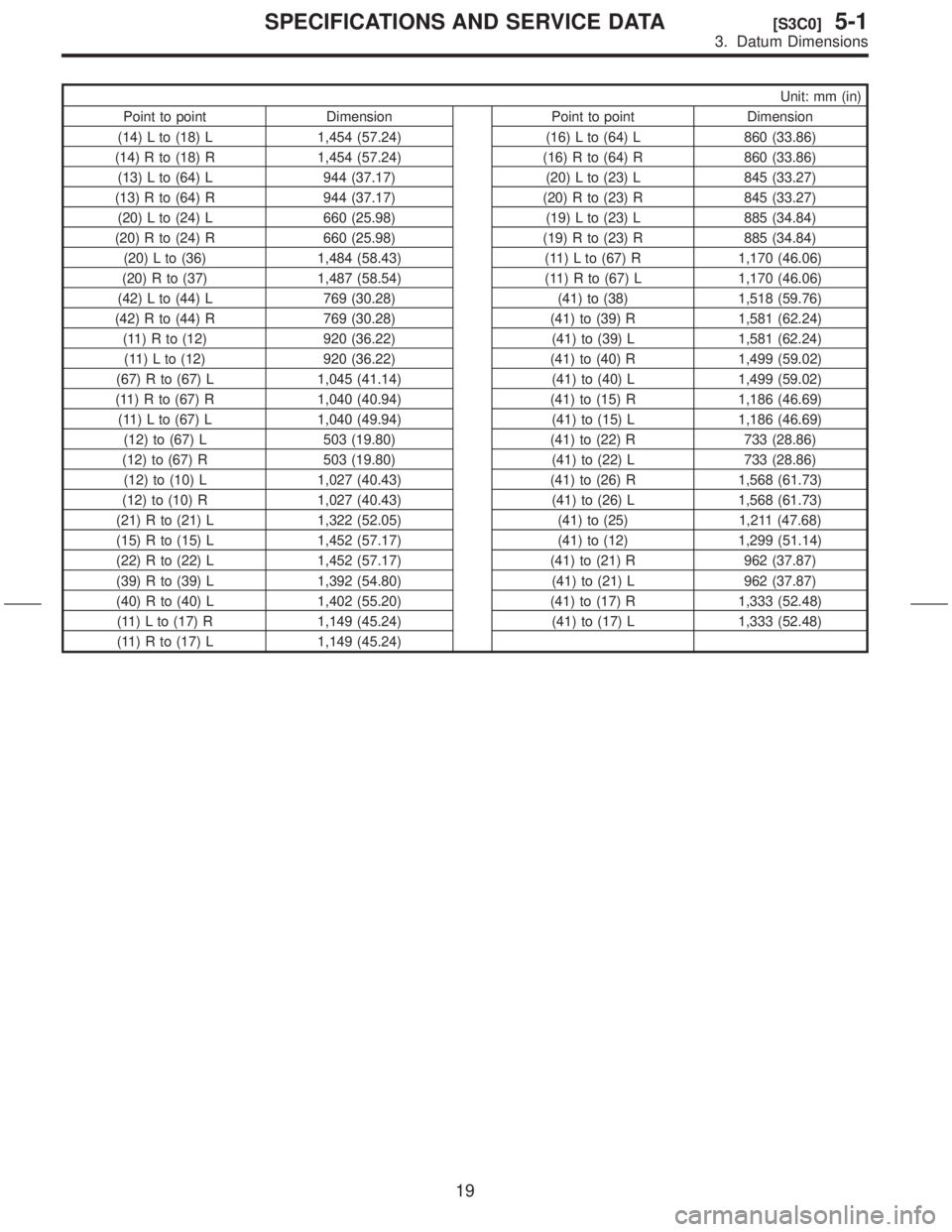

Unit: mm (in)
Point to point Dimension Point to point Dimension
(14) L to (18) L 1,454 (57.24) (16) L to (64) L 860 (33.86)
(14) R to (18) R 1,454 (57.24) (16) R to (64) R 860 (33.86)
(13) L to (64) L 944 (37.17) (20) L to (23) L 845 (33.27)
(13) R to (64) R 944 (37.17) (20) R to (23) R 845 (33.27)
(20) L to (24) L 660 (25.98) (19) L to (23) L 885 (34.84)
(20) R to (24) R 660 (25.98) (19) R to (23) R 885 (34.84)
(20) L to (36) 1,484 (58.43) (11) L to (67) R 1,170 (46.06)
(20) R to (37) 1,487 (58.54) (11) R to (67) L 1,170 (46.06)
(42) L to (44) L 769 (30.28) (41) to (38) 1,518 (59.76)
(42) R to (44) R 769 (30.28) (41) to (39) R 1,581 (62.24)
(11) R to (12) 920 (36.22) (41) to (39) L 1,581 (62.24)
(11) L to (12) 920 (36.22) (41) to (40) R 1,499 (59.02)
(67) R to (67) L 1,045 (41.14) (41) to (40) L 1,499 (59.02)
(11) R to (67) R 1,040 (40.94) (41) to (15) R 1,186 (46.69)
(11) L to (67) L 1,040 (49.94) (41) to (15) L 1,186 (46.69)
(12) to (67) L 503 (19.80) (41) to (22) R 733 (28.86)
(12) to (67) R 503 (19.80) (41) to (22) L 733 (28.86)
(12) to (10) L 1,027 (40.43) (41) to (26) R 1,568 (61.73)
(12) to (10) R 1,027 (40.43) (41) to (26) L 1,568 (61.73)
(21) R to (21) L 1,322 (52.05) (41) to (25) 1,211 (47.68)
(15) R to (15) L 1,452 (57.17) (41) to (12) 1,299 (51.14)
(22) R to (22) L 1,452 (57.17) (41) to (21) R 962 (37.87)
(39) R to (39) L 1,392 (54.80) (41) to (21) L 962 (37.87)
(40) R to (40) L 1,402 (55.20) (41) to (17) R 1,333 (52.48)
(11) L to (17) R 1,149 (45.24) (41) to (17) L 1,333 (52.48)
(11) R to (17) L 1,149 (45.24)
19
[S3C0]5-1SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions

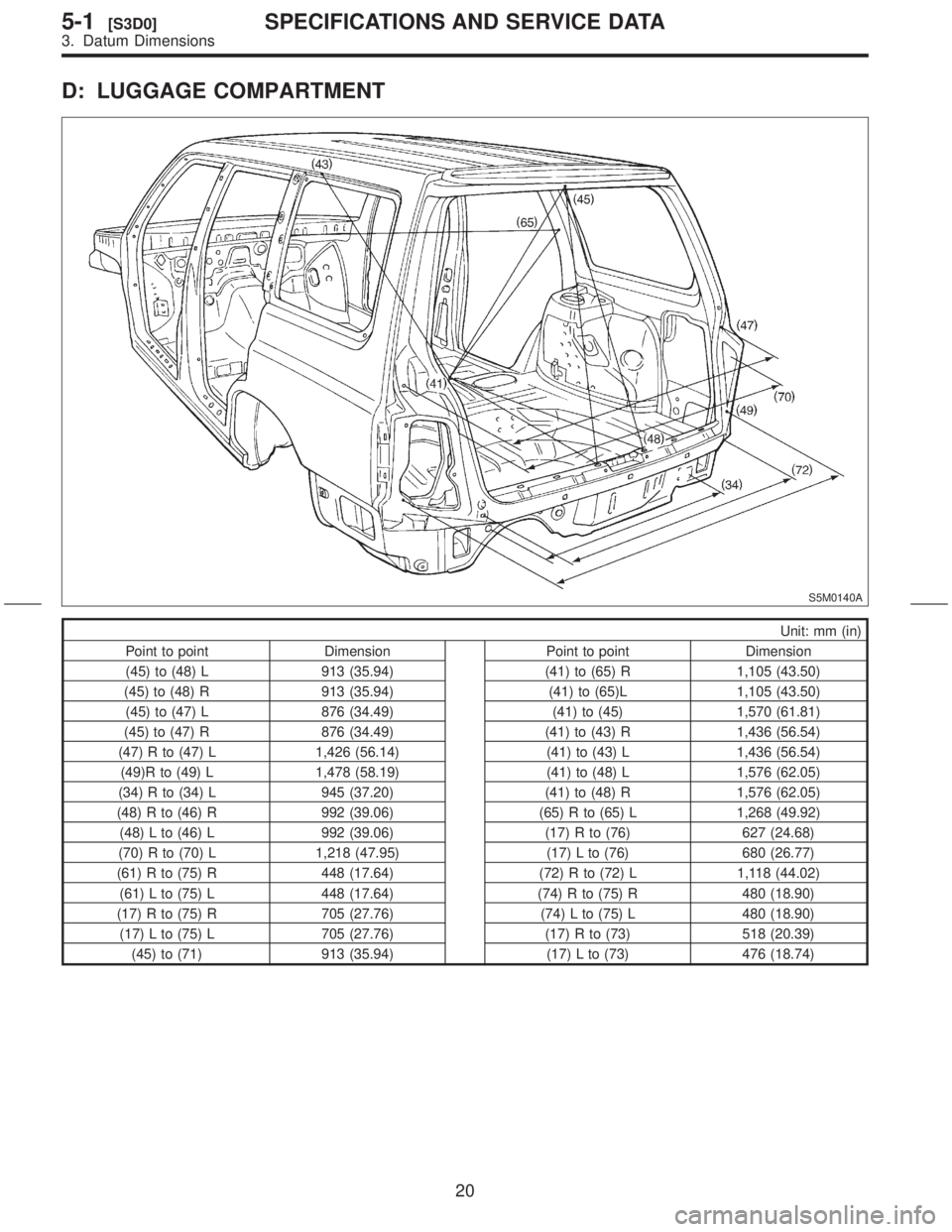

D: LUGGAGE COMPARTMENT
S5M0140A
Unit: mm (in)
Point to point Dimension Point to point Dimension
(45) to (48) L 913 (35.94) (41) to (65) R 1,105 (43.50)
(45) to (48) R 913 (35.94) (41) to (65)L 1,105 (43.50)
(45) to (47) L 876 (34.49) (41) to (45) 1,570 (61.81)
(45) to (47) R 876 (34.49) (41) to (43) R 1,436 (56.54)
(47) R to (47) L 1,426 (56.14) (41) to (43) L 1,436 (56.54)
(49)R to (49) L 1,478 (58.19) (41) to (48) L 1,576 (62.05)
(34) R to (34) L 945 (37.20) (41) to (48) R 1,576 (62.05)
(48) R to (46) R 992 (39.06) (65) R to (65) L 1,268 (49.92)
(48) L to (46) L 992 (39.06) (17) R to (76) 627 (24.68)
(70) R to (70) L 1,218 (47.95) (17) L to (76) 680 (26.77)
(61) R to (75) R 448 (17.64) (72) R to (72) L 1,118 (44.02)
(61) L to (75) L 448 (17.64) (74) R to (75) R 480 (18.90)
(17) R to (75) R 705 (27.76) (74) L to (75) L 480 (18.90)
(17) L to (75) L 705 (27.76) (17) R to (73) 518 (20.39)
(45) to (71) 913 (35.94) (17) L to (73) 476 (18.74)
20
5-1[S3D0]SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions
