1999 SUBARU FORESTER Service Repair Manual

4. Datum Points and Dimensions Concerning On-Board Aiming
Adjustment
If headlight aiming is misaligned due to a damaged body panel, repair headlight mating surface using body
and headlight datum points as a guide.
NOTE:
It is recommended to conduct on-board aiming adjustment with headlights turned OFF. If turned ON dur-
ing the adjustment, the duration should be within two minutes.
S5M0141A
Unit: mm (in)
Point to point Dimension Point to point Dimension
(11) to (A) 890.6 (35.06) (11) to (C) 1,087.7 (42.82)
(11) to (B) 913.4 (35.96) (11) to (D) 1,023.7 (40.30)
21
[S400]5-1SPECIFICATIONS AND SERVICE DATA
4. Datum Points and Dimensions Concerning On-Board Aiming Adjustment

1. Front Hood and Hood Lock
S5M0390A
(1) Front hood
(2) Opener bracket
(3) Lever ASSY
(4) Cable
(5) Front hood stay(6) Hood lock ASSY
(7) Striker
(8) Seal (Front hood)
(9) Hinge (RH, LH)Tightening torque: N´m (kg-m, ft-lb)
T1:
14±5 (1.4±0.5, 10.1±3.6)
T2:33±10 (3.3±1.0, 23.9±7)
22
5-1[C100]COMPONENT PARTS
1. Front Hood and Hood Lock

2.
S5M0391A
\(1\)
\(2\)
\(3\)vehicle\)
\(4\) \(5\)
\(6\)
\(7\)
vehicle\)T
T1:
33\2611\2610.1,\2610.7\)
T2:70\2611\2610.1,\2610.7\)
23
[C200]5-1COMPONENT
2.

3. Rear Bumper
S5M0439A
(1) Bumper beam
(2) E/A foam
(3) Side upper bracket(4) Bumper face
(5) Bumper side plate
(6) Rear arch coverTightening torque: N´m (kg-m, ft-lb)
T:
93±25 (9.5±2.5, 69±18)
24
5-1[C300]COMPONENT PARTS
3. Rear Bumper

4.
S5M0393A
\(1\)
\(2\)\(3\)
\(4\)\(5\)
25
[C400]5-1COMPONENT
4.

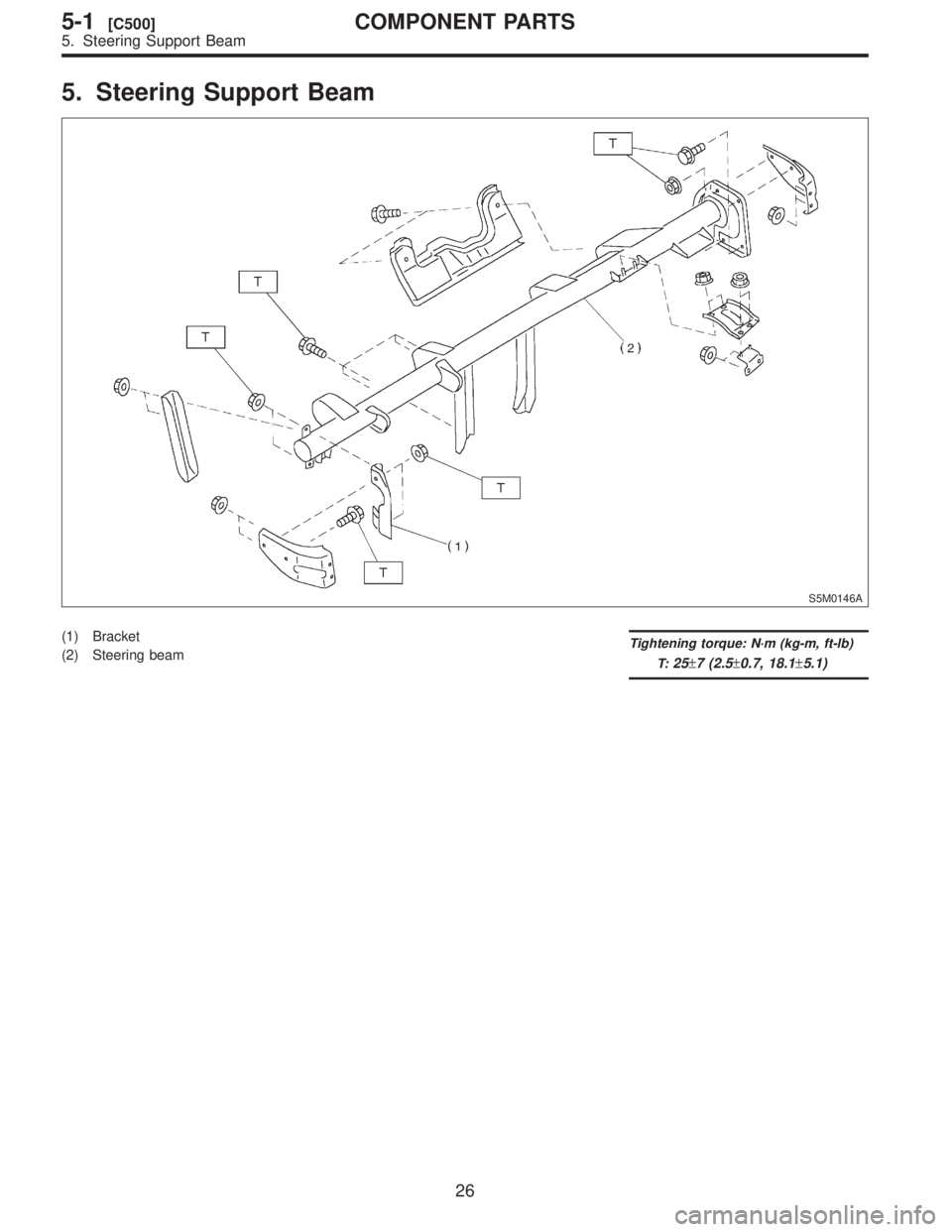

5.
S5M0146A
\(1\)
\(2\)TT:
25\2617\2610.7,\2615.1\)
26
5-1[C500]COMPONENT
5.

6. Sunroof
S5M0290A
(1) Glass lid
(2) Rear drain ASSY
(3) Frame ASSY
(4) Motor ASSY
(5) Drive unit
(6) Drain tube(7) Harness
(8) Sunshade
(9) Garnish
(10) Frame bracket
(11) Cover
(12) Deflector(13) Shim
Tightening torque: N´m (kg-m, ft-lb)
T:
7.4±2.0 (0.75±0.2, 5.4±1.4)
27
[C600]5-1COMPONENT PARTS
6. Sunroof

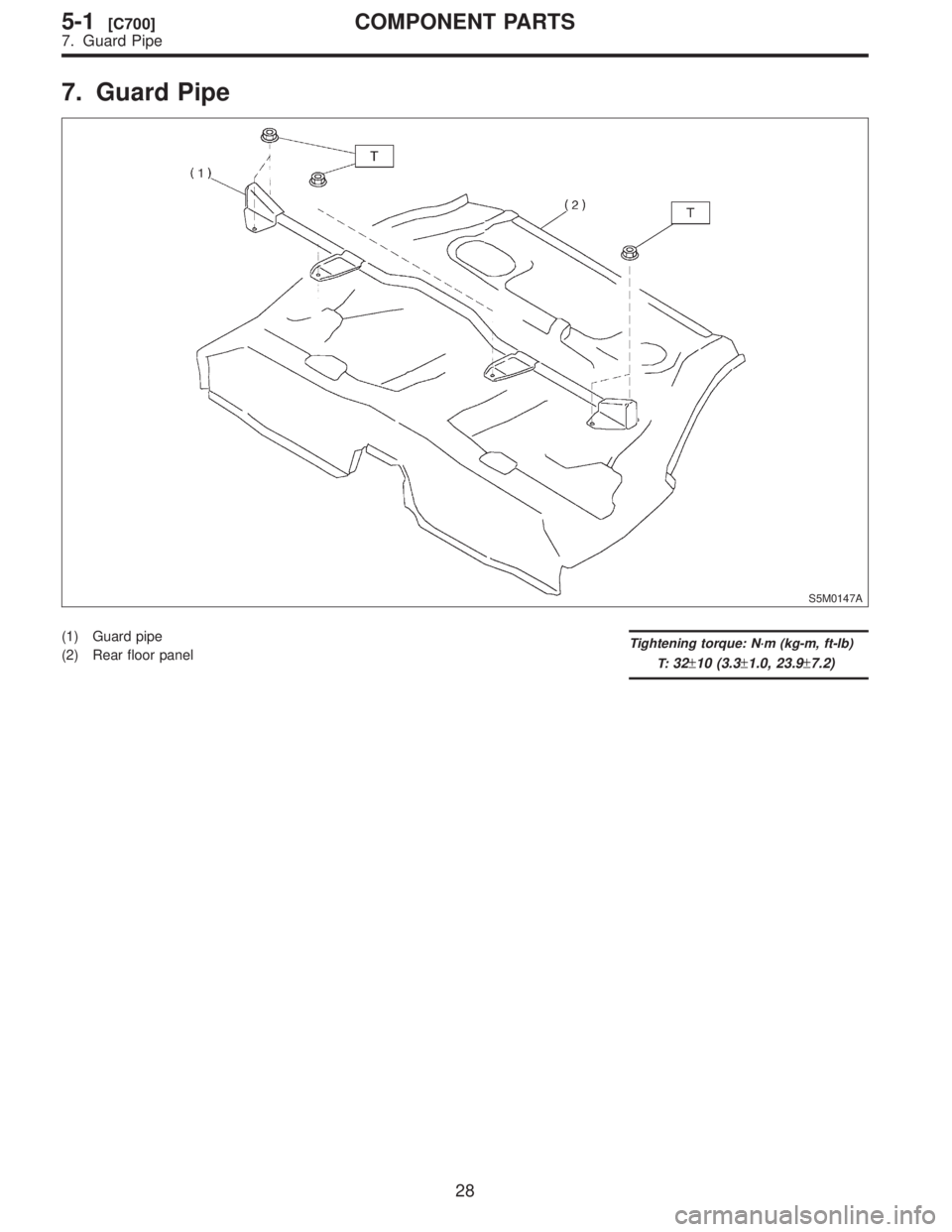

7.
S5M0147A
\(1\)
\(2\)TT:
32\26110\2611.0,\2617.2\)
28
5-1[C700]COMPONENT
7.
