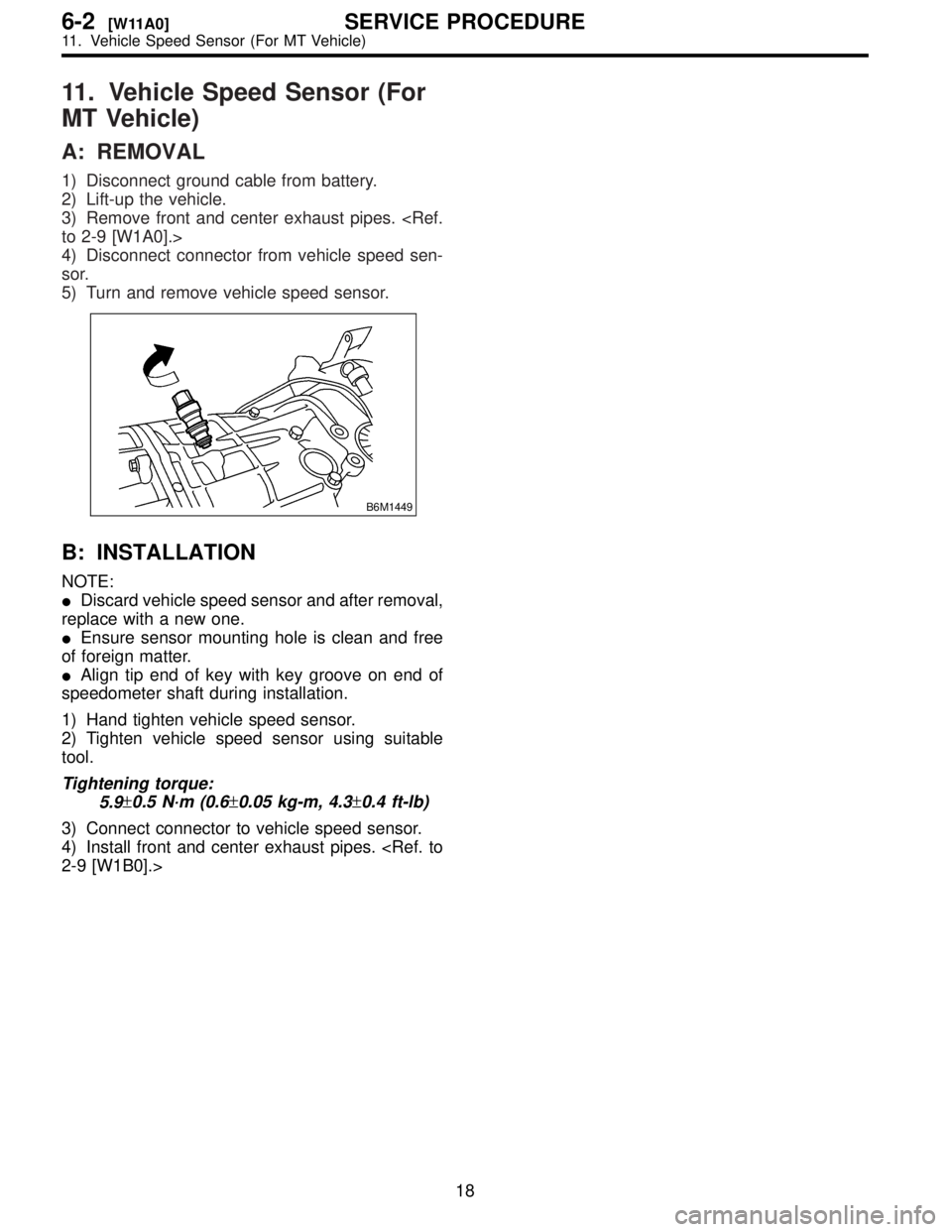

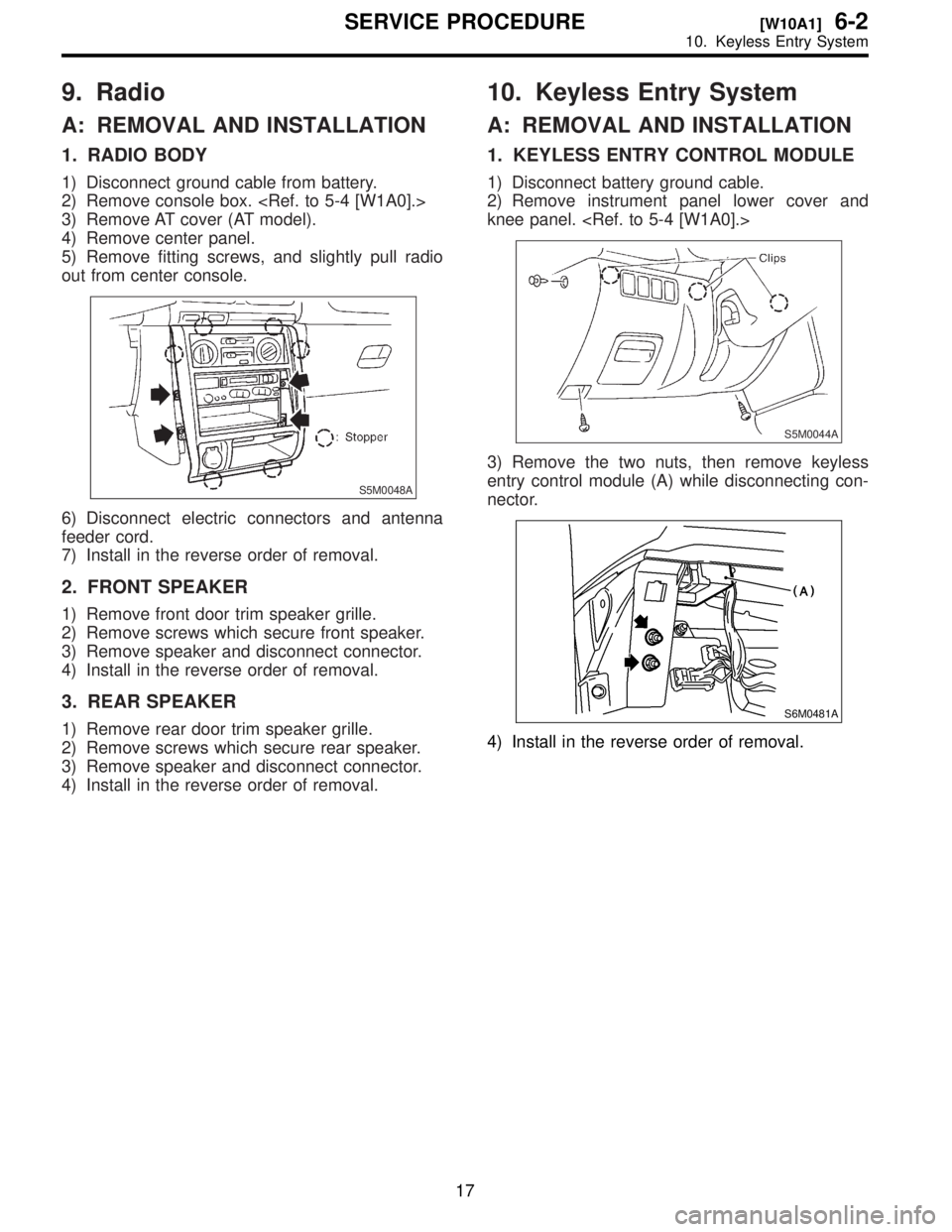

12. Cruise Control
A: ADJUSTMENT
S6M0387A
19
[W12A0]6-2SERVICE PROCEDURE
12. Cruise Control

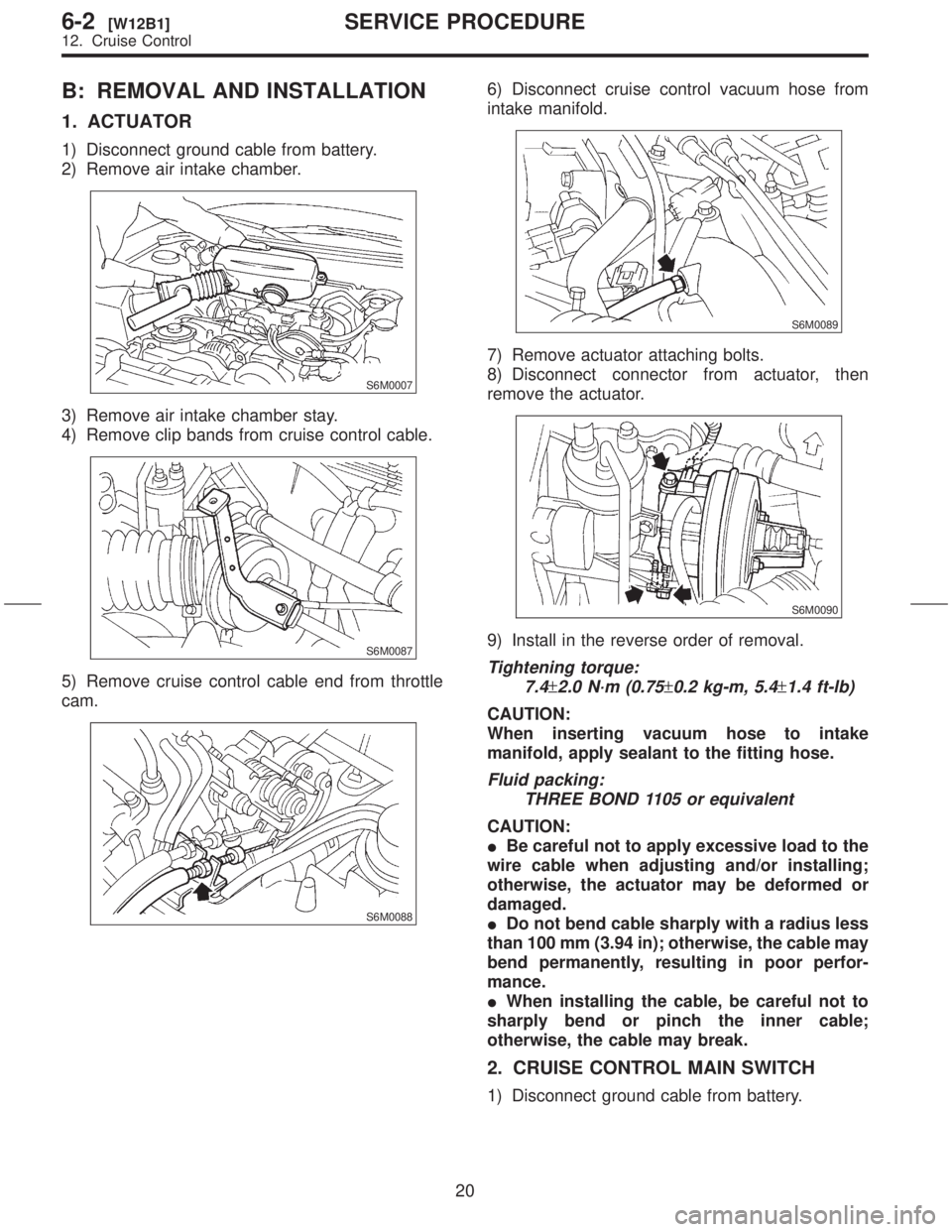

B: REMOVAL AND INSTALLATION
1. ACTUATOR
1) Disconnect ground cable from battery.
2) Remove air intake chamber.
S6M0007
3) Remove air intake chamber stay.
4) Remove clip bands from cruise control cable.
S6M0087
5) Remove cruise control cable end from throttle
cam.
S6M0088
6) Disconnect cruise control vacuum hose from
intake manifold.
S6M0089
7) Remove actuator attaching bolts.
8) Disconnect connector from actuator, then
remove the actuator.
S6M0090
9) Install in the reverse order of removal.
Tightening torque:
7.4
±2.0 N´m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
CAUTION:
When inserting vacuum hose to intake
manifold, apply sealant to the fitting hose.
Fluid packing:
THREE BOND 1105 or equivalent
CAUTION:
IBe careful not to apply excessive load to the
wire cable when adjusting and/or installing;
otherwise, the actuator may be deformed or
damaged.
IDo not bend cable sharply with a radius less
than 100 mm (3.94 in); otherwise, the cable may
bend permanently, resulting in poor perfor-
mance.
IWhen installing the cable, be careful not to
sharply bend or pinch the inner cable;
otherwise, the cable may break.
2. CRUISE CONTROL MAIN SWITCH
1) Disconnect ground cable from battery.
20
6-2[W12B1]SERVICE PROCEDURE
12. Cruise Control

2) Remove screws and clip from instrument panel
lower cover.
3) Remove panel lower cover.
S6M0091
4) Disconnect connector from cruise control main
switch (A).
S6M0092B
5) Remove main switch by pushing it outward.
S6M0093
6) Install in the reverse order of removal.
3. CRUISE CONTROL COMMAND SWITCH
CAUTION:
Before starting operation carefully read the
notes given in Chapter 5-5 for proper handling
of the airbag module.
1) Disconnect ground cable from battery.
2) Set front wheels in straight ahead position.
3) Turn ignition switch OFF.
4) Disconnect battery ground cable from battery
and wait for at least 20 seconds before starting
work.5) Using TORXTBIT T30 (Tamper resistant type),
remove the two TORXTbolts which secure driver's
airbag module.
S6M0094A
6) Disconnect airbag module connector on back of
airbag module.
7) Remove horn switch from steering wheel as
shown.
S6M0095
8) Disconnect horn and cruise control command
switch connector, then remove cruise control com-
mand switch.
S6M0096
9) Install in the reverse order of removal.

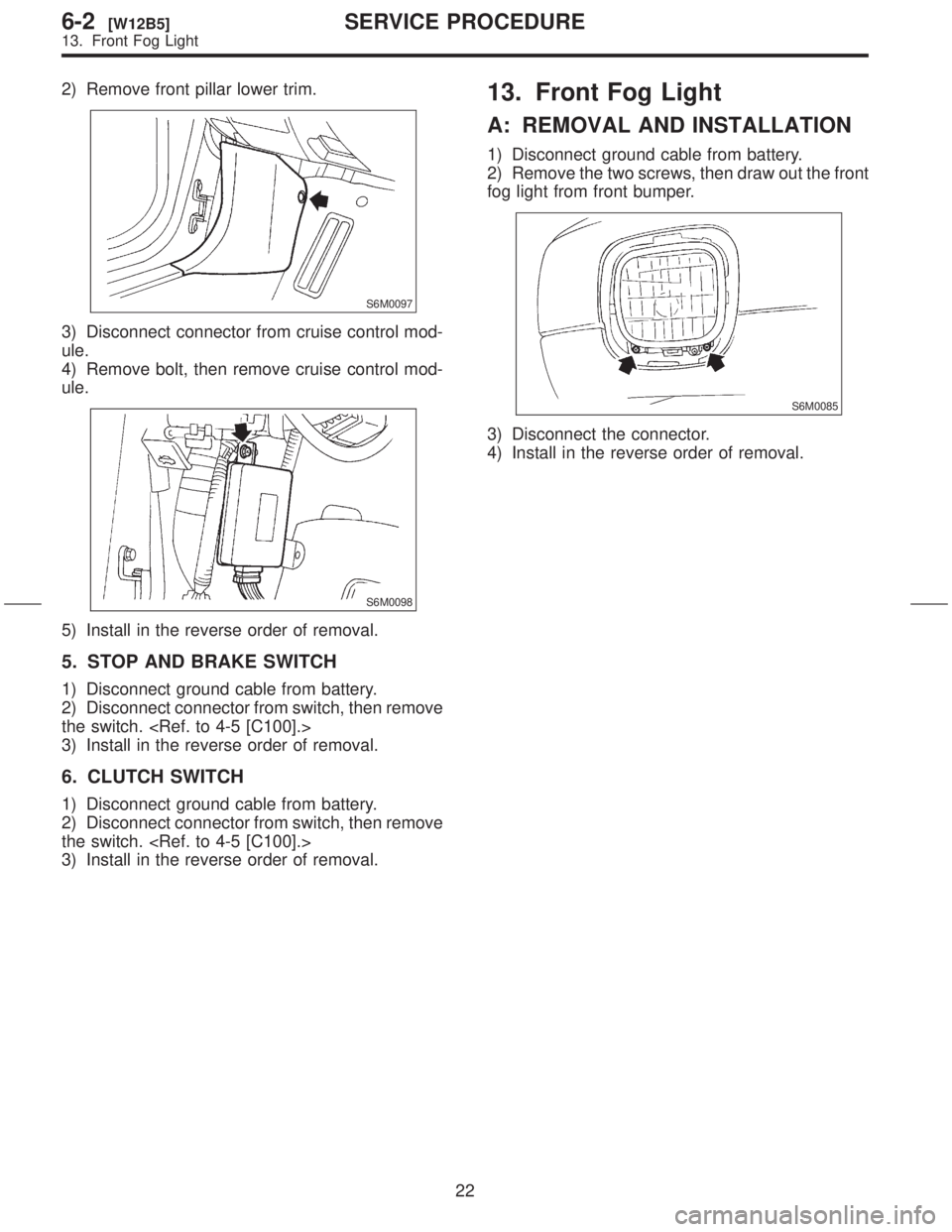

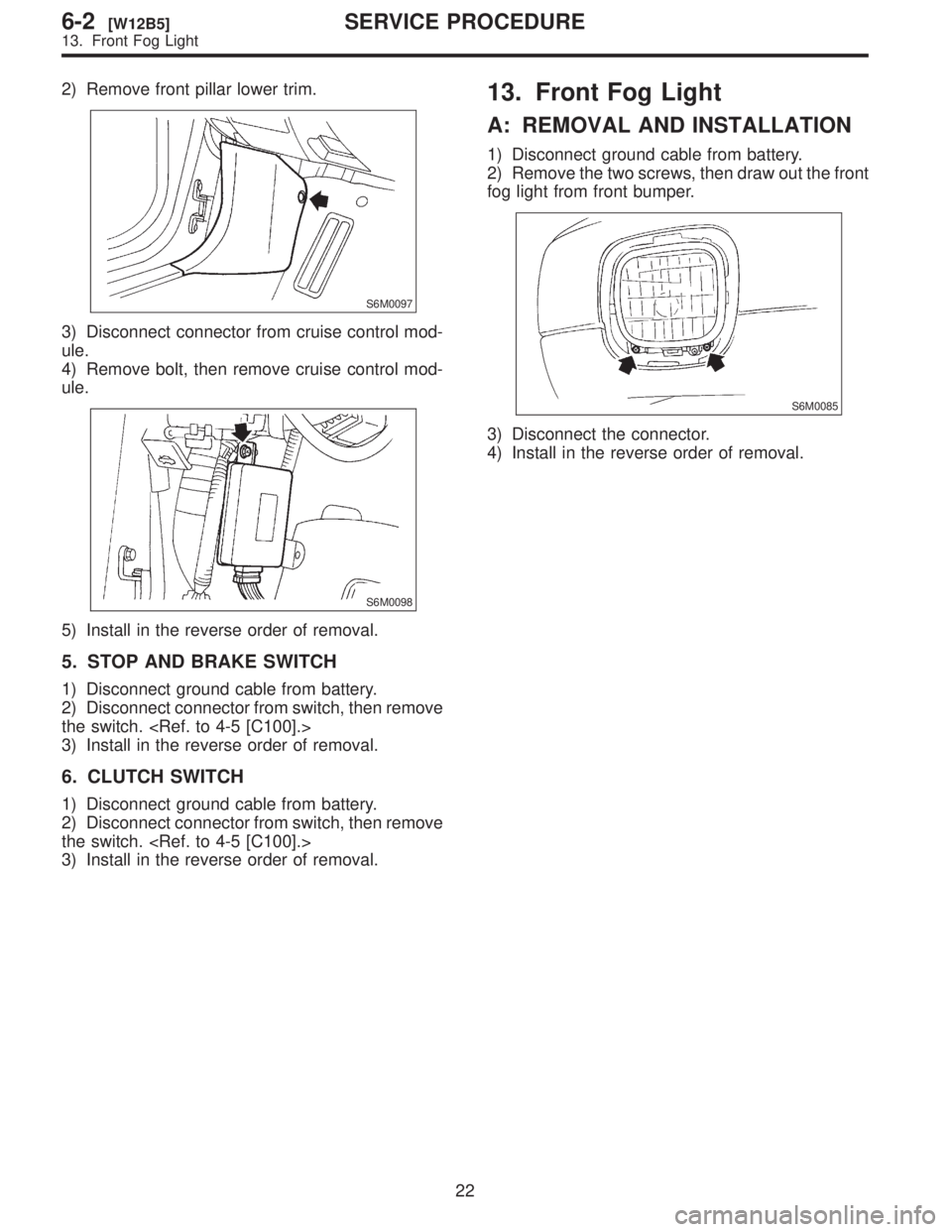

4. CRUISE CONTROL MODULE
1) Disconnect ground cable from battery.
21
[W12B4]6-2SERVICE PROCEDURE
12. Cruise Control

2) Remove front pillar lower trim.
S6M0097
3) Disconnect connector from cruise control mod-
ule.
4) Remove bolt, then remove cruise control mod-
ule.
S6M0098
5) Install in the reverse order of removal.
5. STOP AND BRAKE SWITCH
1) Disconnect ground cable from battery.
2) Disconnect connector from switch, then remove
the switch.
3) Install in the reverse order of removal.
6. CLUTCH SWITCH
1) Disconnect ground cable from battery.
2) Disconnect connector from switch, then remove
the switch.
3) Install in the reverse order of removal.
13. Front Fog Light
A: REMOVAL AND INSTALLATION
1) Disconnect ground cable from battery.
2) Remove the two screws, then draw out the front
fog light from front bumper.
S6M0085
3) Disconnect the connector.
4) Install in the reverse order of removal.

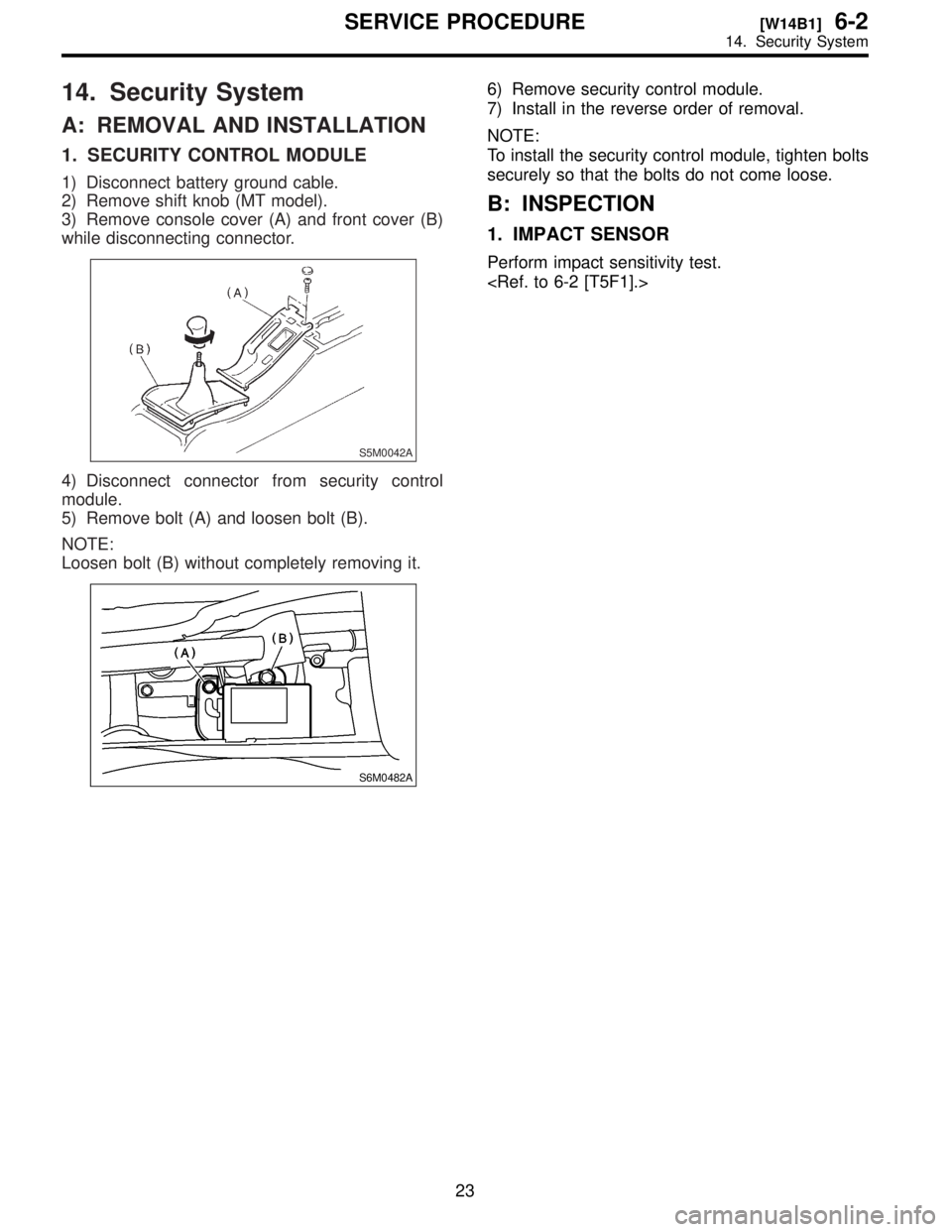

22
6-2[W12B5]SERVICE PROCEDURE
