MEMO:
40
5-2DIAGNOSTICS

1. Front Seat
S5M0440A
(1) Lumbar lever
(2) Lumbar cover
(3) Lumbar unit
(4) Headrest
(5) Backrest
(6) Cushion
(7) Cushion frame(8) Lifter dial
(9) Hinge cover OUT
(10) Reclining lever
(11) Hinge ASSY
(12) Hinge spring cover
(13) Slide rail ASSY IN
(14) Connecting wire(15) Slide rail ASSY OUT
(16) Bracket
Tightening torque: N´m (kg-m, ft-lb)
T1:
18+10/0(1.8+1/0,13+7/0)
T2:52±10 (5.3±1.0, 38±7)
2
5-3[C100]COMPONENT PARTS
1. Front Seat

2.
S5M0404A
\(1\)
\(2\)
\(3\)
\(4\)
\(5\)\(6\)
\(7\)
\(8\)
\(9\)T
T1:
10\2613\2610.3,\2612.2\)
T2:25\2617\2610.7,\2615.1\)
3
[C200]5-3COMPONENT
2.

3.
S5M0441A
\(1\)
\(2\)
\(3\)
\(4\)\(5\)T
T1:
7.4\2612.0\2610.2,\2611.4\)
T2:29+20/\3767\(3.0+2.0/\3760.7,+14.5/
\3765.1\)
4
5-3[C300]COMPONENT
3.

4.
S5M0405A
\(1\)
\(2\)
\(3\)
\(4\)
\(5\)\(6\)
\(7\)T
T1:
7.4\2612.0\2610.2,\2611.4\)
T2:29+20/\3767\(3.0+2.0/\3760.7,+14.5/
\3765.1\)
T3:52\26110\2611.0,\2617.2\)
5

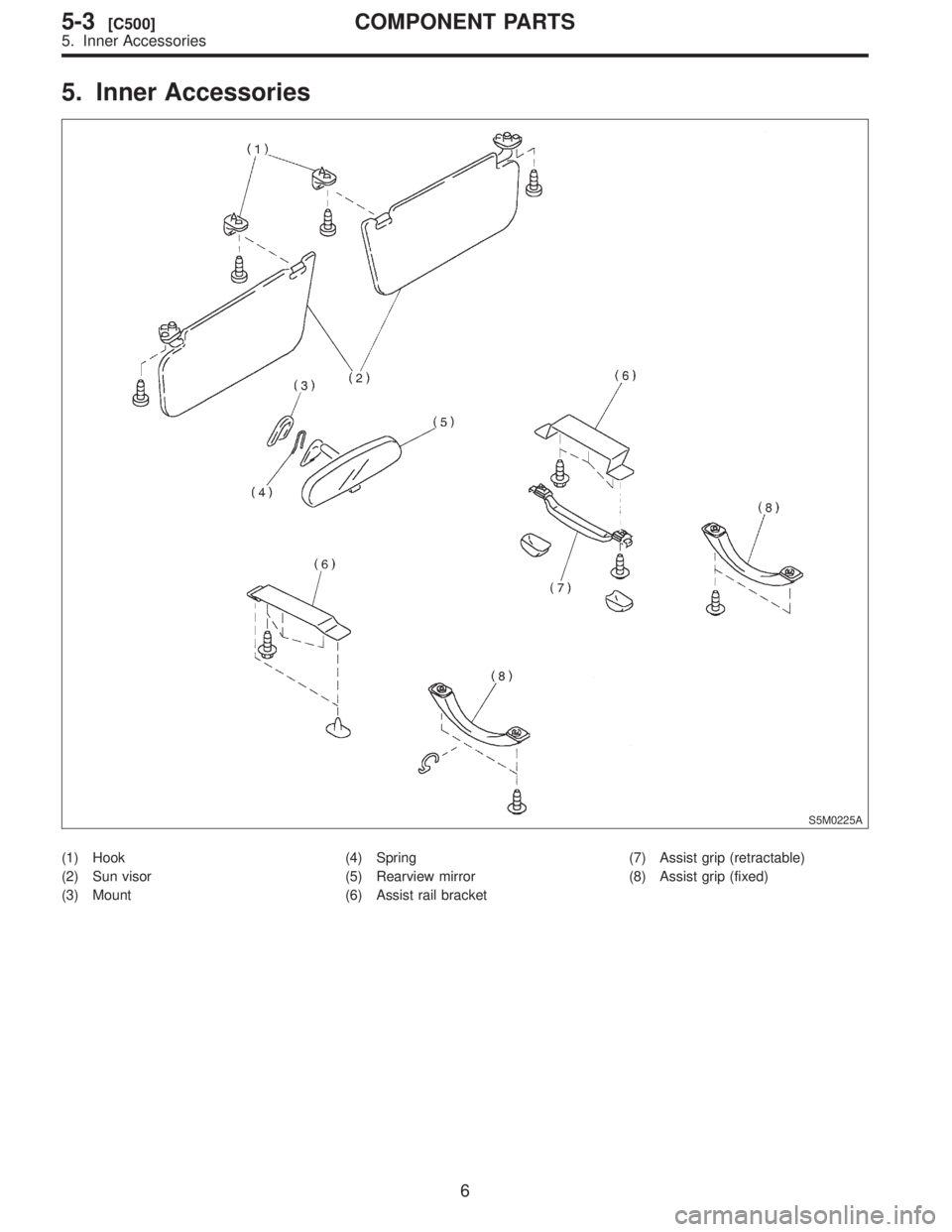

[C400]5-3COMPONENT
4.

5.
S5M0225A
\(1\)
\(2\)
\(3\)\(4\)
\(5\)
\(6\)\(7\)
\(8\)
6
5-3[C500]COMPONENT
5.

6. Inner Trim
S5M0406A
(1) Front pillar upper trim
(2) Center pillar upper trim
(3) Rear pillar upper trim
(4) Cover
(5) Pocket(6) Rear quarter lower trim
(7) Rear skirt trim
(8) Front pillar lower trim
(9) Center pillar cover
(10) Side sill rear upper cover(11) Center pillar lower trim
(12) Side sill rear lower cover
(13) Side sill front upper cover
(14) Side sill front lower cover
7
[C600]5-3COMPONENT PARTS
6. Inner Trim

1. Front Seat
A: REMOVAL
1) While operating button (located on top of
backrest), lift headrest out with hand placed
between backrest and headrest.
S5M0303
2) Pull reclining lever back to fold backrest all the
way forward. While pulling slide adjuster lever,
move seat all the way forward.
3) Remove bolt cover at rear end of slide rail.
4) Remove bolts securing seat rear.
S5M0366
5) While pulling slide adjuster lever, slide seat all
the way back.
6) Remove bolts securing front of seat.
G5M0344
7) While disconnecting side airbag connector,
detach front seat. (Side airbag equipped vehicle)
and inner belt connector.CAUTION:
IBe careful not to scratch seat when remov-
ing it from vehicle.
IAfter the front seat has been removed from
side airbag equipped vehicle, store it as
instructed in section 5-5 AIRBAG REPAIR SEC-
TION.
B: INSTALLATION
1) While operating button (located on top of
backrest), lift headrest out by placing your hand
between backrest and headrest.
S5M0303
2) Pull reclining lever back to fold backrest all the
way forward. Pull slide adjuster lever and move
lower slide rail all the way backward.
3) Position seat in compartment and align the
holes on the seat with the holes on the vehicle
body side.
4) Secure the front of seat using inward and out-
ward bolts (A) and (B) in that order.
5) While pulling slide adjuster lever, move seat all
the way forward.
6) Secure the rear of seat using inward and out-
ward bolts (C) and (D).
S5M0227A
7) Connect inner belt connector.
8) Connect side airbag connector. (Side airbag
equipped model)
CAUTION:
Check that all lock plate pawls are completely
and equally inserted into the holes in the slide
rail brackets.
9) After installation, ensure that all mechanisms
operate properly and lock.
8
5-3[W1A0]SERVICE PROCEDURE
1. Front Seat
