Page 561 of 2189

HONDA CIVIC 1996 6.G Workshop Manual Emission Control System
Evaporative Emission (EVAPI Gontrols (contd)EVAP BYPASSSOLENOID VALVEY
(From page l1291)
Check for a short in the wire{2WBS linel:Disconnect the 2P connector {romthe EVAP byp

Page 562 of 2189

$HONDA CIVIC 1996 6.G Workshop Manual I \ \l (From page 11-292i Chock the tollowing parts tolleakage to aimosphero, and ropaii or replaco if necess6.y:. fuel fill cap. fuel tank. fuel v.por pipe. EVAP two way valve. EVAP bypas solonoid va$

Page 563 of 2189

HONDA CIVIC 1996 6.G Workshop Manual Emission Control System
Evaporative Emission (EVAPI Controls (contd)
Evaporative Emission (EVAPI Two Way Valve Testing
l96 DIGYS engine lcoupel,97 Dl6Y7 engine (coupe: KL
model, sedan: KL (LX) modo

Emission Control System
Evaporative Emission (EVAPI Controls (cont'd)
Evaporative Emission (EVAPI Two Way Valve Testing
l'96 DIGYS engine lcoupel,'97 Dl6Y7 engine (coupe: KL
model, sedan: KL (LX) modoll,'97 Dl6Y8 engine {coup€:
alt models, sedan: KL model, '98-all modelsll:
1. Remove the fuel fill cap.
2. Remove the vapor line from the EVAP two way
valve. and connect it to a T-fitting from a vacuum
gauge and a vacuum pump as shown.
VACUUM/PRESSURE
IJ
f96 D16Y5 engine,'96 D16Y7 engine,'96 D16Y8 ongine
(sedanl,'97 D16Y5 engine,'97 Dl6Y7 engine {coupe: KA,
KC models, sedan: KA, KC, KL {DX} models, hatchback:
all modsls),'97 D16Y8 engine {sedan: KA, KC models}l:
1. Remove the fuel fill cap,
2. Remove the vapor line from the EVAP two way
valve on the fuel tank, and connect it to a T-fitting
from a vacuum gauge and a vacuum pump as
snown.
VACUUM/PRESSURE GAUGE,0 - 4 in.Hg07JAZ - 0010008VACUUMPUMP/GAUGE.0 -30 in.HgA973X-041 -XXXXX
Apply vacuum slowly and continuously while watch-
ing the gauge. The vacuum should stabilize momen-
tarily at 0.8 - 2.1 kPa (6 - 16 mmHg, 0.2 - 0.6 in.Hg).
lf the vacuum stabilizes (valve opens) below
0.8 kPa {6 mmHg, 0.2 in.Hg) or above 2.1 kPa
(16 mmHg, 0.6 in.Hg), install a new valve and retest.
Move the vacuum pump hose from the vacuum fit-
ting to the pressure fitting, and move the vacuum
gauge hose from the vacuum side to the pressure
side as shown.
Slowlv pressurize the vapor line while watching the
gauge. The pressure should be stabilize momentari
ly above 1.0 kPa (8 mmHg. 0.3 in.Hg).
. lf the pressure momentarily stabilizes (valve
opens) above '1.0 kPa (8 mmHg, 0.3 in.Hg), the
valve is OK.
. lf the pressure stabilizes below 1.0 kPa (8 mmHg,
0.3 in.Hg), install a new valve and retest.
Apply vacuum slowly and continuously while
watching the gauge. The vacuum should stabilize
momentarily at 0.7 - 2.0 kPa (5 - 15 mmHg, 0.2 - 0.6
in.Hg ).
lf the vacuum stabilizes (valve opens) below
0.7 kPa (5 mmHg,0.2 in.Hg) or above 2.0 kPa
(15 mmHg, 0.6 in.Hg), install a new valve and retest.
Move the vacuum pump hose from the vacuum fit-
'l'
4.
5.
ting to the pressure fitting, and move the
gauge hose from the vacuum side to the
side as shown.
PRESSURESIDE
Slowly pressurize the vapor line while watching the
gauge. The pressure should stabilize at 1.3 - 4.7 kPa
(0 - 35 mmHg, 0.4 - 1.4 in.Hg).
. It the pressure momentarily stabilizes (valve
opens) at 1.3 - 4.7 kPa (10 - 35 mmHg, 0.4 - 1.4
in. Hg), the valve is OK.
. lf the pressure stabilizes below 1.3 kPa (10 mmHg,
0.4 in.Hg) or above 4.7 kPa (35 mmHg. 1.4 in.Hg),
install a new valve and retest.
vacuum
pressure
GAUGE0- 4 in.Hg
T-FITTINGT-FITTING
11-294
\,

Page 564 of 2189

$HONDA CIVIC 1996 6.G Workshop Manual \ Evaporative Emission (EvAPl Two Way Valve T6ting 99 - 00 modols: L Remove the fuel tank (see page 11-242). 2. Remove the vapor line {rom the EVAP two way valve (located above the EVAP control cani$

Page 565 of 2189

HONDA CIVIC 1996 6.G Workshop Manual Emission Gontrol System
Evaporative Emission (EVAP) Controls (contdl
ORVR Vent Shut Valve Test
Float Test
1. Make sure the fuel tank is less than half full.
2. Remove the fuel fill cap to relieve the

Page 566 of 2189

$HONDA CIVIC 1996 6.G Workshop Manual \ \ 7. Connect a second vacuum pump to the OBVR signal nose. VACUUM PUMP/GAUGE.0 - 30 in.HgA973X - 041 - xxxxx Apply vacuum (1 pump) to the ORVR signal hose, then check the vacuum on the pump in step$

Page 567 of 2189

HONDA CIVIC 1996 6.G Workshop Manual J

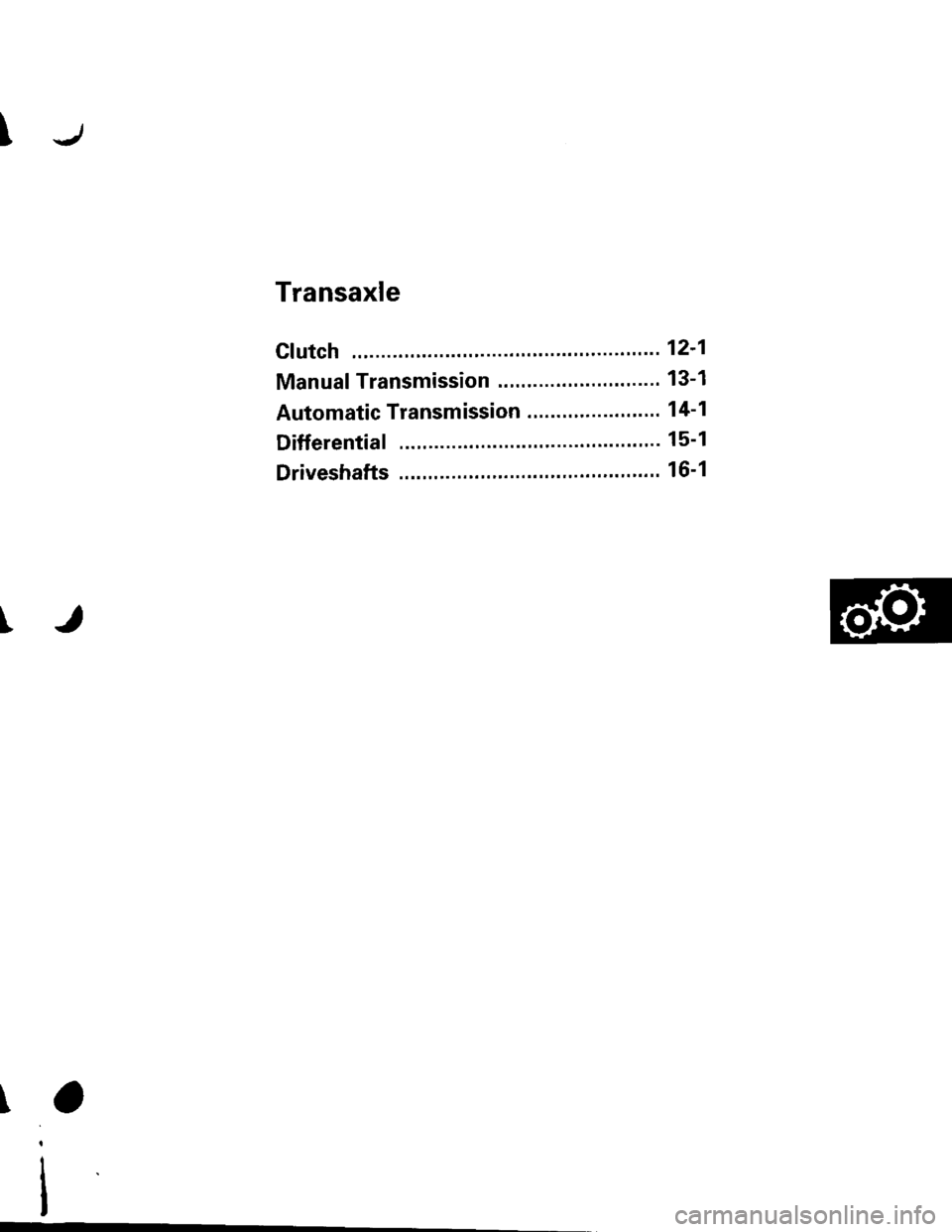

Transaxle
cf utch .""""" 121
Manual Transmission ............"..."..... 13-1
Automatic Transmission ........ "........ " ". 1 4-1
Differential ... 15-1
Driveshafts ." 16-1

Page 568 of 2189

HONDA CIVIC 1996 6.G Workshop Manual J
t
Clutch
Speciaf Tools .......... ...........12-2
f lfustrated Index .......... ......12-3
clutch Pedal
Adjustment .................... 124
Clutch Master Cylinder
Removal/lnstallation ..... 12-5
Sl

Load next 8 pages
