Page 1977 of 2189

$HONDA CIVIC 1996 6.G Workshop Manual ,\ c2Y IIPNK II III,0.+.P,0;1"" ,--_. aivtEw60 l, PNK IT i -t^-. 3l;33;" iH;"^ i 1nn"o : : "n*l :,l i z f czrs ;T : fTl Pt[?5" : i l/ | LEVEL: l.-: I swrrcH _, I Sae Grourd : ,9c215 g:"Jifll$

Page 1978 of 2189

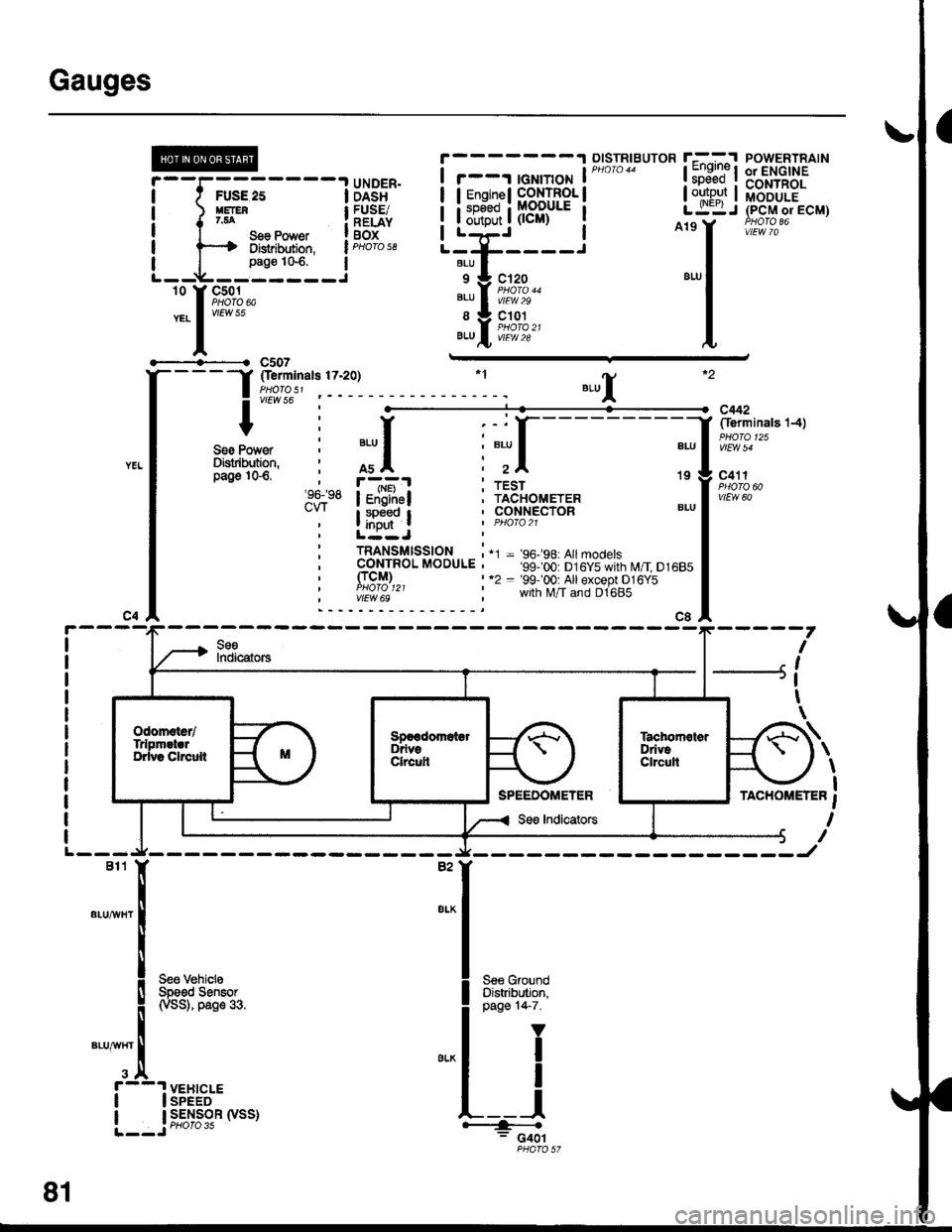

$HONDA CIVIC 1996 6.G Workshop Manual Gauges #t----lllgi i i-r-; ffiffigi ;;;;6;;- - ild;$ i fr{li,l[i 1 OTSTR|BUTOR r--- --.-^l POWERTRATN ![ElF{, I i:tirtiifffii* I ":"+J (pclrrorEcM) I t**"** iB,HFf ! L"T-liidfri" | ^i,illt"#,$

Page 1979 of 2189

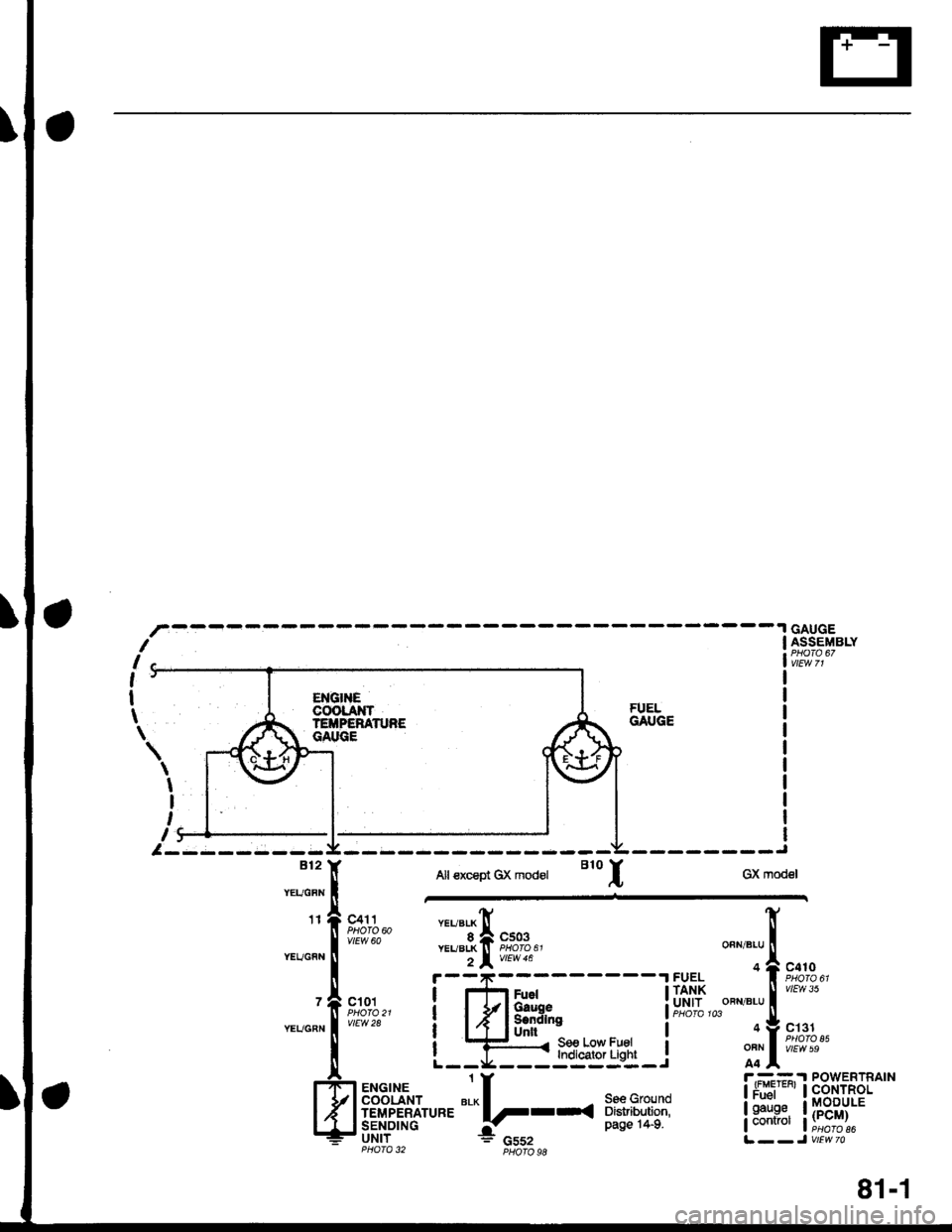

$HONDA CIVIC 1996 6.G Workshop Manual GAUGEASSEMBLYf l-* , I t \ \ I I , ,: ENGlrlECOOLANTTEiTPERATNEGAIGE FUELGAUGE --------J GX modelBl2 tr Alt€xcspt Gx mod€t B1o IYEUGFN I ,r, A "oll "., ","11" fi;rt"r4." ,1,"g[ s;g,,YEUGFN$

Page 1980 of 2189

HONDA CIVIC 1996 6.G Workshop Manual Gauges (contd)
- How the Gircuit Works
When the ignition switch is in ON (ll) or START (lll),
battery voltage is supplied through fuse 25 to the
gauges in the gauge assembly.
Speedometer and Odometer

Gauges (cont'd)
- How the Gircuit Works
When the ignition switch is in ON (ll) or START (lll),
battery voltage is supplied through fuse 25 to the
gauges in the gauge assembly.
Speedometer and Odometer
The odometer and soeedometer drive circuits
receive pulses from the vehicle speed sensor
(VSS). The pulse rate increases as the car
accelerates. The frequency and duration of these
input pulses are measured and displayed by the
speedometer, odometer and tripmeter.
Tachometer
The tachometer drive circuit receives pulses from
the ignition control module (lCM) in the distributor
assembly or the ECM/PCM. The solid-state
lachometer then displays these pulses as engine
speed. For each 200 pulses per minute from the
ignition control modul€ (lCM) or the ECM/PCM, the
tachometer displays 100 RPM.
Engine Coolant Temperature Gauge
The engine coolant temperature gauge has two
intersecting coils wound around a permanent
magnet rotor. Voltage applied to the coils, through
fuse 25, generates a magnetic lield. The magnetic
field, controlled by the coolant temperature sending
unit, causes the rotor to rotate and the gauge
needle to move. As the resistance in the sending
unit varies, current through the gauge coils
changes. The gauge needle moves toward the coil
with the strongest magnetic field.
The 6ngine coolant temperature sending unit's
resistance varies from about 137 ohms at low
engine temperature to between 3H6 ohms at high
temperature (radiator fan running).
Refer to the Service Manual (Section 23, Electrical)
for specific tests or troubleshooting procedures.
81-2
(
Fuel Gauge (All except cX)
The fuel gauge has two intersecting coils wound
around a permanent magnet rotor. Voltage applied
to the coils, through tuse 25, generates a magnetic
field. The magnetic field, controlled by the fuel
gauge sending unit, causes the rotor to rotate and
the gauge needle to move. As the resislance in the
sending unit varies, current through the gauge coils
changes. The gauge needle moves toward the coil
with the strongest magnetic field.
The fuel gauge sending unit's resistance varies
from about 2-5 ohms at full, to about 110 ohms at
empty. When you turn the ignition switch off, the
gauge remains at the last reading until you turn the
ignition switch to ON (ll) or START (lll) again,
Refer to the Service Manual (Section 23, Electrical)
for specific tests or troubleshooting procedures.
Fuel Gauge (GX)
The fuel gauge has two intersecting coils wound
around a permanent magnet rotor. Voltage applied
to the coils, through fuse 25, generates a magnetic
field. The magnetic field, controlled by the PCM,
causes the rotor to rotate and the gauge needle to
move. The PCM calculates the gas quantity in the
fuel tank by using the fuel pressure value detected
by the tuel tank pressure sensor and the fuel
temperature value detected by the fuel tank
temperalure sensor, and outputs the signal to the
gauge assembly. The gauge needle moves toward
the coil with the strongest magnetic field.
When you turn the ignition switch off , the gauge
remains at the last reading until you turn the ignition
switch to ON (ll) or START (lll) again. When the
PCM detects a malfunction with the fuel pressure or
temperature, or detects a gas leak, the PCM
reduces the fuel meter to 0.
Refer to the Service Manual GX Supplement
(Section 11 , Fuel and Emissions) for specific tests
or troubleshooting procedures.
a
a

Page 1981 of 2189

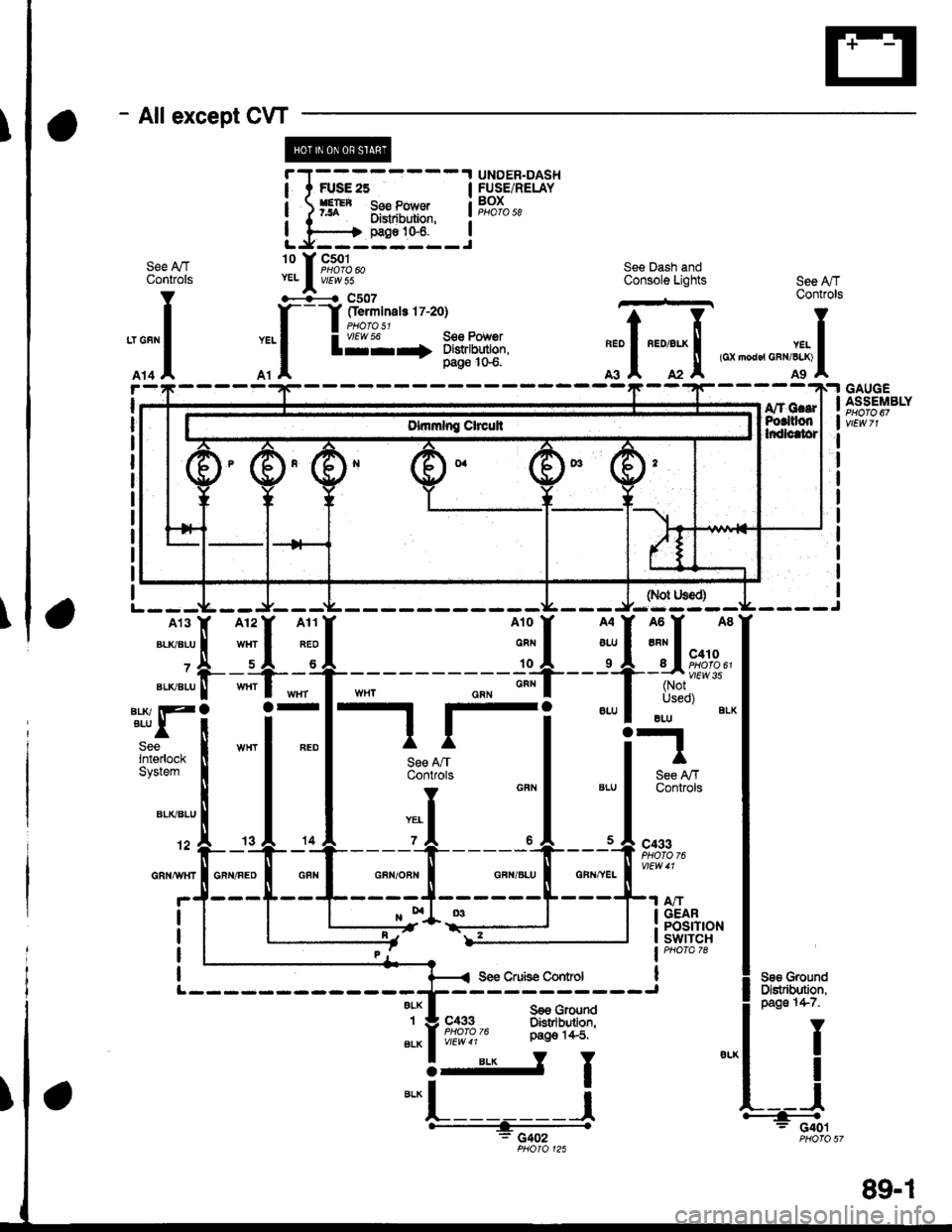

$HONDA CIVIC 1996 6.G Workshop Manual A/T Gear Position Indicator {\ -cw @UNDER-DASHFUSE/RELAYBOX r See A/TControls "Ttr See Dash andConsole Lights -AYlltFED I FED/BLK I tl YEL A1 SEE A,TTControls,PGM.FI I ;l A/T GcarPoiltlo{|Indlc{or GAU$

Page 1982 of 2189

HONDA CIVIC 1996 6.G Workshop Manual rT---- UNDER.DASHI I FU3E25 I FUSE/RELAY
i i m* **J.e:1- iF,?T,.aI l-----+ pags 1G6. IL.*--------J
a
- Allexcept CW
@E
-1
I-i
See A"|TControls
."r*"*",iFI
llIftr;1
.-a---{ csoT
..[--[Eq"Ti**,,
o

Page 1983 of 2189

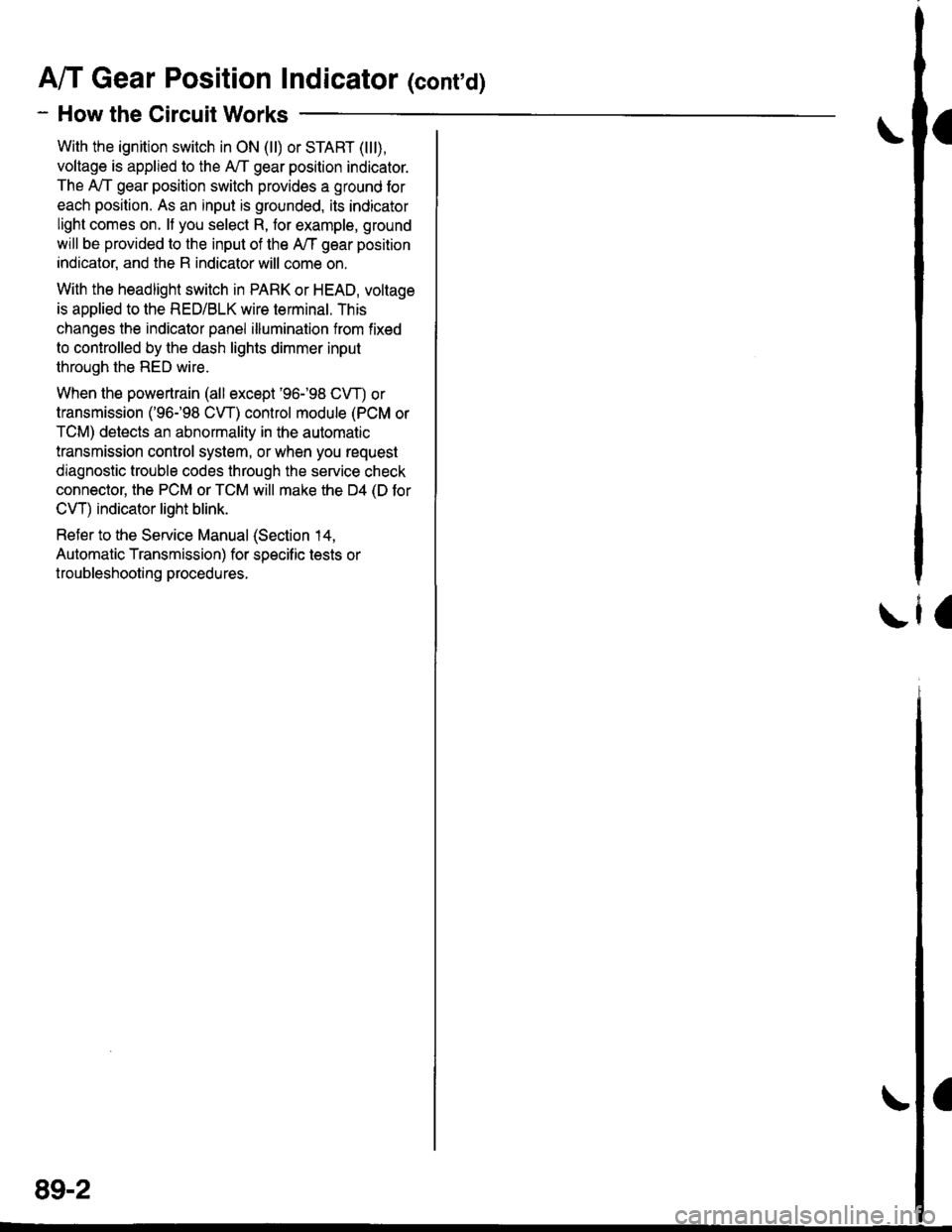

HONDA CIVIC 1996 6.G Workshop Manual A/T Gear Position Indicator (conrd)
- How the Circuit Works
With the ignition switch in ON (ll) or START (lll),
voltage is applied to the A,/T gear position indicator.
The A,/T gear position switch pr

Page 1984 of 2189

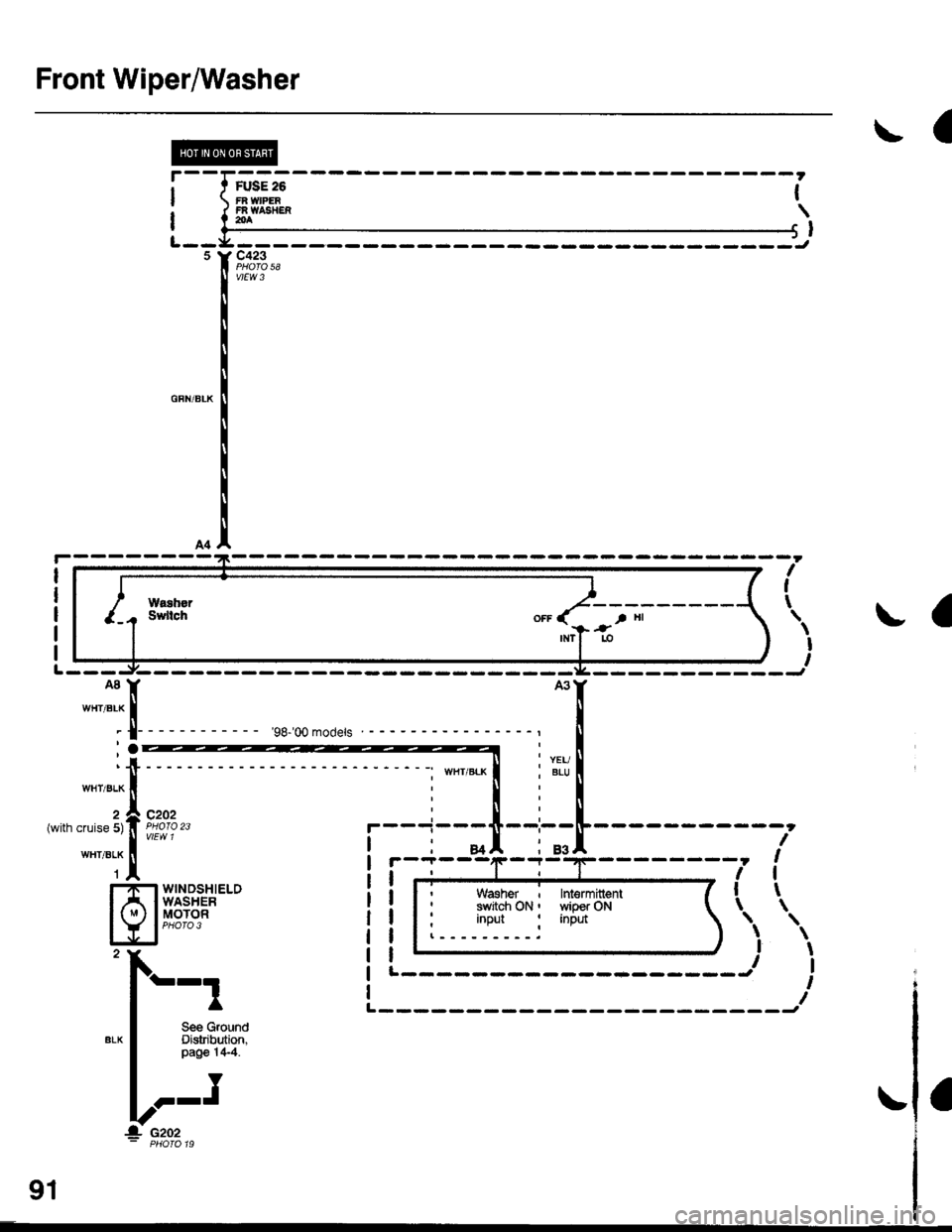

$HONDA CIVIC 1996 6.G Workshop Manual Front WiperMasher a I I Fi WIPERfi YYAEIIER c423 vtEw 3 A4 \a I I I t\tl I 91$
