Page 345 of 398

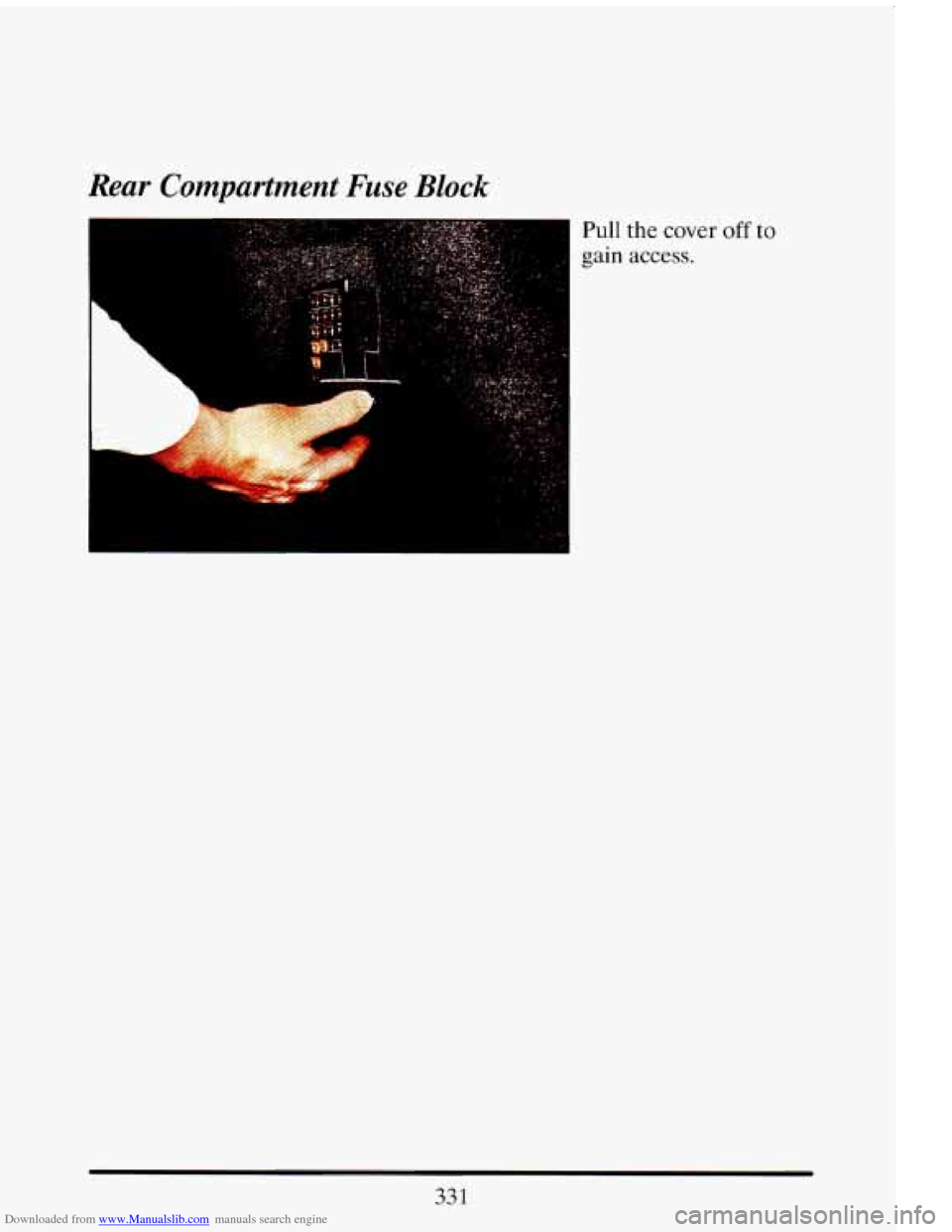

Downloaded from www.Manualslib.com manuals search engine Rear Compartment Fuse Block
Pull
gain
the cover
access. off to
33 1
Page 346 of 398

Downloaded from www.Manualslib.com manuals search engine L
WIPER RAD (IGN) R DEFOG HTD MlRR IPC IBATT) THEFT ,
1-1 BI BI
REAR FOG FOG LP CNSL FAN CIGAR
-
L PRK LP R PRK LP RAD (BAT)
7' .I m m
TRUNK COMPARTMENT FUSE BLOCK
CRANK 10A - RAPhLLUMINATED ENTRY MODULE - DIAGNOSTIC ENERGY RESERVE MODULE
(DERM)
- STARTER
- CATALYTIC CONVERTER ALARM MODULE
ION 1 10A
(EXPORTI
- FUEL-LEVEL SENSOR - ELECTROCHROMIC MIRROR - THEFT DETERRENT MODULE - KEYLESS ENTRY MODULE - TURN SIGNAL LIGHTS - RAP/ILLUMINATED ENTRY MODULE
HDLP WASH 30A (EXPORT)
IPC (IGN) 10A
CNSL
SW 10A
- HEADLIGHT WASHER MODULE
- INSTRUMENT PANEL CLUSTER
- REAR BLOWER MOTOR - CONSOLE SWITCH
ABS 1OA - ELECTRONIC BRAKE CONTROL MODULE (4.9L) - ELECTRONIC BRAKE AND TRACTION CONTROL
MODULE (NORTHSTAR)
WIPER 30A
RAD (IGN) 1OA
R DEFOG 30A
HTD MlRR 10A
IPC (BATT) 1 OA
- INSTRUMENT PANEL CLUSTER
THEFT 10A
- PASS-Key@ DECODER MODULE - THEFT DETERRENT RELAY
HVACIDABIE 10A
- HEATER AND A/C PROGRAMMER
REAR FOG 10A (EXPORT)
FOG LP 1OA (4.6L)
CNSL FAN 1OA
- REAR BLOWER MOTOR
- WIPERhVASHER SWITCH
- REMOTE RADIO RECEIVER
- REAR DEFOGGER
- RIGHT AND LEFT POWER MIRROR-DEFOGGER
- THEFT DETERRENT MODULE
- RAP/ILLUMINATED ENTRY MODULE
- REAR FOG LIGHTS
- FOG LIGHTS
- REAR CIGAR LIGHTERS-SEVILLE ONLY
- CHIME MODULE
CIGAR
20A - FRONT CIGAR LIGHTER
BODY 2 10A
- POWER MIRROR SWITCH - RETAINED ACCESSORY POWER
- CONSOLE SWITCH - PANEL LIGHTS INHIBIT (EXPORT) - COURTESY LIGHTS - KEYLESS ENTRY MODULE
BODY
1 10A - POWER DOOR LOCKS - DOOR LOCK CYLINDER ILLUMINATION
- TRUNK LIGHT
- GLOVE BOX LIGHT - FOOTWELL LIGHTS - TWILIGHT SENTINEUDRL MODULE - HEADLIGHT SWITCH
READ LP 10A
- LEFT AND RIGHT VANITY MIRRORS - GARAGEDOOROPENER - FRONT AND REAR HEADER LIGHTS
L PRK LP 1OA - RADIO DIMMING - HEADLIGHT SWITCH - INSTRUMENT PANEL CLUSTER
- LEFT MARKER LIGHT
R PRK LP 10A
- LEFT TAIL/STOP/TURN LIGHTS
- LEFT PARWTURN LIGHT
- RIGHT MARKER LIGHTS - LICENSE LIGHTS - RIGHT PARWURN LIGHT - ENGINE COMPARTMENT LIGHT - RIGHT TAlL/STOP/TURN LIGHTS
RAD (BAT)
1 OA - REMOTE RADIO RECEIVER - RADIO CONTROL HEAD
ANTDRUNK 20A
- TRUNK PULL DOWN
ELC 20A
R HTD SEAT 10A
L HTD SEAT 10A - DRIVERS HEATED SEAT
- POWER ANTENNA
- ELECTRONIC LEVEL CONTROL
- PASSENGERS HEATED SEAT
332
Page 347 of 398

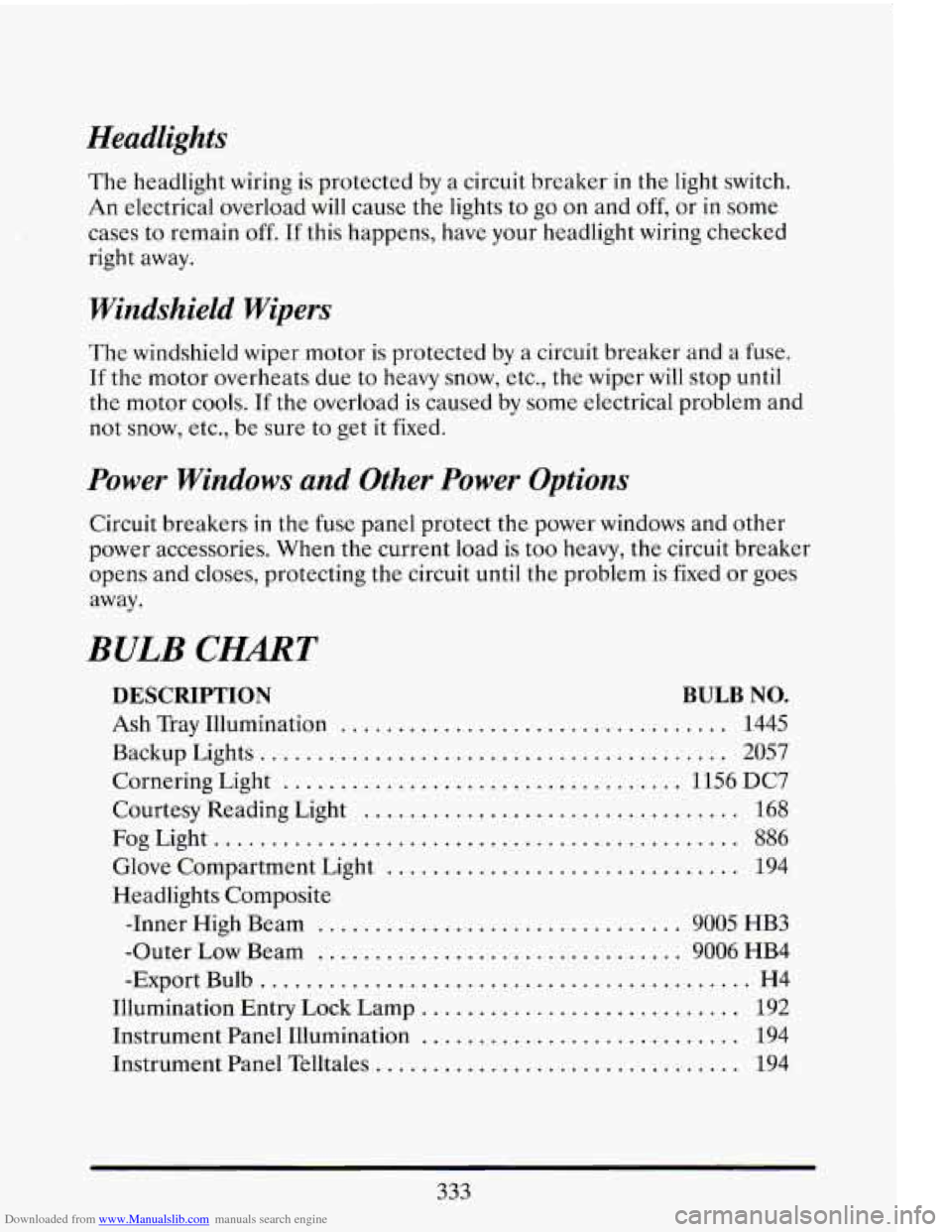

Downloaded from www.Manualslib.com manuals search engine Headlights
The headlight wiring is protected by a circuit breaker in the light switch.
An electrical overload will cause the lights to go on and off, or in some
cases to remain
off. If this happens, have your headlight wiring checked
right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker and a fuse.
If the motor overheats due to heavy snow, etc., the wiper will stop until
the motor cools. If the overload
is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other
power accessories. When the current load
is too heavy, the circuit breaker
opens and closes, protecting the circuit until the problem is fixed or goes
away.
BULB CHMT
DESCRIPTION BULB NO.
Ash Tray Illumination .................................. 1445
Backup Lights.
........................................ 2057
Courtesy Reading Light
................................. 168
FogLight .............................................. 886
Glove Compartment Light ............................... 194
Headlights Composite -Inner High Beam
................................ 9005 HB3
-Outer
Low Beam ................................ 9006 HB4
-ExportBulb........................................... H4
Illumination Entry
Lock Lamp ............................ 192
Instrument Panel Illumination
............................ 194
Instrument
Panel Telltales ................................ 194
Cornering Light
................................... 1156
DC7
333
Page 348 of 398

Downloaded from www.Manualslib.com manuals search engine License Plate Light ..................................... 194
Park and Turn Signal
................................ 2357 NA
Rear Fog/Back-Up Light (Export)
...................... P21/5W
Side Marker Lights
..................................... 194
Stop/Tail/Turn Signal
................................ 2057 NA
Stop/Tail/Turn Signal (Export)
......................... P21/5 W
Trunk Light ........................................... 1003
Vanity Mirror Illumination
............................... 124
Underhood
Light
....................................... 561
NOR2MAL MUNTENmCE REPLACEMENT
PMTS
(4.9 LITER ENGINE)
Air Cleaner Element ........................ AC Type A1096C2
................................................ 25096932
Battery
............................................. 78A-72
Fuel Filter Element
.......................... AC Type GF-581
................................................ 25121468
Engine Oil Filter
............................. AC Type PF-45
................................................ 25010324
PCV Valve
................................ AC Type CV-774C
................................................. 6487779
Spark Plugs
.................................. AC Type 41-902
................................................. 5614235
Serpentine Drive Belt
............................... 3528110
Radiator Cap
................................ AC Type RC 27
................................................. 6410427
Thermostat
........................................ 3528974
Upper Radiator Hose
............................... 1640746
Lower Radiator Hose
............................... 1641712
TransFilter
........................................ 865 1909
TransPanGasket
................................... 8668028
334
Page 349 of 398

Downloaded from www.Manualslib.com manuals search engine NORMAL 2MAINTENANCE REPLACEMENT
PARTS
(4.6 LITER NORTHSTAR)
Air Cleaner Element ......................... AC Type Sl096C
................................................ 25096932
Battery
............................................. 78A-72
................................................. 1981590
Fuel Filter Element .......................... AC Type GF-580
................................................ 25121468
Engine Oil Filter
............................. AC Type PF-58
................................................ 25014377
PCV Valve ................................. AC Type CV-774C
................................................ 06487779
Spark Plugs
.................................. AC Type 41-900
Serpentine Drive
Belt ............................... 3530814
Surge Tank Cap
.............................. AC Type RC 33
................................................. 6410665
Thermostat
.................................. AC Type 131-66
................................................. 3531407
Upper Radiator Hose
............................... 3521504
Lower Radiator
Hose ............................... 3521505
Trans Screen Rt
. Scavenger .......................... 8679416
Trans Screen Lt
. Scavenger ........................... 8680700
Trans
Pan Screws (16) ............................... 8682650
TransPanGasket
................................... 8681197
................................................. 5614236
335
Page 350 of 398

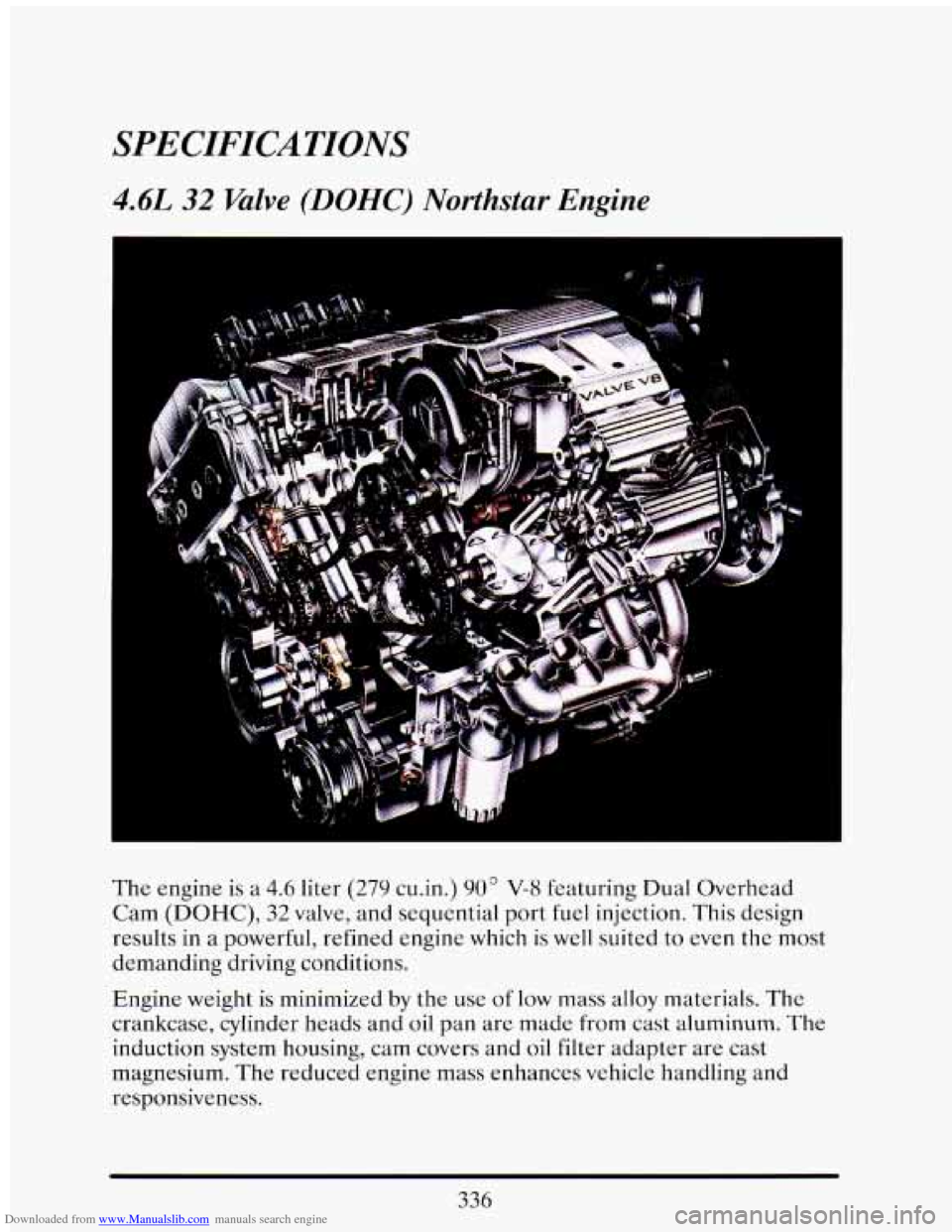

Downloaded from www.Manualslib.com manuals search engine SPECIFICATIONS
4.6L 32 Valve (DOHC) Northstar Engine
The engine is a 4.6 liter (27Y cu.in.) 903 V-8 featuring Dual Overhead
Cam (DOHC), 32 valve, and sequential port fuel injection. This design
results in
a powerful, refined engine which is well suited to even the most
demanding driving conditions.
Engine weight is minimized by the use
of low mass alloy materials. The
crankcase, cylinder heads and oil pan are made from cast aluminum. The
induction system housing, cam covers
and oil filter adapter are cast
magnesium. The reduced engine mass enhances vehicle handling and
responsiveness.
336
Page 351 of 398

Downloaded from www.Manualslib.com manuals search engine The Northstar engine is designed to require less maintenance than many
other
DOHC V-8 engines. Engine systems are designed to remind the
driver when service is required. An oil life index indicator monitors
ongoing operating conditions and reminds the driver when
an oil change
is needed. A low coolant warning message keeps track
of the level of this
vital fluid. Direct acting hydraulic tappets provide maintenance free zero
lash operation
of the 32 valves from idle to the 6500 rpm redline. The
camshafts are driven by a
two stage roller chain assembly which is
designed to provide quiet maintenance free operation. Platinum tipped
spark plugs increase the replacement interval to
100,000 miles.
The four valve per cylinder design provides more
efficient engine
breathing which results
in higher power than comparable two valve
engines. The central location
of each spark plug ensures a fast and
complete burning
of the fuel/air mixture. The induction system uses
smooth thermoplastic tubes to channel air into the cylinders. The
smoothness
of the tubes is equivalent to the elaborate port polishing
methods used for race car engines. Careful design using the shape and
length
of the tubes boosts horsepower by using sonic pressure waves
created by the motion
of the inlet valves to increase the amount of air
entering each cylinder.
The Northstar engine
is also designed to be very durable. The aluminum
block has cast-in-place iron cylinder liners for greater wear resistance.
High strength forged steel connecting rods support the free floating \
piston pins
in bronze bushings for superior high speed performance. The
fillits
of the nodular iron crankshaft undergo a high pressure compression
rolling operation to improve their resistance to fatigue.
Quiet operation
is enhanced by the use of special materials and designs.
The front cover of the engine is stamped from laminated steel which
damps
out noise. Special cam cover gasket seals isolate valve train
operation. The
fuel injectors are placed inside the induction system
housing
to eliminate the clicking noise which is common to other fuel
injected engines.
The Northstar engine is designed
to provide years of efficient, reliable,
satisfying operation. We think
it is also just plain fun to drive.
337
Page 352 of 398

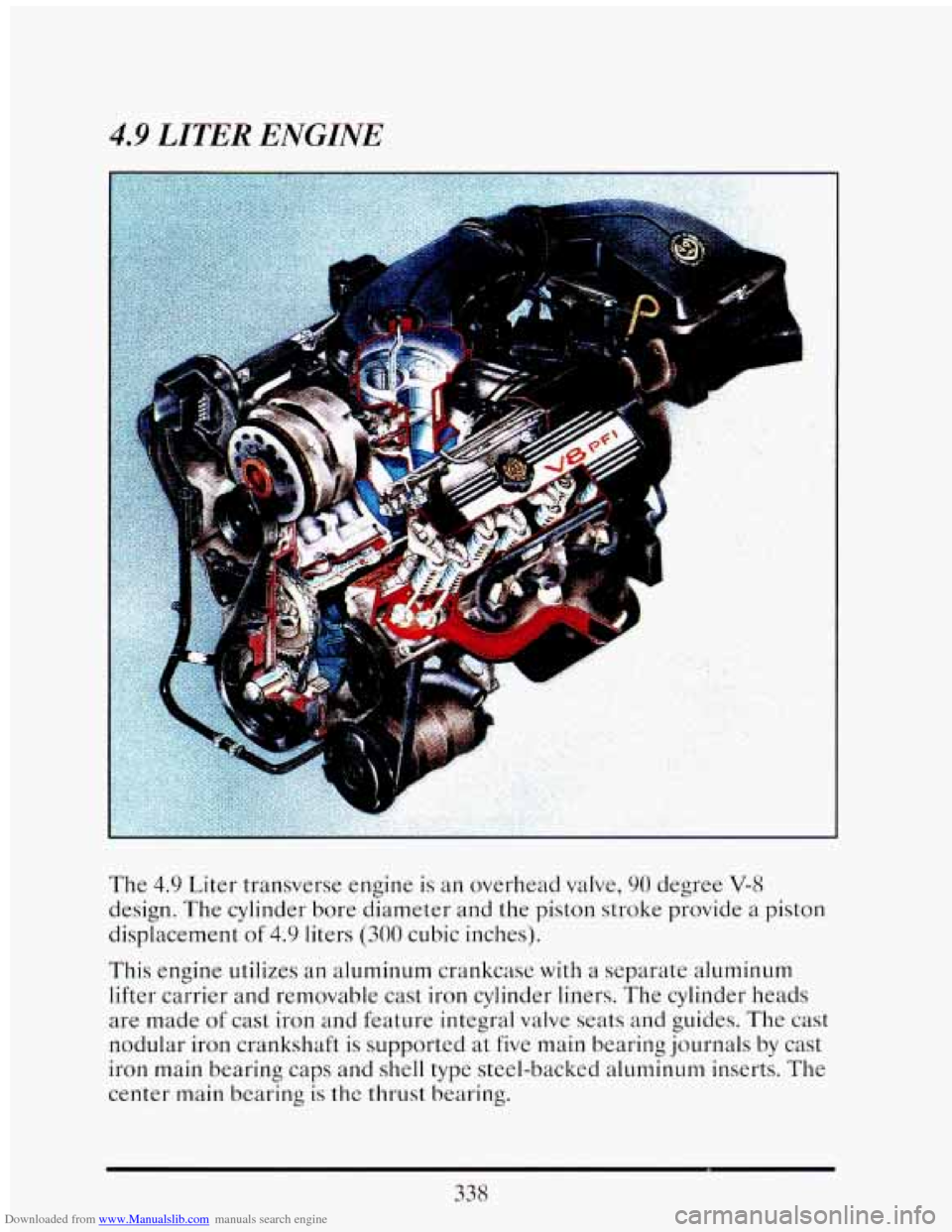

Downloaded from www.Manualslib.com manuals search engine 4.9 LITER ENGINE
-
I . .. .
A
The 4.9 Liter transverse engine is an overhead valve, 90 degree V-8
design. The cylinder bore diameter and the piston stroke provide a piston
displacement
of 4.9 liters (300 cubic inches).
This engine utilizes an aluminum crankcase with a separate aluminum
lifter carrier and removable cast iron cylinder liners. The cylinder heads
are made
of cast iron and feature integral valve seats and guides. The cast
nodular iron crankshaft
is supported at five main bearing journals by cast
iron main bearing caps and shell type steel-backed aluminum inserts. The
center main bearing is the thrust bearing.
