1993 CADILLAC ELDORADO Owners Manual

Downloaded from www.Manualslib.com manuals search engine I
r
I- f
7
f

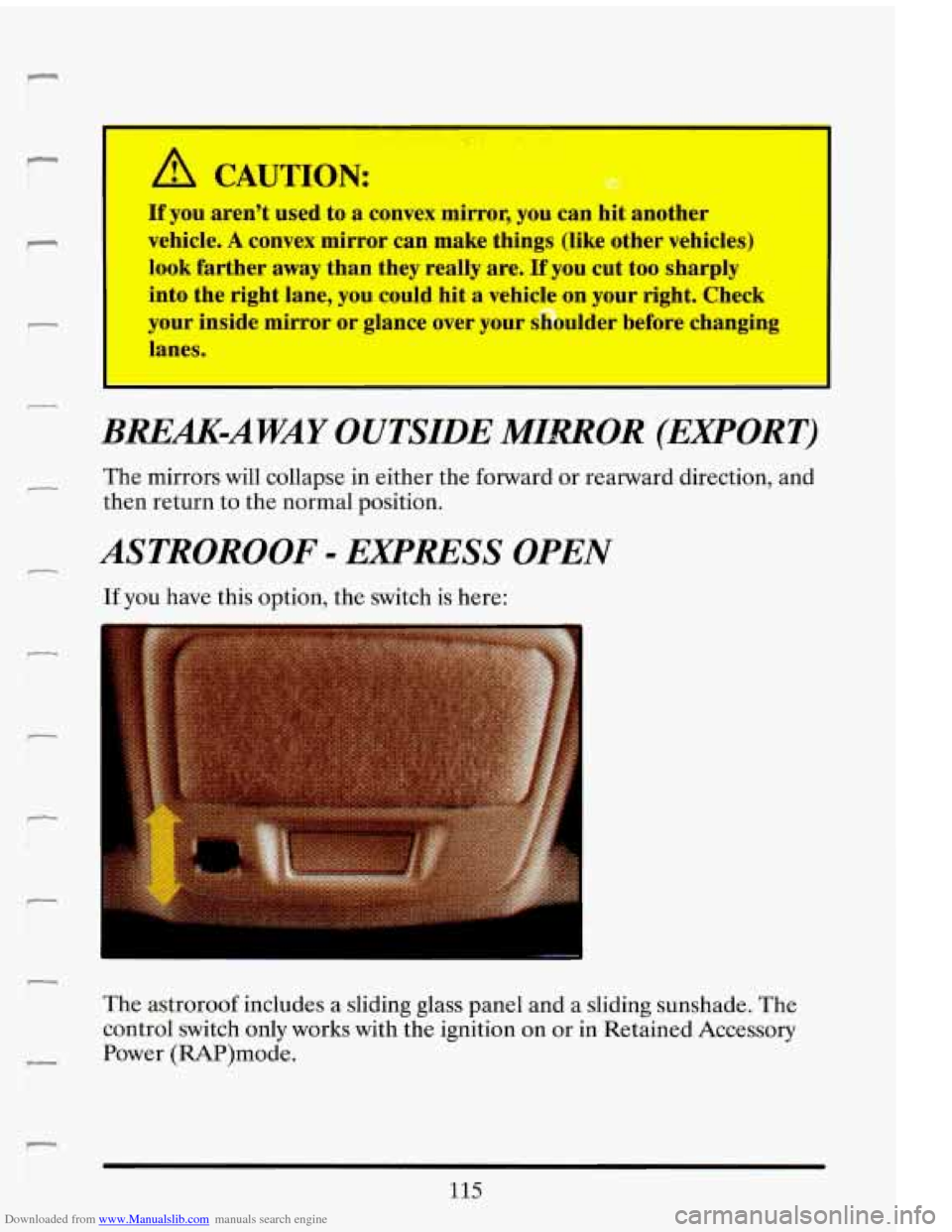

A CAUTION:
I
If you aren't used to a convex mirror, you can --it another
vehicle.
A convex mirror can make things (like other vehicles)
look farther
away than they really are. If you cut too sharply
into the right lane, you could hit
a vehicle on your right. Check
your inside mirror or glance over your shoulder before changing
lanes.
I I
BREAK-AWAY OUTSIDE MIMOR (EXPORT)
The mirrors will collapse in either the forward or rearward direction, and
then return to the normal position.
ASTROROOF = EXPRESS OPEN
If you have this option, the switch is here:
The astroroof includes a sliding glass panel and a sliding sunshade. The
control switch only works with the ignition on or
in Retained Accessory
Power (RAP)mode.
115

Downloaded from www.Manualslib.com manuals search engine To Open: Press the switch rearward to open the glass panel and sunshade.
The sunshade can also be opened by hand. If you want to stop the roof in
a partially open position, press the switch in either direction to stop it.
Press the switch again to open it fully.
To Close: Press and hold the switch forward to close the glass panel. The
sunshade can only be closed by hand.
To Vent: Press the switch forward when the glass panel is closed. Open the
sunshade by hand.
To close the vent press the switch rearward.
SUNGLASS COMPmTMENT
If you have the optional Astroroof you will not have this feature. To gain
access
to this feature located directly above the inside rearview mirror in
the headliner, just push up and the compartment will open.
116

Downloaded from www.Manualslib.com manuals search engine ASHTRAYS AND LIGHTERS
If have the full
console, push on the
cover to reveal the
ashtray and lighter.
OR
If you don’t have a
center console, just
pull the ashtray out to
reveal the ashtray and
lighter.
To clean the ashtray, lift it out by pulling on the snuffer.
If you don’t have a console, and the ashtray will not come out by pulling
on the snuffer,
try this: Reach under the ashtray and gently push up on
the ashtray bowl and remove it.
117

Downloaded from www.Manualslib.com manuals search engine Rear Ashtray
To open the rear
ashtrays lift the lid.
Cigarette Lighter
It’s near the ashtray. To use the lighter just push it all the way and let go.
When it’s ready, it will pop back by itself.
118

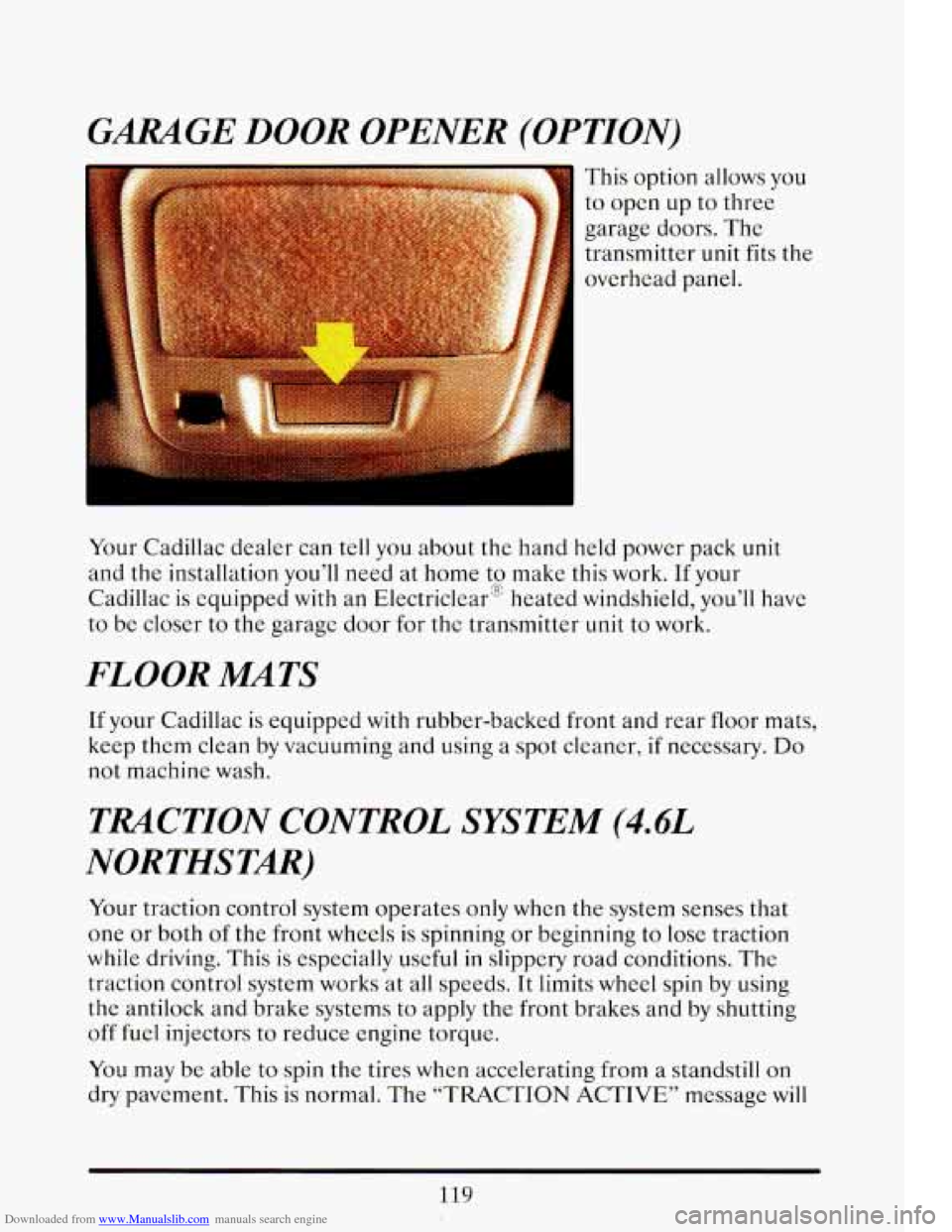

Downloaded from www.Manualslib.com manuals search engine GARAGE DOOR OPENER (OPTION)
This option allows you
to open up to three
garage doors. The transmitter unit fits the
overhead panel.
Your Cadillac dealer can tell you about the hand held power pack unit
and the installation you’ll need at home to make this work.
If your
CadilIac
is equipped with an Electriclear” heated windshield, you’ll have
to be closer to the garage door for the transmitter unit
to work.
FLOOR MATS
If your Cadillac is equipped with rubber-backed front and rear floor mats,
keep them clean by vacuuming and using a spot cleaner,
if necessary. Do
not machine wash.
TRACTION CONTROL SYSTEM (4.4L
NORTHSTAR)
Your traction control system operates only when the system senses that
one or both of the front wheels
is spinning or beginning to lose traction
while driving. This is especially useful
in slippery road conditions. The
traction control system works at all speeds.
It limits wheel spin by using
the antilock and brake systems to apply the front brakes and by shutting
off
fuel injectors to reduce engine torque.
You may be able to spin the tires when accelerating from a standstill on
dry pavement. This is normal. The “TRACTION ACTIVE” message will
119

Downloaded from www.Manualslib.com manuals search engine display on the Driver Information Center when the traction control
system
is operating.
You may feel the system working through slight movement of the
accelerator pedal, or you may notice some noise, but this is normal.
Your Driver Information Center
is an important source of information
about your traction control system.
See “Driver Information Center” in
the Index.
THE INSTRUMENT PANEL: YOUR
INFOR2MATION SYSTEM
Your instrument panel is designed to let you know at a glance how your
Cadillac
is running. You’ll know how fast you’re going, how much fuel
you’re using, and many
of the other things you’ll need to know to drive
safely and economically.
Digitul Cluster
:i-i -Q 8
c .
If you have the 4.6 L Northstar your tachometer and speedometer will
have a different calibration.

Downloaded from www.Manualslib.com manuals search engine Analog Cluster (4.9 L)
Canadian Analog Cluster (4.9 L)
11111
121

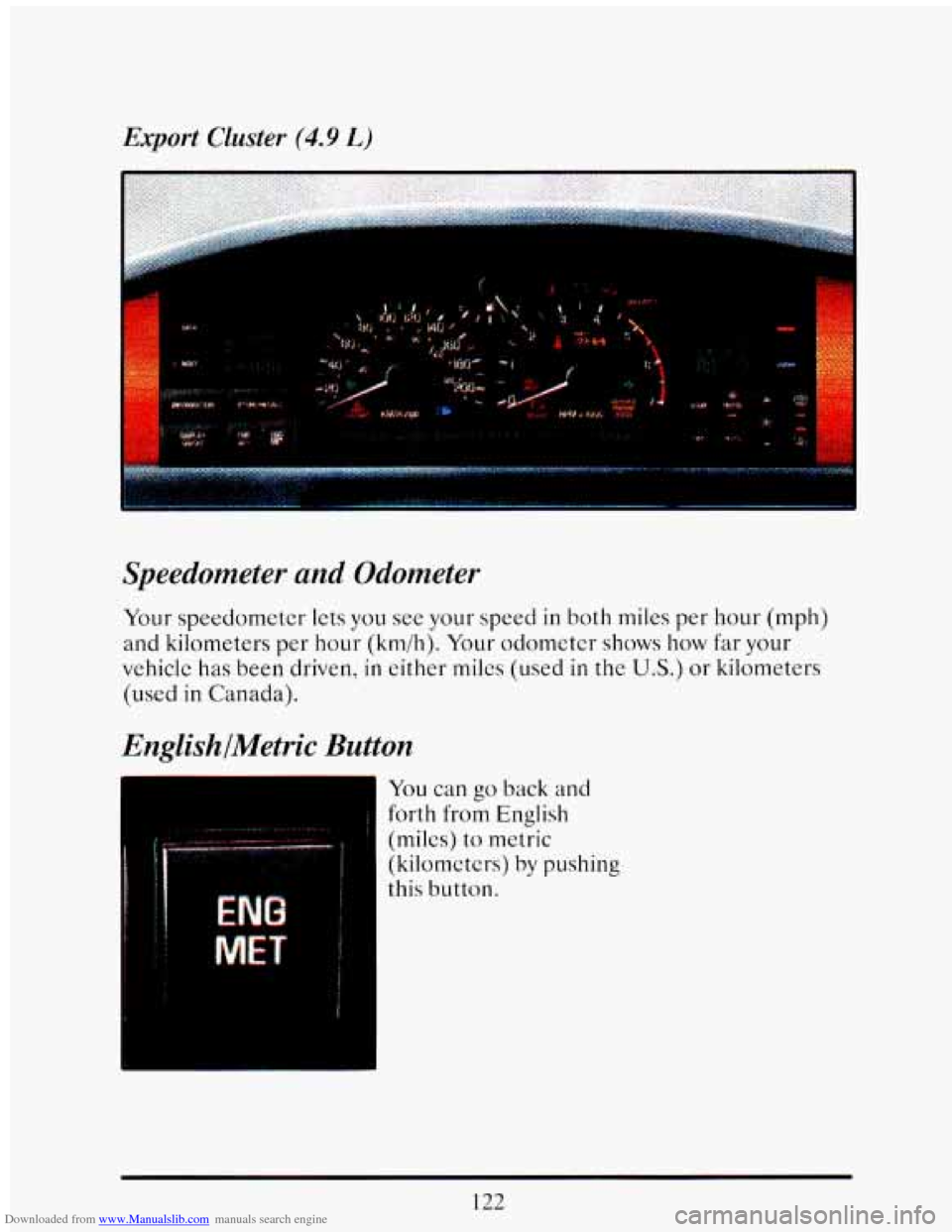

Downloaded from www.Manualslib.com manuals search engine Export Cluster (4.9 L)
P
. . ... -
Speedometer and Odometer
Your speedometer lets you see your speed in both miles per hour (mph)
and kilometers per hour (km/h). Your odometer shows how far your
vehicle
has been driven, in either miles (used in the US.) or kilometers
(used in Canada).
EnglishlMetric Button
You can go back and
forth from English
(miles)
to metric
(kilometers)
by pushing
this button.
._.'
-!
f
122
