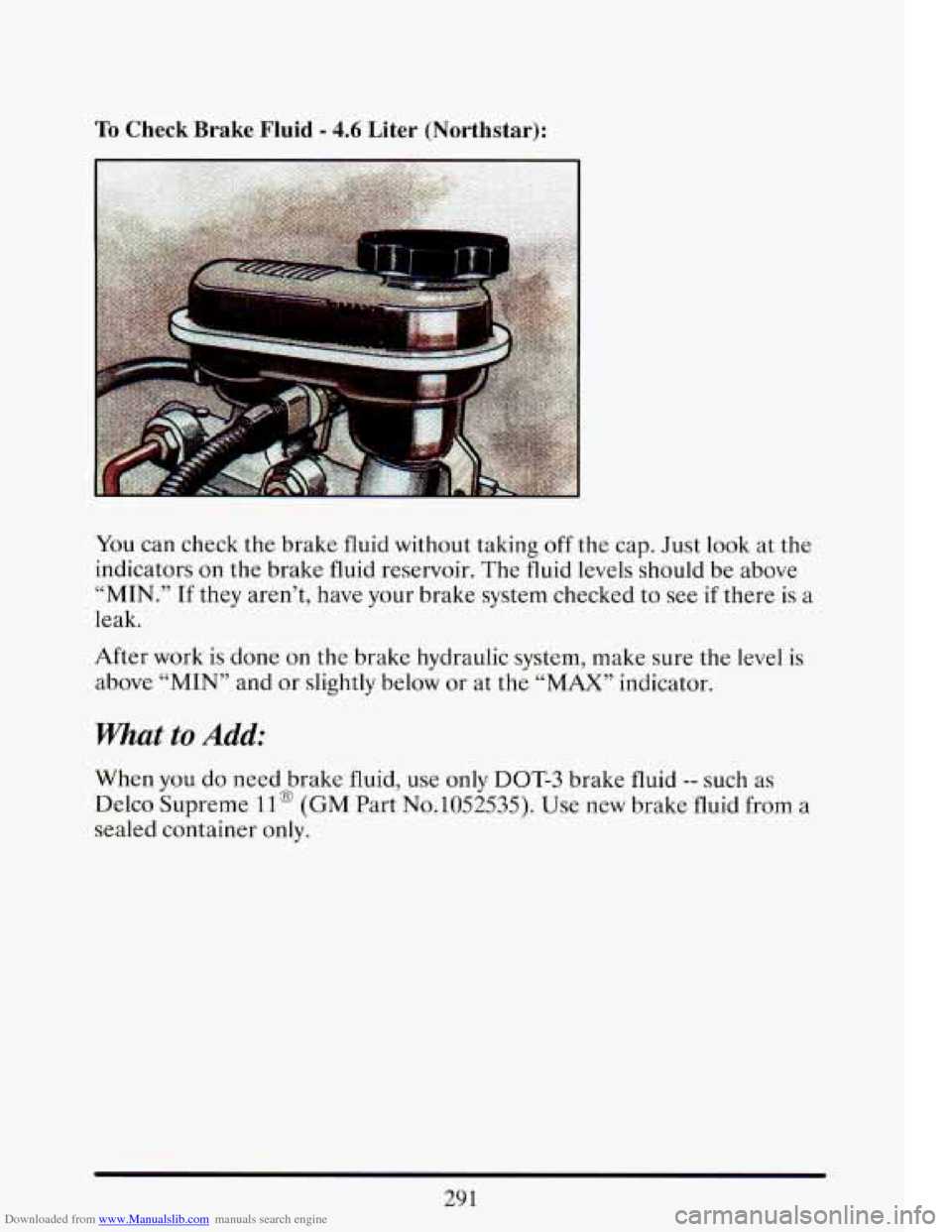

Downloaded from www.Manualslib.com manuals search engine To Check Brake Fluid - 4.6 Liter (Northstar):
You can check the brake fluid without taking off the cap. Just look at the
indicators on the brake fluid reservoir. The fluid levels should be above
“MIN.” If they aren’t, have your brake system checked to see if there is a
leak.
After work is done on the brake hydraulic system, make sure the level is
above
“MIN” and or slightly below or at the “MAX” indicator.
What to Add:
When you do need brake fluid, use only DOT-3 brake fluid -- such as
Delco Supreme
1 la (GM Part No.1052535). Use new brake. fluid from a
sealed container only.
29 1
Page 306 of 398

Downloaded from www.Manualslib.com manuals search engine ~~~~~~~~~ ’OTICE:
- DOT-5
silicone brake fluid can dam,,e your vehicle. Don’t
use it.
0 Don’t let someone put in the wrong kind of fluid. For
example, just a few drops
of mineral-based oil, such a
engine oil, in your brake system can damage brake sv,
r ~rts so badly that they’ll have to be replaced.
0 Brake fluid can damage pai so be careful not to spill brake
fluid on your vehicle.
I
REPUCING BRAKE SYSTEM PARTS
The braking system on a modern vehicle is complex. Its many parts have
to be
of top quality and work well together if the vehicle is to have really
good braking. Vehicles
we design and test have top-quality GM brake
parts in them, as your Cadillac does when it is new. When you replace
parts
of your braking system -- for example, when your brake linings wear
down and you have to have new ones put in
-- be sure you get new
genuine GM replacement parts. If you don’t, your brakes may no longer
work properly.
For example, if someone puts in brake linings that are
wrong for your vehicle, the balance between your front and rear brakes
can change, for the worse. The braking performance you’ve come to
expect can change in many other ways
if someone puts in the wrong
replacement brake parts.
BATTERY
Every new Cadillac has a Delco Freedom@ battery. You never have to
add water to one of these. When it’s time for a new battery, we
recommend a Delco Freedom@ battery. Get one that has the catalog
number shown
on the original battery’s label.
Page 307 of 398

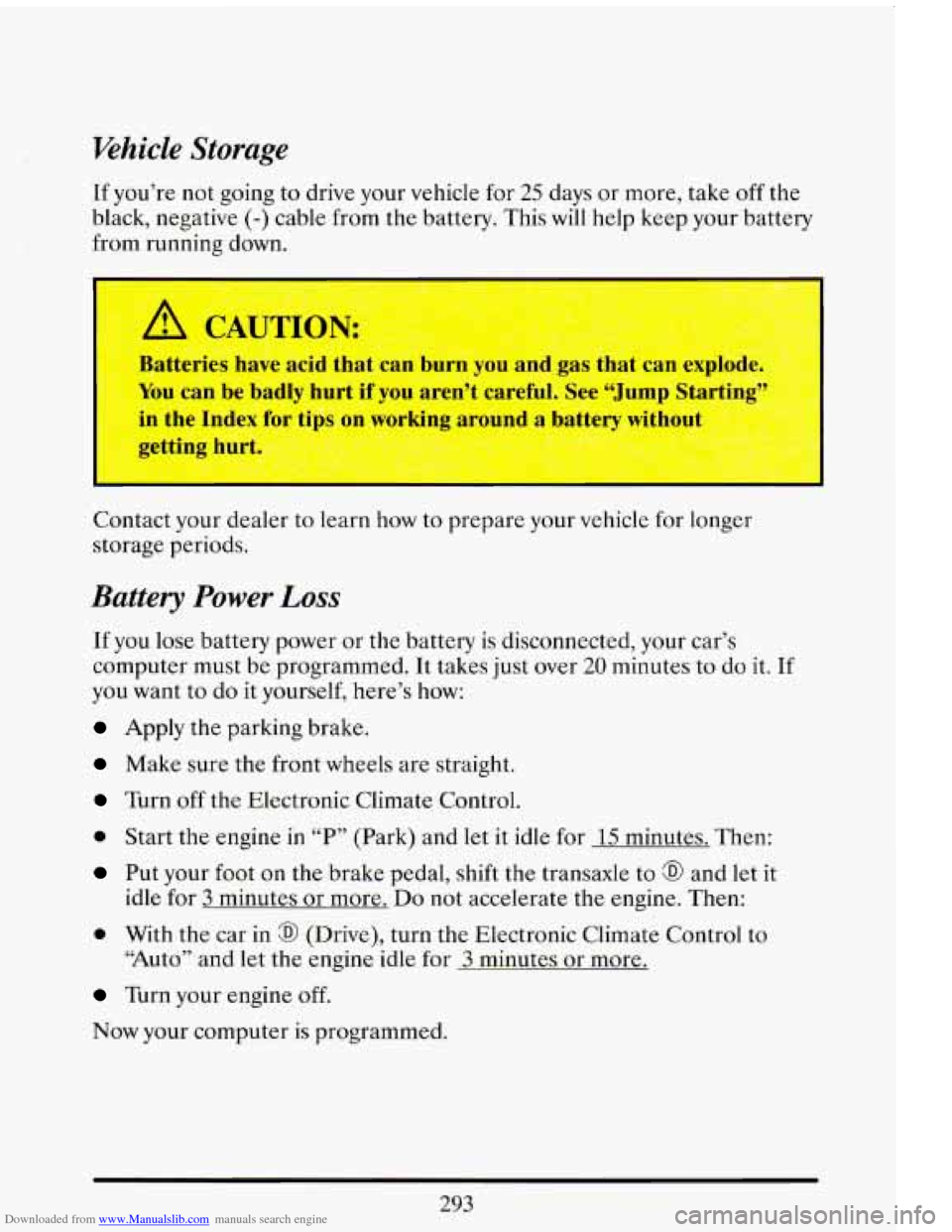

Downloaded from www.Manualslib.com manuals search engine Vehicle Storage
If you’re not going to drive your vehicle for 25 days or more, take off the
black, negative
(-) cable from the battery. This will help keep your battery
from running down.
FYou can be badly hurt if you aren’t careful. See “Juml
*kin the Index for tips on working around a battery wit1
Contact your dealer to learn how to prepare your vehicle for longer
storage periods.
Battery Power Loss
If you lose battery power or the battery is disconnected, your car’s
computer must be programmed. It takes just over
20 minutes to do it. If
you want to do it yourself, here’s how:
Apply the parking brake.
Make sure the front wheels are straight.
Turn off the Electronic Climate Control.
0 Start the engine in “P” (Park) and let it idle for 15 minutes. Then:
Put your foot on the brake pedal, shift the transaxle to a and let it
idle for
3 minutes or more. Do not accelerate the engine. Then:
0 With the car in a (Drive), turn the Electronic Climate Control to
“Auto” and
let the engine idle for 3 minutes or more.
Turn your engine off.
293
Now your computer is programmed.
Page 308 of 398

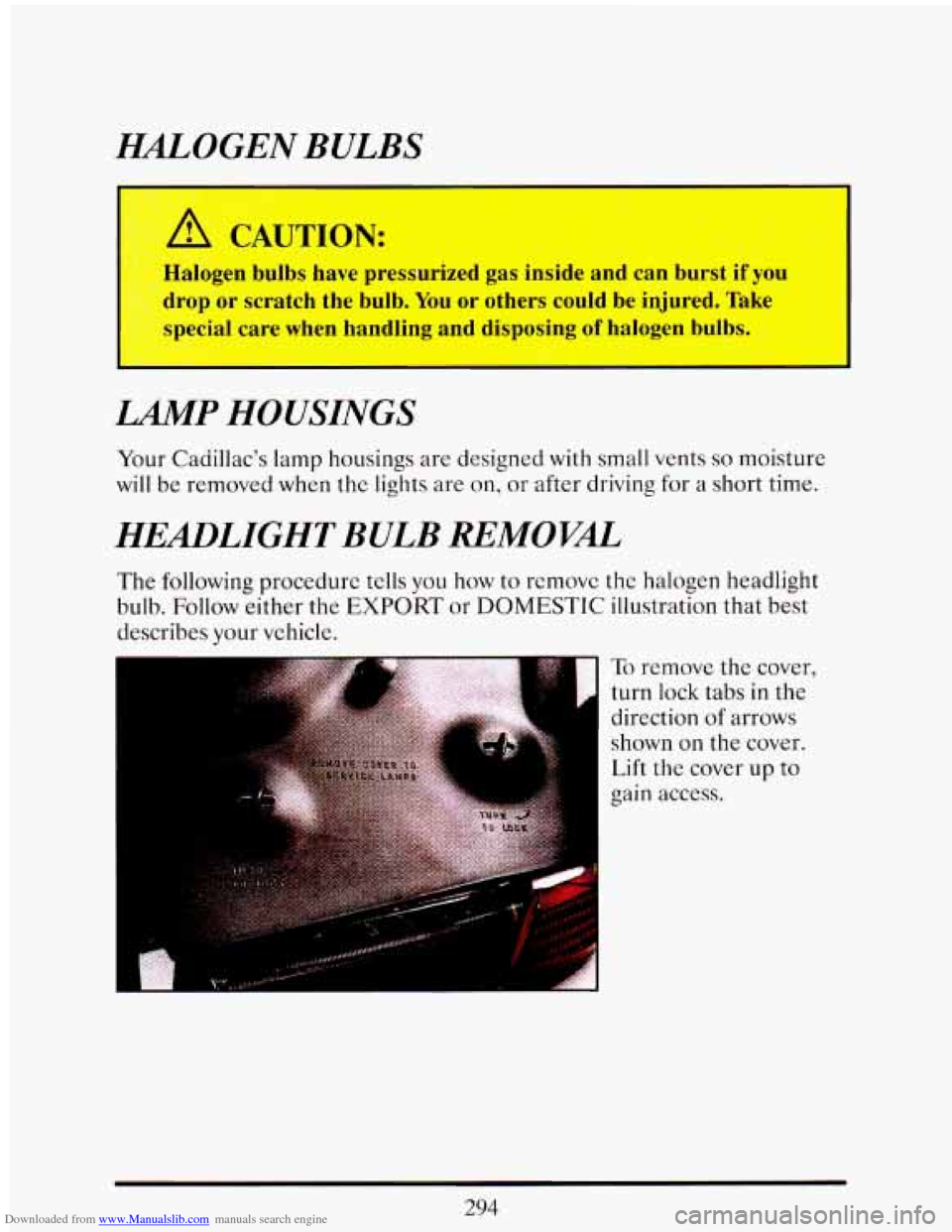

Downloaded from www.Manualslib.com manuals search engine HLOGEN BULBS
I
LAUTION:
Halogen bulbs have pressurized gas inside and can burst if you
drop or scratch the bulb.
You or others could be iniured. Take
handling and disposing
of h
WP HOUSINGS
Your Cadillac's lamp housings are designed with small vents so moisture
will be removed when the lights are on,
or after driving for a short time.
HEADLIGHT BULB REMOVAL
The following procedurc tells you how to removc the halogen headlight
bulb. Follow either the
EXPORT or DOMESTIC illustration that best
describes your vehicle.
To remove the cover,
turn lock tabs in the
direction
of arrows
. 'V
shown on the cover.
Lift
the cover up to
gain access.
294
Page 309 of 398
Downloaded from www.Manualslib.com manuals search engine 7
*
n
n
r
DOMESTIC - Turn the headlight housing socket counterclockwise to
unlock socket from lamphousing.
EXPORT - Remove the rubber plug cover and remove plug.
DOMESTIC - Remove headlight housing socket.
EXPORT - Remove both retaining lock clips securing bulb assembly in
headlamp housing.
295
Page 310 of 398
Downloaded from www.Manualslib.com manuals search engine P-
DOMESTIC - Remove the wiring harness from the headlight housing
socket
EXPORT - Remove the headlight bulb and socket from the headlamp
assembly.
DOMESTIC - Replace the bulb and socket and connect the wiring
harness. Reinstall the headlight housing socket into the headlamp
assembly.
EXPORT - Install new headlight bulb and socket into headlamp
assembly.
TAIILLIGHT BULB REPLACEMENT
Taillight bulb replacement is the same for either Eldorado or Eldorado
Touring
Coupe.
1. Open the trunk to gain access to the taillight housing.
2. Remove the plastic trim retainer screws and pull back the trim
material.
296
Page 311 of 398
Downloaded from www.Manualslib.com manuals search engine !-
r

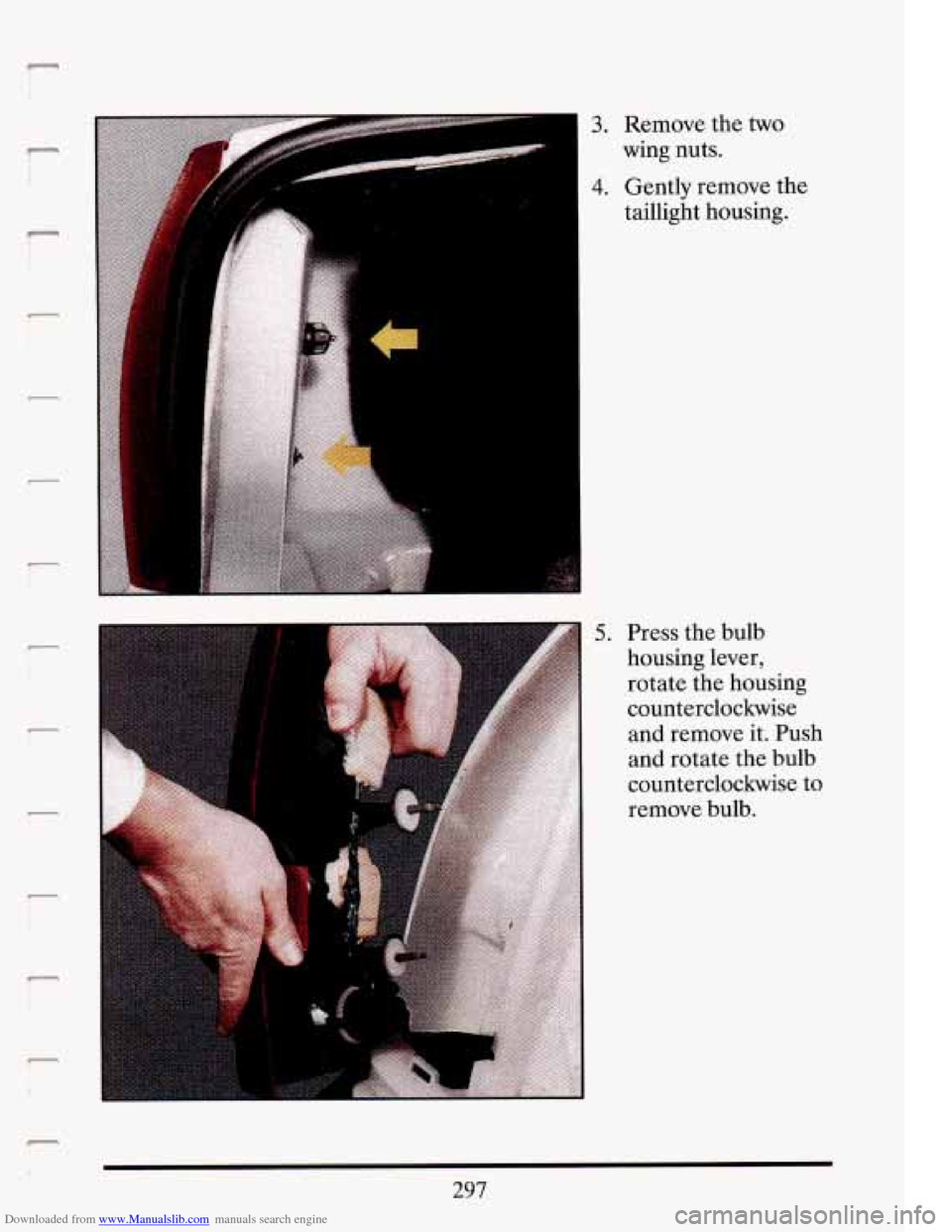

3. Remove me two
wing nuts.
4. Gently remove the
taillight housing.
9.
297
Page 312 of 398

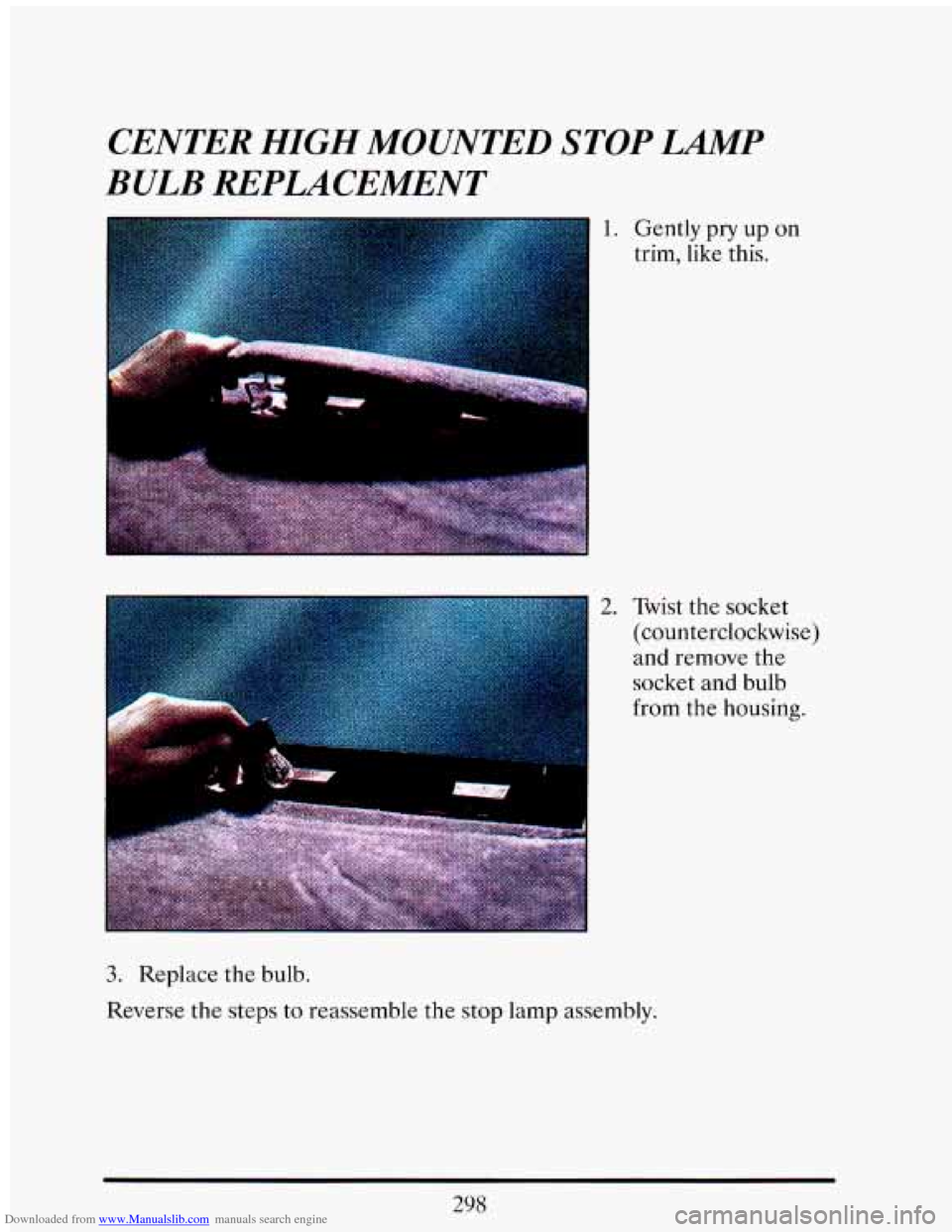

Downloaded from www.Manualslib.com manuals search engine CENTER HIGH MOUNTED STOP LMP
BULB REPLACEMENT
I
2. Twist the socket
(counterclockwise)
and remove the
socket
and bulb
from the housing.
3. Replace the bulb.
Reverse
the steps to reassemble the stop lamp assembly.
