When the coolant in the coolant recovery tank is at or above “FULL
COLD,” start your vehicle.
If the overheat warning continues, there’s one more thing you can try.
You
can add the proper coolant mix directly to the radiator, but be sure
the cooling system
is cool before you do it.
235

Downloaded from www.Manualslib.com manuals search engine Steam and scalding liquids from a hot cooling system can blow
out and burn you badly. They are under pressure, and if you
turn the radiator pressure cap
-- even a little -- they can come
out at high speed. Never turn the cap when the cooling system,
including the radiator pressure cap,
is hot. Wait for the cooling
system and radiator pressure cap to cool if you ever have to turn
the pressure cap.
I
236

Downloaded from www.Manualslib.com manuals search engine R

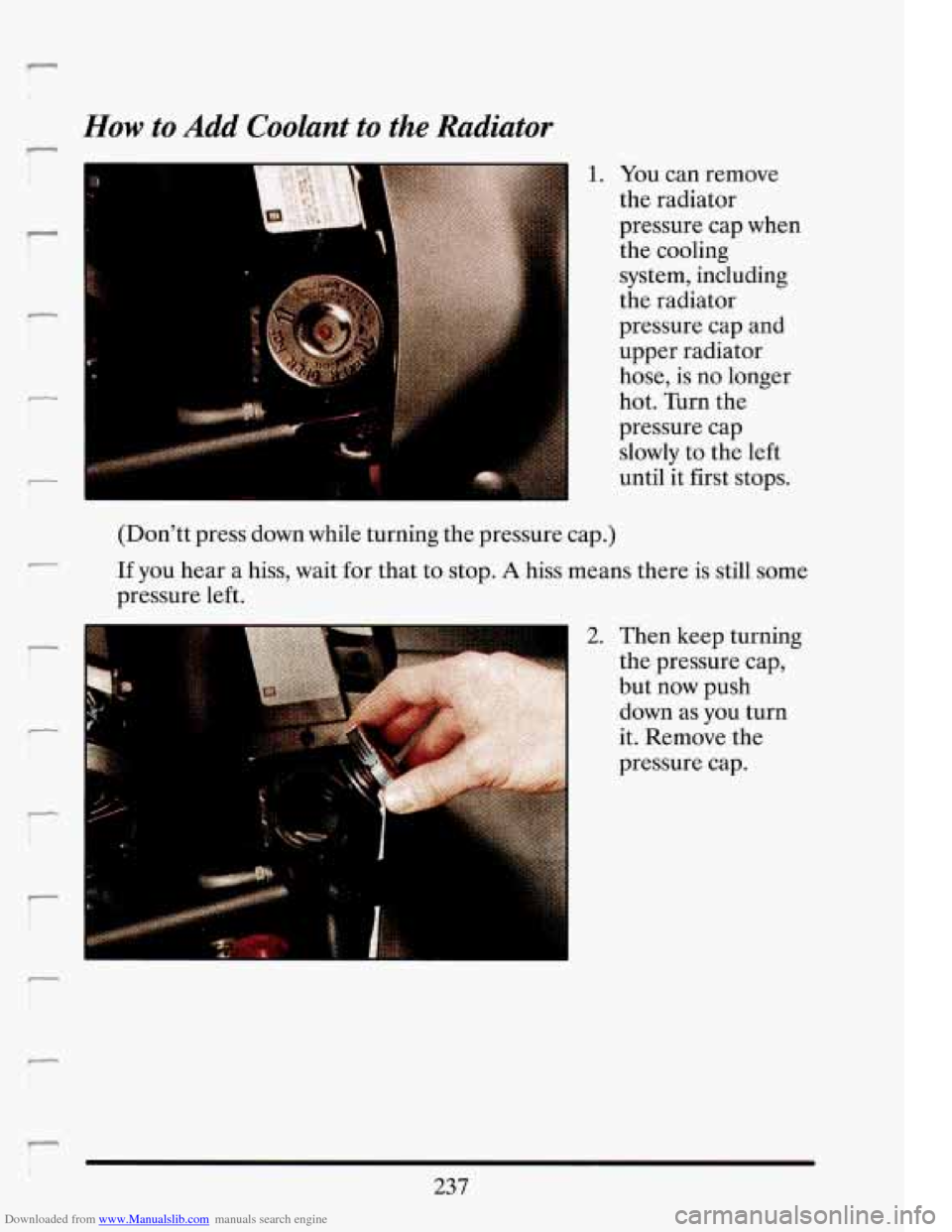

How to Add Coolant to the Radiator
-
1. You can remove
the radiator
pressure cap when
the cooling
-I
1
(Don’tt press down while turning the pressure cap.)
If you hear a hiss, wait for that to stop. A hiss means there is still some
pressure left.
2. Then keep turning
the pressure cap,
but now push
down as you turn
it. Remove the
pressure cap. system, including
the radiator
pressure cap and
upper radiator
hose, is no longer
hot. Turn the
pressure cap
slowly to the left
until it first stops.
237

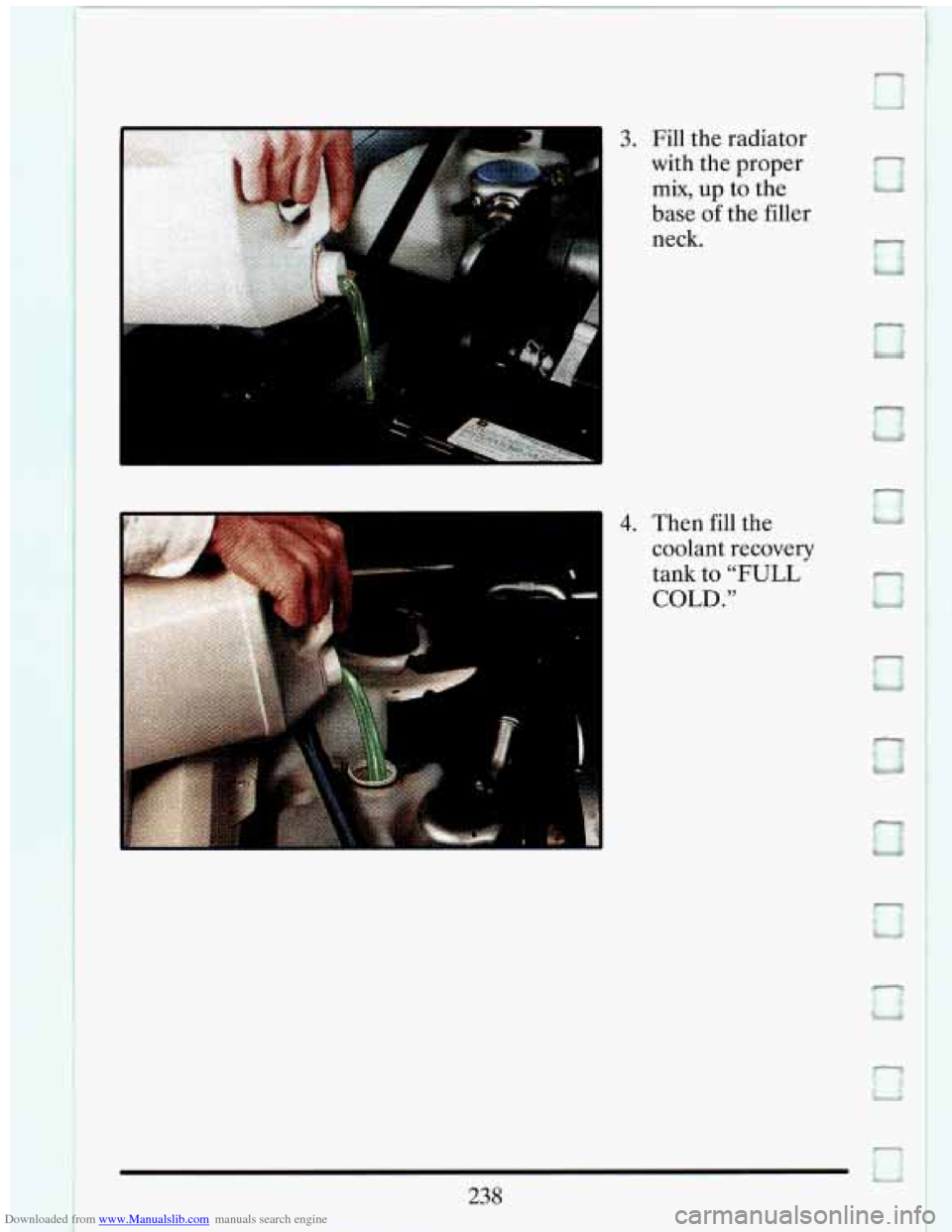

Downloaded from www.Manualslib.com manuals search engine 3. Fill the radiator
with the proper
mix, up to the
base of the filler
neck.
4. Then fill the
coolant recovery tank to
“FULL
COLD.’’
238

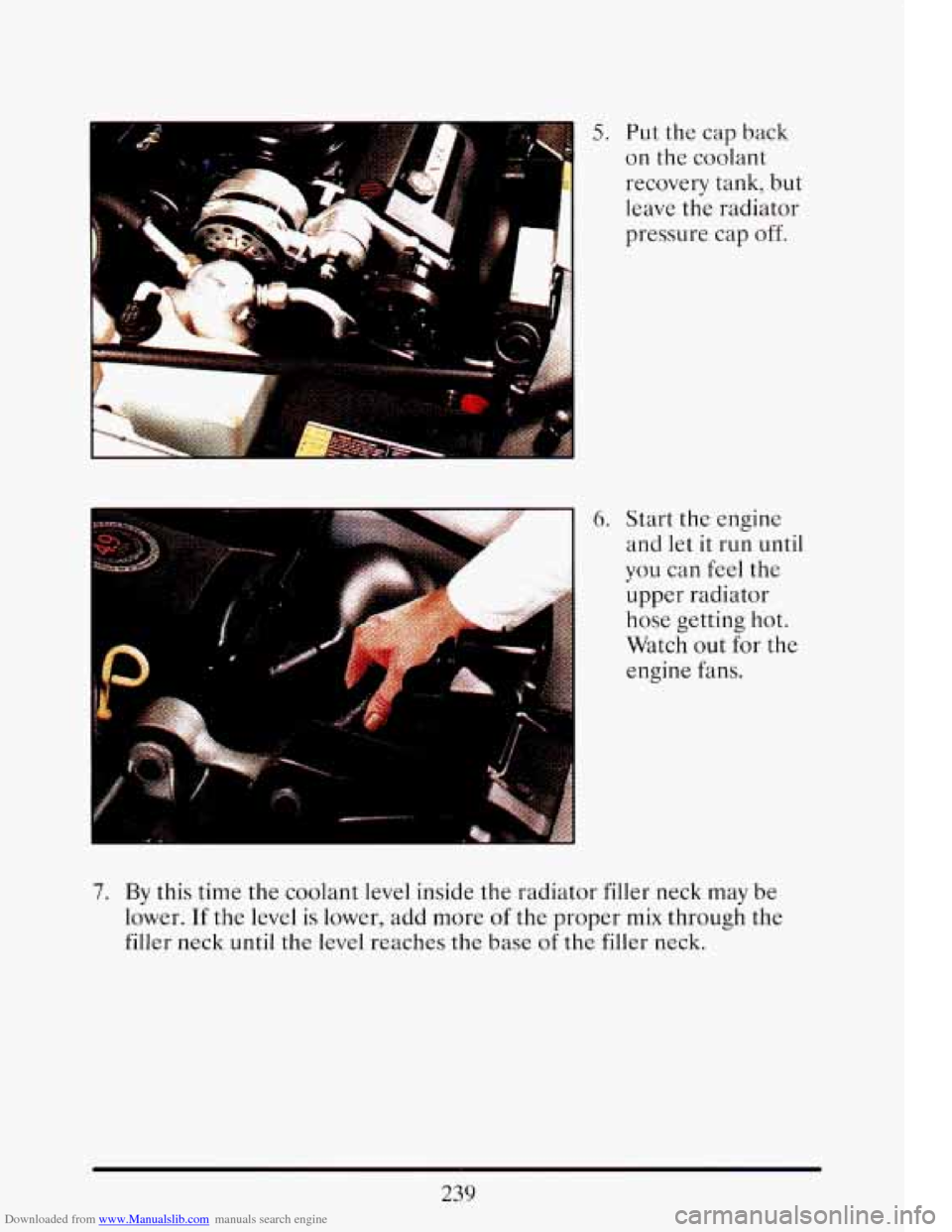

Downloaded from www.Manualslib.com manuals search engine 5. Put the cap back
on the coolant
recovery tank, but
leave the radiator
pressure cap off.
6. Start the engine
and let it run until
you can feel the
upper radiator
hose getting hot.
Watch out for the
engine
fans.
7. By this time the coolant level inside the radiator filler neck may be
lower.
If the level is lower, add more of the proper mix through the
filler neck until the level reaches the base
of the filler neck.
239

Downloaded from www.Manualslib.com manuals search engine _. . .._ .. - I *-
8. Then replace the
pressure cap. Be
sure the arrows on
the pressure cap
line
up like this.
COOLING SYSTEM - 4.6 LITER
(NORTHSTRR)
I
I
I
4
When you decide it’s safe to lift the hood, here’s what you’ll see:
Coolant surge tank with pressure cap
v Electric engine fans
240

Downloaded from www.Manualslib.com manuals search engine T

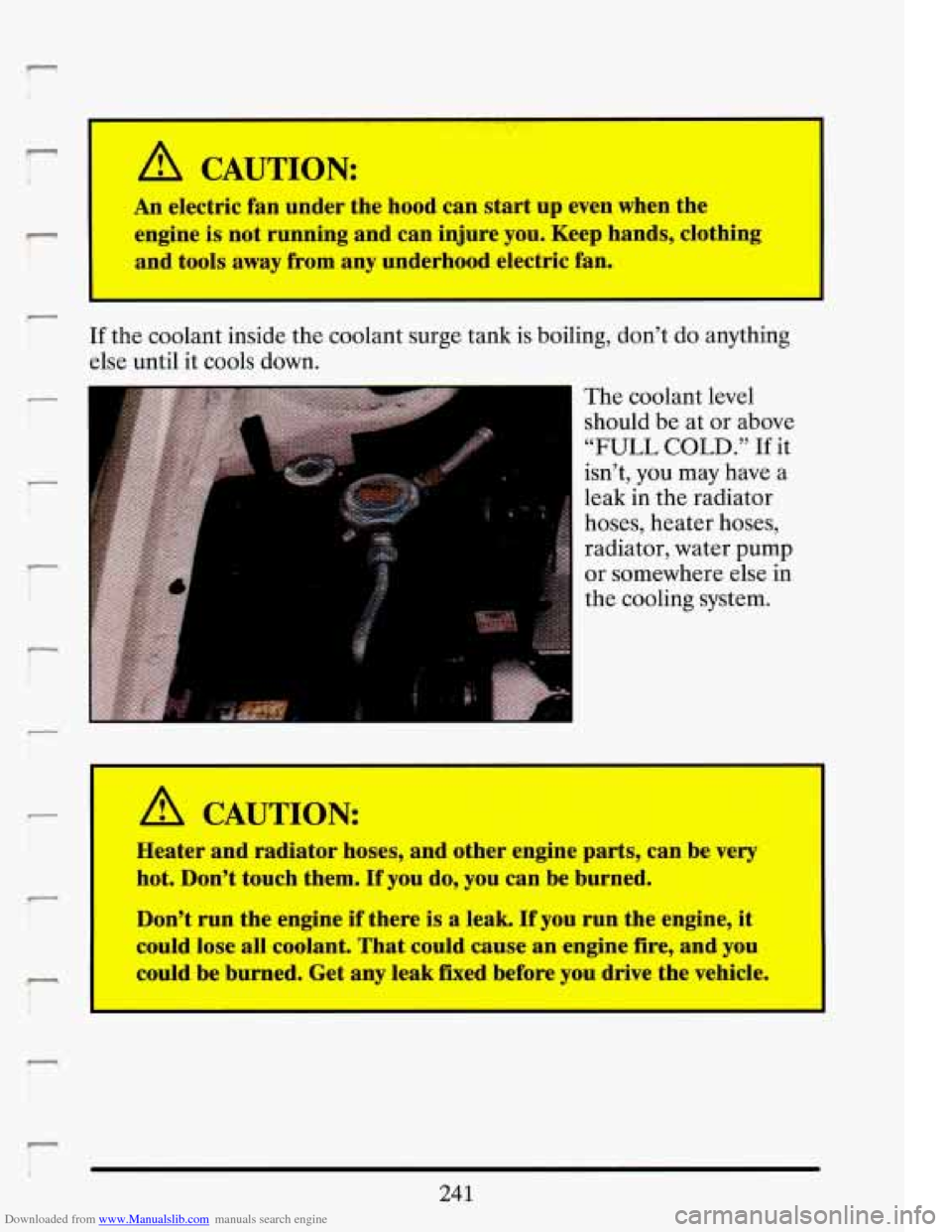

I A CAUTION:
An electric fan under the hood can start up even when the
engine
is not running and can injure you. Keep hands, clothing
and tools away from any underhood electric fan.
If the coolant inside the coolant surge tank is boiling, don’t do anything
else until it cools down.
r
/1
I
r
I-
= The coolant level
~ should be at or above
“FULL COLD.” If it
isn’t, you may have a
leak in the radiator
hoses, heater hoses,
radiator, water pump
or somewhere else
in
the cooling system.
A CAUTION:
Heater and radiator hoses, and other engine parts, can be very
hot. Don’t touch them.
If you do, you can be burned.
Don’t run the engine if there is a leak.
If you run the engine, it
could lose all coolant. That could cause an engine fire, and you
could be burned. Get any leak fmed before you drive the vehicle.
241

Downloaded from www.Manualslib.com manuals search engine If there seems to be no leak, check to see if the electric engine fans are
running.
If the engine is overheating, both fans should be running. If they
aren’t, your vehicle needs service.
How to Add Coolant to the Coolant Surge Tank
If you haven’t found a problem yet, but the coolant level isn’t at or above
“FULL
COLD,” add a 50/50 mixture of clean water (preferably distilled)
and a proper antifreeze at the coolant recovery tank. (See “Engine
Coolant” in the Index for more information about the proper coolant
mix.)
I
A CAUTION:
Adding only plain water to your cooling system can be
dangerous. Plain water, or some other liquid like alcohol, can
boil before the proper coolant mix will. Your vehicle’s coolant
warning system is set for the proper coolant mix. With plain
water or the wrong mix, your engine could get too hot but you
wouldn’t get the overheat warning. Your engine could catch fire
and you
or others could be burned. Use a 50/50 mix of clean
water -nd
a proper antifreeze.
