1993 CADILLAC ELDORADO Owners Manual

Downloaded from www.Manualslib.com manuals search engine lhming the radiator pressure cap when the engine and radiator
are hot can allow steam and scalding liquids
to blow out and
burn
you badly. With the coolant recovery tank, you will almost
never have to add coolant at the radiator. Never turn the
radiator pressure cap
-- even a little -- when the engine and-
Add coolant mix at the recovery tank, but be careful not to spill it.
I
.
You can be burned if you.spil1 coolant on hot engine parts.
Coolant contains ethylene glycol, and it
will burn if thi engine
To Add Coolant 4.6L (Northstar): If you need more coolant, add the
proper
mix at the coolant surge tank.
.-.. ,7-eeT+d:F - *-.3.5 , .,- - ~ ..>T r Irk- . .’ .. : -- .
I. +. i e
CAUTION; ,; - .* ‘
’ - Turning the surge tank pressure cap when the engine and. +&
radiator are hot can allow steam and scalding liquids to blow
out
and burn you badly. Never turn the surge tank pressure cap
I. -- en a little -- when the engine and radiator are hot.
You can be burned if you spill coolant on hot engine parts.
‘Coolant contains ethylene glycol,
and it will burn if the engine
.parts are hot enough. Don’t spill coolant on a hot engine.
To Check or Add Coolant: When the engine is cold, the coolant level
should be at “FULL COLD,’’ or a little higher. Remove the pressure cap
283

Downloaded from www.Manualslib.com manuals search engine from me surge ram; use a flashlight as necessary to see into the tank. The
coolant level should be at or above the seam inside the tank.
If you need more coolant, add the proper mix.
RADIXTOR OR SURGE TANK PRESSURE
CAP
1 NOTICE:
Your radiator or surge tank cap is a 15 psi (105 kPa)
pressure-type cap and must be tightly installed to prevent
coolant loss and possible engine damage from overheating. Be
sure the arrows
on the cap line up with the overflow tube on the
When you replace your radiator or surge tank pressure cap, an AC@ cap
is recommended.
THERMOSTAT
Engine coolant temperature is controlled by a thermostat in the engine
coolant system.
The thermostat stops the flow of coolant through the
radiator until the coolant reaches a preset temperature.
When
you replace your thermostat, an AC@ thermostat is recommended.
284

Downloaded from www.Manualslib.com manuals search engine POWER STEERING FLUID
I
4.6 Liter (Northstar)
.. . .. .. '.
How To Check Power Steering Fluid:
Unscrew the cap and wipe the dipstick with a clean rag. Replace the cap
and completely tighten it. Then remove the cap again and
look at the
fluid
level on the dipstick.
285

Downloaded from www.Manualslib.com manuals search engine 0
0 When the engine compartment-is
hot, the level
should
be at the
“HOT” mark.
When the engine
compartment
is
cool, the level
should be
at the
“FULL COLD”
mark.
What to Add
Refer to the Maintenance Schedule to determine what kind of fluid to
use. See “Recommended Fluids and Lubricants” in the Index.
286

Downloaded from www.Manualslib.com manuals search engine WINDSHIELD WASHER FLUID
To Add:
Open the cap labeled
“WASHER FLUID
ONLY.” Add washer
fluid until the bottle is
full.
UTICL:
When using concentrated washer fluid, follow the
manufacturer’s instructions for adding water.
a Don’t mix water with ready-to-use washer fluid. Water
ause the solution to freeze and damage your washer fluid
ank and other parts of the washer system.
Also, watel
oesn’t clean as well as washer fluid.
ill your washer fluid tank only
3/4 full when it’s very cold.
his allows for expansion, which could damage the tank if
it
1s completely full.
I
0 Don’t use radia
indshield
was1
r antifreeze in Your washer system and
r. I mr Paint.
an
287

Downloaded from www.Manualslib.com manuals search engine HEADLIGHT WASHER FLUID
(EXPORT ONLY)
To Add:
Open the cap labeled
“WASHER FLUID
ONLY.” Add
windshield washer fluid until the bottle is
full.
0
0
e
When using concentrated washer fluid, follow the
manufacturer instructions for adding water.
Don’t
mix water with ready to use washer fluid. ater em
cause the solution to freeze and damage your washer fll
tank and other parts of the washer system. Also, water
doesn’t clean
as well as washer fluid,
Fill your washer fluid tank only 3/4 full when it’s very cold.
This allows for expansion, which could damage the tank if it
is comnletely full.
..
Don’t us? radiator an1 , *ee:
cae $ahage ywr paint.
in 1
I
288

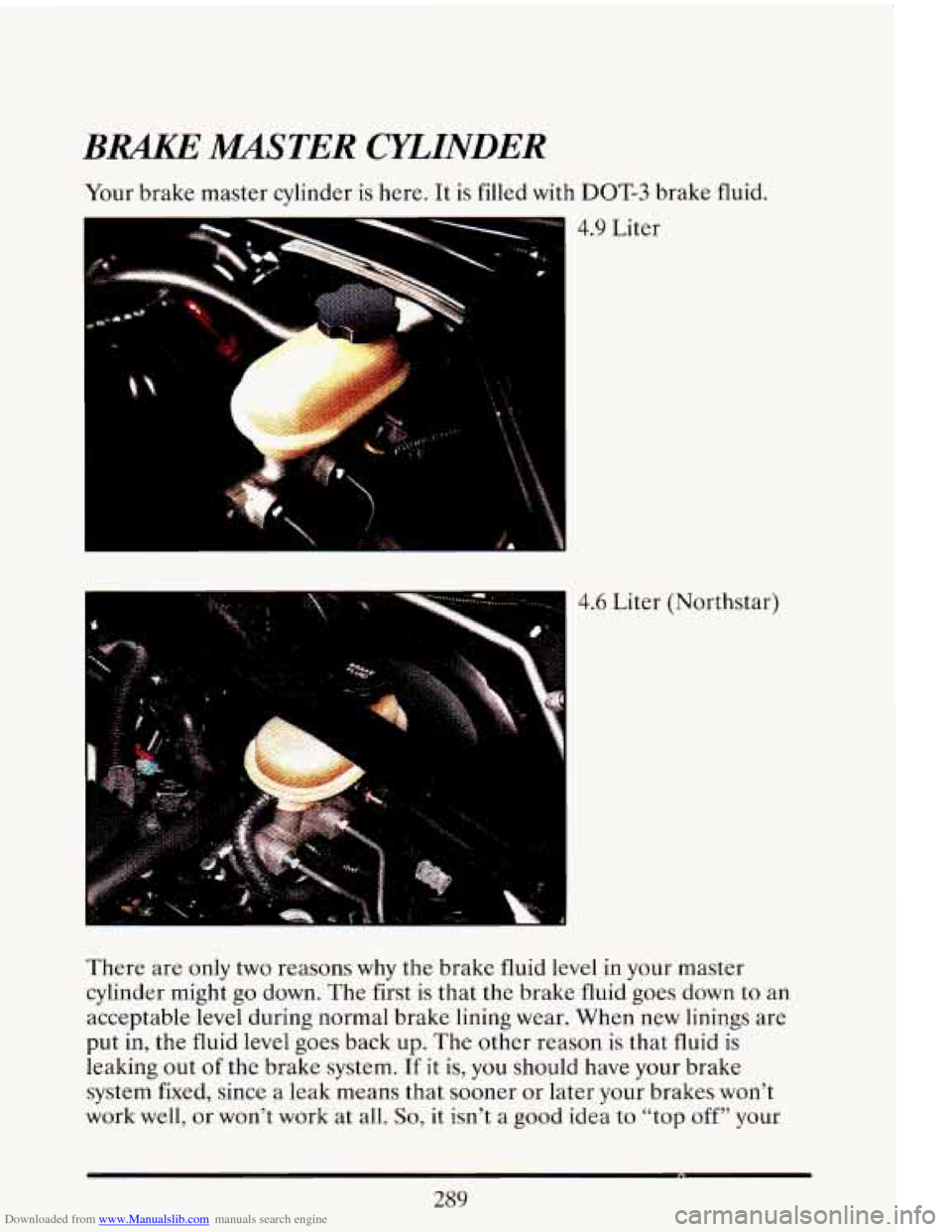

Downloaded from www.Manualslib.com manuals search engine BRAKE M!XSTER CYLINDER
Your brake master cylinder is here. It is filled with DOT-3 brake fluid.
4.9 Liter
4.6 Liter (Northstar)
There are only
two reasons why the brake fluid level in your master
cylinder might go down. The first is that the brake fluid goes down to an
acceptable level during normal brake lining wear. When new linings
are
put in, the fluid level goes back up. The other reason is that fluid is
leaking out of the brake system. If it is, you should have your brake
system fixed, since a leak means that sooner or later your brakes won’t
work well, or won’t work at all.
So, it isn’t a good idea to “top off” your
289

Downloaded from www.Manualslib.com manuals search engine brake fluid. Adding brake fluid won’t correct a leak. If you add fluid when
your linings are worn, then you’ll have too much fluid when you get new
brake linings. You should add (or remove) brake fluid, as necessary, only
when work is done on the brake hydraulic system.
A
If you
CAUTION:
have too much brake fluid, it can spill on the engine. The
fluid will burn if the engine is hot enough.
You or others could
be burned, and your vehicle could be damaged. Add brake fluid
only when work
is done on the brake hydraulic system.
When your brake fluid falls to a low level, the “CHECK BRAKE
FLUID” message will display on the Driver Information Center and your
brake warning light will come on. See “Brake System Warning Light” in
the Index.
To Check Brake Fluid - 4.9 Liter:
Remove the cap.
The fluid level must be
to the
“MAX FILE
line at the base of the
neck as shown.
