1993 CADILLAC ELDORADO Owners Manual

Downloaded from www.Manualslib.com manuals search engine CHEMICAL PMNT SPOTTING
Some weather and atmospheric conditions can create a chemical fallout.
Airborne pollutants can fall upon and attack painted surfaces on your
vehicle. This damage can take
two forms: blotchy, ringlet-shaped
discolorations, and small irregular dark spots etched into the \
paint surface.
Although no defect in the paint job causes this, Cadillac will repair, at no
charge to the owner, the surfaces
of new vehicles damaged by this fallout
condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever
comes first.
323

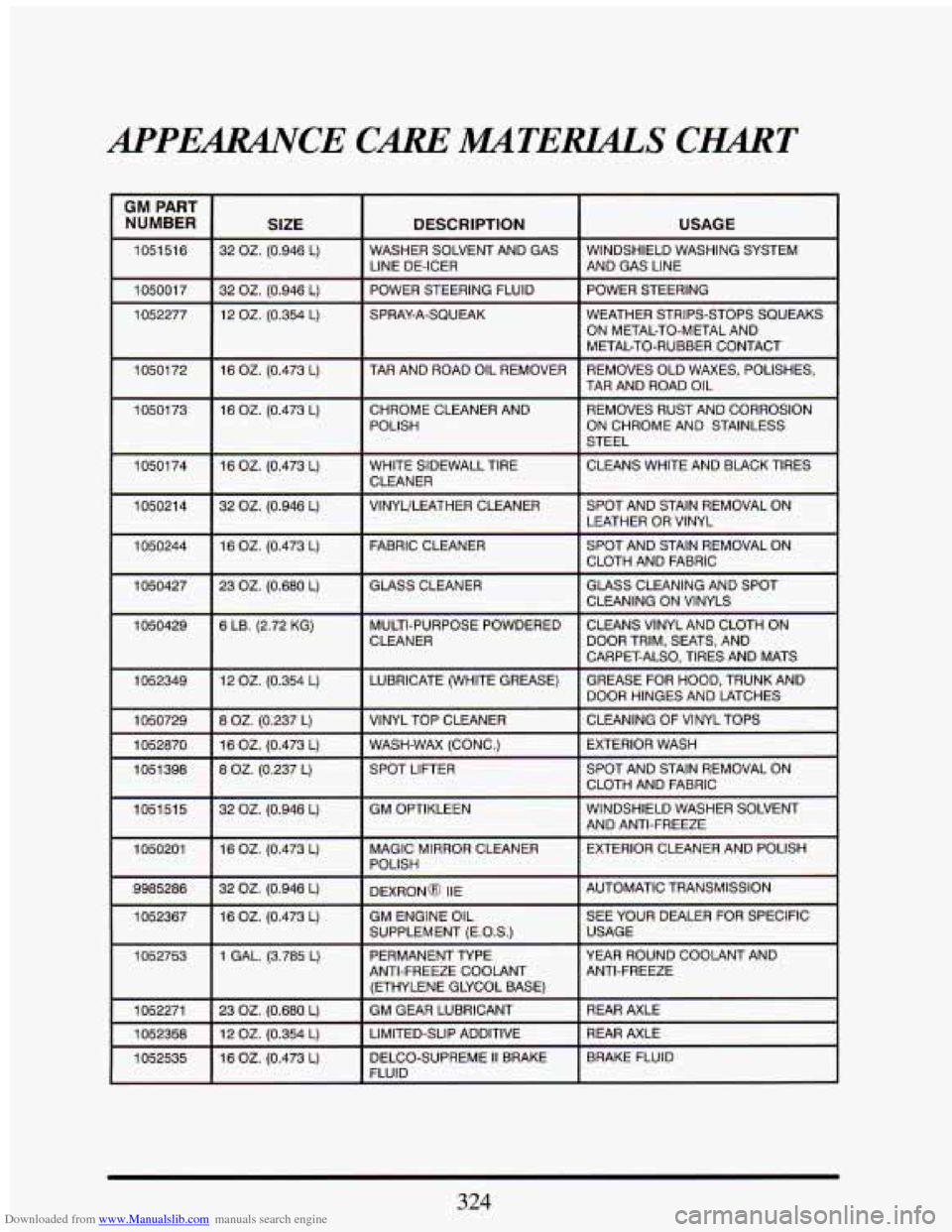

Downloaded from www.Manualslib.com manuals search engine GM PART
NUMBER
SIZE I DESCRIPTION USAGE
1051516 WINDSHIELD WASHING SYSTEM
AND GAS LINE 32 OZ. (0.946 L) WASHER SOLVENT AND GAS
105001 7 POWER STEERING
WEATHER STRIPS-STOPS SQUEAKS ON METAL-TO-METAL AND
METAL-TO-RUBBER CONTACT
1052277
I 1050172 I
16 OZ. (0.473 L) I TAR AND ROAD OIL REMOVER
I
REMOVES OLD WAXES, POLISHES,
TAR AND ROAD OIL
I
CHROME CLEANER AND
POLISH ' REMOVES RUST AND CORROSION
ON CHROME AND STAINLESS
STEEL
CLEANS WHITE AND BLACK TIRES
WHITE SIDEWALL TIRE
SPOT AND STAIN REMOVAL ON
LEATHER
OR VINYL
SPOT AND STAIN REMOVAL ON
CLOTH AND FABRIC
I 1050427 I I GLASS CLEANER I 23 OZ. (0.680 L) GLASS CLEANING AND SPOT
CLEANING ON VINYLS
I
1050429 6 LB. (2.72 KG)
I
MULTI-PURPOSE POWDERED
CLEANER CLEANS VINYL AND CLOTH
ON
DOOR TRIM, SEATS, AND
CARPET-ALSO. TIRES AND MATS
1052349 12 Of. (0.354 L) LUBRICATE (WHITE GREASE)
1050729 8 OZ. (0.237 L) VINYL TOP CLEANER
1052870
16 OZ. (0.473 L)
WASH-WAX (CONC.) GREASE FOR HOOD, TRUNK
AND
DOOR HINGES AND LATCHES
CLEANING
OF VINYL TOPS
EXTERIOR WASH
SPOT AND STAIN REMOVAL ON
CLOTH AND FABRIC
WINDSHIELD WASHER SOLVENT AND ANTI-FREEZE
1051 398 8 OZ. (0.237 L) SPOT LIFTER
1051515 32 OZ. (0.946 L) GM OPTIKLEEN
EXTERIOR CLEANER AND POLISH
16 OZ. (0.473 L) MAGIC MIRROR CLEANER
POLISH
32 OZ. (0.946 L) DEXRONQ IIE I 9985286 AUTOMATIC TRANSMISSION
SEE YOUR DEALER
FOR SPECIFIC
USAGE 1 1052367 I SUPPLEMENT (E.0.S.I I 16 OZ. (0.473 L) GM
ENGINE OIL I
YEAR ROUND COOLANT AND
ANTI-FREEZE 1 GAL. (3.785 L) PERMANENT TYPE
ANTI-FREEZE COOLANT
16 OZ. (0.473 L) DELCO-SUPREME II BRAKE
1052753
REAR AXLE
REAR AXLE
BRAKE FLUID
I I I FLUID 1
324

Downloaded from www.Manualslib.com manuals search engine VEHICLE IDENTIFICATION NUMBER
ll11111 I1111111111 I I II II 1111 I
Im"l lG6EL12BXPU600001 A
1 G 6 EL 12 BX P U600001
NATION OF ORIGIN
1 = USA
MANUFACTURER
G = GENERAL MOTORS
MAKE -
6 = CADILIA
CARLINEEERIE!
EL = ELDORADO
VIN BODY CODE = BODY TYPE
1 = 57 COUPE 2 DOOR
T1 PRODUCTION
SEQUENCE NUMBER
ASSEMBLY PLANT
U = HAMTRAMCK, MICH.
MODEL YEAR
P = 1993
- CHECK DIGIT
- ENGINE CODE
B = 4.9 LITER (200 HP)
Y = 4.6 LITER (270 HP)
9 = 4.6 LITER (295 HP)
- RESTRAINT SYSTEM:
2 - ACTIVE (MANUAL) BELTS WITH DRIVER AND
PASSENGERS INFLATABLE RESTRAINT SYSTEM
325

Downloaded from www.Manualslib.com manuals search engine This is the legal identifier for your Cadillac. It appears on a plate in the
front corner of the instrument panel, on the driver’s side. You can see it if
you look through the windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts labels and the
certificates of title and registration.
Engine Identificution
The eighth character in your VIN is the engine code for your GM engine.
This code will help you identify your engine, specifications, and
replacement parts in this section.
SERWCE PARTS IDENTIFICATION LABEL
You’ll find this label on the spare tire cover. It’s very helpful if you ever
need to order parts. On
this label is:
Your VIN.
Its model designation.
A list of all production options and special equipment.
Be sure that this label is not removed from the vehicle.
ADD-ON ELECTRICAL EQUIPMENT
-
NOT1
Don’t add ythlllg electrical to your Cadillac unless you chec’-
with
your aealer first. Some electrical equipment can damage
your vehicle and the damage wouldn’t be covered by your
warranty. Some of it can just keep other things from working as
they should.
326

Downloaded from www.Manualslib.com manuals search engine r
T
ri
‘I
I-
!-
!-

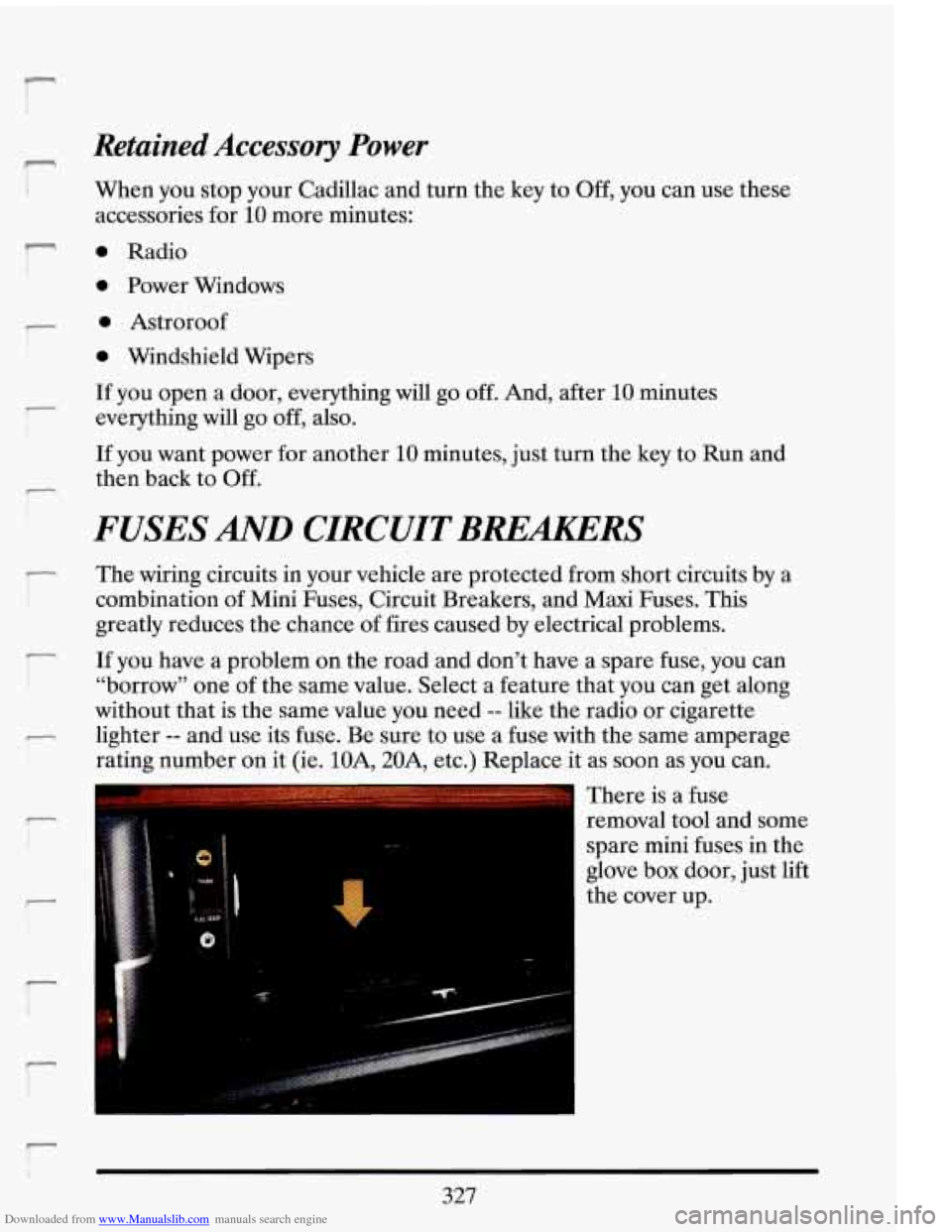

Retained Accessory Power
When you stop your Cadillac and turn the key to Off, you can use these
accessories for
10 more minutes:
0 Radio
0 Power Windows
0 Astroroof
0 Windshield Wipers
If you open a door, everything will go off. And, after
10 minutes
everything will go off, also.
If you want power for another
10 minutes, just turn the key to Run and
then back to Off.
FUSES AND CIRCUIT BREDRS
The wiring circuits in your vehicle are protected from short circuits by a
combination of Mini Fuses, Circuit Breakers, and Maxi Fuses. This
greatly reduces the chance
of fires caused by electrical problems.
If you have a problem on the road and don’t have a spare fuse, you can
“borrow” one of the same value. Select a feature that you can get along
without that is the same value you need
-- like the radio or cigarette
lighter
-- and use its fuse. Be sure to use a fuse with the same amperage
rating number on it (ie.
lOA, 20A, etc.) Replace it as soon as you can.
1
There is a fuse
removal tool and some
spare mini fuses in the
glove box door, just lift
the cover up.
327

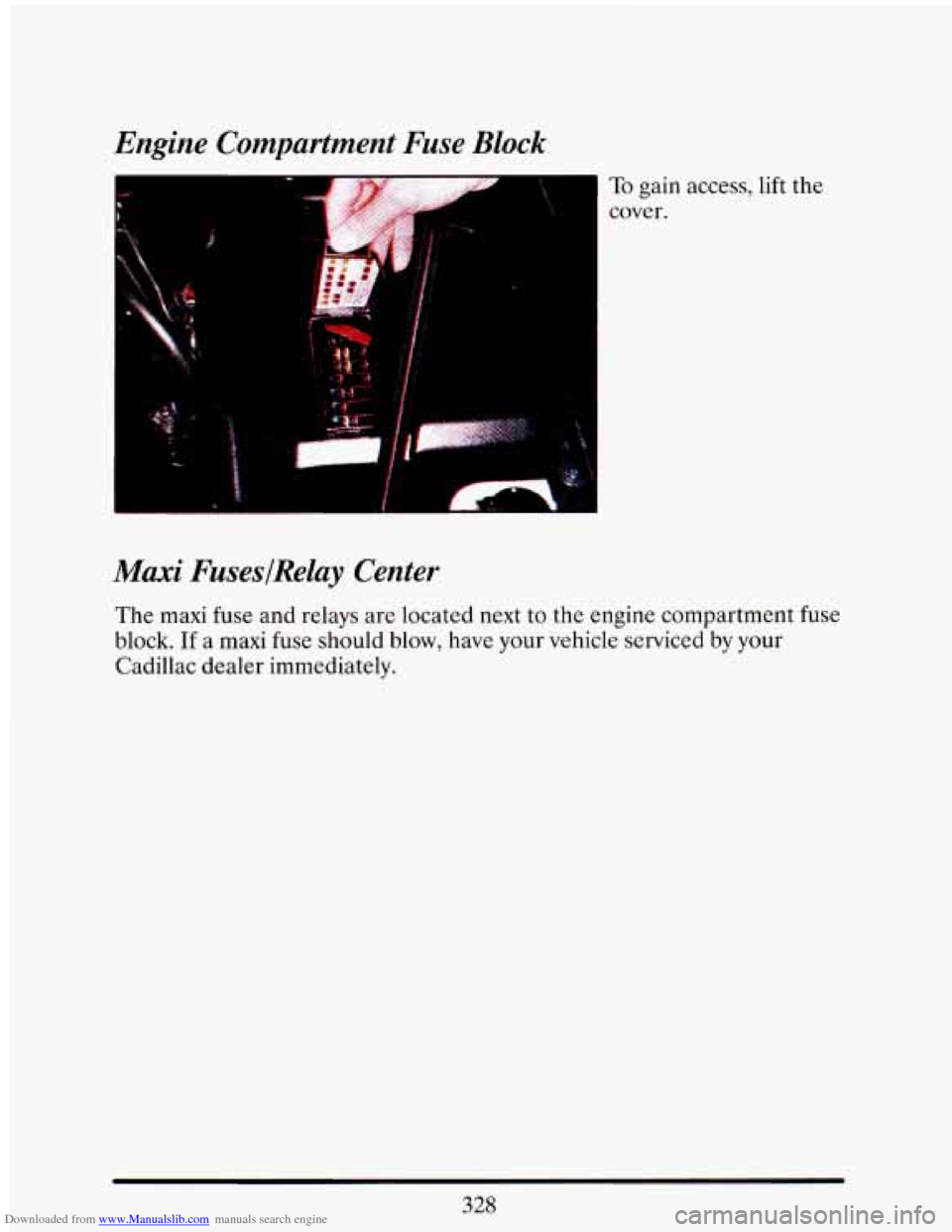

Downloaded from www.Manualslib.com manuals search engine Engine Compartment Fuse Block
I
To gain access, lift the
cover.
Maxi FuseslRelay Center
The maxi fuse and relays are located next to the engine compartment fuse
block.
If a maxi fuse should blow, have your vehicle serviced by your
Cadillac dealer immediately.
328

Downloaded from www.Manualslib.com manuals search engine 1nrVc-I
SENSE
I I
BIII mc 1 m DRL
SUSPENSION RTD (BAT)
L HDLP LO
R HDLP LO L HDLP HI R HDLP HI
-1
COOL FAN TRANS/ECS
FUSE CENTER IDENTIFICATION I
ENGINE COMPARTMENT FUSE BLOCK
COIL 20A - 4.9L DISTRIBUTOR - 4.6L IGNITION CONTROL MODULE SIR 20A - DIAGNOSTIC ENERGY RESERVE MODULE
- ARMING SENSOR
- POWERTRAIN CONTROL MODULE (PCM) (DERM) SIR (AIR BAG)
PCM (IGN) 10A - PASSKeyB DECODER MODULE
INJ 10A
INJ 10A
IGN 10A
- FUEL INJECTORS 1,4,6,7
- FUEL INJECTORS 2,3,5,8
- A/C COMPRESSOR - ELECTROCHROMIC MIRROR - INSTRUMENT PANEL CLUSTER - DIAGNOSTIC ENERGY RESERVE MODULE
- KEYLESS ENTRY MODULE - CORNERING LIGHTS - CHIME MODULE - TWILIGHT SENTINEVDRL MODULE - BACKUP LIGHTS - BRAKE TRANSMISSION SHIFT INTERLOCK (DERM)
SIR (AIR BAG)
FUEL 20A
- FUELPUMP - POWERTRAIN CONTROL MODULE
PCM (BAT) 10A
A/C 1OA
HTD
W/S 10A
STOP LP 20A
TURN/HAZ 20A
- POWERTRAIN CONTROL MODULE (PCM)
- A/C COMPRESSOR
- HEATED WINDSHIELD
- STOP LIGHTS
- HAZARD LIGHTS - TURN SIGNAL LIGHTS DRL
1OA (CANADA)
DRL 1OA (CANADA)
SUSPENSION 10A
- DAYTIME RUNNING LIGHTS
- DAYTIME RUNNING LIGHTS
- ROAD SENSING SUSPENSION
- SPEED SENSITIVE SUSPENSION (4.9L)
- ROAD SENSING SUSPENSION (NORTHSTAR)
RTD (BAT) 20A
L HDLP LO 1 OA (EXPORT)
R HDLP LO 1OA (EXPORT)
L HDLP HI 10A (EXPORT)
R HDLP HI (EXPORT)
IGN
3 10A
- LEFT HEADLAMP LOW BEAM
- RT HEADLAMP LOW BEAM
- LEFT HEADLAMP HIGH BEAM
- RIGHT HEADLAMP HIGH BEAM
- HEATED WINDSHIELD - HEATER AND A/C PROGRAMMER - ELECT. LEVEL CONTROL (ELC) - DEFOGGER RELAY “D”
- CRUISE CONTROL - POWERTRAIN CONTROL MODULE
- COOLING FANS - POWERTRAIN CONTROL MODULE (4.6L) - FRONT AND REAR HEATED OXYGEN
COOLING
FAN 10A
SENSOR (4.6L)
TRANS/ECS
1 OA
SOLENOID - EXHAUST GAS RECIRCULATION (EGR)
- POWERTRAIN CONTROL MODULE (PCM) - AUTOMATIC TRANSAXLE - EVAPORATIVE EMISSION CONTROL
SOLENOID
- OVERSPEED ALERT MODULE (EXPORT) - POWER STEERING PRESSURE SWITCH
329

Downloaded from www.Manualslib.com manuals search engine 5
LH MAXI8 FUSE BLOCK
FUSE 1 (50 AMP)
- RETAINED ACCESSORY POWER
(RADIO/WIPERS)
- STARTER
- TRUNK COMR FUSE Ai 1
- ENGINE COMF! FUSES Ai, A3, A5, A7, A9,
All,A13
FUSE 2 (60 AMP)
U.S.A./CANADA Z49/SAUDI
- TRUNK COMP FUSES C1, C3, C5, C7, C9, Cil
- ROAD SENSING SUSPENSION
FUSE 2 EXPORT EXCEPT SAUDI (60 AMP)
- ROAD SENSING SUSPENSION
- REAR FOG LIGHT (EXPORT)
- TRUNK COMP FUSES C1, C3, C5, C7, C9,
C11, C13
CIRCUIT BREAKER 3 (30 AMP)
- FUEL DOOR RELEASE
- TRUNK RELEASE
- LEFT AND RIGHT POWER SEAT
- LEFT AND RIGHT LUMBAR CONTROL
- KEYLESS ENTRY MODULE
- POWER DOOR LOCKS
- HORNS
FUSE 4 (30 AMP)
- POWERTRAIN CONTROL MODULE (PCM)
- ELECTRONIC CLIMATE CONTROL - RAP/ILLUMINATED ENTRY MODULE
- INSTRUMENT PANEL CLUSTER
- PASSKeyB DECODER MODULE
- THEFT DETERRENT
I 50A I m 5
FUSE 5 (60 AMP)
- LEFT AND RIGHT HEATED SEATS
- ELECTRONIC LEVEL CONTROL (ELC)
- TRUNK LID PULL DOWN
- POWER ANTENNA
- REAR DEFOGGER
- LEFT AND RIGHT MIRROR DEFOGGERS
FUSE 6 (60 AMP)
- RETAINED ACCESSORY POWER
(SUNROOF/POWER WINDOWS)
- ENGINE COMF! FUSES C7, Dl, D3, D5
- TRUNK COMF! FUSES Al, A3, A5, A7
RH MAXIB FUSE BLOCK
FUSE 1 (40 AMP)
- TURN/HAZ STOP LP - PARK LIGHTS
FUSE 2 (30 AMP)
- DELCO-BOSEG SPEAKERS
- RADIO CONTROL HEAD
- REMOTE RADIO RECEIVER
CIRCUIT BREAKER 3 (30 AMP)
- FLASH TO PASS FEATURE
- DAYTIME RUNNING LIGHT (DRL)
- HEADLIGHTS
FUSE 4 (40 AMP) HAVAC BLOWER
- HVAC POWER MODULE
- AJC COMPRESSOR
FUSE 5 (50 AMP) ABS
FUSE
6 (50 AMP) COOLING FANS
- ANTILOCK BRAKE PRESSURE VALVE
- COOLING FANS
330
