1993 CADILLAC ELDORADO Owners Manual

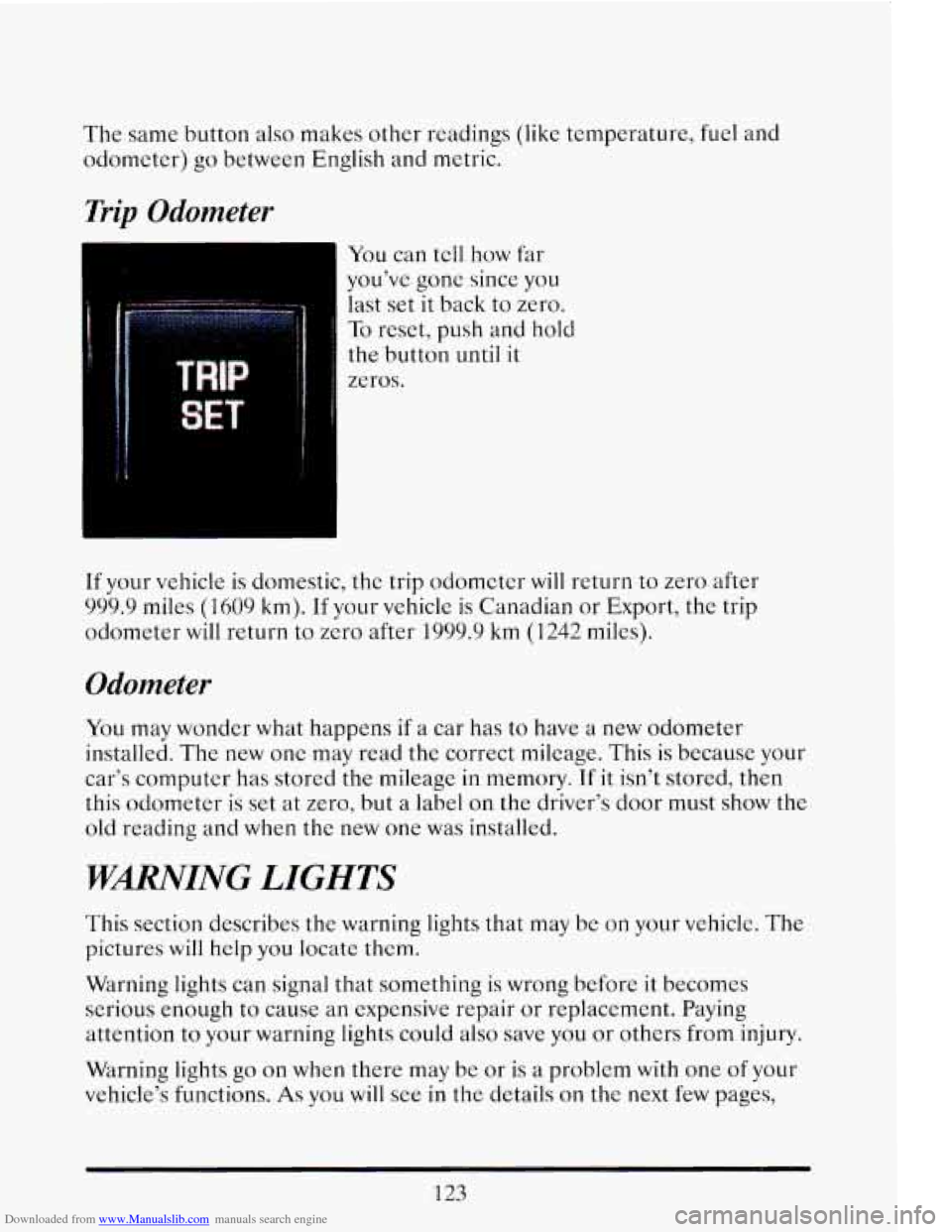

Downloaded from www.Manualslib.com manuals search engine The same button also makes other readings (like temperature, fuel and
odometer)
go between English and metric.
Trip Odometer
You can tell how far
you’ve
gonc since you
last set it back to zero.
To reset, push and hold
the button until it
zeros.
If your vehicle
is domestic, the trip odometer WIII return to zero after
999.9 miles (1609 km). If your vehicle is Canadian or Export, the trip
odometer will return
to zero after 1999.9 km (1242 miles).
Odometer
You may wonder what happens if a car has to have a new odometer
installed. The new one may read the correct mileage. This is because your
car’s computer has stored the mileage in memory.
If it isn’t stored, then
this odometer is set at zero, but
a label on the driver’s door must show the
old reading and when the new one was installed.
‘WARNING LIGHTS
This section describes the warning lights that may be on your vehicle. The
pictures will help you locate them.
Warning lights can signal that something is wrong before it becomes
serious enough
to cause an expensive repair or replacement. Paying
attention
to your warning lights could also save you or others from injury.
Warning lights
go on when there may be or is a problem with one of your
vehicle’s functions.
As you will see in the details on the next few pages,
123

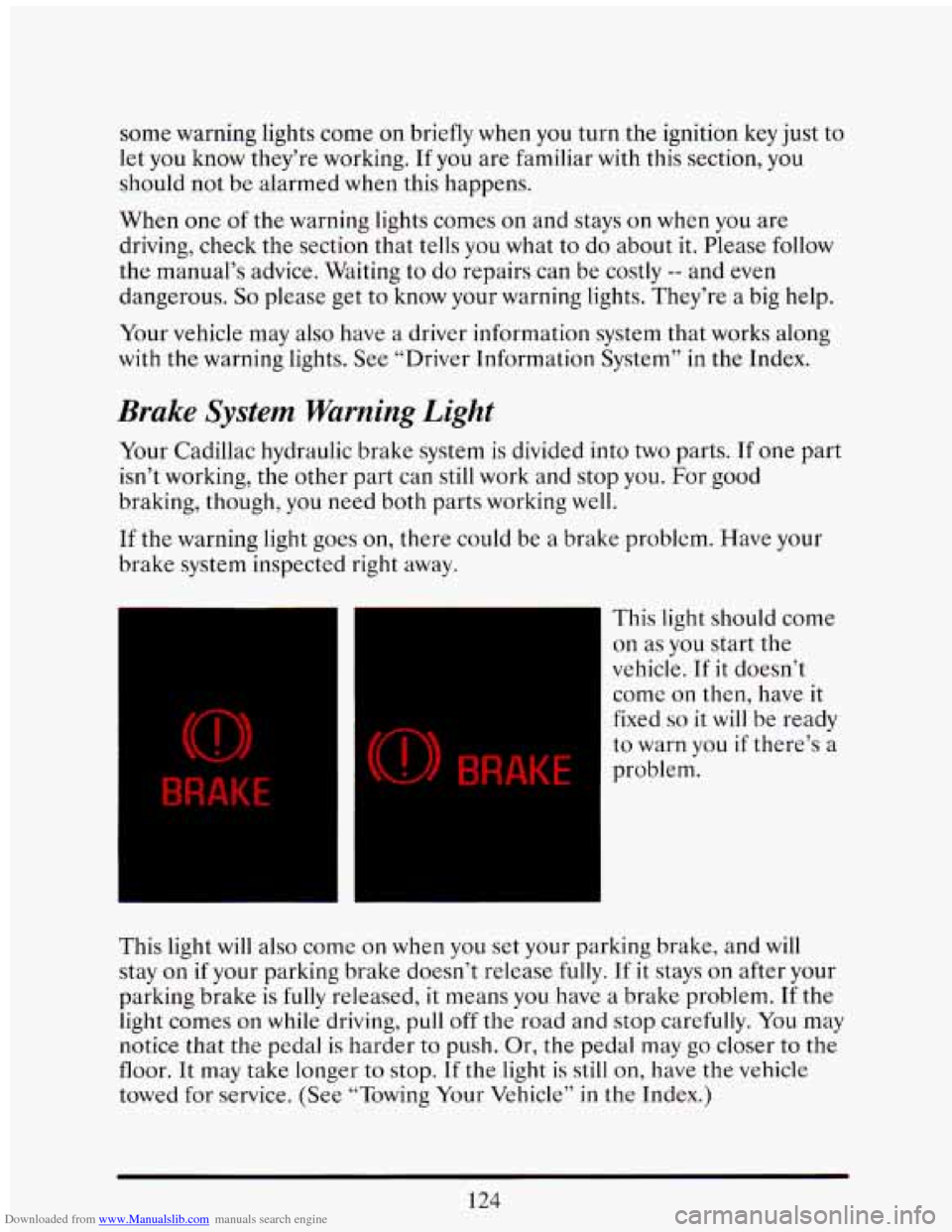

Downloaded from www.Manualslib.com manuals search engine some warning lights come on briefly when you turn the ignition key just to
let you know they’re working.
If you are familiar with this section, you
should not be alarmed when this happens.
When one
of the warning lights comes on and stays on when you are
driving, check the section that tells you what to do about it. Please follow
the manual’s advice. Waiting to do repairs can be costly
-- and even
dangerous.
So please get to know your warning lights. They’re a big help.
Your vehicle may
also have a driver information system that works along
with the warning lights. See “Driver Information System” in the Index.
Brake System Warning Light
Your Cadillac hydraulic brake system is divided into two parts. If one part
isn’t working, the other part can still work and stop you. For good
braking, though, you need both parts working
well.
If the warning light goes on, there could be a brake problem. Have your
brake system inspected right away.
BRAKE
(0) BRAKE
This light should come
on as you start the
vehicle. If it doesn’t
come
on then, have it
fixed
so it will be ready
to warn you if there’s a
problem.
This light will also come
on when you set your parking brake, and will
stay
on if your parking brake doesn’t release fully. If it stays on after your
parking brake
is fully released, it means you have a brake problem. If the
light comes
on while driving, pull off the road and stop carefully. You may
notice that the pedal is harder
to push. Or, the pedal may go closer to the
floor. It may take longer to stop.
If the light is still on, have the vehicle
towed for service. (See “Towing Your Vehicle” in
the Index.)
124

Downloaded from www.Manualslib.com manuals search engine I

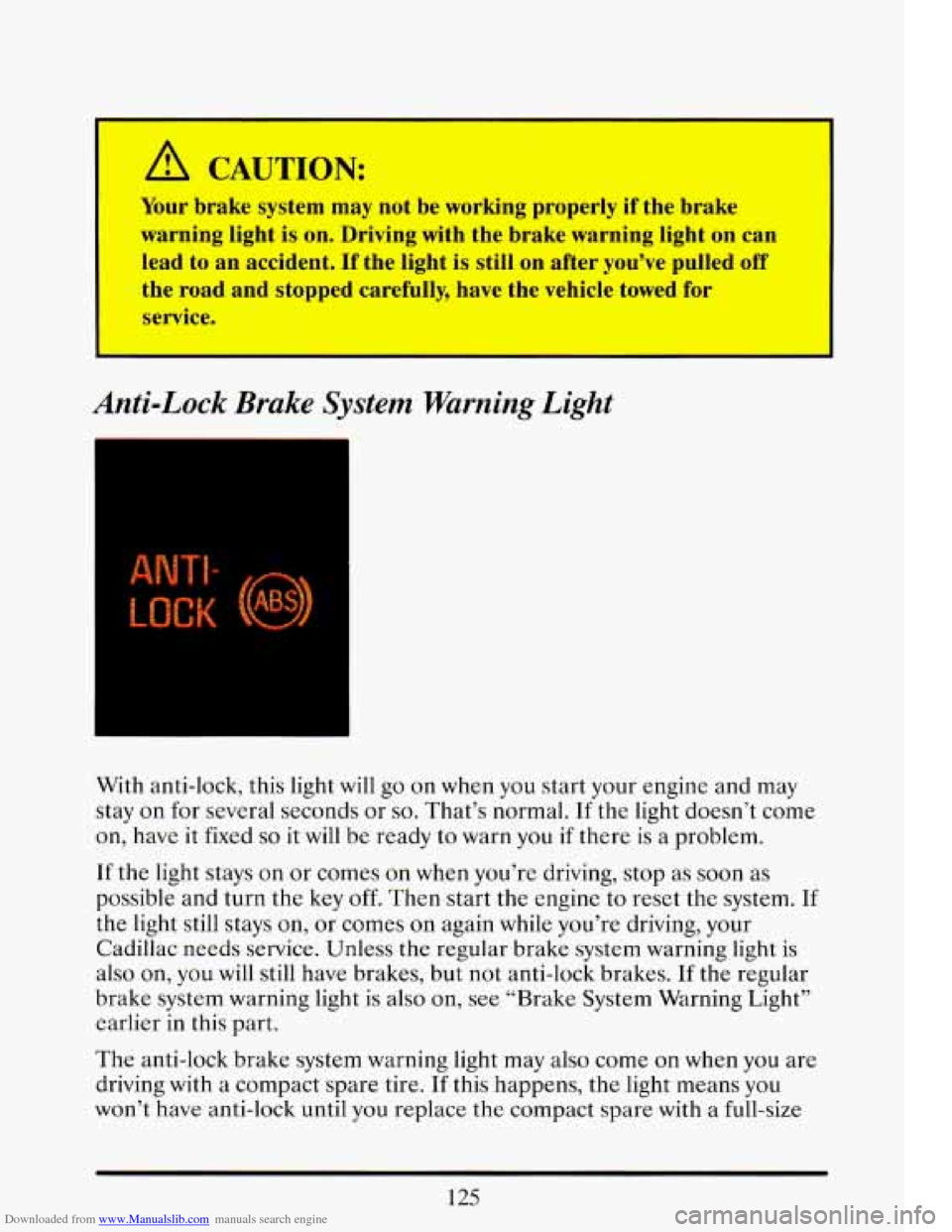

A CAUTION:
Your brake system may not be working properly if the brake
warning light is
on. Driving with the brake warning light on can
lead to an accident. If the light is still
on after you've pulled off
service. e road and
stopped carefully, have the vehicle towed for
I
Anti-Lock Brake System Warning Light
=
With anti-lock, this light will go on when you start your engine and may
stay
on for several seconds or so. That's normal. If the light doesn't come
on, have it fixed
so it will be ready to warn you if there is a problem.
If the light stays on or comes on when you're driving, stop as soon
as
possible and turn the key off. Then start the engine to reset the system. If
the light still stays on, or comes on again while you're driving, your
Cadillac needs service. -Unless the regular brake system warning light is
also on,
you will still have brakes, but not anti-lock brakes. If the regular
brake system warning light is also on, see "Brake System Warning Light"
earlier in this part.
The anti-lock brake system warning light may also come
on when you are
driving with a compact spare tire.
If this happens, the light means you
won't have anti-lock until you replace the compact spare with a full-size
125

Downloaded from www.Manualslib.com manuals search engine tire. If the warning light stays on after you replace the compact spare wlrn
a full-size tire, or if it comes on again when you’re driving, your Cadillac
needs service.
Engine Temperature Warning Light (Export Only)
This light tells you that
your engine has
overheated.
You
should stop the car and
turn the engine off as
soon as possible. A
warning chime should
also sound if this light
comes
011. As a check,
the light should come
on for a few seconds
whcn you start your
engine.
HOT COOLANT CAN BURN YOU BADLY!
In “Problems on the
Road,” this manual shows what to do. See “Engine
Overheating”
in the Index.
Service Engine Soon Light
I ENGINE
SOON
126

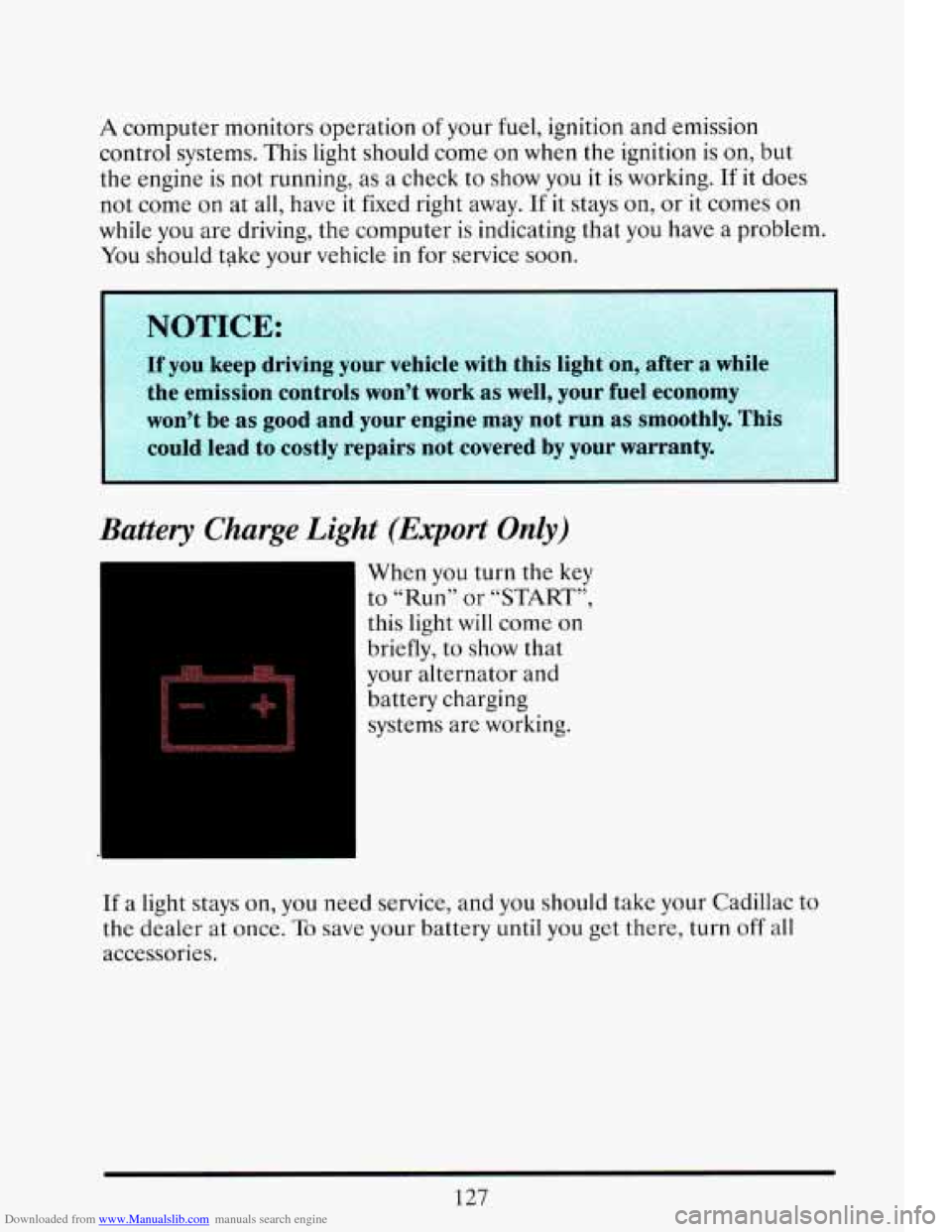

Downloaded from www.Manualslib.com manuals search engine A computer monitors operation of your fuel, ignition and emission
control systems. This light should come on when the ignition is on, but
the engine is not running, as a check to show you it is working.
If it does
not come
on at all, have it fixed right away. If it stays on, or it comes on
while you are driving, the computer
is indicating that you have a problem.
You should take your vehicle
in for service soon.
Battery Charge Light (Export Only)
.L
When you turn the key
to “Run” or
“START”,
this light will come on
briefly, to show that
your alternator and
battery charging
systems are working.
If a light stays on, you need service, and you should take your Cadillac to
the dealer at once.
To save your battery until you get there, turn off all
accessories.

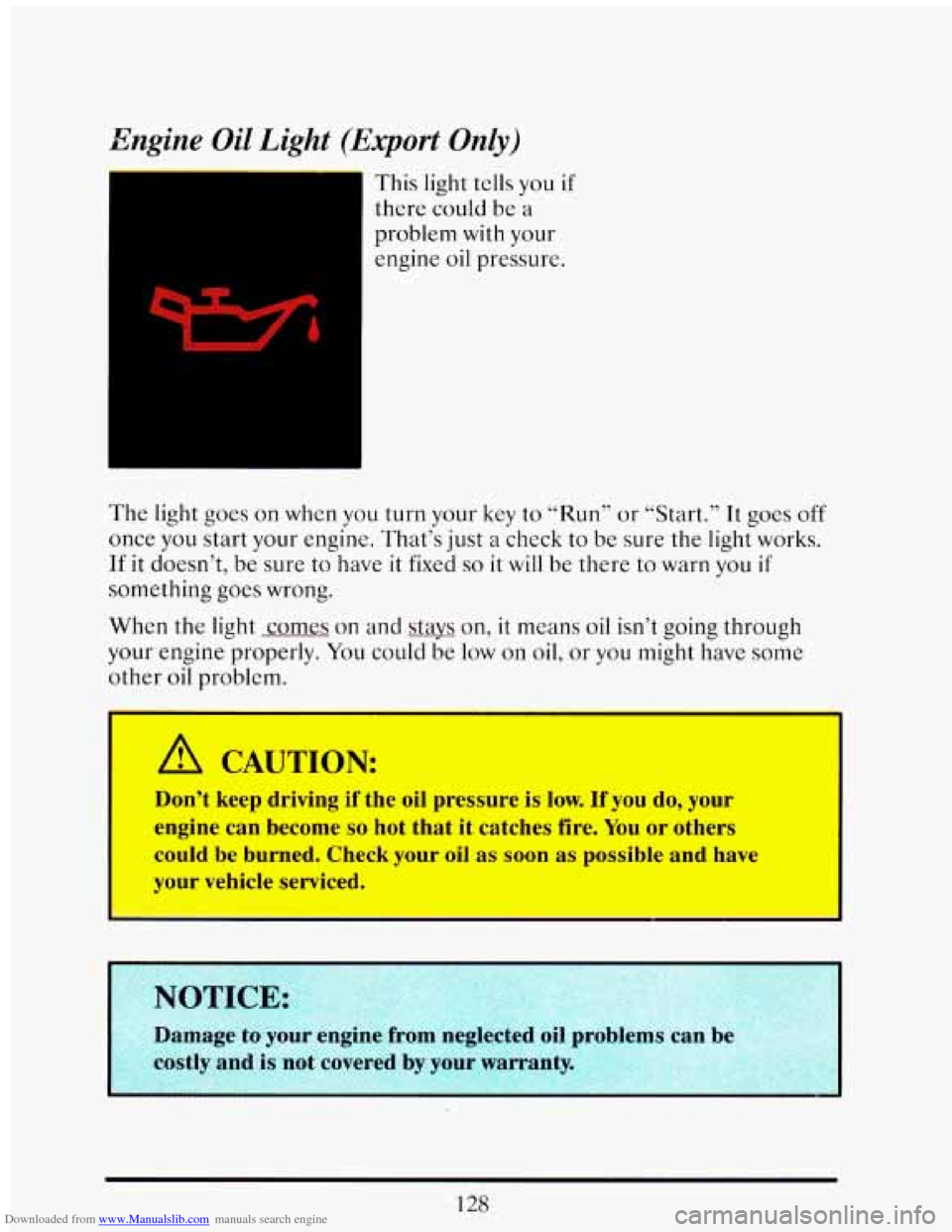

Downloaded from www.Manualslib.com manuals search engine Engine Oil Light (Export Only)
I
This light tclls you if
there could be a
problem with your
engine
oil pressure.
The light goes on when you turn your key to “Run” or “Start.” It goes off
once you start your engine. That’s just
a check to be sure the light works.
If it doesn’t, be sure to have it fixed so it will be there to warn you if
something goes wrong.
When the light comes
on and stays on, it means oil isn’t going through
your engine properly. You could be low on oil, or you might have some
other
oil problem.
I ~~~ I
A CA, TIO, 4:
Don’t keep driving if the oil pressure is low. If you do, your
engine can become
so hot that it catches fire. You or others
could be burned. Check your
oil as soon as possible and have
vour vehicle serviced.
128

Downloaded from www.Manualslib.com manuals search engine Tachometer - Analog Cluster
\\' 4 dr

2 5
"1
This gage indicates the
engine speed in
Revolutions Per
Minute (RPM).
. ~~ . -.
NOTICE:
Do not operate the engine with the tachometer in the red area,
or engine damage may occur.
I
Engine Speed Limiter (4.6L Northstar)
If you have the 4.6L Northstar engine, you have an Engine Speed
Limiter. This feature prevents the engine from operating at too\
many
revolutions per minute (RPM). When your engine
RPM,'s are critically
high the fuel supply to the engine is shut off. When the engine speed
slows, the fuel supply will come on again. This helps prevent damage to
the engine.
Vehicle Speed Limiter 4.6 L (270 hp)
This feature prevents your vehicle from exceeding speeds that your tires
are not rated for. When this happens your engine's fuel supply is shut
off.
When the vehicle speed slows, the fuel supply will come on again.
129

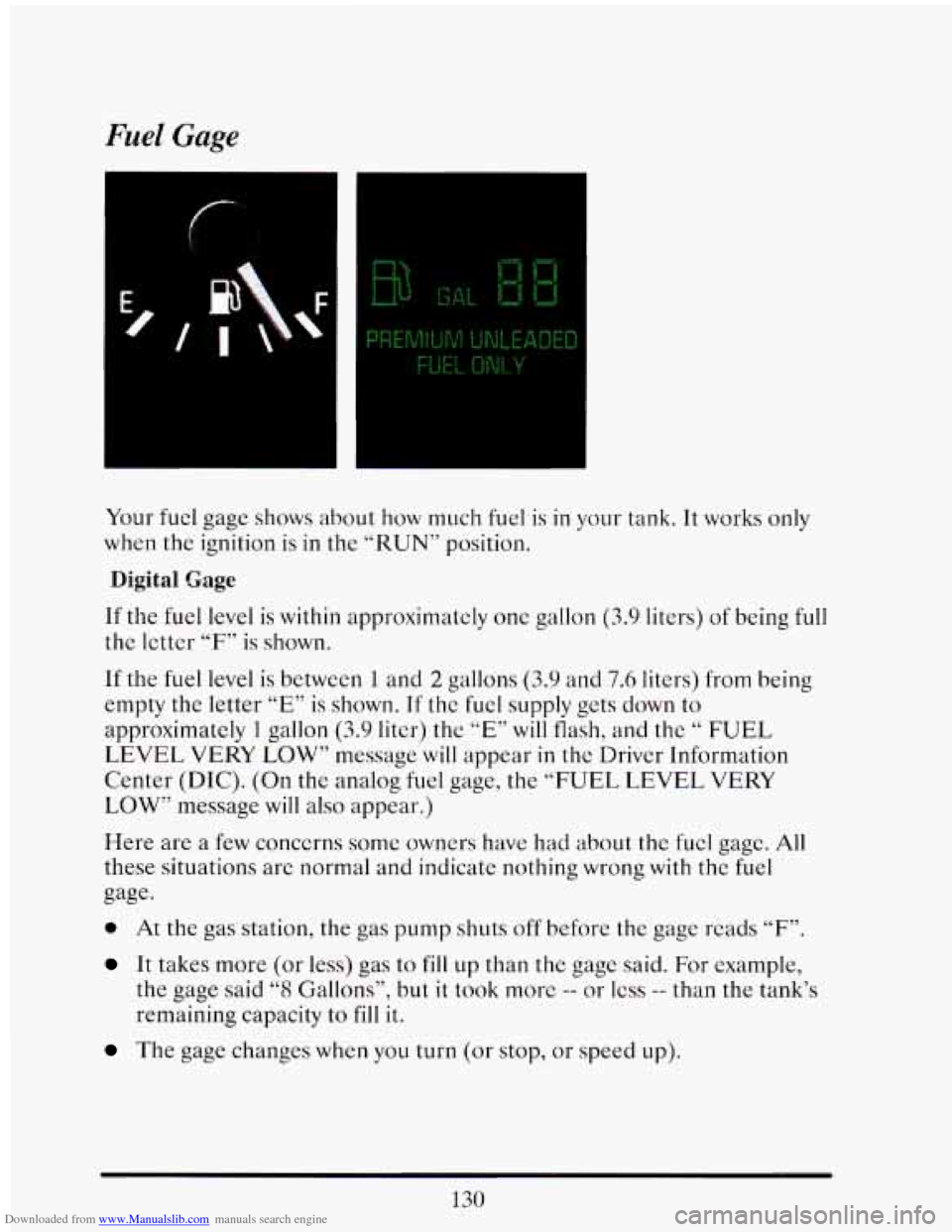

Downloaded from www.Manualslib.com manuals search engine Fuel Gage
Your fuel gage shows about how much fuel is in your tank. It works only
when the ignition is
in the “RUN” position.
Digital Gage
If the fuel level is within approximately one gallon (3.9 liters) of being full
the letter “F” is shown.
If the fuel level
is between 1 and 2 gallons (3.9 and 7.6 liters) from being
empty the letter
“E” is shown. If the fuel supply gets down to
approximatcly 1 gallon (3.9 liter) the ”E” will flash, and the “ FUEL
LEVEL VERY LOW” message will appear
in the Driver Information
Center (DIC). (On the analog
fuel gage, the “FUEL LEVEL VERY
LOW’’ message will
also appear.)
Here are a few concerns some owners have had about the fucl gage. All
these situations are normal and indicate nothing wrong with the fuel
gage.
0 At the gas station, the gas pump shuts off before the gage reads “F”.
It takes more (or less) gas to fill up than the gage said. For example,
the gage said “8 Gallons”? but it took morc -- or less -- than the tank’s
remaining capacity
to fill it.
The gage changes when you turn (or stop, or speed up).
