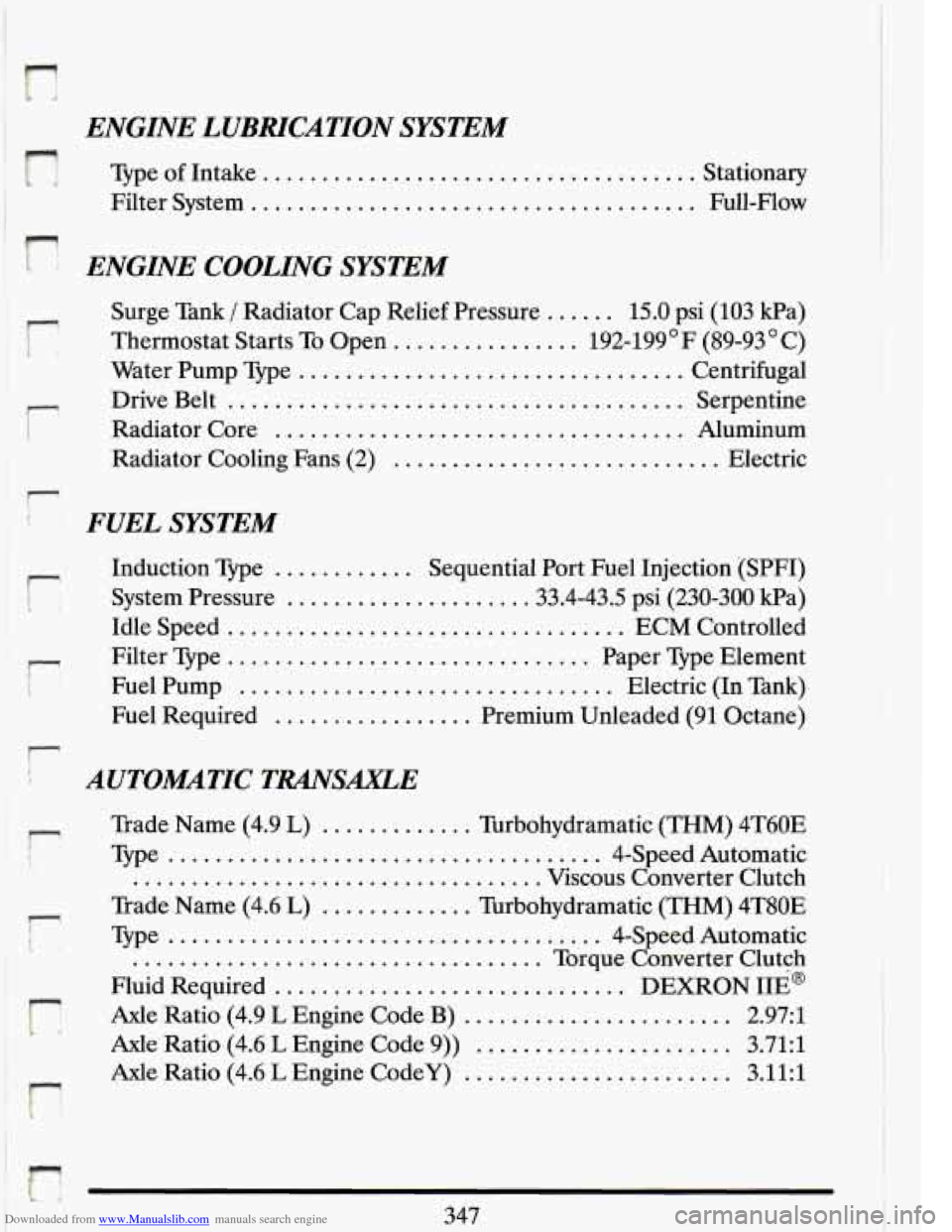

Downloaded from www.Manualslib.com manuals search engine ENGINE LUBRICATION SYSTEM
Type of Intake ..................................... Stationary
Filter System
...................................... Full-Flow
1
j ENGINE COOLING SYSTEM
ir
Surge Tank / Radiator Cap Relief Pressure ...... 15.0 psi (103 Pa)
Thermostat Starts To Open
................ 192-199' F (89-93 C)
Water Pump Type
................................. Centrifugal
Drive Belt
....................................... Serpentine
Radiator Core
................................... Aluminum
Radiator Cooling Fans (2)
............................ Electric
!-
FUEL SYSTEM
r
r
I'
Induction Type ............ Sequential Port Fuel Injection '(SPFI)
System Pressure
.................... .33.4-43.5 psi (230-300 kPa)
Idle Speed
.................................. ECM Controlled
Filter Type
............................... Paper Type Element
Fuel Pump
................................ Electric (In Tank)
Fuel Required
................. Premium Unleaded (91 Octane)
I AUTOMATIC WSAXl,E 1
r?
n
Trade Name (4.9 L) ............. Turbohydramatic (THM) 4T60E
Type
..................................... 4-Speed Automatic
................................... Viscous Converter Clutch
Trade Name
(4.6 L) ............. Turbohydramatic (THM) 4T80E
Type
..................................... 4-Speed Automatic
................................... Torque Converter Clutch
Fluid Required
.............................. DEXRON IIE@
Axle Ratio (4.9 L Engine Code B) ....................... 2.97: 1
Axle Ratio (4.6 L Engine Code 9)) ...................... 3.71:l
Axle Ratio
(4.6 L Engine CodeY) ....................... 3.11:l
-1
347

Downloaded from www.Manualslib.com manuals search engine EMISSION CONTROL SYSTEMS
Exhaust Gas Recirculation .................... Controlled Flow
Catalytic Converter ......................... Ceramic Monolith
Evaporative Emission Control
................ Charcoal Canister
Crankcase Emission Control
....................... PCV Valve
Electronic System
..................... Open and Closed Loop
-
L.
EmUST SYSTEM
Type ............................... Single with Crossover Pipe
Muffler
.................................. One-Reverse Flow
Resonator ............................................ None
Exhaust Pipe
.................................. Stainless Steel
Intermediate Pipe
............................. Stainless Steel
Tail Pipe
..................................... Stainless Steel
ELECTMCXL, SYSTEM
Voltage ................................................ 12
Ground
........................................... Negative
Generator (4.9
L) ................................... 140 Amp
Generator (4.6
L) ................................... 144 Amp
AIR CONDITIONING SYSTEM
Refrigerant-12 (R-12) ...................... .2.375 lbs. (1.08 kg)
Not all air conditioning refrigerants are the
same. If the air conditioning
system in your vehicle needs refrigerant, be sure the proper refrigerant is
used.
If you’re not sure ask your Cadillac Dealership.
c1
I.
348

Downloaded from www.Manualslib.com manuals search engine FLUID CAPACITIES
r
Transaxle (4T60E) ............................. .20 pts. (9.5 L)
Transaxle (4T80E) .............................. 30 pts. (14 L)
Engine Oil (4.9 L) ............................ 5 quarts (4.7 L)
With Filter Change .......................... .5.5 qts (5.2 L)
Engine Oil (4.6
L) .............................. 6.5 qts (6.2 L)
With Filter Change
............................ 7 qts (6.6 L)
Engine Cooling System ........................ 12.3 qts (1 1.7 L)
Fuel Tank ................................ 19.8 gallons (75 L)
Power Steering
.............................. 1.3 quarts (1.2 L)
Windshield Washer Reservoir .................. 4.2 quarts (4.1 L)
i TIGHTEN TORQUE
i
r
KEHICLE DIMENSIONS
F EldoradoETC
Spark Plugs (4.9 L) ........................ .20 N-m (15 lbs. ft.)
Spark Plugs (4.6
L) ......................... 15 Nom (1 1 lbs. ft.)
Oil Pan Drain Plug (4.9 L) .................. .30 N-m (22 lbs. ft.)
Oil Pan Drain Plug (4.6
L) .................. .20 N-m (15 lbs. ft.)
f,: Shipping Weight .......................... 3516 lbs. (1594.7 kg)
Shipping Weight (ETC)
..................... .3695 lbs. (1679 kg)
Wheel Base
................................ 108 in. (2743 mm)
Length
.................................. ,202.2 in. (5135 mm)
Height
................................... .54.0 in. (1371 mm)
Width.
................................... .74.3 in. (1887 mm)
Front Tread
............................... .60.9 in. (1547 mm)
Rear Tread ............................... .60.9 in. (1547 mm)
T ! !
rl
