1993 CADILLAC ELDORADO Owners Manual

Downloaded from www.Manualslib.com manuals search engine L NOTIW:

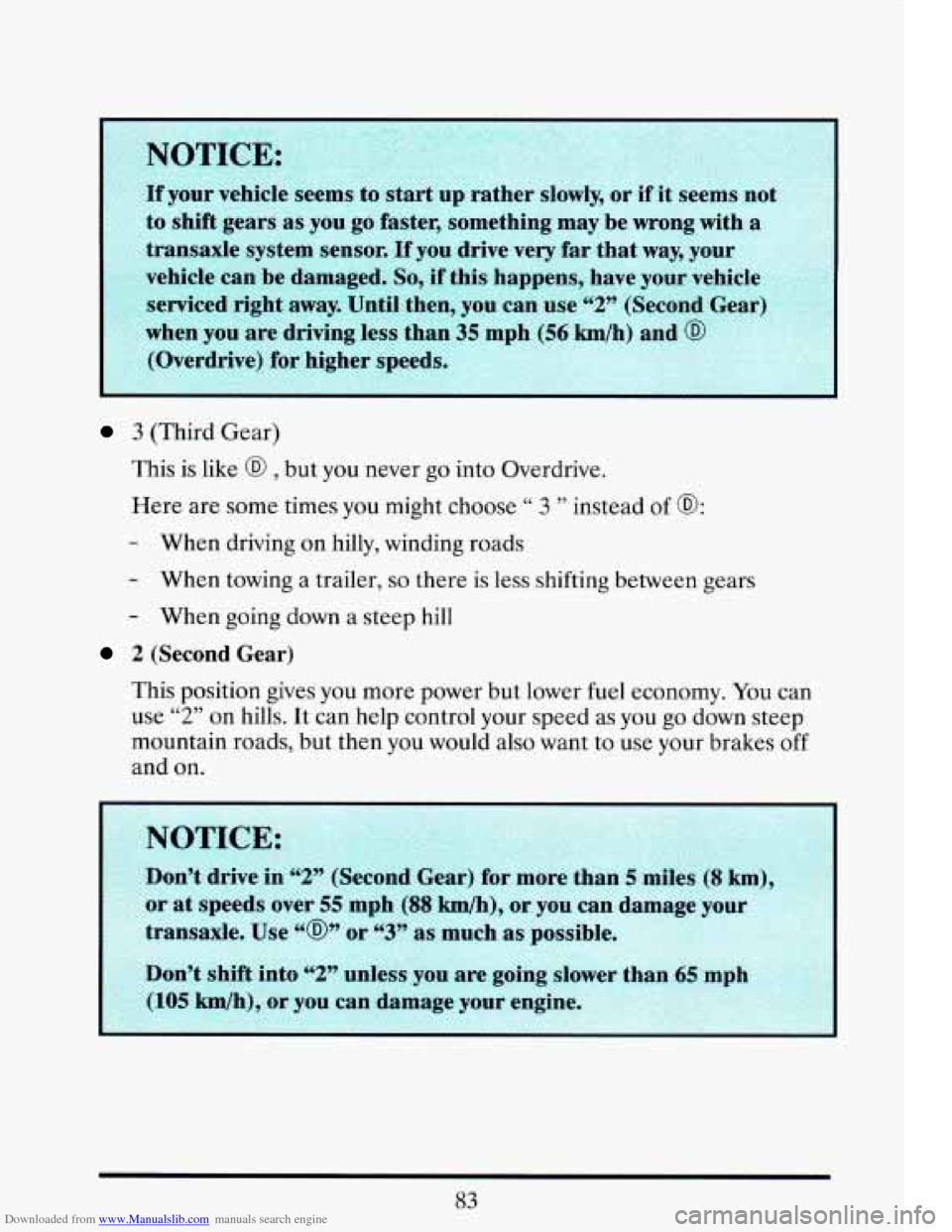

3 (Third Gear)
This is like
@ , but you never go into Overdrive.
Here are some times you might choose
“ 3 ” instead of @:
- When driving on hilly, winding roads
- When towing a trailer, so there is less shifting between gears
- When going down a steep hill
2 (Second Gear)
This position gives you more power but lower fuel economy. You can
use
“2” on hills. It can help control your speed as you go down steep
mountain roads, but then you would also want to use your brakes
off
and on.
nlh
83

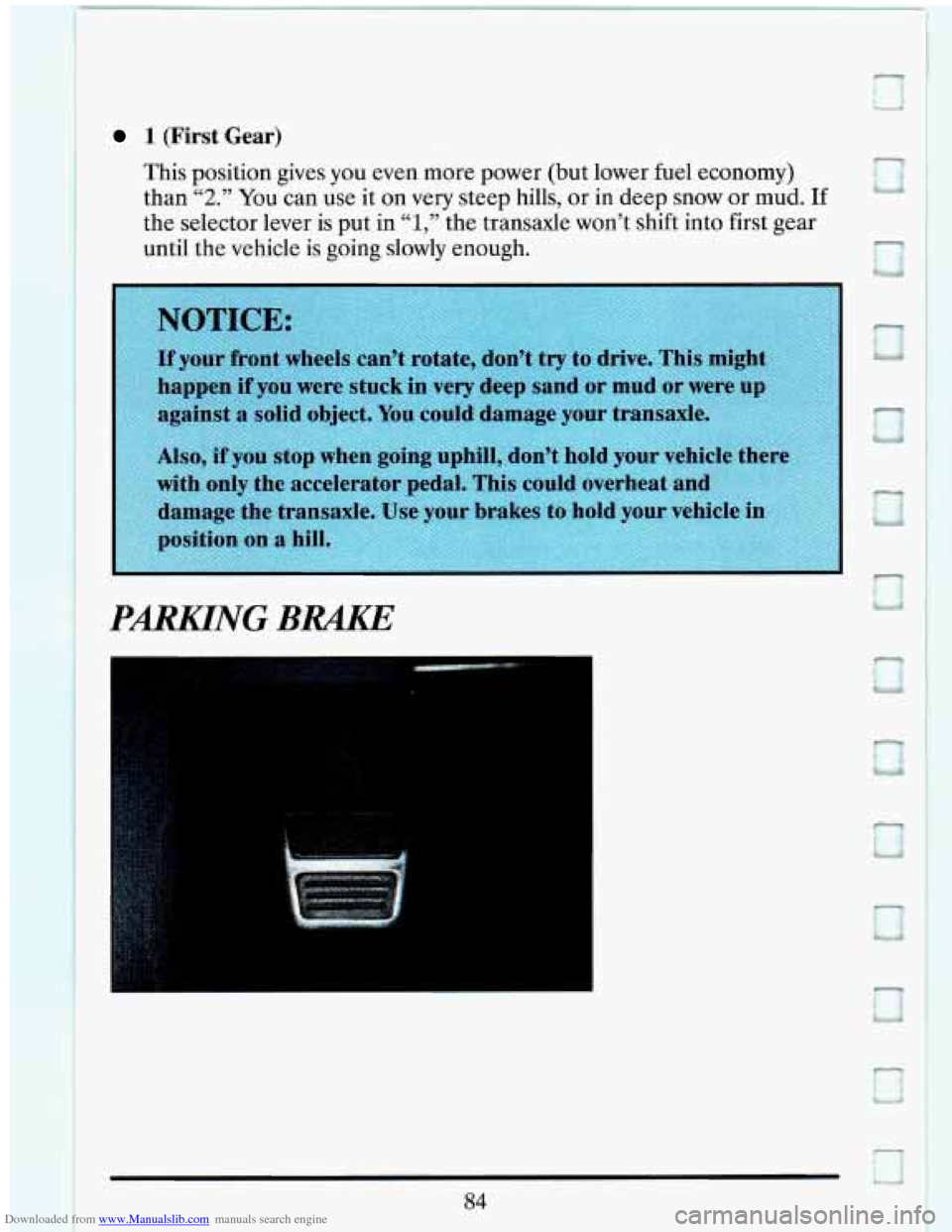

Downloaded from www.Manualslib.com manuals search engine 1 (First Gear)
This position gives you even more power (but lower fuel economy)
than
“2.” You can use it on very steep hills, or in deep snow or mud. If
the selector lever is put in “1,” the transaxle won’t shift into first gear
until the vehicle is going slowly enough.
PARKIN% BRAKE
I
84

Downloaded from www.Manualslib.com manuals search engine To set the parking brake:
Hold the regular brake pedal down with your right foot. Push down the
parking brake pedal with your left foot. If the ignition
is on, the brake
system warnin? light
will come on.
I-
I
When you move out
of “P” (Park) or “N”
(Neutral), if your
engine
is running,
your parking brake should go off.
If it
doesn’t, you have a
parking brake
problem and should have it fixed.
In the
meantime,
you can
still release your
parking brake. Just
pull on the manual
release lever, as
shown.
I
3me-q 5::- &*ZL !My& se-4
A CAUTION: . -- .
If your hand or arm is in the way of thi’pedal, you could be -,::+ -+..:
hurt. The pedal springs back quickly. Keep your hand and arm !+. ,--,:“:
away when you use 1 ! manual release lever. :,F
.L- ..
-.7 7 .--.. , - ., .I .. - .>, _. .- : - .?f I - - .. - --. . ’-: .:. ..:= . ’. + .? .. .
NOTICE
Driving with the parking lake on can cause ~UL- rear bra,
overheat.
You mav have to replace them- and vou could also
,.*age ~ ~. .: . ~ i nther pal vnur vfihicle.
L .~-:’? . - I . - . i i .. ~
85

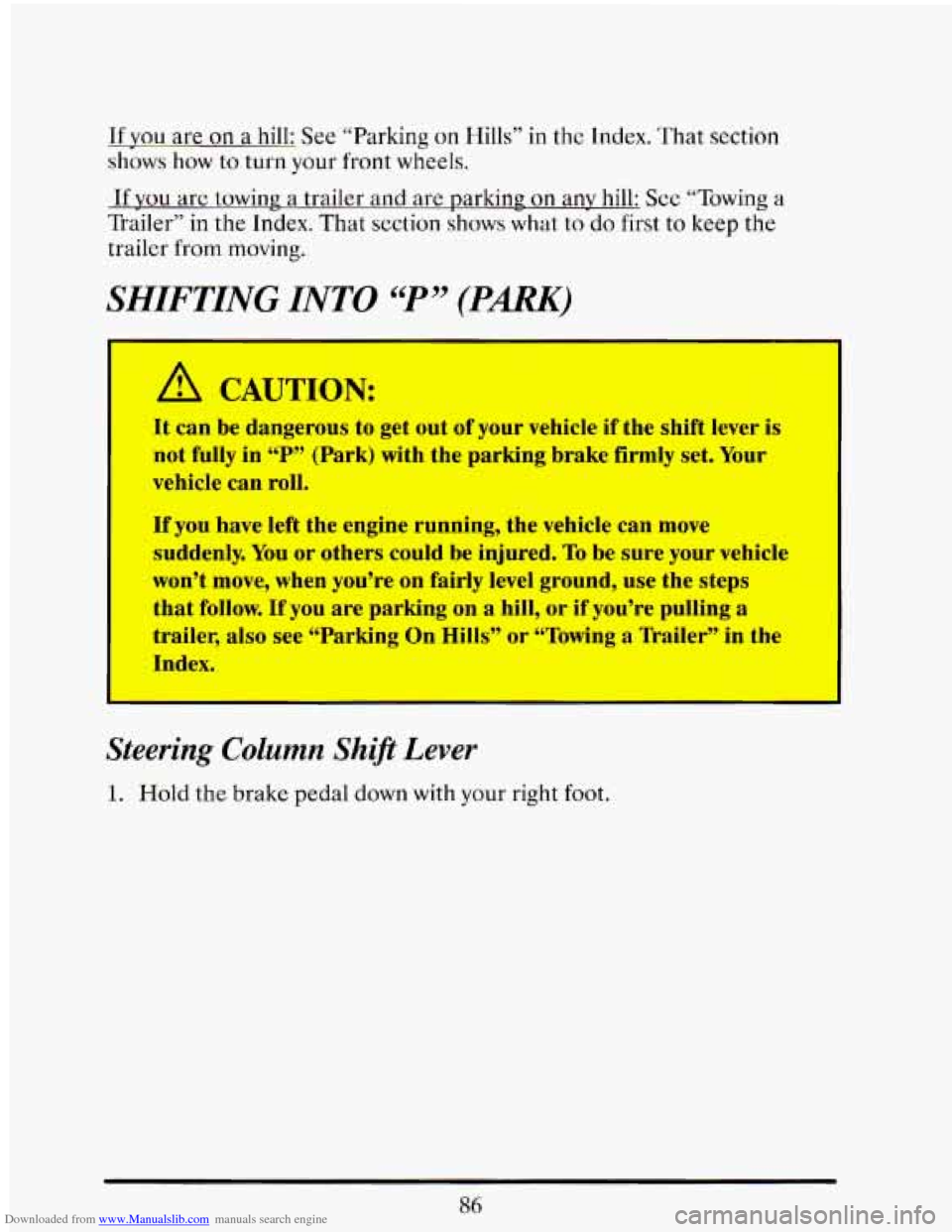

Downloaded from www.Manualslib.com manuals search engine If you are on a hill: See “Parking on Hills” in thc Index. That section
shows how to turn your front wheels.
If vou are towing a trailer and are parking; on anv hill: See “Towing a
Trailer” in the Index. That section shows what to do first to keep the
trailer from moving.
SHIFTING INTO ‘CPn (PARK)
I
A CAUTION:
It can be dangerous to get out of your vehicle if the shift lever is
not fully.in “P” (Park) with the parking brake firmly set. Your
vehicle can roll.
If you have left the engine running, the vehicle can move
suddenly.
You or others could be injured. To be sure your vehicle
won’t move, when you’re on fairly level ground, use the
steps
that follow. If you are parking on a hill, or if you’re pulling a
trailer, also see “Parking On Hills” or “Towing a Wailer” in the
Index.
-.
Steering Column Shifl Lever
1. Hold the brake pedal down with your right foot.
86

Downloaded from www.Manualslib.com manuals search engine r
2. Move the shift lever into “P” (Park) position like this:
Pull the lever
toward you.
Move the lever
up as far as it
will
go.
3. With your right foot still holding the brake pedal down, set the
4. Move the ignition key to “Lock.”
parking brake.
5. Remove the key and take it with you. If you can walk away from your
vehicle with the ignition key in your hand, your vehicle is in
“P”
(Park).
87

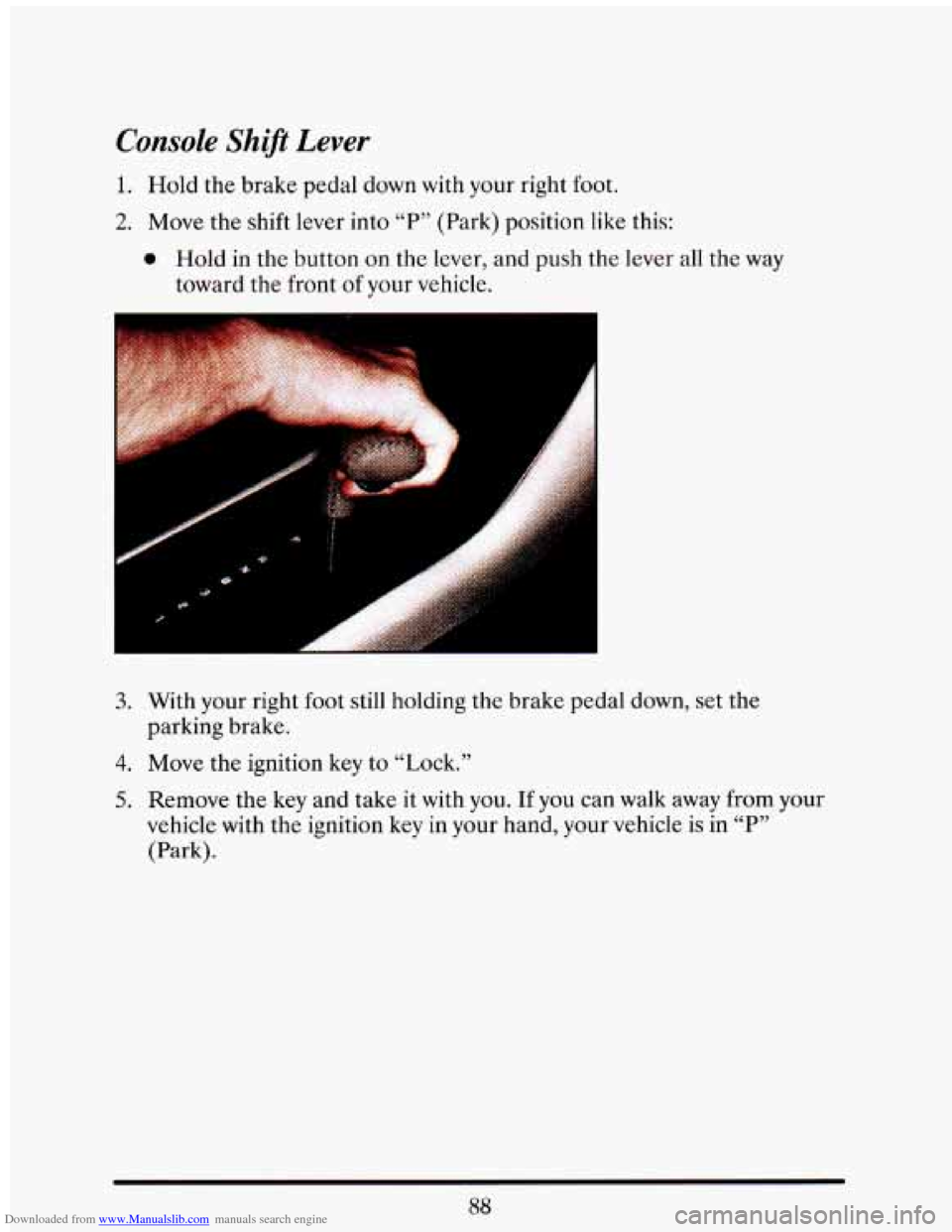

Downloaded from www.Manualslib.com manuals search engine Console Shift Lever
1. Hold the brake pedal down with your right foot.
2. Move the shift lever into “P” (Park) position like this:
0 Hold in the button on the lever, and push the lever all the way
toward the front
of your vehicle.
3. With your right foot still holding the brake pedal down, set the
parking brake.
4. Move the ignition key to “Lock.”
5. Remove the key and take it with you. If you can walk away from your
vehicle with the ignition key
in your hand, your vehicle is in “P”
(Park).
88

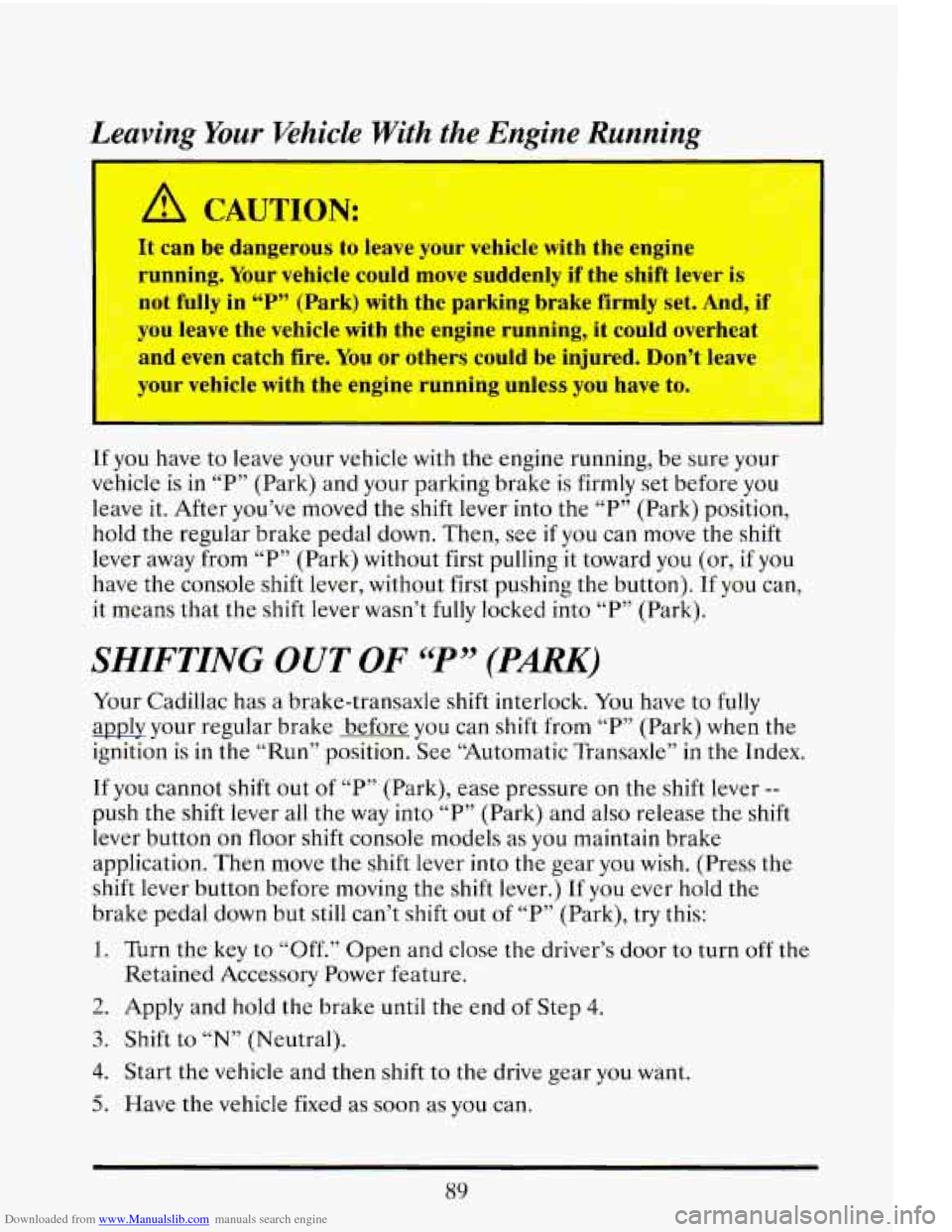

Downloaded from www.Manualslib.com manuals search engine Leaving Your Vehicle With the Engine Running
It can be dangerous to leave your vehicle with the engine ---.* . ’
running. Your vehicle could move suddenly if the shift lever is .- : :->=:I
not fully in “P” (Park) with the parking brake firmly set. And, i -
-”I leave the vehicle with the engine running, it could overheat
and even catch fire. You or others could be injured. Don’A
yo1 vehicle with the engine running unlc , you ha I
.-
. J .. .: . ?- -.. -. .. -
~ -- ~I
If you have to leave your vehicle with the engine running, be sure your
vehicle is
in “P7, (Park) and your parking brake is firmly set before you
leave
it. After you’ve moved the shift lever into the “P” (Park) position,
hold the regular brake pedal down. Then, see if you can move the shift
lever away from “P” (Park) without first pulling
it toward you (or, if you
have the console shift lever, without first pushing the button). If you can,
it means that the shift lever wasn’t
fully locked into “P7, (Park).
SHIFTING OUT OF “P” (PARK)
Your Cadillac has a brake-transaxle shift interlock. You have to fully
apply your regular brake before you can shift from
“P7’ (Park) when the
ignition is
in the “Run” position. See “Automatic Transaxle” in the Index.
If you cannot shift
out of “P” (Park), ease pressure on the shift lever --
push the shift lever all the way into “P” (Park) and also release the shift
lever button
on floor shift console models as you maintain brake
application. Then move
the shift lever into the gear you wish. (Press the
shift lever button before moving the shift lever.)
If you ever hold the
brake pedal down but still can’t shift out of “P” (Park), try this:
1. Turn the key to “Off.” Open and close the driver’s door to turn off the
2. Apply and hold the brake until the end of Step 4.
3. Shift to “N” (Neutral).
Retained
Accessory Power feature.
4. Start the vehicle and then shift to the drive gear you want.
5. Have the vehicle fixed as soon as you can.

Downloaded from www.Manualslib.com manuals search engine PARKlING OVER THINGS TlYAT BURN
A CAUTION:
Things that can burn could touch hot exhaust parts under your
vehicle and ignite. Don't park over papers, leaves, dry grass or
other things that can burn.
90
