Downloaded from www.Manualslib.com manuals search engine AIR CLEANER
I
....
tT 4.6 Liter (Northstar)
To gain access to the air cleaner element, loosen the four screws and lift
the top half of the air cleaner assembly.
Refer
to the Maintenance Schedule to determine when to replace the air
filter.
See "Scheduled Maintenance Services"
in the Index.
275
Page 290 of 398

Downloaded from www.Manualslib.com manuals search engine Operating the engine with the air cleaner off can cause you or
others to be burned. The air cleaner not only cleans the air,
it
stops flame if the engine backfires. If it isn’t there, and the
engine backfires,
you could be burned. Don’t drive with it off,
and be carefbl working on the engine with the air cleaner off.
NOTICE:
__ the air cleaner is off, a backfire can cause a damaging engine
fire. And, dirt can easily get into your engine, which will damage
LC. Always have the air cleaner in place when you’re driving.
.., *:: ,:.. . *->.-* . . ~ .. - , . - - . -.. >..s.=-7.s..: ‘<.> - .. . -.<. ~ . ~~ . .. . .. . .... . -~- - - - .-.. -.-.ii-.. . ..~.. __. .= . . -- ~ ..
AUTOMATIC TRANSAXLE FLUID
When to Check and Change:
A good time to check your automatic transaxle fluid level is when the
engine oil is changed. Refer to the Maintenance Schedule to determine
when to change your fluid. See “Scheduled Maintenance Services” in the
Index.
How to Check
Because this operation can
be a little difficult, you may choose to have
this done at a Cadillac dealership Service Department.
If you do it yourself, be sure to follow all the instructions here, or you
could get a false reading on the dipstick.
276
Page 291 of 398
Downloaded from www.Manualslib.com manuals search engine I
NOTICE:
1
Wait at least 30 minutes before checking the transaxle fluid level if you
have been driving:
0 When outside temperatures are above 90°F (32°C).
At high speed for quite a while.
0 In heavy traffic -- especially in hot weather.
While pulling a trailer.
To get the right reading, the fluid should be at normal operating
temperature, which is
180’F to 200°F (82°C to 93OC).
Get the vehicle warmed up by driving about 15 miles (24 km) when
outside temperatures are above
50°F (10” C). If it’s colder than 50’F
(10 C), you may have to drive longer.
To check the fluid level:
0 Park your vehicle on a level place.
Place the shift lever in “P” (Park) with the parking brake applied.
With your foot on the brake pedal, move the shift lever through each
gear range, pausing for about three seconds in each range. The\
n,
position the shift lever
in “P” (Park).
0 Let the engine run at idle for three to five minutes.
277
Page 292 of 398

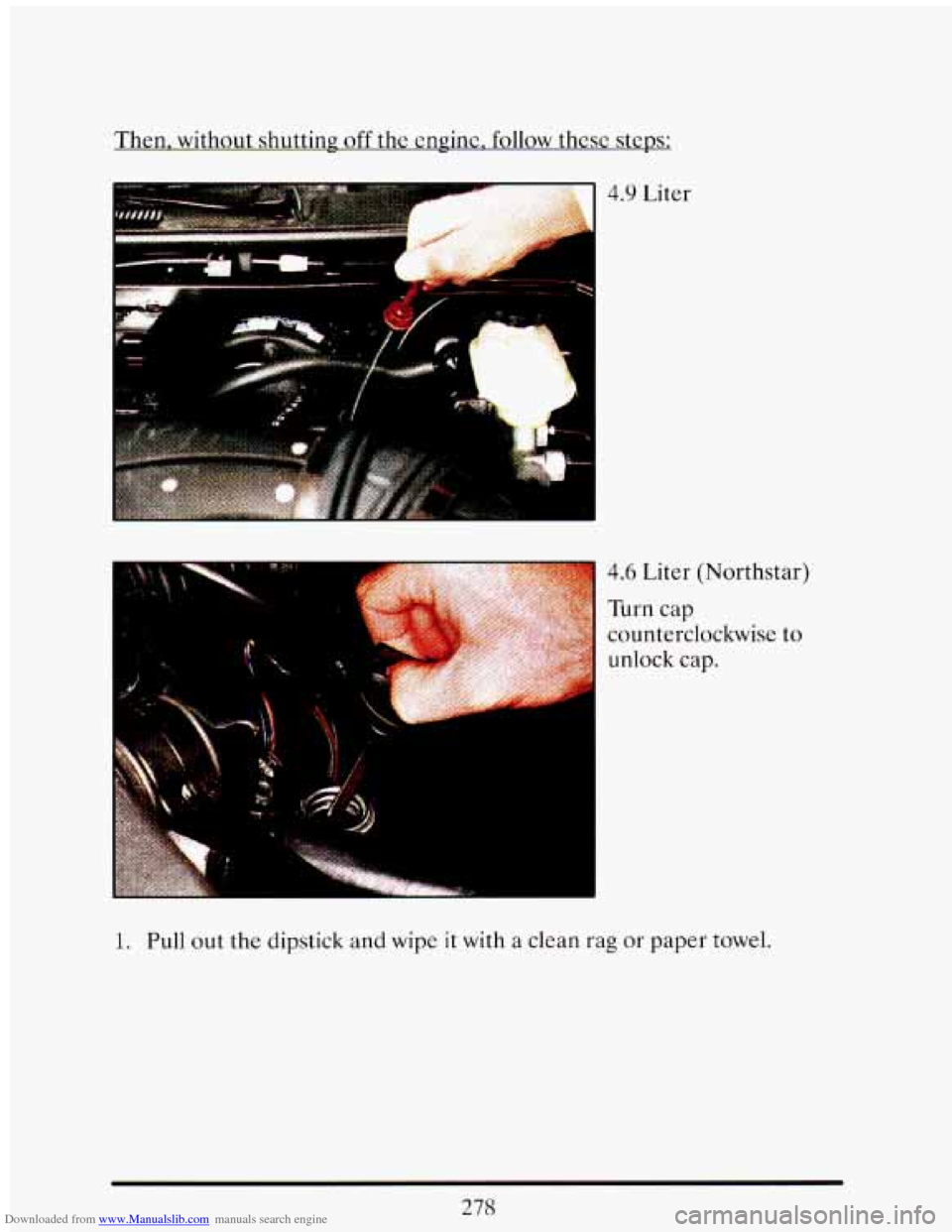

Downloaded from www.Manualslib.com manuals search engine Then. without shuttinp off the engine, follow these steps:
4.9 Liter
TLxn cap
counterclockwise to
unlock cap.
1. Pull out the dipstick and wipe it with a clean rag or paper towel.
278
Page 293 of 398
Downloaded from www.Manualslib.com manuals search engine ip
il
2. Push it back in all the way, wait three seconds and then pull it back out
again.
4.9 Liter
3. Check both sides of the dipstick, and read the lower level. The fluid
4. If the fluid level is where it should be, push the dipstick back in all the
level
must be in the cross-hatched area.
way.
How to Add Fluid:
Refer to the Maintenance Schedule to determine what kind of transaxle
fluid to use. See “Recommended Fluids and Lubricants” in the Index.
If the fluid level is low, add only enough of the proper fluid to bring the
level into the cross-hatched area on the dipstick. It doesn’t take much
fluid, generally less than a pint. Don’t overfill. We recommend you use
only fluid labeled DEXRON@-IIE, because fluids with that label are
279
Page 294 of 398

Downloaded from www.Manualslib.com manuals search engine made especially for your automatic transaxle. Damage caused by fluid
other than DEXRON@-IIE is not covered by your
new vehicle warranty.
After adding fluid, recheck the fluid level as described under “How to
Check.”
When the correct fluid level is obtained, push the dipstick back in all
How To Reset Transaxle Fluid Change Indicator: (4.6 Liter Northstar)
Your vehicle is equipped with
a transaxle fluid change indicator. A
“CHANGE
TRANS FLUID’’ message will display on the Information
Center when the power train computer determines that the transaxle
fluid needs to be changed or at each 100,000 miles (160,000
km) interval,
whichever occurs first. When this message appears, change the transaxle
fluid and reset
the transaxle fluid life indicator as follows:
the
way.
0 Turn the key “ON” with the engine stopped.
Press and hold the “OFF” and “REAR DEFOG” buttons on the
climate control simultaneously until the
“TRANS FLUID RESET”
message appears
in the Information Center (between 5 and 20
seconds).
ENGINE COOLANT
The following explains your cooling system and how to add coolant when
it
is low. If you have a problem with engine overheating, see “Engine
Overheating” in the Index.
The proper coolant for your Cadillac will:
Give freezing protection down to -34” F (-37” C) .
0 Give boiling protection up to 262OF (128O C) .
0 Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights work as they should.
What to Use:
Use a mixture of one-half clean water (preferably distilled) and one-half
antifreeze that meets “GM Specification 1825-M,” which won’t damage
aluminum parts. You can also use a recycled coolant conforming to
GM
280
Page 295 of 398
Downloaded from www.Manualslib.com manuals search engine Specification 1825-M with a complete coolant flush and refill. Use GM
Engine Coolant Supplement (sealer) with any complete coolant change.
If you use these, you don’t need to add anything else.
Adding only plain water to your cooling system can be
dangerous. Plain water, or some other liquid like alcohol, can
boil before the proper coolant mix will. Your vehicle’s cwlant
warning system is set for the proper coolant mix With plain
water or the wrong mix, your engine could get too hot but you
wouldn’t get the overheat warning. Your engine could catch fire
and you or others could be burned. Use a 50/50 mix of dean
water and a proper anti€reeze,
I
281
Page 296 of 398

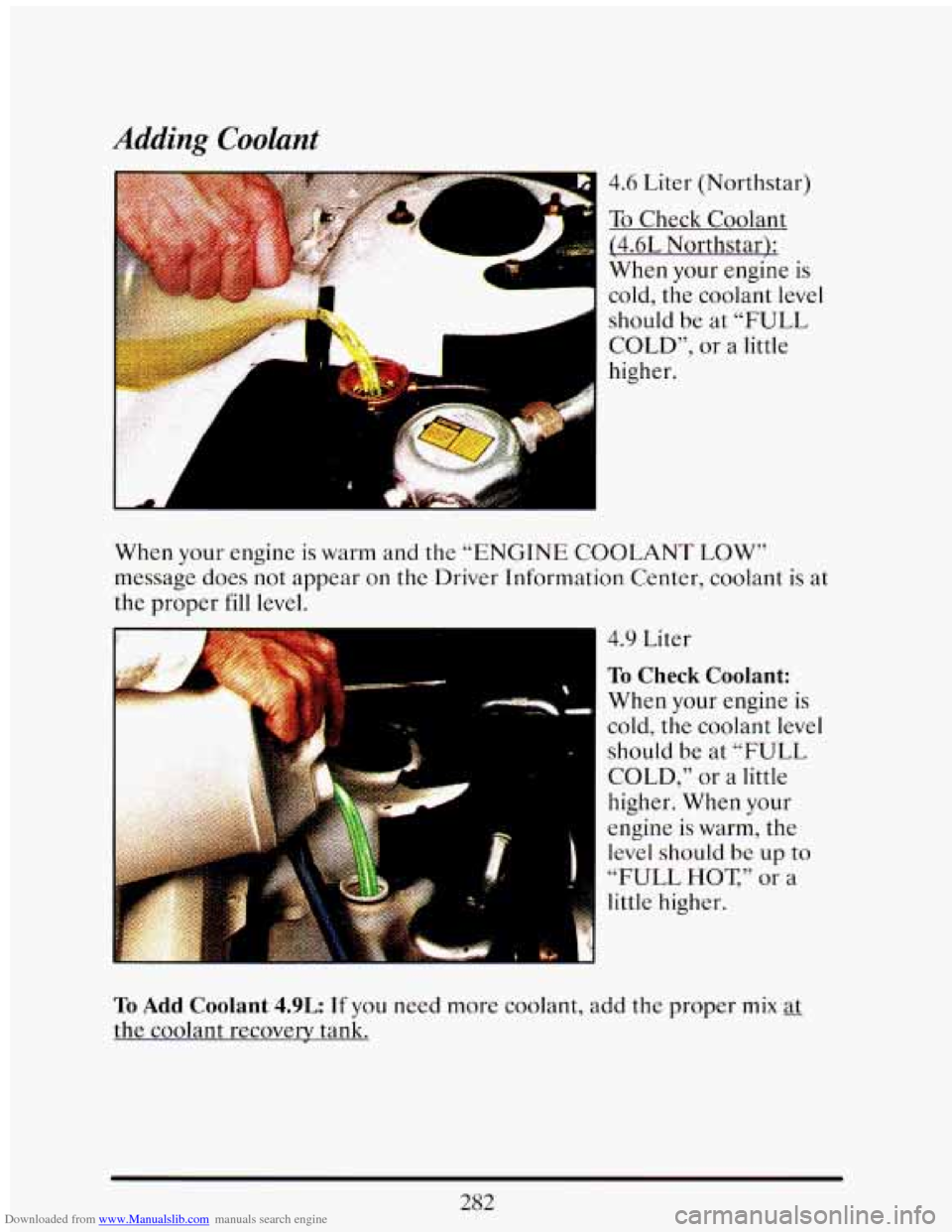

Downloaded from www.Manualslib.com manuals search engine Adding Coolant
4.6 Liter (Northstar)
TCI Check Coolant
(4.6L Northstar): When your engine
is
cold, the coolant level
should be at
“FULL
COLD”, or a little
higher.
When your engine is warm and the “ENGINE COOLANT LOW”
message does not appear on
the Driver Information Center, coolant is at
the proper fill level.
To Check Coolant:
When your engine is
cold, the coolant level
should be
at “FULL
COLD,” or
a little
higher. When your
engine is warm, the
level should be up
to
“FULL HOT,” or a
little higher.
To Add Coolant 4.9L: If you need more coolant, add the proper mix
the coolant recoverv tank.
