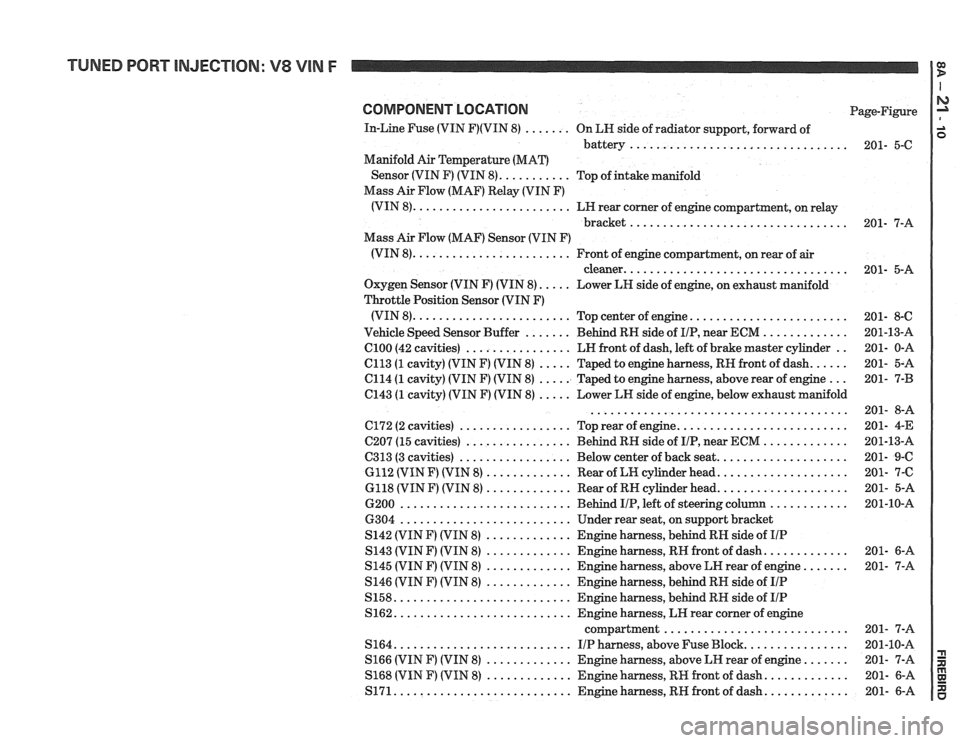

TUNED PORT INJECTION: V8 VIN F
COMPONENT LOCATION Page-Figure
In-Line Fuse (VIN
F)(VIN 8) ....... On LN side of radiator support, forward of
battery..
............................... 201- 5-C
Manifold
Air Temperature (MAT)
Sensor (VIN
F) (VIN 8). .......... Top of intake manifold
Mass Air Flow (MAF) Relay (VIN F)
(VIN 8). ....................... LN rear corner of engine compartment, on relay
bracket
................................. 201- 7-A
Mass Air Flow (MAF) Sensor (VIN F)
(VIN 8).
....................... Front of engine compartment, on rear of air
cleaner.
................................. 201- 5-A
Oxygen Sensor (VIN
F) (VIN 8). .... Lower LH side of engine, on exhaust manifold
Throttle Position Sensor (VIN F)
(VIN 8).
....................... Top center of engine. ....................... 201- 8-6
............. Vehicle Speed Sensor Buffer ....... Behind RH side of IIP, near ECM 201-13-A
C100 (42
cavities) ................ LN front of dash, left of brake master cylinder .. 201- 0-A
ell3 (1 cavity) (VIN F) (VIN 8) ..... Taped to engine harness, RH front of dash. ..... 201- 5-A
C114 (1 cavity) (VIN F) (VIN 8) ..... Taped to engine harness, above rear of engine ... 201- 7-B
el43 (1 cavity) (VIN F) (VIN 8) ..... Lower LH side of engine, below exhaust manifold
....................................... 201- 8-A
6172 (2 cavities) ................. Top rear of engine. ......................... 201- 4-E
C207 (15 cavities) ................ Behind RH side of IIP, near ECM ............. 201-13-A
C313 (3 cavities)
................. Below center of back seat. ................... 201- 9-C
6112 (VIN F) (VIN 8)
............. Rear of LH cylinder head. ................... 201- 7-C
6118 (VIN F) (VIN 8) ............. Rear of RH cylinder head. ................... 201- 5-A
............ 6200 .......................... Behind IIP, left of steering column 201-10-A
6304
.......................... Under rear seat, on support bracket
S142 (VIN F) (VIN 8)
............. Engine harness, behind RH side of IIP
S143 (VIN F) (VIN 8) ............. Engine harness, RH front of dash. ............ 201- 6-A
S145 (VIN F) (VIN 8)
............. Engine harness, above LN rear of engine. ...... 201- 7-A
S146 (VIN
F) (VIN 8) ............. Engine harness, behind RN side of IIP
S158. .......................... Engine harness, behind RH side of IIP
S162. .......................... Engine harness, LH rear corner of engine
compartment
............................ 201- 7-A
S164. .......................... IIP harness, above Fuse Block. ............... 201-10-A
S166 (VIN F) (VIN 8)
............. Engine harness, above LH rear of engine. ...... 201- 7-A
S168 (VIN F) (VIN 8) ............. Engine harness, RM front of dash. ............ 201- 6-A
S171. .......................... Engine harness, RH front of dash. ............ 201- 6-A

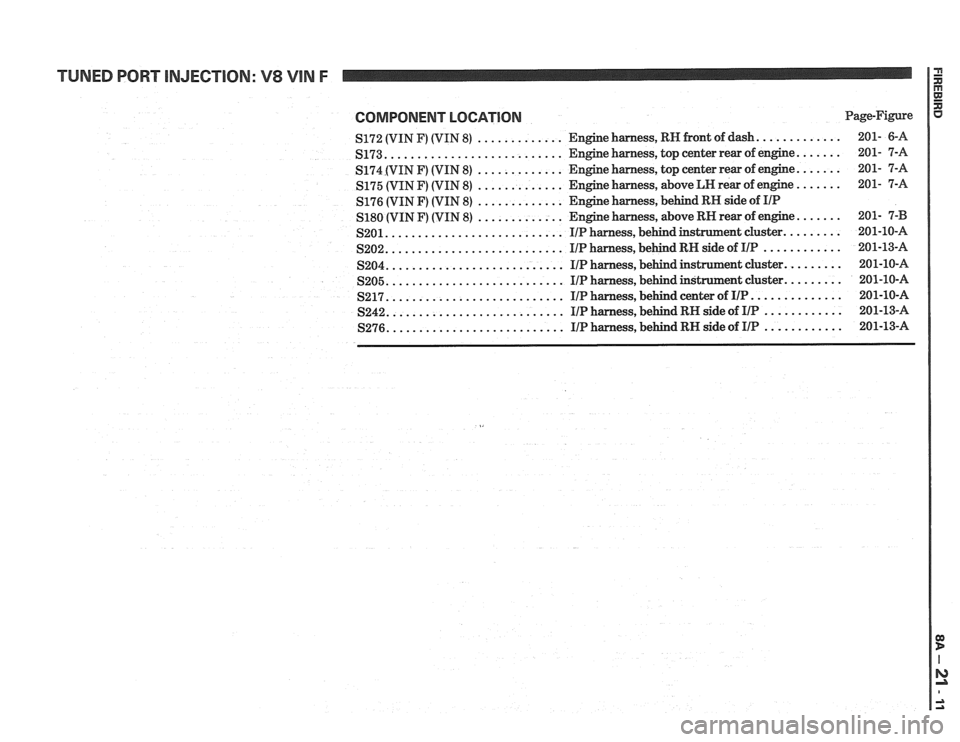

TUNED PORT INJECTION: V8 VIN F
COMPONENT LOCATION Page-Figure
............. ............. 23172 (VIN F) (VIN 8) Engine harness. RN front of dash 201- 6-A
........................... S173 Engine harness. top center rear of engine ....... 201- 7-A
S174
(VIN F) (VIN 8) ............. Engine harness. top center rear of engine ....... 201- 7-A
S175
(VIN F) (VIN 8) ............. Engine harness. above LN rear of engine ....... 201- 7-A
............. S176 (VIN F) (VIN 8) Engine harness. behind RN side of IIP
S180 (VIN F) (VIN 8) ............. Engine harness. above RN rear of engine ....... 201- 7-B
........................... S201 IIP harness. behind ins ent cluster ......... 201-10-A
........................... ............ S202 IIP harness. behind RN side of IIP 201-13-A
S204
........................... IIP harness. behind in cluster ......... 201-10-A
S205 ........................... IIP harness. behind in cluster ......... 201-10-A
........................... .............. S217 IIP harness. behind center of IIP 201-10-A
........................... ............ S242 IIP harness. behind RH side of IIP 201-13-A
........................... ............ S276 IIP harness. behind RN side of I/P 201-13-A

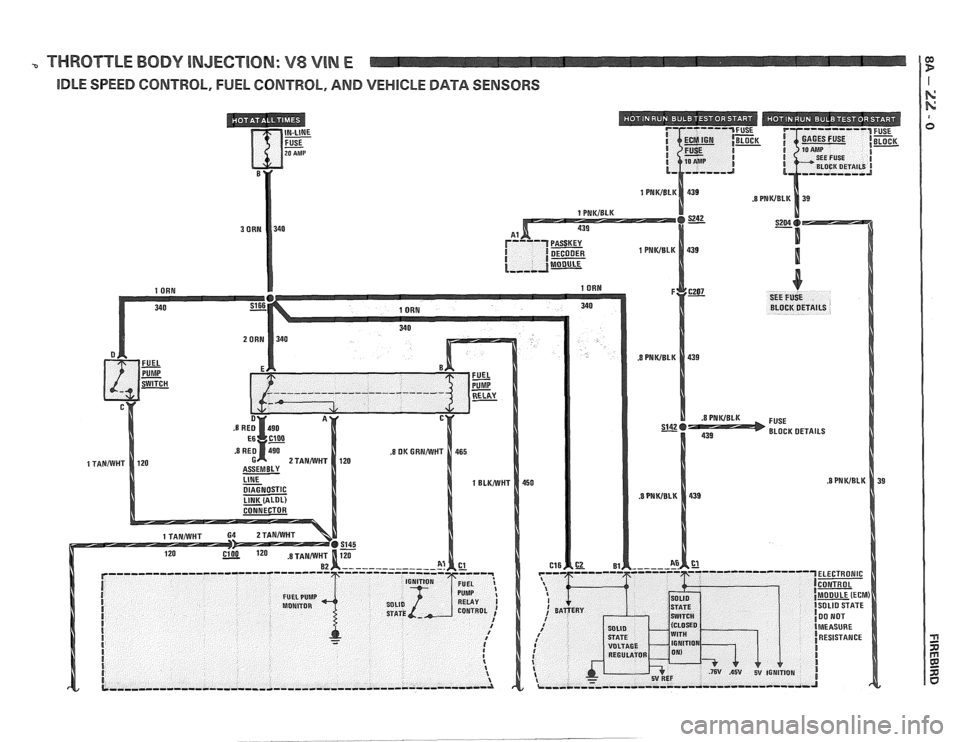

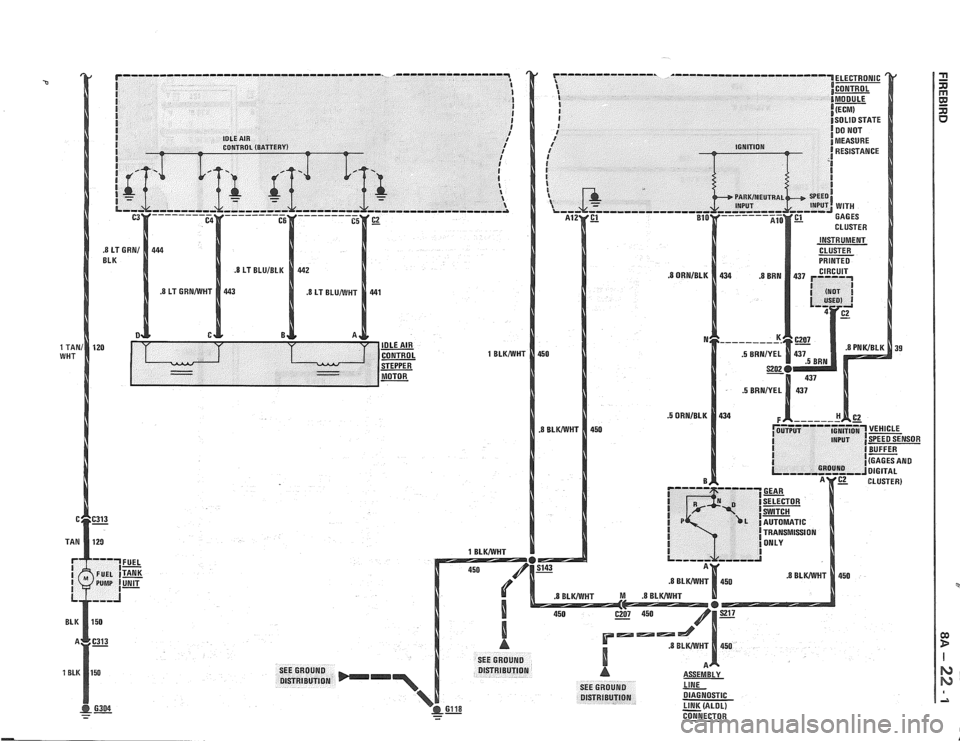

THROTTLE BODY INJECTION: V8 VIN E I E -
IDLE SPEED CONTROL, FUEL CONTROL, AND VEHlCLE DATA SENSORS I
I\:
BLOCK DETAILS

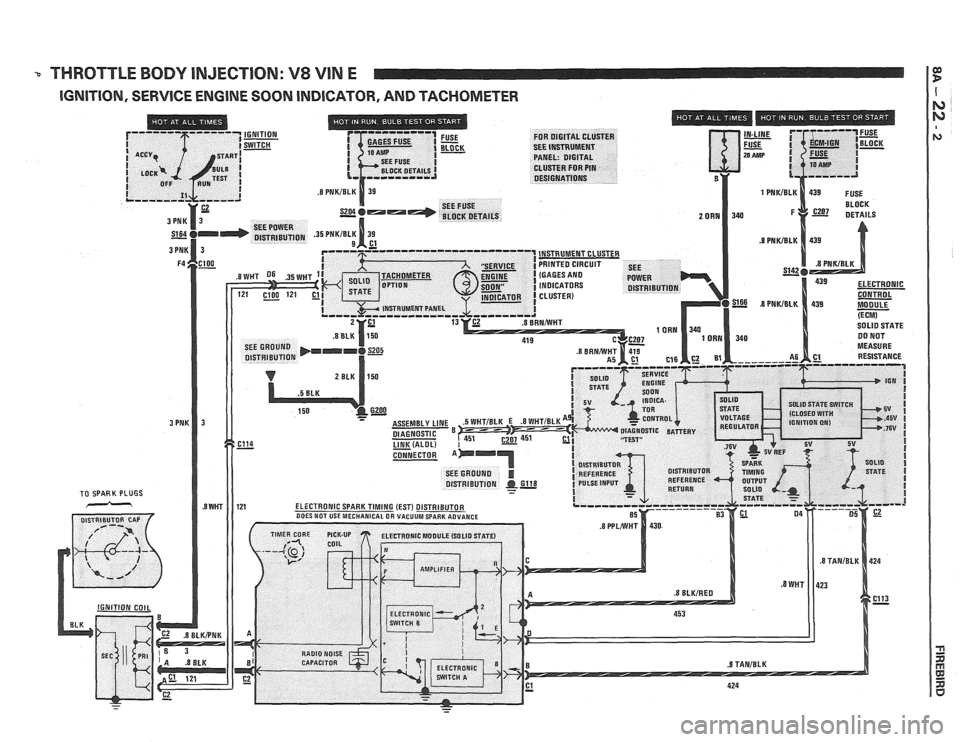

THROTTLE BODY INJECTION: V8 VIN E IF
IGNITION, SERVICE ENGINE SOON INDICATOR, AND TACHOMETER

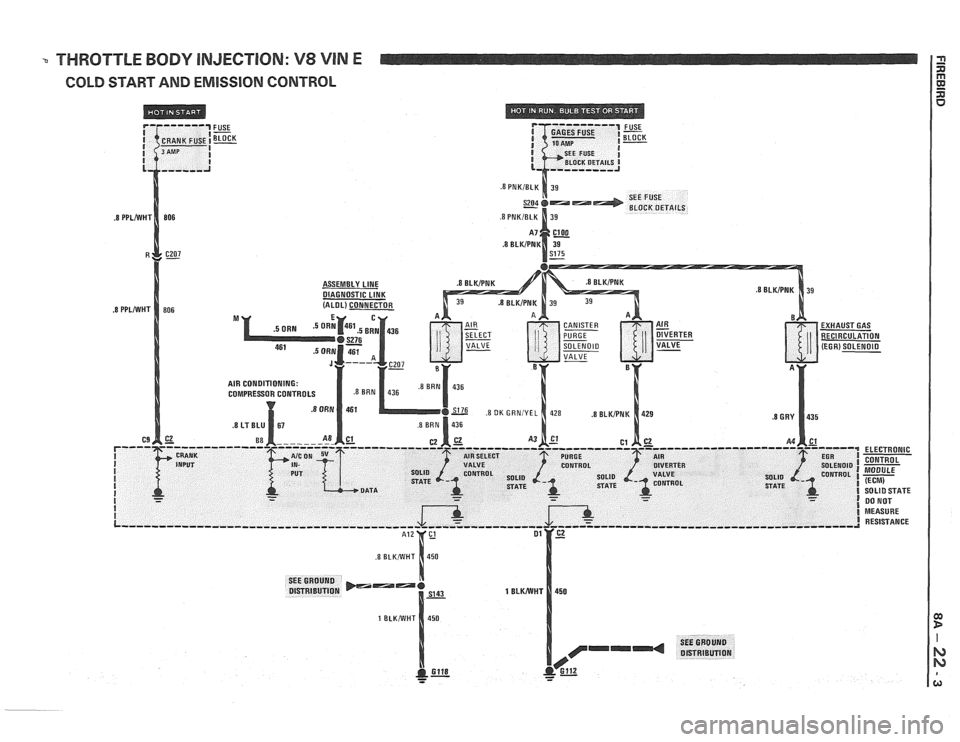

THROTTLE BODY INJECTION: V8 VIN E
GOLD START AND EMISSION CONTROL
EXHAUST GAS
AIR CONDITIONING: COMPRESSOR CONTROLS
