1988 PONTIAC FIERO Service Repair Manual

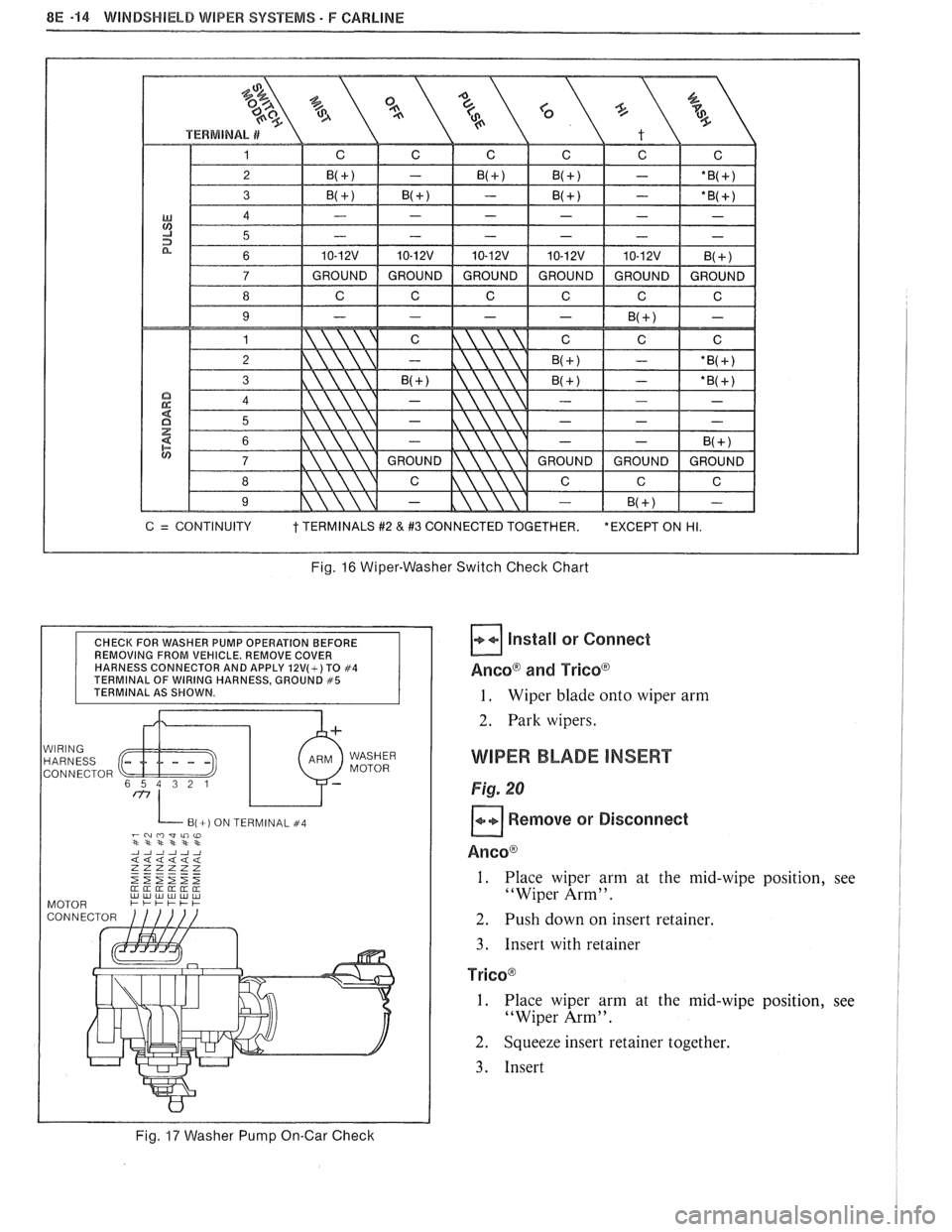

8E -14 WINDSHIELD WIPER SYSTEMS - F CARLINE
Fig. 16 Wiper-Washer Switch Check Chart
CHECK FOR WASHER PUMP OPERATION BEFORE
REMOVING FROM VEHICLE. REMOVE COVER
HARNESS CONNECTOR AND APPLY
12V(+) TO #4 TERMINAL OF WIRING HARNESS, GROUND #5 TERMINAL AS SHOWN.
WIRING HARNESS
CONNECTOR WASHER
MOTOR
B(+) ON TERMINAL #4 -~mwli)w **st***
Fig. 17 Washer Pump On-Car Check
Install or Connect
AncoB and Tricoa
1. Wiper blade onto wiper arm
2. Park wipers.
WIPER BLADE INSERT
Fig. 20
Remove or Disconnect
Ancoa
1. Place wiper arm at the mid-wipe position, see
"Wiper Arm".
2. Push down on insert retainer.
3. Insert with retainer
TricoB
I. Place wiper arm at the mid-wipe position, see
"Wiper Arm".
2. Squeeze insert retainer together.
3. Insert

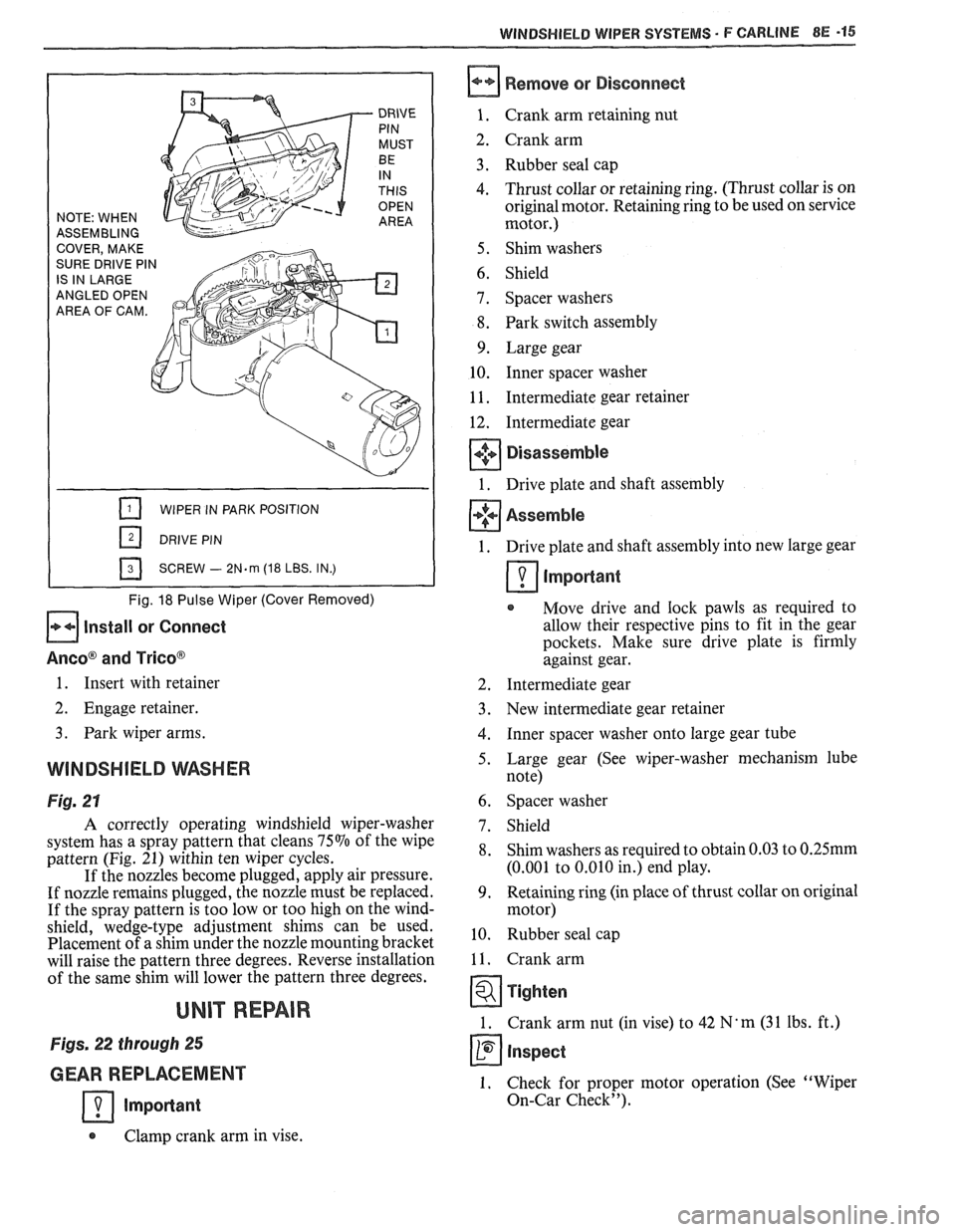

WINDSHIELD WIPER SYSTEMS F CARLlNE BE -15
ASSEMBLING
ANGLED OPEN
AREA OF CAM.
WIPER IN PARK POSITION
SCREW
- 2N.m (18 LBS. IN.)
Fig. 18 Pulse Wiper (Cover Removed)
Install or Connect
Aneo@ and Trico@
Remove or Disconnect
Crank arm retaining nut
Crank arm
Rubber seal cap
Thrust collar or retaining ring. (Thrust collar is on
original motor. Retaining ring to be used on service
motor.)
Shim washers
Shield
Spacer washers
Park switch assembly
Large gear Inner spacer washer
Intermediate gear retainer
Intermediate gear
Disassemble
Drive plate and shaft assembly
Assemble
1. Drive plate and shaft assembly into new large gear
Important
Move drive and lock pawls as required to
allow their respective pins to fit in the gear
pockets. Make sure drive plate is firmly
against gear.
1. Insert with retainer 2. Intermediate gear
2. Engage retainer. 3. New intermediate gear retainer
3. Park wiper arms. 4. Inner spacer washer onto large gear tube
WINDSHIELD WASHER 5. Large gear (See wiper-washer mechanism lube
note)
Fig. 21 6. Spacer washer
A correctly operating windshield wiper-washer
system has a spray pattern that cleans
75% of the wipe
pattern (Fig. 21) within ten wiper cycles.
If the nozzles become plugged, apply air pressure.
If nozzle remains plugged, the nozzle must be replaced.
If the spray pattern is too low or too high on the wind-
shield, wedge-type adjustment shims can be used.
Placement of a shim under the nozzle mounting bracket
will raise the pattern three degrees. Reverse installation
of the same shim will lower the pattern three degrees.
UNIT REPAIR
Figs. 22 through 25
GEAR REPLACEMENT
Important
7. Shield
8. Shim washers as required to obtain 0.03 to 0.25mm
(0.001 to 0.010 in.) end play.
9. Retaining ring (in place of thrust collar on original
motor)
10. Rubber seal cap
11. Crank arm
Tighten
1. Crank arm nut (in vise) to 42 N' m (3 1 Ibs. ft.)
Inspect
1. Check for proper motor operation (See "Wiper
On-Car Check").
Clamp crank arm in vise.

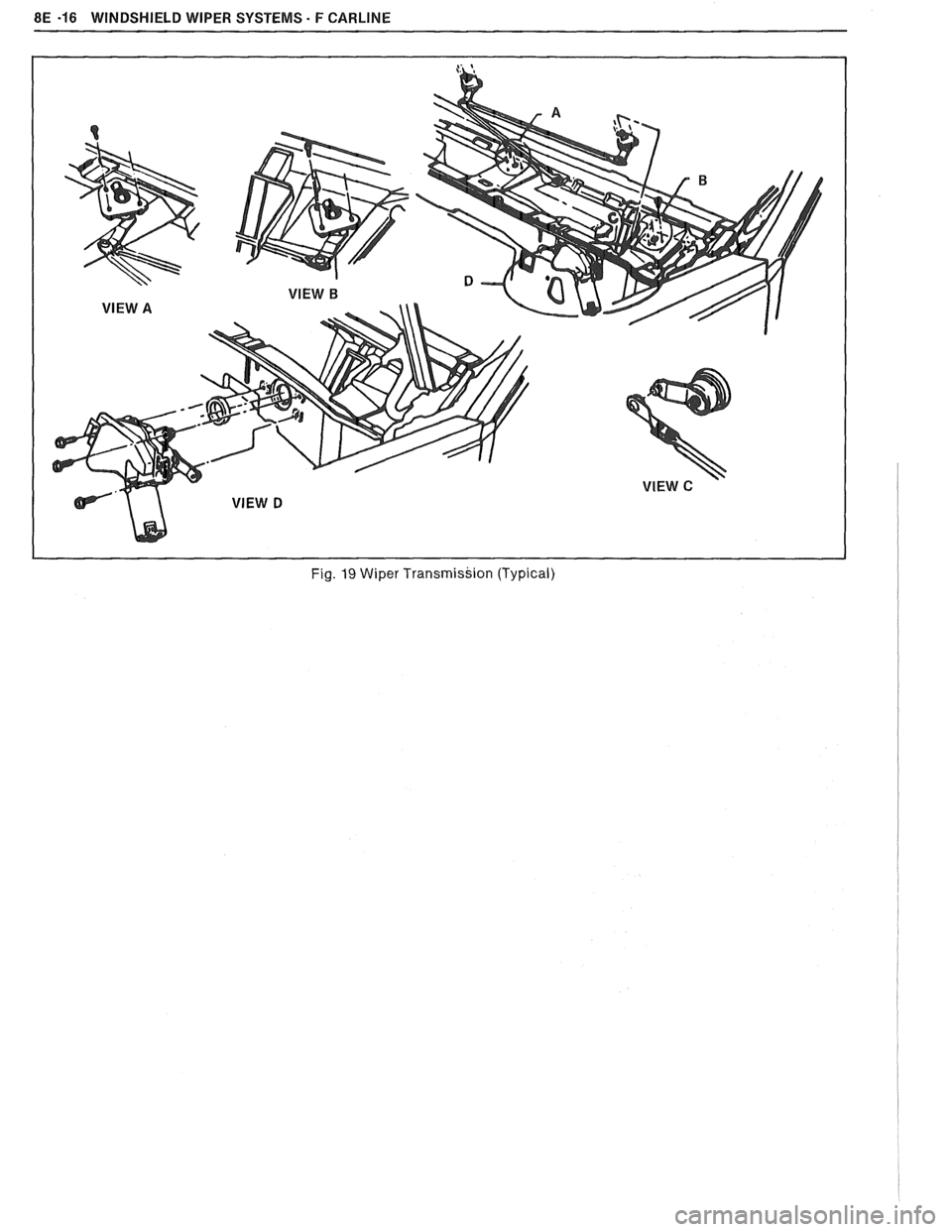

8E -16 WINDSHIELD WIPER SYSTEMS - F CARLINE
Fig. 19 Wiper Transmission (Typical)

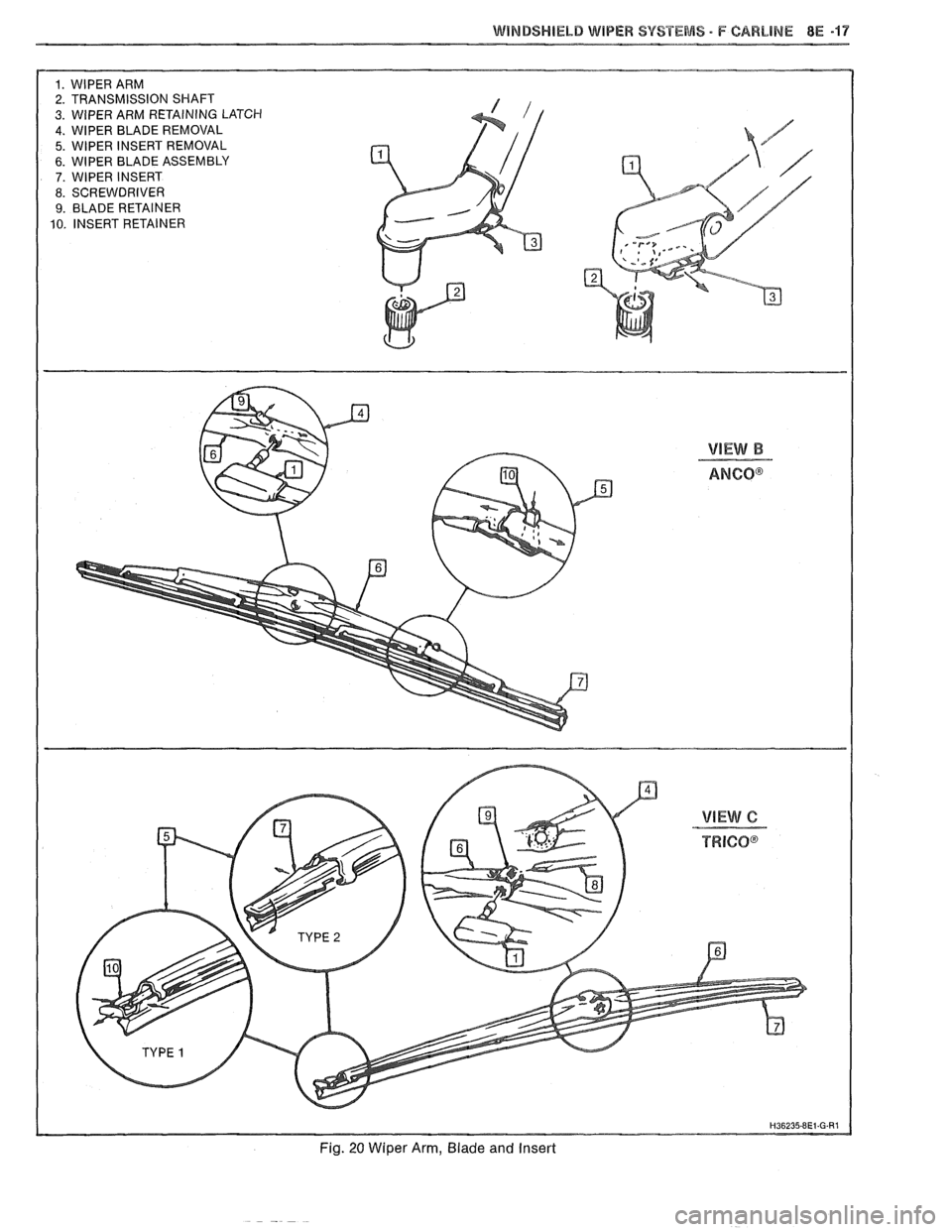

WiNDSWlEbB WIPER SYSTEMS - F CARLINE 8E -47
1. WlPER ARM
2. TRANSMISSION SHAFT
3. WIPER ARM RETAINING LATCH 4. WlPER BLADE REMOVAL
5. WlPER INSERT REMOVAL
6. WlPER BLADE ASSEMBLY 7. WlPER INSERT
8. SCREWDRIVER
9. BLADE RETAINER
10. INSERT RETAINER
Fig. 20 Wiper Arm, Blade and Insert

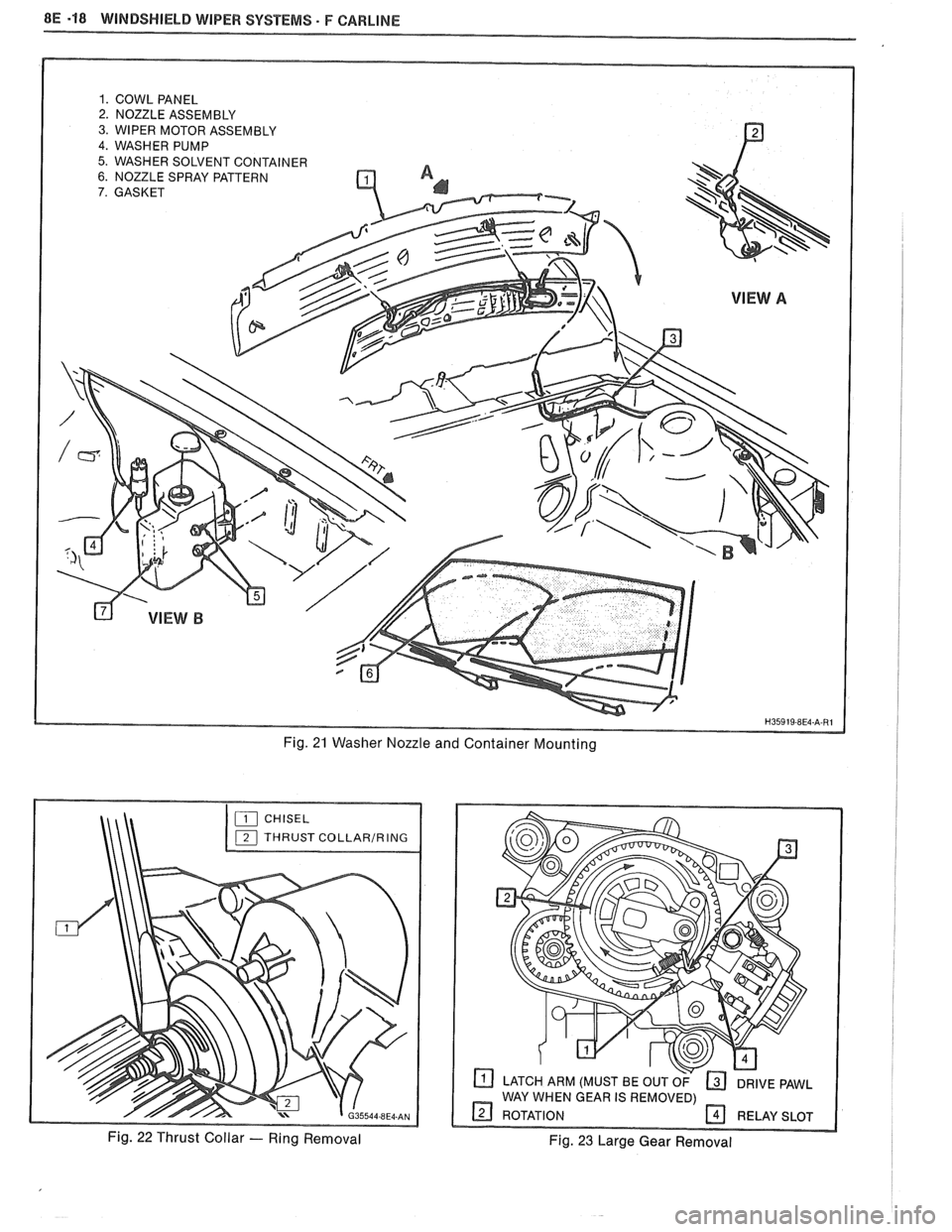

8E -18 WINDSHIELD WIPER SYSTEMS. F CAWLINE
1. COWL PANEL 2. NOZZLE ASSEMBLY
3. WIPER MOTOR ASSEMBLY
4. WASHER PUMP
5. WASHER SOLVENT CONTAINER 6. NOZZLE SPRAY PATTERN
7. GASKET
Fig. 21 Washer Nozzle and Container Mounting
CHISEL
THRUST
COLLARIRING
Fig. 22 Thrust Collar - Ring Removal
LATCH ARM (MUST BE OUT OF DRIVE PAWL
WAY WHEN GEAR IS REMOVED)
9 ROTATION RELAY SLOT
Fig. 23 Large Gear Removal

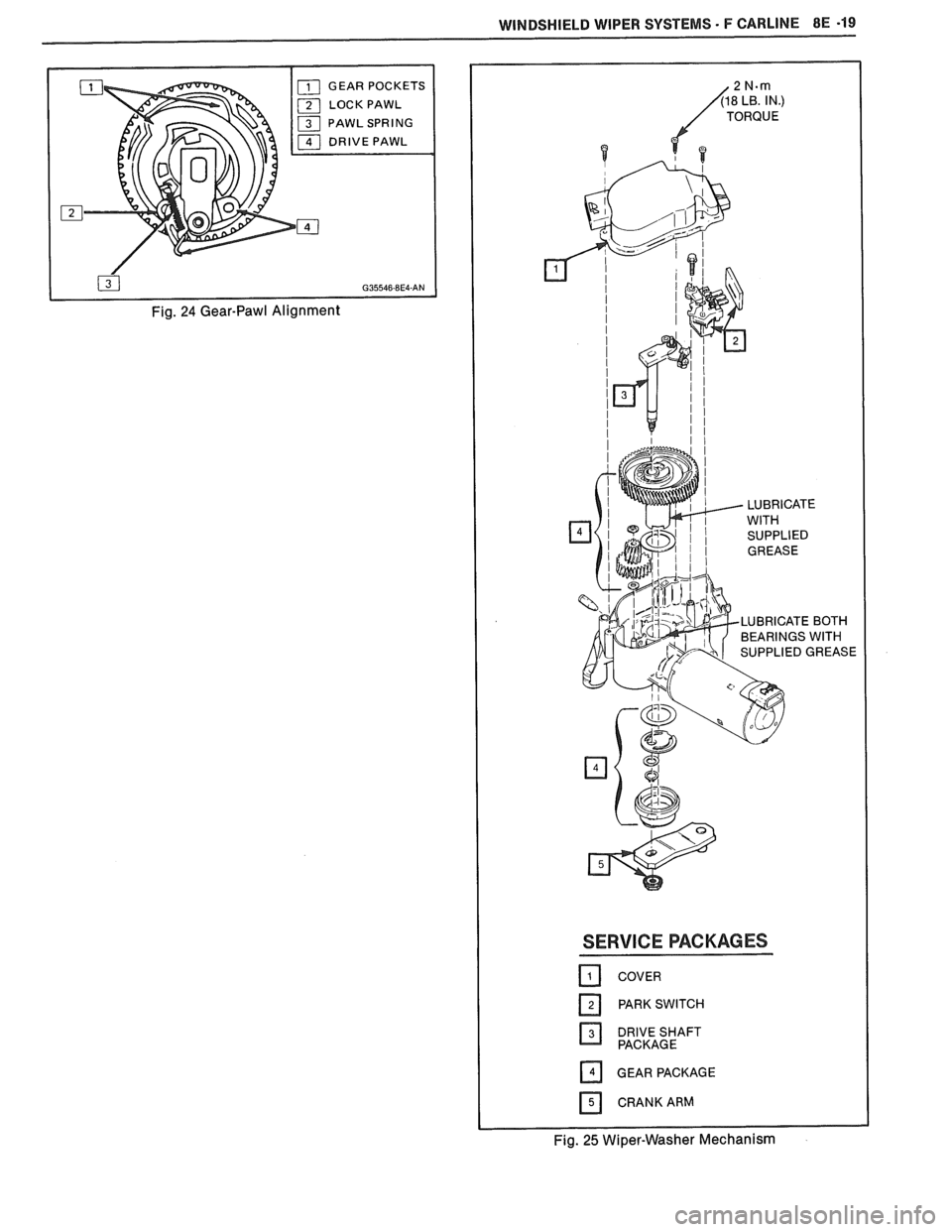

WINDSHIELD WIPER SYSTEMS - F CARLINE BE -19
LOCK PAWL
Fig. 24 Gear-Pawl Alignment
LUBRICATE BOTH
BEARINGS WITH
SERVICE PACKAGES
COVER
DRIVESHAFT PACKAGE
GEAR PACKAGE
CRANK ARM
Fig. 25 Wiper-Washer Mechanism

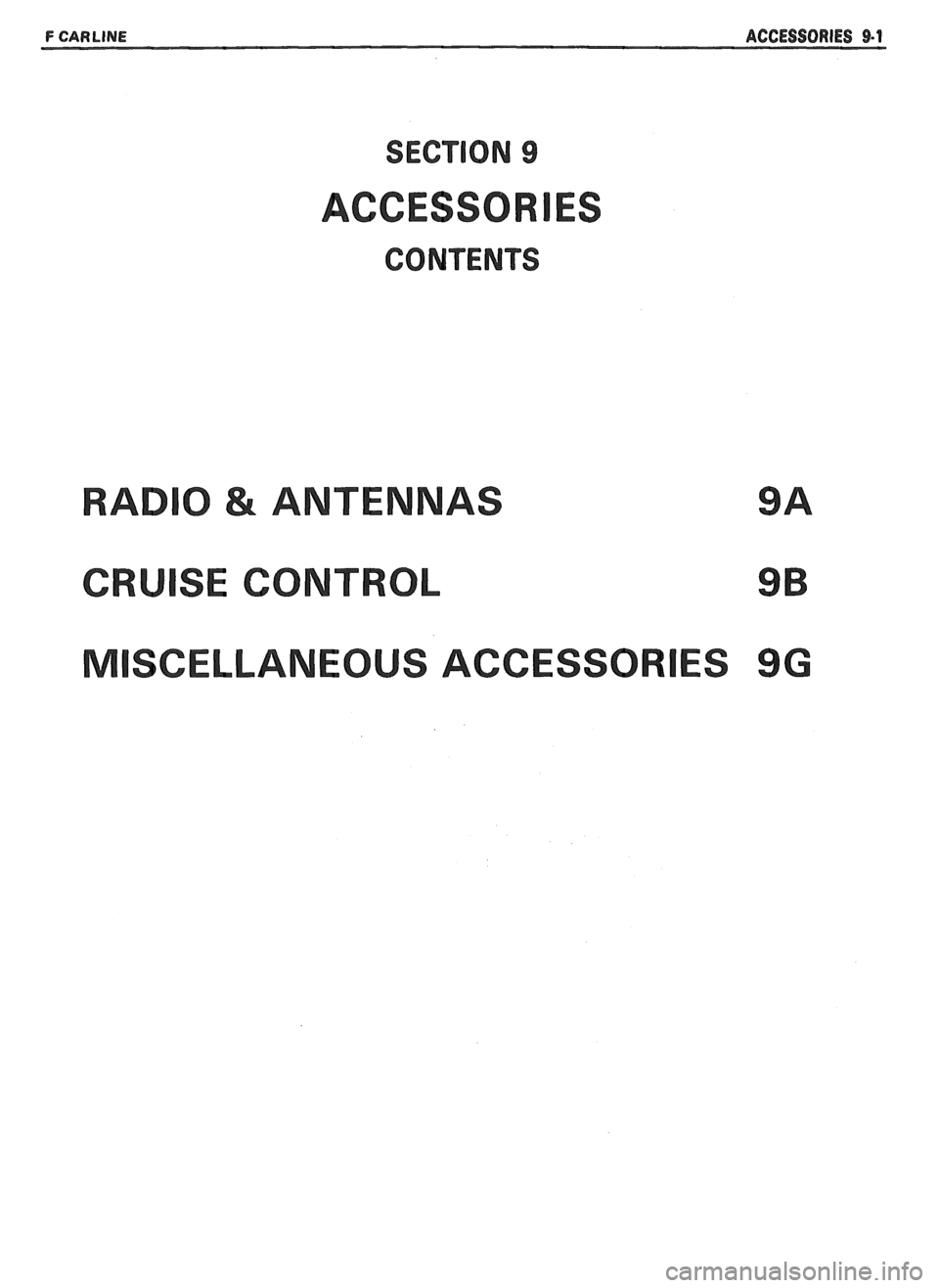

F CARLINE ACCESSORIES 9-1
SECTION 9
ACCESSOR
CONTENTS
0 & ANTENNAS 9A
SE CONTROL 9B
SCELLANEOUS ACCESSOR ES 9G
