RADIO I
(Continued from previous page) from back of Radio
If noise persists with replacement antenna, the
problem must be repaired at the source of noise
(generator, ignition system, accessory, etc.). See
Delco Manual for noise "Sniffing" procedures.
Ignition Noise
Trv the following. fixes in the piven order: 8. Install a braided ground strap on the hood. Replace
defective antenna with a good antenna.
If noise disappears repair or replace the defective
antenna. Check antenna ground, Coaxial Cable
Braid, and ground at connectors.
unplugged
- -
1. Check
for loose or defective spark plug wire.
2. Check for defective spark plug.
3. Move all wiring away from Ignition System
and spark plug wires. Antenna
noise
4. Reroute spark plug wires laying against
anything that could possibly transmit noise
to the Radio (car
g or sensor leads that
travel into the passenger compartment).
5. Inspect Ignition system for the following
and replace if necessary:
r Distributor cap carbon ball eroded away,
cracked or loose cap.
A rotor with burned black spot on wiper or
pits in wiper surface.
r A defective coil.
r An oily film on some of the lead terminals or
inside the cap.
Defective
WE1 module; can cause ignition
noise on
FM only.
6. Replace distributor cap and rotor.
9. Check Heater Core ground; clean or install a
braided ground strap if necessary.
10. Check air conditioner accumulator ground;
clean or install a braided ground strap if
necessarv.
TO STEERING
BRAIDED
GROUN GO LUMN
Figure 1 - Gut the BLACK (ground) wire from
the black plug
at the back of the Radio and run
7. Check the ground from engine to firewall, a braided ground strap from the ease of the
install a braided ground strap if necessary. Radio to good, unpainted body ground.
(TRY GROUNDED AND UNGROUNDED)
POWER LlNE TO RADIO
(IGNITION OR MEMORY)
Figure 2 - install a 1224205 filter package.

Figure 3. Install a 250 MFD, 100V capacitor on
the alternator output lead to ground.

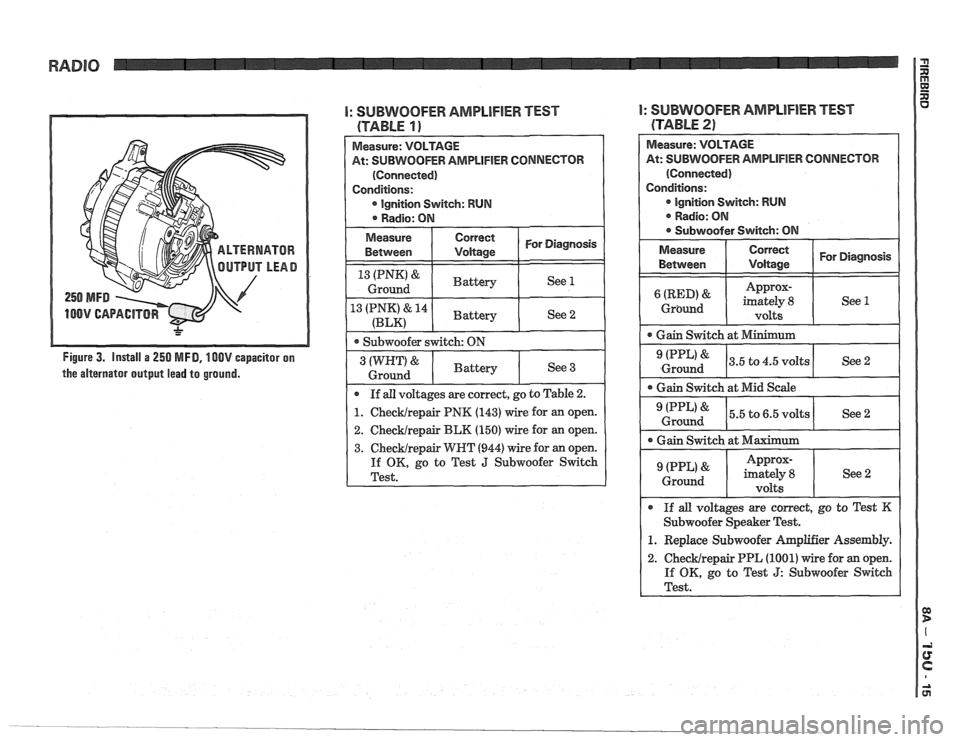

I: SUBWOOFER AMPLIFIER TEST
(TABLE 19
2. Checklrepair BLK (150) wire for an open.
3. Checklrepair WRT (944) wire for an open.
If OK, go to Test J Subwoofer Switch
Test.
I: SUBWOOFER AMPLlFlER TEST
(TABLE
2)
Measure: VOLTAGE
At:
SUBWOOFER AMPLIFIER CONNECTOR
(Connected)
Conditions: Ignition
Svvitch: RUN
. Radio: ON
@ Subwoofer Switch: ON
Measure Correct
I Vdtaae I For Diagnosis
Between
Approx-
Grbund
Ground I See2 I -- -
Gain Switch at Mid Scale
0 Gain Switch at Maximum I Approx- (PPL' ' imately 8
Ground
volts
0 If all voltages are correct, go to Test K
Subwoofer Speaker Test.
1. Replace Subwoofer hplifier Assembly.
2. ChecMrepair PPL (1001) wire for an open.
If OK, go to Test
J: Subwoofer Switch
Test.

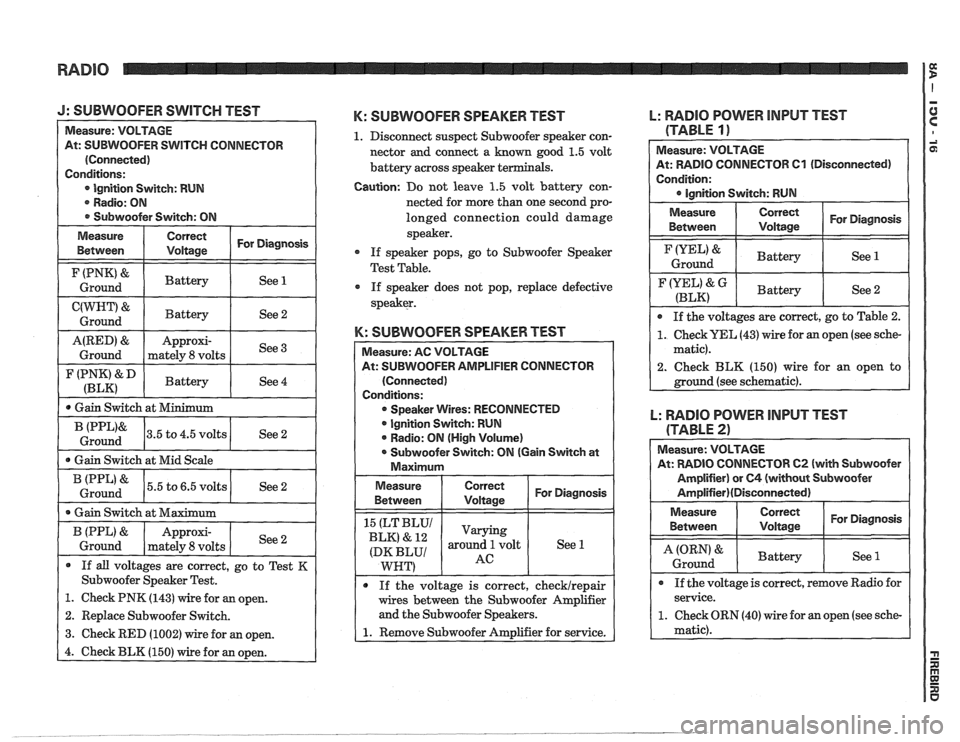

J: SUBWOOFER SWITCH TEST
At: SUBWOOFER SWITCH CONNECTOR
lgnition Switch: RUN
. Radio: ON
* Subwoofer Switch: ON
Measure Correct
I Voltage I For Diagnosis
Between
I F(PNK'& I Battery / See 1 I Ground
I C(WHT" I Battery / See2 1 Ground
I (P,","ip" 1 Battery 1 See 4 I
A(RED) &
Ground
I 0 Gain Switch at Minimum I
Approxi-
mately
8 volts
I * Gain Switch at Mid Scale 1
See 3
(PPL'&
Ground
1 (PPL'& 15.5 to 6.5 volts / See 2 I Ground
3.5 to 4.5 volts
1. Check PNK (143) wire for an open.
2. Replace Subwoofer Switch.
3. Check RED (1002) wire for an open. See
2
I
I
* Gain Switch at Maximum
K: SUBWOOFER SPEAKER TEST
1. Disconnect suspect Subwoofer speaker con-
nector and connect a
known good 1.5 volt
battery across speaker te
B (PPL)
&
Ground
Caution: Do not leave 1.5 volt battery con-
nected for more than one second pro-
longed connection could damage
speaker.
If speaker pops, go to Subwoofer Speaker
Test Table.
If speaker does not pop, replace defective
speaker.
K: SUBWOOFER SPEAKER TEST
If all voltages are correct, go to Test K
Subwoofer Speaker Test.
Approxi-
mately 8 volts
lFlER CONNECTOR
* Speaker Wires: RECONNECTED
lgnition Switch: RUN
* Radio: ON (High Volume)
0 Subwoofer Switch: ON (Gain Switch at
If the voltage is correct, checklrepair
wires between the Subwoofer Amplifier
and the Subwoofer Speakers.
See
2
L: RADlO POWER INPUT TEST
(TABLE
11
Measure: VOLTAGE
At: RADIO CONNECTOR
Cl (Disconnected)
Condition:
Measure Correct
I Voltage I For Diagnosis
Between
I Ground IYEL'& I Battery I See 1
F(YEL' &G I Battery (BLK) See 2
0 If the voltages are correct, go to Table 2.
1. Check UEL (43) wire for an open (see sche-
matic).
2. Check BLK
(150) wire for an open to
L: RADIO POWER INPUT TEST
(TABLE
2)
Measure: VOLTAGE
At: RADIO CONNECTOR
62 (with Subwoofer
Amplifier) or
64 (without Subwoofer
Amplifier)(Disconnected)
Measure Correct
For Diagnosis
Between
Voltage
I A (ORN) & I Battery I See l ( Ground
* If the voltage is correct, remove Radio for
service.
1. Check ORN (40) wire for an open (see sche-
matic).

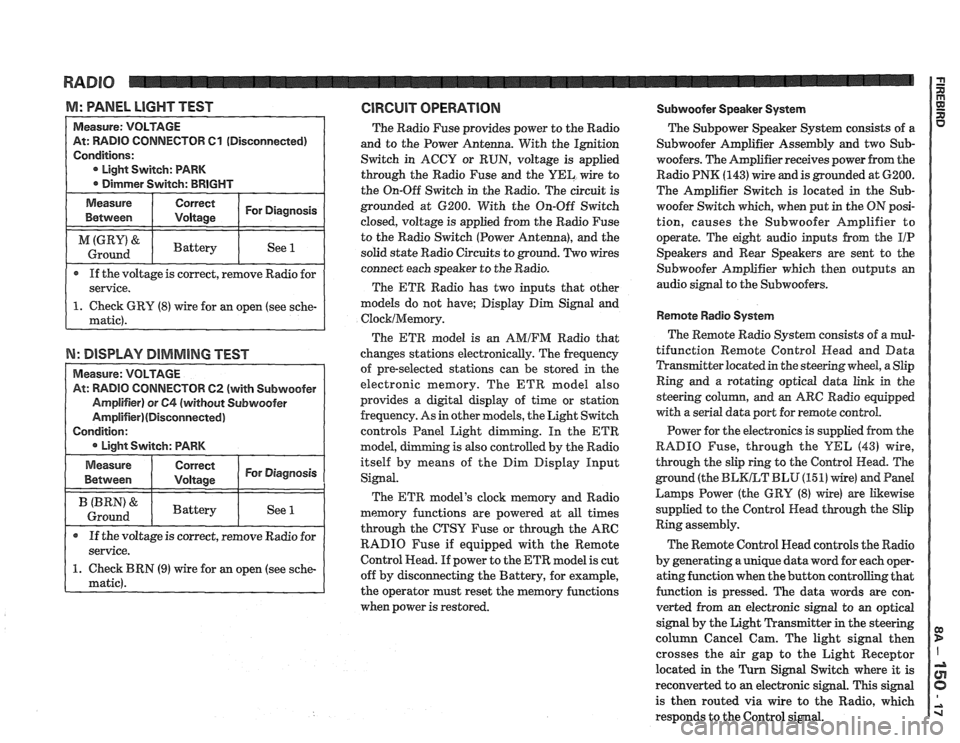

M: WNEL LIGHT TEST GlRGUlT OPERATION Subwoofer Speaker System
TOR 61 (Disconnected)
If the voltage is correct, remove Radio for
N: DISPLAY DIMMING TEST
TOW 62 (with Subwoofer
The Radio Fuse provides power to the Radio
and to the Power Antenna. With the Ignition
Switch in ACCY or RUN, voltage is applied
through the Radio Fuse and the
UEL wire to
the On-Off Switch in the Radio. The circuit is
grounded at 6200. With the On-Off Switch
closed, voltage is applied from the Radio Fuse
to the Radio Switch (Power Antenna), and the
solid state Radio Circuits to ground. Two wires
connect each speaker to the Radio.
The ETR Radio has two inputs that other
models do not have; Display Dim Signal and
ClocklMemory.
The ETR model is an AMIFM Radio that
changes stations electronically. The frequency
of pre-selected stations can be stored
in the
electronic memory. The ETR model also
provides a digital display of time or station
frequency. As in other models, the Light Switch
controls Panel Light dimming. In the
ETR
model, g is also controlled by the Radio
itself by means of the Dim Display Input
Signal.
The ETR model's clock memory and Radio
memory functions are powered at all times
through the CTSY Fuse or through the ARC
RADIO Fuse if equipped with the Remote
Control Head. If power to the ETR model is cut
off by disconnecting the Battery, for example,
the operator must reset the memory functions
when power is restored. The
Subpower Speaker
System consists of a
Subwoofer Amplifier Assembly and two Sub-
woofers. The Amplifier receives power from the
Radio PNK
(143) wire and is grounded at 6200.
The Amplifier Switch is located in the
Sub-
woofer Switch which, when put in the ON posi-
tion, causes the Subwoofer Amplifier to
operate. The eight audio inputs from the
I/P
Speakers and Rear Speakers are sent to the
Subwoofer Amplifier which then outputs an
audio signal to the Subwoofers.
Remote Radio System
The Remote Radio System consists of a mul-
tifunction Remote Control
Head and Data
Transmitter located in the steering wheel, a Slip
Ring and a rotating optical data link in the
steering
colurnn, and an ARC Radio equipped
with a serial data port for remote control.
Power for the electronics is supplied from the
RADIO Fuse, through the
YEL (43) wire,
through the slip ring to the Control Head. The
ground (the
BLKLT BLU (15 1) wire) and Pand
Larnps Power (the GRY (8) wire) are Likewise
supplied to the Control Head through the Slip
Ring assembly.
The Remote Control Head controls the Radio
by generating a unique data word for each oper-
ating function when the button controlling that
function is pressed. The data words are con-
verted from an electronic signal to an optical
signal by the Light Transmitter in the steering
column Cancel Cam. The light signal then
crosses the air gap to the Light Receptor
located in the
Turn Signal Switch where it is
reconverted to
an electronic signal. This signal
is then routed via wire to the Radio, which
responds to the Control signal.

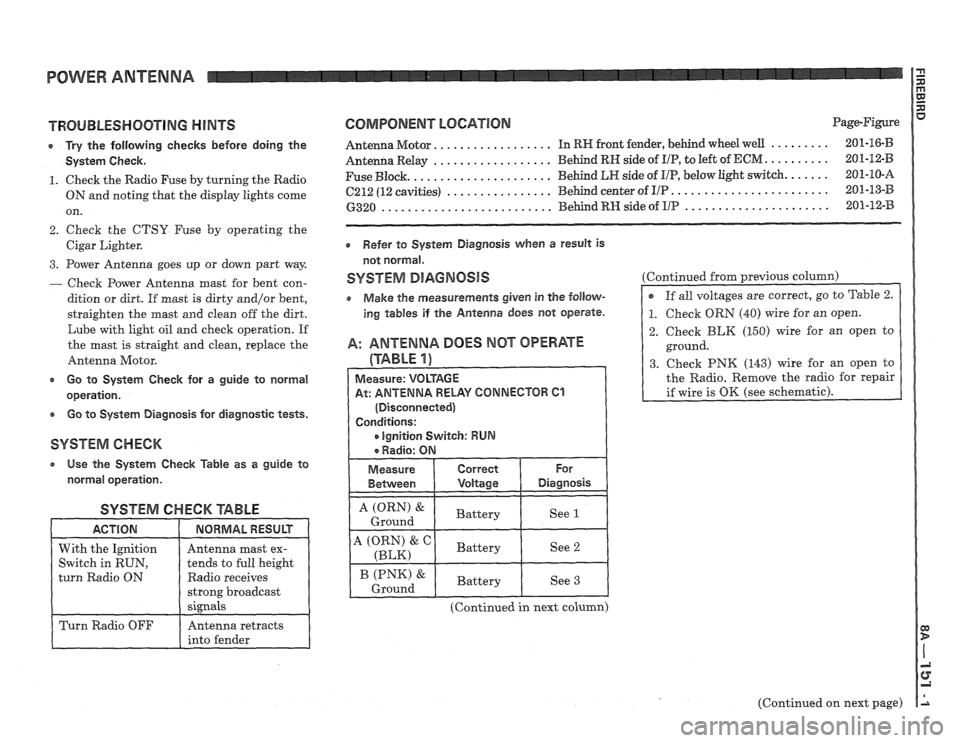

POWER ANTENNA I e

POWER ANTENNA
TROUBLESHOOTING HINTS
r Try the following checks before doing the
System Check.
1. Check the Radio Fuse by turning the Radio
ON and noting that the display lights come
on.
2. Check the CTSY Fuse by operating the
Cigar Lighter.
3. Power Antenna goes up or down part way
- Check Power Antenna mast for bent con-
dition or dirt. If
mast is dirty and/or bent,
straighten the mast and clean off the dirt.
Lube with light oil and check operation. If
the mast is straight and clean, replace the
Antenna Motor.
c Go to System Check for a guide to normal
operation.
e Go to System Diagnosis for diagnostic tests.
SYSTEM CHECK
a Use the System Check Table as a guide to
normal operation.
SYSTEM CHECK '6ABLE
Radio receives
COMPONENT LOCATION Page-Figure
................. ......... Antenna Motor. In RW front fender, behind wheel well 201-16-B
.................. .......... Antenna Relay Behind RN side of I/P, to
left of ECM 201-12-B
..................... ...... Fuse Block. Behind LR side
of UP, below light switch. 201-10-A
........................ ................ 6212 (12 cavities) Behind center of I/P 201-13-B
...................... .......................... 6320 Behind RH side of IIP 201-12-33
Refer to System Diagnosis when a result is
not normal.
SYSTEM DlAGNOSlS
o Make the measurements given in the follow-
ing tables if the Antenna does not operate.
A: ANTENNA DOES MOT OPERATE
(TABLE 1)
At: ANTENNA RELAY CONNECTOR 61
(Continued in next column) Continued
from previous
column)
2. Check BLK (150) wire for an open to
ground.
3. Check PNK (143) wire for an open to
the Radio. Remove the radio for repair
(Continued on next page)

POWER ANTENNA
(Continued from previous page) the relay contacts. The motor drives the
Antenna up. At the end of its travel, the Up
Switch opens and the motor stops.
A: ANTENNA DOES NOT OPERATE When the Radio or ignition is turned off,
(TABLE 2) the circuit through the Antenna Relay coil
opens. The contacts open to the position
Connect: FUSED JUMPERS shown in the schematic, applying battery At: ANTENNA RELAY CONNECTORS C1 & voltage to the WHT wire. The DK GRN wire
1 62 (Disconnected) I
Cl/A (ORN)
to
C2/B (DK
GRN) and
C2/A (GRY)
to ci/c
(BLK)
Antenna
Mast
Extends See 1
If all results are correct,
replace the
Antenna Relay.
I 1. Redace the Antenna motor. is
now grounded.
Since the DN Switch at the
Antenna is now making contact to the WNT
wire, the voltage to the motor has reversed
polarity. It runs in the opposite direction and
drives the antenna down. At the end of the
travel, the DN Switch opens the circuit. Both
sets of switches are now in the positions
shown in the schematic with the Radio off
and the Antenna down.
The Antenna
is connected to the Radio by a
coaxial cable.
CIRCUIT OPERATION
When the Radio is turned on, voltage is ap-
plied from the PNK wire to the Antenna Re-
lay coil. The Antenna Relay contacts close,
and battery voltage is supplied to the
DK
GRN wire and then to the Antenna Motor.
The other motor terminal is grounded
through the UP Switch, the GRY wire, and
