Page 1241 of 1825

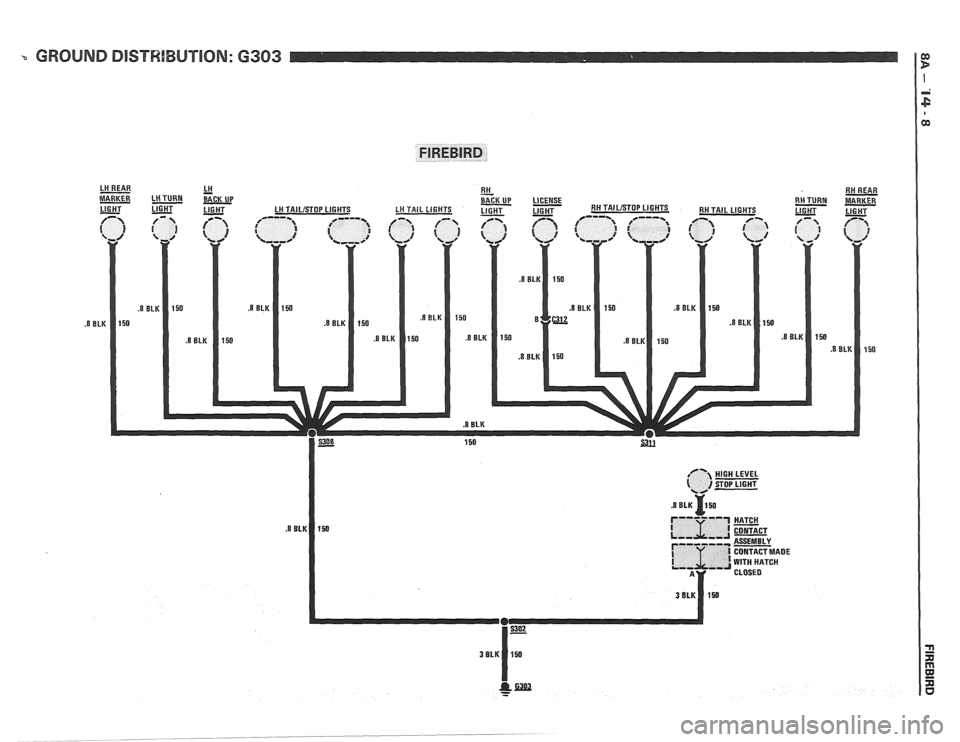

PONTIAC FIERO 1988 Service Repair Manual 3 GROUND DISTRIBUTION: 6303

Page 1242 of 1825

PONTIAC FIERO 1988 Service Repair Manual

Page 1243 of 1825

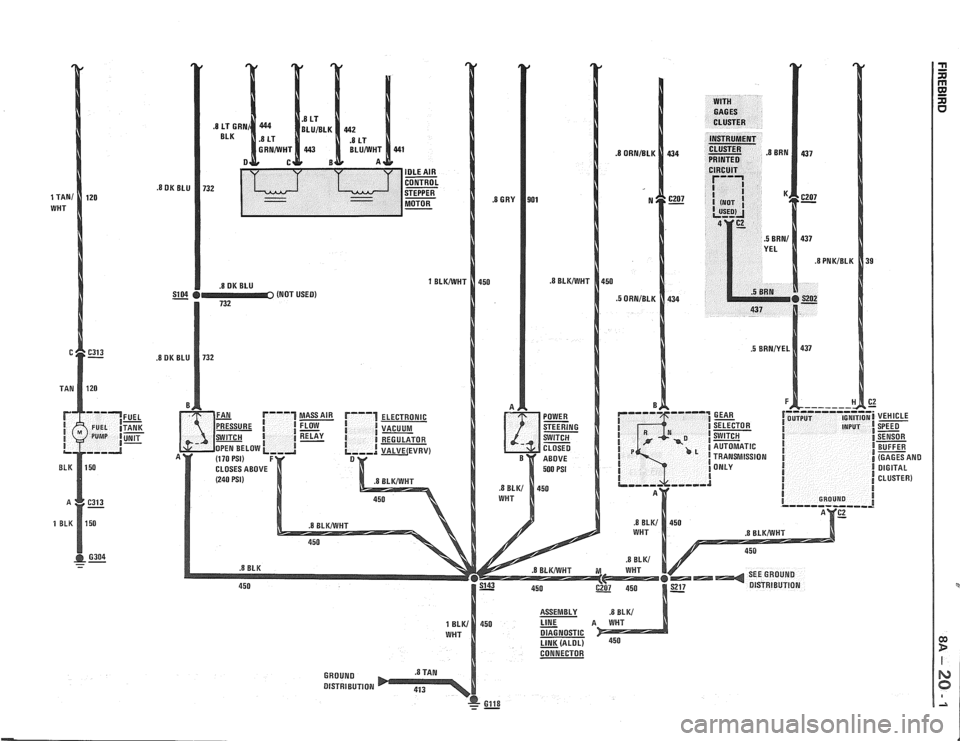

PONTIAC FIERO 1988 Service Repair Manual MULTI-PORT FUEL INJECTION: V6 VIN S 1 ORN

Page 1244 of 1825

PONTIAC FIERO 1988 Service Repair Manual FUEL - TANK @ 6304 - - ASSEMBLY LINE - A DIAGNOSTIC LINK (ALDL) - CONNECTOR GROUND DISTRIBUTION

Page 1245 of 1825

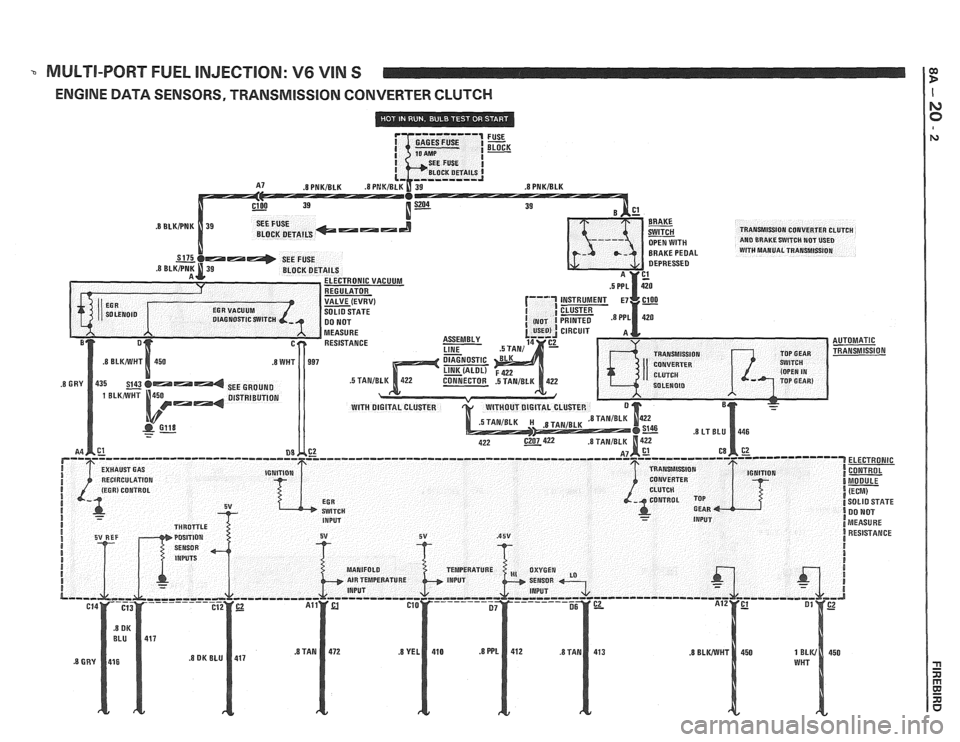

PONTIAC FIERO 1988 Service Repair Manual MULTI-PORT FUEL INJECTION: V6 VIN S ENGlNE DATA SENSORS, TRANSMISSION CONVERTER CLUTCH

Page 1246 of 1825

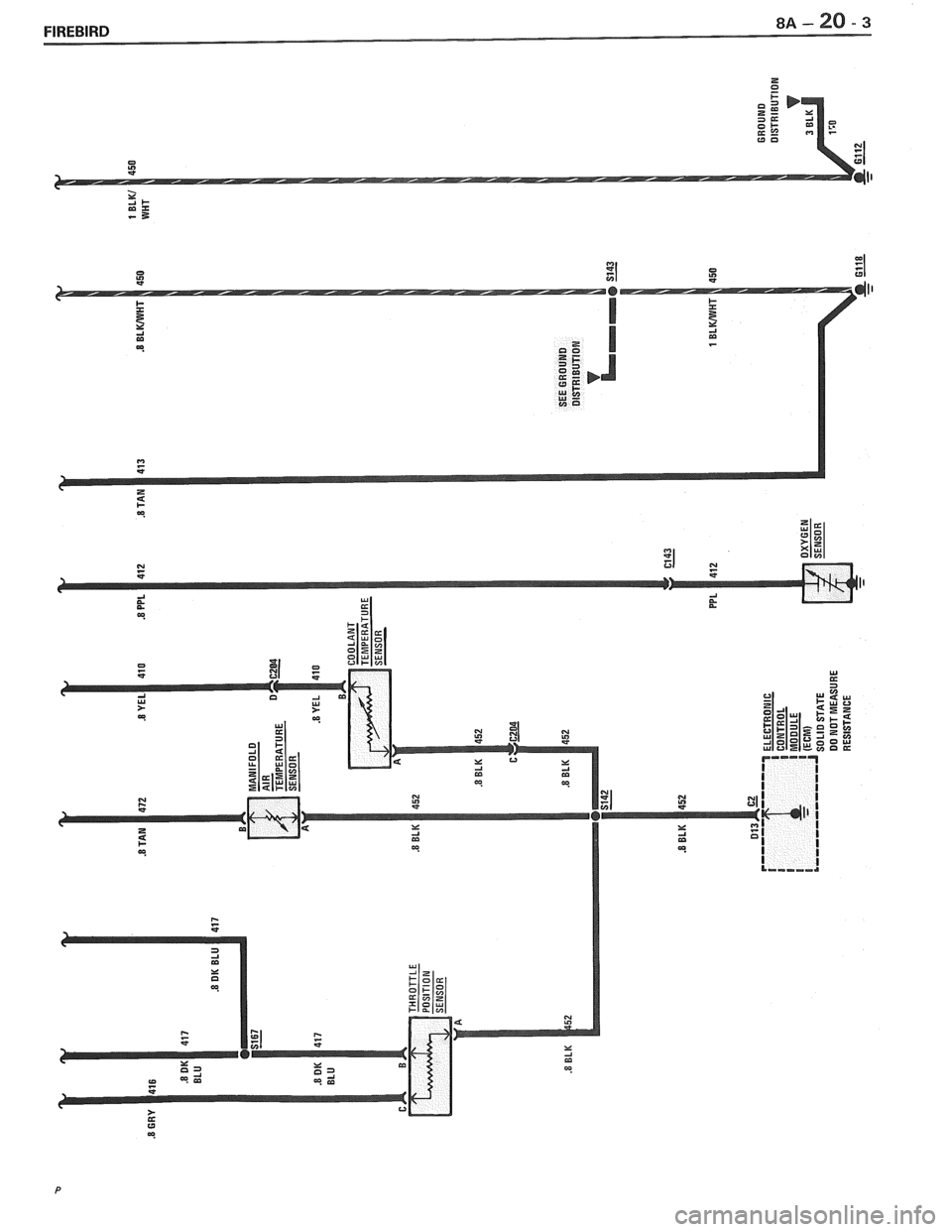

PONTIAC FIERO 1988 Service Repair Manual

Page 1247 of 1825

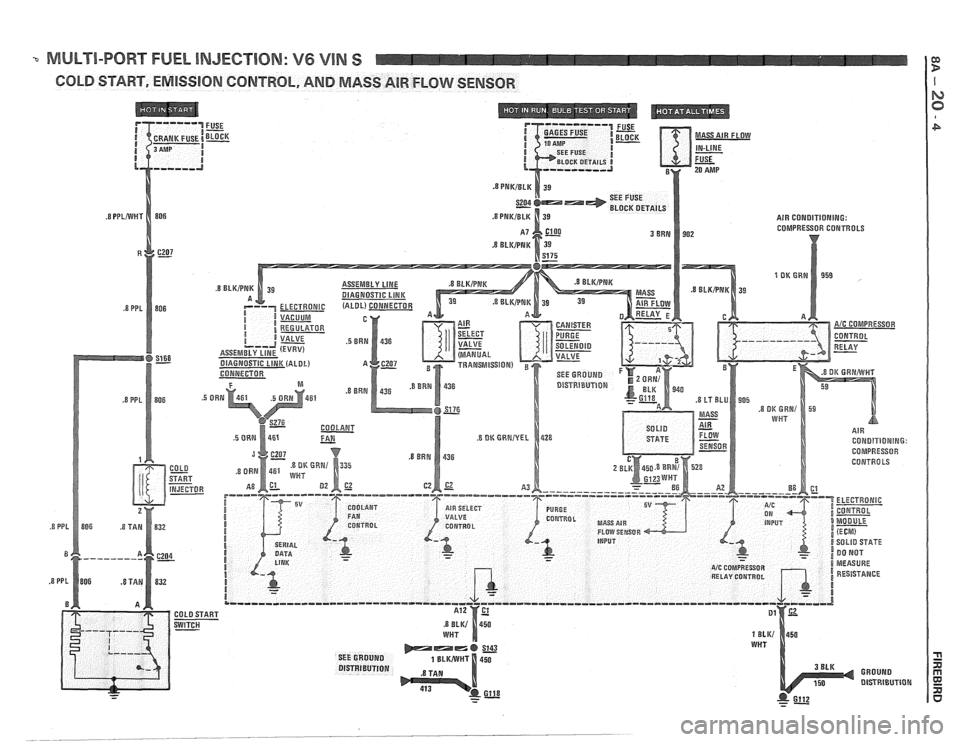

PONTIAC FIERO 1988 Service Repair Manual NIULT1-PORT FUEL BMJECTIOM: V6 VIM S COLD START, EMISSION CONTROL, AND MASS AIR FLOW SENSOR FUSE -

Page 1248 of 1825

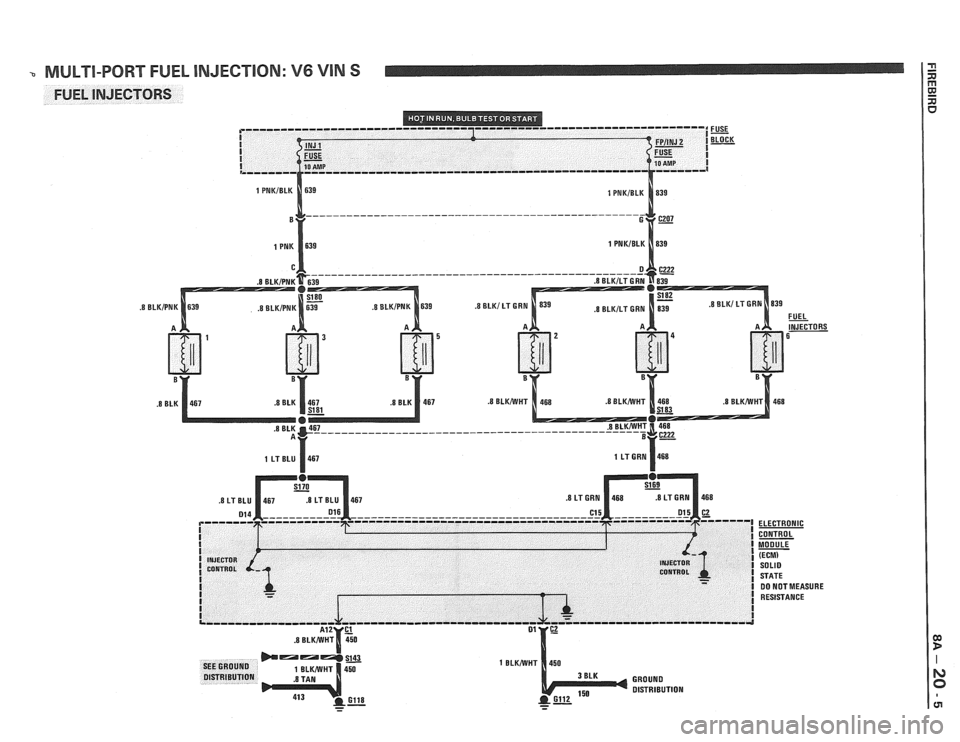

PONTIAC FIERO 1988 Service Repair Manual b MULTI-PORT FUEL INJECTION: V6 VIN S FUEL INJECTORS FUEL INJECTORS 5 6 ....................... GROUND DISTRIBUTION - -
