Parking in an Emergency
▼Parking in an Emergency
The hazard warning lights should
always be used when you stop on or
near a roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic
hazard and that they must take
extreme caution when near it.

Depress the hazard warning flasher
and all the direction indicators will
flash. The hazard warning indicator
lights in the instrument cluster flash
simultaneously.
NOTE
xThe direction indicators do not work
when the hazard warning lights are
on.
xCheck local regulations about the
use of hazard warning lights while
the vehicle is being towed to verify
that it is not in violation of the law.
Roadside Emergency
Triangle Retaining Strap
*
▼Roadside Emergency Triangle
Retaining Strap
Keep the roadside emergency triangle
in the right side trim and secure it with
the strap.
1. Strap
If Trouble Arises
Parking in an Emergency
*Some models.7-23

Spare Tyre and Tool
Storage
▼Spare Tyre and Tool Storage
NOTE
Your vehicle may or may not be
equipped with a spare tyre, jack, and
wheel brace. For details, consult an
expert repairer (we recommend an
Authorised Mazda Repairer).
Spare tyre and tools are stored in the
locations illustrated in the diagram.
Ty p e A
1. Jack*
2. Emergency flat tyre repair kit
3. Towing eyelet
4. Wheel brace
*
5. Jack lever
Ty p e B
1. Emergency flat tyre repair kit
2. Towing eyelet
3. Jack lever
Ty p e C
1. Emergency flat tyre repair kit
2. Jack lever
3. Towing eyelet
4. Wheel brace
5. Jack
Ty p e D
1. Jack lever
2. Spare tyre hold-down bolt
3. Screwdriver
*
4. Towing eyelet
5. Jack
6. Spare tyre
7. Wrench
*
8. Wheel brace
If Trouble Arises
Flat Tyre
7-24*Some models.

Ty p e E
1. Jack lever
2. Spare tyre hold-down bolt
3. Screwdriver
*
4. Towing eyelet
5. Jack
6. Spare tyre
7. Wrench
*
8. Wheel brace
▼Jack*
To remove the jack
1. Remove the luggage mat.

2. Remove the jack.

To secure the jack
Perform the removal procedure in
reverse.
Maintenance
xAlways keep the jack clean.xMake sure the moving parts are kept
free from dirt or rust.
xMake sure the screw thread is
adequately lubricated.
▼Spare Tyre*
Your Mazda has a temporary spare
tyre.
The temporary spare tyre is lighter and
smaller than a conventional tyre, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tyres should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare
tyre on the front wheels (driving
wheels):
Driving with the temporary spare tyre
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound roads,
and have an accident. Move a regular
tyre to the front wheel and install the
temporary spare tyre to the rear.
CAUTION
¾When using the temporary spare
tyre, driving stability may decrease
compared to when using only the
conventional tyre. Drive carefully.
¾To avoid damage to the temporary
spare tyre or to the vehicle, observe
the following precautions:
If Trouble Arises
Flat Tyre
*Some models.7-25

¾Do not exceed 80 km/h (50 mph).
¾Avoid driving over obstacles. Also,
do not drive through an automatic
car wash. This tyre's diameter is
smaller than a conventional tyre,
so the ground clearance is
reduced.
¾Do not use a tyre chain on this tyre
because it will not fit properly.
¾Do not use your temporary spare
tyre on any other vehicle, it has
been designed only for your
Mazda.
¾Use only one temporary spare tyre
on your vehicle at the same time.
To remove the spare tyre
1. Remove the luggage mat.

2.(Vehicles with sub-woofer)
Uncouple the sub-woofer
connector.

1. Sub-woofer

NOTE
Extra strength may be required to
uncouple the connector. Be sure to
squeeze the tab firmly.
3.(Vehicles with sub-woofer)
Turn the spare tyre hold-down bolt
anticlockwise and remove the
sub-woofer and the spare tyre.

(Vehicles without sub-woofer)
Turn the spare tyre hold-down bolt
anticlockwise and remove the spare
tyre.

1. Spare tyre hold-down bolt

NOTE
If the spare tyre hold-down bolt
cannot be loosened, hold the edge
of the tyre and turn it anticlockwise
until the spare tyre hold-down bolt
rotates.
To secure the spare tyre
Store the spare tyre in the reverse order
of removal. After storing , verify that the
spare tyre is stored securely.
If Trouble Arises
Flat Tyre
7-26

Emergency Flat Tyre
Repair Kit
*
▼Emergency Flat Tyre Repair Kit
The emergency flat tyre repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tyre resulting from running over
nails or similar sharp objects on the
road surface.
Perform the emergency
flat tyre repair
without removing the nail or similar
sharp object which punctured the tyre.
NOTE
Your vehicle is not equipped with a
spare tyre. In the event of a flat tyre,
use the emergency flat tyre repair kit to
repair the tyre temporarily. When
doing the repair, refer to the
instructions included in the emergency
flat tyre repair kit. If an emergency
repair was performed on a flat tyre
using the emergency flat tyre repair kit,
have an , repair or replace the tyre as
soon as possible.
▼About the Emergency Flat Tyre
Repair Kit
The emergency flat tyre repair kit
includes the following items.

1. Tyre sealant
2. Injection hose
3. Compressor
4. Spare valve core
5. Valve core tool
6. Instructions
7. Speed restriction sticker
WARNING
Do not allow children to touch the
tyre sealant:
¾Ingestion of tyre sealant is
dangerous. In the event tyre sealant
is accidentally swallowed, drink large
amounts of water immediately and
seek medical assistance.
If Trouble Arises
Flat Tyre
*Some models.7-27

¾Tyre sealant that comes into contact
with the eyes and skin is dangerous.
If tyre sealant enters the eyes or
contacts the skin, flush immediately
with large amounts of water and
seek medical assistance.
NOTE
xThe tyre sealant cannot be reused.
Purchase new tyre sealant at an
expert repairer (we recommend an
Authorised Mazda Repairer).
xThe emergency flat tyre repair kit
cannot be used in the following
cases.
Consult an expert repairer (we
recommend an Authorised Mazda
Repairer).
xThe period of
effective use for the
tyre sealant has expired. (The
period of
effectiveness is indicated
on the bottle label.)
xThe tear or puncture exceeds
about 4 mm (0.16 in).
xThe damage has occurred to an
area of the tyre other than the
tread.
xThe vehicle has been driven with
nearly no air remaining in the tyre.
xThe tyre has come off the wheel
rim.
xDamage to the wheel rim has
occurred.
xThe tyre has 2 or more punctures.
▼Using the Emergency Flat Tyre
Repair Kit
1. Park on a level surface off the
right-of-way and set the parking
brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Reverse (R) or 1,
and turn off the engine.
3. Turn on the hazard warning flasher.
4. Unload passengers and luggage,
and remove the emergency flat tyre
repair kit.
Ty p e A
Ty p e B
Ty p e C
5. Shake the tyre sealant well.

If Trouble Arises
Flat Tyre
7-28

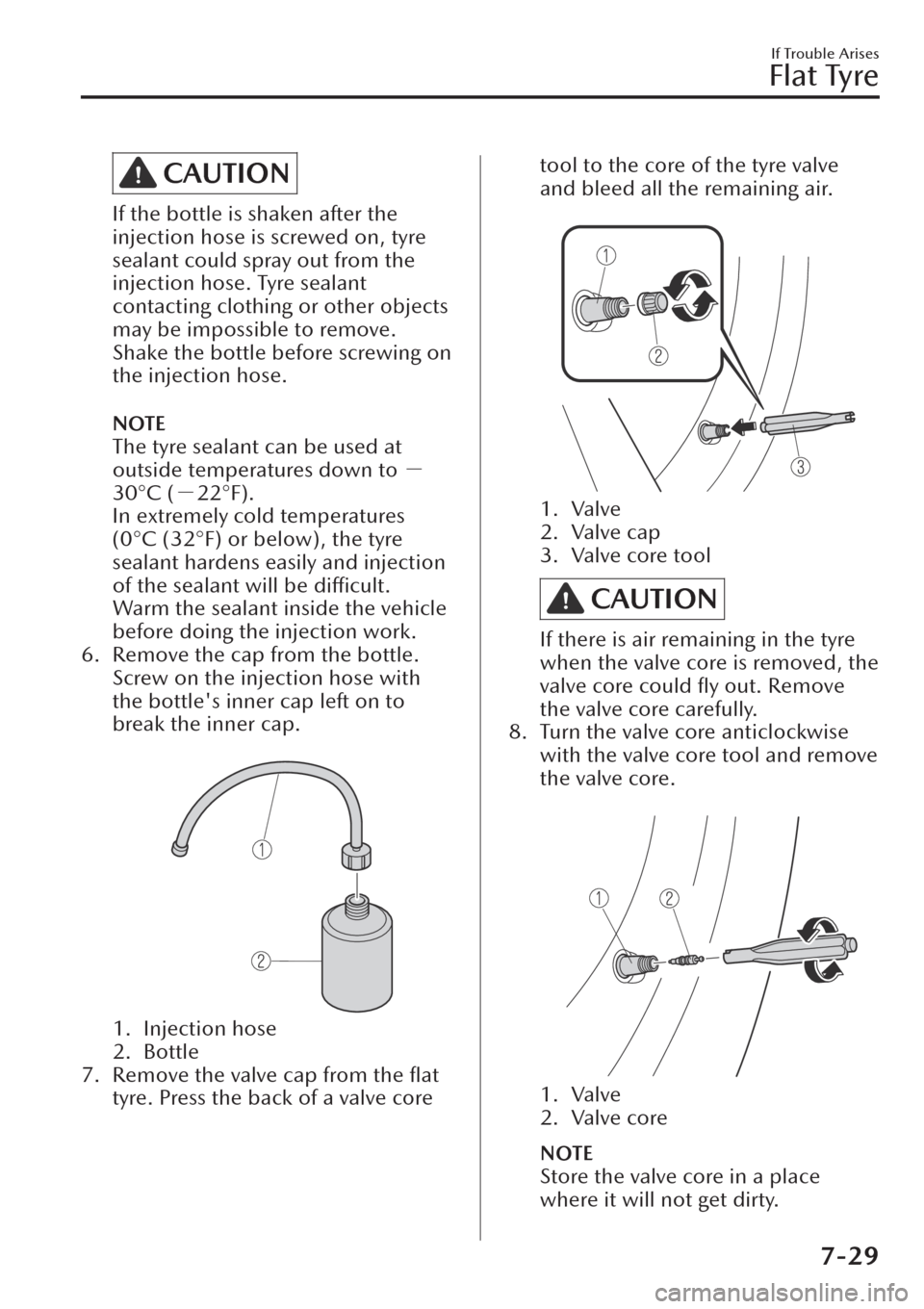

CAUTION
If the bottle is shaken after the
injection hose is screwed on, tyre
sealant could spray out from the
injection hose. Tyre sealant
contacting clothing or other objects
may be impossible to remove.
Shake the bottle before screwing on
the injection hose.
NOTE
The tyre sealant can be used at
outside temperatures down to >+
30°C (>+22°F).
In extremely cold temperatures
(0°C (32°F) or below), the tyre
sealant hardens easily and injection
of the sealant will be difficult.
Warm the sealant inside the vehicle
before doing the injection work.
6. Remove the cap from the bottle.
Screw on the injection hose with
the bottle's inner cap left on to
break the inner cap.

1. Injection hose
2. Bottle
7. Remove the valve cap from the flat
tyre. Press the back of a valve core
tool to the core of the tyre valve
and bleed all the remaining air.

1. Valve
2. Valve cap
3. Valve core tool
CAUTION
If there is air remaining in the tyre
when the valve core is removed, the
valve core could fly out. Remove
the valve core carefully.
8. Turn the valve core anticlockwise
with the valve core tool and remove
the valve core.

1. Valve
2. Valve core
NOTE
Store the valve core in a place
where it will not get dirty.
If Trouble Arises
Flat Tyre
7-29

9. Remove the plug from the injection
hose and insert the injection hose
into the valve.

1. Plug
2. Injection hose
10.Hold the bottom of the bottle
upright, squeeze the bottle with
your hands, and inject the entire
amount of tyre sealant into the tyre.

1. Valve
NOTE
The tyre sealant cannot be reused.
Purchase a new tyre sealant kit at
an expert repairer (we recommend
an Authorised Mazda Repairer).
11.Pull out the injection hose from the
valve. Reinsert the valve core into
the valve and turn it clockwise to
install it.
NOTE
Do not throw away the empty tyre
sealant bottle after use. Return the
empty tyre sealant bottle to an
expert repairer (we recommend an
Authorised Mazda Repairer) when
replacing the tyre. The empty tyre
sealant bottle will need to be used
to extract and dispose of the used
sealant from the tyre.
12.Adhere the speed restriction sticker
to the speedometer.

WARNING
Attach the speed restriction sticker
in a place where it can be viewed
easily by the driver:
¾Applying the speed restriction
sticker to the steering wheel is
dangerous as it could interfere
with the air bag deployment and
result in serious injury.
¾Do not apply the sticker to any
position other than the position
indicated in the illustration of the
speedometer.
If Trouble Arises
Flat Tyre
