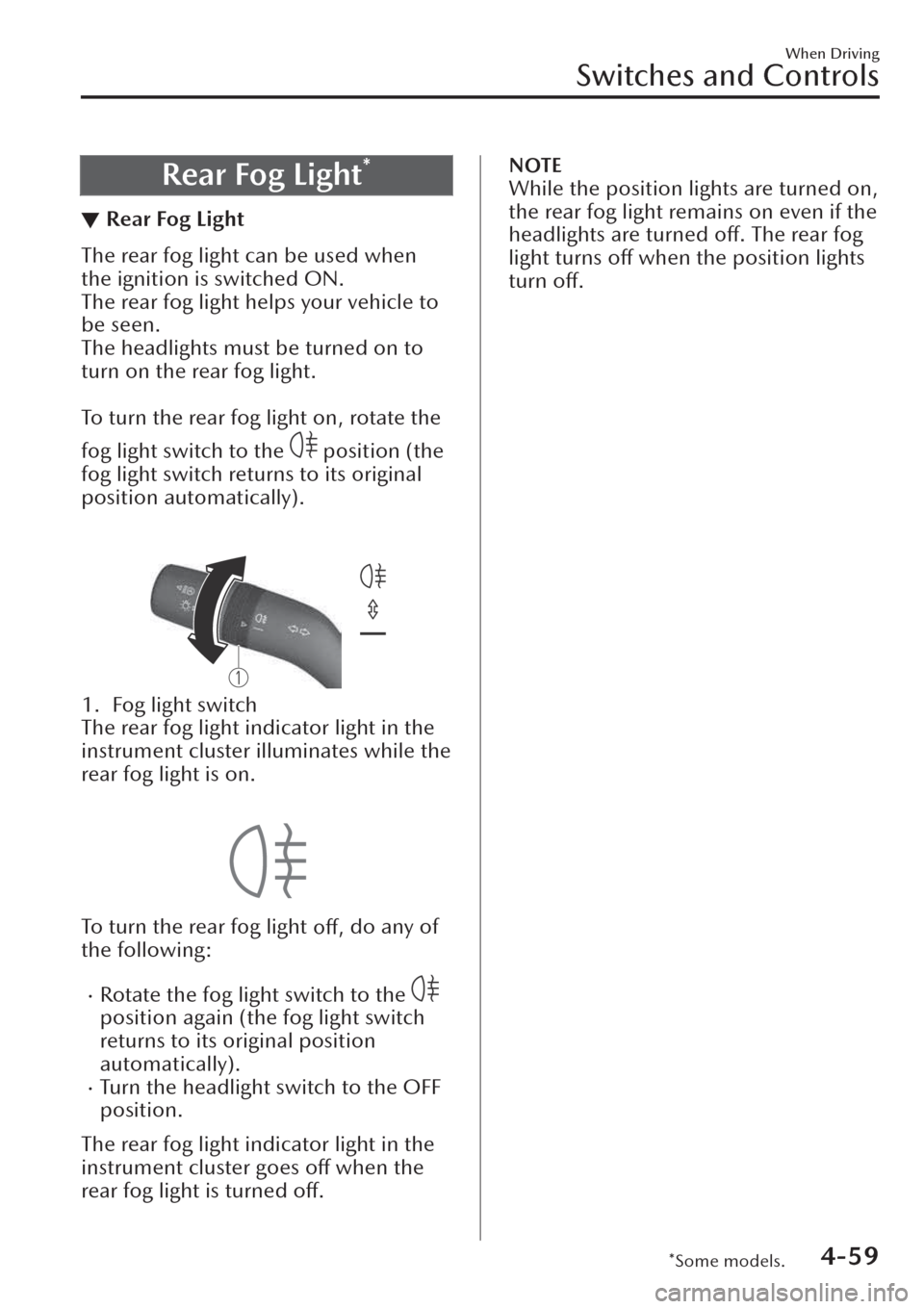

Rear Fog Light*
▼Rear Fog Light
The rear fog light can be used when
the ignition is switched ON.
The rear fog light helps your vehicle to
be seen.
The headlights must be turned on to
turn on the rear fog light.

To turn the rear fog light on, rotate the
fog light switch to the
position (the
fog light switch returns to its original
position automatically).

1. Fog light switch
The rear fog light indicator light in the
instrument cluster illuminates while the
rear fog light is on.

To turn the rear fog light
off, do any of
the following:
xRotate the fog light switch to the
position again (the fog light switch
returns to its original position
automatically).
xTurn the headlight switch to the OFF
position.
The rear fog light indicator light in the
instrument cluster goes off when the
rear fog light is turned off.
NOTE
While the position lights are turned on,
the rear fog light remains on even if the
headlights are turned off. The rear fog
light turns off when the position lights
turn off.
When Driving
Switches and Controls
*Some models.4-59

Turn and Lane-Change
Signals
▼Turn and Lane-Change Signals
The ignition must be switched ON to
use the turn and lane-change signals.
▼Direction Indicators
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel
after the turn is completed.

If the indicator light continues to flash
after a turn, manually return the lever
to its original position.
1. Right turn
2. Right lane change
3. OFF
4. Left lane change
5. Left turn

The direction indicators in the
instrument cluster flash according to
the operation of the direction indicator
lever to show which signal is working.

NOTE
xThere may be a problem with the
direction indicator lights if they do
not flash but remain turned on, or
they flash abnormally. Have your
vehicle inspected by an expert
repairer (we recommend an
Authorised Mazda Repairer).
xA personalised function is available
to change the turn indicator sound
volume.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Lane-Change Signals
Move the lever halfway toward the
direction of the lane changeŠuntil the
indicator
flashesŠ and hold it there. It
will return to the off position when
released.
▼Three-Flash Turn Signal
After releasing the direction indicator
lever from the halfway point, the
direction indicator
flashes 3 times. The
operation can be cancelled by moving
the lever in the direction opposite to
which it was operated.
NOTE
The three-flash turn signal function can
be switched to on/off using the
personalisation function.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
When Driving
Switches and Controls
4-60

Windscreen Wipers and
Washer
▼Windscreen Wipers and Washer
The ignition must be switched ON to
use the wipers.
WARNING
Use only windscreen washer
fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windscreen, it will dirty the
windscreen, affect your visibility, and
could result in an accident.
Only use windscreen washer
fluid
mixed with anti-freeze protection in
freezing weather conditions:
Using windscreen washer fluid without
anti-freeze protection in freezing
weather conditions is dangerous as it
could freeze on the windscreen and
block your vision which could cause an
accident. In addition, make sure the
windscreen is sufficiently warmed
using the defroster before spraying the
washer fluid.
NOTE
If the windscreen wipers are operated
under cold weather conditions or
during snowfall, they could stop due to
accumulated snow on the windscreen.
If the windscreen wipers stop due to
accumulated snow on the windscreen,
park the vehicle in a safe place, turn
the wiper switch off, and then remove
the accumulated snow. If the wiper
switch is turned to another position
other than OFF, the wipers will
operate. If the wipers do not operate
even though the wiper switch is turned
to a position other than OFF, consult
an expert repairer (we recommend an
Authorised Mazda Repairer) as soon as
possible.
▼Windscreen Wipers
Turn the wipers on by pressing the
lever up or down.
With intermittent wiper
Switch Posi-
tionWiper operation
Operation while pulling up
lever
OFF Stop
Intermittent
Low speed
When Driving
Switches and Controls
4-61

Switch Posi-
tionWiper operation
High speed
Variable-speed intermittent wipers
Set the lever to the intermittent
position and choose the interval timing
by rotating the switch.
Rotate the switch upward to shorten
the interval time of the wiper
operation, and rotate the switch
downward to lengthen it.

1. Switch
2. Shorten
3. Lengthen
With auto-wiper control

1. Indicator light
Switch Position
Wiper operation
No. Type A Type B
MISTOperation while
pulling up lever
OFF Stop
AUTO*1AUTO*1Auto control
LO Low speed
HI High speed
*1 When the wiper lever is switched to the
AUTO position, the indicator light turns on.
Auto-wiper control*
When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windscreen
and turns the wipers on or off
automatically
(offŠintermittentŠlow
speedŠhigh speed).

The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the centre position (normal),
rotate the switch upward for higher
sensitivity (faster response) or rotate it
downward for less sensitivity (slower
response).

1. Switch
2. Higher sensitivity
3. Centre position
4. Less sensitivity
When Driving
Switches and Controls
4-62*Some models.

CAUTION
¾Do not shade the rain sensor by
adhering a sticker or a label on the
windscreen. Otherwise the rain
sensor will not operate correctly.
¾When the wiper lever is in the AUTO
position and the ignition is switched
ON, the wipers may move
automatically in the following cases:
¾If the windscreen above the rain
sensor is touched or wiped with a
cloth.
¾If the windscreen is struck with a
hand or other object from either
outside or inside the vehicle.
Keep hands and scrapers clear of the
windscreen when the wiper lever is
in the AUTO position and the
ignition is switched ON as fingers
could be pinched or the wipers and
wiper blades damaged when the
wipers activate automatically.
If you are going to clean the
windscreen, be sure the wipers are
turned off completely (when it is
most likely that the engine is left
running) this is particularly important
when clearing ice and snow.
NOTE
xSwitching the auto-wiper lever from
the OFF to the AUTO position while
driving activates the windscreen
wipers once, after which they
operate according to the rainfall
amount.
xThe auto-wiper control may not
operate when the rain sensor
temperature is about >+10 °C (14 °F)
or lower, or about 85 °C (185 °F) or
higher.
xIf the windscreen is coated with
water repellent, the rain sensor may
not be able to sense the amount of
rainfall correctly and the auto-wiper
control may not operate properly.
xIf dirt or foreign matter (such as ice
or matter containing salt water)
adheres to the windscreen above the
rain sensor, or if the windscreen is
iced, it could cause the wipers to
move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper
control will stop operation. In this
case, set the wiper lever to the low
speed position or high speed
position for manual operation, or
remove the ice, dirt or foreign matter
by hand to restore the auto-wiper
operation.
xIf the auto-wiper lever is left in the
AUTO position, the wipers could
operate automatically from the
effect
of strong light sources,
electromagnetic waves, or infrared
light because the rain sensor uses an
optical sensor. It is recommended
that the auto-wiper lever be
switched to the OFF position other
than when driving the vehicle under
rainy conditions.
xThe auto-wiper control functions can
be turned off.
When Driving
Switches and Controls
4-63

Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Windscreen Washer
Pull the wiper lever toward you to
spray washer fluid and operate the
windscreen wipers several times. The
washer fluid is sprayed only while the
windscreen wipers move out of their
stowed positions to the point where
they start reversing back.

1. OFF
2. Washer
NOTE
xIf the windscreen washer is turned
on when the windscreen wipers are
not operating, the windscreen
wipers operate a few times.
xIf you pull the wiper lever while the
windscreen wipers are reversing back
to their stowed positions, the next
time the washer
fluid is sprayed is
during the next cycle.
If the washer does not work, inspect
the fluid level (page 6-31). If the fluid
level is normal, consult an expert
repairer (we recommend an
Authorised Mazda Repairer).
Rear Window Wiper and
Washer
▼Rear Window Wiper and Washer
The ignition must be switched ON to
use the wiper.
▼Rear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
Switch Position Wiper operation
Spray washer fluid and op-
erate the rear wiper
Type A Type B
Normal
ON
Type A Type B
Intermittent
INT
OFF Stop
Spray washer fluid and op-
erate the rear wiper
▼Rear Window Washer
To spray washer fluid, turn the rear
wiper/washer switch to either of the
position. After the switch is
released, the washer will stop.
When Driving
Switches and Controls
4-64

NOTE
While the windscreen washers are
operating (from the time the wiper
lever is pulled until the washer fluid
stops spraying), the rear window
washer does not spray washer fluid
even if you operate the switch.
If the washer does not work, inspect
the fluid level (page 6-31). If the fluid
level is normal and the washer still
does not work, consult an expert
repairer (we recommend an
Authorised Mazda Repairer).Headlight Washer*
▼Headlight Washer
The engine must be started and the
headlights must be turned on.

If you want to operate headlight
washers, double
flick the wiper lever.

1. OFF
2. Washer
NOTE
xWhen the windscreen washer is
operated for the first time after
turning on the headlights, the
headlight washers operate
automatically.
xIf air enters the headlight washer
fluid pipe under conditions such as
when the vehicle is brand-new or
after an empty washer tank is
replenished with washer fluid,
washer fluid will not spray even
when the wiper lever is operated. If
this occurs, perform the following
procedure:
1. Start the engine.
2. Turn on the headlights.
3. Double flick the wiper lever
several times until the washer
fluid sprays.
When Driving
Switches and Controls
*Some models.4-65

Rear Window Defogger
▼Rear Window Defogger
The rear window defogger clears fog
from the rear window.

The ignition must be switched ON to
use the defogger.

Press the switch to turn on the rear
window defogger. The rear window
defogger operates for about 15
minutes and then turns
off
automatically.
The indicator light illuminates when
the defogger is operating.

To t u r n
off the rear window defogger
before the 15 minutes has elapsed,
press the switch again.
1. Indicator light
CAUTION
¾Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defogger grid inside the window.
NOTE
xThis defogger is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defogger.
xThe rear window defogger operation
time can be changed from 15
minutes to continuous operation.
When the operation time has been
switched to continuous operation,
by pressing the switch, the rear
window defogger will continue to
operate until the ignition is switched
OFF.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Windscreen Wiper De-icer*
The thermal filaments at the following
positions heat up and facilitate the
removal of snow accumulated on the
windscreen.
Left-Hand Drive Model
Right-Hand Drive Model
When Driving
Switches and Controls
4-66*Some models.
