▼Select Mode Indicator Light
When the sport mode is selected, the
select mode indicator light turns on in
the instrument cluster.
1. Select mode indicator light
NOTE
If the drive selection cannot be
switched to sport mode, the select
mode indicator light
flashes to notify
the driver.
When Driving
Drive Selection
4-91

i-ACTIV AWD Operation
▼i-ACTIV AWD Operation
AWD provides excellent drivability on
snow-covered and ice-packed roads,
sand and mud, as well as on steep
slopes and other slippery surfaces.
A system malfunction or operation
conditions are indicated by a warning.
Refer to AWD Warning Indication/
Warning Light on page 7-56.
WARNING
Never spin a wheel that is off the
ground:
Spinning a wheel that is off the ground
as a result of the vehicle being stuck or
in a ditch is dangerous. The drive
assembly could be seriously damaged
which could lead to an accident or
could even lead to overheating, oil
leakage, and a
fire.
▼AWD Driving
This vehicle has not been designed for
the purpose of off-road driving or
rallies. Do not attempt to drive over
uneven or rocky surfaces, or across
rivers.
Although this vehicle is equipped with
AWD, acceleration, steering and
braking operations should be
conducted in the same manner as with
a non-AWD vehicle, with the emphasis
placed on safe driving.
▼Ty re s a n d Ty re C h a i n s
The condition of the tyres plays a large
role in the performance of the vehicle.
Moreover, to prevent adverse effects to
the drive assembly, please note the
following:
Ty re s
xWhen replacing tyres, always replace
all front and rear tyres at the same
time.
xAll tyres must be of the same size,
manufacture, brand and tread
pattern. Pay particular attention
when equipping snow or other types
of winter tyres.
xDo not mix tread-worn tyres with
normal tyres.
xInspect tyre
inflation pressures at the
specified periods adjust to the
specified pressures.
NOTE
Check the tyre
inflation pressure label
attached to driver's door frame for the
correct tyre
inflation pressure.
xMake sure to equip the vehicle with
genuine tyres of the specified size,
on all wheels. With AWD, the system
is calibrated for all 4 wheels being of
the same dimensions.
Tyre chains
xInstall tyre chains to the front tyres.xDo not use tyre chains on the rear
wheels.
xDo not drive the vehicle faster than
30 km/h (19 mph) with the tyre
chains installed.
xDo not drive the vehicle with tyre
chains on road conditions other than
snow or ice.
▼To w i n g
If the vehicle requires towing, have it
towed with all 4 wheels completely
off
the ground.
Refer to Towing Description on page
7-46.
When Driving
i-ACTIV AWD
4-92

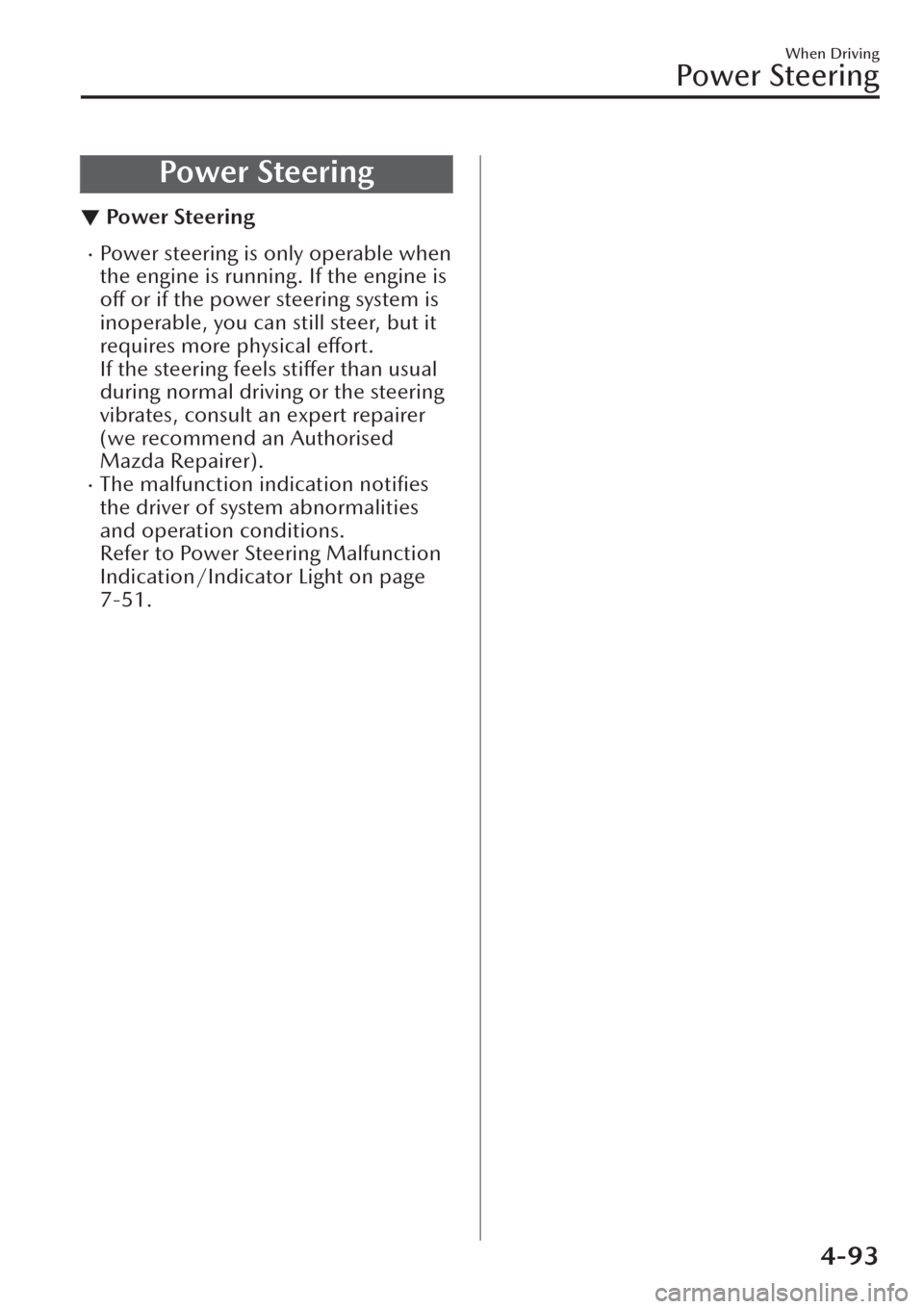

Power Steering
▼Power Steering
xPower steering is only operable when
the engine is running. If the engine is
off or if the power steering system is
inoperable, you can still steer, but it
requires more physical
effort.
If the steering feels stiffer than usual
during normal driving or the steering
vibrates, consult an expert repairer
(we recommend an Authorised
Mazda Repairer).
xThe malfunction indication notifies
the driver of system abnormalities
and operation conditions.
Refer to Power Steering Malfunction
Indication/Indicator Light on page
7-51.
When Driving
Power Steering
4-93

i-ACTIVSENSE
▼i-ACTIVSENSE
i-ACTIVSENSE is a collective term
covering a series of advanced safety
and driver support systems which
make use of cameras and sensors. The
systems consist of active safety and
pre-crash safety systems.
These systems are designed to assist
the driver in safer driving by reducing
the load on the driver and helping to
avert collisions or reduce their severity.
However, because each system has its
limitations, always drive carefully and
do not rely solely on the systems.
▼Active Safety Technology
Active Safety Technology supports safer
driving by helping the driver to
recognise potential hazards and avert
accidents.
Driver awareness support systems
Nighttime visibility
Adaptive Front Lighting System
(AFS).................................. page 4-98
Adaptive LED Headlights (ALH) ...........
........................................ page 4-101
High Beam Control System
(HBC).................................page 4-99
Left/right side and rear side detection
Lane Departure Warning System
(LDWS)............................ page 4-103
Blind Spot Monitoring (BSM)...............
........................................ page 4-106
Road sign recognition
Tra ffi c Sign Recognition System
(TSR)................................ page 4-111
Inter-vehicle distance recognition
Distance & Speed Alert (DSA) .............
........................................ page 4-118
Front obstruction detection when
approaching a crosswalk
Front Cross Traffic Alert (FCTA) ............
........................................ page 4-123
Rear obstruction detection when
leaving a parking space
Rear Cross Traffic Alert (RCTA) .............
........................................ page 4-126
Full-surround recognition
360°View Monitor............ page 4-185
Driver fatigue detection
Driver Attention Alert (DAA) ...............
........................................ page 4-119
Driver Monitoring (DM).... page 4-121
Driver support systems
Inter-vehicle distance
Mazda Radar Cruise Control
(MRCC)........................... page 4-130
Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go
function).......................... page 4-139
Lane departure
Lane-keep Assist System (LAS) .............
........................................ page 4-162
Inter-vehicle distance and lane
keeping
Cruising & Traffic Support (CTS)...........
........................................ page 4-148
Speed control
Adjustable Speed Limiter (ASL) ............
........................................ page 4-166
Intelligent Speed Assistance
(ISA)................................ page 4-170
▼Pre-Crash Safety Technology
Pre-crash safety technology is designed
to assist the driver in averting collisions
When Driving
i-ACTIVSENSE
4-94

or reducing their severity in situations
where they cannot be avoided.
Collision damage reduction
Forward driving
Smart Brake Support (SBS) ..................
........................................ page 4-175
Reverse driving
Smart Brake Support [Rear]
(SBS-R).............................page 4-177
Smart Brake Support [Rear Crossing] (S
BS-RC)............................. page 4-181
▼Camera and Sensors
Forward Sensing Camera (FSC)
The Forward Sensing Camera (FSC)
detects lane indications and recognises
headlights, tail lights and city lights
during nighttime driving. In addition, it
also detects the vehicle ahead,
pedestrians, or obstructions. The
following systems use the Forward
Sensing Camera (FSC).
xHigh Beam Control system (HBC)xAdaptive LED Headlights (ALH)xLane Departure Warning System
(LDWS)
xTra ffi c Sign Recognition System (TSR)xDistance & Speed Alert (DSA)xDriver Attention Alert (DAA)xMazda Radar Cruise Control
(MRCC)
xMazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)
xLane-keep Assist System (LAS)xCruising &
Tra ffi c Support (CTS)xSmart Brake Support (SBS)
The Forward Sensing Camera (FSC) is
installed at the top of the windscreen
near the rearview mirror.
Refer to Forward Sensing Camera
(FSC) on page 4-216.
Front radar sensor
The front radar sensor detects radio
waves reflected off a vehicle ahead
sent from the radar sensor. The
following systems use the front radar
sensor.
xDistance & Speed Alert (DSA)xMazda Radar Cruise Control
(MRCC)
xMazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)
xCruising & Traffic Support (CTS)xSmart Brake Support (SBS)
The front radar sensor is mounted
behind the radiator grille.
Refer to Front Radar Sensor on page
4-220.
Front side radar sensor
The front side radar sensors detects
radio waves reflected off a vehicle
ahead sent from the radar sensor. The
following systems use the front side
radar sensor.
xFront Cross Traffic Alert (FCTA)
The front side radar sensors are
installed inside the front bumper, one
on the left side and one on the right
side.
Refer to Front Side Radar Sensor on
page 4-222.
Rear side radar sensor
The rear side radar sensors emit radio
waves and detect the radio waves
reflected off a vehicle approaching
from the rear or an obstruction. The
following systems use the rear side
radar sensor.
xBlind Spot Monitoring (BSM)xRear Cross Traffic Alert (RCTA)
When Driving
i-ACTIVSENSE
4-95

xSmart Brake Support [Rear Crossing]
(SBS-RC)
The rear side radar sensors are installed
inside the rear bumper, one on the left
side and one on the right side.
Refer to Rear Side Radar Sensor on
page 4-224.
Rear/rear corner/rear side ultrasonic
sensor
The ultrasonic sensor detects ultrasonic
waves
reflected
off obstructions at the
rear sent from the ultrasonic sensors.
The following systems use the
ultrasonic sensor.
xSmart Brake Support [Rear] (SBS-R)xSmart Brake Support [Rear Crossing]
(SBS-RC)
The ultrasonic sensors are mounted in
the rear bumper.
Refer to Rear/Rear corner/Rear Side
Ultrasonic Sensor on page 4-225.
Front camera/side cameras/rear
camera
The front camera, side cameras, and
rear camera shoot images of the area
surrounding the vehicle. The 360°View
Monitor uses each camera.
Cameras are installed to the front
bumper, door mirrors, and liftgate.
Refer to Front Camera/Side Cameras/
Rear Camera on page 4-226.
Driver monitoring camera
The driver monitoring camera detects
changes in the driver's facial features
and estimates the amount of
accumulated fatigue and sleepiness of
the driver. The following systems use
the driver monitoring camera.
xDriver Monitoring (DM)
The driver monitoring camera is
mounted in the centre display.
Refer to Driver Monitoring Camera on
page 4-226.
▼i-ACTIVSENSE Status Symbol
(Warning/Risk Avoidance Support
System)
The system notifies the driver of any of
the following system status using the
colour or OFF indication of the
i-ACTIVSENSE status symbol
(Warning/risk avoidance support
system).
xLane Departure Warning System
(LDWS)
xBlind Spot Monitoring (BSM)xDistance & Speed Alert (DSA)xFront Cross Traffic Alert (FCTA)xRear Cross Traffic Alert (RCTA)xLane-keep Assist System (LAS)
NOTE
The status of the system turned on
using the personalisation feature is
displayed.
i-ACTIVSENSE status symbol
(warning/risk avoidance support
system) (white)
System stand-by status
If none of the systems are activated or
if there is a problem with the system,
the i-ACTIVSENSE status symbol
(warning/risk avoidance support
system) (white) is displayed.
When Driving
i-ACTIVSENSE
4-96

NOTE
For example, even when the Blind Spot
Monitoring (BSM) is operating
normally, if the Lane Departure
Warning System (LDWS) has a
problem, the i-ACTIVSENSE status
symbol (warning/risk avoidance
support system) (white) is displayed.
i-ACTIVSENSE status symbol
(warning/risk avoidance support
system) (green)
System activated status
If any one of the systems is activated,
the i-ACTIVSENSE status symbol
(warning/risk avoidance support
system) (green) is displayed.
NOTE
Even if the i-ACTIVSENSE status symbol
(warning/risk avoidance support
system) (green) is displayed, systems
which do not meet the operation
conditions will not operate.
i-ACTIVSENSE status symbol
(warning/risk avoidance support
system) (amber)
System warning status
If any system warning is activated, the
i-ACTIVSENSE status symbol (warning/
risk avoidance support system)
(amber) is displayed.
i-ACTIVSENSE OFF symbol (warning/
risk avoidance support system)
System OFF status
If all the systems are cancelled using
the personalisation features or the
i-ACTIVSENSE switch, the
i-ACTIVSENSE OFF symbol (Warning/
risk avoidance support system) is
displayed.
▼i-ACTIVSENSE Switch
When the i-ACTIVSENSE switch is
pressed, the following systems are
cancelled and the i-ACTIVSENSE OFF
symbol (Warning/risk avoidance
support system) in the instrument
cluster is displayed.
xLane Departure Warning System
(LDWS)
xBlind Spot Monitoring (BSM)xDistance & Speed Alert (DSA)xFront Cross Traffic Alert (FCTA)xRear Cross Traffic Alert (RCTA)xLane-keep Assist System (LAS)
When Driving
i-ACTIVSENSE
4-97

i-ACTIVSENSE OFF symbol (Warning/
risk avoidance support system)
If the i-ACTIVSENSE switch is pressed
again, the systems return to their
original operation status and the
i-ACTIVSENSE OFF symbol (Warning/
risk avoidance support system) turns
off.
If the ignition is switched OFF while
you have cancelled the systems using
the i-ACTIVSENSE switch, the systems
are automatically enabled the next
time the ignition is switched ON.
However, if the systems are cancelled
using the personalisation features, the
systems are not automatically enabled.
NOTE
xFor the systems which can be
cancelled using the i-ACTIVSENSE
switch, they cannot be cancelled
when the following systems are
operating, even if you press the
i-ACTIVSENSE switch.
xMazda Radar Cruise Control
(MRCC)
xMazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)
xCruising &
Tra ffi c Support (CTS)xYou can select systems you want to
cancel using the personalisation
features.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
Adaptive Front Lighting
System (AFS)
*
▼Adaptive Front Lighting System
(AFS)
The adaptive front lighting system
(AFS) automatically adjusts the
headlight beams to the left or right in
conjunction with the operation of the
steering wheel after the headlights
have been turned on and the vehicle
speed is about 2 km/h (2 mph) or
higher.
A system malfunction or operation
conditions are indicated by a warning.
Refer to Exterior Light Warning
Indication/Warning Light on page
7-58.
NOTE
xHeadlights do not blind drivers
approaching in the opposite
direction no matter what side of the
road you must drive your vehicle
(left-hand or right-hand traffic).
Therefore, it is not necessary to
adjust the optical axis of the
headlights when switching
temporarily to driving on the
opposite side of the road (left-hand
or right-hand
traffic).
xThe Adaptive Front Lighting System
(AFS) can be switched to enable/
disable using the personalisation
function.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
When Driving
i-ACTIVSENSE
4-98*Some models.
