Customer Information
Electromagnetic Compatibility
8-67

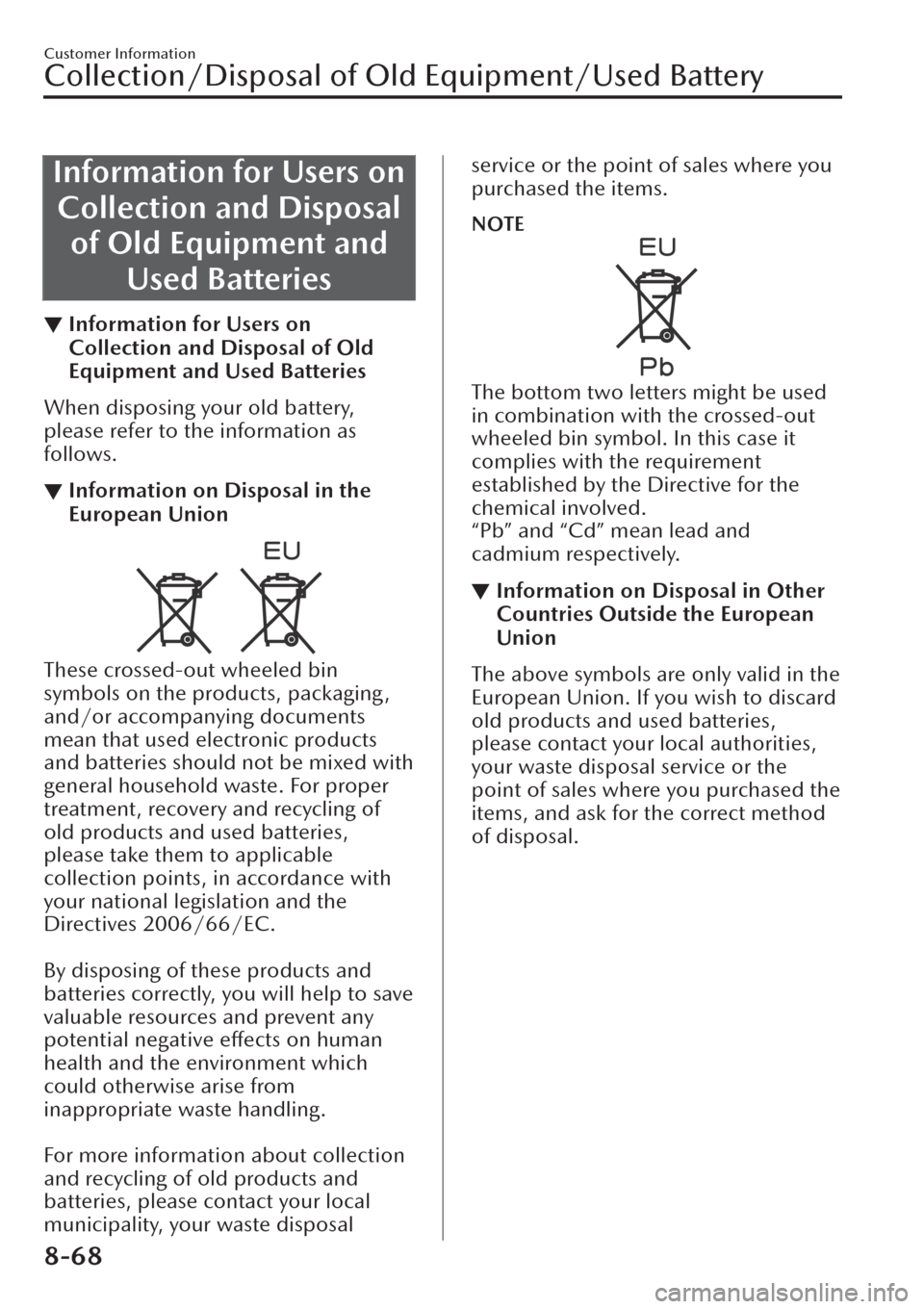

Information for Users on
Collection and Disposal
of Old Equipment and
Used Batteries
▼Information for Users on
Collection and Disposal of Old
Equipment and Used Batteries
When disposing your old battery,
please refer to the information as
follows.
▼Information on Disposal in the
European Union
These crossed-out wheeled bin
symbols on the products, packaging ,
and/or accompanying documents
mean that used electronic products
and batteries should not be mixed with
general household waste. For proper
treatment, recovery and recycling of
old products and used batteries,
please take them to applicable
collection points, in accordance with
your national legislation and the
Directives 2006/66/EC.

By disposing of these products and
batteries correctly, you will help to save
valuable resources and prevent any
potential negative effects on human
health and the environment which
could otherwise arise from
inappropriate waste handling.

For more information about collection
and recycling of old products and
batteries, please contact your local
municipality, your waste disposal
service or the point of sales where you
purchased the items.
NOTE
The bottom two letters might be used
in combination with the crossed-out
wheeled bin symbol. In this case it
complies with the requirement
established by the Directive for the
chemical involved.
“Pb” and “Cd” mean lead and
cadmium respectively.
▼Information on Disposal in Other
Countries Outside the European
Union
The above symbols are only valid in the
European Union. If you wish to discard
old products and used batteries,
please contact your local authorities,
your waste disposal service or the
point of sales where you purchased the
items, and ask for the correct method
of disposal.
Customer Information
Collection/Disposal of Old Equipment/Used Battery
8-68

9Specifications
Technical information about your Mazda.
Identification Numbers.............. 9-2
Vehicle Information Labels...........
............................................ 9-2
Specifications........................... 9-4
Specifications........................ 9-4
9-1

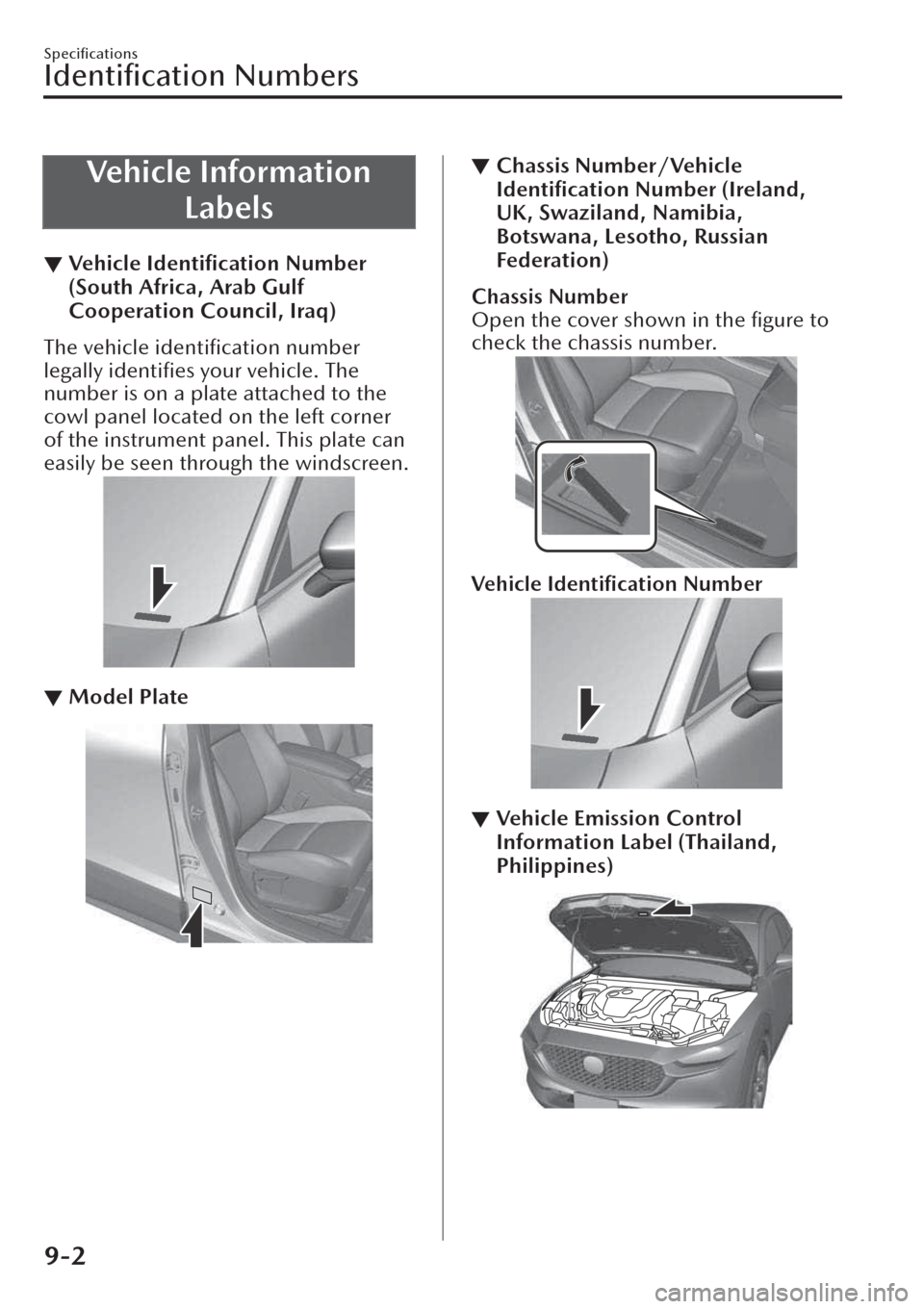

Vehicle Information
Labels
▼Ve h i c l e
Identification Number
(South Africa, Arab Gulf
Cooperation Council, Iraq)
The vehicle identification number
legally identifies your vehicle. The
number is on a plate attached to the
cowl panel located on the left corner
of the instrument panel. This plate can
easily be seen through the windscreen.
▼Model Plate
▼Chassis Number/Vehicle
Identification Number (Ireland,
UK, Swaziland, Namibia,
Botswana, Lesotho, Russian
Federation)
Chassis Number
Open the cover shown in the figure to
check the chassis number.
Vehicle Identification Number
▼Vehicle Emission Control
Information Label (Thailand,
Philippines)
Specifications
Identification Numbers
9-2

▼Tyre Pressure Label
Left-hand drive model
Right-hand drive model
▼Engine Number
SKYACTIV-G 2.0, SKYACTIV-G 2.5
1. Forward

SKYACTIV-X 2.0
1. Forward

SKYACTIV-D 1.8
1. Forward

▼Conformity Plate (Arab Gulf
Cooperation Council, Iraq)
Production year and month are shown
on this plate.

Specifications
Identification Numbers
9-3

Specifications
▼Engine
Petrol engine
ItemSpecification
SKYACTIV-G 2.0 SKYACTIV-G 2.5 SKYACTIV-X 2.0
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke83.5 × 91.2 mm (3.29 ×
3.59 in)89.0 × 100 mm (3.50 ×
3.94 in)83.5 × 91.2 mm (3.29 ×
3.59 in)
Displacement 1,998 ml (1,998 cc) 2,488 ml (2,488 cc) 1,998 ml (1,998 cc)
Compression ratio 13.0 13.0 16.3
Arab Gulf Cooperation Council
ItemSpecification
SKYACTIV-G 2.0 SKYACTIV-X 2.0
FWD AWD FWD AWD
Maximum engine
power/revolution114 kW/6,000 rpm 132 kW/6,000 rpm
Maximum engine
torque/revolution200 N>ƒm/4,000 rpm 224 N>ƒm/4,000 rpm
Maximum speed194 km/h (121
mph)192 km/h (119
mph)202 km/h (126
mph)201 km/h (125
mph)
Diesel engine
ItemSpecification
SKYACTIV-D 1.8
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 79.0 × 89.7 mm (3.11 × 3.53 in)
Displacement 1,759 ml (1,759 cc)
Compression ratio 14.8
▼Electrical System
Battery*1
(With M Hybrid)
Classification Specification
SKYACTIV-G 2.0, SKYACTIV-X 2.0 12V-60Ah/20HR or 12V-65Ah/20HR
Specifications
Specifications
9-4

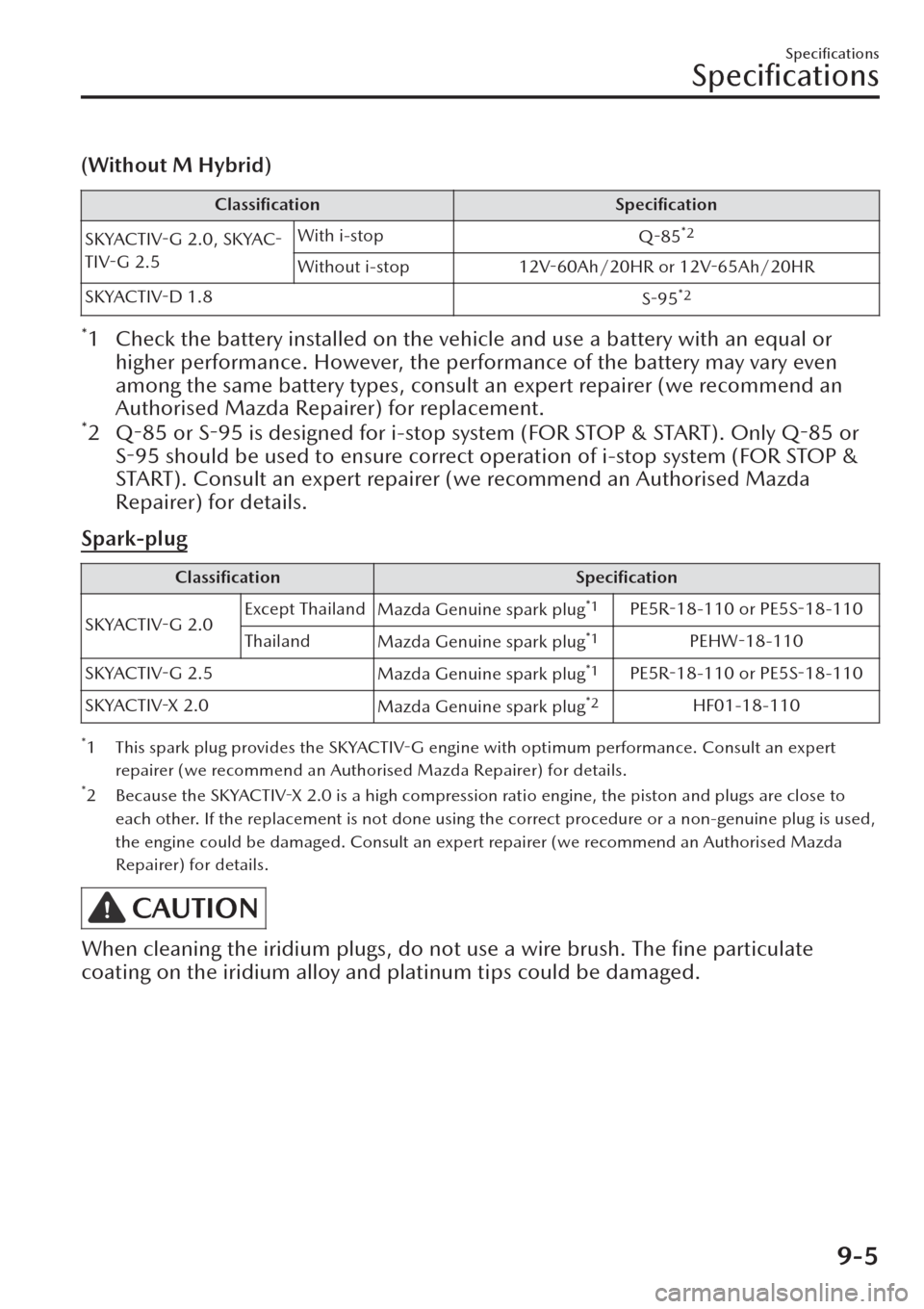

(Without M Hybrid)
Classification Specification
SKYACTIV-G 2.0,
SKYAC-
TIV-G 2.5With i-stop
Q-85
*2
Without i-stop 12V-60Ah/20HR or 12V-65Ah/20HR
SKYACTIV-D 1.8
S-95
*2
*1 Check the battery installed on the vehicle and use a battery with an equal or
higher performance. However, the performance of the battery may vary even
among the same battery types, consult an expert repairer (we recommend an
Authorised Mazda Repairer) for replacement.
*2
Q-85 or
S-95 is designed for i-stop system (FOR STOP & START). Only
Q-85 or
S-95 should be used to ensure correct operation of i-stop system (FOR STOP &
START). Consult an expert repairer (we recommend an Authorised Mazda
Repairer) for details.
Spark-plug
Classification Specification
SKYACTIV-G 2.0Except Thailand
Mazda Genuine spark plug
*1PE5R-18-110 or PE5S-18-110
Thailand
Mazda Genuine spark plug
*1PEHW-18-110
SKYACTIV-G 2.5
Mazda Genuine spark plug
*1PE5R-18-110 or PE5S-18-110
SKYACTIV-X 2.0
Mazda Genuine spark plug
*2HF01-18-110
*1 This spark plug provides the SKYACTIV-G engine with optimum performance. Consult an expert
repairer (we recommend an Authorised Mazda Repairer) for details.
*2 Because the SKYACTIV-X 2.0 is a high compression ratio engine, the piston and plugs are close to
each other. If the replacement is not done using the correct procedure or a non-genuine plug is used,
the engine could be damaged. Consult an expert repairer (we recommend an Authorised Mazda
Repairer) for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
Specifications
Specifications
9-5

▼Lubricant Quality
Engine oil*1Europe and Taiwan Except Europe and Taiwan
SKYACTIV-G 2.0,
SKYACTIV-G 2.5Recommended Oils
*2Oil Quality
Mazda Original Oil Supra-X 0W-20
API SL or higher, or
ILSAC GF-III or higher Mazda Original Oil Ultra 5W-30
Alternative Oil Quality
*3
API SN*4 or higher, or ACEA
A5/B50W-20
5W-30
SKYACTIV-X 2.0Recommended Oils
*2Oil Quality
Mazda Original Oil Supra-X 0W-20
API SN or higher
Alternative Oil Quality
*3
API SN or higher 0W-20
SKYACTIV-D 1.8Recommended Oils
*2Oil Quality
Mazda Original Oil Supra DPF 0W-30
ACEA C3
0W-30/5W-30 Mazda Original Oil Ultra DPF 5W-30
Alternative Oil Quality
*3
ACEA C30W-30
5W-30
*1 Refer to Recommended Oil on page 6-24.*2 Mazda Original Oils are specially designed/tested for the respective engine. For optimum
performance we recommend to use Mazda Original Oils at all times.
*3 If you are unable to find a Mazda Original Oil, alternative oils meeting the listed specification may
also be used.
*4 Use API SM or higher in Kazakhstan.
Do not use oils which do not meet the above specification or requirements. Use of unsuitable oil may
lead to engine damage which is not covered by the Mazda Warranty.
Lubricant Classification
Coolant FL-22 type
Manual transmission oil
Mazda Long Life Gear Oil G7
*1
Automatic transmission
fluidSKYACTIV-G 2.0, SKYAC-
TIV-G 2.5, SKYACTIV-D
1.8Mazda Original Oil ATF-FZ
SKYACTIV-X 2.0 Mazda Original Oil ATF-A7
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Specifications
Specifications
9-6
