surface. When backing up near an overhanging object, confirm the rear and
surrounding conditions directly with your eyes.
1. (Screen display)
2. (Actual view)
When Driving
Rear View Monitor
4-251

Parking Sensor System*
▼Parking Sensor System
The parking sensors use ultrasonic sensors which detect obstructions around the
vehicle when the vehicle is driven at low speeds, such as during garage or parallel
parking, and a buzzer sound and detection indicator notify the driver of the
approximate distance from the vehicle to the surrounding obstruction.

1. Front ultrasonic sensor*
2. Front corner ultrasonic sensor*
3. Rear ultrasonic sensor
4. Rear corner ultrasonic sensor
5. Rear side ultrasonic sensor
*
WARNING
Do not rely completely on the parking sensor system and be sure to
confirm the
safety around your vehicle visually when driving:
This system can assist the driver in operating the vehicle in the forward and
backward directions while parking. The detection ranges of the sensors are limited,
therefore, driving the vehicle while relying only on the system may cause an
accident. Always
confirm the safety around your vehicle visually when driving.
CAUTION
¾Do not install any accessories within the detection ranges of the sensors. It may
affect the system operation.
¾Depending on the type of obstruction and the surrounding conditions, the
detection range of a sensor may narrow, or the sensors may not be able to detect
obstructions.
NOTE
xThe system may not operate normally under the following conditions:
xMud, ice, or snow is adhering to the sensor area (Returns to normal operation
when removed).
When Driving
Parking Sensor System
4-252*Some models.

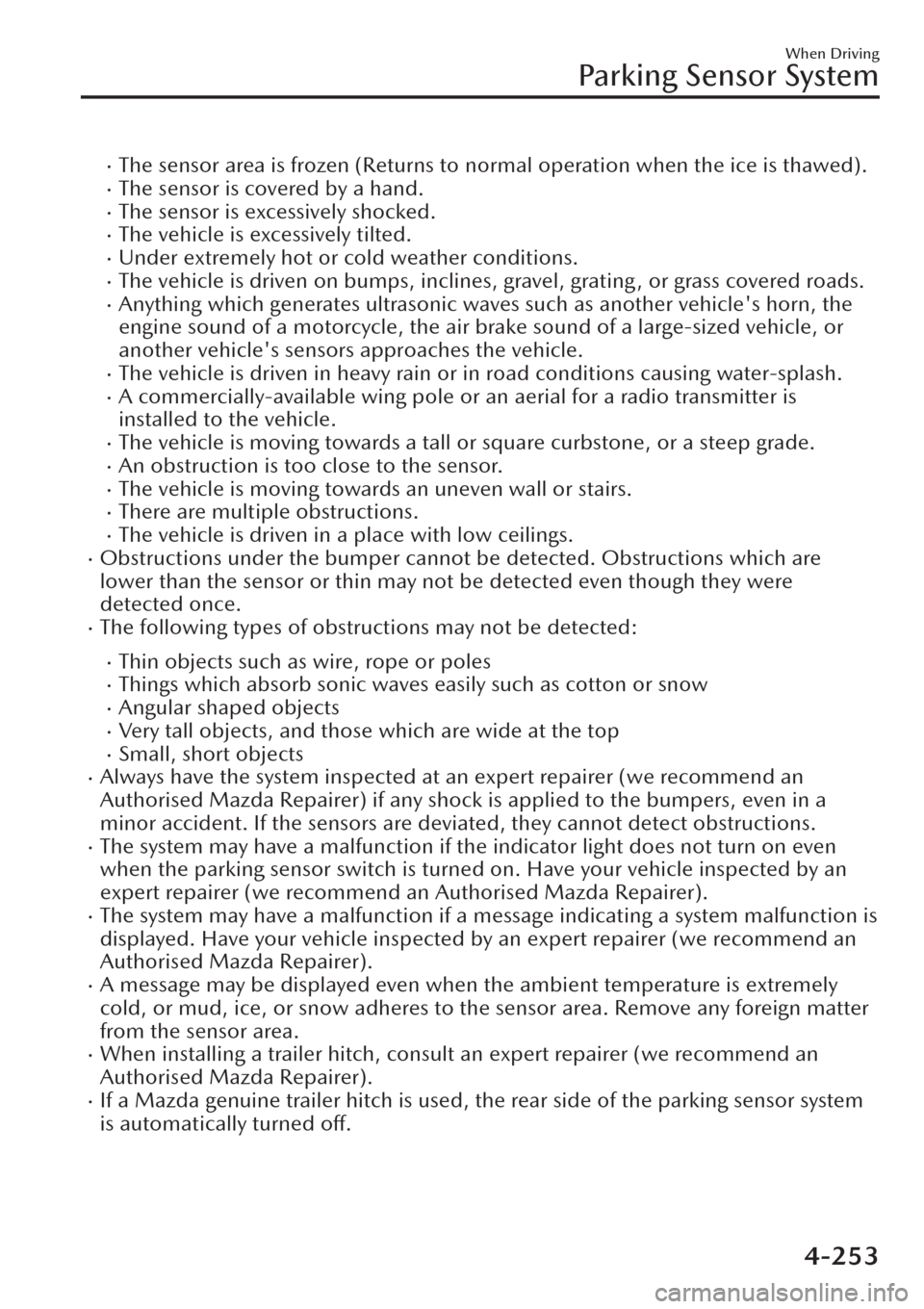

xThe sensor area is frozen (Returns to normal operation when the ice is thawed).xThe sensor is covered by a hand.xThe sensor is excessively shocked.xThe vehicle is excessively tilted.xUnder extremely hot or cold weather conditions.xThe vehicle is driven on bumps, inclines, gravel, grating , or grass covered roads.xAnything which generates ultrasonic waves such as another vehicle's horn, the
engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or
another vehicle's sensors approaches the vehicle.
xThe vehicle is driven in heavy rain or in road conditions causing water-splash.xA commercially-available wing pole or an aerial for a radio transmitter is
installed to the vehicle.
xThe vehicle is moving towards a tall or square curbstone, or a steep grade.xAn obstruction is too close to the sensor.xThe vehicle is moving towards an uneven wall or stairs.xThere are multiple obstructions.xThe vehicle is driven in a place with low ceilings.xObstructions under the bumper cannot be detected. Obstructions which are
lower than the sensor or thin may not be detected even though they were
detected once.
xThe following types of obstructions may not be detected:
xThin objects such as wire, rope or polesxThings which absorb sonic waves easily such as cotton or snowxAngular shaped objectsxVery tall objects, and those which are wide at the topxSmall, short objectsxAlways have the system inspected at an expert repairer (we recommend an
Authorised Mazda Repairer) if any shock is applied to the bumpers, even in a
minor accident. If the sensors are deviated, they cannot detect obstructions.
xThe system may have a malfunction if the indicator light does not turn on even
when the parking sensor switch is turned on. Have your vehicle inspected by an
expert repairer (we recommend an Authorised Mazda Repairer).
xThe system may have a malfunction if a message indicating a system malfunction is
displayed. Have your vehicle inspected by an expert repairer (we recommend an
Authorised Mazda Repairer).
xA message may be displayed even when the ambient temperature is extremely
cold, or mud, ice, or snow adheres to the sensor area. Remove any foreign matter
from the sensor area.
xWhen installing a trailer hitch, consult an expert repairer (we recommend an
Authorised Mazda Repairer).
xIf a Mazda genuine trailer hitch is used, the rear side of the parking sensor system
is automatically turned
off.
When Driving
Parking Sensor System
4-253

▼Sensor Detection Range
The sensors detect obstructions within the following range.

1. Front ultrasonic sensor detection range
2. Rear corner/Rear side ultrasonic sensor detection range
3. Rear ultrasonic sensor detection range
4. Front corner ultrasonic sensor detection range
A: About 55.0 cm (About 21.6 in)
B: About 150 cm (About 59.0 in)
C: About 100 cm (About 39.3 in)

Viewing distance display
DisplayDistance between vehicle and obstruc-
tion
Without 360° view monitor
With 360° view
monitorFront ultrasonic
sensor
*/Front cor-
ner ultrasonic sen-
sor
*
Rear ultrasonic sen-
sor/Rear corner ul-
trasonic sensor/
Rear side ultrasonic
sensor
*
Without front ul-
trasonic sensor
and front corner
ultrasonic sensorWith front ultra-
sonic sensor and
front corner ultra-
sonic sensor
Green
Front ultrasonic sen-
sor:
Approx. 100Š60.0
cm (39.3Š23.6 in)Rear ultrasonic sen-
sor:
Approx. 150Š60.0
cm (59.0Š23.6 in)
When Driving
Parking Sensor System
4-254*Some models.

DisplayDistance between vehicle and obstruc-
tion
Without 360° view monitor
With 360° view
monitorFront ultrasonic
sensor
*/Front cor-
ner ultrasonic sen-
sor
*
Rear ultrasonic sen-
sor/Rear corner ul-
trasonic sensor/
Rear side ultrasonic
sensor
*
Without front ul-
trasonic sensor
and front corner
ultrasonic sensorWith front ultra-
sonic sensor and
front corner ultra-
sonic sensor
YellowFront ultrasonic sen-
sor:
Approx. 60.0Š45.0
cm (23.6Š17.7 in)
Front corner ultra-
sonic sensor:
Approx. 55.0Š38.0
cm (21.6Š14.9 in)Rear ultrasonic sen-
sor:
Approx. 60.0Š45.0
cm (23.6Š17.7 in)
Rear corner ultra-
sonic sensor/Rear
side ultrasonic sen-
sor:
Approx. 55.0Š38.0
cm (21.6Š14.9 in)
AmberFront ultrasonic sen-
sor:
Approx. 45.0Š35.0
cm (17.7Š13.7 in)
Front corner ultra-
sonic sensor:
Approx. 38.0Š25
cm (14.9Š9.8 in)Rear ultrasonic sen-
sor:
Approx. 45.0Š35.0
cm (17.7Š13.7 in)
Rear corner ultra-
sonic sensor/Rear
side ultrasonic sen-
sor:
Approx. 38.0Š25
cm (14.9Š9.8 in)
RedFront ultrasonic sen-
sor:
Within approx. 35.0
cm (13.7 in)
Front corner ultra-
sonic sensor:
Within approx. 25
cm (9.8 in)Rear ultrasonic sen-
sor:
Within approx. 35.0
cm (13.7 in)
Rear corner ultra-
sonic sensor/Rear
side ultrasonic sen-
sor:
Within approx. 25
cm (9.8 in)
▼Park Assist Sensor System
Operation
When the parking sensor switch is
pressed with the ignition switched ON,
the indicator light turns on.
When the ignition is switched ON with
the parking sensor activated, the
indicator light turns on.
When Driving
Parking Sensor System
*Some models.4-255

Press the switch again to stop the
operation.
1. Indicator light
NOTE
When the ignition is switched OFF, the
system status before it was turned off is
maintained. For example, if the
ignition is switched OFF while the
parking sensor is activated, the system
will be activated when the ignition is
switched ON the next time.
Operation conditions
The parking sensor system can be used
when all of the following conditions
are met:
xThe ignition is switched ON.xThe parking sensor switch is turned
on.
NOTE
x(Automatic vehicle)
The detection indicator and buzzer
of the front sensors/front corner
sensors do not operate when the
selector lever is in the P position.
xThe detection indicator and buzzer
sound do not activate when the
parking brake is applied.
▼Obstruction Detection Indication
The position of a sensor which has
detected an obstruction is indicated.
The gauge illuminates in different areas
depending on the distance to an
obstruction detected by the sensor.
As the vehicle approaches closer to an
obstruction, the zone in the gauge
closer to the vehicle illuminates.
Without 360°view monitor
1. Front ultrasonic sensor gauge*
2. Right front corner ultrasonic sensor
gauge*
3. Right rear corner ultrasonic sensor
gauge/Right rear side ultrasonic
sensor gauge
*
4. Rear ultrasonic sensor gauge
5. Left rear corner ultrasonic sensor
gauge/Left rear side ultrasonic
sensor gauge
*
6. Left front corner ultrasonic sensor
gauge*
With 360°view monitor
1. Front ultrasonic sensor gauge
2. Right front corner ultrasonic sensor
gauge
When Driving
Parking Sensor System
4-256*Some models.

3. Right rear corner ultrasonic sensor
gauge/Right rear side ultrasonic
sensor gauge
*
4. Rear ultrasonic sensor gauge
5. Left rear corner ultrasonic sensor
gauge/Left rear side ultrasonic
sensor gauge
*
6. Left front corner ultrasonic sensor
gauge
NOTE
The detection indicator can switch
between display and non-display.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
System problem notification
The indication displays if the system
has a malfunction.
Without 360°view monitor
With 360°view monitor
Check the reason for the indication
displaying on the centre display or
multi-information display.
Refer to If a Warning Light Turns On or
Flashes on page 7-49.
When Driving
Parking Sensor System
*Some models.4-257

▼Parking Sensor Warning Beep
Informs the driver of the approximate distance from the vehicle to the obstruction
using warning beeps depending on the distance. If multiple obstructions are
detected at the same time, warning beeps are activated according to the distance to
the nearest obstruction. The warning beeps are activated as follows while the system
is operating. However, the warning beeps are not activated while the seat belt
reminder is operating.
Front ultrasonic sensor
*, Rear ultrasonic sensor
Distance De-
tection areaDistance between vehicle and obstruction
Beeper sound*1Front ultrasonic sensorRear ultrasonic sensor
Farthest dis-
tanceApprox. 100Š60.0 cm
(39.3Š23.6 in)
Approx. 150Š60.0 cm
(59.0Š23.6 in)
Slow intermittent
sound
Far distanceApprox. 60.0Š45.0 cm
(23.6Š17.7 in)
Approx. 60.0Š45.0 cm
(23.6Š17.7 in)
Medium intermit-
tent sound
Middle dis-
tanceApprox. 45.0Š35.0 cm
(17.7Š13.7 in)
Approx. 45.0Š35.0 cm
(17.7Š13.7 in)
Fast intermittent
sound
