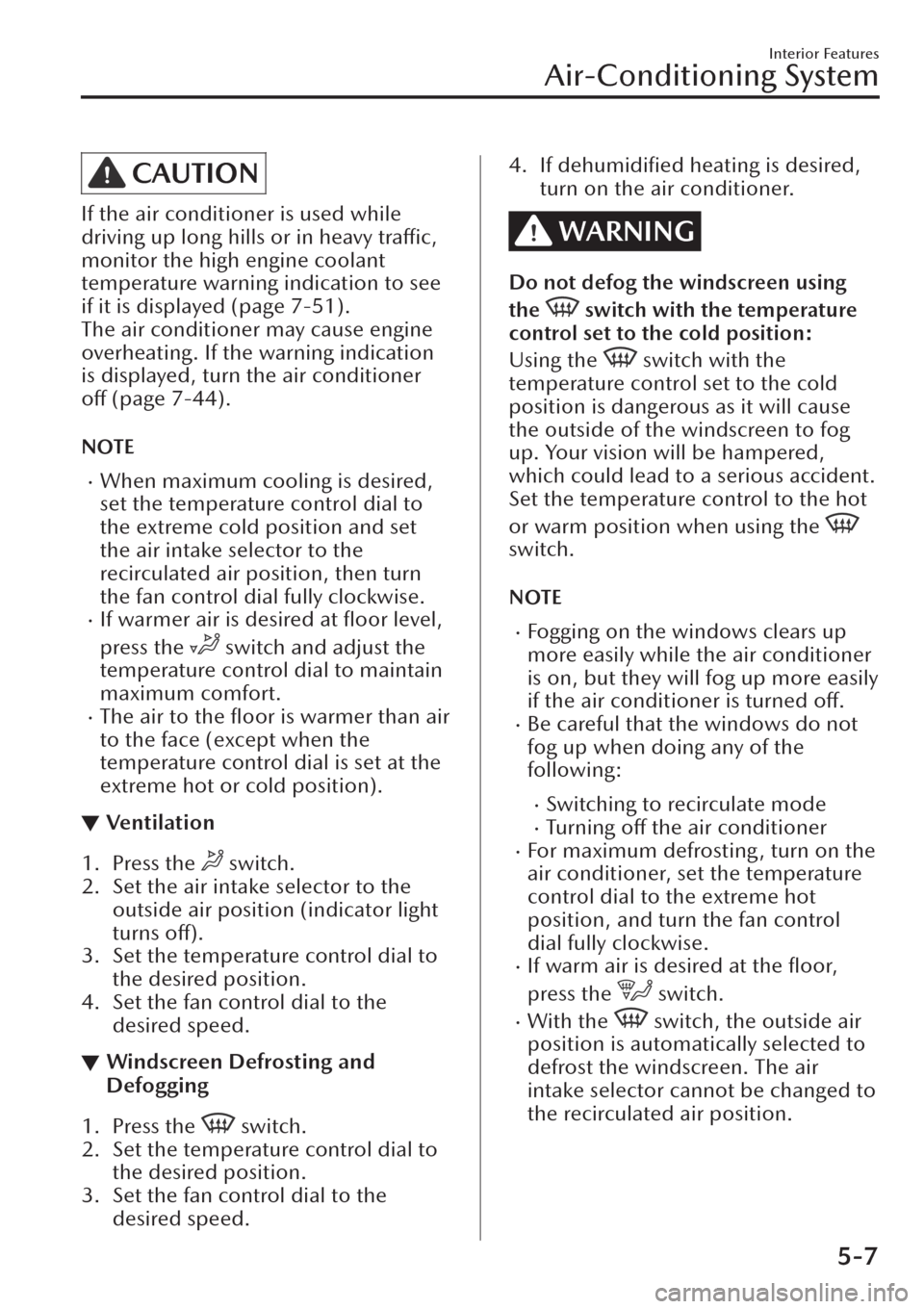

CAUTION
If the air conditioner is used while
driving up long hills or in heavy traffic,
monitor the high engine coolant
temperature warning indication to see
if it is displayed (page 7-51).
The air conditioner may cause engine
overheating. If the warning indication
is displayed, turn the air conditioner
off (page 7-44).
NOTE
xWhen maximum cooling is desired,
set the temperature control dial to
the extreme cold position and set
the air intake selector to the
recirculated air position, then turn
the fan control dial fully clockwise.
xIf warmer air is desired at
floor level,
press the
switch and adjust the
temperature control dial to maintain
maximum comfort.
xThe air to the floor is warmer than air
to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
▼Ventilation
1. Press the switch.
2. Set the air intake selector to the
outside air position (indicator light
turns off).
3. Set the temperature control dial to
the desired position.
4. Set the fan control dial to the
desired speed.
▼Windscreen Defrosting and
Defogging
1. Press the switch.
2. Set the temperature control dial to
the desired position.
3. Set the fan control dial to the
desired speed.
4. If dehumidified heating is desired,
turn on the air conditioner.
WARNING
Do not defog the windscreen using
the
switch with the temperature
control set to the cold position:
Using the
switch with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windscreen to fog
up. Your vision will be hampered,
which could lead to a serious accident.
Set the temperature control to the hot
or warm position when using the
switch.
NOTE
xFogging on the windows clears up
more easily while the air conditioner
is on, but they will fog up more easily
if the air conditioner is turned
off.
xBe careful that the windows do not
fog up when doing any of the
following:
xSwitching to recirculate modexTurning off the air conditionerxFor maximum defrosting , turn on the
air conditioner, set the temperature
control dial to the extreme hot
position, and turn the fan control
dial fully clockwise.
xIf warm air is desired at the floor,
press the
switch.
xWith the switch, the outside air
position is automatically selected to
defrost the windscreen. The air
intake selector cannot be changed to
the recirculated air position.
Interior Features
Air-Conditioning System
5-7

▼Dehumidifying
Operate the air conditioner in cool or
cold weather to help defog the
windscreen and side windows.
1. Press the desired mode switch you
want to set.
2. Set the air intake selector to the
outside air position (indicator light
turns off).
3. Set the temperature control dial to
the desired position.
4. Set the fan control dial to the
desired speed.
5. Turn on the air conditioner by
pressing the A/C switch.
NOTE
One of the functions of the air
conditioner is dehumidifying the air
and, to use this function, the
temperature does not have to be set to
cold. Therefore, set the temperature
control dial to the desired position
(hot or cold) and turn on the air
conditioner when you want to
dehumidify the cabin air.
Interior Features
Air-Conditioning System
5-8

Fully Automatic Type
▼Fully Automatic Type
Air-conditioning system information is displayed on the display.
1. Driver temperature control dial
2. AUTO switch
3. Temperature setting display (driver’s side)
4. Air intake display
5. Airflow display
6. Mode selector display
7. Temperature setting display (passenger’s side)
8. SYNC (synchronized temperature) switch
9. Passenger temperature control dial
10.A/C switch
11.Rear window defogger switch
12.Mode selector switch
13.Fan control switch
14.Air intake selector switch
15.Windscreen defroster switch
16.Power switch
▼Control Switches
AUTO switch
By pressing the AUTO switch the
following functions will be
automatically controlled in accordance
with the selected set temperature:
xAirflow temperaturexAmount of airflowxSelection of airflow modexOutside/Recirculated air selectionxAir conditioner operation
NOTE
AUTO switch indicator light
xWhen the AUTO switch indicator
light is on, it indicates auto
operation, and the system will
function automatically.
xIf any of the following switches are
operated while in auto control, the
AUTO switch indicator turns off.
xMode selector switchxFan control switchxWindscreen defroster switch
Interior Features
Air-Conditioning System
5-9

The functions for switches other
than those operated continue to
operate in auto control.
Power switch (System On/Off)
The air-conditioning system turns on or
off by pressing the power switch.
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and anticlockwise for
cold.
Turn the temperature control dial to
adjust the temperature between 15 °C
(60 °F) and 29 °C (84 °F).
xWhen the SYNC switch is on:
Turn the driver temperature control
dial to control the temperature
throughout the entire cabin.
xWhen the SYNC switch is off:
Turn the driver or front passenger
temperature control dial to
independently control the
temperature on each side of the
cabin.
NOTE
xThe air-conditioning system changes
to the individual operation mode
(SYNC switch indicator light turns
off) by turning the front passenger
temperature control dial even when
the SYNC switch is on, which allows
individual control of the set
temperature for the driver and front
passenger.
xWhen you set the temperature to the
lower or upper limit, “Lo” or “Hi” is
displayed.
xThe temperature units for the
temperature setting display can be
changed in conjunction with the
temperature units for the outside
temperature display.
Refer to Outside Temperature
Display on page 4-28.
Fan control switch
The fan has 7 speeds. The selected
speed will be displayed.
Mode selector switch
The desired
airflow mode can be
selected (page 5-4).
NOTE
xWith the airflow mode set to the
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and
air at a comparably lower
temperature will flow through the
central, left and right vents.
xTo set the air vent to , press the
windscreen defroster switch.
xIn the position, the outside air
position is automatically selected.
A/C switch
Pressing the A/C switch while the
AUTO switch is turned on will turn
off
the air conditioner (cooling/
dehumidifying functions).
The on/off of the air conditioner
switches each time the A/C switch is
pressed.
NOTE
xThe air conditioner operates when
the A/C switch is pressed while the
air conditioner is turned off.
xThe air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).
Air intake selector switch
Outside or recirculated air positions
can be selected. Press the switch to
select outside/recirculated air
positions.
Interior Features
Air-Conditioning System
5-10

Recirculated air position ()
Outside air is shut
off. Use this position
when going through tunnels, driving in
congested traffic (high engine exhaust
areas) or when quick cooling is
desired.
Outside air position (
)
Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windscreen defrosting.
WARNING
Do not recirculate the air in the cabin
during cold or rainy weather:
Recirculating the air in the cabin during
cold and rainy weather is dangerous as
it will cause the windows to fog up.
Your vision will be hampered, which
could lead to a serious accident.
SYNC (Synchronized Temperature)
switch
Use the SYNC switch to change the
mode between the individual
operation (driver and passenger) and
interconnection (simultaneous)
modes.
Interconnection mode (indicator light
turns on)
The set temperature for the driver and
front passenger is controlled
simultaneously.
Individual operation mode (indicator
light turns off)
The set temperature can be controlled
individually for the driver and front
passenger.
Windscreen defroster switch
Press the switch to defrost the
windscreen and front door windows.
Refer to Windscreen Defrosting and
Defogging on page 5-11.
Rear window defogger switch
Press the rear window defogger switch
to defrost the rear window.
Refer to Rear Window Defogger on
page 4-66.
▼Operation of Automatic Air
Conditioner
1. Press the AUTO switch. Selection of
the
airflow mode, air intake
selector and amount of
airflow will
be automatically controlled.
2. Use the temperature control dial to
select a desired temperature.
If you want to set the temperature
on the front passenger's side
separately from the driver's side,
turn the front passenger
temperature control dial to switch
the mode automatically to the
individual operation mode and set
the temperature for the front
passenger's side.
To turn off the system, press the power
switch.
NOTE
xSet the control dial to the
recommended temperature of 22 °C
(72 °F), and then adjust it as desired.
xSetting the temperature to maximum
hot or cold will not provide the
desired temperature at a faster rate.
xWhen selecting heat, the system will
restrict
airflow until the engine has
warmed to prevent cold air from
blowing out of the vents.
▼Windscreen Defrosting and
Defogging
Press the windscreen defroster switch.
In this position, the outside air position
is automatically selected, and the air
Interior Features
Air-Conditioning System
5-11

conditioner automatically turns on.
The air conditioner will directly
dehumidify the air to the front
windscreen and side windows on page
5-4.
Airflow amount will be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging
(
position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windscreen to fog
up. Your vision will be hampered,
which could lead to a serious accident.
NOTE
xFogging on the windows clears up
more easily while the air conditioner
is on, but they will fog up more easily
if the air conditioner is turned off.
xBe careful that the windows do not
fog up when doing any of the
following:
xSwitching to recirculate modexTurning off the air conditionerxUse the temperature control dial to
increase the air flow temperature
and defog the windscreen more
quickly.
▼Sunlight/Temperature Sensor
The air-conditioning system measures
inside and outside temperatures,
humidity and sunlight using the
sunlight/temperature sensor. It sets
temperatures inside the cabin
accordingly.
CAUTION
Do not obstruct both sensors,
otherwise the air-conditioning system
will not operate properly.
Sunlight sensor
1. Sunlight sensor
Interior temperature sensor
1. Interior temperature sensor
Interior Features
Air-Conditioning System
5-12

What is Mazda Connect ?
▼What is Mazda Connect ?
This manual only indicates a part of the information for Mazda Connect. For details,
check the Web owner's manual at the Mazda site for each country and region.

1. Radio
2. Bluetooth® Audio/Hands-Free Call/SMS (Short Message Service)
3. USB Audio/USB Video
4. USB port
*1/SD card slot*2
5. CD/DVD player*
6. CD/DVD
7. SD card (Navigation system)*
*
1 The location of the USB slot differs depending on the vehicle model.*2 The SD card slot is for the navigation system only. For vehicles with the
navigation system, the SD card (Mazda genuine) with stored map data is
inserted into the SD card slot and used.
Interior Features
Mazda Connect
*Some models.5-13

No. Menu Explanation
(1) InformationFuel Efficiency Monitor:
Monitor fuel
efficiency in real time and view fuel
efficiency history.
Vehicle Status Monitor:
View important vehicle maintenance messages, information, and inter-
vals.
Owner's Manual
*:
Learn about Mazda features, safety information, maintenance, and
more.
(2) EntertainmentFM
AM
DAB
*
Bluetooth
USB1 Audio/USB2 Audio
USB1 Video/USB2 Video
Disc
*/CD*/DVD*
(3)
NotificationsDisplays text messages received by the mobile device paired to Mazda
Connect and notifications from the vehicle.
(4) CommunicationBy connecting your mobile device, such as a Smartphone, to Mazda
Connect via Bluetooth
®, you can use the hands-free call and short mes-
sage functions.
(5) NavigationThe navigation system (vehicles with navigation system) can be used
when the SD card for the navigation system is inserted.

If the SD card for the navigation system is not inserted, the compass in-
dicating the direction in which the vehicle is moving is displayed. The
compass may not indicate the correct bearing when the vehicle is stop-
ped or travelling at a slow speed.
For the navigation system operation, refer to the navigation system
manual.
Interior Features
Mazda Connect
5-14*Some models.
