front-facing child restraint ride in
this vehicle. Do not attempt to hold
a child in your lap or arms.
. Roadster models do not have an
anchor for a top tether strap re-
quired for most child restraints.
Never let children who require the
use of rear or front-facing child
restraints ride in this vehicle.
. Larger children need special protec-
tion. The vehicle's seat belts may
not fit them properly. The shoulder
belt may come too close to the face
or neck. The lap belt may not fit over
their small hip bones. In an acci-
dent, an improperly fitting seat belt
could cause serious or fatal injury.
Always use appropriate child re-
straints.
GUID-C7ACF2DD-10D2-4E30-AE94-6993E65F2992

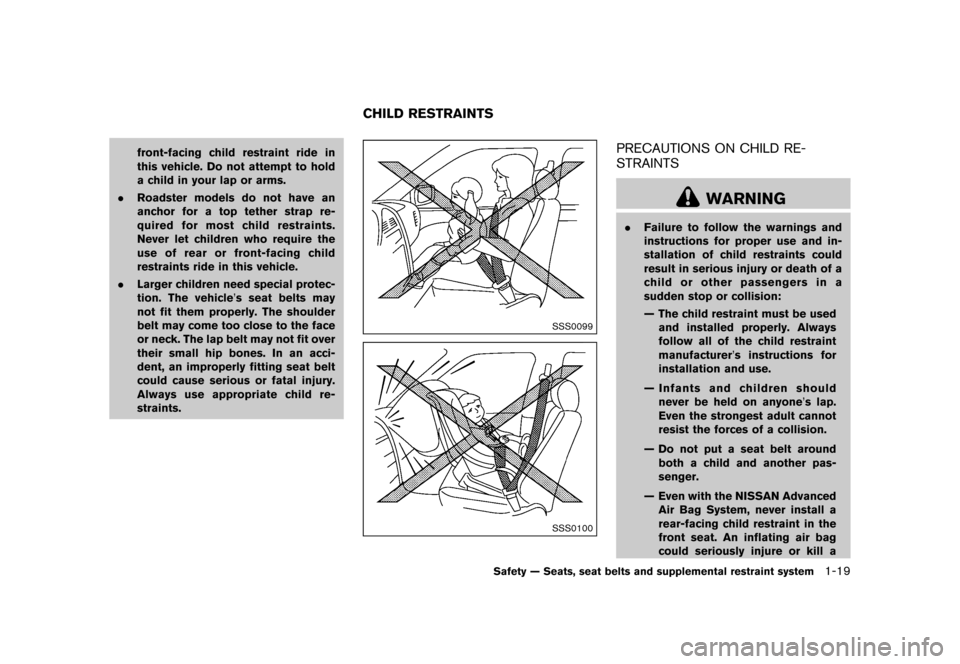

SSS0099
SSS0100
PRECAUTIONS ON CHILD RE-
STRAINTS
GUID-4828E6A7-CF34-46A3-B9FB-6852A4D3CAB2
WARNING
.Failure to follow the warnings and
instructions for proper use and in-
stallation of child restraints could
result in serious injury or death of a
child or other passengers in a
sudden stop or collision:
Ð The child restraint must be used
and installed properly. Always
follow all of the child restraint
manufacturer's instructions for
installation and use.
Ð Infants and children should never be held on anyone's lap.
Even the strongest adult cannot
resist the forces of a collision.
Ð Do not put a seat belt around both a child and another pas-
senger.
Ð Even with the NISSAN Advanced Air Bag System, never install a
rear-facing child restraint in the
front seat. An inflating air bag
could seriously injure or kill a
Safety Ð Seats, seat belts and supplemental restraint system1-19
CHILD RESTRAINTS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

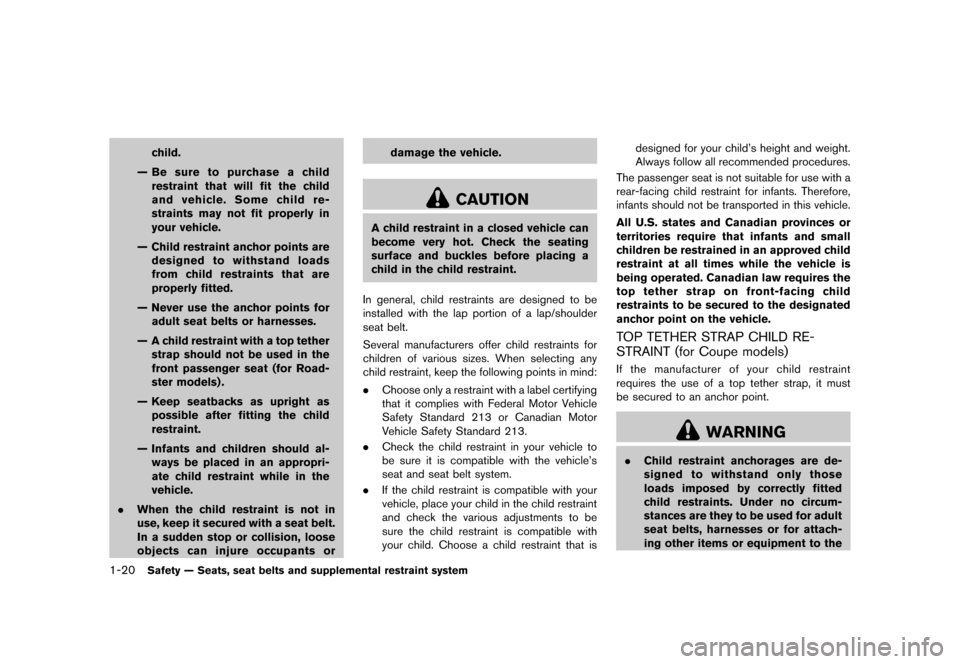

1-20Safety Ð Seats, seat belts and supplemental restraint system
child.
Ð Be sure to purchase a child restraint that will fit the child
and vehicle. Some child re-
straints may not fit properly in
your vehicle.
Ð Child restraint anchor points are designed to withstand loads
from child restraints that are
properly fitted.
Ð Never use the anchor points for adult seat belts or harnesses.
Ð A child restraint with a top tether strap should not be used in the
front passenger seat (for Road-
ster models) .
Ð Keep seatbacks as upright as possible after fitting the child
restraint.
Ð Infants and children should al- ways be placed in an appropri-
ate child restraint while in the
vehicle.
. When the child restraint is not in
use, keep it secured with a seat belt.
In a sudden stop or collision, loose
objects can injure occupants or damage the vehicle.
CAUTION
A child restraint in a closed vehicle can
become very hot. Check the seating
surface and buckles before placing a
child in the child restraint.
In general, child restraints are designed to be
installed with the lap portion of a lap/shoulder
seat belt.
Several manufacturers offer child restraints for
children of various sizes. When selecting any
child restraint, keep the following points in mind:
. Choose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
. Check the child restraint in your vehicle to
be sure it is compatible with the vehicle's
seat and seat belt system.
. If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is designed for your child's height and weight.
Always follow all recommended procedures.
The passenger seat is not suitable for use with a
rear-facing child restraint for infants. Therefore,
infants should not be transported in this vehicle.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on front-facing child
restraints to be secured to the designated
anchor point on the vehicle.
TOP TETHER STRAP CHILD RE-
STRAINT (for Coupe models)
GUID-2F214B1C-4D1A-4008-9C3D-344B8DA9D83CIf the manufacturer of your child restraint
requires the use of a top tether strap, it must
be secured to an anchor point.
WARNING
. Child restraint anchorages are de-
signed to withstand only those
loads imposed by correctly fitted
child restraints. Under no circum-
stances are they to be used for adult
seat belts, harnesses or for attach-
ing other items or equipment to the
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
vehicle. Doing so could damage the
child restraint anchorages. The child
restraint will not be properly in-
stalled using the damaged ancho-
rage, and a child could be seriously
injured or killed in a collision.
. If the cargo cover (if so equipped)
contacts the top tether strap when it
is attached to the top tether anchor,
remove the cargo cover from the
vehicle or secure it on the cargo
floor below its attachment location.
If the cargo cover is not removed, it
may damage the top tether strap
during a collision. Your child could
be seriously injured or killed in a
collision if the child restraint top
tether strap is damaged.
. Do not allow cargo to contact the
top tether strap when it is attached
to the top tether anchor. Properly
secure the cargo so it does not
contact the top tether strap. Cargo
that is not properly secured or cargo
that contacts the top tether strap
may damage the top tether strap
during a collision. Your child could
be seriously injured or killed in a
collision if the child restraint top tether strap is damaged.
SSS0929
Except for NISMO models
JVR0381X
NISMO models
Safety Ð Seats, seat belts and supplemental restraint system1-21
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
1-22Safety Ð Seats, seat belts and supplemental restraint system

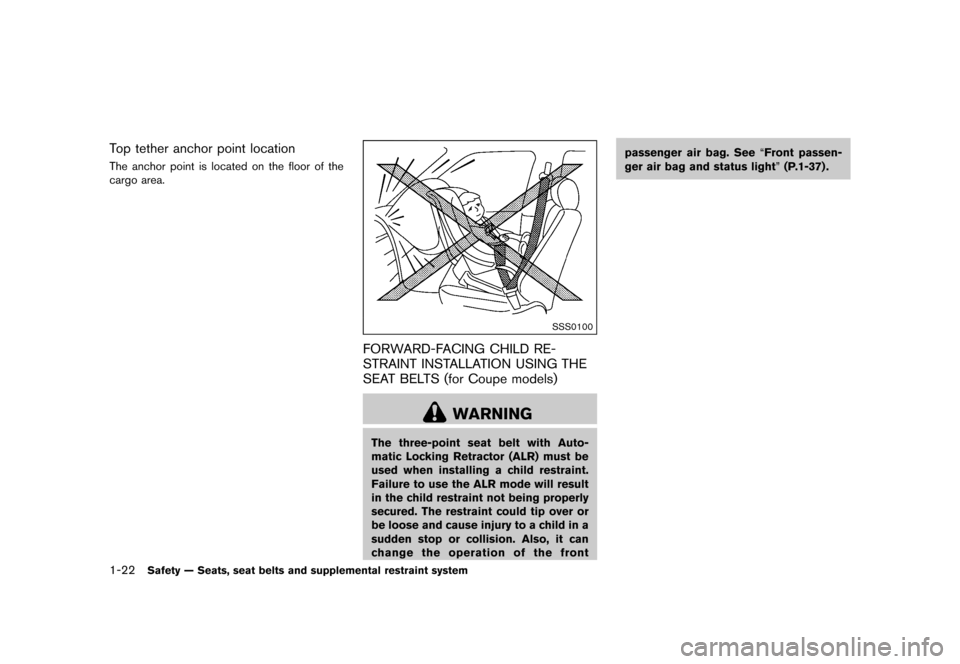

Top tether anchor point locationGUID-456D34DE-871E-4C9D-85C7-D767198CED75The anchor point is located on the floor of the
cargo area.
SSS0100
FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING THE
SEAT BELTS (for Coupe models)
GUID-9C7EE9BA-4B50-4E46-86C5-A0087C7219BE
WARNING
The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result
in the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the frontpassenger air bag. See
ªFront passen-
ger air bag and status lightº (P.1-37) .
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

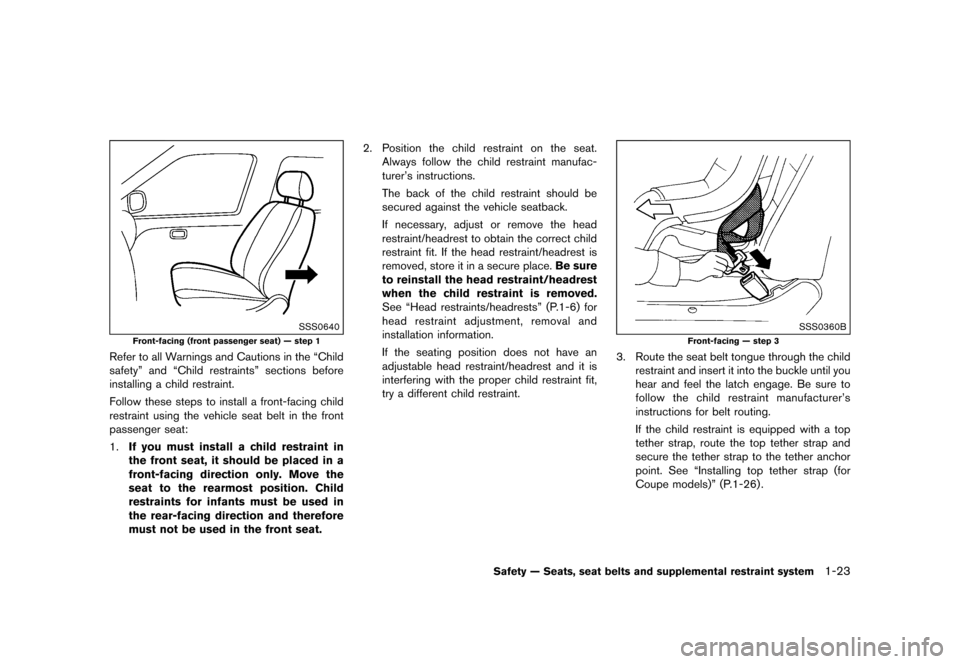

SSS0640
Front-facing (front passenger seat) Ð step 1
Refer to all Warnings and Cautions in the ªChild
safetyº and ªChild restraintsº sections before
installing a child restraint.
Follow these steps to install a front-facing child
restraint using the vehicle seat belt in the front
passenger seat:
1.If you must install a child restraint in
the front seat, it should be placed in a
front-facing direction only. Move the
seat to the rearmost position. Child
restraints for infants must be used in
the rear-facing direction and therefore
must not be used in the front seat. 2.
Position the child restraint on the seat.
Always follow the child restraint manufac-
turer's instructions.
The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint/headrest to obtain the correct child
restraint fit. If the head restraint/headrest is
removed, store it in a secure place. Be sure
to reinstall the head restraint/headrest
when the child restraint is removed.
See ªHead restraints/headrestsº (P.1-6) for
head restraint adjustment, removal and
installation information.
If the seating position does not have an
adjustable head restraint/headrest and it is
interfering with the proper child restraint fit,
try a different child restraint.
SSS0360B
Front-facing Ð step 3
3. Route the seat belt tongue through the child restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer's
instructions for belt routing.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. See ªInstalling top tether strap (for
Coupe models)º (P.1-26) .
Safety Ð Seats, seat belts and supplemental restraint system1-23
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
1-24Safety Ð Seats, seat belts and supplemental restraint system

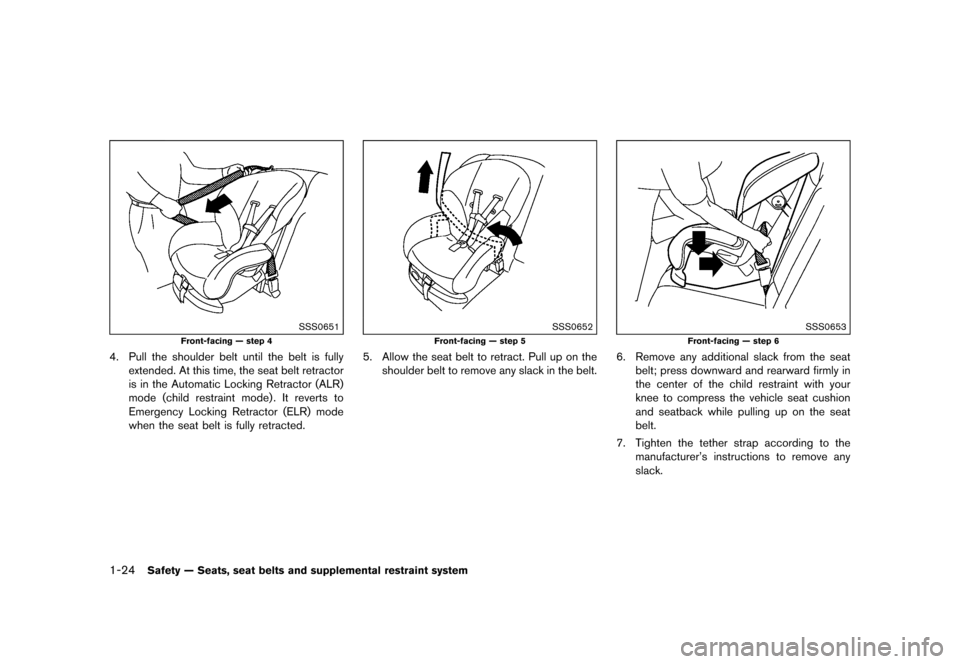

SSS0651
Front-facing Ð step 4
4. Pull the shoulder belt until the belt is fullyextended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode) . It reverts to
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.
SSS0652
Front-facing Ð step 5
5. Allow the seat belt to retract. Pull up on theshoulder belt to remove any slack in the belt.
SSS0653
Front-facing Ð step 6
6. Remove any additional slack from the seatbelt; press downward and rearward firmly in
the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while pulling up on the seat
belt.
7. Tighten the tether strap according to the manufacturer's instructions to remove any
slack.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

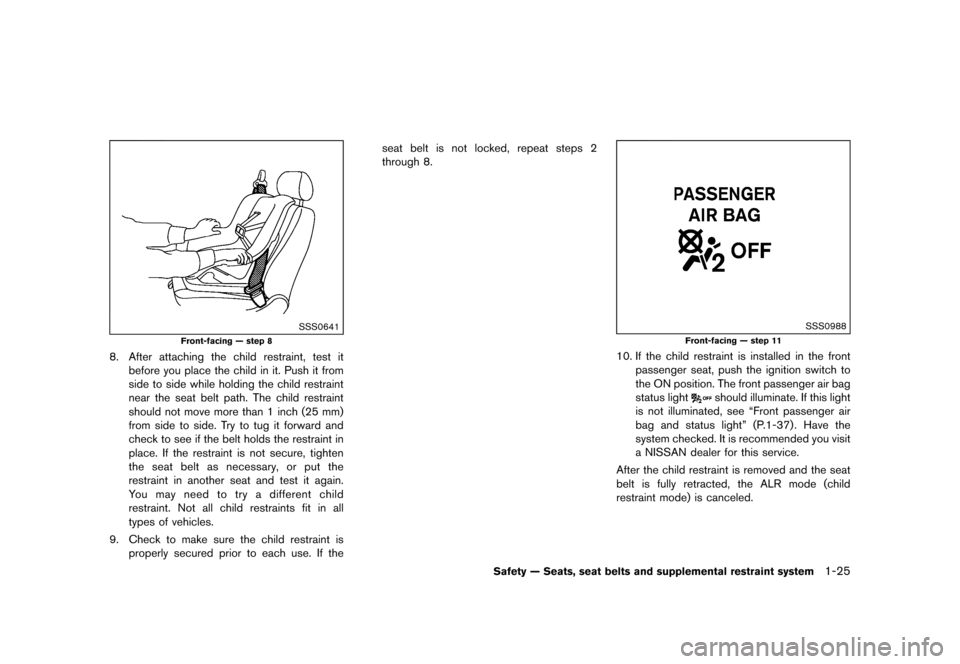

SSS0641
Front-facing Ð step 8
8. After attaching the child restraint, test itbefore you place the child in it. Push it from
side to side while holding the child restraint
near the seat belt path. The child restraint
should not move more than 1 inch (25 mm)
from side to side. Try to tug it forward and
check to see if the belt holds the restraint in
place. If the restraint is not secure, tighten
the seat belt as necessary, or put the
restraint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.
9. Check to make sure the child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 2
through 8.
SSS0988
Front-facing Ð step 11
10. If the child restraint is installed in the front
passenger seat, push the ignition switch to
the ON position. The front passenger air bag
status light
should illuminate. If this light
is not illuminated, see ªFront passenger air
bag and status lightº (P.1-37). Have the
system checked. It is recommended you visit
a NISSAN dealer for this service.
After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child
restraint mode) is canceled.
Safety Ð Seats, seat belts and supplemental restraint system1-25
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
1-26Safety Ð Seats, seat belts and supplemental restraint system

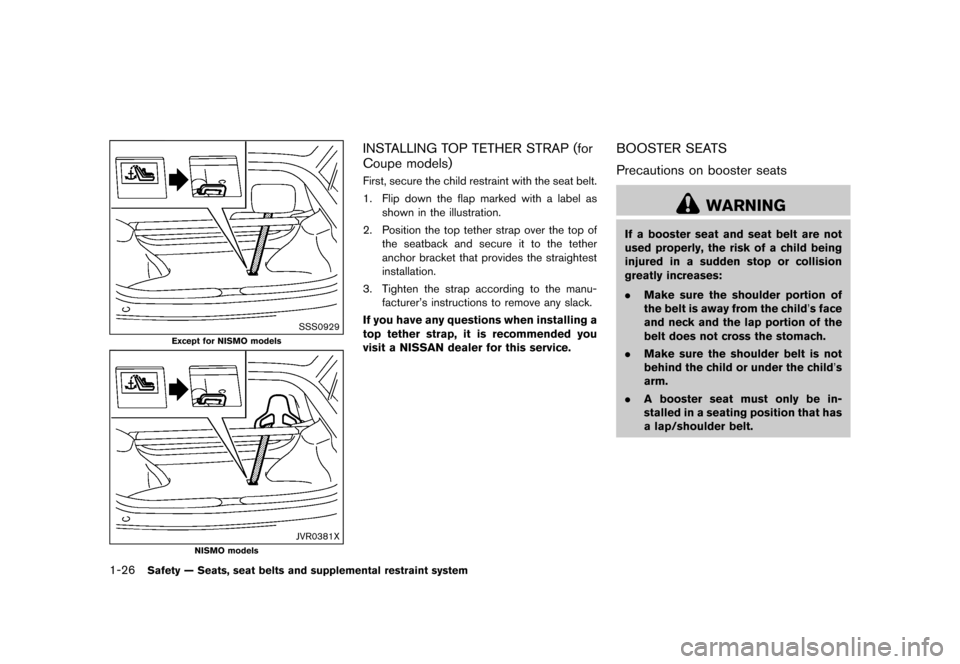

SSS0929
Except for NISMO models
JVR0381X
NISMO models
INSTALLING TOP TETHER STRAP (for
Coupe models)
GUID-58544DF7-9D1D-48A0-87EA-785369882C53First, secure the child restraint with the seat belt.
1. Flip down the flap marked with a label asshown in the illustration.
2. Position the top tether strap over the top of the seatback and secure it to the tether
anchor bracket that provides the straightest
installation.
3. Tighten the strap according to the manu- facturer's instructions to remove any slack.
If you have any questions when installing a
top tether strap, it is recommended you
visit a NISSAN dealer for this service.
BOOSTER SEATSGUID-D158ADA3-006C-44A6-9038-BFD970BF14AB
Precautions on booster seatsGUID-2FF60888-9E8E-472D-B228-6543305D4D41
WARNING
If a booster seat and seat belt are not
used properly, the risk of a child being
injured in a sudden stop or collision
greatly increases:
. Make sure the shoulder portion of
the belt is away from the child's face
and neck and the lap portion of the
belt does not cross the stomach.
. Make sure the shoulder belt is not
behind the child or under the child's
arm.
. A booster seat must only be in-
stalled in a seating position that has
a lap/shoulder belt.
&RQGLWLRQ
