function controller.
Ringtone/Incoming Call/Outgoing Call:
GUID-3809E5EC-4482-4C72-81C5-FE7D5F42E82CFor the details of these items, see ªBluetooth


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-14Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2487

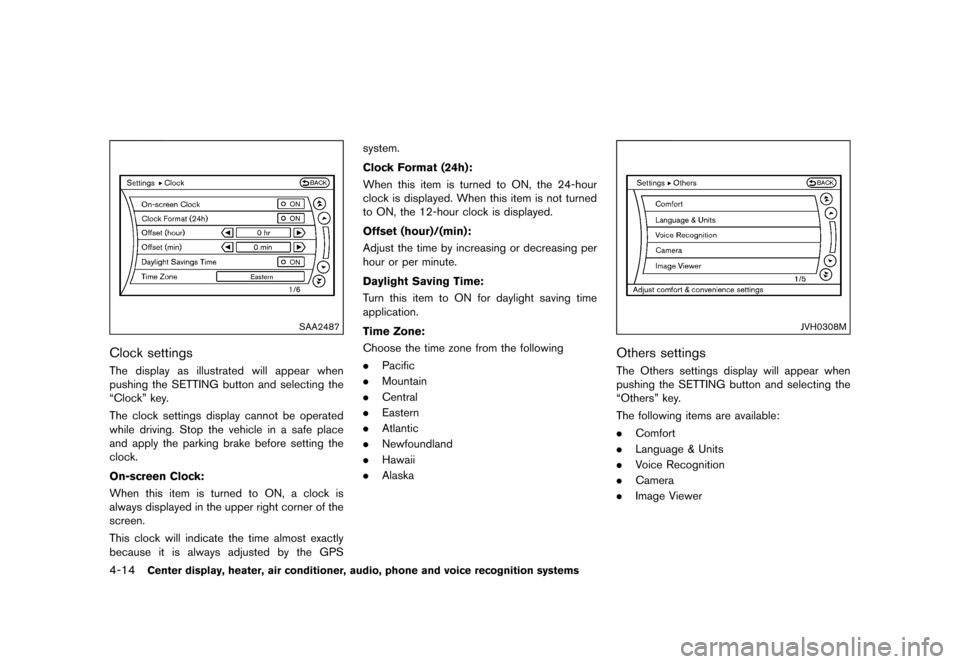

Clock settingsGUID-D0FE04A9-3501-46DF-97D4-1FCF2C9A67C5The display as illustrated will appear when
pushing the SETTING button and selecting the
ªClockº key.
The clock settings display cannot be operated
while driving. Stop the vehicle in a safe place
and apply the parking brake before setting the
clock.
On-screen Clock:
GUID-195EEE27-2D5D-4BDD-8369-B561FD133C12When this item is turned to ON, a clock is
always displayed in the upper right corner of the
screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPSsystem.
Clock Format (24h):
GUID-0DA2F3B5-7D78-41C9-8492-CD7F03C842C7When this item is turned to ON, the 24-hour
clock is displayed. When this item is not turned
to ON, the 12-hour clock is displayed.
Offset (hour)/(min):
GUID-EAF2B626-D5B3-4413-A46B-F4CC4CB6F595Adjust the time by increasing or decreasing per
hour or per minute.
Daylight Saving Time:
GUID-7A907352-D3B6-4EDD-ABB5-86510EC76FB1Turn this item to ON for daylight saving time
application.
Time Zone:
GUID-675C66D0-27FE-4DD2-92F3-61D5ACA50520Choose the time zone from the following
.
Pacific
. Mountain
. Central
. Eastern
. Atlantic
. Newfoundland
. Hawaii
. Alaska
JVH0308M
Others settingsGUID-C261960E-CF67-4E55-8E50-328C98F1ABB5The Others settings display will appear when
pushing the SETTING button and selecting the
ªOthersº key.
The following items are available:
.Comfort
. Language & Units
. Voice Recognition
. Camera
. Image Viewer
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
SAA2488
Example

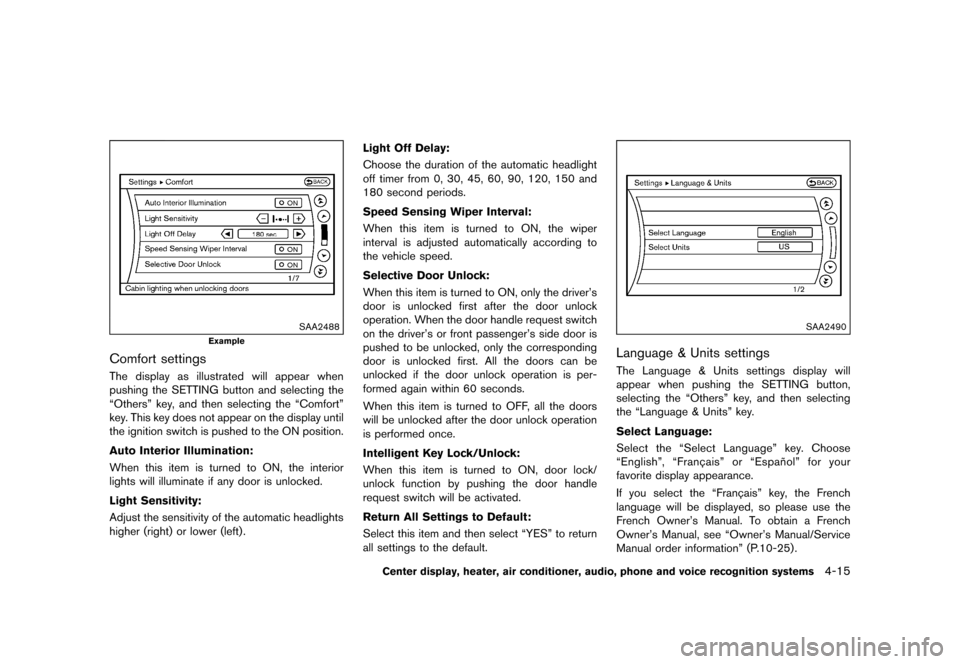

Comfort settingsGUID-EC638585-73FC-41A8-BFD6-B3ECBC976953The display as illustrated will appear when
pushing the SETTING button and selecting the
ªOthersº key, and then selecting the ªComfortº
key. This key does not appear on the display until
the ignition switch is pushed to the ON position.
Auto Interior Illumination:
GUID-39943DC2-81E7-46EF-B2D2-1CBC3ACD2006When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity:
GUID-531E6796-2F47-4D37-B59F-CACEF4CC12FDAdjust the sensitivity of the automatic headlights
higher (right) or lower (left) .Light Off Delay:
GUID-31CFCF7F-4EAB-4E76-85A9-C3845EE47CC0Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Speed Sensing Wiper Interval:
GUID-DFD33264-BABC-440B-A3FD-951DED35D108When this item is turned to ON, the wiper
interval is adjusted automatically according to
the vehicle speed.
Selective Door Unlock:
GUID-8A34C073-DC3D-470D-8C62-41550CE4CC72When this item is turned to ON, only the driver's
door is unlocked first after the door unlock
operation. When the door handle request switch
on the driver's or front passenger's side door is
pushed to be unlocked, only the corresponding
door is unlocked first. All the doors can be
unlocked if the door unlock operation is per-
formed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.
Intelligent Key Lock/Unlock:
GUID-DC13EB5A-0A27-4E36-9437-AB536C3F2C11When this item is turned to ON, door lock/
unlock function by pushing the door handle
request switch will be activated.
Return All Settings to Default:
GUID-D51FCFFA-F7BA-48EB-91F7-2D449259DBA2Select this item and then select ªYESº to return
all settings to the default.
SAA2490
Language & Units settingsGUID-32072A6E-524E-4948-9A8A-1A1EFA3A6364The Language & Units settings display will
appear when pushing the SETTING button,
selecting the ªOthersº key, and then selecting
the ªLanguage & Unitsº key.
Select Language:
GUID-8FD4E89D-FE16-472D-AE75-B4CA80366565Select the ªSelect Languageº key. Choose
ªEnglishº, ªFranc
Ëaisº or ªEspan Ä
olº for your
favorite display appearance.
If you select the ªFrancË aisº key, the French
language will be displayed, so please use the
French Owner's Manual. To obtain a French
Owner's Manual, see ªOwner's Manual/Service
Manual order informationº (P.10-25) .
Center display, heater, air conditioner, audio, phone and voice recognition systems4-15
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-16Center display, heater, air conditioner, audio, phone and voice recognition systems

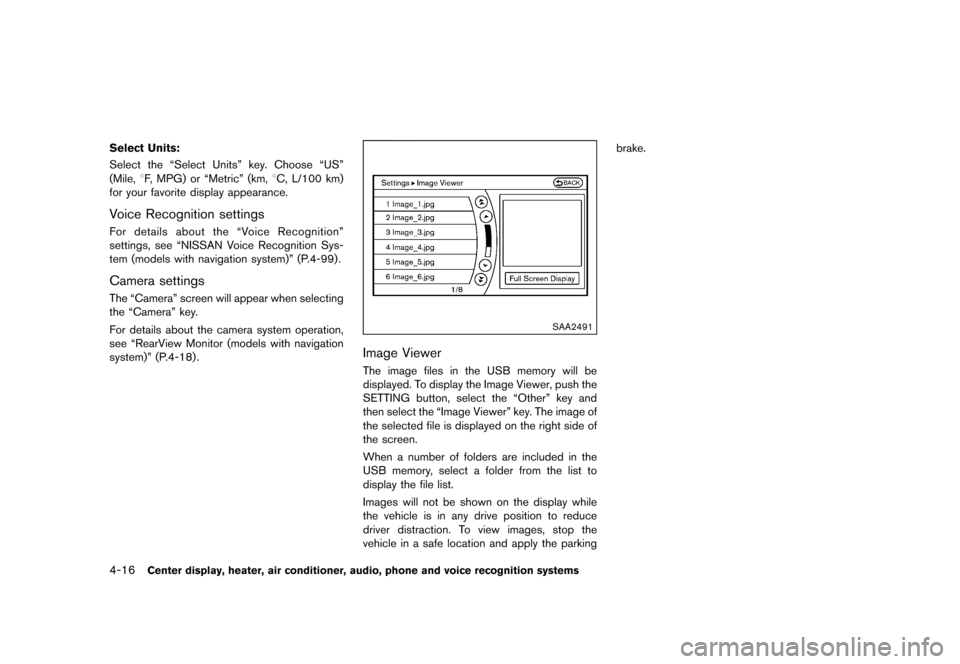

Select Units:GUID-8F0B0043-486B-4D87-847D-0D9CBA8EF4E5Select the ªSelect Unitsº key. Choose ªUSº
(Mile,8F, MPG) or ªMetricº (km, 8C, L/100 km)
for your favorite display appearance.
Voice Recognition settingsGUID-E44DDB7D-41F8-4BE9-972F-5D86FB5251F3For details about the ªVoice Recognitionº
settings, see ªNISSAN Voice Recognition Sys-
tem (models with navigation system)º (P.4-99) .
Camera settingsGUID-1E867F3A-C3CC-478A-9E23-63A28F1C44EFThe ªCameraº screen will appear when selecting
the ªCameraº key.
For details about the camera system operation,
see ªRearView Monitor (models with navigation
system)º (P.4-18) .
SAA2491
Image ViewerGUID-DEBE408B-3F76-430C-B0E0-C07F0795835EThe image files in the USB memory will be
displayed. To display the Image Viewer, push the
SETTING button, select the ªOtherº key and
then select the ªImage Viewerº key. The image of
the selected file is displayed on the right side of
the screen.
When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.
Images will not be shown on the display while
the vehicle is in any drive position to reduce
driver distraction. To view images, stop the
vehicle in a safe location and apply the parking brake.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
SAA2492

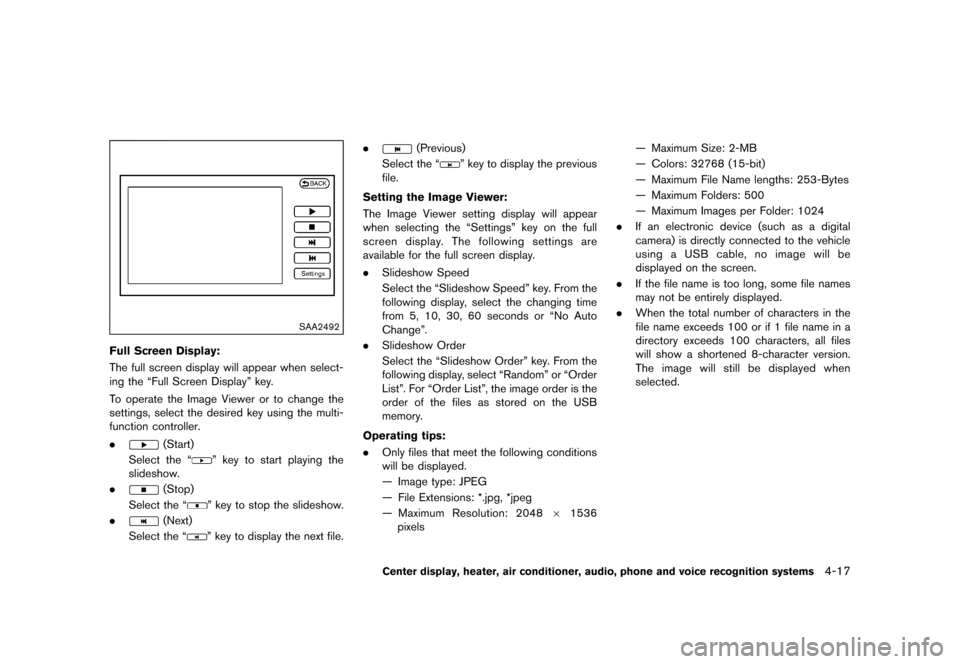

Full Screen Display:GUID-55760965-E59E-4AF9-9B58-851AFB5FCC86The full screen display will appear when select-
ing the ªFull Screen Displayº key.
To operate the Image Viewer or to change the
settings, select the desired key using the multi-
function controller.
.
(Start)
Select the ª
º key to start playing the
slideshow.
.
(Stop)
Select the ª
º key to stop the slideshow.
.
(Next)
Select the ª
º key to display the next file. .
(Previous)
Select the ª
º key to display the previous
file.
Setting the Image Viewer:
GUID-658CE881-5289-4932-8234-B294E414AEFBThe Image Viewer setting display will appear
when selecting the ªSettingsº key on the full
screen display. The following settings are
available for the full screen display.
. Slideshow Speed
Select the ªSlideshow Speedº key. From the
following display, select the changing time
from 5, 10, 30, 60 seconds or ªNo Auto
Changeº.
. Slideshow Order
Select the ªSlideshow Orderº key. From the
following display, select ªRandomº or ªOrder
Listº. For ªOrder Listº, the image order is the
order of the files as stored on the USB
memory.
Operating tips:
GUID-3274A746-F715-4093-95EF-0FF9BA92225F. Only files that meet the following conditions
will be displayed.
Ð Image type: JPEG
Ð File Extensions: *.jpg, *jpeg
Ð Maximum Resolution: 2048 61536
pixels Ð Maximum Size: 2-MB
Ð Colors: 32768 (15-bit)
Ð Maximum File Name lengths: 253-Bytes
Ð Maximum Folders: 500
Ð Maximum Images per Folder: 1024
. If an electronic device (such as a digital
camera) is directly connected to the vehicle
using a USB cable, no image will be
displayed on the screen.
. If the file name is too long, some file names
may not be entirely displayed.
. When the total number of characters in the
file name exceeds 100 or if 1 file name in a
directory exceeds 100 characters, all files
will show a shortened 8-character version.
The image will still be displayed when
selected.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-17
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-18Center display, heater, air conditioner, audio, phone and voice recognition systems
GUID-1540451A-299B-4D2F-A4B8-92CD293DC8E7

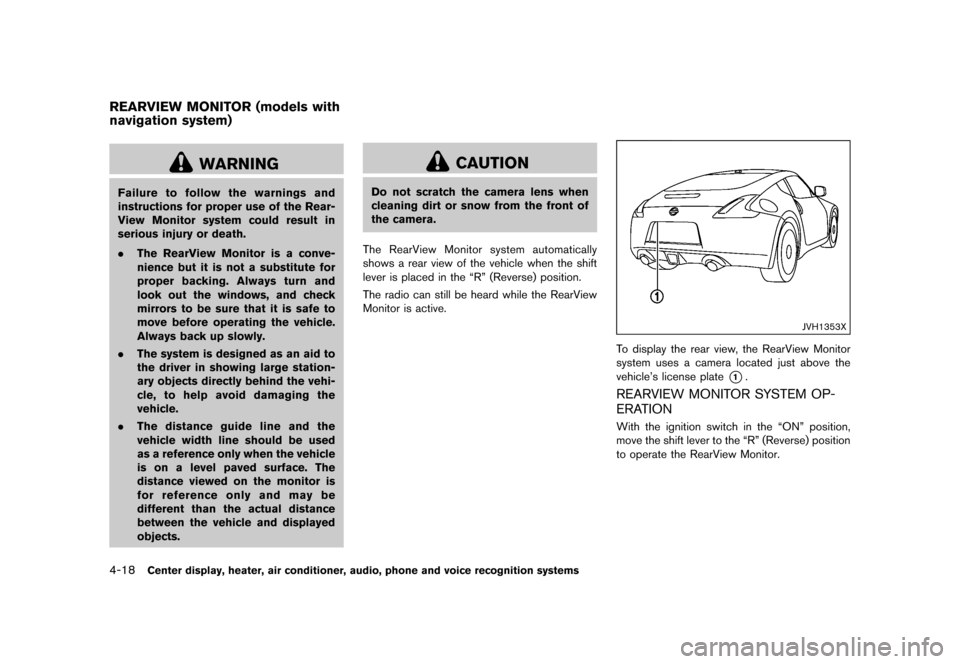

WARNING
Failure to follow the warnings and
instructions for proper use of the Rear-
View Monitor system could result in
serious injury or death.
.The RearView Monitor is a conve-
nience but it is not a substitute for
proper backing. Always turn and
look out the windows, and check
mirrors to be sure that it is safe to
move before operating the vehicle.
Always back up slowly.
. The system is designed as an aid to
the driver in showing large station-
ary objects directly behind the vehi-
cle, to help avoid damaging the
vehicle.
. The distance guide line and the
vehicle width line should be used
as a reference only when the vehicle
is on a level paved surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.
The RearView Monitor system automatically
shows a rear view of the vehicle when the shift
lever is placed in the ªRº (Reverse) position.
The radio can still be heard while the RearView
Monitor is active.
JVH1353X
To display the rear view, the RearView Monitor
system uses a camera located just above the
vehicle's license plate
*1.
REARVIEW MONITOR SYSTEM OP-
ERATION
GUID-731F2BE0-BAE7-4D00-A1C9-41117EBCCEB1With the ignition switch in the ªONº position,
move the shift lever to the ªRº (Reverse) position
to operate the RearView Monitor.
REARVIEW MONITOR (models with
navigation system)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
SAA1896

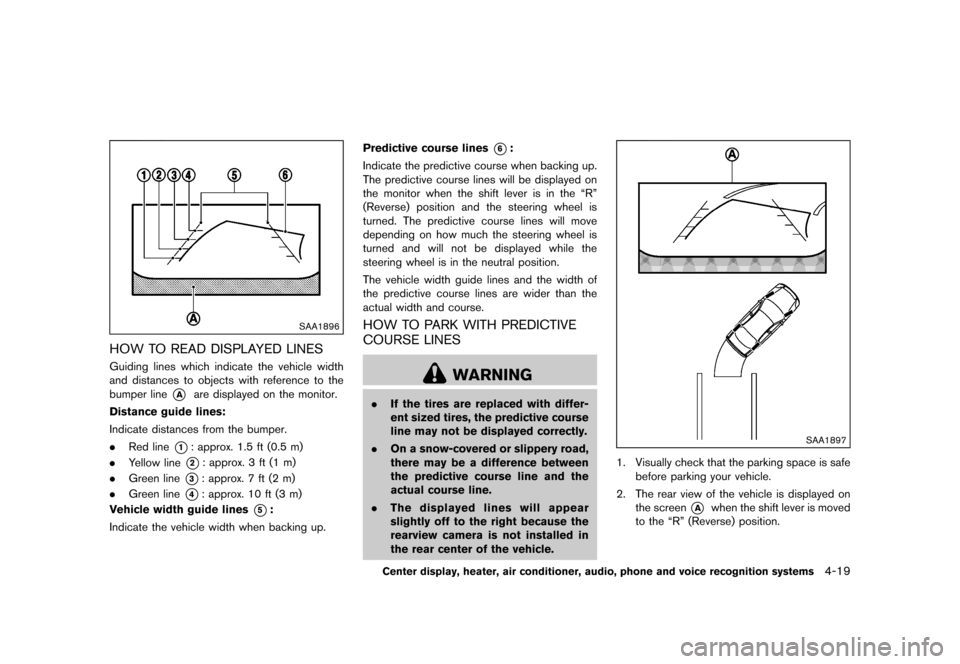

HOW TO READ DISPLAYED LINESGUID-2A4D5879-402C-4479-AB64-74B1CEBEB2DAGuiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up. Predictive course lines
*6:
Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the shift lever is in the ªRº
(Reverse) position and the steering wheel is
turned. The predictive course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
The vehicle width guide lines and the width of
the predictive course lines are wider than the
actual width and course.
HOW TO PARK WITH PREDICTIVE
COURSE LINES
GUID-E553930F-FF31-4E97-94EA-691A1691E761
WARNING
. If the tires are replaced with differ-
ent sized tires, the predictive course
line may not be displayed correctly.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
. The displayed lines will appear
slightly off to the right because the
rearview camera is not installed in
the rear center of the vehicle.
SAA1897
1. Visually check that the parking space is safe
before parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
*Awhen the shift lever is moved
to the ªRº (Reverse) position.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-19
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-20Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA1898

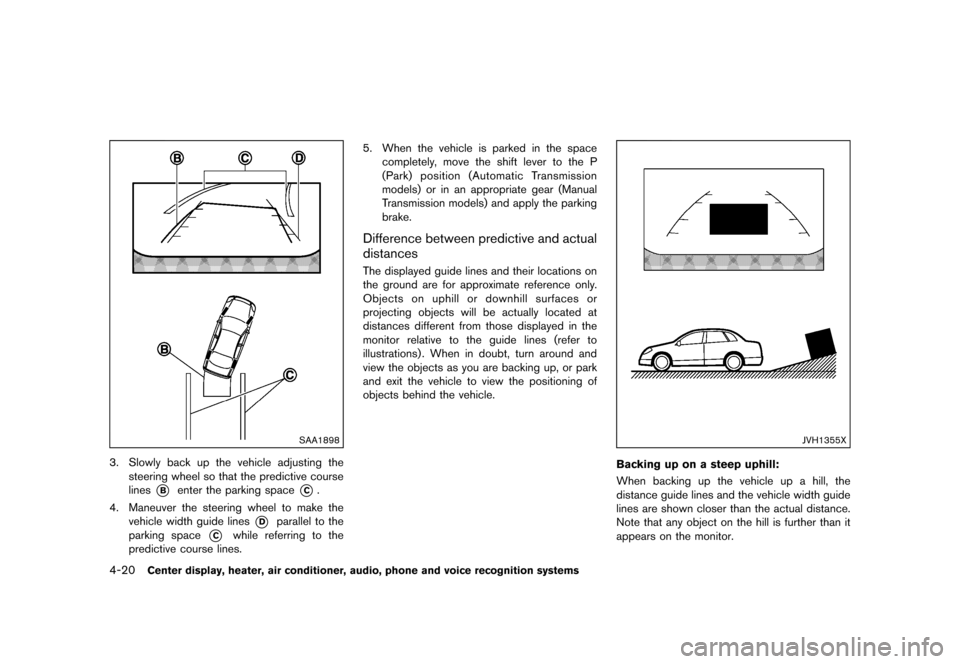

3. Slowly back up the vehicle adjusting thesteering wheel so that the predictive course
lines
*Benter the parking space*C.
4. Maneuver the steering wheel to make the vehicle width guide lines
*Dparallel to the
parking space
*Cwhile referring to the
predictive course lines. 5. When the vehicle is parked in the space
completely, move the shift lever to the P
(Park) position (Automatic Transmission
models) or in an appropriate gear (Manual
Transmission models) and apply the parking
brake.
Difference between predictive and actual
distances
GUID-7CBBC06A-987D-450D-98D2-B2FE3AAD4FAFThe displayed guide lines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in the
monitor relative to the guide lines (refer to
illustrations) . When in doubt, turn around and
view the objects as you are backing up, or park
and exit the vehicle to view the positioning of
objects behind the vehicle.
JVH1355X
Backing up on a steep uphill:GUID-325F22A4-FB5F-4201-993C-18B5095AEB89When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
Note that any object on the hill is further than it
appears on the monitor.
&RQGLWLRQ
