2017 NISSAN 370Z ROADSTER Owners Manual


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

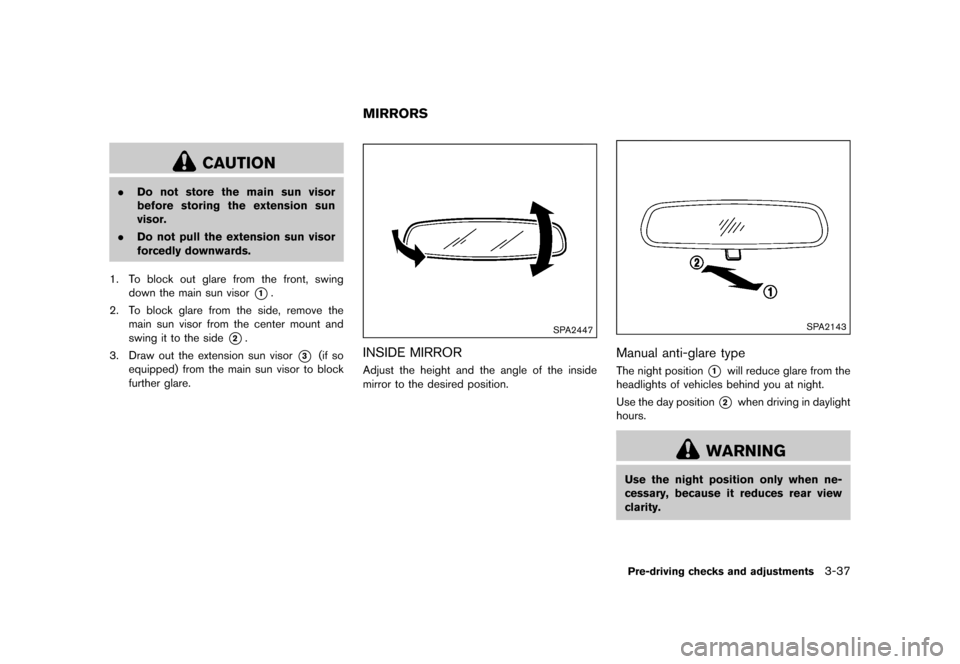

CAUTION
.Do not store the main sun visor
before storing the extension sun
visor.
. Do not pull the extension sun visor
forcedly downwards.
1. To block out glare from the front, swing down the main sun visor
*1.
2. To block glare from the side, remove the main sun visor from the center mount and
swing it to the side
*2.
3. Draw out the extension sun visor
*3(if so
equipped) from the main sun visor to block
further glare.
GUID-67C77E38-3B6C-4157-8718-7D042F48BFEA
SPA2447
INSIDE MIRRORGUID-7190F975-2909-4F79-AFDC-B28AE6D3CC82Adjust the height and the angle of the inside
mirror to the desired position.
SPA2143
Manual anti-glare typeGUID-D305CFE2-A329-4695-B49B-EAFF25D4D082The night position*1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
*2when driving in daylight
hours.
WARNING
Use the night position only when ne-
cessary, because it reduces rear view
clarity.
Pre-driving checks and adjustments3-37
MIRRORS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
3-38Pre-driving checks and adjustments
SPA2450

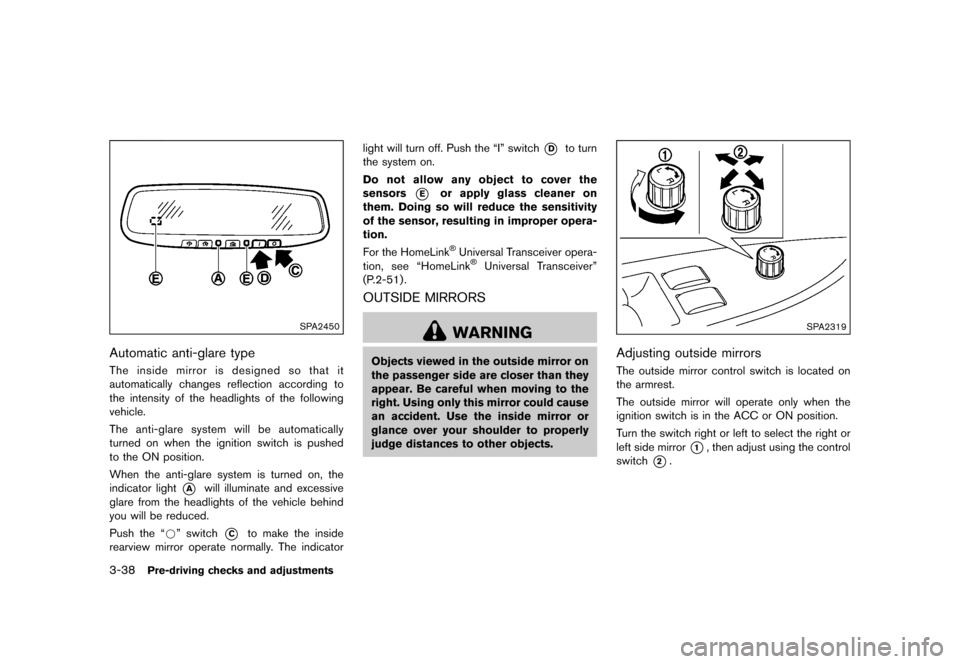

Automatic anti-glare typeGUID-19DC64A6-67BD-481F-BAB1-0D06BE7C5D4EThe inside mirror is designed so that it
automatically changes reflection according to
the intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed
to the ON position.
When the anti-glare system is turned on, the
indicator light
*Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
Push the ª*º switch
*Cto make the inside
rearview mirror operate normally. The indicator light will turn off. Push the ªIº switch
*Dto turn
the system on.
Do not allow any object to cover the
sensors
*Eor apply glass cleaner on
them. Doing so will reduce the sensitivity
of the sensor, resulting in improper opera-
tion.
For the HomeLink


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

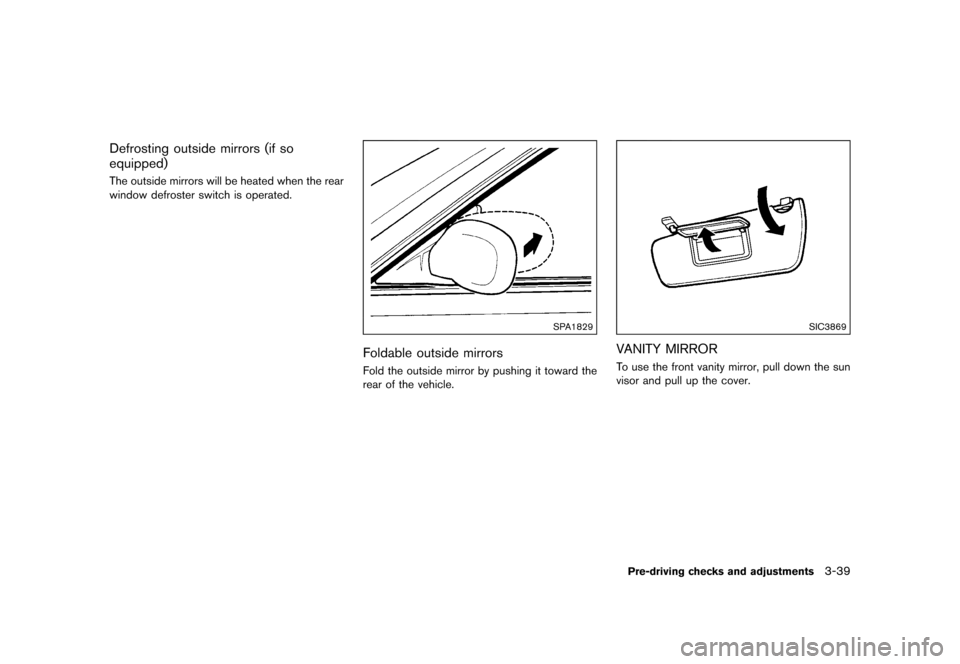

Defrosting outside mirrors (if so
equipped)
GUID-4D5D3A44-0E2D-46BF-95C5-C8D8BD23C98DThe outside mirrors will be heated when the rear
window defroster switch is operated.
SPA1829
Foldable outside mirrorsGUID-04D17BAA-A19D-410B-8EBE-9A888C9CD553Fold the outside mirror by pushing it toward the
rear of the vehicle.
SIC3869
VANITY MIRRORGUID-38DA8E6D-FED6-40B3-8A3A-839D89CFEFDBTo use the front vanity mirror, pull down the sun
visor and pull up the cover.
Pre-driving checks and adjustments3-39
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
3-40Pre-driving checks and adjustments

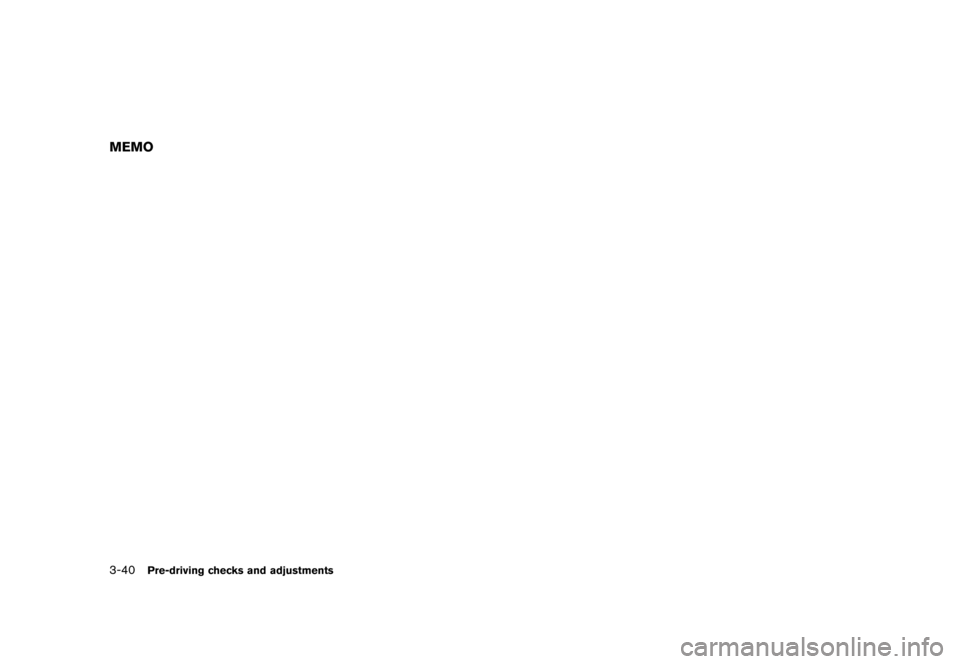

MEMO
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

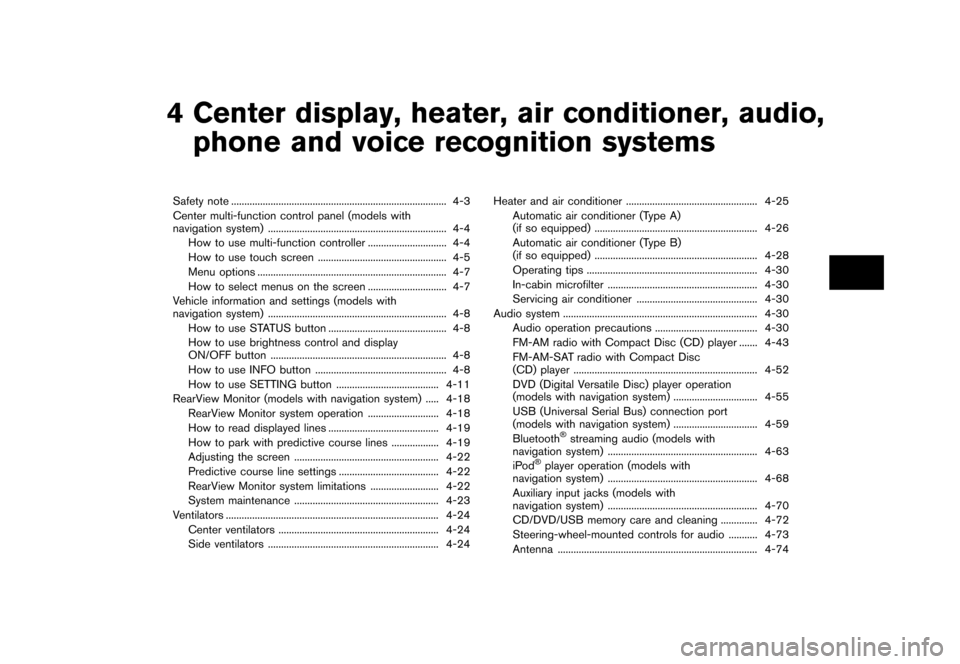

4 Center display, heater, air conditioner, audio,phone and voice recognition systems
Safety note ...
........................................................................\
.......... 4-3
Center multi-function control panel (models with
navigation system) ...
.................................................................... 4-4
How to use multi-function controller ...
.............................. 4-4
How to use touch screen ...
................................................. 4-5
Menu options ...
........................................................................\
4-7
How to select menus on the screen ...
.............................. 4-7
Vehicle information and settings (models with
navigation system) ...
.................................................................... 4-8
How to use STATUS button ...
............................................. 4-8
How to use brightness control and display
ON/OFF button ...
................................................................... 4-8
How to use INFO button ...
.................................................. 4-8
How to use SETTING button ...
....................................... 4-11
RearView Monitor (models with navigation system) ...
..... 4-18
RearView Monitor system operation ...
........................... 4-18
How to read displayed lines ...
.......................................... 4-19
How to park with predictive course lines ...
.................. 4-19
Adjusting the screen ...
....................................................... 4-22
Predictive course line settings ...
...................................... 4-22
RearView Monitor system limitations ...
.......................... 4-22
System maintenance ...
....................................................... 4-23
Ventilators ...
........................................................................\
......... 4-24
Center ventilators ...
............................................................. 4-24
Side ventilators ...
................................................................. 4-24 Heater and air conditioner
...
.................................................. 4-25
Automatic air conditioner (Type A)
(if so equipped) ...
.............................................................. 4-26
Automatic air conditioner (Type B)
(if so equipped) ...
.............................................................. 4-28
Operating tips ...
................................................................. 4-30
In-cabin microfilter ...
......................................................... 4-30
Servicing air conditioner ...
.............................................. 4-30
Audio system ...
........................................................................\
.. 4-30
Audio operation precautions ...
....................................... 4-30
FM-AM radio with Compact Disc (CD) player ...
....... 4-43
FM-AM-SAT radio with Compact Disc
(CD) player ...
...................................................................... 4-52
DVD (Digital Versatile Disc) player operation
(models with navigation system) ...
................................ 4-55
USB (Universal Serial Bus) connection port
(models with navigation system) ...
................................ 4-59
Bluetooth


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

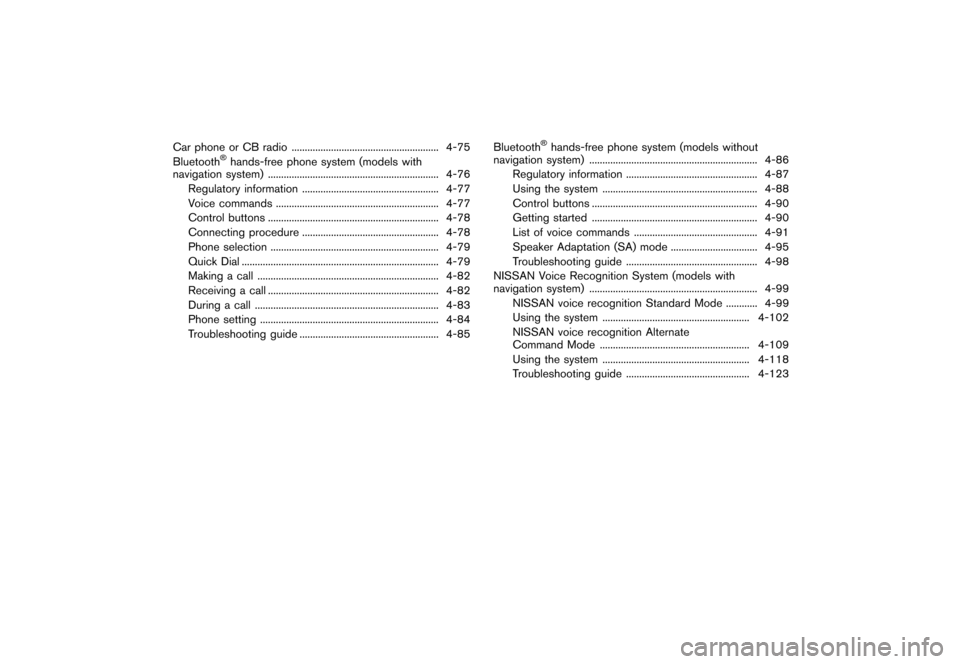

Car phone or CB radio...
........................................................ 4-75
Bluetooth


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
GUID-15C1CD10-4271-48AA-8811-D9BDDF26B26E

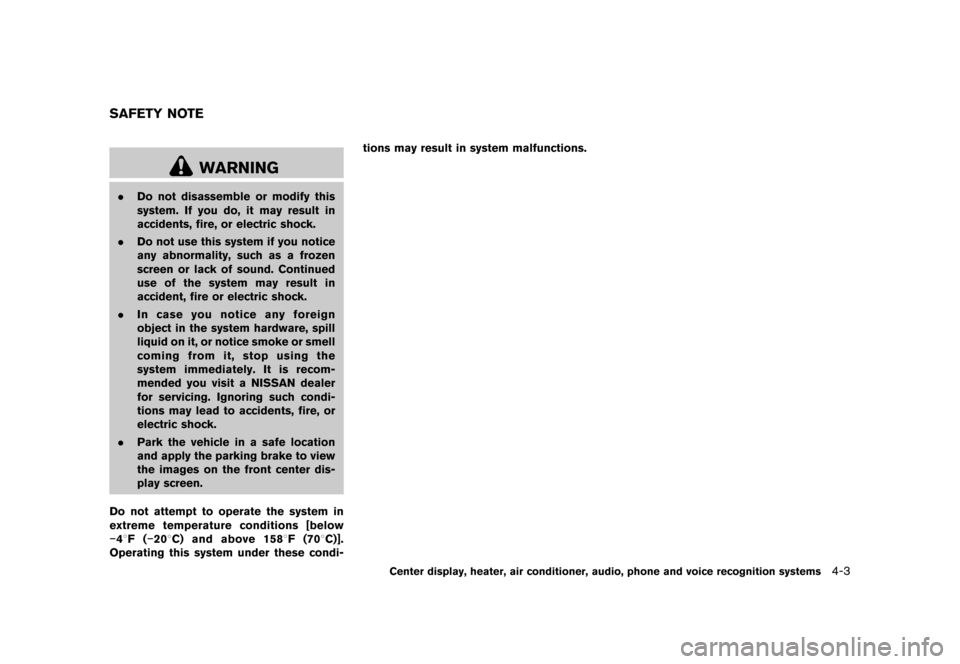

WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately. It is recom-
mended you visit a NISSAN dealer
for servicing. Ignoring such condi-
tions may lead to accidents, fire, or
electric shock.
. Park the vehicle in a safe location
and apply the parking brake to view
the images on the front center dis-
play screen.
Do not attempt to operate the system in
extreme temperature conditions [below


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-4Center display, heater, air conditioner, audio, phone and voice recognition systems
GUID-31E22E02-D69E-4C69-8490-23F0291D8FF8

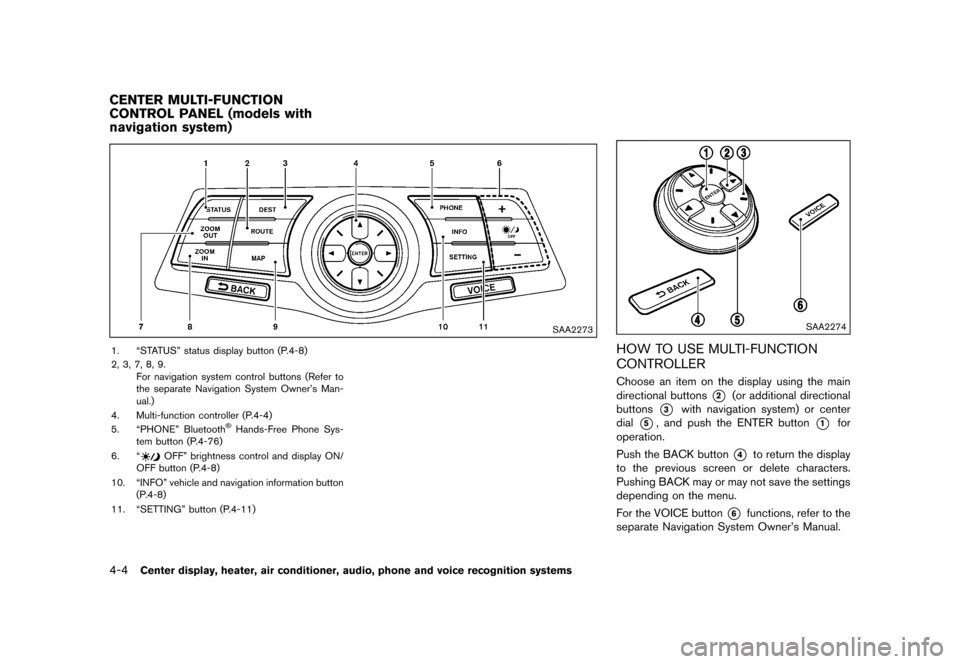

SAA2273
1. ªSTATUSº status display button (P.4-8)
2, 3, 7, 8, 9.For navigation system control buttons (Refer to
the separate Navigation System Owner's Man-
ual.)
4. Multi-function controller (P.4-4)
5. ªPHONEº Bluetooth
