2017 NISSAN 370Z ROADSTER Owners Manual


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

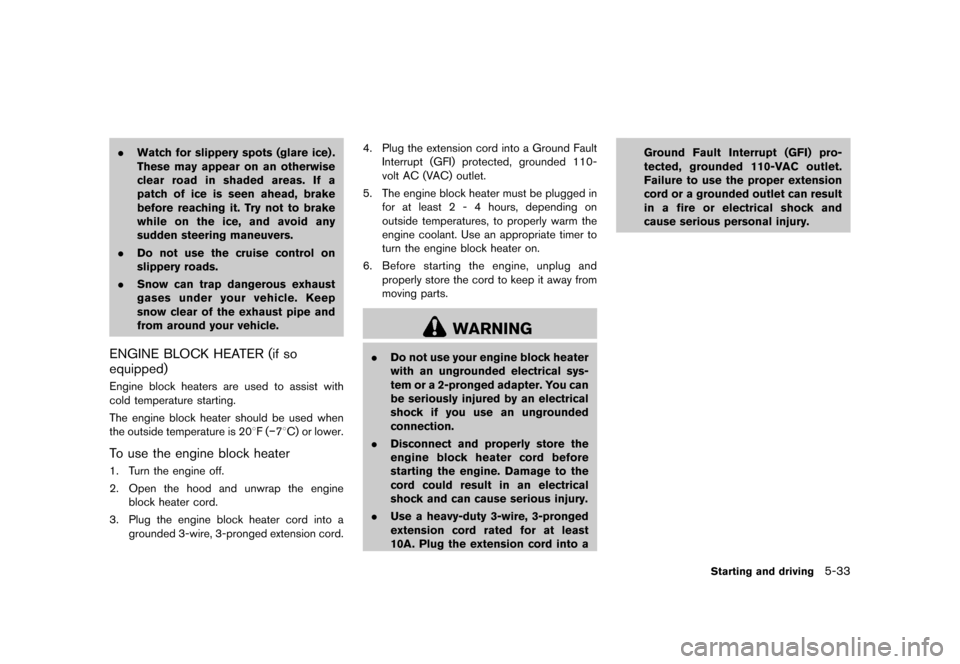

.Watch for slippery spots (glare ice) .
These may appear on an otherwise
clear road in shaded areas. If a
patch of ice is seen ahead, brake
before reaching it. Try not to brake
while on the ice, and avoid any
sudden steering maneuvers.
. Do not use the cruise control on
slippery roads.
. Snow can trap dangerous exhaust
gases under your vehicle. Keep
snow clear of the exhaust pipe and
from around your vehicle.
ENGINE BLOCK HEATER (if so
equipped)
GUID-B66B836E-8957-4821-B18D-D308ADF63156Engine block heaters are used to assist with
cold temperature starting.
The engine block heater should be used when
the outside temperature is 208F (


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

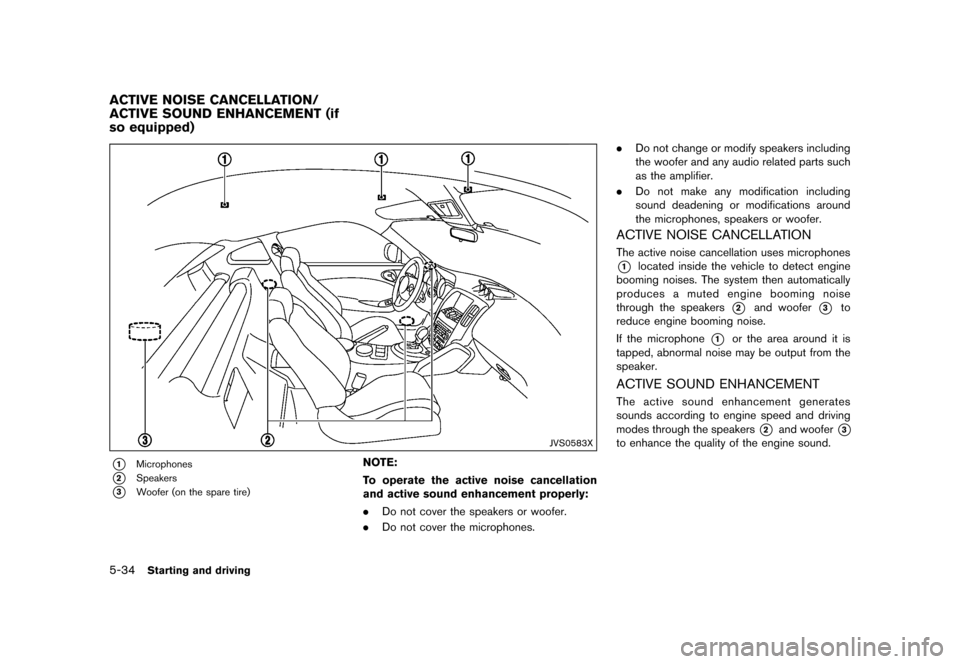

5-34Starting and driving
GUID-C8B509DF-5655-4532-9C0B-BFC94AC41122
JVS0583X
*1Microphones
*2Speakers
*3Woofer (on the spare tire)
NOTE:
To operate the active noise cancellation
and active sound enhancement properly:
.Do not cover the speakers or woofer.
. Do not cover the microphones. .
Do not change or modify speakers including
the woofer and any audio related parts such
as the amplifier.
. Do not make any modification including
sound deadening or modifications around
the microphones, speakers or woofer.
ACTIVE NOISE CANCELLATIONGUID-C8954FC4-75EC-4FE8-8C52-254E09AB4F2CThe active noise cancellation uses microphones
*1located inside the vehicle to detect engine
booming noises. The system then automatically
produces a muted engine booming noise
through the speakers
*2and woofer*3to
reduce engine booming noise.
If the microphone
*1or the area around it is
tapped, abnormal noise may be output from the
speaker.
ACTIVE SOUND ENHANCEMENTGUID-B0DE7980-834D-42A9-90B4-7A1715395F1EThe active sound enhancement generates
sounds according to engine speed and driving
modes through the speakers
*2and woofer*3
to enhance the quality of the engine sound.
ACTIVE NOISE CANCELLATION/
ACTIVE SOUND ENHANCEMENT (if
so equipped)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
6 In case of emergency
Hazard warning flasher switch...
.............................................. 6-2
Roadside assistance program ...
............................................... 6-2
Emergency engine shut off ...
..................................................... 6-3
Flat tire ...
........................................................................\
................. 6-3
Tire Pressure Monitoring System (TPMS) ...
.................... 6-3
Changing a flat tire (for models with spare tire) ...
......... 6-4
Repairing flat tire (for models with emergency tire
puncture repair kit) ...
............................................................. 6-9 Jump starting
...
........................................................................\
.. 6-15
Push starting ...
........................................................................\
... 6-17
If your vehicle overheats ...
...................................................... 6-17
Towing your vehicle ...
.............................................................. 6-19
Towing recommended by NISSAN (except for
NISMO models) ...
............................................................. 6-20
Towing recommended by NISSAN
(NISMO models) ...
............................................................ 6-21
Vehicle recovery (freeing a stuck vehicle) ...
............... 6-21
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

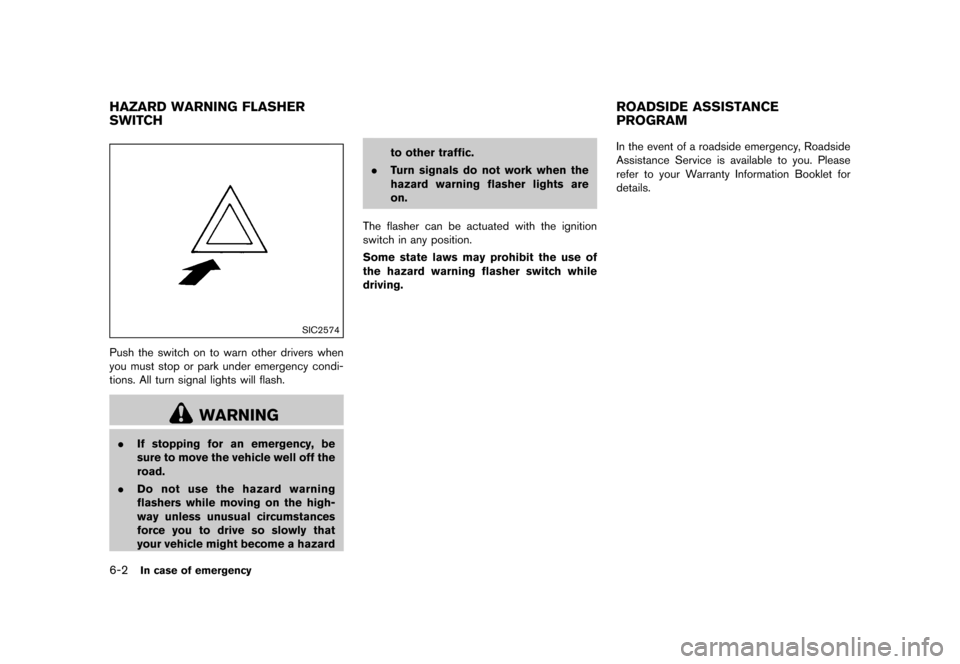

6-2In case of emergency
GUID-8648A4D6-BDDF-4572-AD2B-3A6B75E8B29E
SIC2574
Push the switch on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights will flash.
WARNING
.If stopping for an emergency, be
sure to move the vehicle well off the
road.
. Do not use the hazard warning
flashers while moving on the high-
way unless unusual circumstances
force you to drive so slowly that
your vehicle might become a hazard to other traffic.
. Turn signals do not work when the
hazard warning flasher lights are
on.
The flasher can be actuated with the ignition
switch in any position.
Some state laws may prohibit the use of
the hazard warning flasher switch while
driving.
GUID-3B43F2A1-806C-4F65-8101-B9EF3DD0618BIn the event of a roadside emergency, Roadside
Assistance Service is available to you. Please
refer to your Warranty Information Booklet for
details.
HAZARD WARNING FLASHER
SWITCH ROADSIDE ASSISTANCE
PROGRAM
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

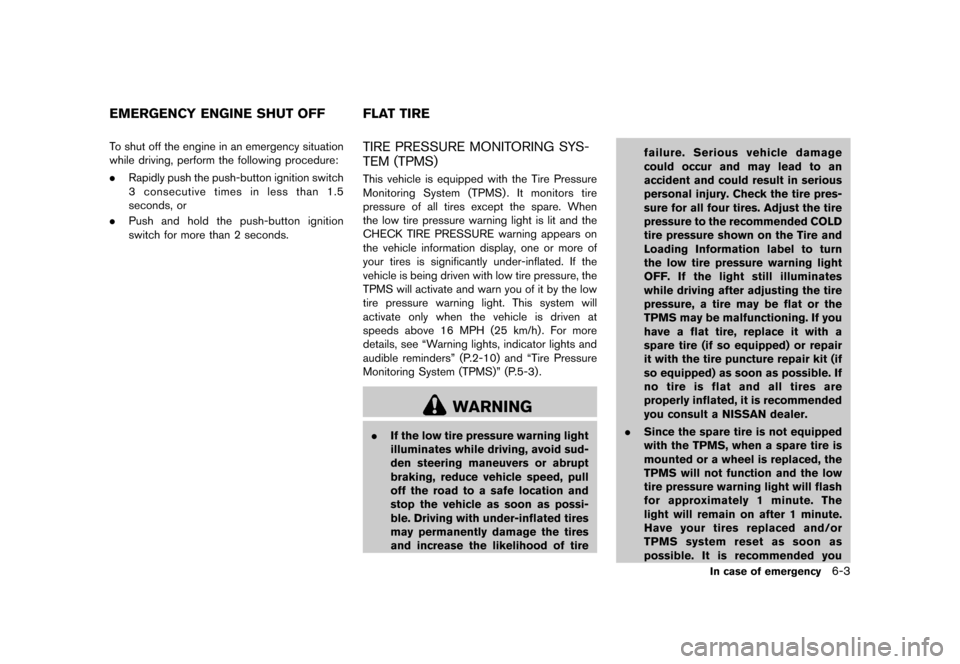

GUID-3E9E938E-A3E3-423E-B834-CC8CEDED686DTo shut off the engine in an emergency situation
while driving, perform the following procedure:
.Rapidly push the push-button ignition switch
3 consecutive times in less than 1.5
seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds.GUID-5DE4E947-B84D-4D47-B2EC-879369E4200DTIRE PRESSURE MONITORING SYS-
TEM (TPMS)
GUID-798990E0-F0C8-4003-8F39-B9227314C28FThis vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the vehicle information display, one or more of
your tires is significantly under-inflated. If the
vehicle is being driven with low tire pressure, the
TPMS will activate and warn you of it by the low
tire pressure warning light. This system will
activate only when the vehicle is driven at
speeds above 16 MPH (25 km/h) . For more
details, see ªWarning lights, indicator lights and
audible remindersº (P.2-10) and ªTire Pressure
Monitoring System (TPMS)º (P.5-3) .
WARNING
.If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possi-
ble. Driving with under-inflated tires
may permanently damage the tires
and increase the likelihood of tire failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
OFF. If the light still illuminates
while driving after adjusting the tire
pressure, a tire may be flat or the
TPMS may be malfunctioning. If you
have a flat tire, replace it with a
spare tire (if so equipped) or repair
it with the tire puncture repair kit (if
so equipped) as soon as possible. If
no tire is flat and all tires are
properly inflated, it is recommended
you consult a NISSAN dealer.
. Since the spare tire is not equipped
with the TPMS, when a spare tire is
mounted or a wheel is replaced, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The
light will remain on after 1 minute.
Have your tires replaced and/or
TPMS system reset as soon as
possible. It is recommended you
In case of emergency6-3
EMERGENCY ENGINE SHUT OFF FLAT TIRE
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

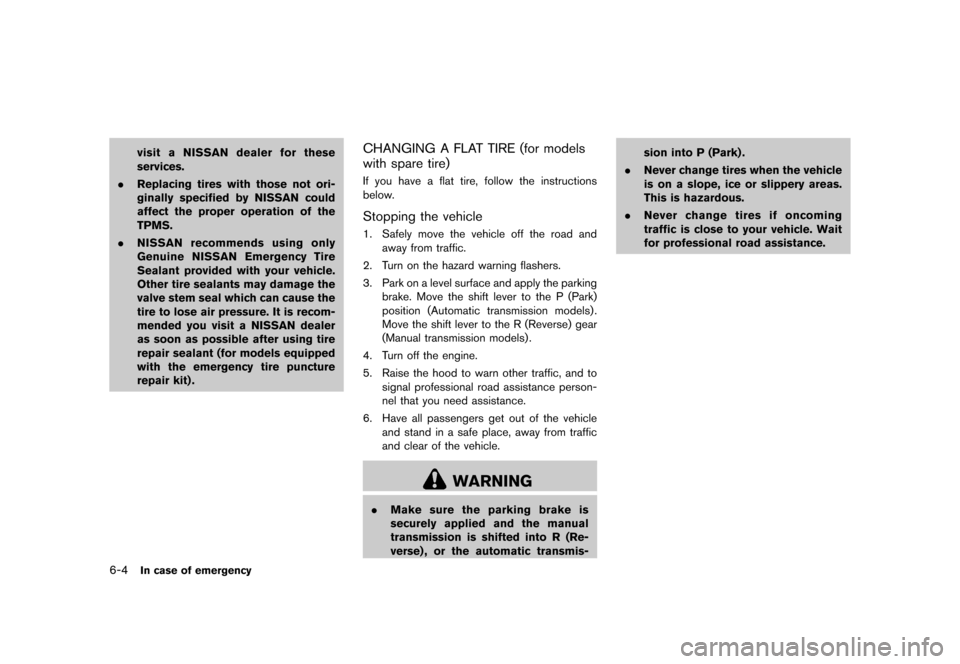

6-4In case of emergency
visit a NISSAN dealer for these
services.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. NISSAN recommends using only
Genuine NISSAN Emergency Tire
Sealant provided with your vehicle.
Other tire sealants may damage the
valve stem seal which can cause the
tire to lose air pressure. It is recom-
mended you visit a NISSAN dealer
as soon as possible after using tire
repair sealant (for models equipped
with the emergency tire puncture
repair kit) .CHANGING A FLAT TIRE (for models
with spare tire)
GUID-9EEE5F08-A8A1-4681-B959-90D7CC9C0736If you have a flat tire, follow the instructions
below.
Stopping the vehicleGUID-89A8F405-FB4B-43D9-8DD7-45B98F63E82A1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to the P (Park)
position (Automatic transmission models) .
Move the shift lever to the R (Reverse) gear
(Manual transmission models) .
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to signal professional road assistance person-
nel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away from traffic
and clear of the vehicle.
WARNING
.Make sure the parking brake is
securely applied and the manual
transmission is shifted into R (Re-
verse) , or the automatic transmis- sion into P (Park) .
. Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.
. Never change tires if oncoming
traffic is close to your vehicle. Wait
for professional road assistance.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

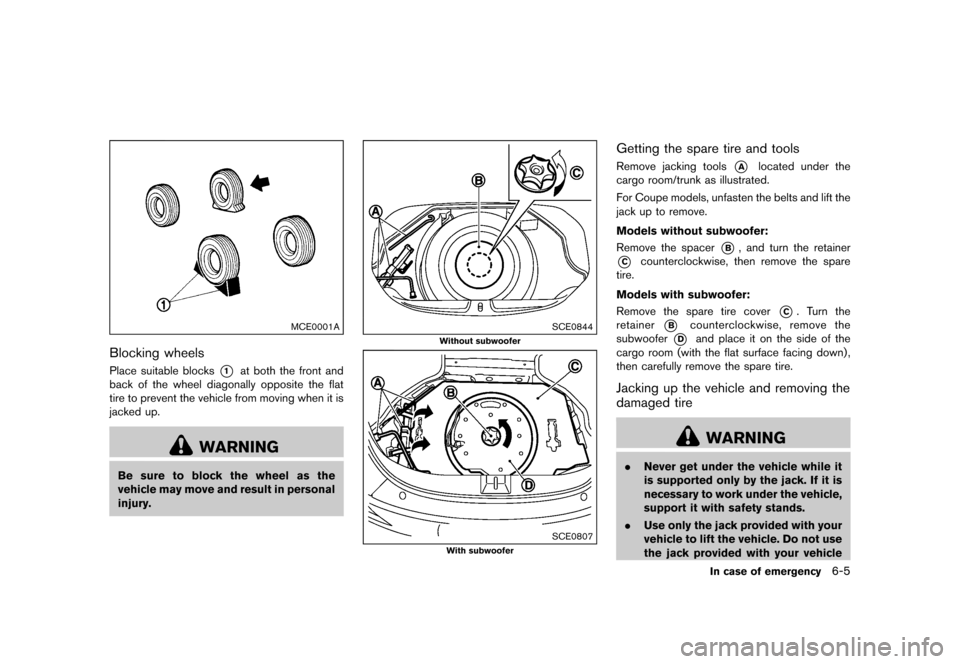

MCE0001A
Blocking wheelsGUID-F1341B1F-05E6-498A-B6C3-DF2077133767Place suitable blocks*1at both the front and
back of the wheel diagonally opposite the flat
tire to prevent the vehicle from moving when it is
jacked up.
WARNING
Be sure to block the wheel as the
vehicle may move and result in personal
injury.
SCE0844
Without subwoofer
SCE0807
With subwoofer
Getting the spare tire and toolsGUID-A5AA9E30-9EBC-47FE-BCF7-F6092C2A47F5Remove jacking tools*Alocated under the
cargo room/trunk as illustrated.
For Coupe models, unfasten the belts and lift the
jack up to remove.
Models without subwoofer:
GUID-5C256041-C38D-4011-98BF-18E2B95B56E8Remove the spacer*B, and turn the retainer
*Ccounterclockwise, then remove the spare
tire.
Models with subwoofer:
GUID-C845A525-65E9-466D-83D0-44C88F68F2B9Remove the spare tire cover*C. Turn the
retainer
*Bcounterclockwise, remove the
subwoofer
*Dand place it on the side of the
cargo room (with the flat surface facing down) ,
then carefully remove the spare tire.
Jacking up the vehicle and removing the
damaged tire
GUID-BB988AF9-74F5-4D02-ADEB-7D4560300906
WARNING
. Never get under the vehicle while it
is supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Use only the jack provided with your
vehicle to lift the vehicle. Do not use
the jack provided with your vehicle
In case of emergency6-5
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

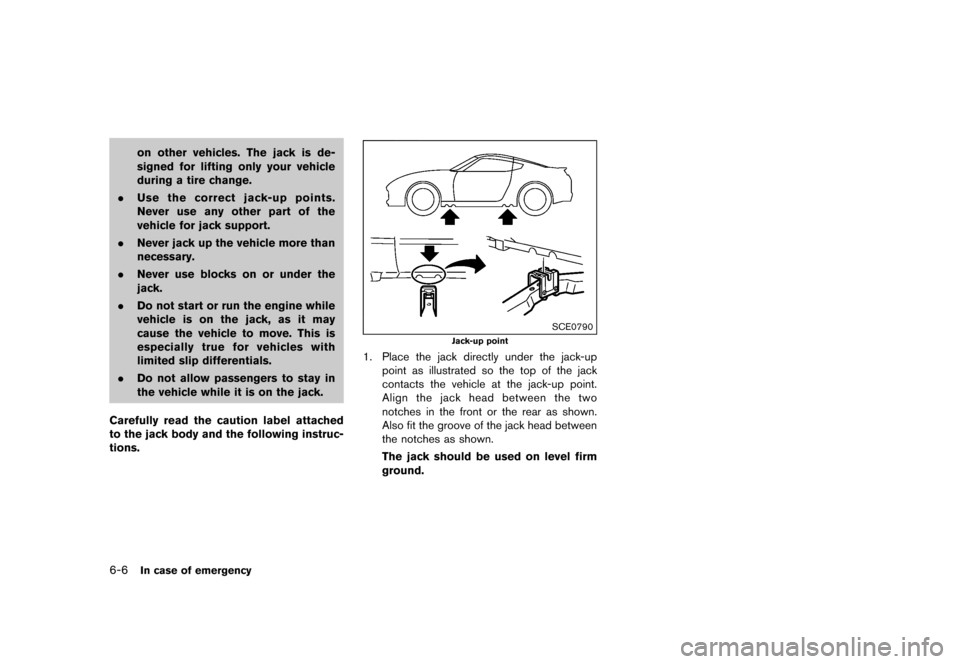

6-6In case of emergency
on other vehicles. The jack is de-
signed for lifting only your vehicle
during a tire change.
. Use the correct jack-up points.
Never use any other part of the
vehicle for jack support.
. Never jack up the vehicle more than
necessary.
. Never use blocks on or under the
jack.
. Do not start or run the engine while
vehicle is on the jack, as it may
cause the vehicle to move. This is
especially true for vehicles with
limited slip differentials.
. Do not allow passengers to stay in
the vehicle while it is on the jack.
Carefully read the caution label attached
to the jack body and the following instruc-
tions.
SCE0790
Jack-up point
1. Place the jack directly under the jack-up point as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
Align the jack head between the two
notches in the front or the rear as shown.
Also fit the groove of the jack head between
the notches as shown.
The jack should be used on level firm
ground.
&RQGLWLRQ
