2017 NISSAN 370Z ROADSTER Owners Manual


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

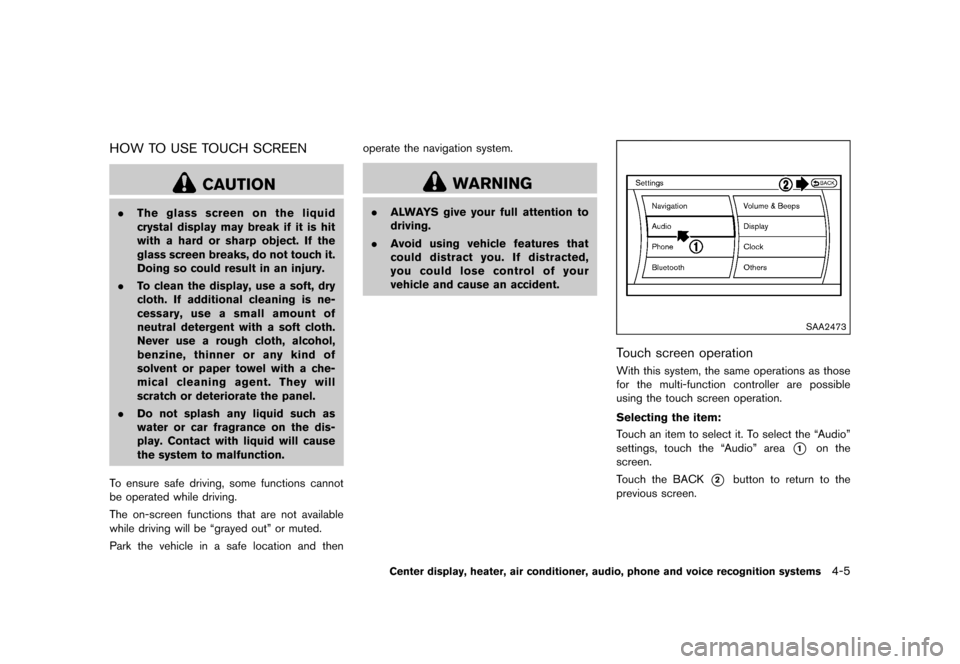

HOW TO USE TOUCH SCREENGUID-7BDC2B44-A42D-44B7-9342-FEC4371E6C0F
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is ne-
cessary, use a small amount of
neutral detergent with a soft cloth.
Never use a rough cloth, alcohol,
benzine, thinner or any kind of
solvent or paper towel with a che-
mical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be ªgrayed outº or muted.
Park the vehicle in a safe location and then operate the navigation system.
WARNING
.
ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.
SAA2473
Touch screen operationGUID-A8D29382-F80A-407F-BB0D-54E0203E135CWith this system, the same operations as those
for the multi-function controller are possible
using the touch screen operation.
Selecting the item:
GUID-0F27C8F2-C386-4C89-AD9D-6B87997B010CTouch an item to select it. To select the ªAudioº
settings, touch the ªAudioº area
*1on the
screen.
Touch the BACK
*2button to return to the
previous screen.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-5
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-6Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2474
Adjusting an item:GUID-10D44070-5F85-4E44-83E1-0A948E864C80Touch the+*1or


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
SAA2143

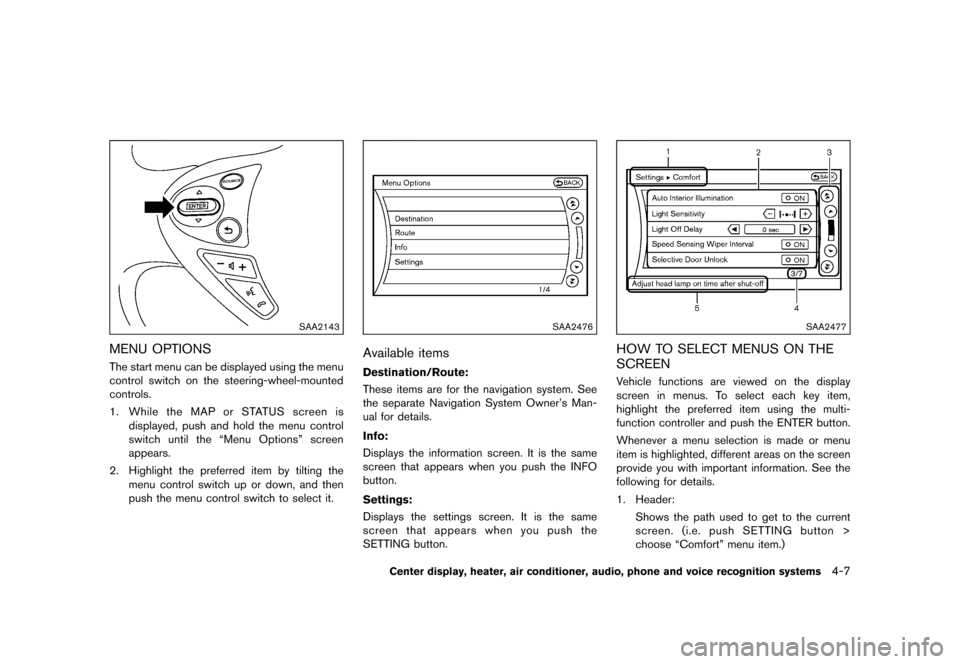

MENU OPTIONSGUID-F0D47342-E539-4A34-A32F-3CC02A22DEF3The start menu can be displayed using the menu
control switch on the steering-wheel-mounted
controls.
1.While the MAP or STATUS screen is
displayed, push and hold the menu control
switch until the ªMenu Optionsº screen
appears.
2. Highlight the preferred item by tilting the menu control switch up or down, and then
push the menu control switch to select it.
SAA2476
Available itemsGUID-AA78AE73-5181-4235-9F62-8F622DB5EE87
Destination/Route:GUID-C1987160-819E-47A5-B4E8-FA378CD15FF9These items are for the navigation system. See
the separate Navigation System Owner's Man-
ual for details.
Info:
GUID-696B242B-077C-40E2-8D40-64ADAD7DA365Displays the information screen. It is the same
screen that appears when you push the INFO
button.
Settings:
GUID-AD76F72C-0D86-42E2-8F78-E5DCB3D68E21Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.
SAA2477
HOW TO SELECT MENUS ON THE
SCREEN
GUID-971A50BB-99E3-49FF-93FC-8115615E85A0Vehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the multi-
function controller and push the ENTER button.
Whenever a menu selection is made or menu
item is highlighted, different areas on the screen
provide you with important information. See the
following for details.
1. Header:
Shows the path used to get to the current
screen. (i.e. push SETTING button >
choose ªComfortº menu item.)
Center display, heater, air conditioner, audio, phone and voice recognition systems4-7
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-8Center display, heater, air conditioner, audio, phone and voice recognition systems

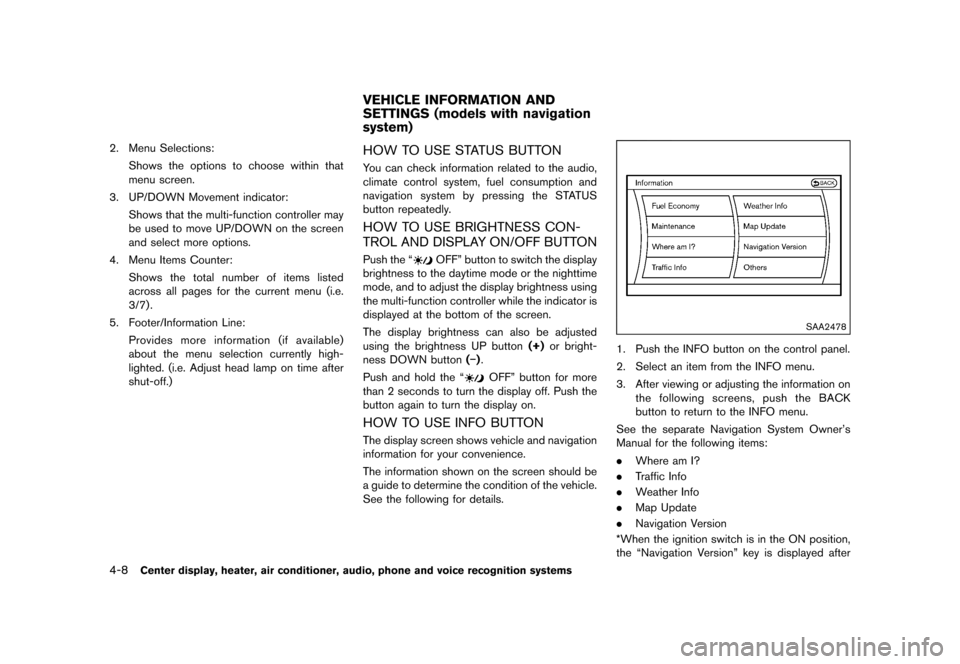

2. Menu Selections:Shows the options to choose within that
menu screen.
3. UP/DOWN Movement indicator: Shows that the multi-function controller may
be used to move UP/DOWN on the screen
and select more options.
4. Menu Items Counter: Shows the total number of items listed
across all pages for the current menu (i.e.
3/7) .
5. Footer/Information Line: Provides more information (if available)
about the menu selection currently high-
lighted. (i.e. Adjust head lamp on time after
shut-off.)GUID-1E8011D4-3695-404E-93CF-8F50DBA72472HOW TO USE STATUS BUTTONGUID-668201AC-867A-448C-9421-28170B799009You can check information related to the audio,
climate control system, fuel consumption and
navigation system by pressing the STATUS
button repeatedly.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-A5BA766E-74EF-4431-8E3D-BC70BE50C9EDPush the ªOFFº button to switch the display
brightness to the daytime mode or the nighttime
mode, and to adjust the display brightness using
the multi-function controller while the indicator is
displayed at the bottom of the screen.
The display brightness can also be adjusted
using the brightness UP button (+)or bright-
ness DOWN button (


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
selecting the ªOthersº key.
SAA2479
SAA2480

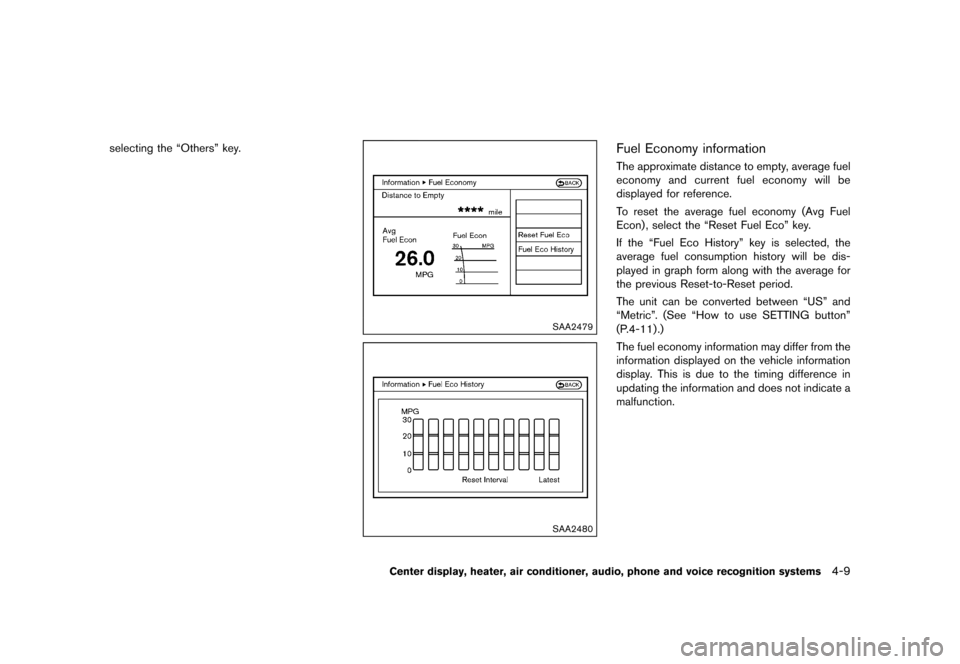

Fuel Economy informationGUID-8396B850-D64F-4D8C-B549-8F287D8ADE0FThe approximate distance to empty, average fuel
economy and current fuel economy will be
displayed for reference.
To reset the average fuel economy (Avg Fuel
Econ) , select the ªReset Fuel Ecoº key.
If the ªFuel Eco Historyº key is selected, the
average fuel consumption history will be dis-
played in graph form along with the average for
the previous Reset-to-Reset period.
The unit can be converted between ªUSº and
ªMetricº. (See ªHow to use SETTING buttonº
(P.4-11) .)
The fuel economy information may differ from the
information displayed on the vehicle information
display. This is due to the timing difference in
updating the information and does not indicate a
malfunction.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-9
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-10Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2481

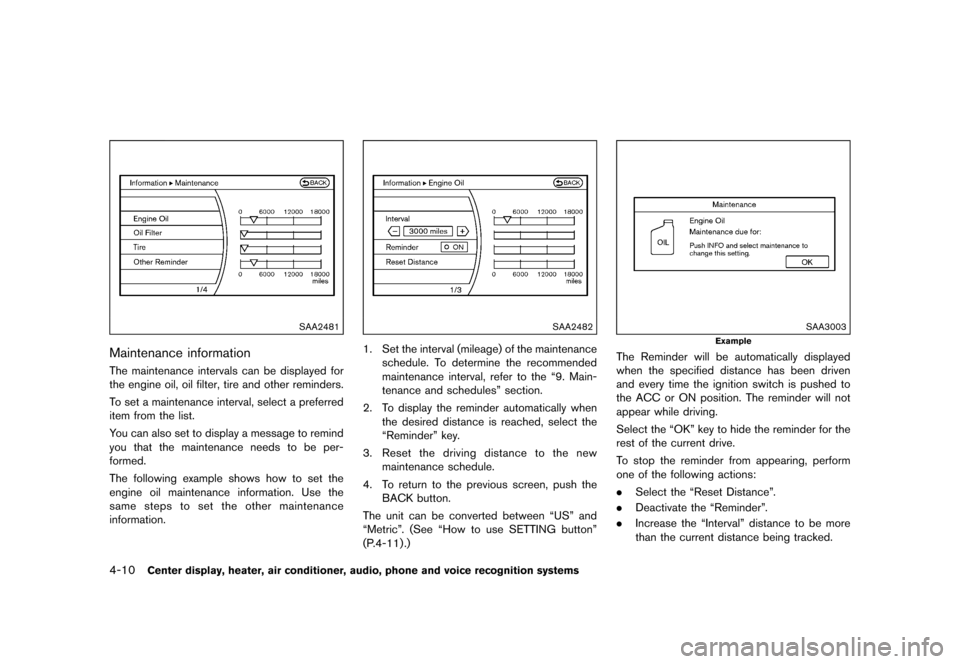

Maintenance informationGUID-89D9F6DB-354F-4A7B-B872-CD339D58060AThe maintenance intervals can be displayed for
the engine oil, oil filter, tire and other reminders.
To set a maintenance interval, select a preferred
item from the list.
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set the
engine oil maintenance information. Use the
same steps to set the other maintenance
information.
SAA2482
1. Set the interval (mileage) of the maintenanceschedule. To determine the recommended
maintenance interval, refer to the ª9. Main-
tenance and schedulesº section.
2. To display the reminder automatically when the desired distance is reached, select the
ªReminderº key.
3. Reset the driving distance to the new
maintenance schedule.
4. To return to the previous screen, push the BACK button.
The unit can be converted between ªUSº and
ªMetricº. (See ªHow to use SETTING buttonº
(P.4-11) .)
SAA3003
Example
The Reminder will be automatically displayed
when the specified distance has been driven
and every time the ignition switch is pushed to
the ACC or ON position. The reminder will not
appear while driving.
Select the ªOKº key to hide the reminder for the
rest of the current drive.
To stop the reminder from appearing, perform
one of the following actions:
. Select the ªReset Distanceº.
. Deactivate the ªReminderº.
. Increase the ªIntervalº distance to be more
than the current distance being tracked.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
SAA2483

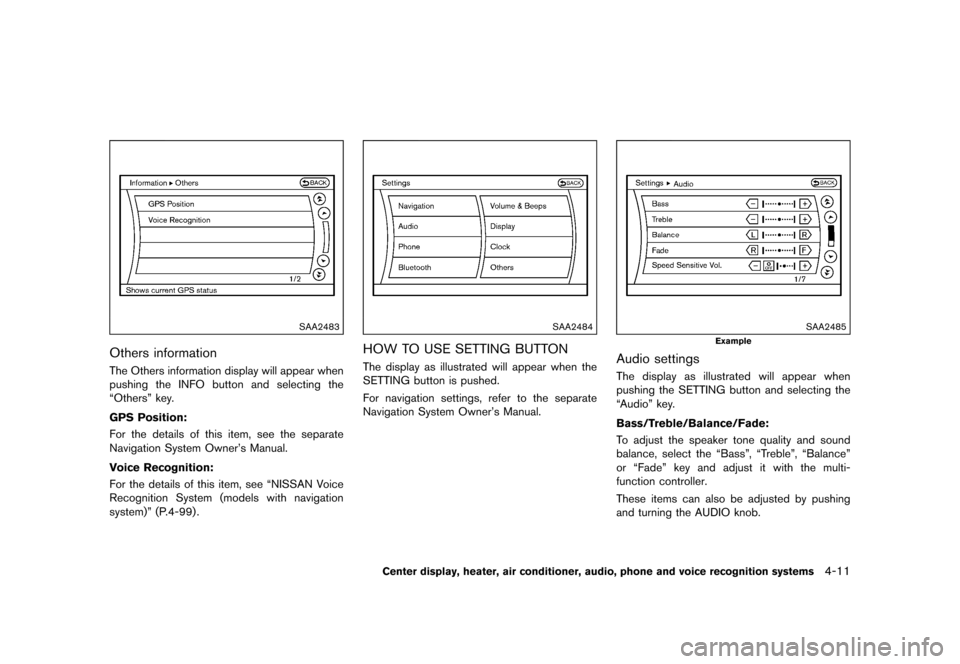

Others informationGUID-D662A7E5-DDB2-4470-A69A-D889DCD71F99The Others information display will appear when
pushing the INFO button and selecting the
ªOthersº key.
GPS Position:
GUID-4D4597AE-8B1E-4F80-B519-DAE04711CFF6For the details of this item, see the separate
Navigation System Owner's Manual.
Voice Recognition:
GUID-54E94323-97C4-4CC5-9BF7-68A971824389For the details of this item, see ªNISSAN Voice
Recognition System (models with navigation
system)º (P.4-99) .
SAA2484
HOW TO USE SETTING BUTTONGUID-2FEAB50E-DD77-435E-9347-1CA16505931AThe display as illustrated will appear when the
SETTING button is pushed.
For navigation settings, refer to the separate
Navigation System Owner's Manual.
SAA2485
Example
Audio settingsGUID-80D6355E-406A-46B5-8335-43929C307518The display as illustrated will appear when
pushing the SETTING button and selecting the
ªAudioº key.
Bass/Treble/Balance/Fade:
GUID-E8718B4B-ECBD-4243-B606-DE85DE96BD69To adjust the speaker tone quality and sound
balance, select the ªBassº, ªTrebleº, ªBalanceº
or ªFadeº key and adjust it with the multi-
function controller.
These items can also be adjusted by pushing
and turning the AUDIO knob.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-11
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-12Center display, heater, air conditioner, audio, phone and voice recognition systems

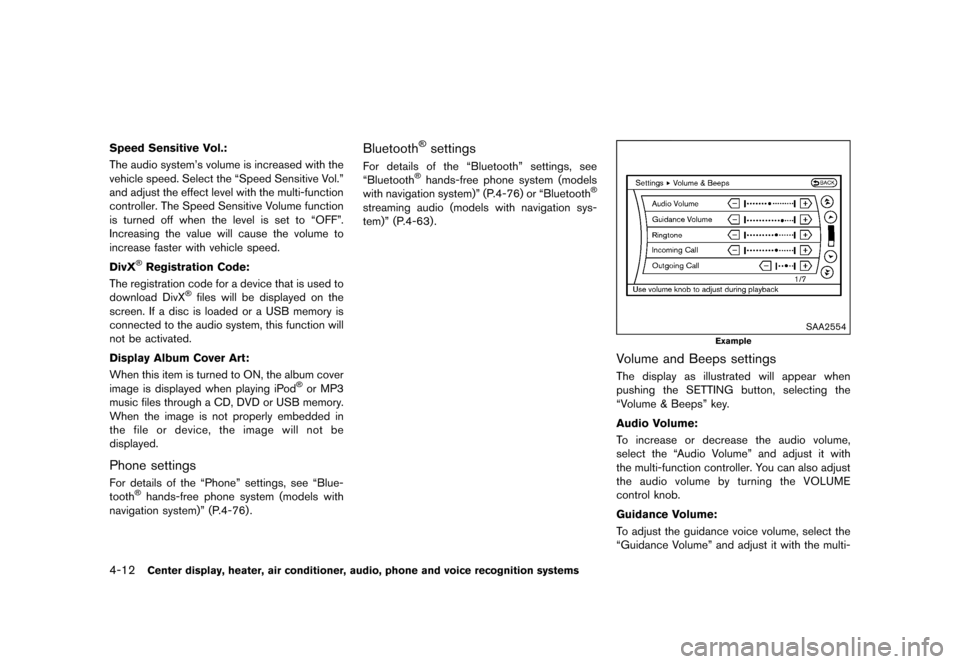

Speed Sensitive Vol.:GUID-989BD8C8-DBC0-4CB5-AD6F-BEEA6816CB24The audio system's volume is increased with the
vehicle speed. Select the ªSpeed Sensitive Vol.º
and adjust the effect level with the multi-function
controller. The Speed Sensitive Volume function
is turned off when the level is set to ªOFFº.
Increasing the value will cause the volume to
increase faster with vehicle speed.
DivX
