2017 NISSAN 370Z ROADSTER Owners Manual


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

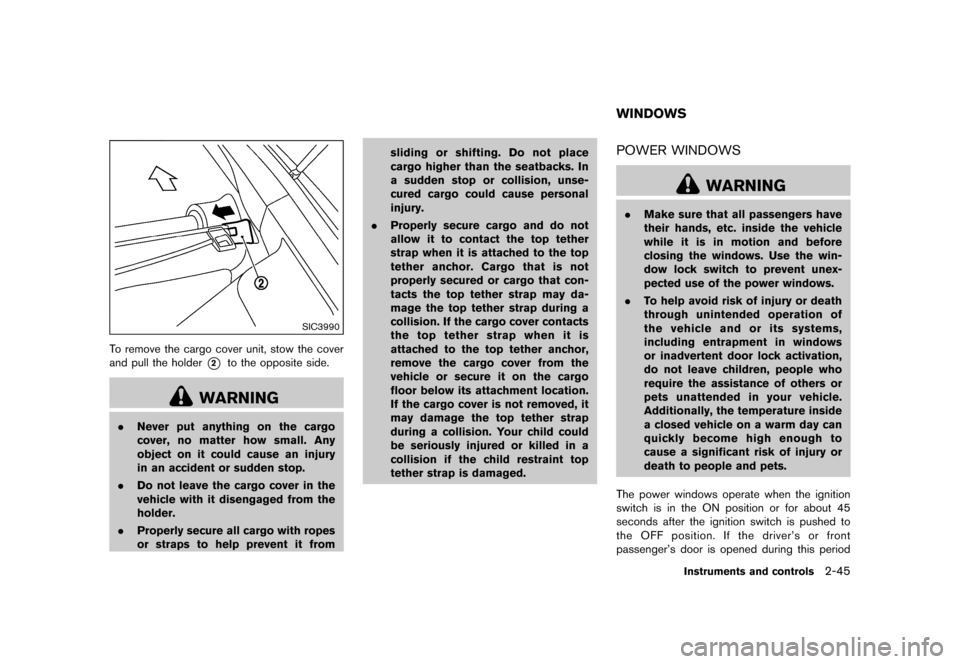

SIC3990
To remove the cargo cover unit, stow the cover
and pull the holder
*2to the opposite side.
WARNING
.Never put anything on the cargo
cover, no matter how small. Any
object on it could cause an injury
in an accident or sudden stop.
. Do not leave the cargo cover in the
vehicle with it disengaged from the
holder.
. Properly secure all cargo with ropes
or straps to help prevent it from sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.
. Properly secure cargo and do not
allow it to contact the top tether
strap when it is attached to the top
tether anchor. Cargo that is not
properly secured or cargo that con-
tacts the top tether strap may da-
mage the top tether strap during a
collision. If the cargo cover contacts
the top tether strap when it is
attached to the top tether anchor,
remove the cargo cover from the
vehicle or secure it on the cargo
floor below its attachment location.
If the cargo cover is not removed, it
may damage the top tether strap
during a collision. Your child could
be seriously injured or killed in a
collision if the child restraint top
tether strap is damaged.
GUID-DF047BB2-D5D0-4CAD-9288-0C403283F692POWER WINDOWSGUID-32900338-E4C6-4119-951D-5B7234BA9782
WARNING
.Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.
. To help avoid risk of injury or death
through unintended operation of
the vehicle and or its systems,
including entrapment in windows
or inadvertent door lock activation,
do not leave children, people who
require the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.
The power windows operate when the ignition
switch is in the ON position or for about 45
seconds after the ignition switch is pushed to
the OFF position. If the driver's or front
passenger's door is opened during this period
Instruments and controls2-45
WINDOWS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

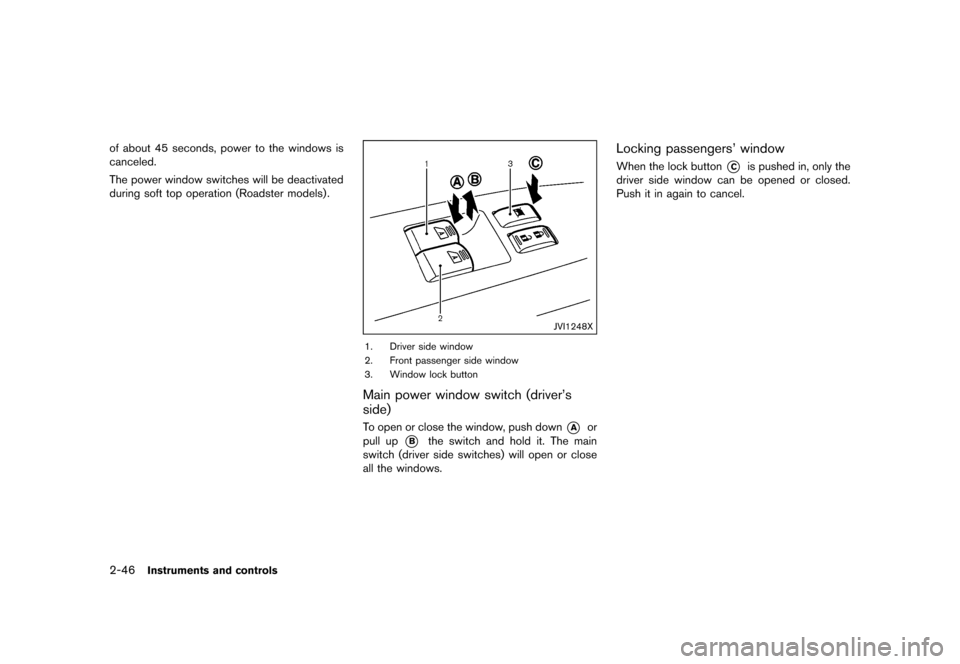

2-46Instruments and controls
of about 45 seconds, power to the windows is
canceled.
The power window switches will be deactivated
during soft top operation (Roadster models) .
JVI1248X
1. Driver side window
2. Front passenger side window
3. Window lock button
Main power window switch (driver's
side)
GUID-0CBE7503-24CC-427E-8371-023E111176FDTo open or close the window, push down*Aor
pull up
*Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Locking passengers' windowGUID-6A803AF8-EBDB-456B-A8E0-5DE2E2428383When the lock button*Cis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

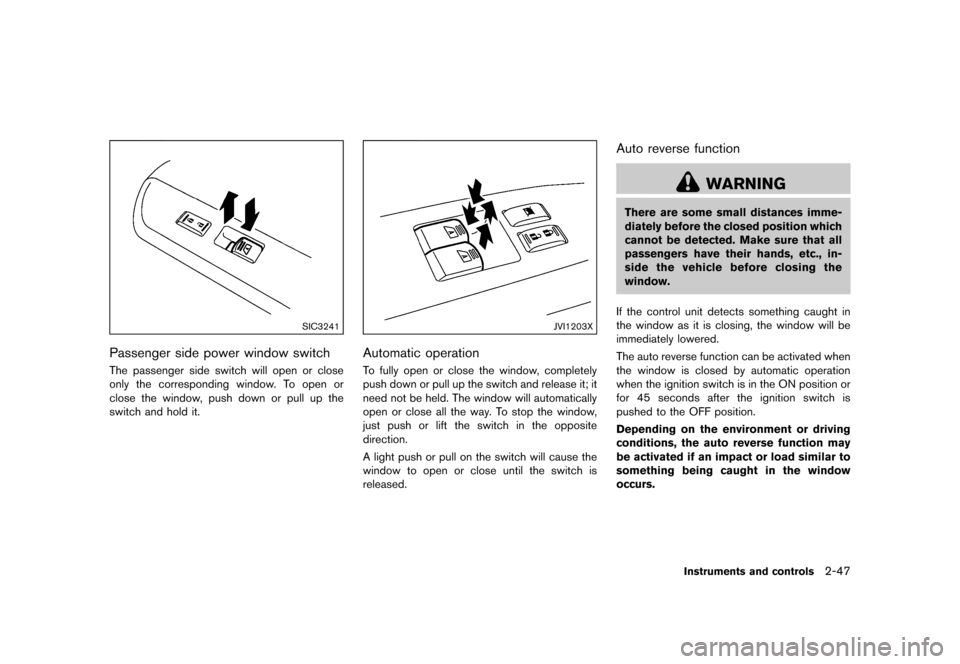

SIC3241
Passenger side power window switchGUID-D2873997-FF76-4182-BBEB-561704D3152CThe passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
JVI1203X
Automatic operationGUID-B744ECF4-D5F8-4FAC-9828-1E32D5E42FB6To fully open or close the window, completely
push down or pull up the switch and release it; it
need not be held. The window will automatically
open or close all the way. To stop the window,
just push or lift the switch in the opposite
direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
Auto reverse functionGUID-CD50126A-281E-4A58-A6B8-DCB361A120C3
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is
pushed to the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
Instruments and controls2-47
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
2-48Instruments and controls
Automatic window lowering (Roadster
models)
GUID-CE4AA486-124C-40EE-80C5-DBE4F8C22C28When the soft top operating switch is pressed,
the power windows will automatically be low-
ered completely. The windows do not rise
automatically after the soft top open/close
operation is completed. Use the power window
switches to raise them.
Automatic adjusting functionGUID-6854CEC8-70B2-4EA8-8E56-6D5CF57B1C28
CAUTION
When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work
and the side roof panel may be da-
maged.
The power window has an automatic adjusting
function. When the door is being opened, the
window is automatically lowered slightly to avoid
contact between the window and the side roof
panel. When the door is closed, the window is
automatically raised slightly.
While the automatic adjusting function does not
work, the window will be controlled as follows: .
When the door is opened, the window
lowers for approximately 2 seconds.
. While the door is open, the window cannot
be raised.
If the windows do not close automaticallyGUID-563CD3C3-E4B1-4FD9-AFDD-C6378120F9EBIf the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.
1. Push the ignition switch to the ON position.
2.Close the door and soft top (Roadster
models) .
3. Open the window completely by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate the window by the automatic function to
confirm the initialization is complete.
6. Perform steps 2 through 5 above for other windows.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked. It is
recommended you visit a NISSAN dealer for this service.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
GUID-EB8A90DE-235F-48E6-A41D-DCA68C944D61

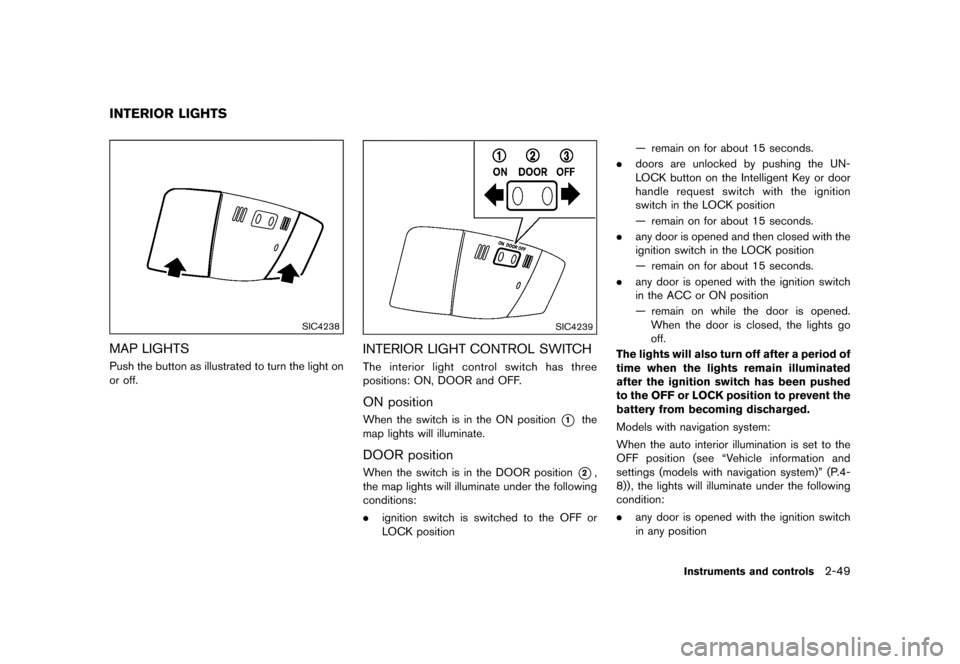

SIC4238
MAP LIGHTSGUID-63E0140B-AB30-4F26-B607-6D71FF432844Push the button as illustrated to turn the light on
or off.
SIC4239
INTERIOR LIGHT CONTROL SWITCHGUID-B369A0F1-3593-452D-A9AB-AB457EB2CCB7The interior light control switch has three
positions: ON, DOOR and OFF.
ON positionGUID-CF6B68D4-BB47-4735-AA45-9104BC2F2DA7When the switch is in the ON position*1the
map lights will illuminate.
DOOR positionGUID-B190F75C-E5A5-446F-BA74-B3DDEFFB9DBAWhen the switch is in the DOOR position*2,
the map lights will illuminate under the following
conditions:
. ignition switch is switched to the OFF or
LOCK position Ð remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK button on the Intelligent Key or door
handle request switch with the ignition
switch in the LOCK position
Ð remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
Ð remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
Ð remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
Models with navigation system:
When the auto interior illumination is set to the
OFF position (see ªVehicle information and
settings (models with navigation system)º (P.4-
8)) , the lights will illuminate under the following
condition:
. any door is opened with the ignition switch
in any position
Instruments and controls2-49
INTERIOR LIGHTS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

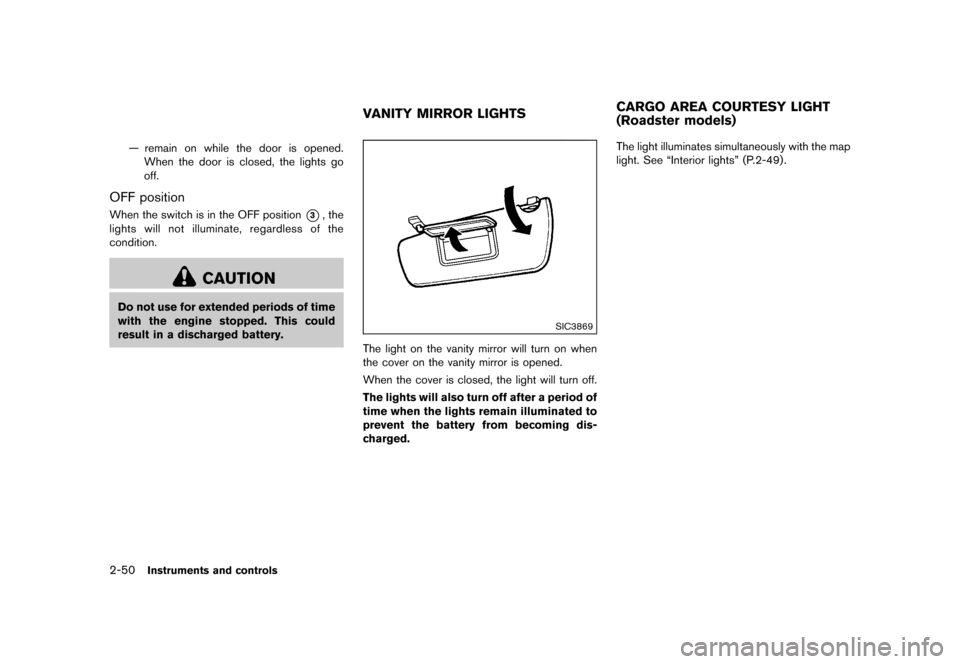

2-50Instruments and controls
Ð remain on while the door is opened.When the door is closed, the lights go
off.
OFF positionGUID-1E5AD799-C9B5-4BE9-AD45-ADF123B00735When the switch is in the OFF position*3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
GUID-B346630C-75B9-46AE-B61E-18B063DCA5D2
SIC3869
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will also turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
GUID-6447FE90-98AB-45D1-B72B-E25AAC29F10BThe light illuminates simultaneously with the map
light. See ªInterior lightsº (P.2-49).
VANITY MIRROR LIGHTS CARGO AREA COURTESY LIGHT
(Roadster models)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

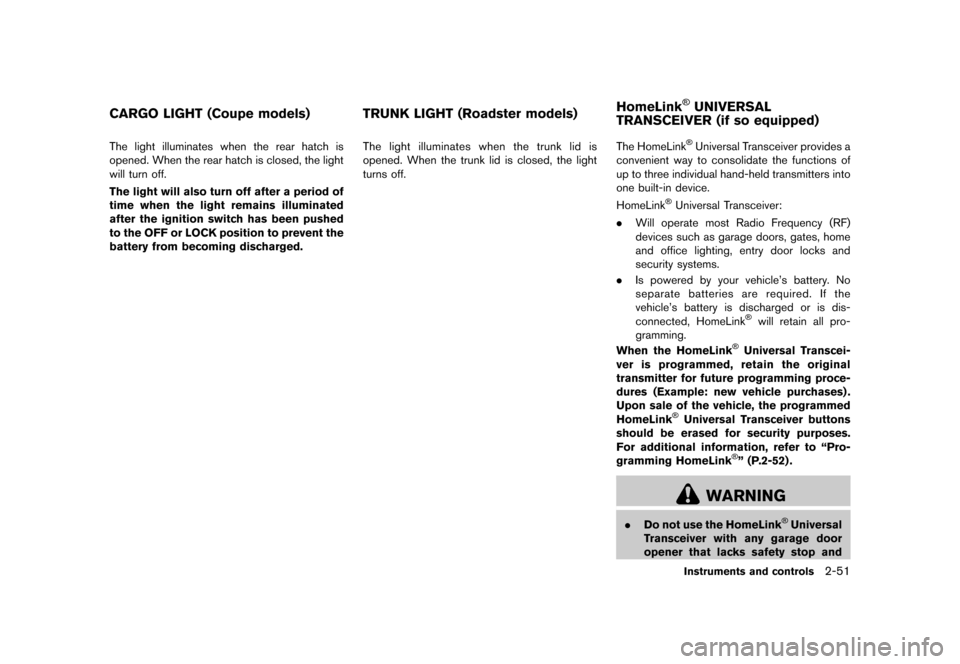

GUID-59FB4F32-C095-499C-B3B5-1B79C5899138The light illuminates when the rear hatch is
opened. When the rear hatch is closed, the light
will turn off.
The light will also turn off after a period of
time when the light remains illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.GUID-000A2C5B-945E-4FD8-9BA6-2AB1B7CB6758The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the light
turns off.GUID-661C751B-74AB-44AC-8867-D5F1F66CE5FBThe HomeLink


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

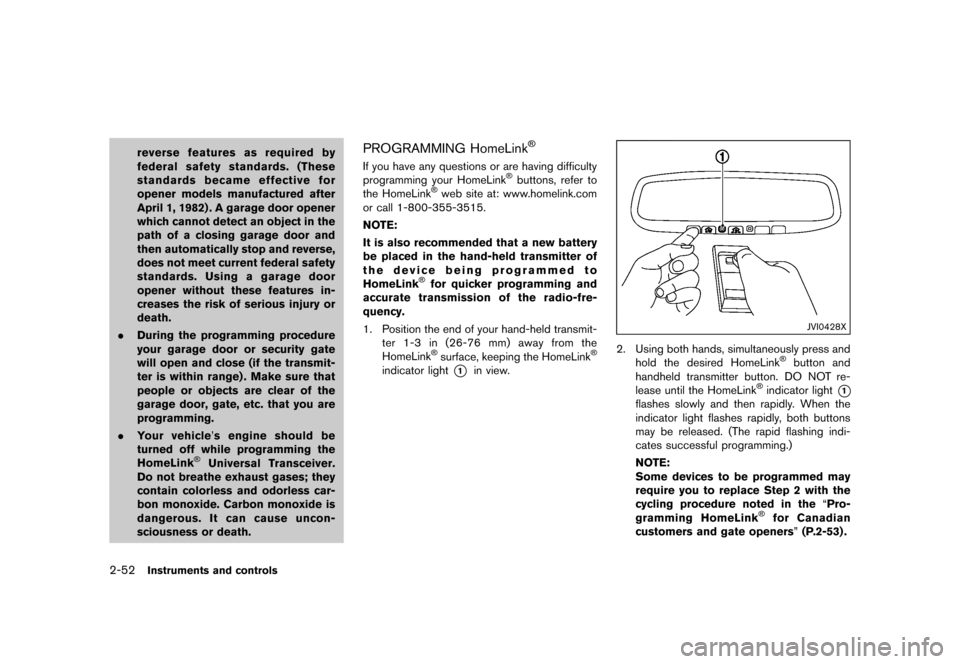

2-52Instruments and controls
reverse features as required by
federal safety standards. (These
standards became effective for
opener models manufactured after
April 1, 1982) . A garage door opener
which cannot detect an object in the
path of a closing garage door and
then automatically stop and reverse,
does not meet current federal safety
standards. Using a garage door
opener without these features in-
creases the risk of serious injury or
death.
. During the programming procedure
your garage door or security gate
will open and close (if the transmit-
ter is within range) . Make sure that
people or objects are clear of the
garage door, gate, etc. that you are
programming.
. Your vehicle's engine should be
turned off while programming the
HomeLink
