2017 NISSAN 370Z ROADSTER Owners Manual


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
Turn the VOL control knob to adjust the volume.
Adjusting tone quality and speaker bal-
ance:
GUID-EE63FB59-E0C8-4418-A666-C8AA97F5F8E1To adjust Bass, Treble, Balance and Fade, push
the Audio control knob. When the display shows
the setting you want to change (Bass, Treble,
Balance and Fade) , rotate the Audio control
knob to set the desired setting. For the other
setting methods, see ªHow to use SETTING
buttonº (P.4-11).
This vehicle has some sound effect functions as
follows:
.Speed Sensitive Vol.
For more details, see ªHow to use SETTING
buttonº (P.4-11).
Switching the display:
GUID-9AB74E63-85FC-4997-86CA-2C035D5D8B1CPushing the DISC´AUX button will switch the
displays as follows:
iPod


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-54Center display, heater, air conditioner, audio, phone and voice recognition systems
.UPDATING (When the satellite radio sub-
scription is not active)
SCAN tuning:GUID-691ADF91-E83B-414E-B2E3-14347A03462EPush the SCAN tuning button to tune from low
to high frequencies and stop at each broad-
casting station/channel for 5 seconds. Pushing
the button again during this 5 seconds period
will stop SCAN tuning and the radio will remain
tuned to that station/channel.
If the SCAN tuning button is not pushed within 5
seconds, SCAN tuning moves to the next
station/channel.
*1to*6Station memory operations:GUID-044495CF-A340-4F81-8881-2CB80B47806412 stations/channels can be set for the FM band
(6 each for FM1 and FM2) , 18 for SiriusXM
Satellite Radio (6 each for XM1, XM2 and XM3)
and 6 stations can be set for the AM band.
1. Choose the radio band using the radio band
select button.
2. Tune to the desired station/channel using the SEEK/TRACK, SCAN button or the
radio TUNE knob.
3. Push and hold the desired station preset button
*1to*6until the radio mutes.
4. The station indicator will then come on and the sound will resume. Memorizing is now
complete. 5.
Other buttons can be set in the same
manner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations/channels.
List (AM and FM radio):
GUID-D86261E5-DCCB-4ADA-ABCA-5AE654886D2DWhen the ªListº key on the display is selected
while the FM or AM radio is being played, the
preset station list will be displayed.
If 1 of the 6 preset stations listed is touched and
held, the current station will be stored as the
new preset.
Menu (SiriusXM Satellite Radio):
GUID-AB48ACE9-1E2B-4F85-A4D6-40FF553A98D5When the ªMenuº key on the display is selected
while the SiriusXM Satellite Radio is being
played, the menu list will be displayed.
The following items are available.
. Preset List
Displays the preset channel list. If 1 of the 6
preset stations listed is touched and held,
the current station will be stored as the new
preset.
. Customize Channel List
Selects specific channels to skip while using
the TUNE, SEEK/CATEGORY or Menu-
Categories feature. .
Favorite Artists & Songs
Stores the current artist or song that is being
played. Touch the ªAlertº key to be reminded
when the stored artist or song is playing on a
station while listening to SiriusXM Satellite
Radio.
. Categories
Selecting a category will go to the first
channel in that category as defined by
SiriusXM Satellite Radio.
. Direct Tune
Inputs the channel number by using a
keypad.Compact Disc (CD) player operationGUID-D7FD0CC5-89C9-4B76-8ACF-67B1FDDD829EPush the ignition switch to the ACC or ON
position and insert the Compact Disc (CD) into
the slot with the label side facing up. The CD will
be guided automatically into the slot and start
playing.
After loading the CD, the number of tracks on
the CD and the play time will appear on the
display.
If the radio is already operating, it will auto-
matically turn off and the CD will play.
If the system has been turned off while the CD
was playing, pushing the ON´OFF button will
start the CD.
Do not use 3.1 in (8 cm) discs.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

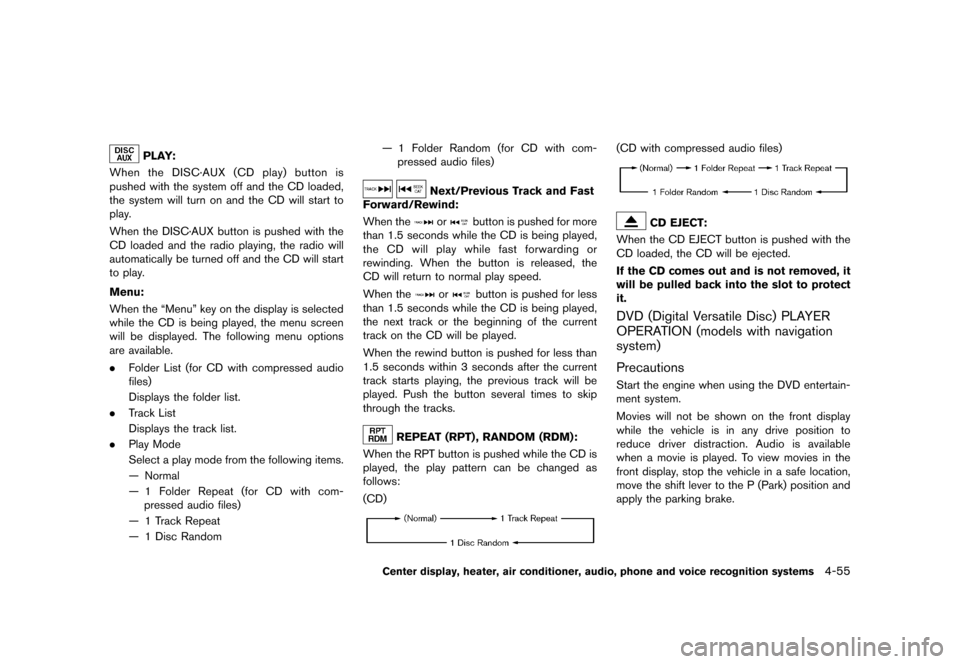

PLAY:GUID-12CD4A23-7446-4924-B860-AC731BCCCC55When the DISC´AUX (CD play) button is
pushed with the system off and the CD loaded,
the system will turn on and the CD will start to
play.
When the DISC´AUX button is pushed with the
CD loaded and the radio playing, the radio will
automatically be turned off and the CD will start
to play.
Menu:
GUID-00E8B893-3B46-4B0E-97EF-AA52D4464AE9When the ªMenuº key on the display is selected
while the CD is being played, the menu screen
will be displayed. The following menu options
are available.
.Folder List (for CD with compressed audio
files)
Displays the folder list.
. Track List
Displays the track list.
. Play Mode
Select a play mode from the following items.
Ð Normal
Ð 1 Folder Repeat (for CD with com-
pressed audio files)
Ð 1 Track Repeat
Ð 1 Disc Random Ð 1 Folder Random (for CD with com-
pressed audio files)
Next/Previous Track and Fast
Forward/Rewind:
GUID-635E552F-438F-4DB1-B8D0-BE1A742AA0C2When theorbutton is pushed for more
than 1.5 seconds while the CD is being played,
the CD will play while fast forwarding or
rewinding. When the button is released, the
CD will return to normal play speed.
When the
orbutton is pushed for less
than 1.5 seconds while the CD is being played,
the next track or the beginning of the current
track on the CD will be played.
When the rewind button is pushed for less than
1.5 seconds within 3 seconds after the current
track starts playing, the previous track will be
played. Push the button several times to skip
through the tracks.
REPEAT (RPT) , RANDOM (RDM):GUID-4BBE8911-E4BD-47CA-8544-520D075307B4When the RPT button is pushed while the CD is
played, the play pattern can be changed as
follows:
(CD)
NOS2606
(CD with compressed audio files)
NOS2607
CD EJECT:GUID-8ED56347-08CF-4467-8137-1188A5842BA8When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.
If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.
DVD (Digital Versatile Disc) PLAYER
OPERATION (models with navigation
system)
GUID-82774B38-2258-41EC-BF88-9AEAC2F227BC
PrecautionsGUID-4C92CCF2-5340-432C-85EC-DBA0ABDB5119Start the engine when using the DVD entertain-
ment system.
Movies will not be shown on the front display
while the vehicle is in any drive position to
reduce driver distraction. Audio is available
when a movie is played. To view movies in the
front display, stop the vehicle in a safe location,
move the shift lever to the P (Park) position and
apply the parking brake.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-55
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-56Center display, heater, air conditioner, audio, phone and voice recognition systems

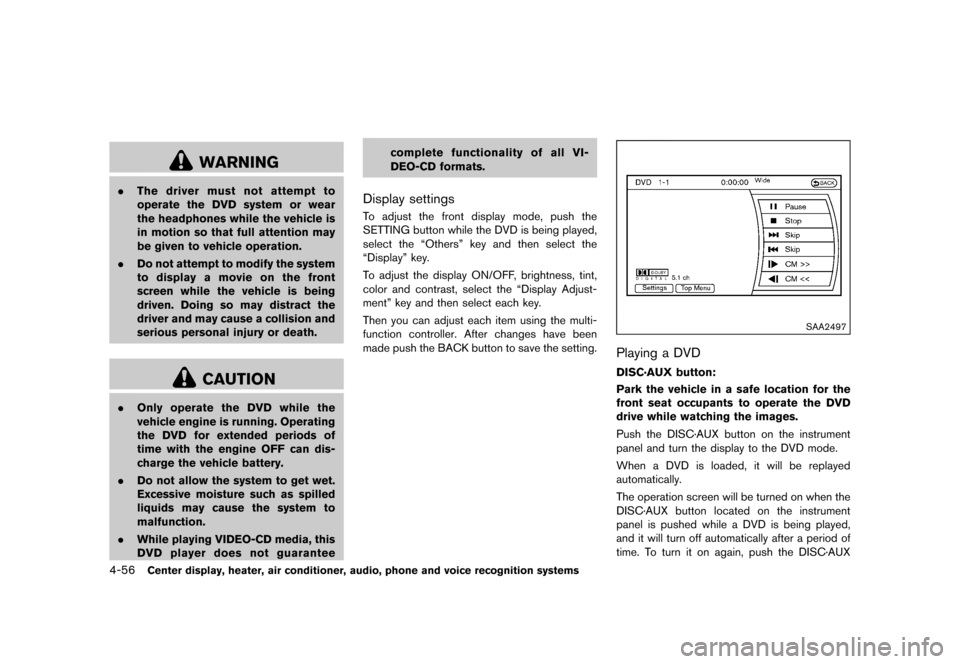

WARNING
.The driver must not attempt to
operate the DVD system or wear
the headphones while the vehicle is
in motion so that full attention may
be given to vehicle operation.
. Do not attempt to modify the system
to display a movie on the front
screen while the vehicle is being
driven. Doing so may distract the
driver and may cause a collision and
serious personal injury or death.
CAUTION
.Only operate the DVD while the
vehicle engine is running. Operating
the DVD for extended periods of
time with the engine OFF can dis-
charge the vehicle battery.
. Do not allow the system to get wet.
Excessive moisture such as spilled
liquids may cause the system to
malfunction.
. While playing VIDEO-CD media, this
DVD player does not guarantee complete functionality of all VI-
DEO-CD formats.
Display settingsGUID-CA2E812E-F0A1-449F-AEDD-621D95ADEB54To adjust the front display mode, push the
SETTING button while the DVD is being played,
select the ªOthersº key and then select the
ªDisplayº key.
To adjust the display ON/OFF, brightness, tint,
color and contrast, select the ªDisplay Adjust-
mentº key and then select each key.
Then you can adjust each item using the multi-
function controller. After changes have been
made push the BACK button to save the setting.
SAA2497
Playing a DVDGUID-63904578-6EAD-49D4-BC6B-331E53FCE42D
DISC´AUX button:GUID-13C58790-B2D1-4EF4-8872-E48B55C359ECPark the vehicle in a safe location for the
front seat occupants to operate the DVD
drive while watching the images.
Push the DISC´AUX button on the instrument
panel and turn the display to the DVD mode.
When a DVD is loaded, it will be replayed
automatically.
The operation screen will be turned on when the
DISC´AUX button located on the instrument
panel is pushed while a DVD is being played,
and it will turn off automatically after a period of
time. To turn it on again, push the DISC´AUX
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

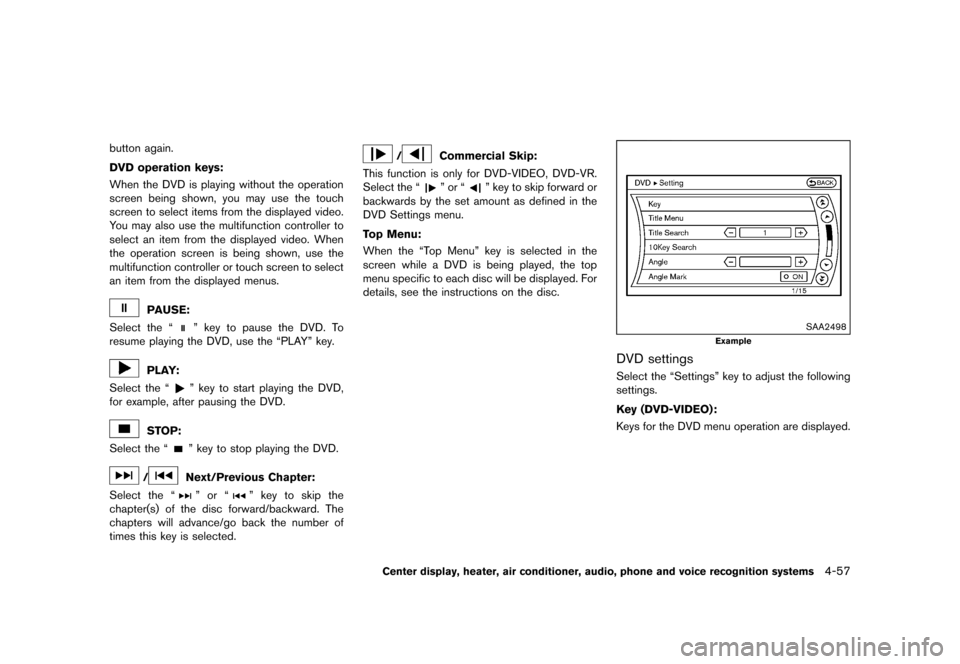

button again.
DVD operation keys:
GUID-ECE5FA64-A2DE-4794-9E71-FF555600565AWhen the DVD is playing without the operation
screen being shown, you may use the touch
screen to select items from the displayed video.
You may also use the multifunction controller to
select an item from the displayed video. When
the operation screen is being shown, use the
multifunction controller or touch screen to select
an item from the displayed menus.
PAUSE:
Select the ª
º key to pause the DVD. To
resume playing the DVD, use the ªPLAYº key.
PLAY:
Select the ª
º key to start playing the DVD,
for example, after pausing the DVD.
STOP:
Select the ª
º key to stop playing the DVD.
/Next/Previous Chapter:
Select the ª
º or ªº key to skip the
chapter(s) of the disc forward/backward. The
chapters will advance/go back the number of
times this key is selected.
/Commercial Skip:
This function is only for DVD-VIDEO, DVD-VR.
Select the ª
º or ªº key to skip forward or
backwards by the set amount as defined in the
DVD Settings menu.
Top Menu:
GUID-3E716662-F2CD-43B9-92AA-A0A2A8625A52When the ªTop Menuº key is selected in the
screen while a DVD is being played, the top
menu specific to each disc will be displayed. For
details, see the instructions on the disc.
SAA2498
Example
DVD settingsGUID-F4107316-1247-49EB-AB7E-B2CBAEA44EADSelect the ªSettingsº key to adjust the following
settings.
Key (DVD-VIDEO) :
GUID-67101949-B12D-4E7A-B417-E657E8129748Keys for the DVD menu operation are displayed.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-57
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-58Center display, heater, air conditioner, audio, phone and voice recognition systems

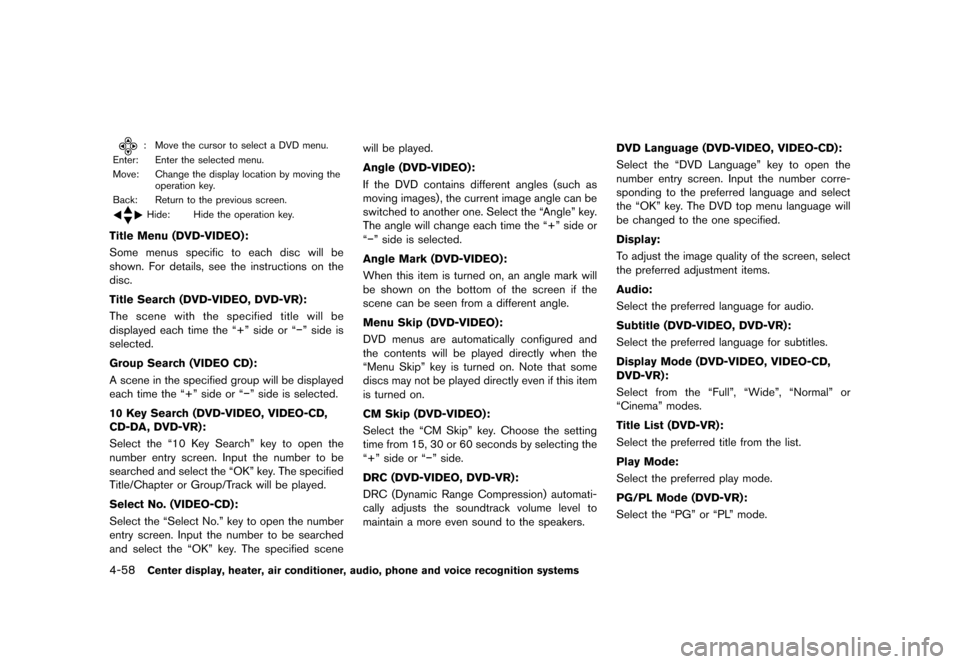

: Move the cursor to select a DVD menu.
Enter: Enter the selected menu.
Move: Change the display location by moving the operation key.
Back: Return to the previous screen.
Hide: Hide the operation key.
Title Menu (DVD-VIDEO) :GUID-368AF3CB-299F-4131-9225-86BF12536DC8Some menus specific to each disc will be
shown. For details, see the instructions on the
disc.
Title Search (DVD-VIDEO, DVD-VR):
GUID-40803E28-01E2-48F1-9E16-03E372955CCAThe scene with the specified title will be
displayed each time the ª+º side or ª


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

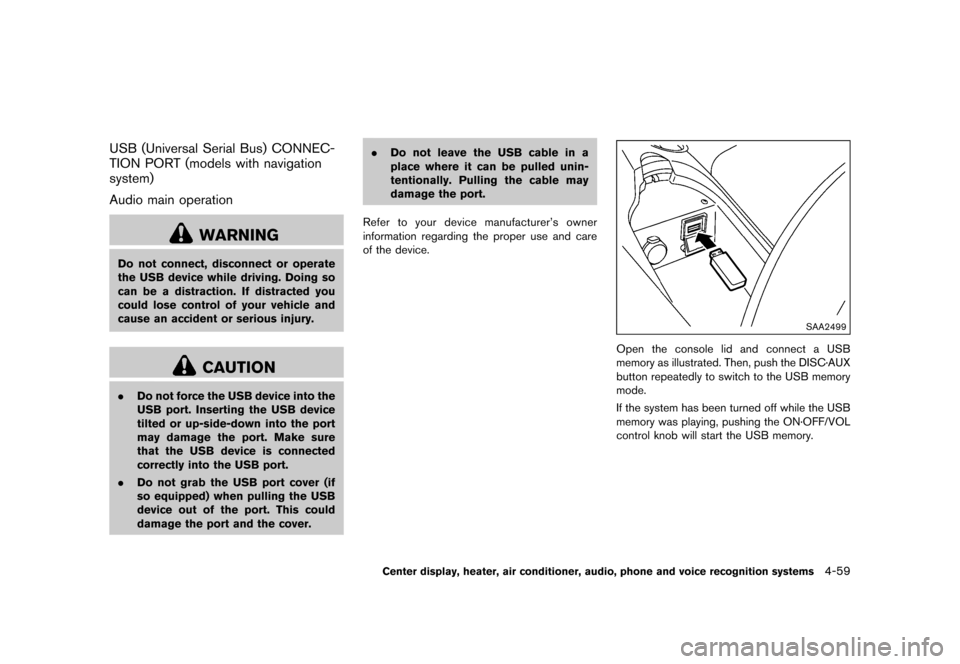

USB (Universal Serial Bus) CONNEC-
TION PORT (models with navigation
system)
GUID-3B4AB3DF-5631-4A8B-ACB7-280F18AE0572
Audio main operationGUID-C64A4819-7648-4A2A-B11D-01214043C6C6
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover. .
Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.
Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
SAA2499
Open the console lid and connect a USB
memory as illustrated. Then, push the DISC´AUX
button repeatedly to switch to the USB memory
mode.
If the system has been turned off while the USB
memory was playing, pushing the ON´OFF/VOL
control knob will start the USB memory.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-59
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

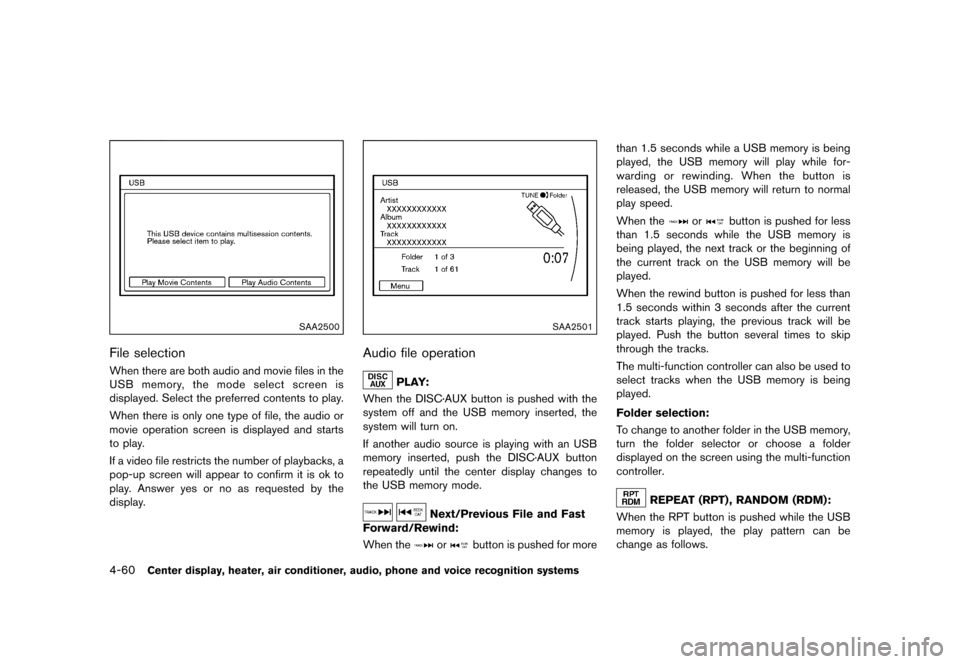

4-60Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2500
File selectionGUID-350442BB-9BC5-4AB9-9B86-E3C0A5D7E470When there are both audio and movie files in the
USB memory, the mode select screen is
displayed. Select the preferred contents to play.
When there is only one type of file, the audio or
movie operation screen is displayed and starts
to play.
If a video file restricts the number of playbacks, a
pop-up screen will appear to confirm it is ok to
play. Answer yes or no as requested by the
display.
SAA2501
Audio file operationGUID-DAB02EAB-0553-440C-984A-D62776C8635C
PLAY:GUID-D08B776E-413C-4E3A-AC76-A3968234C45FWhen the DISC´AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing with an USB
memory inserted, push the DISC´AUX button
repeatedly until the center display changes to
the USB memory mode.
Next/Previous File and Fast
Forward/Rewind:
GUID-B5B0BFA3-D47A-4A5F-A5F9-E1BEB5BE45BEWhen theorbutton is pushed for more than 1.5 seconds while a USB memory is being
played, the USB memory will play while for-
warding or rewinding. When the button is
released, the USB memory will return to normal
play speed.
When the
orbutton is pushed for less
than 1.5 seconds while the USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.
When the rewind button is pushed for less than
1.5 seconds within 3 seconds after the current
track starts playing, the previous track will be
played. Push the button several times to skip
through the tracks.
The multi-function controller can also be used to
select tracks when the USB memory is being
played.
Folder selection:
GUID-A5CC5429-1811-4774-AD5A-DB7EBA6A2AC4To change to another folder in the USB memory,
turn the folder selector or choose a folder
displayed on the screen using the multi-function
controller.
REPEAT (RPT) , RANDOM (RDM):GUID-DDE055D9-1B41-42C1-BA77-C0E420C9150FWhen the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.
&RQGLWLRQ
