2017 NISSAN 370Z ROADSTER Owners Manual


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

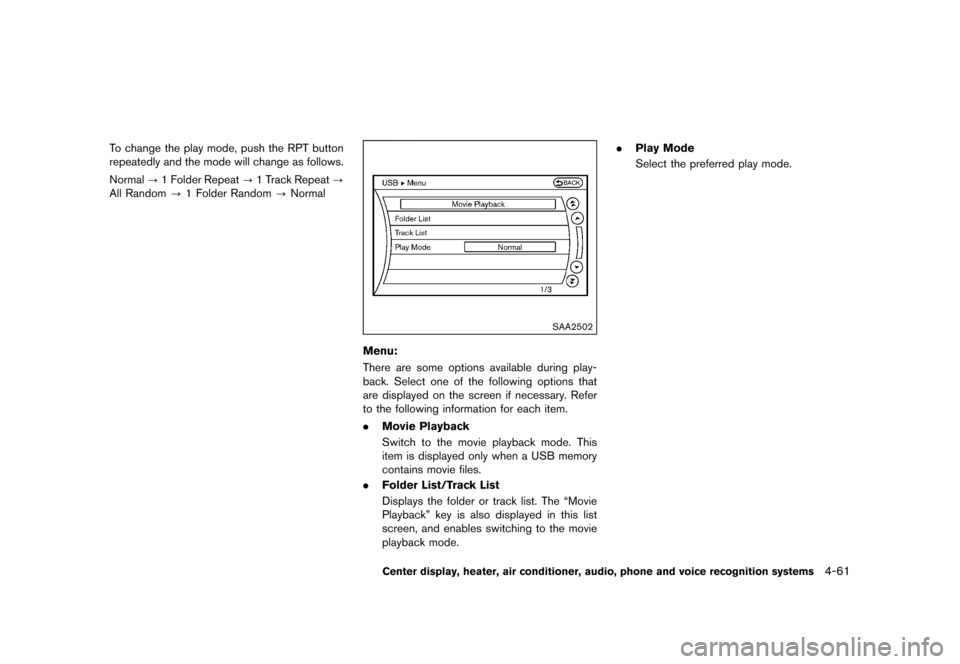

To change the play mode, push the RPT button
repeatedly and the mode will change as follows.
Normal?1 Folder Repeat ?1 Track Repeat ?
All Random ?1 Folder Random ?Normal
SAA2502
Menu:GUID-49C237D6-A86B-4235-A3BF-633E1920615CThere are some options available during play-
back. Select one of the following options that
are displayed on the screen if necessary. Refer
to the following information for each item.
. Movie Playback
Switch to the movie playback mode. This
item is displayed only when a USB memory
contains movie files.
. Folder List/Track List
Displays the folder or track list. The ªMovie
Playbackº key is also displayed in this list
screen, and enables switching to the movie
playback mode. .
Play Mode
Select the preferred play mode.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-61
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-62Center display, heater, air conditioner, audio, phone and voice recognition systems

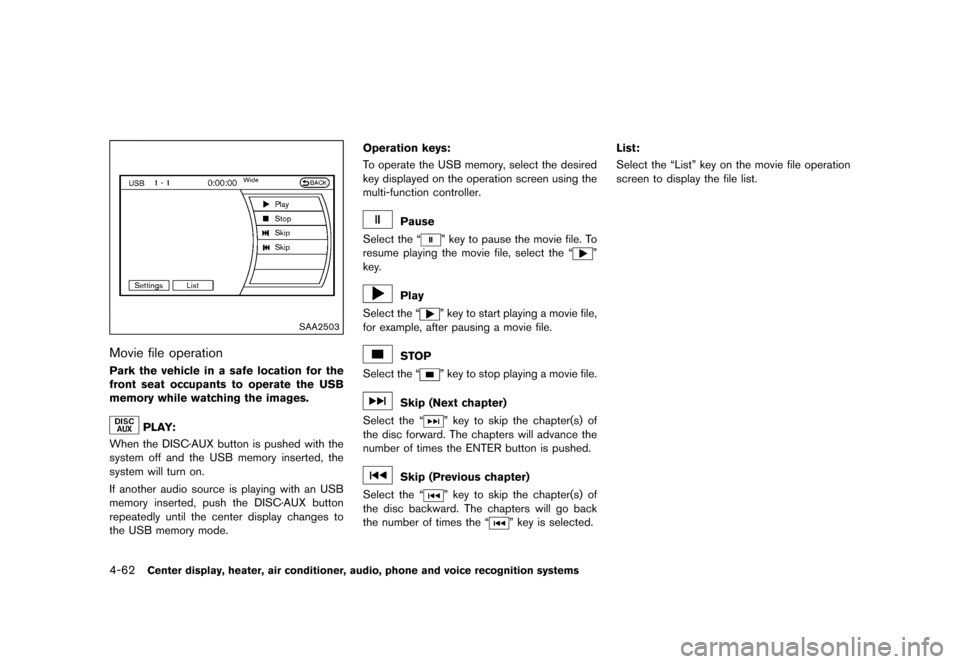

SAA2503
Movie file operationGUID-06EC3D95-41AA-4A8D-9633-1ACA7335676APark the vehicle in a safe location for the
front seat occupants to operate the USB
memory while watching the images.
PLAY:GUID-A414C37D-4A8B-4224-9725-DCA3F469BD35When the DISC´AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing with an USB
memory inserted, push the DISC´AUX button
repeatedly until the center display changes to
the USB memory mode.Operation keys:
GUID-823310AC-C94B-47BE-9E92-9D39156ADED8To operate the USB memory, select the desired
key displayed on the operation screen using the
multi-function controller.
Pause
Select the ª
º key to pause the movie file. To
resume playing the movie file, select the ª
º
key.
Play
Select the ª
º key to start playing a movie file,
for example, after pausing a movie file.
STOP
Select the ª
º key to stop playing a movie file.
Skip (Next chapter)
Select the ª
º key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed.
Skip (Previous chapter)
Select the ª
º key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the ª
º key is selected. List:
GUID-2BCF34B8-8851-4A5C-B907-48422204C7B2Select the ªListº key on the movie file operation
screen to display the file list.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

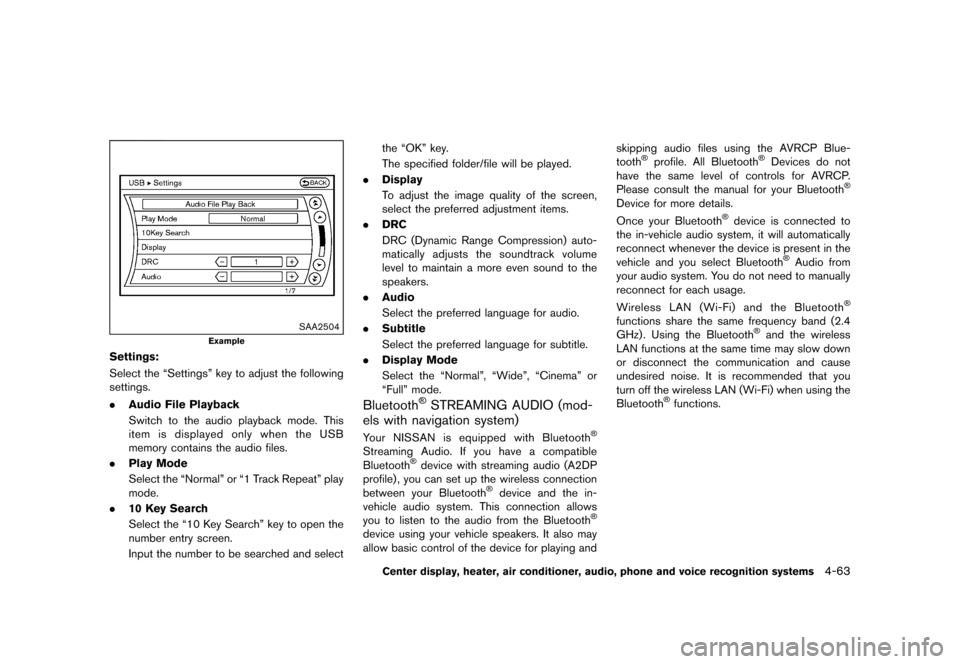

SAA2504
Example
Settings:GUID-FE906C11-C16E-4B39-AD91-43D1084D468CSelect the ªSettingsº key to adjust the following
settings.
.Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains the audio files.
. Play Mode
Select the ªNormalº or ª1 Track Repeatº play
mode.
. 10 Key Search
Select the ª10 Key Searchº key to open the
number entry screen.
Input the number to be searched and select the ªOKº key.
The specified folder/file will be played.
. Display
To adjust the image quality of the screen,
select the preferred adjustment items.
. DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
. Audio
Select the preferred language for audio.
. Subtitle
Select the preferred language for subtitle.
. Display Mode
Select the ªNormalº, ªWideº, ªCinemaº or
ªFullº mode.
Bluetooth


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-64Center display, heater, air conditioner, audio, phone and voice recognition systems

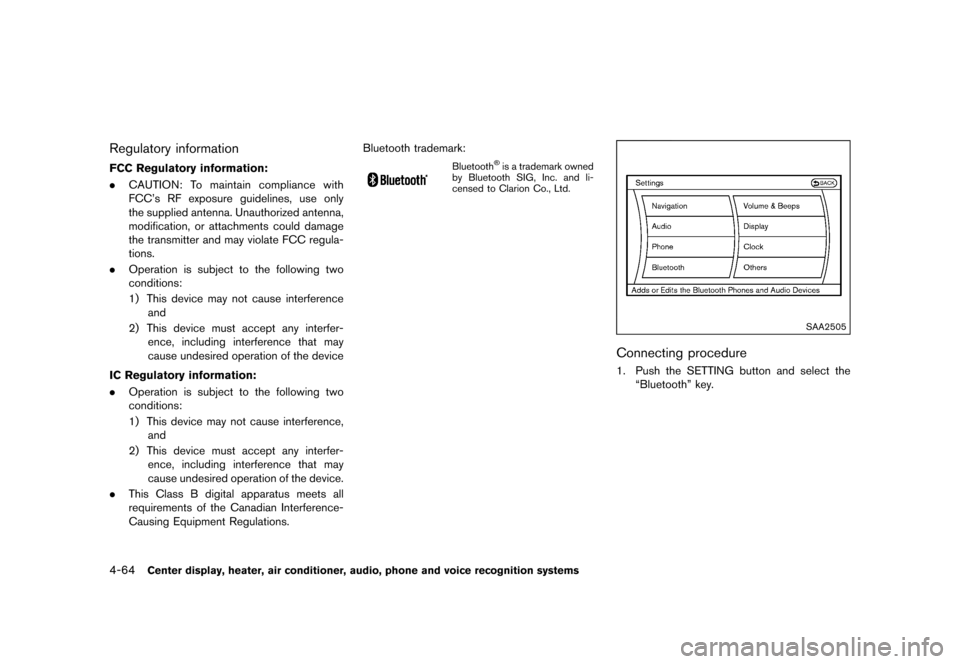

Regulatory informationGUID-FF87181B-CA11-4E00-92CA-5EFB7532A658
FCC Regulatory information:GUID-8DA99371-3DFD-40CA-9CD1-933F366D7EC3.CAUTION: To maintain compliance with
FCC's RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
. Operation is subject to the following two
conditions:
1) This device may not cause interference
and
2) This device must accept any interfer- ence, including interference that may
cause undesired operation of the device
IC Regulatory information:
GUID-4EC3A11C-D9AD-4CDA-BDA1-B352919680D2. Operation is subject to the following two
conditions:
1) This device may not cause interference,
and
2) This device must accept any interfer- ence, including interference that may
cause undesired operation of the device.
. This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth trademark:
Bluetooth


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

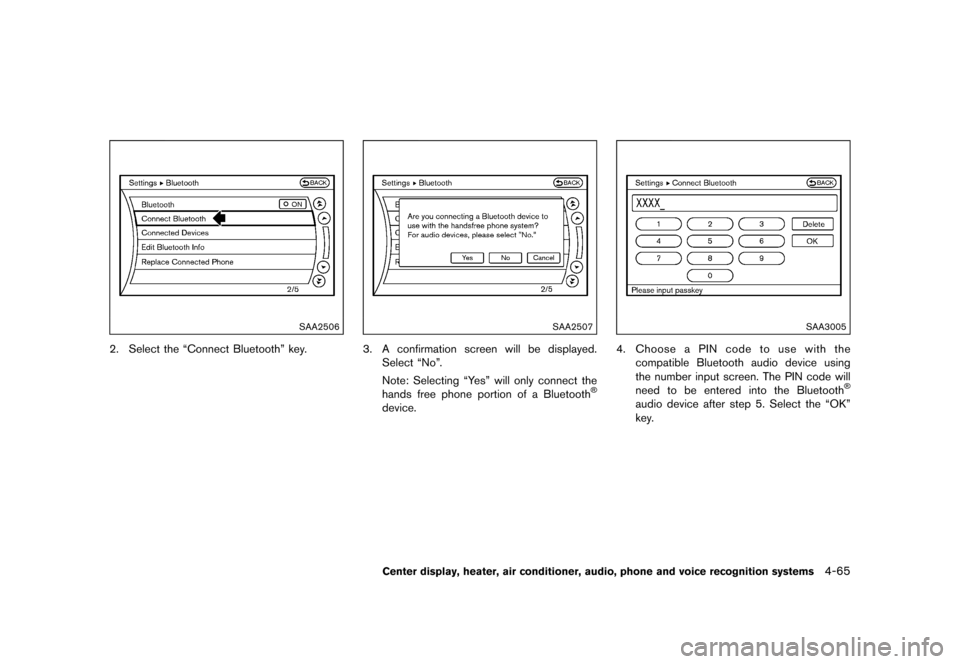

SAA2506
2. Select the ªConnect Bluetoothº key.
SAA2507
3. A confirmation screen will be displayed.Select ªNoº.
Note: Selecting ªYesº will only connect the
hands free phone portion of a Bluetooth


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-66Center display, heater, air conditioner, audio, phone and voice recognition systems

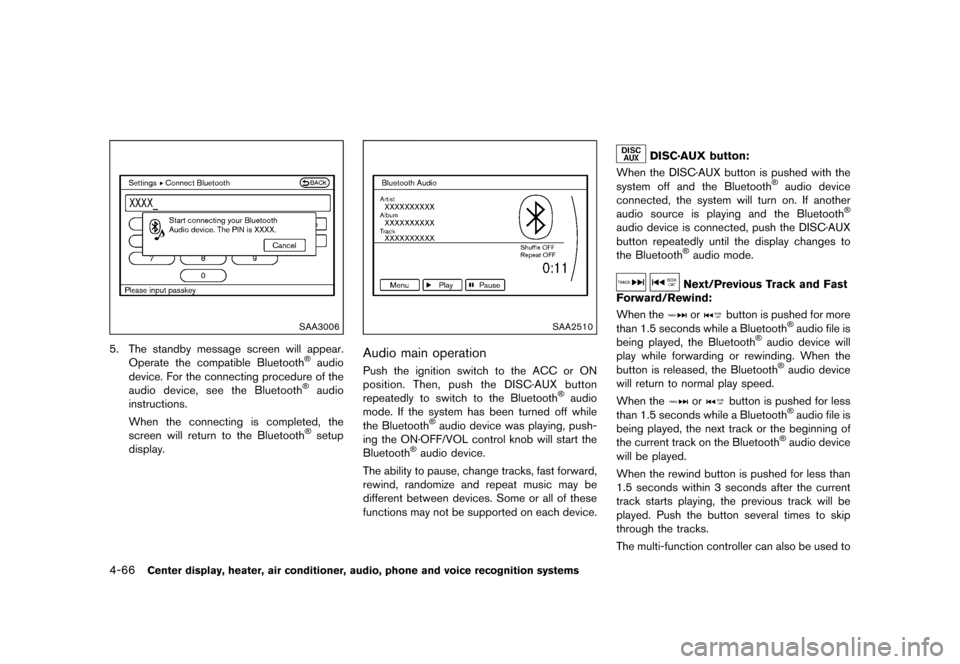

SAA3006
5. The standby message screen will appear.Operate the compatible Bluetooth


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

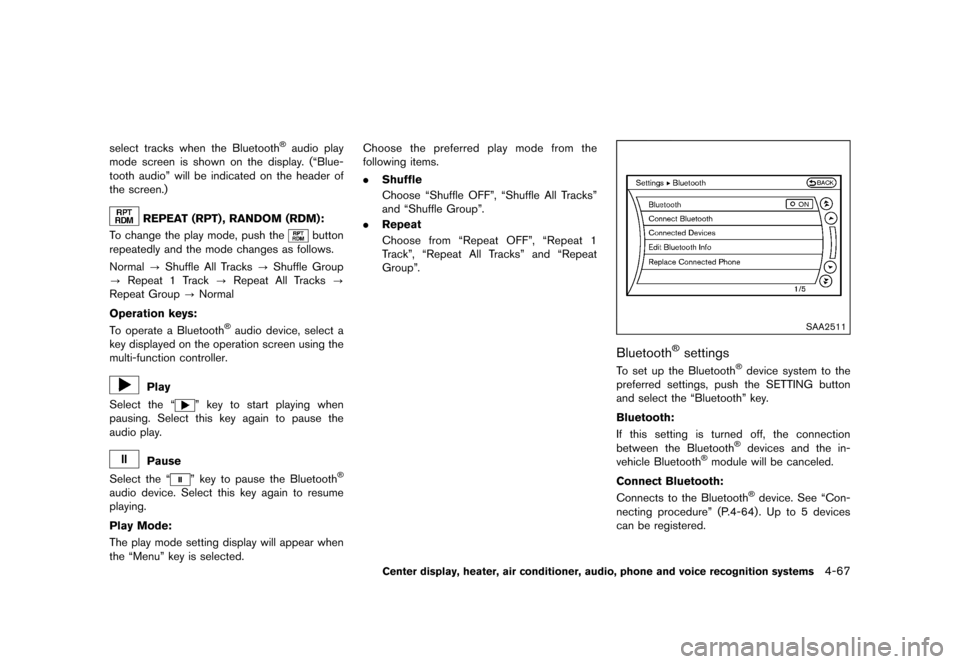

select tracks when the Bluetooth


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-68Center display, heater, air conditioner, audio, phone and voice recognition systems

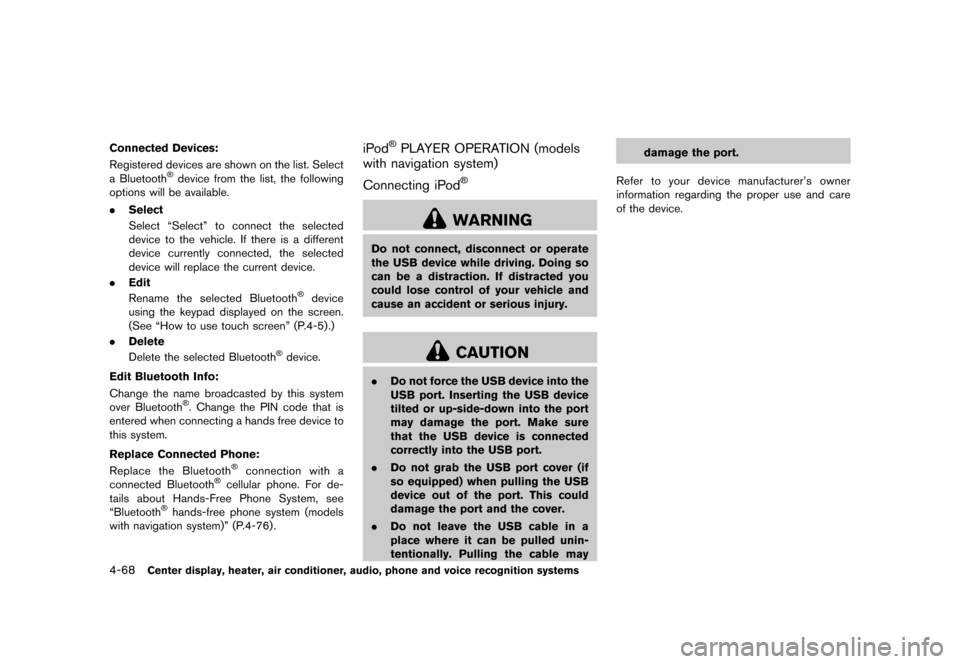

Connected Devices:GUID-3A524575-724B-48AE-A69B-F8C0345D1E96Registered devices are shown on the list. Select
a Bluetooth
