2017 NISSAN 370Z ROADSTER Owners Manual


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

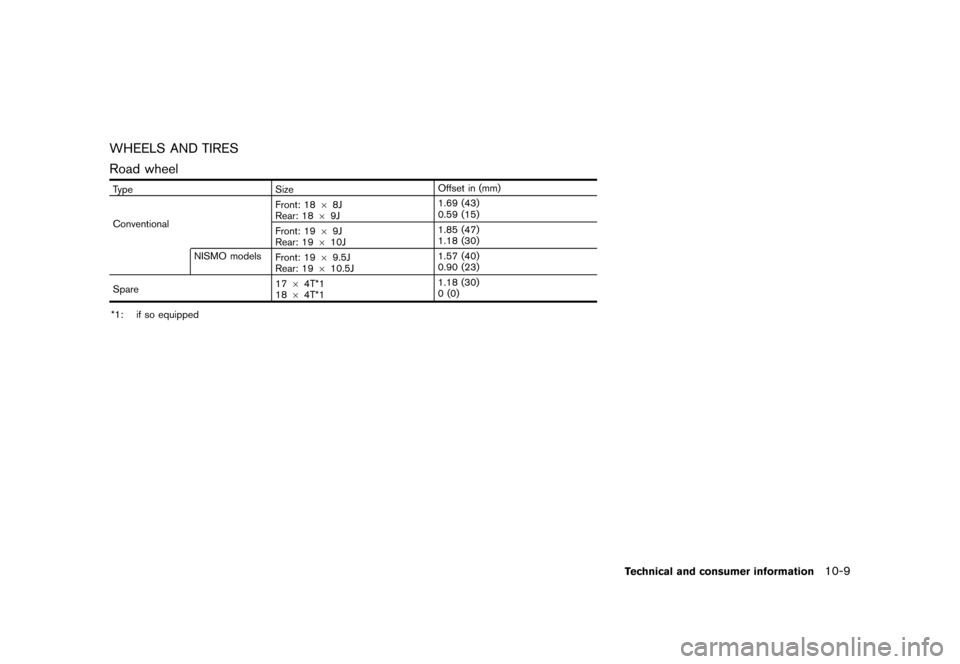

WHEELS AND TIRESGUID-183CB59A-1126-4B98-B088-F31FB4F2CAB3
Road wheelGUID-22B3C39F-90BE-49D5-8BBB-0E739B50E0D1
TypeSize Offset in (mm)
Conventional Front: 18
68J
Rear: 18 69J 1.69 (43)
0.59 (15)
Front: 19 69J
Rear: 19 610J 1.85 (47)
1.18 (30)
NISMO models Front: 1969.5J
Rear: 19 610.5J 1.57 (40)
0.90 (23)
Spare 17
64T*1
18 64T*1 1.18 (30)
0 (0)
*1: if so equipped
Technical and consumer information10-9
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
10-10Technical and consumer information

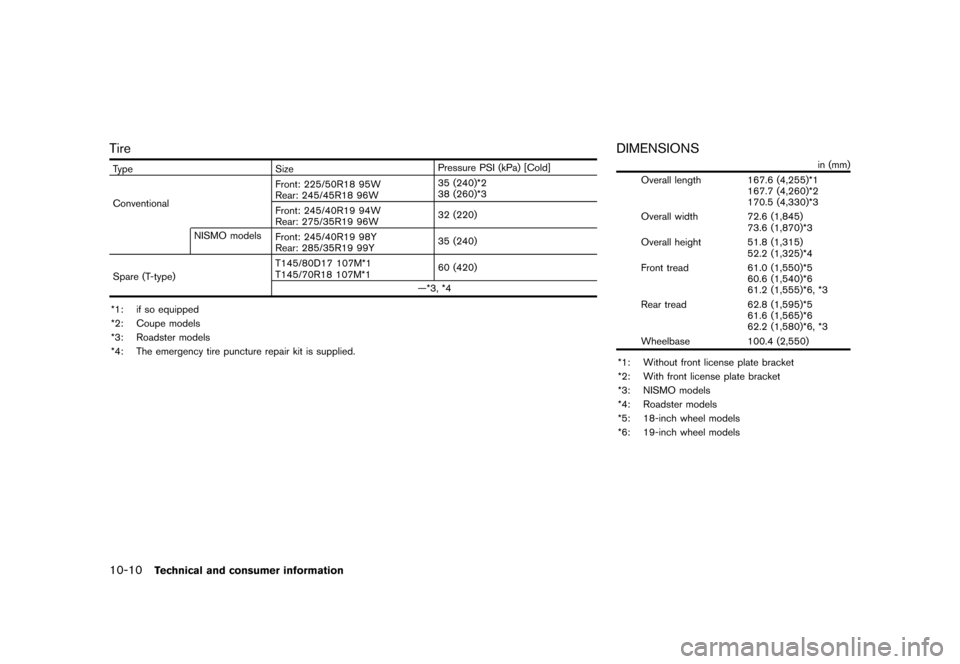

TireGUID-61B27352-C087-4134-B2EA-164B6A9E63C3
TypeSize Pressure PSI (kPa) [Cold]
Conventional Front: 225/50R18 95W
Rear: 245/45R18 96W
35 (240)*2
38 (260)*3
Front: 245/40R19 94W
Rear: 275/35R19 96W 32 (220)
NISMO models Front: 245/40R19 98Y
Rear: 285/35R19 99Y 35 (240)
Spare (T-type) T145/80D17 107M*1
T145/70R18 107M*1
60 (420)
Ð*3, *4
*1: if so equipped
*2: Coupe models
*3: Roadster models
*4: The emergency tire puncture repair kit is supplied.
DIMENSIONSGUID-65A34650-A9BB-4EEA-969E-79712F572F38in (mm)
Overall length 167.6 (4,255)*1 167.7 (4,260)*2
170.5 (4,330)*3
Overall width 72.6 (1,845) 73.6 (1,870)*3
Overall height 51.8 (1,315) 52.2 (1,325)*4
Front tread 61.0 (1,550)*5
60.6 (1,540)*6
61.2 (1,555)*6, *3
Rear tread 62.8 (1,595)*5
61.6 (1,565)*6
62.2 (1,580)*6, *3
Wheelbase 100.4 (2,550)
*1: Without front license plate bracket
*2: With front license plate bracket
*3: NISMO models
*4: Roadster models
*5: 18-inch wheel models
*6: 19-inch wheel models
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

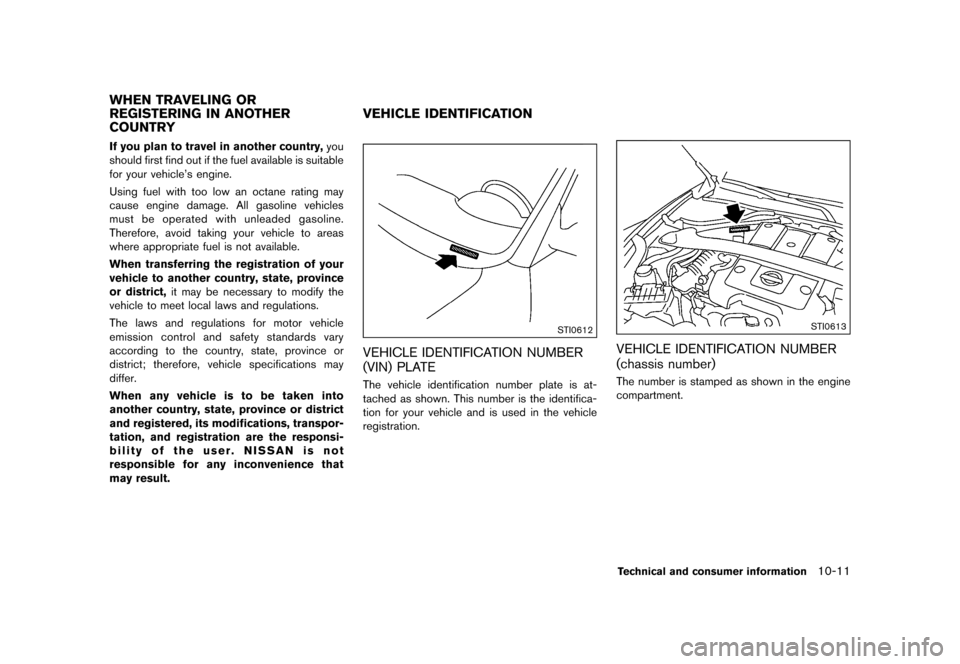

GUID-B420309F-F16D-4707-AD69-E722DD63A948If you plan to travel in another country,you
should first find out if the fuel available is suitable
for your vehicle's engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. NISSAN is not
responsible for any inconvenience that
may result.GUID-E018B553-568C-4526-82C1-2C4670B82FF1
STI0612
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
GUID-F9E7C7AA-79C1-47F0-A3A3-A8FB021BE6B4The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
STI0613
VEHICLE IDENTIFICATION NUMBER
(chassis number)
GUID-11916BC7-CE5F-4687-9B45-6FCD3C1EDFDCThe number is stamped as shown in the engine
compartment.
Technical and consumer information10-11
WHEN TRAVELING OR
REGISTERING IN ANOTHER
COUNTRY VEHICLE IDENTIFICATION
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
10-12Technical and consumer information

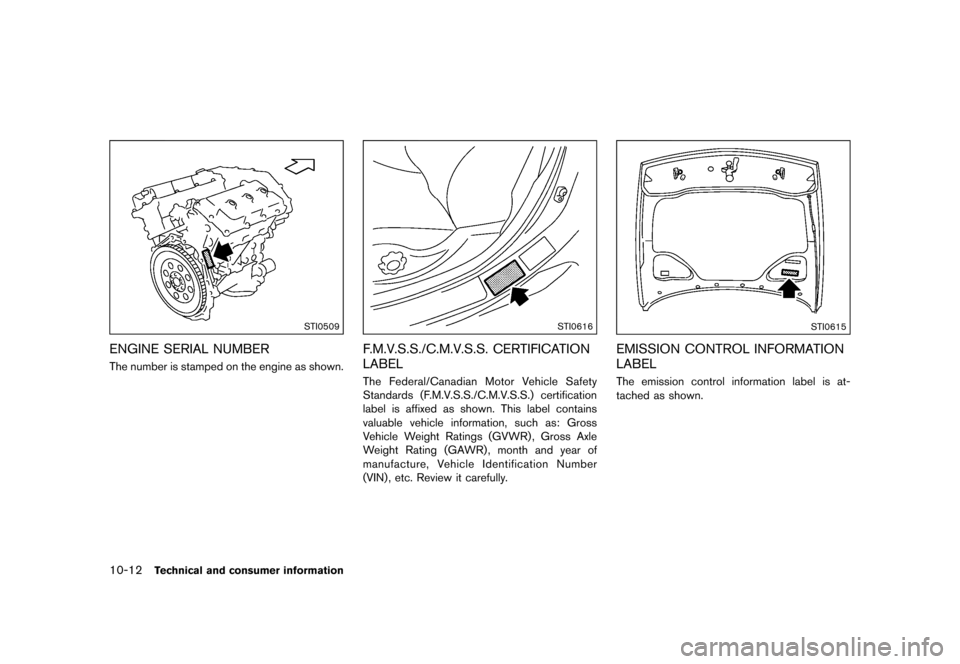

STI0509
ENGINE SERIAL NUMBERGUID-F4518789-DFF5-4B05-AD2F-BC7FB3AAFE39The number is stamped on the engine as shown.
STI0616
F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
GUID-DA8C6BB5-08DC-43E6-84B2-5DE27905E5E6The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross
Vehicle Weight Ratings (GVWR) , Gross Axle
Weight Rating (GAWR) , month and year of
manufacture, Vehicle Identification Number
(VIN) , etc. Review it carefully.
STI0615
EMISSION CONTROL INFORMATION
LABEL
GUID-087FAFE6-DFDA-45E7-BAEE-9D75D1725545The emission control information label is at-
tached as shown.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

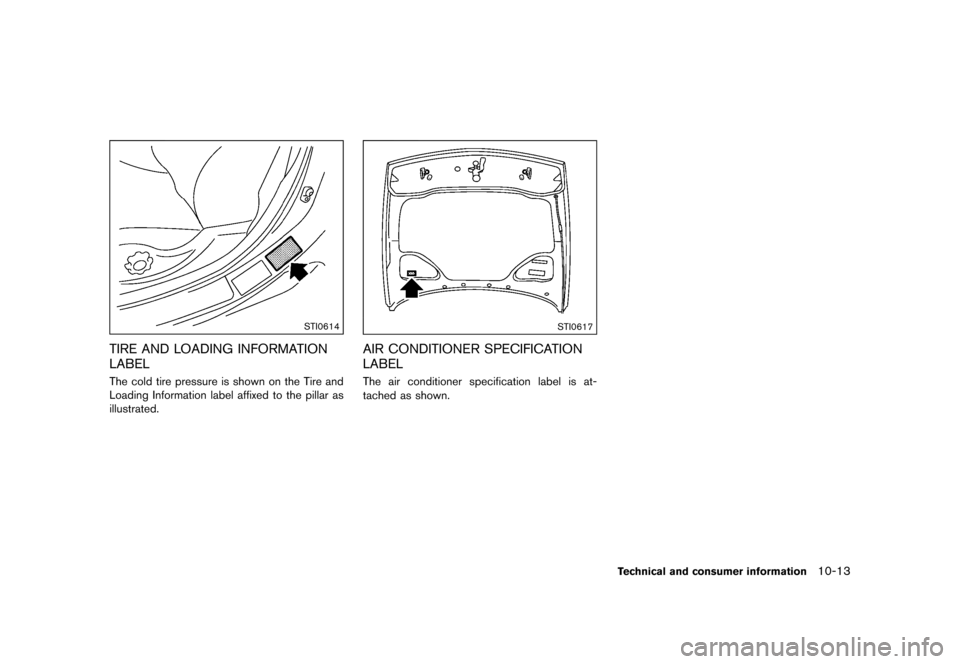

STI0614
TIRE AND LOADING INFORMATION
LABEL
GUID-03DF1D3B-CED7-4DC2-8F58-9CADF0356870The cold tire pressure is shown on the Tire and
Loading Information label affixed to the pillar as
illustrated.
STI0617
AIR CONDITIONER SPECIFICATION
LABEL
GUID-2FD3981B-F497-40A9-B4B3-1CAFFA44ECB0The air conditioner specification label is at-
tached as shown.
Technical and consumer information10-13
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
10-14Technical and consumer information
GUID-EE7C80C4-B353-439A-8C3D-D420AEC139DF

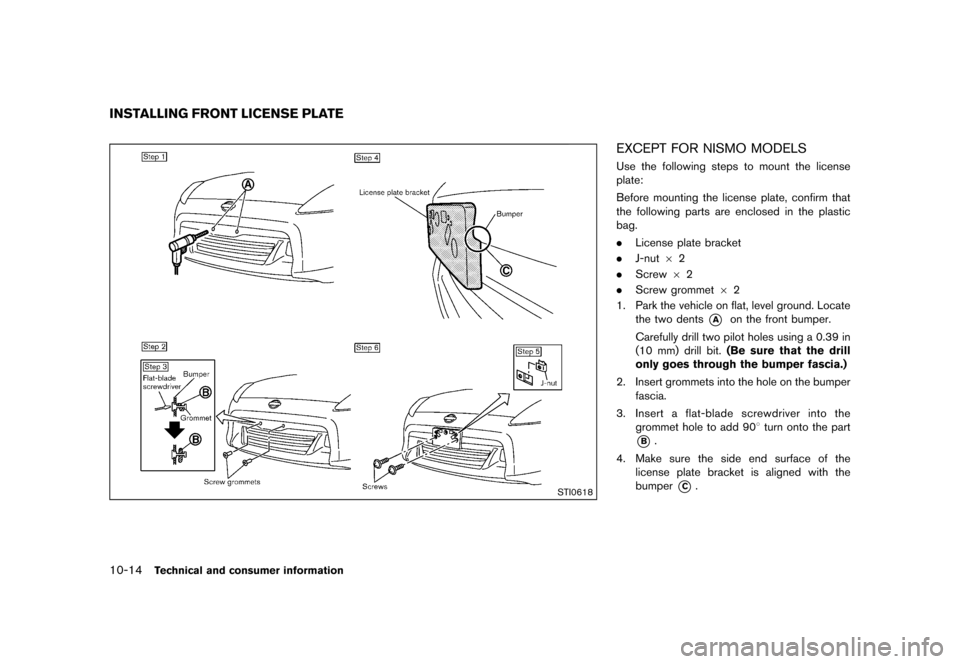

STI0618
EXCEPT FOR NISMO MODELSGUID-86885E8B-520A-45F9-8C7A-B650D6CC6E25Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
.License plate bracket
. J-nut 62
. Screw 62
. Screw grommet 62
1. Park the vehicle on flat, level ground. Locate the two dents
*Aon the front bumper.
Carefully drill two pilot holes using a 0.39 in
(10 mm) drill bit. (Be sure that the drill
only goes through the bumper fascia.)
2. Insert grommets into the hole on the bumper fascia.
3. Insert a flat-blade screwdriver into the
grommet hole to add 908 turn onto the part
*B.
4. Make sure the side end surface of the license plate bracket is aligned with the
bumper
*C.
INSTALLING FRONT LICENSE PLATE
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

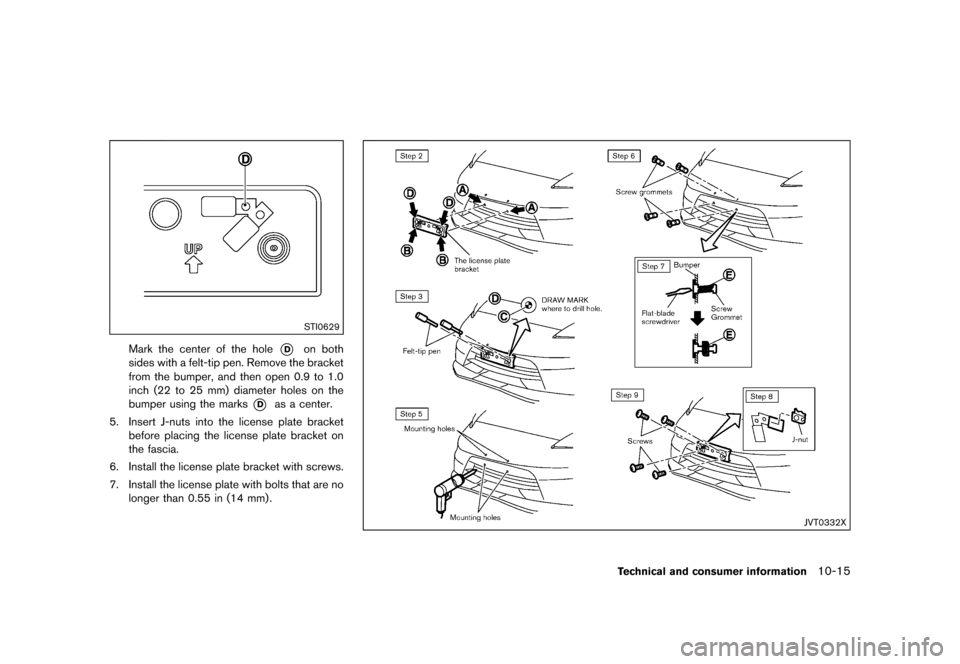

STI0629
Mark the center of the hole*Don both
sides with a felt-tip pen. Remove the bracket
from the bumper, and then open 0.9 to 1.0
inch (22 to 25 mm) diameter holes on the
bumper using the marks
*Das a center.
5. Insert J-nuts into the license plate bracket before placing the license plate bracket on
the fascia.
6. Install the license plate bracket with screws.
7. Install the license plate with bolts that are no longer than 0.55 in (14 mm) .
JVT0332X
Technical and consumer information10-15
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
10-16Technical and consumer information

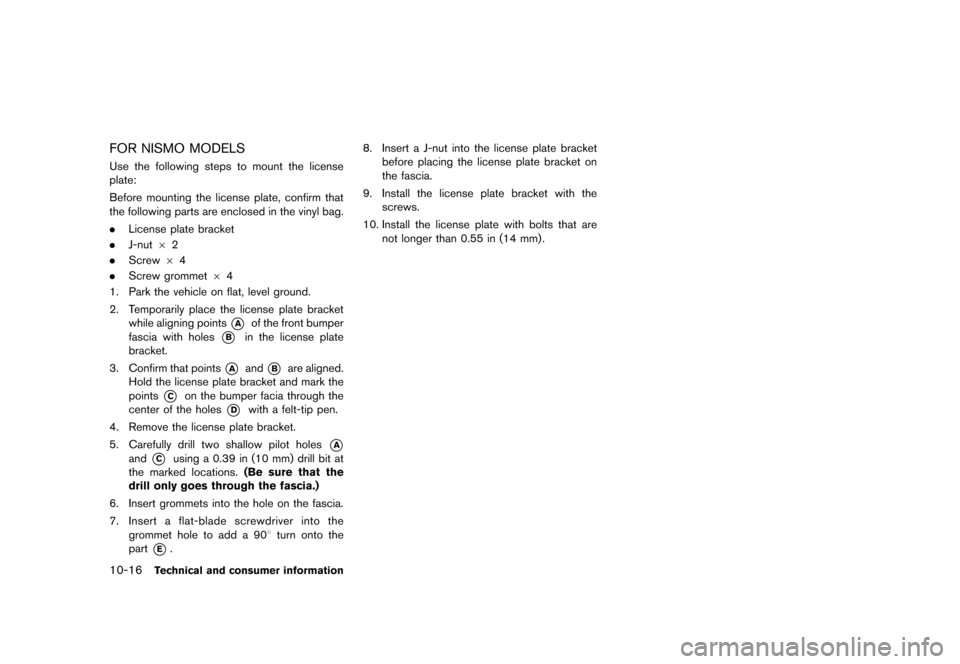

FOR NISMO MODELSGUID-ECED2B2D-F45B-44A4-888B-8A2B502DB4D8Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the vinyl bag.
.License plate bracket
. J-nut 62
. Screw 64
. Screw grommet 64
1. Park the vehicle on flat, level ground.
2. Temporarily place the license plate bracket while aligning points
*Aof the front bumper
fascia with holes
*Bin the license plate
bracket.
3. Confirm that points
*Aand*Bare aligned.
Hold the license plate bracket and mark the
points
*Con the bumper facia through the
center of the holes
*Dwith a felt-tip pen.
4. Remove the license plate bracket.
5. Carefully drill two shallow pilot holes
*A
and*Cusing a 0.39 in (10 mm) drill bit at
the marked locations. (Be sure that the
drill only goes through the fascia.)
6. Insert grommets into the hole on the fascia.
7. Insert a flat-blade screwdriver into the
grommet hole to add a 908 turn onto the
part
*E. 8. Insert a J-nut into the license plate bracket
before placing the license plate bracket on
the fascia.
9. Install the license plate bracket with the screws.
10. Install the license plate with bolts that are not longer than 0.55 in (14 mm) .
