2017 NISSAN 370Z ROADSTER Owners Manual


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

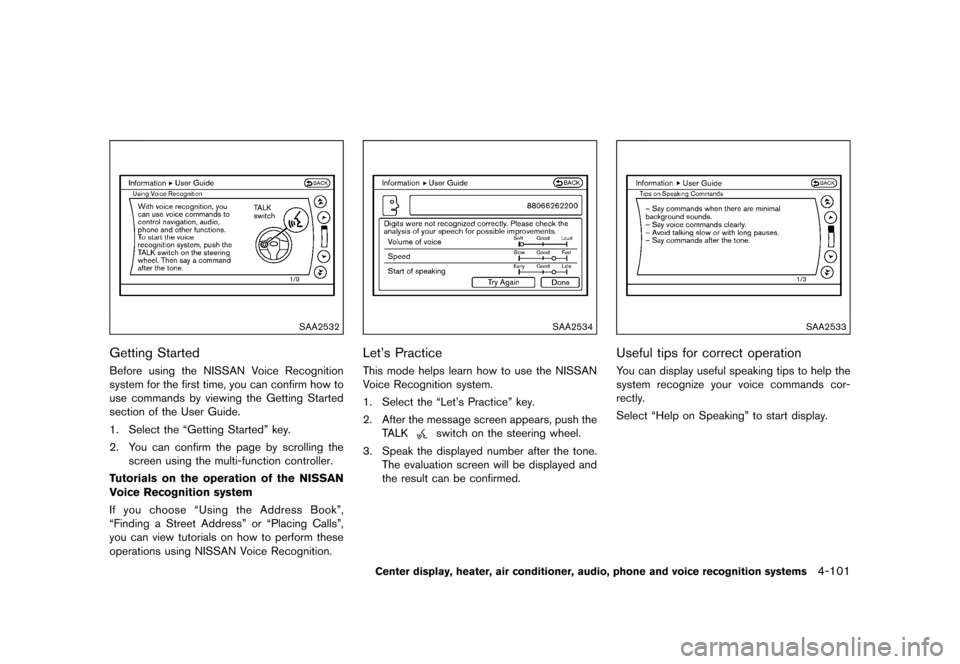

SAA2532
Getting StartedGUID-44B15F28-E5E2-417E-9B2E-33518066EA02Before using the NISSAN Voice Recognition
system for the first time, you can confirm how to
use commands by viewing the Getting Started
section of the User Guide.
1. Select the ªGetting Startedº key.
2. You can confirm the page by scrolling thescreen using the multi-function controller.
Tutorials on the operation of the NISSAN
Voice Recognition system
If you choose ªUsing the Address Bookº,
ªFinding a Street Addressº or ªPlacing Callsº,
you can view tutorials on how to perform these
operations using NISSAN Voice Recognition.
SAA2534
Let's PracticeGUID-F69C3BE4-348F-4348-96D4-582E1388E6ABThis mode helps learn how to use the NISSAN
Voice Recognition system.
1. Select the ªLet's Practiceº key.
2. After the message screen appears, push the TALK
switch on the steering wheel.
3. Speak the displayed number after the tone. The evaluation screen will be displayed and
the result can be confirmed.
SAA2533
Useful tips for correct operationGUID-5A3CD88E-9105-44FD-9E09-C1C4B2B42929You can display useful speaking tips to help the
system recognize your voice commands cor-
rectly.
Select ªHelp on Speakingº to start display.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-101
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

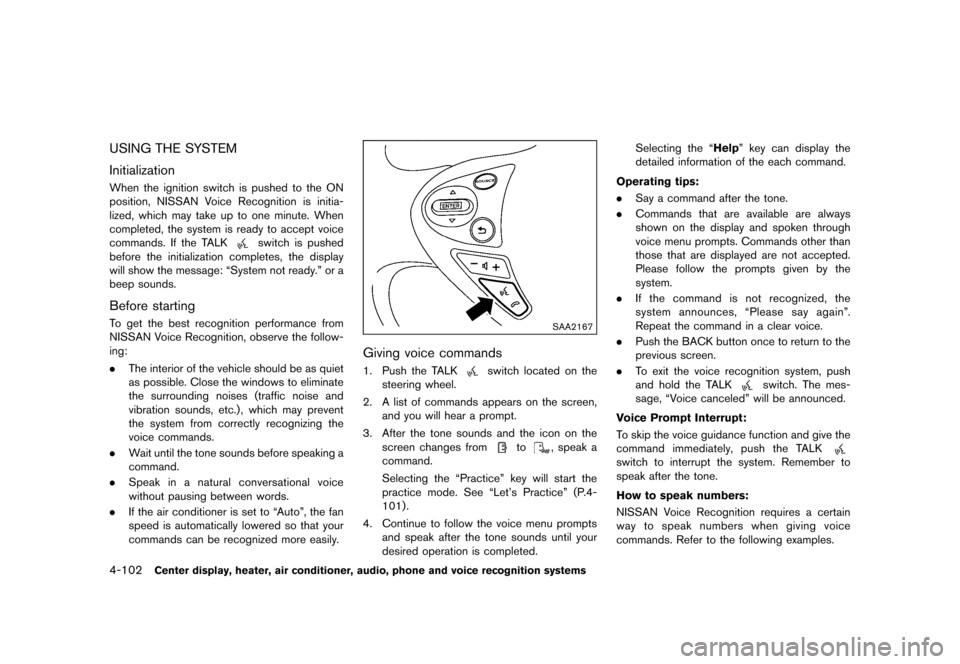

4-102Center display, heater, air conditioner, audio, phone and voice recognition systems
USING THE SYSTEMGUID-13FE8286-F49A-47DD-AFC2-36C923DBCD9C
InitializationGUID-DEE0FE37-A8C4-4ACE-920C-1EC3DF1AB51EWhen the ignition switch is pushed to the ON
position, NISSAN Voice Recognition is initia-
lized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If the TALK
switch is pushed
before the initialization completes, the display
will show the message: ªSystem not ready.º or a
beep sounds.
Before startingGUID-7A2836CD-019E-44BF-B870-61E70A9CD75FTo get the best recognition performance from
NISSAN Voice Recognition, observe the follow-
ing:
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.) , which may prevent
the system from correctly recognizing the
voice commands.
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
. If the air conditioner is set to ªAutoº, the fan
speed is automatically lowered so that your
commands can be recognized more easily.SAA2167
Giving voice commandsGUID-ED11AF2C-564C-4543-87E0-EDB31F9069601. Push the TALKswitch located on the
steering wheel.
2. A list of commands appears on the screen, and you will hear a prompt.
3. After the tone sounds and the icon on the screen changes from
to, speak a
command.
Selecting the ªPracticeº key will start the
practice mode. See ªLet's Practiceº (P.4-
101) .
4. Continue to follow the voice menu prompts and speak after the tone sounds until your
desired operation is completed. Selecting the ªHelpº key can display the
detailed information of the each command.
Operating tips:
GUID-6FCE79EB-3D2D-4BBD-9C53-383982117AFE. Say a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
. If the command is not recognized, the
system announces, ªPlease say againº.
Repeat the command in a clear voice.
. Push the BACK button once to return to the
previous screen.
. To exit the voice recognition system, push
and hold the TALK
switch. The mes-
sage, ªVoice canceledº will be announced.
Voice Prompt Interrupt:
GUID-3721F4D4-1266-44B8-9A9E-05B7D02686BETo skip the voice guidance function and give the
command immediately, push the TALK
switch to interrupt the system. Remember to
speak after the tone.
How to speak numbers:
GUID-4B155CF9-B91D-4834-97F6-0AF882A2950ENISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

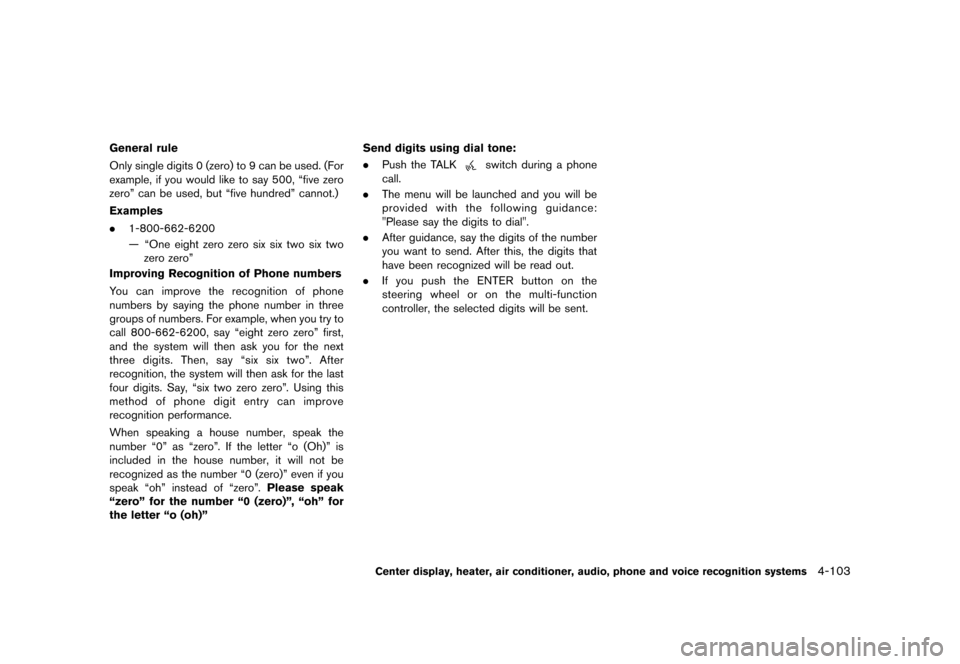

General rule
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, ªfive zero
zeroº can be used, but ªfive hundredº cannot.)
Examples
.1-800-662-6200
Ð ªOne eight zero zero six six two six two
zero zeroº
Improving Recognition of Phone numbers
You can improve the recognition of phone
numbers by saying the phone number in three
groups of numbers. For example, when you try to
call 800-662-6200, say ªeight zero zeroº first,
and the system will then ask you for the next
three digits. Then, say ªsix six twoº. After
recognition, the system will then ask for the last
four digits. Say, ªsix two zero zeroº. Using this
method of phone digit entry can improve
recognition performance.
When speaking a house number, speak the
number ª0º as ªzeroº. If the letter ªo (Oh)º is
included in the house number, it will not be
recognized as the number ª0 (zero)º even if you
speak ªohº instead of ªzeroº. Please speak
ªzeroº for the number ª0 (zero)º, ªohº for
the letter ªo (oh)º Send digits using dial tone:GUID-7C9E61BC-93EC-4029-ABB9-E89BC2F2714A.
Push the TALKswitch during a phone
call.
. The menu will be launched and you will be
provided with the following guidance:
"Please say the digits to dial".
. After guidance, say the digits of the number
you want to send. After this, the digits that
have been recognized will be read out.
. If you push the ENTER button on the
steering wheel or on the multi-function
controller, the selected digits will be sent.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-103
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

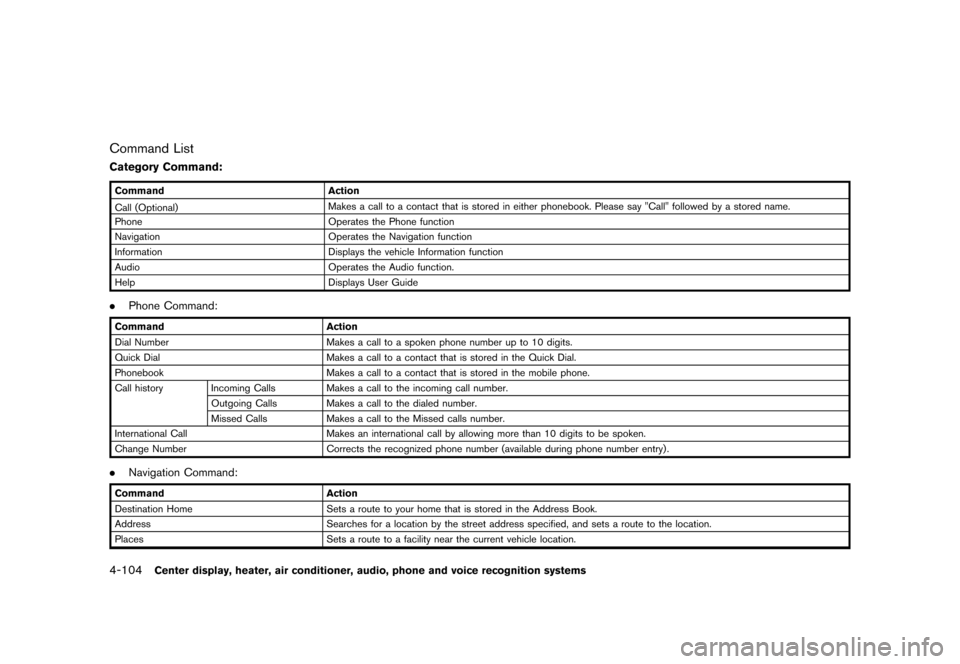

4-104Center display, heater, air conditioner, audio, phone and voice recognition systems
Command ListGUID-A735B46C-16D1-4771-B0BB-0876AC91025F
Category Command:GUID-4FA574D1-171C-4E64-9160-F1DC9CA69A02
CommandAction
Call (Optional) Makes a call to a contact that is stored in either phonebook. Please say "Call" followed by a stored name.
Phone Operates the Phone function
Navigation Operates the Navigation function
Information Displays the vehicle Information function
Audio Operates the Audio function.
Help Displays User Guide
.Phone Command:
Command Action
Dial Number Makes a call to a spoken phone number up to 10 digits.
Quick Dial Makes a call to a contact that is stored in the Quick Dial.
Phonebook Makes a call to a contact that is stored in the mobile phone.
Call history Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Change Number Corrects the recognized phone number (available during phone number entry) .
.Navigation Command:
Command Action
Destination Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

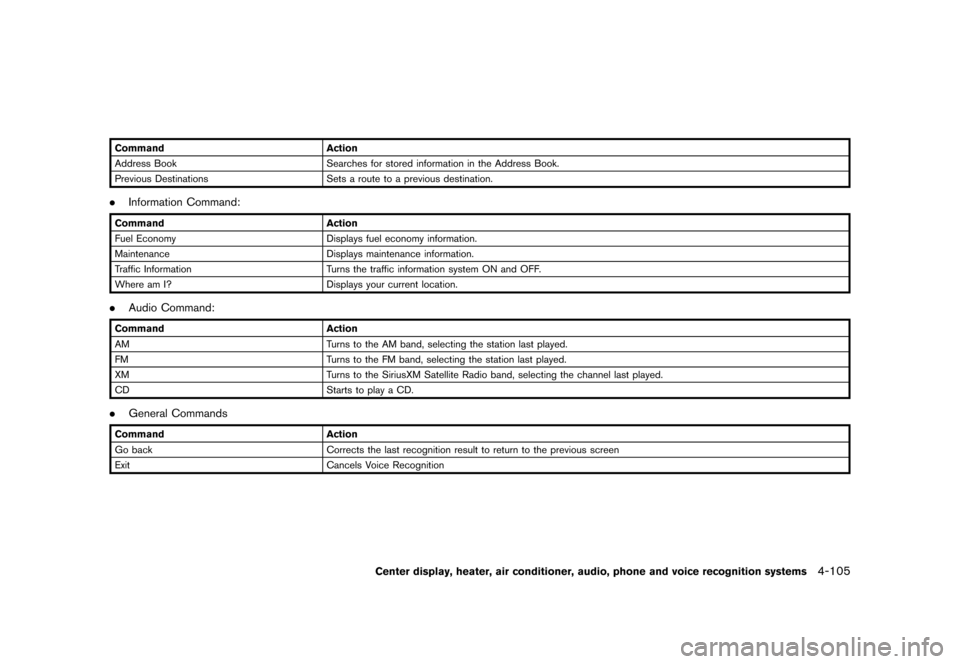

CommandAction
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
.Information Command:
Command Action
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system ON and OFF.
Where am I? Displays your current location.
.Audio Command:
Command Action
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the SiriusXM Satellite Radio band, selecting the channel last played.
CD Starts to play a CD.
.General Commands
Command Action
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
Center display, heater, air conditioner, audio, phone and voice recognition systems4-105
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

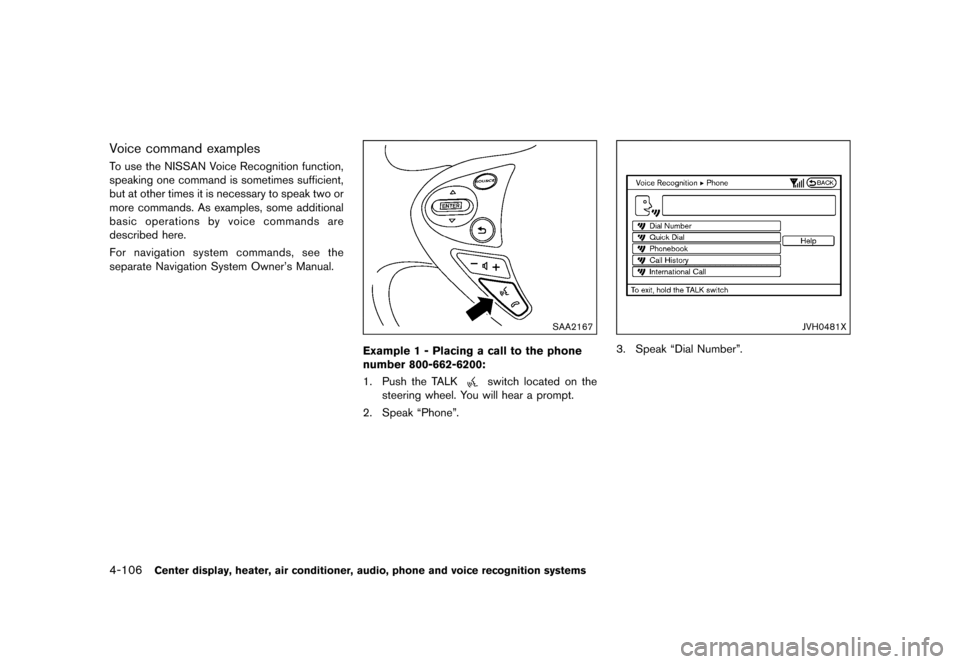

4-106Center display, heater, air conditioner, audio, phone and voice recognition systems
Voice command examplesGUID-F5D205C7-DB98-40FE-89D4-A0982846BA14To use the NISSAN Voice Recognition function,
speaking one command is sometimes sufficient,
but at other times it is necessary to speak two or
more commands. As examples, some additional
basic operations by voice commands are
described here.
For navigation system commands, see the
separate Navigation System Owner's Manual.
SAA2167
Example 1 - Placing a call to the phone
number 800-662-6200:
GUID-E94AAD5C-7FD9-4DA9-A9E1-95379075E42D1. Push the TALKswitch located on the
steering wheel. You will hear a prompt.
2. Speak ªPhoneº.
JVH0481X
3. Speak ªDial Numberº.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

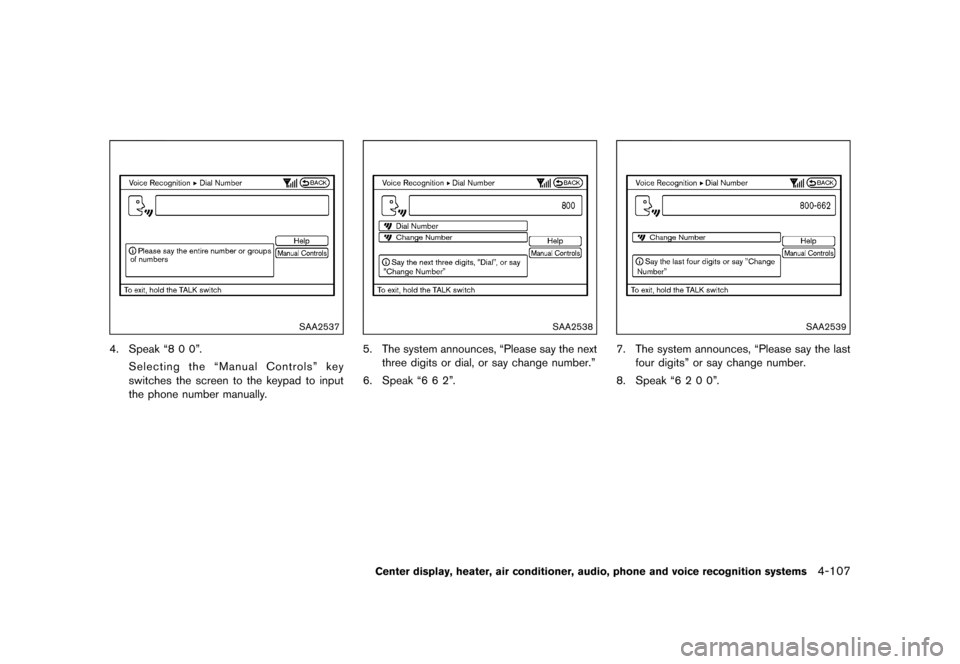

SAA2537
4. Speak ª8 0 0º.Selecting the ªManual Controlsº key
switches the screen to the keypad to input
the phone number manually.
SAA2538
5. The system announces, ªPlease say the nextthree digits or dial, or say change number.º
6. Speak ª6 6 2º.
SAA2539
7. The system announces, ªPlease say the last four digitsº or say change number.
8. Speak ª6 2 0 0º.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-107
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

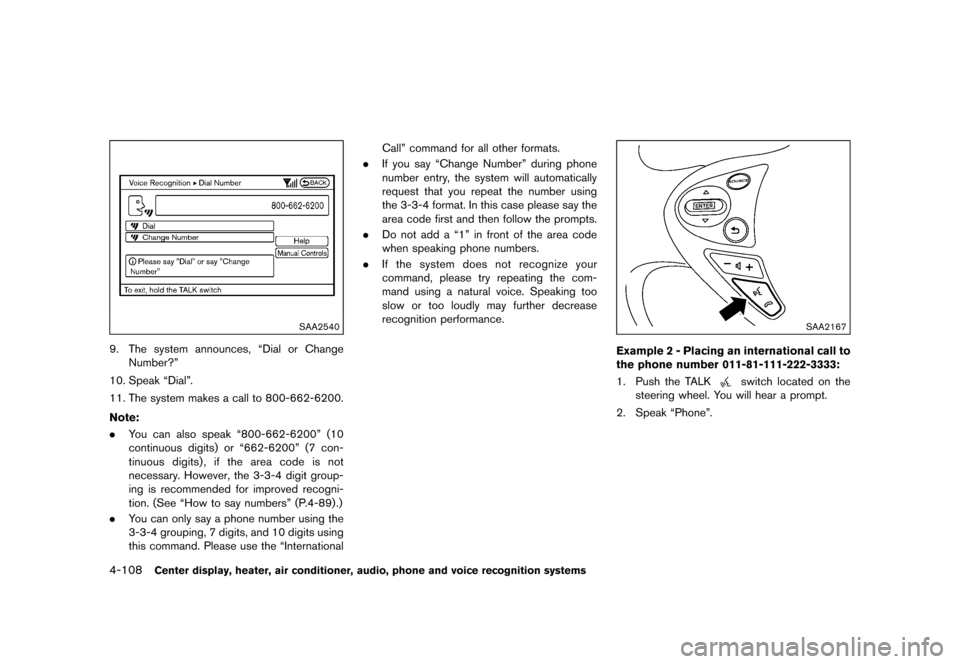

4-108Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2540
9. The system announces, ªDial or ChangeNumber?º
10. Speak ªDialº.
11. The system makes a call to 800-662-6200.
Note:
GUID-6BEF9EA1-BC17-4C42-B0C5-4F997FAC8192. You can also speak ª800-662-6200º (10
continuous digits) or ª662-6200º (7 con-
tinuous digits) , if the area code is not
necessary. However, the 3-3-4 digit group-
ing is recommended for improved recogni-
tion. (See ªHow to say numbersº (P.4-89) .)
. You can only say a phone number using the
3-3-4 grouping, 7 digits, and 10 digits using
this command. Please use the ªInternational Callº command for all other formats.
. If you say ªChange Numberº during phone
number entry, the system will automatically
request that you repeat the number using
the 3-3-4 format. In this case please say the
area code first and then follow the prompts.
. Do not add a ª1º in front of the area code
when speaking phone numbers.
. If the system does not recognize your
command, please try repeating the com-
mand using a natural voice. Speaking too
slow or too loudly may further decrease
recognition performance.
SAA2167
Example 2 - Placing an international call to
the phone number 011-81-111-222-3333:
GUID-A603CCD4-FC43-439B-9A7B-551B0710B9BF1. Push the TALKswitch located on the
steering wheel. You will hear a prompt.
2. Speak ªPhoneº.
&RQGLWLRQ
