2017 NISSAN 370Z ROADSTER Owners Manual


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

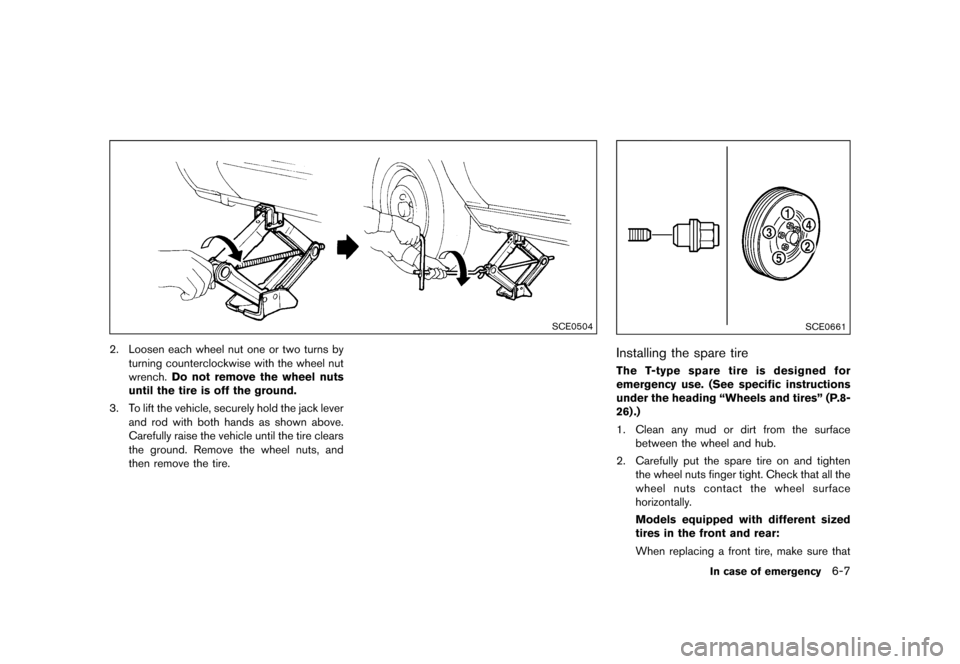

SCE0504
2. Loosen each wheel nut one or two turns byturning counterclockwise with the wheel nut
wrench. Do not remove the wheel nuts
until the tire is off the ground.
3. To lift the vehicle, securely hold the jack lever and rod with both hands as shown above.
Carefully raise the vehicle until the tire clears
the ground. Remove the wheel nuts, and
then remove the tire.
SCE0661
Installing the spare tireGUID-FE5E1DE1-22CD-4D2B-9C28-0BDA43C30B25The T-type spare tire is designed for
emergency use. (See specific instructions
under the heading ªWheels and tiresº (P.8-
26) .)
1. Clean any mud or dirt from the surfacebetween the wheel and hub.
2. Carefully put the spare tire on and tighten the wheel nuts finger tight. Check that all the
wheel nuts contact the wheel surface
horizontally.
Models equipped with different sized
tires in the front and rear:
When replacing a front tire, make sure that
In case of emergency6-7
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

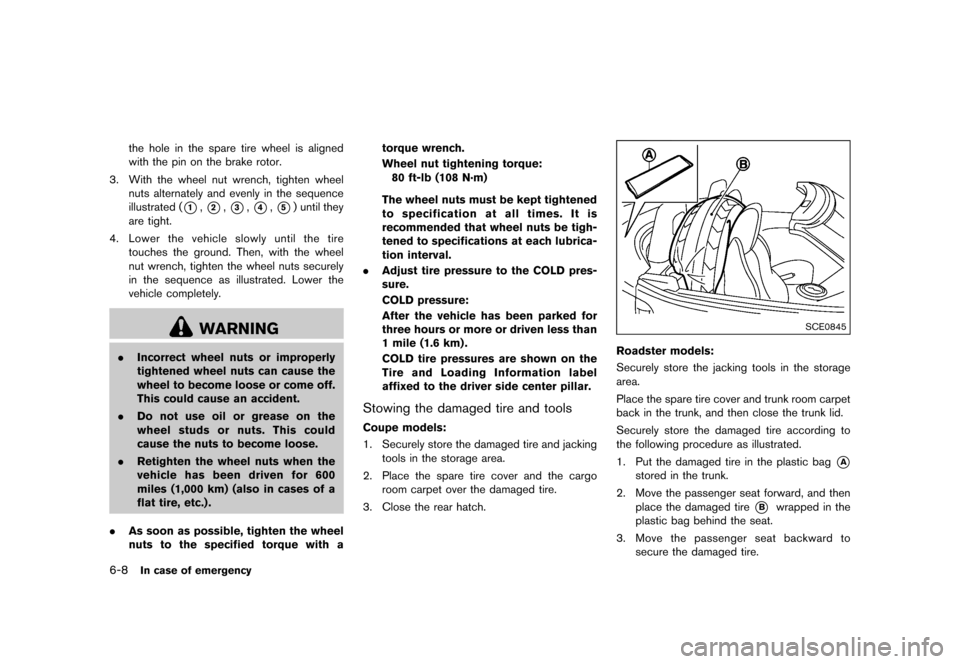

6-8In case of emergency
the hole in the spare tire wheel is aligned
with the pin on the brake rotor.
3. With the wheel nut wrench, tighten wheel nuts alternately and evenly in the sequence
illustrated (
*1,*2,*3,*4,*5) until they
are tight.
4. Lower the vehicle slowly until the tire
touches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts securely
in the sequence as illustrated. Lower the
vehicle completely.
WARNING
.Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.
. Do not use oil or grease on the
wheel studs or nuts. This could
cause the nuts to become loose.
. Retighten the wheel nuts when the
vehicle has been driven for 600
miles (1,000 km) (also in cases of a
flat tire, etc.) .
. As soon as possible, tighten the wheel
nuts to the specified torque with a torque wrench.
Wheel nut tightening torque:
80 ft-lb (108 N´m)
The wheel nuts must be kept tightened
to specification at all times. It is
recommended that wheel nuts be tigh-
tened to specifications at each lubrica-
tion interval.
. Adjust tire pressure to the COLD pres-
sure.
COLD pressure:
After the vehicle has been parked for
three hours or more or driven less than
1 mile (1.6 km) .
COLD tire pressures are shown on the
Tire and Loading Information label
affixed to the driver side center pillar.
Stowing the damaged tire and toolsGUID-44AC7D8C-BFBB-4910-AA0E-76F34ACE89CE
Coupe models:GUID-7951294D-8256-461D-9C86-45557702F6771. Securely store the damaged tire and jacking
tools in the storage area.
2. Place the spare tire cover and the cargo room carpet over the damaged tire.
3. Close the rear hatch.
SCE0845
Roadster models:GUID-BE9F8E7D-F8AA-426E-BC72-7F40C11ECDC4Securely store the jacking tools in the storage
area.
Place the spare tire cover and trunk room carpet
back in the trunk, and then close the trunk lid.
Securely store the damaged tire according to
the following procedure as illustrated.
1. Put the damaged tire in the plastic bag
*A
stored in the trunk.
2. Move the passenger seat forward, and then place the damaged tire
*Bwrapped in the
plastic bag behind the seat.
3. Move the passenger seat backward to
secure the damaged tire.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

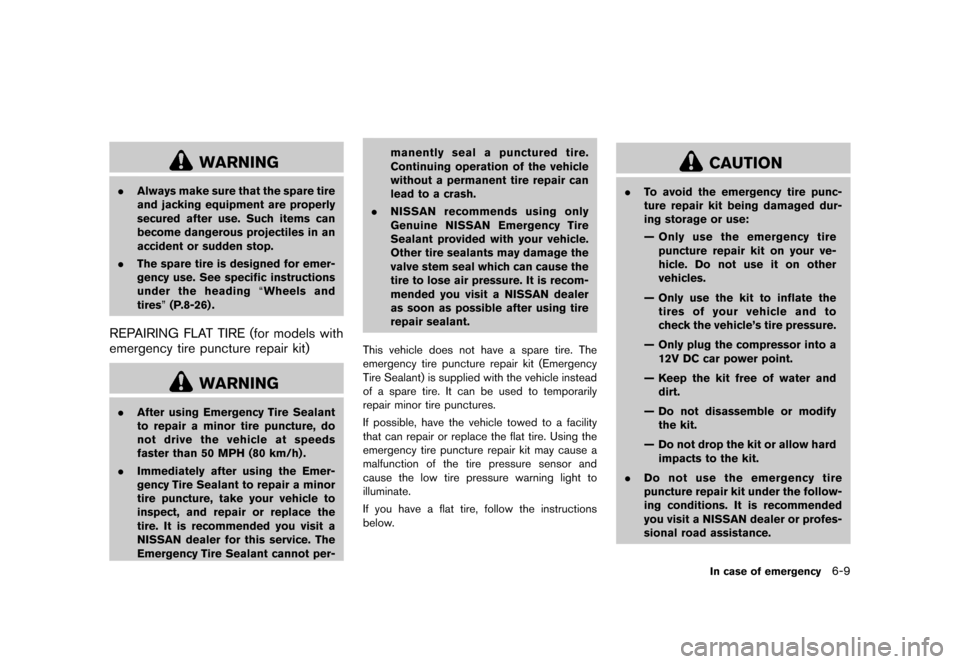

WARNING
.Always make sure that the spare tire
and jacking equipment are properly
secured after use. Such items can
become dangerous projectiles in an
accident or sudden stop.
. The spare tire is designed for emer-
gency use. See specific instructions
under the heading ªWheels and
tiresº (P.8-26) .
REPAIRING FLAT TIRE (for models with
emergency tire puncture repair kit)
GUID-CFB63E13-B11F-4747-9699-7C1F65B9D347
WARNING
.After using Emergency Tire Sealant
to repair a minor tire puncture, do
not drive the vehicle at speeds
faster than 50 MPH (80 km/h) .
. Immediately after using the Emer-
gency Tire Sealant to repair a minor
tire puncture, take your vehicle to
inspect, and repair or replace the
tire. It is recommended you visit a
NISSAN dealer for this service. The
Emergency Tire Sealant cannot per- manently seal a punctured tire.
Continuing operation of the vehicle
without a permanent tire repair can
lead to a crash.
. NISSAN recommends using only
Genuine NISSAN Emergency Tire
Sealant provided with your vehicle.
Other tire sealants may damage the
valve stem seal which can cause the
tire to lose air pressure. It is recom-
mended you visit a NISSAN dealer
as soon as possible after using tire
repair sealant.
This vehicle does not have a spare tire. The
emergency tire puncture repair kit (Emergency
Tire Sealant) is supplied with the vehicle instead
of a spare tire. It can be used to temporarily
repair minor tire punctures.
If possible, have the vehicle towed to a facility
that can repair or replace the flat tire. Using the
emergency tire puncture repair kit may cause a
malfunction of the tire pressure sensor and
cause the low tire pressure warning light to
illuminate.
If you have a flat tire, follow the instructions
below.
CAUTION
. To avoid the emergency tire punc-
ture repair kit being damaged dur-
ing storage or use:
Ð Only use the emergency tire
puncture repair kit on your ve-
hicle. Do not use it on other
vehicles.
Ð Only use the kit to inflate the tires of your vehicle and to
check the vehicle's tire pressure.
Ð Only plug the compressor into a 12V DC car power point.
Ð Keep the kit free of water and dirt.
Ð Do not disassemble or modify the kit.
Ð Do not drop the kit or allow hard impacts to the kit.
. Do not use the emergency tire
puncture repair kit under the follow-
ing conditions. It is recommended
you visit a NISSAN dealer or profes-
sional road assistance.
In case of emergency6-9
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

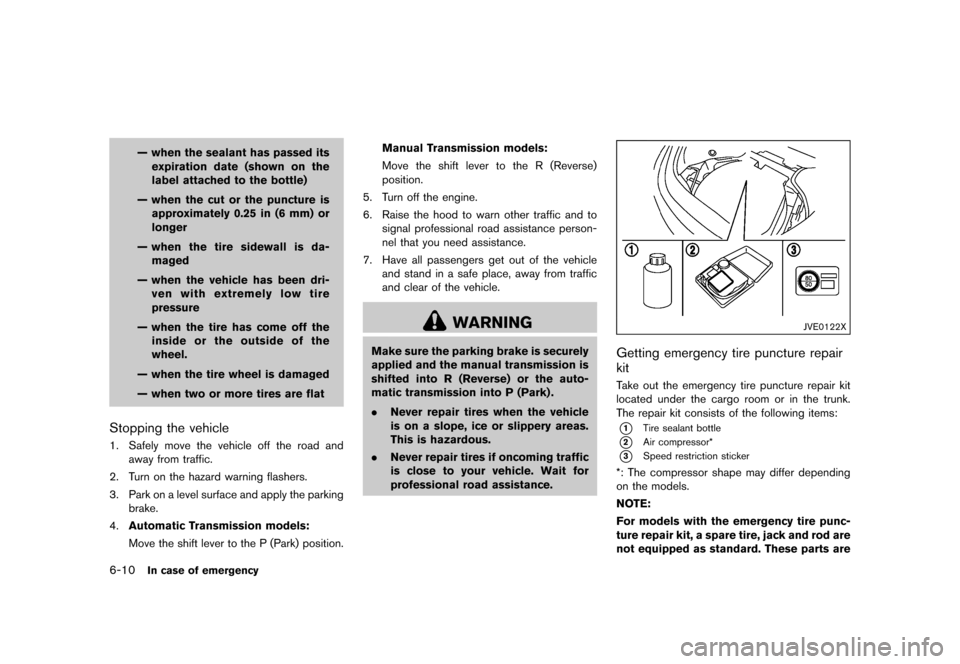

6-10In case of emergency
Ð when the sealant has passed itsexpiration date (shown on the
label attached to the bottle)
Ð when the cut or the puncture is approximately 0.25 in (6 mm) or
longer
Ð when the tire sidewall is da- maged
Ð when the vehicle has been dri- ven with extremely low tire
pressure
Ð when the tire has come off the inside or the outside of the
wheel.
Ð when the tire wheel is damaged
Ð when two or more tires are flat
Stopping the vehicleGUID-B7BFD9BD-A44D-4459-9F13-B27E10D0F44B1. Safely move the vehicle off the road and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake.
4. Automatic Transmission models:
Move the shift lever to the P (Park) position. Manual Transmission models:
Move the shift lever to the R (Reverse)
position.
5. Turn off the engine.
6. Raise the hood to warn other traffic and to signal professional road assistance person-
nel that you need assistance.
7. Have all passengers get out of the vehicle and stand in a safe place, away from traffic
and clear of the vehicle.
WARNING
Make sure the parking brake is securely
applied and the manual transmission is
shifted into R (Reverse) or the auto-
matic transmission into P (Park) .
.Never repair tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.
. Never repair tires if oncoming traffic
is close to your vehicle. Wait for
professional road assistance.
JVE0122X
Getting emergency tire puncture repair
kit
GUID-EF79543A-ADFA-4C56-9241-FB74D1642C6FTake out the emergency tire puncture repair kit
located under the cargo room or in the trunk.
The repair kit consists of the following items:
*1Tire sealant bottle
*2Air compressor*
*3Speed restriction sticker
*: The compressor shape may differ depending
on the models.
NOTE:
For models with the emergency tire punc-
ture repair kit, a spare tire, jack and rod are
not equipped as standard. These parts are
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

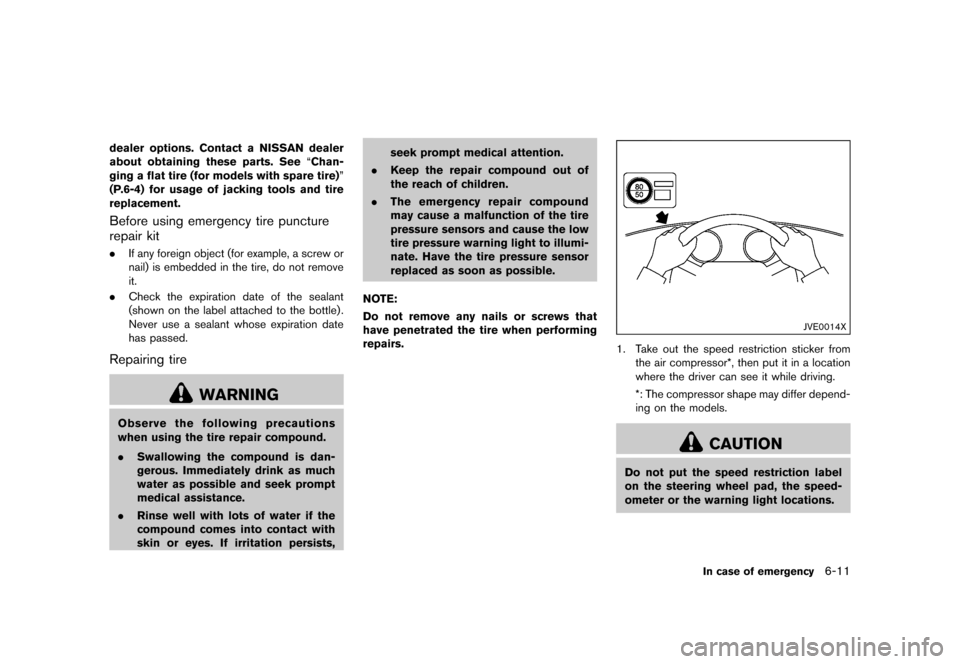

dealer options. Contact a NISSAN dealer
about obtaining these parts. SeeªChan-
ging a flat tire (for models with spare tire)º
(P.6-4) for usage of jacking tools and tire
replacement.
Before using emergency tire puncture
repair kit
GUID-9F5059ED-1AF3-4162-BEBE-B8FBB17A3190. If any foreign object (for example, a screw or
nail) is embedded in the tire, do not remove
it.
. Check the expiration date of the sealant
(shown on the label attached to the bottle) .
Never use a sealant whose expiration date
has passed.
Repairing tireGUID-13AA0834-2C22-475D-A716-6A989874535A
WARNING
Observe the following precautions
when using the tire repair compound.
.Swallowing the compound is dan-
gerous. Immediately drink as much
water as possible and seek prompt
medical assistance.
. Rinse well with lots of water if the
compound comes into contact with
skin or eyes. If irritation persists, seek prompt medical attention.
. Keep the repair compound out of
the reach of children.
. The emergency repair compound
may cause a malfunction of the tire
pressure sensors and cause the low
tire pressure warning light to illumi-
nate. Have the tire pressure sensor
replaced as soon as possible.
NOTE:
Do not remove any nails or screws that
have penetrated the tire when performing
repairs.
JVE0014X
1. Take out the speed restriction sticker from the air compressor*, then put it in a location
where the driver can see it while driving.
*: The compressor shape may differ depend-
ing on the models.
CAUTION
Do not put the speed restriction label
on the steering wheel pad, the speed-
ometer or the warning light locations.
In case of emergency6-11
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

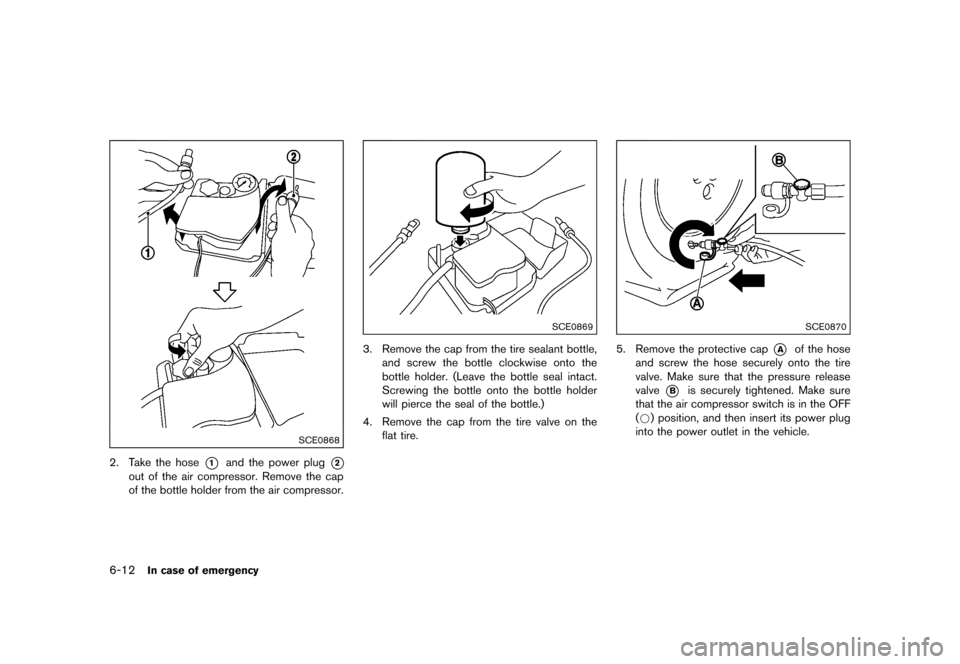

6-12In case of emergency
SCE0868
2. Take the hose*1and the power plug*2
out of the air compressor. Remove the cap
of the bottle holder from the air compressor.
SCE0869
3. Remove the cap from the tire sealant bottle,and screw the bottle clockwise onto the
bottle holder. (Leave the bottle seal intact.
Screwing the bottle onto the bottle holder
will pierce the seal of the bottle.)
4. Remove the cap from the tire valve on the flat tire.
SCE0870
5. Remove the protective cap*Aof the hose
and screw the hose securely onto the tire
valve. Make sure that the pressure release
valve
*Bis securely tightened. Make sure
that the air compressor switch is in the OFF
(*) position, and then insert its power plug
into the power outlet in the vehicle.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

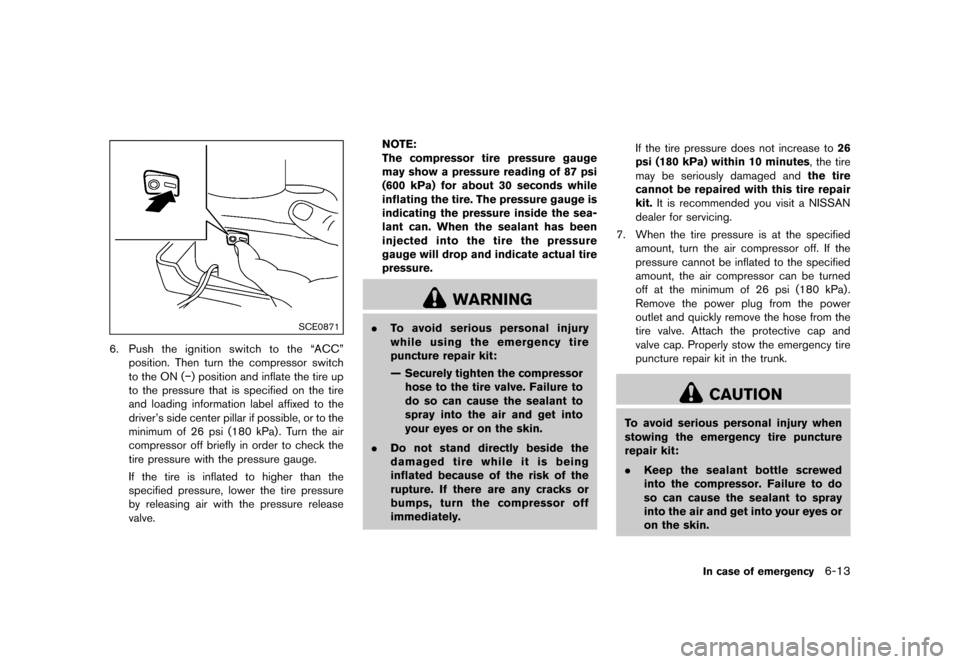

SCE0871
6.Push the ignition switch to the ªACCº
position. Then turn the compressor switch
to the ON (


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

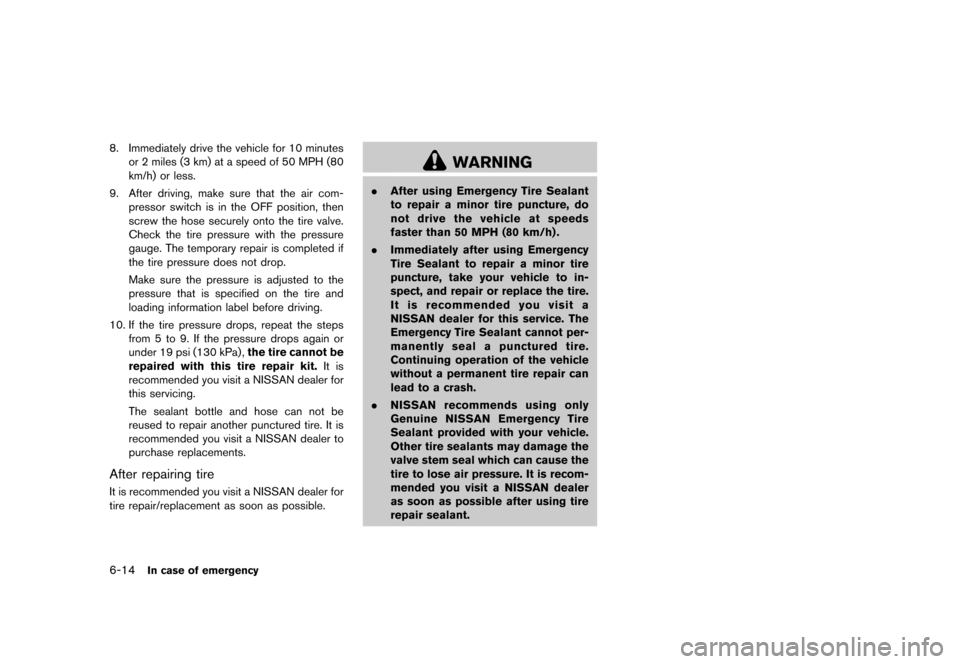

6-14In case of emergency
8. Immediately drive the vehicle for 10 minutesor 2 miles (3 km) at a speed of 50 MPH (80
km/h) or less.
9. After driving, make sure that the air com- pressor switch is in the OFF position, then
screw the hose securely onto the tire valve.
Check the tire pressure with the pressure
gauge. The temporary repair is completed if
the tire pressure does not drop.
Make sure the pressure is adjusted to the
pressure that is specified on the tire and
loading information label before driving.
10. If the tire pressure drops, repeat the steps from 5 to 9. If the pressure drops again or
under 19 psi (130 kPa), the tire cannot be
repaired with this tire repair kit. It is
recommended you visit a NISSAN dealer for
this servicing.
The sealant bottle and hose can not be
reused to repair another punctured tire. It is
recommended you visit a NISSAN dealer to
purchase replacements.
After repairing tireGUID-534A21F6-74BB-4F0A-8B77-94399139D156It is recommended you visit a NISSAN dealer for
tire repair/replacement as soon as possible.
WARNING
. After using Emergency Tire Sealant
to repair a minor tire puncture, do
not drive the vehicle at speeds
faster than 50 MPH (80 km/h) .
. Immediately after using Emergency
Tire Sealant to repair a minor tire
puncture, take your vehicle to in-
spect, and repair or replace the tire.
It is recommended you visit a
NISSAN dealer for this service. The
Emergency Tire Sealant cannot per-
manently seal a punctured tire.
Continuing operation of the vehicle
without a permanent tire repair can
lead to a crash.
. NISSAN recommends using only
Genuine NISSAN Emergency Tire
Sealant provided with your vehicle.
Other tire sealants may damage the
valve stem seal which can cause the
tire to lose air pressure. It is recom-
mended you visit a NISSAN dealer
as soon as possible after using tire
repair sealant.
&RQGLWLRQ
