2017 NISSAN 370Z ROADSTER Owners Manual


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
JVI0582X
WARNINGS AND ALERTSGUID-7C51E304-FB3A-4C63-98F6-0E0C01B9B975
1. Parking brake release warningGUID-CE1FB8E9-BFFC-4D48-B1B5-FC24A0C90140This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
2. Low fuel warningGUID-32CC5BA4-F25E-454D-9827-002C0AEEE1B0This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reachesthe empty (E) position.
3. Low washer fluid warningGUID-771CA8EB-1B0B-48E3-9AA7-545D14F08D63This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See ªWindow washer fluidº (P.8-10).)
4. Door/rear hatch/trunk open warning
(ignition switch is in the ON position)
GUID-0B575D32-572C-4B23-BCD1-CF8EA5F87236This warning appears if any of the doors and/or
the rear hatch/trunk are open or not closed
securely. The vehicle icon indicates which door
is open on the display.
5. Loose fuel cap warningGUID-F3CC1F40-8F19-49C3-9F34-DEFAC22FC305This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See ªFuel-filler capº (P.3-34) .)
6. Check tire pressure warningGUID-8A59F66F-2415-4F89-AA24-F83B0C214208This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. If this warning appears,
stop the vehicle and adjust the pressure to the
recommended COLD tire pressure shown on
the recommended COLD tire pressure shown
on the Tire and Loading Information label. (See
ªTire Pressure Monitoring System (TPMS)º (P.5-
Instruments and controls2-21
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
2-22Instruments and controls
3) and ªTire Pressure Monitoring System
(TPMS)º (P.6-3) .
7. ªTIMERº indicatorGUID-18E114C8-C2B4-404A-8A4E-84A7A42051BCThis indicator appears when the set ªTIMERº
indicator activates. You can set the time for up to
6 hours. (See ªTrip computerº (P.2-23) .)
8. Low outside temperature warningGUID-90E6D863-3B05-425C-9927-080F44CBDB15This warning appears if the outside temperature
is below 378F (38C) . The warning can be set not
to be displayed. (See ªTrip computerº (P.2-23) .)
9. SynchroRev Match mode (S-MODE)
warning
GUID-C447488B-81AA-430F-A921-D8024D24AA7AThis warning appears if a system malfunction
occurs. When the warning appears, the S-
MODE function will not operate, but the manual
transmission will operate normally and driving
can be continued. Have the system checked. It
is recommended you visit a NISSAN dealer for
this service.
10. Extended storage fuse warningGUID-2B7909ED-3C60-43BF-809C-8242216A5944This warning may appear if the extended storage
fuse switch is not pushed in (switched on) .
When this warning appears, push in (switch on)
the extended storage fuse switch to turn off the
warning. For more information, see ªExtended
storage fuse switchº (P.8-19) .
SIC4237
MAINTENANCE INDICATORSGUID-826D2792-78BB-4DB1-9F80-E2CC7FAC9686
1. Engine oil replacement indicatorGUID-82878847-AFB9-4DB0-9035-D418FB66756DThis indicator appears when the set time comes
for changing the engine oil. You can set or reset
the distance for changing the engine oil. (See
ªTrip computerº (P.2-23) .)
2. Oil filter replacement indicatorGUID-63D34095-F93B-4620-A0A5-C319653463CBThis indicator appears when the set time comes
for replacing the oil filter. You can set or reset
the distance for replacing the oil filter. (See ªTrip
computerº (P.2-23).)
3. Tire replacement indicatorGUID-E1E9DA72-EE66-4904-893A-4A123B2B1CAAThis indicator appears when the set time comes
for replacing tires. You can set or reset the
distance for replacing tires. (See ªTrip compu-
terº (P.2-23) .)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
ªChanging wheels and tiresº(P.8-33) .
Many factors including tire inflation,
alignment, driving habits and road con-
ditions affect tire wear and when tires
should be replaced. Setting the tire
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
replacement indicator for a certain
driving distance does not mean your
tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
4. ªOTHERº indicatorGUID-5336AF1B-0FD8-4F35-9418-6059DEFCD648This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See ªTrip computerº
(P.2-23) .)
Models with navigation system:
More maintenance reminders are also available
on the center display. (See ªHow to use INFO
buttonº (P.4-8).)
SIC3978
TRIP COMPUTERGUID-5FADE743-F606-4123-885B-ACB05BA36CF5Switches for the trip computer are located on
the left side of the combination meter panel. To
operate the trip computer, push the switches as
shown above.
*AENTER switch
*BNEXT switch
When the ignition switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the
switch*A.
Each time the
switch*Ais pushed, the
display will change as follows:
Current fuel consumption ?Average fuel
consumption and speed ?Elapsed time and trip odometer
?Distance to empty ?Outside
air temperature ?Clock ?Setting ?Warning
check ?Current fuel consumption
Instruments and controls2-23
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
2-24Instruments and controls
SIC3673
Current fuel consumption (MPG or l
(liter)/100 km)
GUID-62859DF5-F2EF-4F4F-877B-911D0BCA9AA6The current fuel consumption mode shows the
current fuel consumption.
SIC3674
Average fuel consumption (MPG or l
(liter)/100 km) and speed (MPH or km/h)
GUID-3401951A-7D1B-49AC-92C4-C5BFDC697C29
Fuel consumption:GUID-060586EA-E6A4-46C0-8B6E-B5EC91D82FBDThe average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the
switch*B
for longer than 1 second. (The average speed is
also reset at the same time.)
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows ªÐк.
Speed:
GUID-D345126F-2278-46E1-B13A-301C56E584D2The average speed mode shows the average
vehicle speed since the last reset. Resetting isdone by pushing the
switch*Bfor longer
than 1 second. (The average fuel consumption is
also reset at the same time.)
The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
ªÐк.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
SIC4226
Elapsed time and trip odometer (MILES
or km)
GUID-ED45A6BD-153C-4500-B746-FDAA7FC98058
Elapsed time:GUID-530DD360-7D87-4754-ABFB-726E1C3F3E67The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the
switch*Bfor longer than 1
second. (The trip odometer is also reset at the
same time.)
Trip odometer:
GUID-38354EE6-1F30-427E-9392-3E5120610BECThe trip odometer mode shows the total
distance the vehicle has been driven since the
last reset. Resetting is done by pushing the
switch*Bfor longer than 1 second. (The
elapsed time is also reset at the same time.)
SIC3676
Distance to empty (MILES or km)GUID-6D734799-499F-4B18-B4E4-3E963CE6F39FThe distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to ªÐк.
. If the amount of fuel added is small, the
display just before the ignition switch is pushed to the OFF position may continue to
be displayed.
. When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.
Instruments and controls2-25
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
2-26Instruments and controls
SIC4037
Outside air temperature (8F or8C)GUID-7AE07451-D2E8-4CCE-AD7B-D9456154619AThe outside air temperature is displayed in 8F or
8C in the range of


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
JVI1452X
SettingGUID-A4129AA4-89AF-4BDF-955B-EDD660E320ACSetting cannot be made while driving. A
message ªSetting can only be operated
when stoppedº is also displayed on the
vehicle information display.
The
switch*Aandswitch*Bare
used in the setting mode to select and decide a
menu.
SKIP:
GUID-749FC78C-5C9A-48EA-9286-D7B5C30FBF35Push theswitch*Ato move to the warning
check mode.
Push the
switch*Bto select other menus. ALERT:
GUID-8B4DD5D2-E0A7-48AA-975A-0C3B03D69C4AAlert menu can be set to notify the following
items.
.
UPSHIFT
Select this submenu to set the engine speed
(RPM) of the upshift indicator. See ªUpshift
indicatorº (P.5-19) (MT models) or ªManual
shift modeº (P.5-14) (AT models) .
. TIMER
Select this submenu to specify when the
ªTIMERº indicator activates.
. ICY
Select this submenu to display the low
outside temperature warning.
To return to the top page of the setting mode,
select ªBACKº.
MAINTENANCE:
GUID-1005121C-0F23-41ED-97BC-3D10BAE195A9The maintenance intervals of the following items
can be set or reset for the reminders.
. OIL
Select this submenu to set or reset the
distance for changing the engine oil.
. FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
. TIRE
Select this submenu to set or reset the distance for replacing tires.
. OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires.
To return to the top page of the setting mode,
select ªBACKº.
OPTIONS:
GUID-26D7F72A-200D-4EA4-91BD-F3389A9E282DThe 3 option menus can be set to your
preference.
. LANGUAGE
Select this submenu to choose English or
French for display.
. UNIT
Select this submenu to choose the unit from
US or METRIC.
. EFFECTS
Select this menu to set the dial effects
described below to on or off.
Ð The indicator needles sweep in the
meters when the engine is started.
To return to the top page of the setting mode,
select ªBACKº.
Instruments and controls2-27
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
2-28Instruments and controls

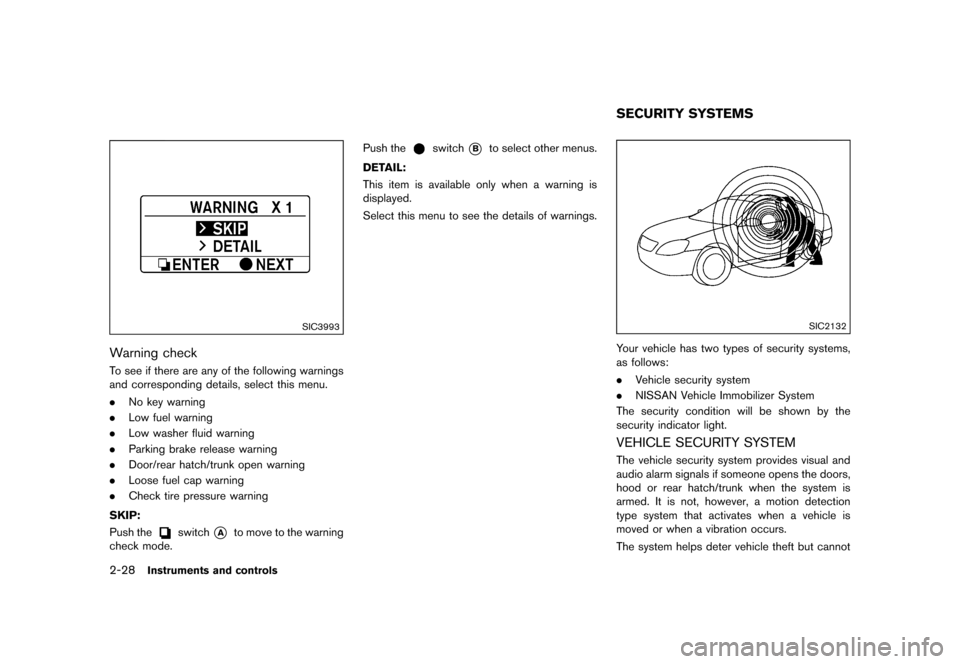

SIC3993
Warning checkGUID-72709829-29A0-457E-800D-B3536841F1C4To see if there are any of the following warnings
and corresponding details, select this menu.
.No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/rear hatch/trunk open warning
. Loose fuel cap warning
. Check tire pressure warning
SKIP:
GUID-190B993C-F835-4EF1-83D9-76AA9992F00DPush theswitch*Ato move to the warning
check mode. Push the
switch*Bto select other menus.
DETAIL:
GUID-7DA42E44-63B6-4291-85FD-FD19FE8A918AThis item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
GUID-EBDF5001-2302-4EB9-A432-01D359D4D7DC
SIC2132
Your vehicle has two types of security systems,
as follows:
. Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEMGUID-2A8196BD-5123-44CE-AD29-A4C97140D00EThe vehicle security system provides visual and
audio alarm signals if someone opens the doors,
hood or rear hatch/trunk when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs.
The system helps deter vehicle theft but cannot
SECURITY SYSTEMS
&RQGLWLRQ
