2017 NISSAN 370Z ROADSTER Owners Manual


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
.Do not place the cellular phone in an area
surrounded by metal or far away from the in-
vehicle phone module to prevent tone quality
degradation and wireless connection dis-
ruption.
. While a cellular phone is connected through
the Bluetooth


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-78Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2518
CONTROL BUTTONSGUID-A1711ECE-1D20-4636-A13C-9382D30A6D221) PHONE button
2) TALK
/PHONE SENDbutton
JVH0473X
CONNECTING PROCEDUREGUID-7A3B7BEB-3A93-4403-B287-7DCED9C0710F1. Push the PHONE button or thebutton,
and select the ªConnect Phoneº key.
SAA2520
2. A message screen is displayed. Operate the
cellular phone according to the message,
and then wait until ªMY-CARº is displayed
on the cellular phone. After selecting ªMY-
CARº on your cellular phone, perform one of
the following procedures.
.Input the PIN code displayed on thescreen.
.Check that the PIN code displayed on thescreen is the same as the number
displayed on the cellular phone, and then
select [Yes].
For phones that support Simple Secure
Pairing (SSP) , check that the PIN code
on the vehicle displayed matches the PIN
code displayed on the phone.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

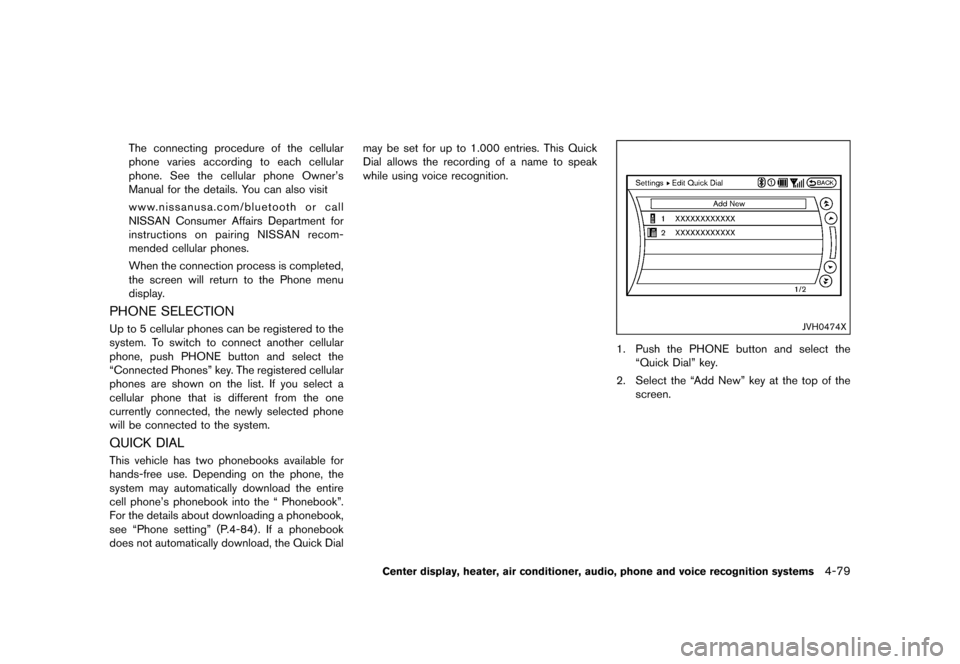

The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner's
Manual for the details. You can also visit
www.nissanusa.com/bluetooth or call
NISSAN Consumer Affairs Department for
instructions on pairing NISSAN recom-
mended cellular phones.
When the connection process is completed,
the screen will return to the Phone menu
display.
PHONE SELECTIONGUID-0CEE1106-0CC7-4487-A496-412BAD37CA80Up to 5 cellular phones can be registered to the
system. To switch to connect another cellular
phone, push PHONE button and select the
ªConnected Phonesº key. The registered cellular
phones are shown on the list. If you select a
cellular phone that is different from the one
currently connected, the newly selected phone
will be connected to the system.
QUICK DIALGUID-8061DB91-55C2-4977-98FA-C25244A193B0This vehicle has two phonebooks available for
hands-free use. Depending on the phone, the
system may automatically download the entire
cell phone's phonebook into the ª Phonebookº.
For the details about downloading a phonebook,
see ªPhone settingº (P.4-84). If a phonebook
does not automatically download, the Quick Dialmay be set for up to 1.000 entries. This Quick
Dial allows the recording of a name to speak
while using voice recognition.
JVH0474X
1. Push the PHONE button and select the
ªQuick Dialº key.
2. Select the ªAdd Newº key at the top of the screen.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-79
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-80Center display, heater, air conditioner, audio, phone and voice recognition systems

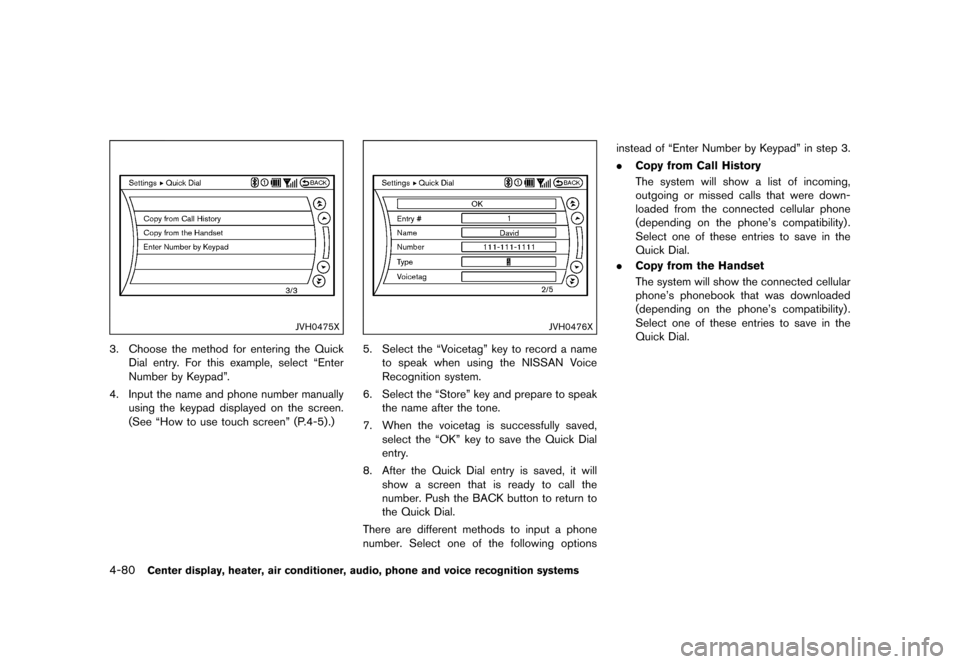

JVH0475X
3. Choose the method for entering the QuickDial entry. For this example, select ªEnter
Number by Keypadº.
4. Input the name and phone number manually using the keypad displayed on the screen.
(See ªHow to use touch screenº (P.4-5).)
JVH0476X
5. Select the ªVoicetagº key to record a name
to speak when using the NISSAN Voice
Recognition system.
6. Select the ªStoreº key and prepare to speak the name after the tone.
7. When the voicetag is successfully saved, select the ªOKº key to save the Quick Dial
entry.
8. After the Quick Dial entry is saved, it will show a screen that is ready to call the
number. Push the BACK button to return to
the Quick Dial.
There are different methods to input a phone
number. Select one of the following options instead of ªEnter Number by Keypadº in step 3.
.
Copy from Call History
The system will show a list of incoming,
outgoing or missed calls that were down-
loaded from the connected cellular phone
(depending on the phone's compatibility) .
Select one of these entries to save in the
Quick Dial.
. Copy from the Handset
The system will show the connected cellular
phone's phonebook that was downloaded
(depending on the phone's compatibility) .
Select one of these entries to save in the
Quick Dial.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

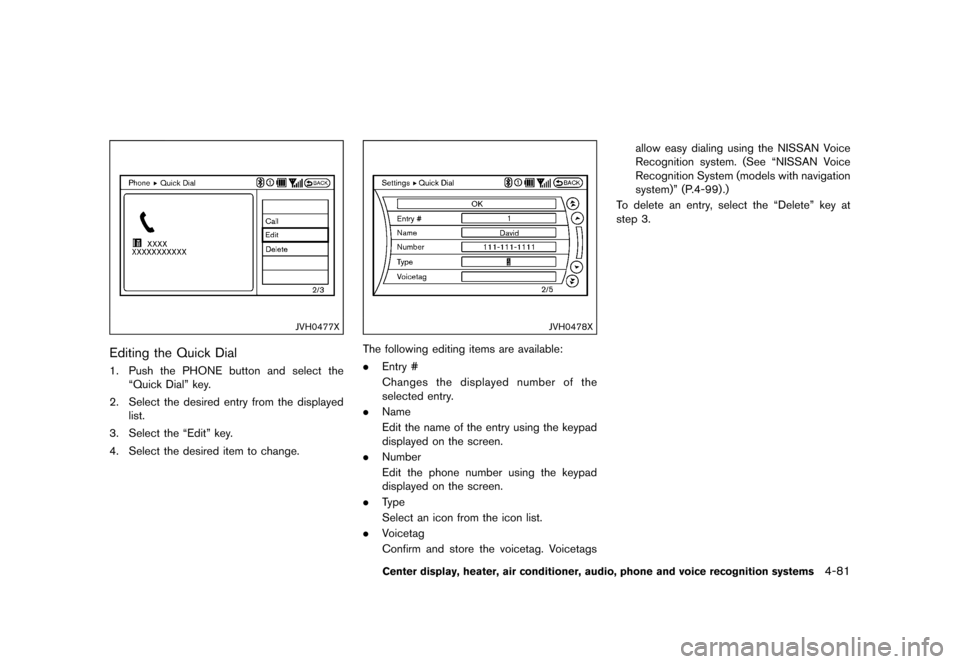

JVH0477X
Editing the Quick DialGUID-0BF20AE8-FD1E-48B4-B16D-4E85E1B2CCF71. Push the PHONE button and select theªQuick Dialº key.
2. Select the desired entry from the displayed list.
3. Select the ªEditº key.
4. Select the desired item to change.
JVH0478X
The following editing items are available:
. Entry #
Changes the displayed number of the
selected entry.
. Name
Edit the name of the entry using the keypad
displayed on the screen.
. Number
Edit the phone number using the keypad
displayed on the screen.
. Type
Select an icon from the icon list.
. Voicetag
Confirm and store the voicetag. Voicetags allow easy dialing using the NISSAN Voice
Recognition system. (See ªNISSAN Voice
Recognition System (models with navigation
system)º (P.4-99) .)
To delete an entry, select the ªDeleteº key at
step 3.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-81
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-82Center display, heater, air conditioner, audio, phone and voice recognition systems

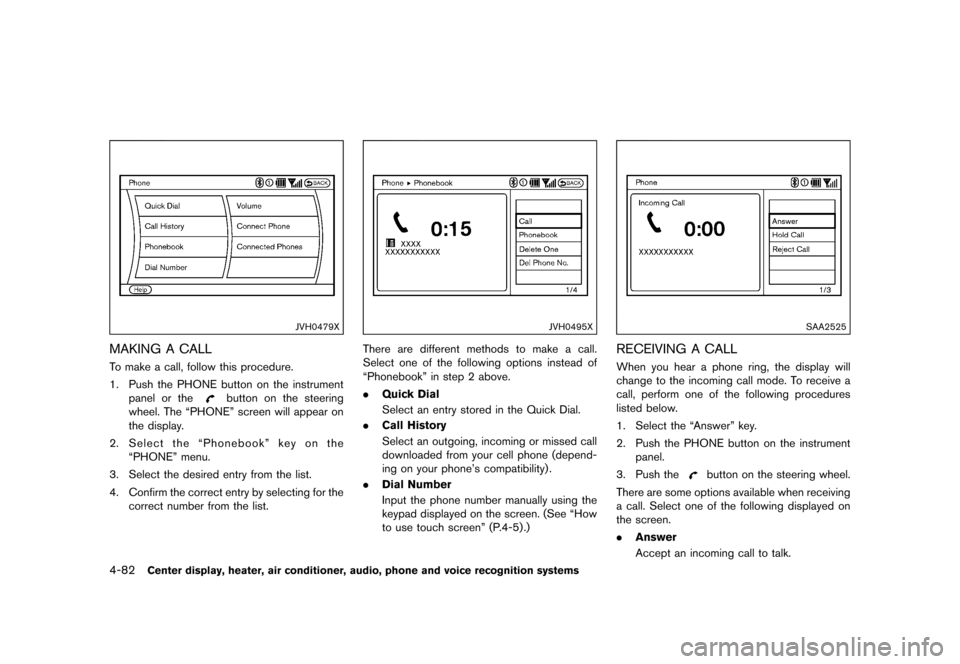

JVH0479X
MAKING A CALLGUID-39543C85-59E5-4F1C-83D0-B5A4B46D003CTo make a call, follow this procedure.
1. Push the PHONE button on the instrumentpanel or the
button on the steering
wheel. The ªPHONEº screen will appear on
the display.
2. Select the ªPhonebookº key on the
ªPHONEº menu.
3. Select the desired entry from the list.
4. Confirm the correct entry by selecting for the correct number from the list.
JVH0495X
There are different methods to make a call.
Select one of the following options instead of
ªPhonebookº in step 2 above.
.Quick Dial
Select an entry stored in the Quick Dial.
. Call History
Select an outgoing, incoming or missed call
downloaded from your cell phone (depend-
ing on your phone's compatibility) .
. Dial Number
Input the phone number manually using the
keypad displayed on the screen. (See ªHow
to use touch screenº (P.4-5) .)
SAA2525
RECEIVING A CALLGUID-0777A815-B287-4B03-A019-2D4078464681When you hear a phone ring, the display will
change to the incoming call mode. To receive a
call, perform one of the following procedures
listed below.
1. Select the ªAnswerº key.
2. Push the PHONE button on the instrument
panel.
3. Push the
button on the steering wheel.
There are some options available when receiving
a call. Select one of the following displayed on
the screen.
. Answer
Accept an incoming call to talk.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

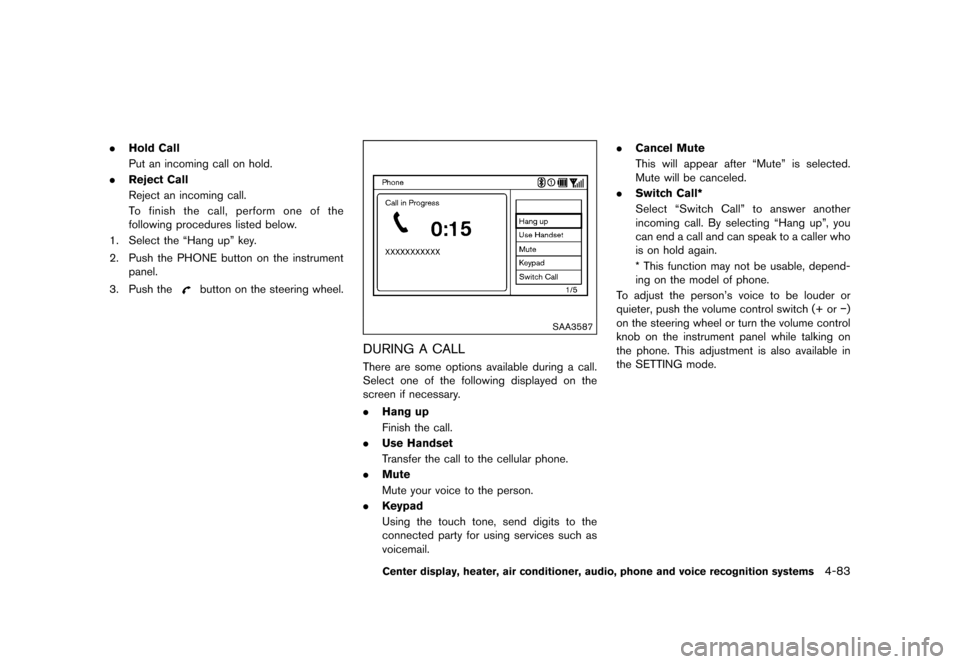

.Hold Call
Put an incoming call on hold.
. Reject Call
Reject an incoming call.
To finish the call, perform one of the
following procedures listed below.
1. Select the ªHang upº key.
2. Push the PHONE button on the instrument panel.
3. Push the
button on the steering wheel.
SAA3587
DURING A CALLGUID-08505588-D7A0-44F2-A5FB-BEDD444B2DDEThere are some options available during a call.
Select one of the following displayed on the
screen if necessary.
. Hang up
Finish the call.
. Use Handset
Transfer the call to the cellular phone.
. Mute
Mute your voice to the person.
. Keypad
Using the touch tone, send digits to the
connected party for using services such as
voicemail. .
Cancel Mute
This will appear after ªMuteº is selected.
Mute will be canceled.
. Switch Call*
Select ªSwitch Callº to answer another
incoming call. By selecting ªHang upº, you
can end a call and can speak to a caller who
is on hold again.
* This function may not be usable, depend-
ing on the model of phone.
To adjust the person's voice to be louder or
quieter, push the volume control switch (+ or


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-84Center display, heater, air conditioner, audio, phone and voice recognition systems

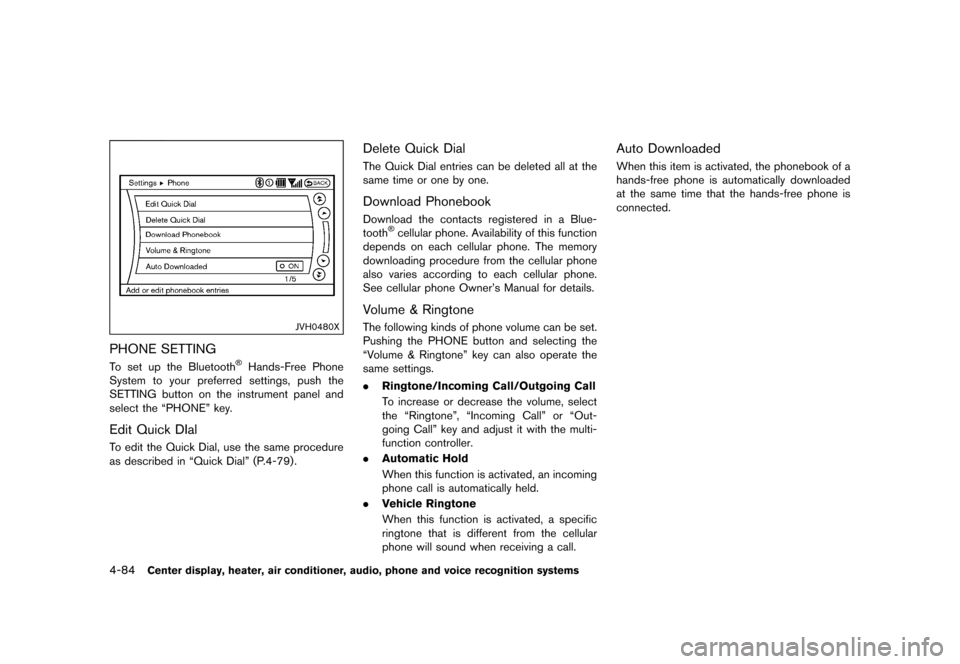

JVH0480X
PHONE SETTINGGUID-58FC63DB-1CC7-4C89-BDBA-6D468E91382ATo set up the Bluetooth
