2017 NISSAN 370Z ROADSTER Owners Manual


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
10 Technical and consumer information
Capacities and recommended fluids/lubricants...
............. 10-2
Fuel information ...
................................................................ 10-4
Engine oil and oil filter recommendation ...
.................... 10-6
Air conditioning system refrigerant and
lubricant recommendations ...
............................................ 10-7
Specifications ...
........................................................................\
.. 10-8
Engine ...
........................................................................\
......... 10-8
Wheels and tires ...
.............................................................. 10-9
Dimensions ...
..................................................................... 10-10
When traveling or registering in another country ...
....... 10-11
Vehicle identification ...
........................................................... 10-11
Vehicle Identification Number (VIN) plate ...
............... 10-11
Vehicle identification number (chassis number) ...
.... 10-11
Engine serial number ...
.................................................... 10-12
F.M.V.S.S./C.M.V.S.S. certification label ...
................. 10-12
Emission control information label ...
............................ 10-12
Tire and Loading Information label ...
........................... 10-13
Air conditioner specification label ...
............................. 10-13
Installing front license plate ...
.............................................. 10-14
Except for NISMO models ...
.......................................... 10-14
For NISMO models ...
....................................................... 10-16 Removing air deflectors (except for
NISMO models)
...
.................................................................. 10-17
Vehicle loading information ...
.............................................. 10-18
Terms ...
........................................................................\
...... 10-18
Vehicle load capacity ...
................................................. 10-19
Loading tips ...
.................................................................. 10-20
Measurement of weights ...
........................................... 10-20
Towing a trailer ...
.................................................................... 10-21
Flat towing ...
........................................................................\
.... 10-21
Automatic transmission ...
............................................. 10-21
Manual transmission ...
................................................... 10-21
Uniform tire quality grading ...
.............................................. 10-22
Treadwear ...
..................................................................... 10-22
Traction AA, A, B and C ...
........................................... 10-22
Temperature A, B and C ...
........................................... 10-22
Emission control system warranty ...
.................................. 10-23
Reporting safety defects ...
.................................................. 10-23
Readiness for Inspection/Maintenance (I/M) test ...
...... 10-24
Event Data Recorders (EDR) ...
.......................................... 10-24
Owner's Manual/Service Manual
order information ...
................................................................ 10-25
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

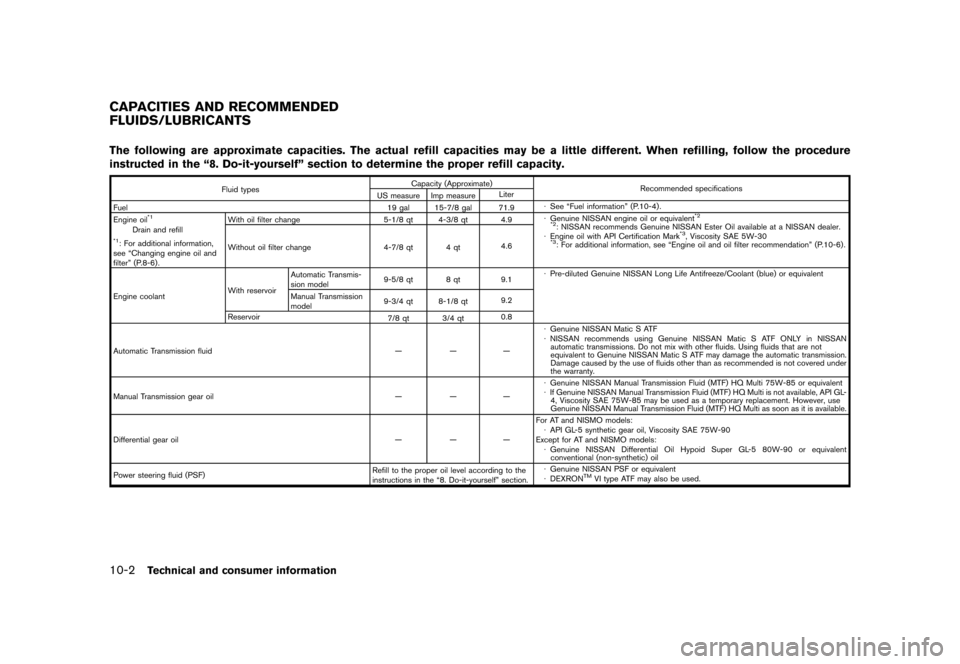

10-2Technical and consumer information
GUID-80082F43-58D6-4C2E-8F86-1E99B1A7B004The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the ª8. Do-it-yourselfº section to determine the proper refill capacity.
Fluid typesCapacity (Approximate)
Recommended specifications
US measure Imp measure Liter
Fuel 19 gal 15-7/8 gal 71.9


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

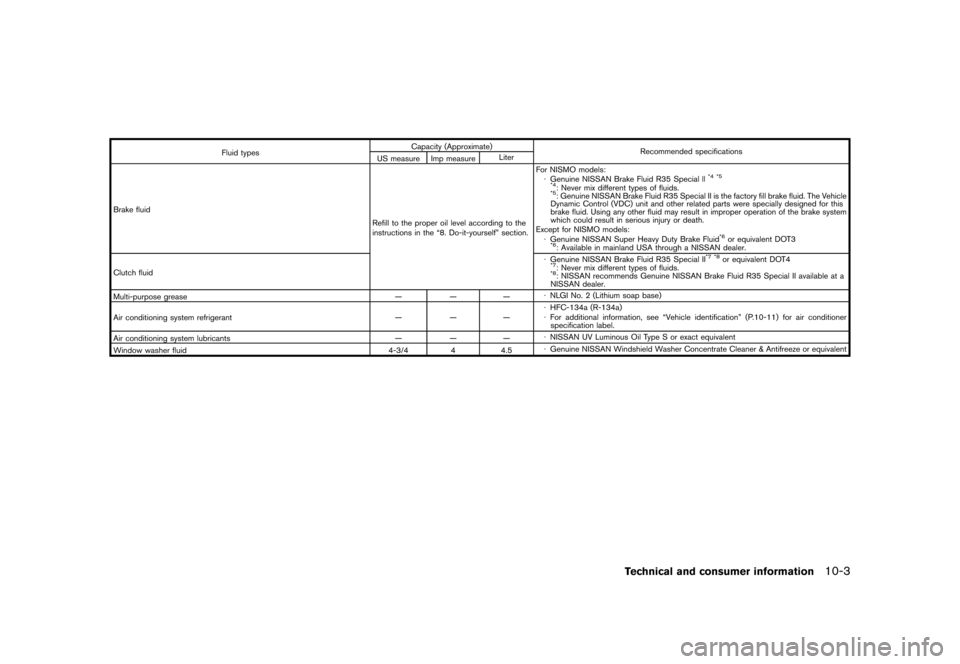

Fluid typesCapacity (Approximate)
Recommended specifications
US measure Imp measure Liter
Brake fluid Refill to the proper oil level according to the
instructions in the ª8. Do-it-yourselfº section.For NISMO models:


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
10-4Technical and consumer information

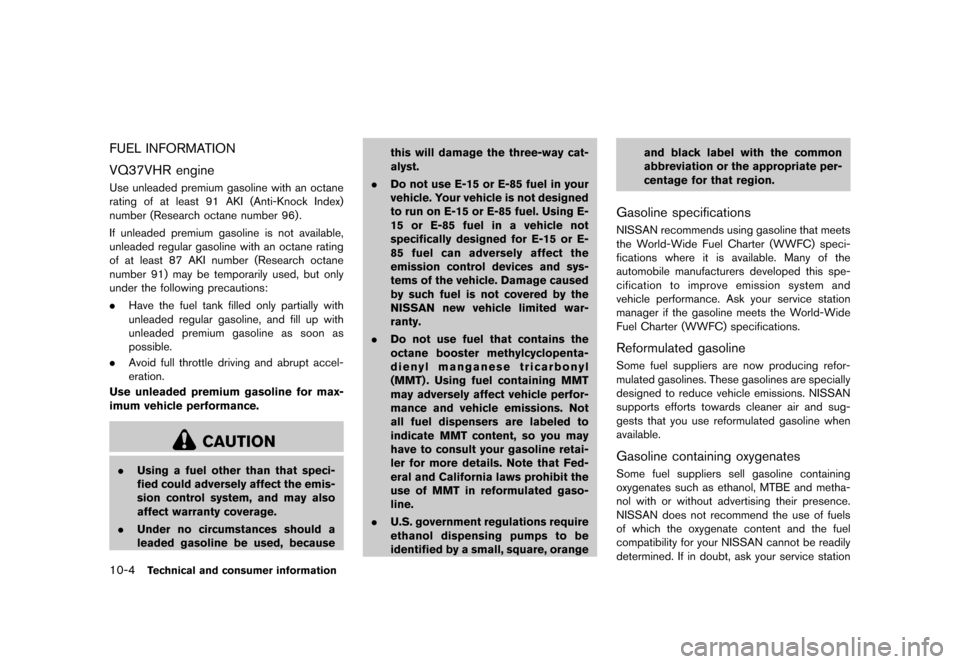

FUEL INFORMATIONGUID-BA85EEE0-9A81-4211-8927-2E98DFC15FE1
VQ37VHR engineGUID-1D69ED9E-74E3-4CD3-9D5C-1C6B04232E0DUse unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96) .
If unleaded premium gasoline is not available,
unleaded regular gasoline with an octane rating
of at least 87 AKI number (Research octane
number 91) may be temporarily used, but only
under the following precautions:
.Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as
possible.
. Avoid full throttle driving and abrupt accel-
eration.
Use unleaded premium gasoline for max-
imum vehicle performance.
CAUTION
. Using a fuel other than that speci-
fied could adversely affect the emis-
sion control system, and may also
affect warranty coverage.
. Under no circumstances should a
leaded gasoline be used, because this will damage the three-way cat-
alyst.
. Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed
to run on E-15 or E-85 fuel. Using E-
15 or E-85 fuel in a vehicle not
specifically designed for E-15 or E-
85 fuel can adversely affect the
emission control devices and sys-
tems of the vehicle. Damage caused
by such fuel is not covered by the
NISSAN new vehicle limited war-
ranty.
. Do not use fuel that contains the
octane booster methylcyclopenta-
dienyl manganese tricarbonyl
(MMT) . Using fuel containing MMT
may adversely affect vehicle perfor-
mance and vehicle emissions. Not
all fuel dispensers are labeled to
indicate MMT content, so you may
have to consult your gasoline retai-
ler for more details. Note that Fed-
eral and California laws prohibit the
use of MMT in reformulated gaso-
line.
. U.S. government regulations require
ethanol dispensing pumps to be
identified by a small, square, orange and black label with the common
abbreviation or the appropriate per-
centage for that region.
Gasoline specificationsGUID-6509BE20-CA4B-49F4-8B47-14F6CFFAAB8FNISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) speci-
fications where it is available. Many of the
automobile manufacturers developed this spe-
cification to improve emission system and
vehicle performance. Ask your service station
manager if the gasoline meets the World-Wide
Fuel Charter (WWFC) specifications.
Reformulated gasolineGUID-6E710A98-6E80-458D-AAAE-619C788A9415Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.
Gasoline containing oxygenatesGUID-ED701BDF-9E71-405C-BC2D-FF17B0BCAF54Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels
of which the oxygenate content and the fuel
compatibility for your NISSAN cannot be readily
determined. If in doubt, ask your service station
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

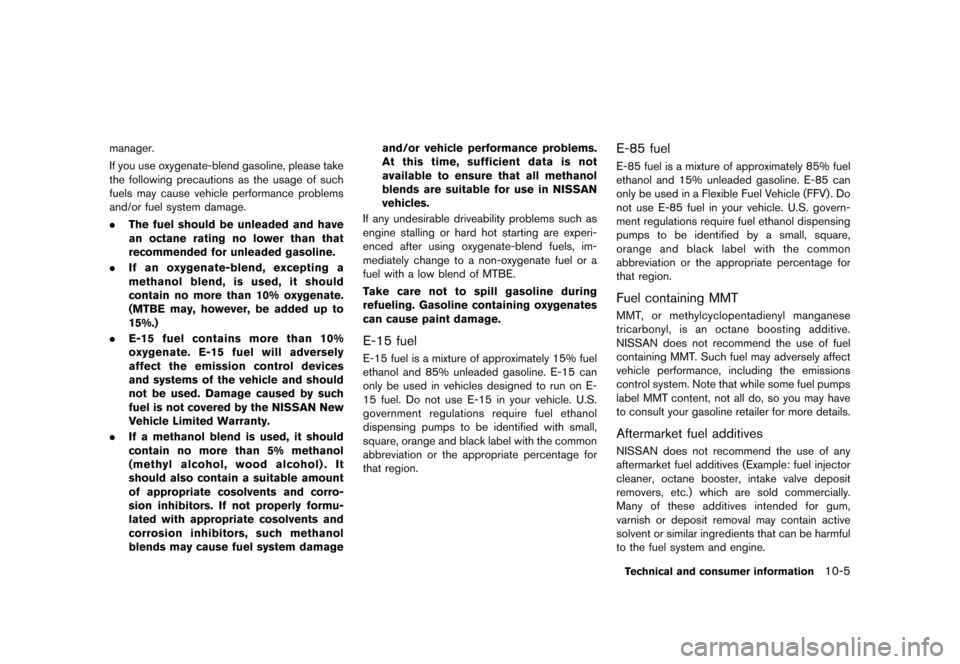

manager.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.
.The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.
. If an oxygenate-blend, excepting a
methanol blend, is used, it should
contain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)
. E-15 fuel contains more than 10%
oxygenate. E-15 fuel will adversely
affect the emission control devices
and systems of the vehicle and should
not be used. Damage caused by such
fuel is not covered by the NISSAN New
Vehicle Limited Warranty.
. If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol) . It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol
blends may cause fuel system damage and/or vehicle performance problems.
At this time, sufficient data is not
available to ensure that all methanol
blends are suitable for use in NISSAN
vehicles.
If any undesirable driveability problems such as
engine stalling or hard hot starting are experi-
enced after using oxygenate-blend fuels, im-
mediately change to a non-oxygenate fuel or a
fuel with a low blend of MTBE.
Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.
E-15 fuelGUID-7B3640EC-E445-4D85-8129-2A0AFD3A8BB8E-15 fuel is a mixture of approximately 15% fuel
ethanol and 85% unleaded gasoline. E-15 can
only be used in vehicles designed to run on E-
15 fuel. Do not use E-15 in your vehicle. U.S.
government regulations require fuel ethanol
dispensing pumps to be identified with small,
square, orange and black label with the common
abbreviation or the appropriate percentage for
that region.
E-85 fuelGUID-E7B10EF3-39A7-453E-88D9-EEE052384533E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV) . Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispensing
pumps to be identified by a small, square,
orange and black label with the common
abbreviation or the appropriate percentage for
that region.
Fuel containing MMTGUID-38456480-0B45-4003-89CB-0A6493E16273MMT, or methylcyclopentadienyl manganese
tricarbonyl, is an octane boosting additive.
NISSAN does not recommend the use of fuel
containing MMT. Such fuel may adversely affect
vehicle performance, including the emissions
control system. Note that while some fuel pumps
label MMT content, not all do, so you may have
to consult your gasoline retailer for more details.
Aftermarket fuel additivesGUID-1BF1290E-684C-4F12-91AB-B03775F5F8BBNISSAN does not recommend the use of any
aftermarket fuel additives (Example: fuel injector
cleaner, octane booster, intake valve deposit
removers, etc.) which are sold commercially.
Many of these additives intended for gum,
varnish or deposit removal may contain active
solvent or similar ingredients that can be harmful
to the fuel system and engine.
Technical and consumer information10-5
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
10-6Technical and consumer information

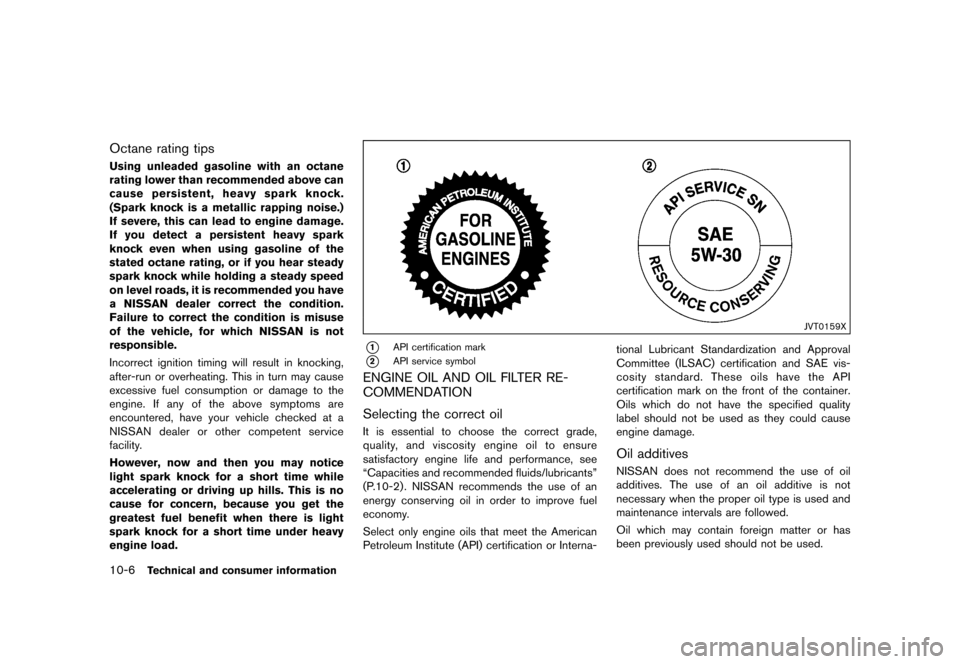

Octane rating tipsGUID-7FA66B9E-C735-4D5A-B9A7-0D150B6F3118Using unleaded gasoline with an octane
rating lower than recommended above can
cause persistent, heavy spark knock.
(Spark knock is a metallic rapping noise.)
If severe, this can lead to engine damage.
If you detect a persistent heavy spark
knock even when using gasoline of the
stated octane rating, or if you hear steady
spark knock while holding a steady speed
on level roads, it is recommended you have
a NISSAN dealer correct the condition.
Failure to correct the condition is misuse
of the vehicle, for which NISSAN is not
responsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are
encountered, have your vehicle checked at a
NISSAN dealer or other competent service
facility.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
JVT0159X
*1API certification mark
*2API service symbol
ENGINE OIL AND OIL FILTER RE-
COMMENDATION
GUID-8B253F86-4B0D-434E-AB7C-4BEC4E42CCB0
Selecting the correct oilGUID-4254FD84-FD03-4EC3-AFA5-F88A5B17916BIt is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance, see
ªCapacities and recommended fluids/lubricantsº
(P.10-2) . NISSAN recommends the use of an
energy conserving oil in order to improve fuel
economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API
certification mark on the front of the container.
Oils which do not have the specified quality
label should not be used as they could cause
engine damage.
Oil additivesGUID-536E873C-CFAD-4AB7-832C-C91DAAD5AF57NISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

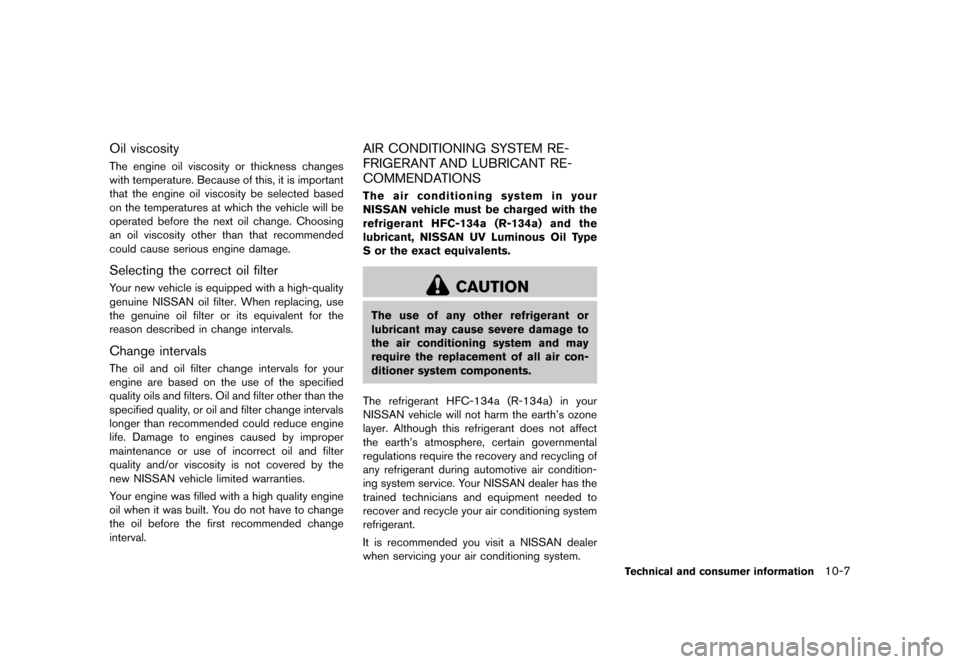

Oil viscosityGUID-0153E86E-8F0C-44F4-806C-94B56D0A6C39The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
that the engine oil viscosity be selected based
on the temperatures at which the vehicle will be
operated before the next oil change. Choosing
an oil viscosity other than that recommended
could cause serious engine damage.
Selecting the correct oil filterGUID-1C8F8F82-C208-4261-A534-59250D87D84DYour new vehicle is equipped with a high-quality
genuine NISSAN oil filter. When replacing, use
the genuine oil filter or its equivalent for the
reason described in change intervals.
Change intervalsGUID-93CA8494-A11B-4ABD-AF02-810BC57FD686The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than the
specified quality, or oil and filter change intervals
longer than recommended could reduce engine
life. Damage to engines caused by improper
maintenance or use of incorrect oil and filter
quality and/or viscosity is not covered by the
new NISSAN vehicle limited warranties.
Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval.
AIR CONDITIONING SYSTEM RE-
FRIGERANT AND LUBRICANT RE-
COMMENDATIONS
GUID-C8BC5B0A-509E-4BBB-A256-2025D90300BBThe air conditioning system in your
NISSAN vehicle must be charged with the
refrigerant HFC-134a (R-134a) and the
lubricant, NISSAN UV Luminous Oil Type
S or the exact equivalents.
CAUTION
The use of any other refrigerant or
lubricant may cause severe damage to
the air conditioning system and may
require the replacement of all air con-
ditioner system components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth's ozone
layer. Although this refrigerant does not affect
the earth's atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air condition-
ing system service. Your NISSAN dealer has the
trained technicians and equipment needed to
recover and recycle your air conditioning system
refrigerant.
It is recommended you visit a NISSAN dealer
when servicing your air conditioning system.
Technical and consumer information10-7
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

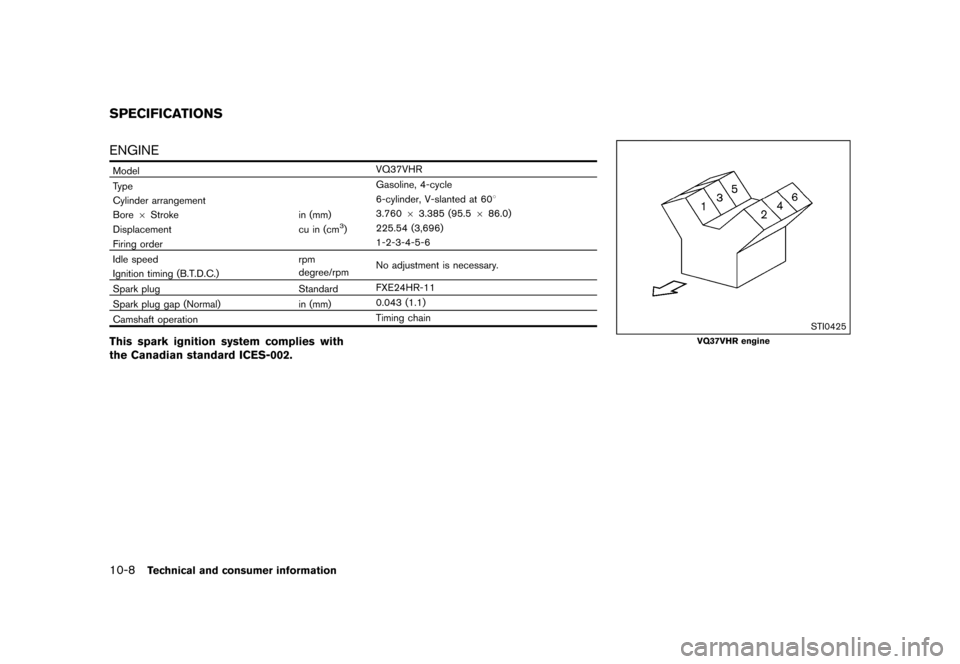

10-8Technical and consumer information
GUID-00D0D4F2-2930-46D8-BCD6-A074BFB86BE7ENGINEGUID-215BBCC5-CB2A-4605-B51E-CAFB6F597257
ModelVQ37VHR
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 608
Bore 6Stroke in (mm)3.760
63.385 (95.5 686.0)
Displacement cu in (cm
3)225.54 (3,696)
Firing order 1-2-3-4-5-6
Idle speed rpm
No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug StandardFXE24HR-11
Spark plug gap (Normal) in (mm)0.043 (1.1)
Camshaft operation Timing chain
This spark ignition system complies with
the Canadian standard ICES-002.
STI0425
VQ37VHR engine
SPECIFICATIONS
&RQGLWLRQ
