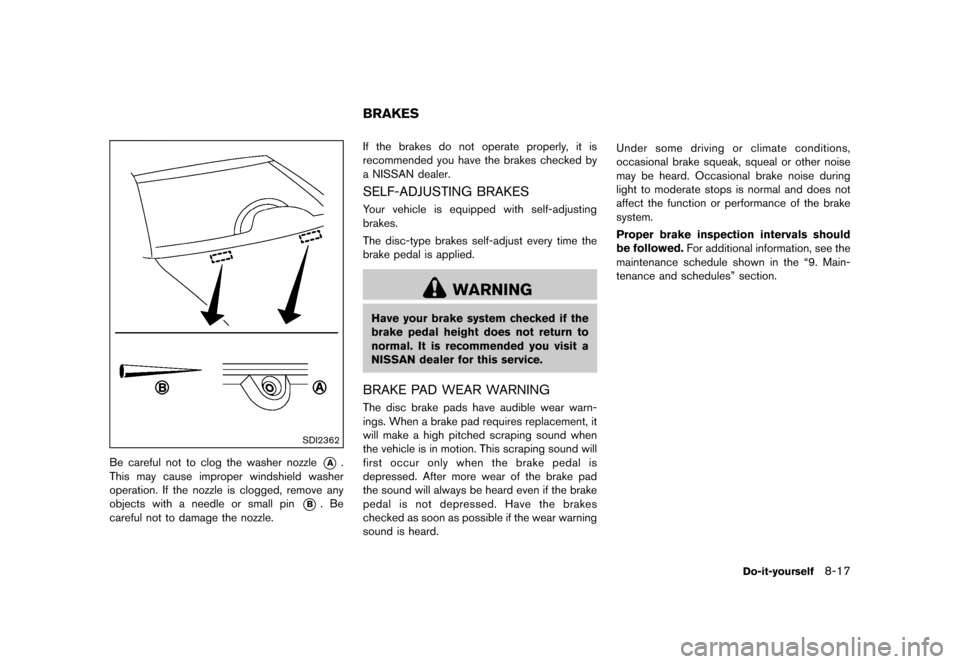

Be careful not to clog the washer nozzle*A.
This may cause improper windshield washer
operation. If the nozzle is clogged, remove any
objects with a needle or small pin
*B. Be
careful not to damage the nozzle.
GUID-855346CF-06F2-4876-9874-5E616615D19AIf the brakes do not operate properly, it is
recommended you have the brakes checked by
a NISSAN dealer.
SELF-ADJUSTING BRAKESGUID-61D336D2-08DE-43D0-99D7-3D69BDA664E2Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
Have your brake system checked if the
brake pedal height does not return to
normal. It is recommended you visit a
NISSAN dealer for this service.
BRAKE PAD WEAR WARNINGGUID-86DD85AB-9C8D-4D47-BD3B-B1650EF16BFFThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warning
sound is heard. Under some driving or climate conditions,
occasional brake squeak, squeal or other noise
may be heard. Occasional brake noise during
light to moderate stops is normal and does not
affect the function or performance of the brake
system.
Proper brake inspection intervals should
be followed.
For additional information, see the
maintenance schedule shown in the ª9. Main-
tenance and schedulesº section.
Do-it-yourself8-17
BRAKES
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
8-18Do-it-yourself
GUID-EAEC7372-8402-42CB-9CF1-BDC17D1D5274
SDI1479A
SDI2566

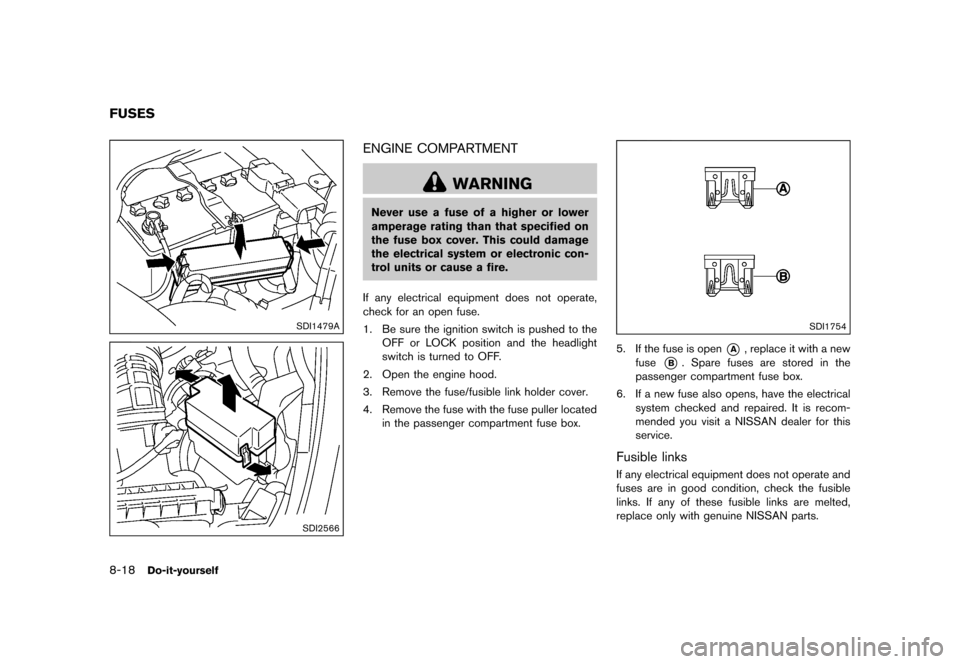

ENGINE COMPARTMENTGUID-1B0A5555-4C9F-4826-AA7F-FB5D14CE6B40
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
switch is turned to OFF.
2. Open the engine hood.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller located in the passenger compartment fuse box.
SDI1754
5. If the fuse is open*A, replace it with a new
fuse
*B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and repaired. It is recom-
mended you visit a NISSAN dealer for this
service.
Fusible linksGUID-A55E79C4-7290-4054-99DD-46FA7A621AD1If any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
FUSES
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
SDI2361

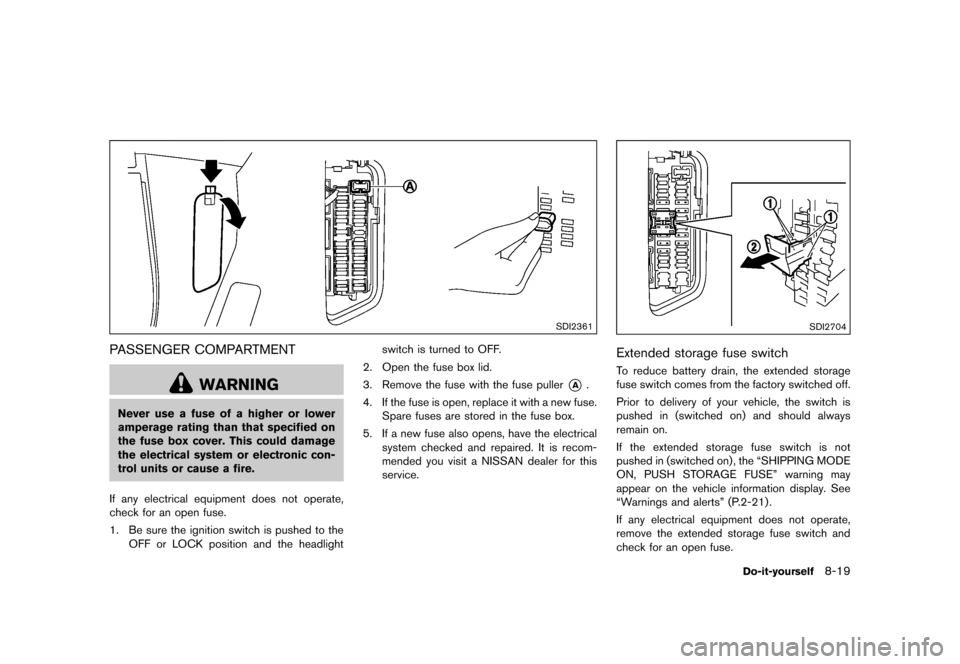

PASSENGER COMPARTMENTGUID-6D518851-BE98-467C-B161-6C604CC60083
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight switch is turned to OFF.
2. Open the fuse box lid.
3. Remove the fuse with the fuse puller
*A.
4. If the fuse is open, replace it with a new fuse. Spare fuses are stored in the fuse box.
5. If a new fuse also opens, have the electrical system checked and repaired. It is recom-
mended you visit a NISSAN dealer for this
service.
SDI2704
Extended storage fuse switchGUID-9D73A26D-98E9-48FD-AC49-4B6A3894BA9BTo reduce battery drain, the extended storage
fuse switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If the extended storage fuse switch is not
pushed in (switched on), the ªSHIPPING MODE
ON, PUSH STORAGE FUSEº warning may
appear on the vehicle information display. See
ªWarnings and alertsº (P.2-21) .
If any electrical equipment does not operate,
remove the extended storage fuse switch and
check for an open fuse.
Do-it-yourself8-19
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
8-20Do-it-yourself

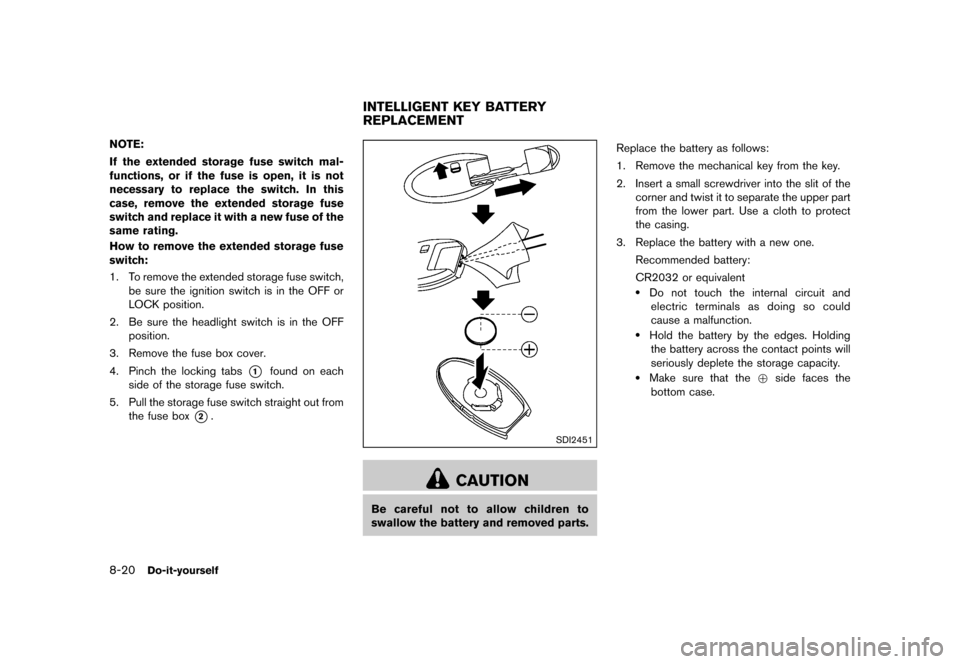

NOTE:
If the extended storage fuse switch mal-
functions, or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.
How to remove the extended storage fuse
switch:
GUID-5CB94AD4-76AC-4021-9A69-F75A6FBB61751. To remove the extended storage fuse switch,be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
*1found on each
side of the storage fuse switch.
5. Pull the storage fuse switch straight out from the fuse box
*2.
GUID-19ADB578-1FFA-465C-AF0A-55E3EFD6FDE2
SDI2451
CAUTION
Be careful not to allow children to
swallow the battery and removed parts. Replace the battery as follows:
1. Remove the mechanical key from the key.
2. Insert a small screwdriver into the slit of the
corner and twist it to separate the upper part
from the lower part. Use a cloth to protect
the casing.
3. Replace the battery with a new one. Recommended battery:
CR2032 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom case.
INTELLIGENT KEY BATTERY
REPLACEMENT
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
SDI2452

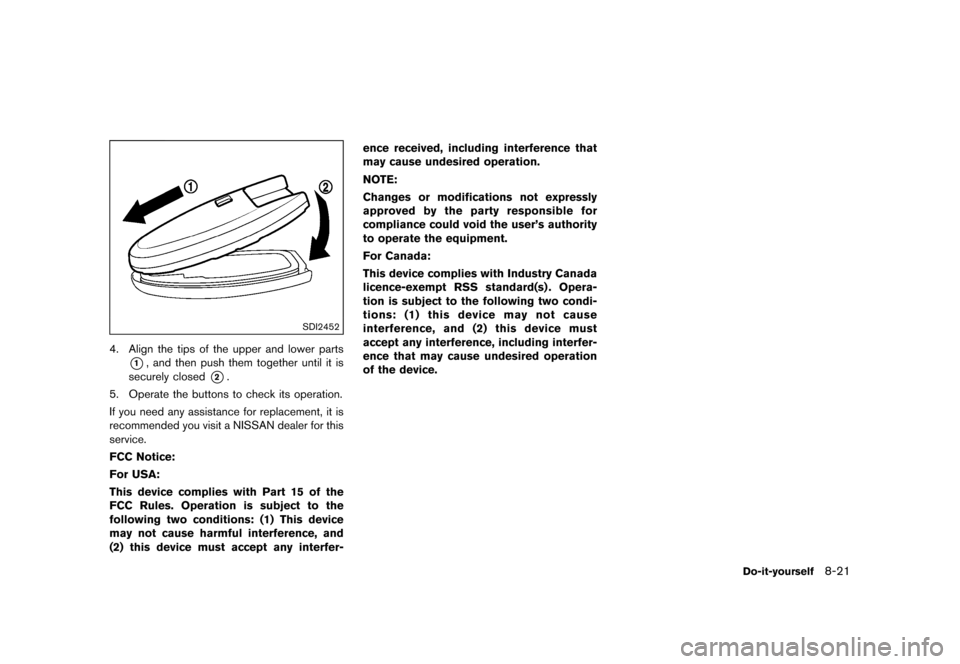

4. Align the tips of the upper and lower parts
*1, and then push them together until it is
securely closed
*2.
5. Operate the buttons to check its operation.
If you need any assistance for replacement, it is
recommended you visit a NISSAN dealer for this
service.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer- ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
Do-it-yourself8-21
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
8-22Do-it-yourself
GUID-EB65B981-E72F-4FAC-ADF0-40E2A575A79F
JVM0467X
COUPEGUID-D2ED99C7-EF8E-4A18-AFC1-576969341A871. Headlight (high- and low-beam)
2. Map light
3. Daytime running light (except for NISMO mod-els)
4. Front parking light
5. Front side marker light
6. Front turn signal light
7. Side turn signal light (if so equipped)
8. High-mounted stop light
9. Cargo light
10. Rear combination light (rear turn signal/tail/stop/ side marker/back-up light)
11. License plate light
12. Rear fog light (if so equipped)
13. Daytime running light (NISMO models)
LIGHTS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
JVM0140X

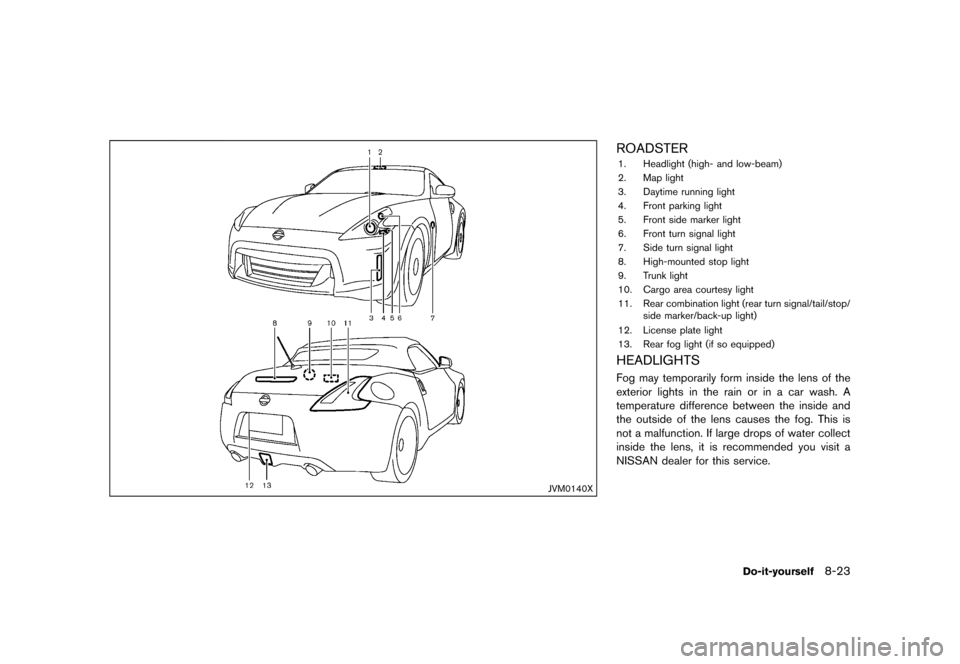

ROADSTERGUID-DD6E3D5F-4BF6-4D01-9DFF-ADB1800DCFEF1. Headlight (high- and low-beam)
2. Map light
3. Daytime running light
4. Front parking light
5. Front side marker light
6. Front turn signal light
7. Side turn signal light
8. High-mounted stop light
9. Trunk light
10. Cargo area courtesy light
11. Rear combination light (rear turn signal/tail/stop/side marker/back-up light)
12. License plate light
13. Rear fog light (if so equipped)
HEADLIGHTSGUID-68508CC1-7E92-42CD-BC8E-938EDC02B062Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, it is recommended you visit a
NISSAN dealer for this service.
Do-it-yourself8-23
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
8-24Do-it-yourself

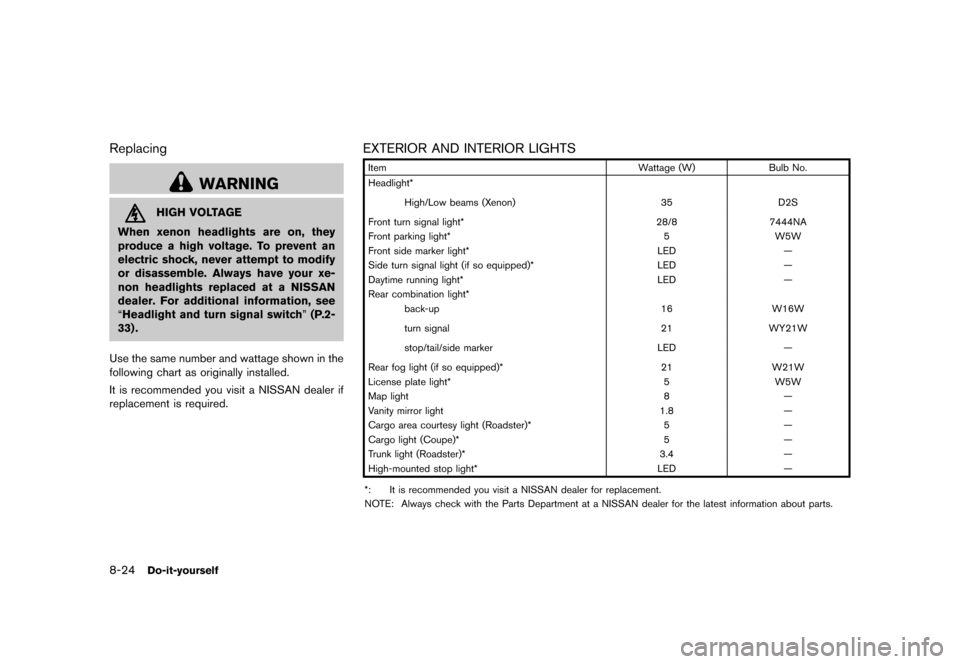

ReplacingGUID-105F3D6B-9444-472D-BFB1-087774285E30
WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
ªHeadlight and turn signal switchº (P.2-
33) .
Use the same number and wattage shown in the
following chart as originally installed.
It is recommended you visit a NISSAN dealer if
replacement is required.
EXTERIOR AND INTERIOR LIGHTSGUID-17A30D44-BE09-4C34-ABD1-5E9AA886DA61
Item Wattage (W)Bulb No.
Headlight*
High/Low beams (Xenon) 35D2S
Front turn signal light* 28/87444NA
Front parking light* 5W5W
Front side marker light* LEDÐ
Side turn signal light (if so equipped)* LEDÐ
Daytime running light* LEDÐ
Rear combination light*
back-up 16W16W
turn signal 21WY21W
stop/tail/side marker LEDÐ
Rear fog light (if so equipped)* 21W21W
License plate light* 5W5W
Map light 8Ð
Vanity mirror light 1.8Ð
Cargo area courtesy light (Roadster)* 5Ð
Cargo light (Coupe)* 5Ð
Trunk light (Roadster)* 3.4Ð
High-mounted stop light* LEDÐ
*: It is recommended you visit a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.
