2017 MITSUBISHI SHOGUN Owner's Manual (in English)

Engine model/number
The engine model and number are stamped
on the engine cylinder block as shown in the illustrations.
3000 models3200 models
Vehicle labeling
11-03OVWX17E1Specifications11

Vehicle dimensionsE01100204780
Vehicle dimensions
11-04OVWX17E1Specifications115-door models
3-door models

Item3-door models5-door models1Front track3000 models—1,560 mm3200 models1,560 mm1,570 mm2Overall widthWithout wheelhouse moulding1,845 mmWith wheelhouse moulding1,875 mm3Front overhang765 mm4Wheel base2,545 mm2,780 mm5Rear overhang1,075 mm1,355 mm6Overall length4,385 mm4,900 mm
7Ground clearance (unladen)
3000 models—235 mm3200 models210 mm210 mm, 225 mm*1
8
Overall height
Without roof rails
3000 models—1,870 mm3200 models1,840 mm1,860 mm, 1,870 mm *1
,
1,880 mm *2
9With roof rails
3000 models—1,900 mm3200 models1,870 mm1,890 mm, 1,900 mm *1
,
1,910 mm *210Rear track3000 models—1,560 mm3200 models1,560 mm1,570 mm*1
: Vehicles for Russia, Kazakhstan, Belarus and Ukraine
*2 : Vehicles with only front seats or vehicles with only front seats and second seatsItem3-door models5-door modelsMinimum turning radiusBody5.7 m6.1 m
Vehicle dimensions
11-05OVWX17E1Specifications11

Item3-door models5-door modelsWheel5.3 m5.7 m

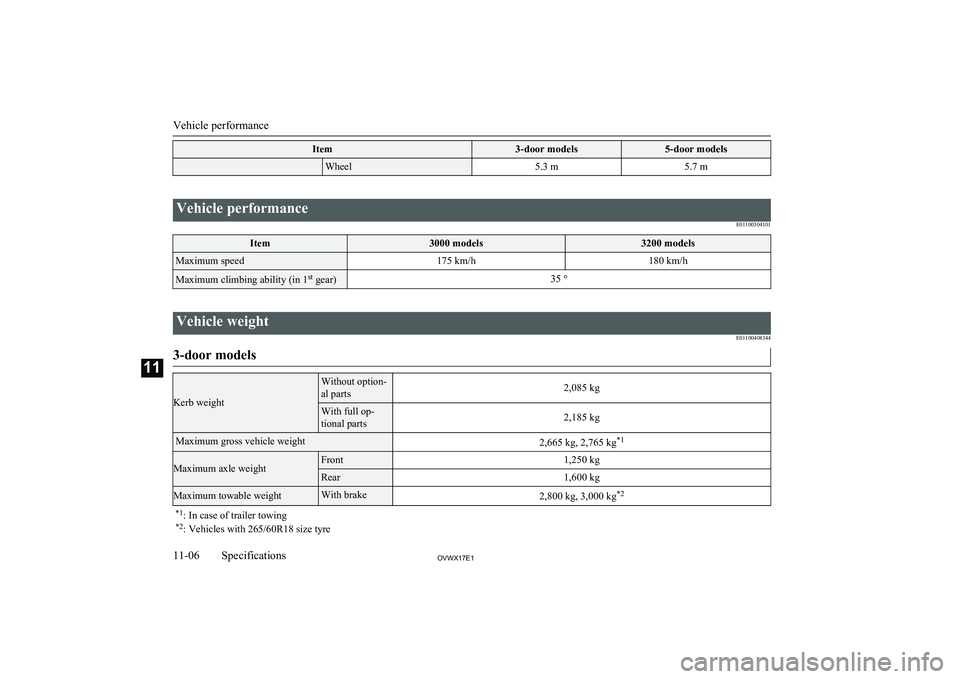

Vehicle performanceE01100304101Item3000 models3200 modelsMaximum speed175 km/h180 km/hMaximum climbing ability (in 1st
gear)35 °

Vehicle weight
E011004083443-door models
Kerb weight
Without option-
al parts2,085 kgWith full op-
tional parts2,185 kgMaximum gross vehicle weight2,665 kg, 2,765 kg *1Maximum axle weightFront1,250 kgRear1,600 kgMaximum towable weightWith brake2,800 kg, 3,000 kg*2*1
: In case of trailer towing
*2 : Vehicles with 265/60R18 size tyre
Vehicle performance
11-06OVWX17E1Specifications11

Without brake750 kgMaximum trailer-nose weight120 kg
Maximum roof load
With roof rails100 kgWithout roof
rails100 kg, 80 kg *2Seating capacity5 persons*1
: In case of trailer towing
*2 : Vehicles with 265/60R18 size tyreNOTEl Trailer specifications indicate the manufacturer’s recommendation.
Vehicle weight
11-07OVWX17E1Specifications11

5-door models
Item3000 models
3200 modelsVehicles except for Rus-sia, Kazakhstan, Bela- rus and UkraineVehicles for Russia, Ka-zakhstan, Belarus and Ukraine
Kerb weight
Without option-al parts2,120 kg
2,265 kg,
2,170 kg *1
,
2,230 kg *2
,
2,275 kg *3
2,275 kgWith full op-
tional parts2,205 kg
2,375 kg,
2,280 kg *1
,
2,340 kg *2
,
2,375 kg *3
2,380 kg
Maximum gross vehicle weight2,810 kg, 2,835 kg *43,030 kg, 3,130 kg *43,030 kg, 3,120 kg*4Maximum axle
weightFront1,250 kg1,330 kgRear1,650 kg, 1,765 kg *41,780 kg, 1,925 kg *41,780 kg, 1,925 kg*4Maximum towa-
ble weightWith brake1,800 kg3,300 kg *5
, 3,500 kg *63,300 kgWithout brake750 kgMaximum trailer-nose weight75 kg140 kg135 kg*1
: Vehicles with only front seats
*2 : Vehicles with only front seats and second seats
*3 : Vehicles complying with the Euro 5 regulation
*4 : In case of trailer towing
*5 : Vehicles with 265/65R17 size tyre
*6 : Vehicles with 265/60R18 size tyre
Vehicle weight
11-08OVWX17E1Specifications11

Item3000 models
3200 modelsVehicles except for Rus-sia, Kazakhstan, Bela- rus and UkraineVehicles for Russia, Ka-zakhstan, Belarus and UkraineMaximum permissible mass of the
coupling device *1*2—34 kg—Maximum roof
loadWith roof rails100 kgWithout roof
rails100 kg *5
, 80 kg *6Seating capacity7 persons, 2 persons *1
, 5 persons *2*1
: Vehicles with only front seats
*2 : Vehicles with only front seats and second seats
*3 : Vehicles complying with the Euro 5 regulation
*4 : In case of trailer towing
*5 : Vehicles with 265/65R17 size tyre
*6 : Vehicles with 265/60R18 size tyreNOTEl Trailer specifications indicate the manufacturer’s recommendation.

Vehicle weight
11-09OVWX17E1Specifications11

Engine specificationsE01100604579
Item3000 models
3200 modelsVehicles except for Russia,Kazakhstan, Belarus and UkraineVehicles for Russia, Kazakhstan,Belarus and UkraineEngine model6G724M41No. of cylinders6-V (60 °)4 in lineTotal displacement2,972 cc3,200 ccBore91.1 mm98.5 mmStroke76.0 mm105.0 mmCamshaftSingle overheadDouble overheadMixture preparationElectronic injectionElectronic injectionMaximum output
(EEC net)128 kW/5,250 r/min *1
,
130 kW/5,250 r/min *2140 kW/3,500 r/min138 kW/3,800 r/minMaximum torque
(EEC net)255 N•m/4,000 r/min *1
,
259 N•m/4,000 r/min *2441 N•m/2,000 r/min*1
: Vehicles complying with the Euro 5 regulation
*2 : Vehicles complying with the Euro 4 regulation

Engine specifications
11-10OVWX17E1Specifications11
