2017 MITSUBISHI SHOGUN Owner's Manual (in English)

Front fog lamps*
E01004002983
1. Remove the 5 clips (A, C) and screw (B)
by following procedures then turn up the cover (D).
2. Depress the tab (E) on the harness con-
nector (F) and pull the harness connector
to remove it.
3. Remove the entire socket and bulb as-
sembly (G) by turning it anticlockwise.CAUTIONl Handle halogen lamp bulbs with care. The
gas inside halogen lamp bulbs is highly pres-
surized, so dropping, knocking, or scratching
a halogen lamp bulb can cause it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb to break the next time the fog lamps are op- erated. If the glass surface is dirty, it must becleaned with alcohol, paint thinner, etc., and
refit it after drying thoroughly.
4. To install the bulb, perform the removal
steps in reverse.
NOTEl When refitting the clips (H and I) of the cov-
er, push the pin (J).
Replacement of lamp bulbs
10-27OVWX17E1Maintenance10

Rear combination lamps
E01004200659
On corner side
1. Remove the screws that hold the lamp
unit.
2. Slide the lamp unit out sideways to re-
move it.
Left sideRight side3. Remove the socket and bulb assemblies
by turning them anticlockwise. Remove the bulb by pulling it out.3-door models5-door models
A- Rear turn-signal lamp* B- Stop and tail lamp* Stop lamp*
C- Reversing lamp
4. To install the bulb, perform the removal
steps in reverse.
On bumper*
1. Remove the lens mounting screws.
2. Remove the socket and bulb assembly
together by turning it anticlockwise, and then remove the bulb by pulling it out.
D- Rear turn-signal lamp
E- Tail lamp
3. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
10-28OVWX17E1Maintenance10

Rear fog lamp
E01004100371
1. Open the spare wheel garnish (A). (Re-
fer to “To remove the spare wheel” on
page 8-10).
2. Remove the socket and bulb assembly
(B) by turning it anticlockwise, and then remove the bulb by pulling it out.
3. To install the bulb, perform the removal
steps in reverse.High-mounted stop lamp (bulb
type)*
E01004500535
1. Insert a straight blade (or minus) screw-
driver with a cloth over at the edge of
the cover and pry gently to remove the cover.
2. Remove the socket and bulb assembly
together by turning it anticlockwise, and then remove the bulb by pulling it out.
3. To install the bulb, perform the removal
steps in reverse.
Licence plate lamps
E01004602136
1. Remove the mounting screws and re-
move the lamp unit.
Replacement of lamp bulbs
10-29OVWX17E1Maintenance10

2.Remove the socket and bulb assembly
(A) together by turning it anticlockwise and then remove the bulb by pulling it out.
3. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lamp unit, make sure the
direction of the lens is installed as shown in the illustration.
*: Right side of the vehicle
Room & map lamps
E01009500093
1. Insert a straight blade (or minus) screw-
driver with a cloth over its tip into the
lens and pry gently to remove it.
2. Remove the bulb from the lamp holder.
3. To install the bulb, perform the removal
steps in reverse.NOTEl When installing the lens, align the tab on the
lens with the hole on the vehicle side.Rear personal lamps
E01005200252
When replacing a bulb, keep the interior
lamp switch in the “
” (OFF) position.
Replacement of lamp bulbs
10-30OVWX17E1Maintenance10 *

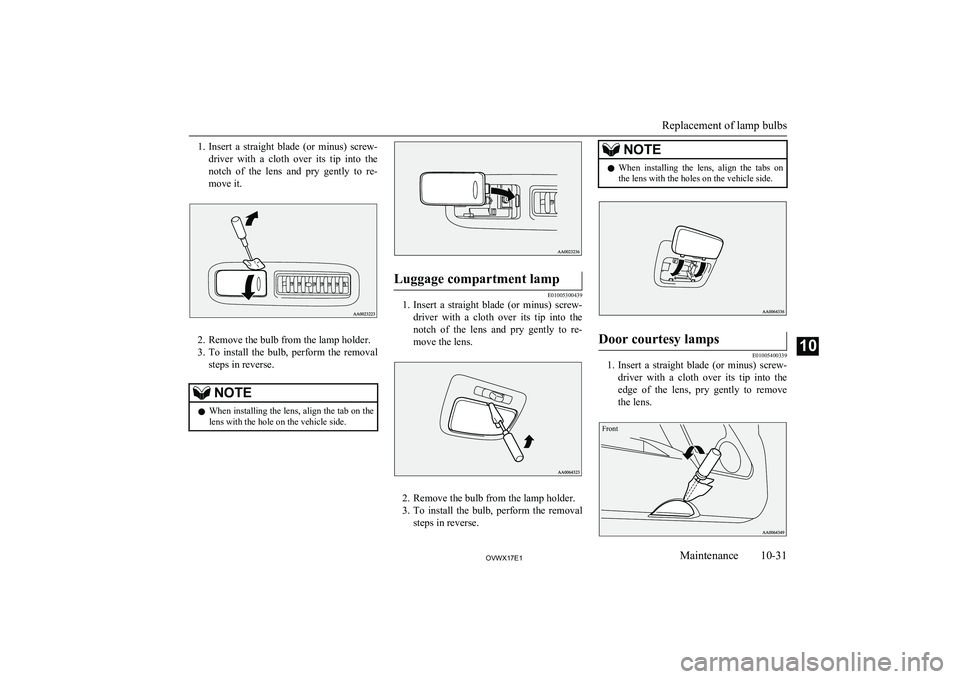

1.Insert a straight blade (or minus) screw-
driver with a cloth over its tip into the notch of the lens and pry gently to re-
move it.
2. Remove the bulb from the lamp holder.
3. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lens, align the tab on the
lens with the hole on the vehicle side.Luggage compartment lamp
E01005300439
1. Insert a straight blade (or minus) screw-
driver with a cloth over its tip into the
notch of the lens and pry gently to re- move the lens.
2. Remove the bulb from the lamp holder.
3. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lens, align the tabs on
the lens with the holes on the vehicle side.Door courtesy lamps
E01005400339
1. Insert a straight blade (or minus) screw-
driver with a cloth over its tip into the
edge of the lens, pry gently to remove
the lens.
Front
Replacement of lamp bulbs
10-31OVWX17E1Maintenance10

Rear
2. Remove the bulb from the lamp holder.
3. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lens, align the 2 tabs on
the lens with the notches on the vehicle side.Glove box lamp
E01006100232
1. Pull out the bulb.
2. To install the bulb, perform the removal
steps in reverse.
Vanity mirror lamps*
E01006200262
1. Insert a straight blade (or minus) screw-
driver with a cloth over its tip into the
notch of the lens and pry gently to re-
move it.
2. Remove the bulb from the lamp holder.
3. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
10-32OVWX17E1Maintenance10

Vehicle labeling................................................................................ 11-02
Vehicle dimensions........................................................................... 11-04
Vehicle performance......................................................................... 11-06 Vehicle weight.................................................................................. 11-06
Engine specifications........................................................................ 11-10
Electrical system............................................................................... 11-11
Tyres and wheels...............................................................................11-11
Fuel consumption.............................................................................. 11-12
Refill capacities................................................................................. 11-14Specifications
OVWX17E111

Vehicle labelingE01100105180
1.Vehicle identification number
The vehicle identification number is stampedon the bulkhead as shown in the illustration.
2.Vehicle information code
plate
The vehicle information code plate is clipped as shown in the illustration.
The plate shows model code, engine model,
transmission model and body colour code,
etc.
Please use this number when ordering re-
placement parts.
1- Model code
2- Engine model code
3- Transmission model code
4- Body colour code
5- Interior code
6- Option code
7- Exterior code
Vehicle identification number
plate (RHD vehicles only)
The vehicle identification number is stamped on the plate riveted to the left front corner of
the instrument panel pad. It is visible from outside of the vehicle through the wind-
screen.
Vehicle labeling
11-02OVWX17E1Specifications11
