CAUTIONlDepending on how the devices are handled,
audio files being damaged or lost, therefore
it is recommended that data be backed up.NOTEl Digital audio players that support the mass
storage class specifications can be connec- ted.
l For details regarding the types of USB devi-
ces that can be connected and the types of files that can be played back in vehicles with
a Bluetooth ®
2.0 interface, refer to “Types
of connectable devices and supported file specifications” on page 7-72.
l Regarding how to connect USB devices, re-
fer to “How to connect a USB memory de-vice” on page 7-71.
l When connecting a USB device, use a con-
nection cable. Failure to use a connection ca-
ble when connecting may place undue load on, or damage the USB connector.
l Set up the device in order that no unsafe ac-
tions, such as plugging in the connection ca-ble are taken while driving.
l When inserting and removing the USB de-
vice, for safety’s sake first stop the vehicle.
l Do not insert other than audio devices into
the USB port. Damage to the device or equipment may result.
l Depending on the status of the USB device,
it may take some time until the device is rec-
ognized, or playback starts.NOTEl Depending on the USB device, the button
functions on the product may not operatewhile the USB device is connected.
l USB device specifications and settings may
mean that connection is not possible, or re-
sult in differences in operation or display.
l Depending on audio data in the USB device,
track information may not be displayed cor- rectly.
l Depending on the status of the vehicle and
device, the iPod/iPhone may not play back after starting the engine.
l Data containing copyright information may
not play back.
l This product can play back MP3, WMA, and
AAC format audio files.
l Depending on the type of USB device, usage
may not be possible, or functions that can beused may be restricted.
l The recommended file system for USB
memory is FAT32.
l The maximum supported capacity for USB
memory is 32GB.
l Operate the USB device containing recorded
audio files while connected to this product.
Play Back of Audio Files on a
USB Device
Press the MEDIA key to set

USB as the source. The selected source is in- dicated on the display.
Select the Track (File)
Press the key or key to select the
track.

This enables selection of the next or previous
track.
Fast Forward or Rewind
Hold down the 3 key or the 4 key.

Fast forward/rewind is possible.
Switch Playback Mode
Repeat playback, random playback, and scan
playback are possible.
Repeat Playback (RPT)
Press the 1RPT key.

Repeat playback of the track currently being
played.
NOTEl Pressing again will cancel.
l Selecting a file will cancel this.
Folder Repeat Playback
Hold down the 1RPT key.
Listen to Audio Files on a USB Device
7-32OVWX17E1For pleasant driving7

Additional equipment
It is a good idea to carry a shovel or a short-handled spade in the vehicle during the win-ter so that you can clear away snow if you get
stranded. A small hand-brush for sweeping snow off the vehicle and a plastic scraper for
the windscreen and rear window are also use- ful.
Fusible links
E01002900434
The fusible links will melt to prevent a fire if
a large current attempts to flow through cer- tain electrical systems.
In case of a melted fusible link, we recom- mend you to have your vehicle inspected.For the fusible links, please refer to “Fuse
load capacity” on page 10-18.
WARNINGl Fusible links must not be replaced by any
other device. Failing to fit the correct fusi- ble link may result in fire in the vehicle,
property destruction and serious or fatal injuries at any time.Fuses
E01003000849Fuse block location
E01007601521
To prevent damage to the electrical systemdue to short-circuiting or overloading, each individual circuit is provided with a fuse.
There are fuse blocks in the passenger com- partment and in the engine compartment.
Passenger compartment
The fuse block in the passenger compartment is located in front of the driver’s seat at the position shown in the illustration.
Engine compartment
In the engine compartment, the fuse blocks
are located as shown in the illustration.
Type AType BFuse load capacity
E01007700105
The fuse capacity and the name of the electri- cal systems protected by the fuses are indica-
ted on the inside of the lid located at the driv-
er’s leg area and on the inside of the fuse block cover for fuses located in the engine
compartment.
Fusible links
10-18OVWX17E1Maintenance10

Identification of fuse
E01008100164
Ca-
pacityColour7.5 ABrown10 ARed15 ABlue20 AYellow (fuse type)/Light blue (fu- sible link type)25 ATransparent30 AGreen (fuse type)/
Pink (fusible link type)40 AGreen50 ARed60 AYellow80 ABlack140 AReddish brownFuse replacement
E01007801901
1. Before replacing a fuse, always turn off
the electrical circuit concerned and place
the ignition switch in the “LOCK” posi-
tion.
2. Pull the fuse block lid (A) to remove it.
3. Remove the fuse puller (B) from the fuse
block lid.
4. The replacement of fuses located in the
driver’s seat leg area should be per- formed from the hole of the fuse block
lid.
5. Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
C- Fuse is OK
D- Blown fuse
NOTEl If any system does not function but the fuse
corresponding to that system is normal, theremay be a fault in the system elsewhere. We recommend you to have your vehiclechecked.
6. Insert a new fuse of the same capacity
by using the fuse puller into the same
place at the fuse block.
Fuses
10-22OVWX17E1Maintenance10

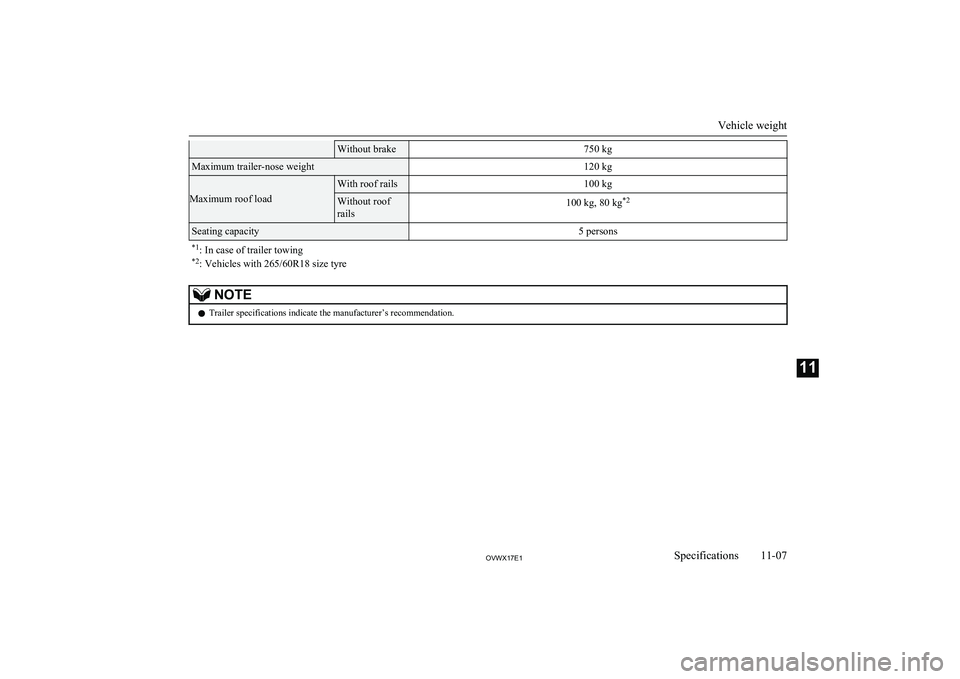

Without brake750 kgMaximum trailer-nose weight120 kg
Maximum roof load
With roof rails100 kgWithout roof
rails100 kg, 80 kg *2Seating capacity5 persons*1
: In case of trailer towing
*2 : Vehicles with 265/60R18 size tyreNOTEl Trailer specifications indicate the manufacturer’s recommendation.
Vehicle weight
11-07OVWX17E1Specifications11

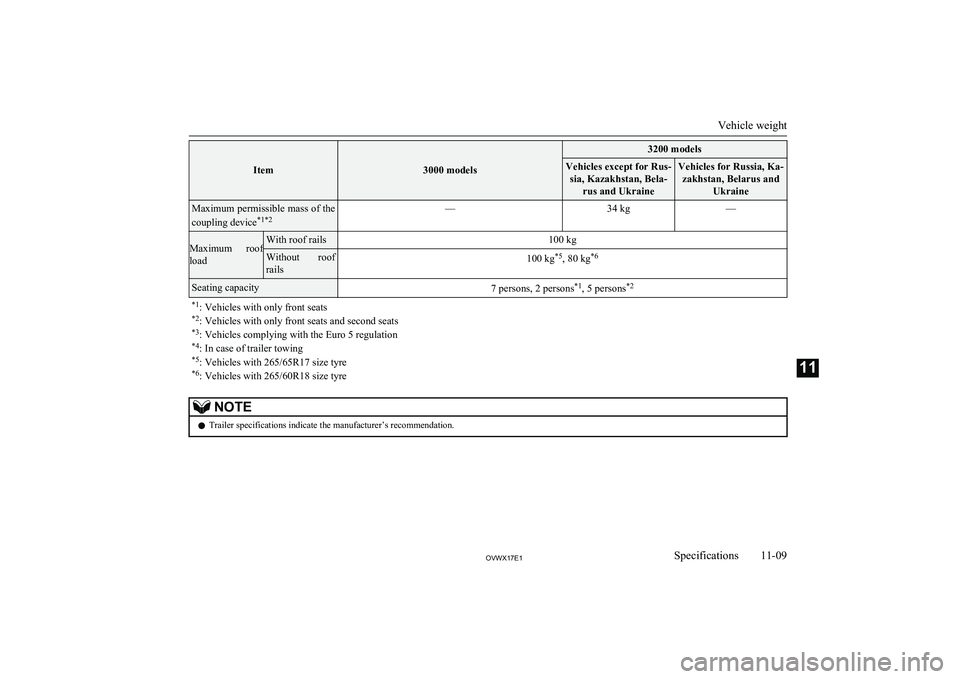

Item3000 models
3200 modelsVehicles except for Rus-sia, Kazakhstan, Bela- rus and UkraineVehicles for Russia, Ka-zakhstan, Belarus and UkraineMaximum permissible mass of the
coupling device *1*2—34 kg—Maximum roof
loadWith roof rails100 kgWithout roof
rails100 kg *5
, 80 kg *6Seating capacity7 persons, 2 persons *1
, 5 persons *2*1
: Vehicles with only front seats
*2 : Vehicles with only front seats and second seats
*3 : Vehicles complying with the Euro 5 regulation
*4 : In case of trailer towing
*5 : Vehicles with 265/65R17 size tyre
*6 : Vehicles with 265/60R18 size tyreNOTEl Trailer specifications indicate the manufacturer’s recommendation.

Vehicle weight
11-09OVWX17E1Specifications11

A
